WAN – Packet and Cellswitched Networks X. 25, Frame Relay ATM Data Communication (E&T

WAN – Packet and Cellswitched Networks X. 25, Frame Relay ATM Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 1

Introduction l Starting from the 1980’s, the emphasis in wide area networking has been

Introduction l Starting from the 1980’s, the emphasis in wide area networking has been shifting from dedicated point-to-point connections (circuit-switched and leased lines) to switched alternatives (packet and cell-switched networks) because: – A full mesh network requires a large number of pointto-point connections while switched networks provide any-to-any connectivity. – Point-to-Point links are engineered to meet peak traffics. During non-peak hours, transmission capacity is wasted. Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 2

Agenda Packet-switched Network l Connectionless and Connection-oriented Services l – Datagram and Virtual Circuit

Agenda Packet-switched Network l Connectionless and Connection-oriented Services l – Datagram and Virtual Circuit – Permanent and Switched Virtual Circuits (PVC and SVC) X. 25 and Frame Relay Packet-switched Networks l Cell-switched Network – ATM l Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 3

Packet-Switched Network In packet-switched network, messages are broken up into small packets before they

Packet-Switched Network In packet-switched network, messages are broken up into small packets before they are sent. l Packets from multiple sources travel through links and routers in an interleaved (STDM) fashion (i. e. the physical links are shared). l Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 4

Packets from multiple sources traveling through a packet-switch network Source: Forouzan, Data Comm. and

Packets from multiple sources traveling through a packet-switch network Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 5

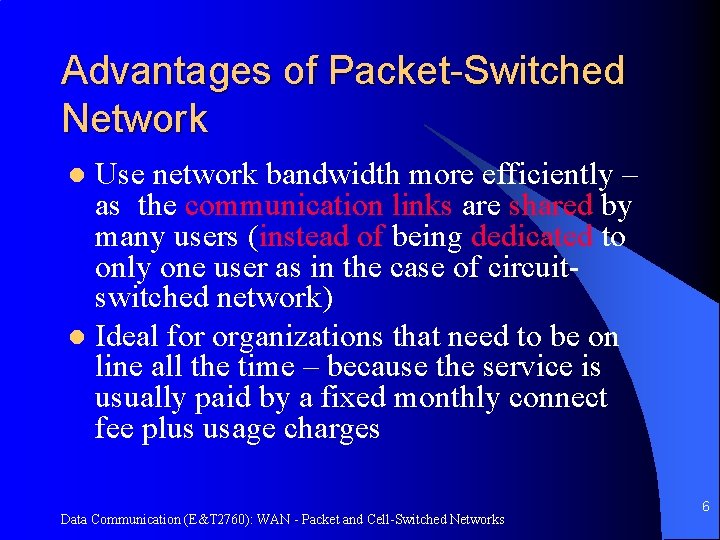

Advantages of Packet-Switched Network Use network bandwidth more efficiently – as the communication links

Advantages of Packet-Switched Network Use network bandwidth more efficiently – as the communication links are shared by many users (instead of being dedicated to only one user as in the case of circuitswitched network) l Ideal for organizations that need to be on line all the time – because the service is usually paid by a fixed monthly connect fee plus usage charges l Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 6

Connectionless Transmission Service § § § Also known as Datagram service Packets are forwarded

Connectionless Transmission Service § § § Also known as Datagram service Packets are forwarded on-the-fly by routers, based on the current best path to a destination. Packets may travel through different routes and hence arrive the destination out of orders. Normally work without error recovery procedures unreliable used to transfer short messages e. g. UDP protocol Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 7

Connectionless (i. e. Datagram) Service Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data

Connectionless (i. e. Datagram) Service Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 8

Connection-oriented Transmission Services § § § A path (virtual circuit) must be established between

Connection-oriented Transmission Services § § § A path (virtual circuit) must be established between source and destination across the network before packets can start to flow. All packets go through the same path so they always arrive the destination in the right order. Normally work with error recovery procedures reliable used to transfer long messages e. g. X. 25, Frame Relay networks, TCP protocol Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 9

Virtual Circuits: PVC and SVC A. Permanent Virtual Circuit (PVC) Ø similar to leased

Virtual Circuits: PVC and SVC A. Permanent Virtual Circuit (PVC) Ø similar to leased lines Ø established by user subscription and is always available to the DTE as a permanent resource Ø the major type of circuits available from packetswitched and cell-switched network providers B. Switched Virtual Circuit (SVC) Ø like telephone calls Ø a connection is established first, then data are transferred and finally the connection is released. Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 10

Permanent Virtual Circuit (PVC) Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication

Permanent Virtual Circuit (PVC) Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 11

Switched Virtual Circuit (SVC) Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication

Switched Virtual Circuit (SVC) Source: Forouzan, Data Comm. and Networking, Mc. Graw-Hill Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 12

X. 25 Packet-switched Network Has been around since the mid 1970's when most WAN

X. 25 Packet-switched Network Has been around since the mid 1970's when most WAN circuits were still analog and thus susceptible to errors. l Provides very robust error checking to guarantees data integrity at the cost of large network delays l Speed ≤ 64 kbps l Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 13

Frame Relay Packet-switched Network Became popular since the mid 1980’s when modern digital and

Frame Relay Packet-switched Network Became popular since the mid 1980’s when modern digital and optical networks have advanced to the extent that node-tonode error correction throughout the network is no longer necessary. l Leaves it up to the end stations (i. e. transport layer) to handle any errors. l Fast packet switching with minimal network delay. l Speed: up to T 1 or even T 3 l Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 14

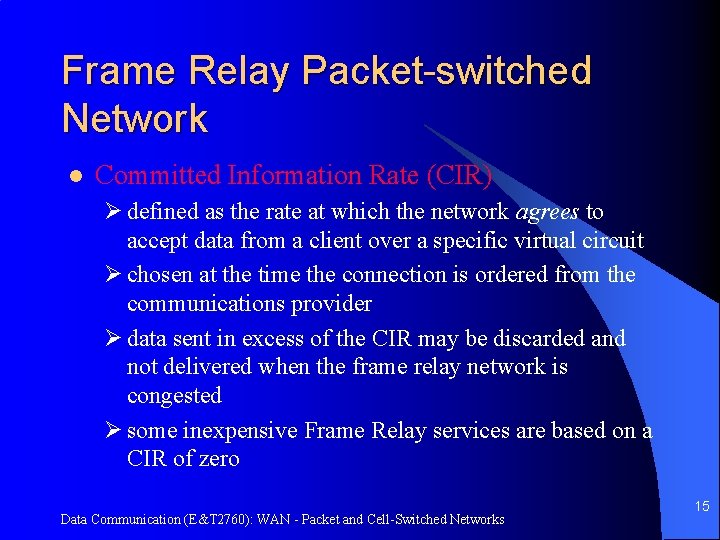

Frame Relay Packet-switched Network l Committed Information Rate (CIR) Ø defined as the rate

Frame Relay Packet-switched Network l Committed Information Rate (CIR) Ø defined as the rate at which the network agrees to accept data from a client over a specific virtual circuit Ø chosen at the time the connection is ordered from the communications provider Ø data sent in excess of the CIR may be discarded and not delivered when the frame relay network is congested Ø some inexpensive Frame Relay services are based on a CIR of zero Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 15

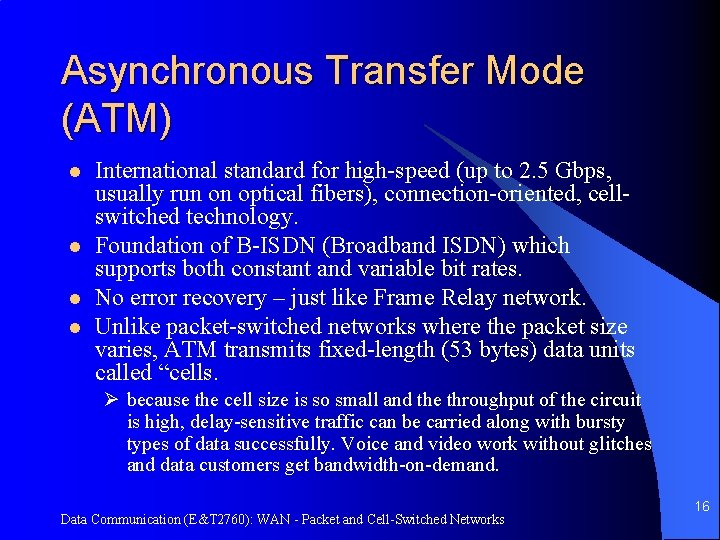

Asynchronous Transfer Mode (ATM) l l International standard for high-speed (up to 2. 5

Asynchronous Transfer Mode (ATM) l l International standard for high-speed (up to 2. 5 Gbps, usually run on optical fibers), connection-oriented, cellswitched technology. Foundation of B-ISDN (Broadband ISDN) which supports both constant and variable bit rates. No error recovery – just like Frame Relay network. Unlike packet-switched networks where the packet size varies, ATM transmits fixed-length (53 bytes) data units called “cells. Ø because the cell size is so small and the throughput of the circuit is high, delay-sensitive traffic can be carried along with bursty types of data successfully. Voice and video work without glitches and data customers get bandwidth-on-demand. Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 16

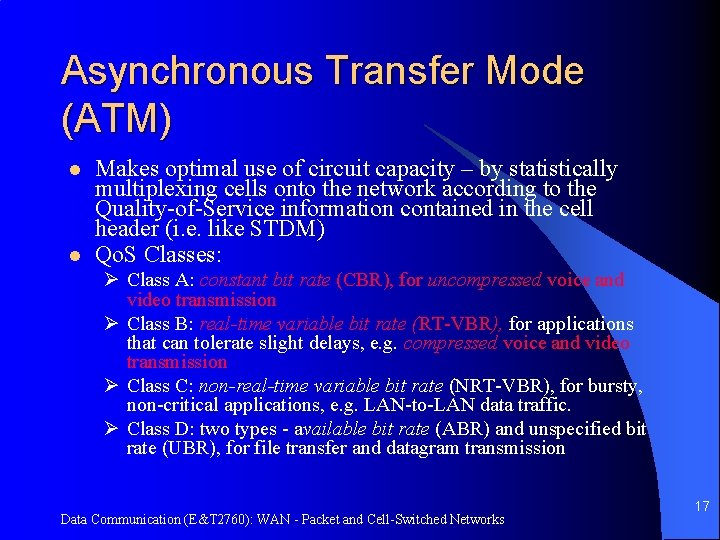

Asynchronous Transfer Mode (ATM) l l Makes optimal use of circuit capacity – by

Asynchronous Transfer Mode (ATM) l l Makes optimal use of circuit capacity – by statistically multiplexing cells onto the network according to the Quality-of-Service information contained in the cell header (i. e. like STDM) Qo. S Classes: Ø Class A: constant bit rate (CBR), for uncompressed voice and video transmission Ø Class B: real-time variable bit rate (RT-VBR), for applications that can tolerate slight delays, e. g. compressed voice and video transmission Ø Class C: non-real-time variable bit rate (NRT-VBR), for bursty, non-critical applications, e. g. LAN-to-LAN data traffic. Ø Class D: two types - available bit rate (ABR) and unspecified bit rate (UBR), for file transfer and datagram transmission Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 17

Source: West. Net Learning Technologies Data Communication (E&T 2760): WAN - Packet and Cell-Switched

Source: West. Net Learning Technologies Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 18

Where to Get More Information l West. Net Learning Technologies – http: //www. webclasses.

Where to Get More Information l West. Net Learning Technologies – http: //www. webclasses. net/3 comu/intro/units/ unit 07/ l Data Communications and Networking, by Behrouz A. Forouzan, Publisher: Mc. Graw. Hill – Chapter 17, 18, 19 Data Communication (E&T 2760): WAN - Packet and Cell-Switched Networks 19
