Vulnerabilities and Threats in Distributed Systems Prof Bharat
Vulnerabilities and Threats in Distributed Systems* Prof. Bharat Bhargava Dr. Leszek Lilien Department of Computer Sciences and the Center for Education and Research in Information Assurance and Security (CERIAS ) Purdue University www. cs. purdue. edu/people/{bb, llilien} Presented by Prof. Sanjay Madria Department of Computer Science University of Missouri-Rolla 3/23/04 * Supported in part by NSF grants IIS-0209059 and IIS-0242840

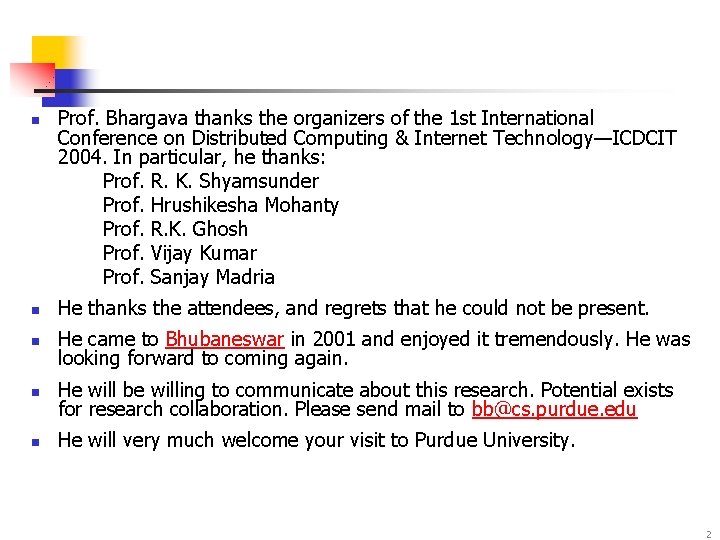

n Prof. Bhargava thanks the organizers of the 1 st International Conference on Distributed Computing & Internet Technology—ICDCIT 2004. In particular, he thanks: Prof. R. K. Shyamsunder Prof. Hrushikesha Mohanty Prof. R. K. Ghosh Prof. Vijay Kumar Prof. Sanjay Madria n He thanks the attendees, and regrets that he could not be present. n He came to Bhubaneswar in 2001 and enjoyed it tremendously. He was looking forward to coming again. n He will be willing to communicate about this research. Potential exists for research collaboration. Please send mail to bb@cs. purdue. edu n He will very much welcome your visit to Purdue University. 2

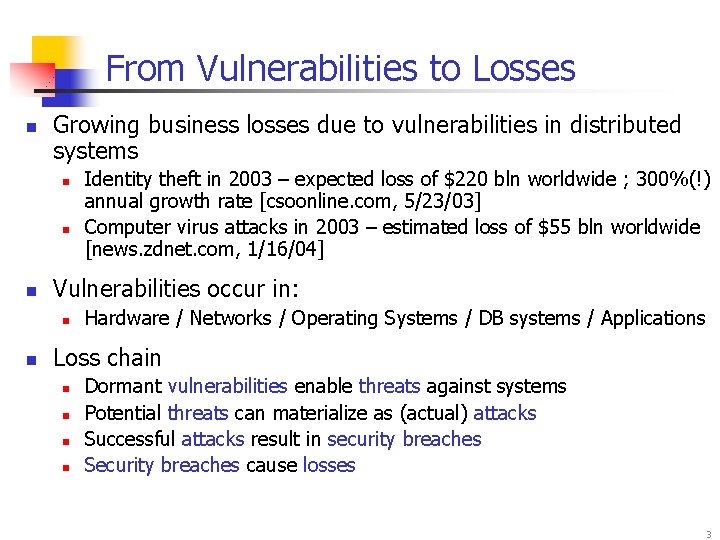

From Vulnerabilities to Losses n Growing business losses due to vulnerabilities in distributed systems n n n Vulnerabilities occur in: n n Hardware / Networks / Operating Systems / DB systems / Applications Loss chain n n Identity theft in 2003 – expected loss of $220 bln worldwide ; 300%(!) annual growth rate [csoonline. com, 5/23/03] Computer virus attacks in 2003 – estimated loss of $55 bln worldwide [news. zdnet. com, 1/16/04] Dormant vulnerabilities enable threats against systems Potential threats can materialize as (actual) attacks Successful attacks result in security breaches Security breaches cause losses 3

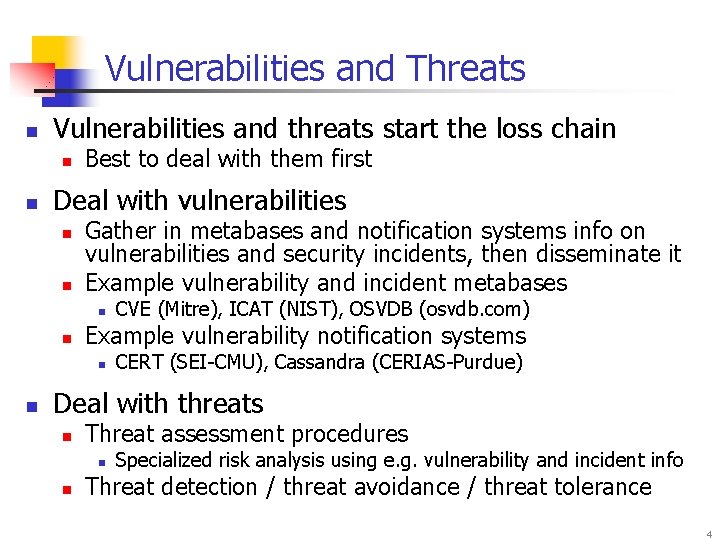

Vulnerabilities and Threats n Vulnerabilities and threats start the loss chain n n Best to deal with them first Deal with vulnerabilities n n Gather in metabases and notification systems info on vulnerabilities and security incidents, then disseminate it Example vulnerability and incident metabases n n Example vulnerability notification systems n n CERT (SEI-CMU), Cassandra (CERIAS-Purdue) Deal with threats n Threat assessment procedures n n CVE (Mitre), ICAT (NIST), OSVDB (osvdb. com) Specialized risk analysis using e. g. vulnerability and incident info Threat detection / threat avoidance / threat tolerance 4

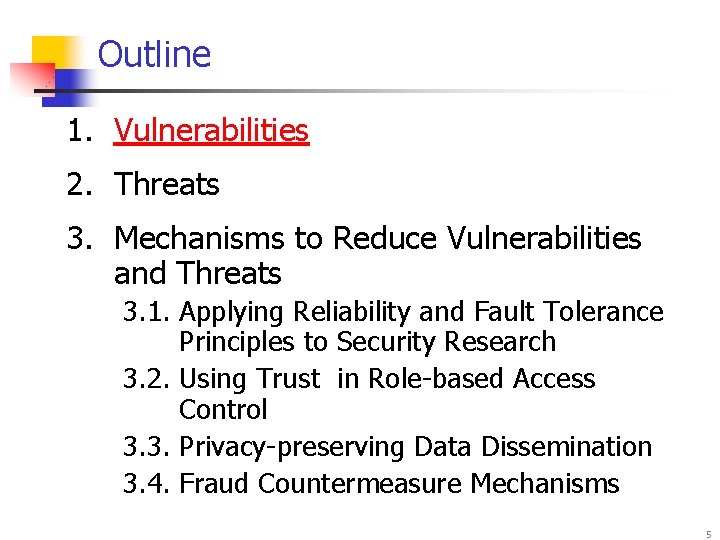

Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 5

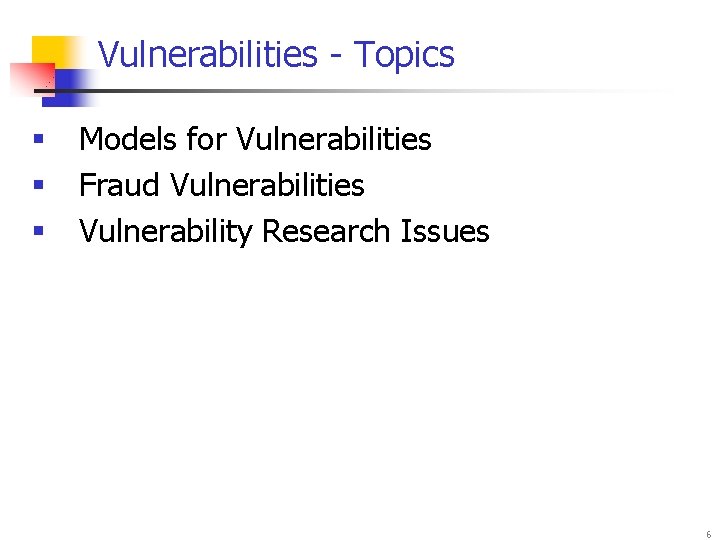

Vulnerabilities - Topics § § § Models for Vulnerabilities Fraud Vulnerabilities Vulnerability Research Issues 6

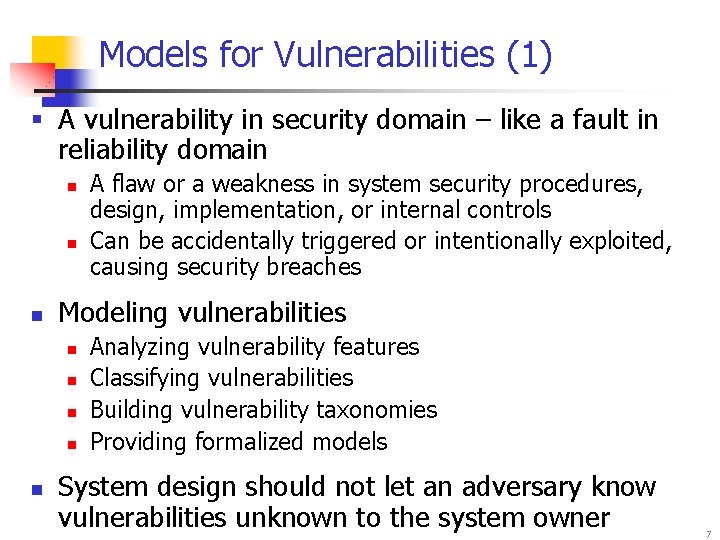

Models for Vulnerabilities (1) § A vulnerability in security domain – like a fault in reliability domain n Modeling vulnerabilities n n n A flaw or a weakness in system security procedures, design, implementation, or internal controls Can be accidentally triggered or intentionally exploited, causing security breaches Analyzing vulnerability features Classifying vulnerabilities Building vulnerability taxonomies Providing formalized models System design should not let an adversary know vulnerabilities unknown to the system owner 7

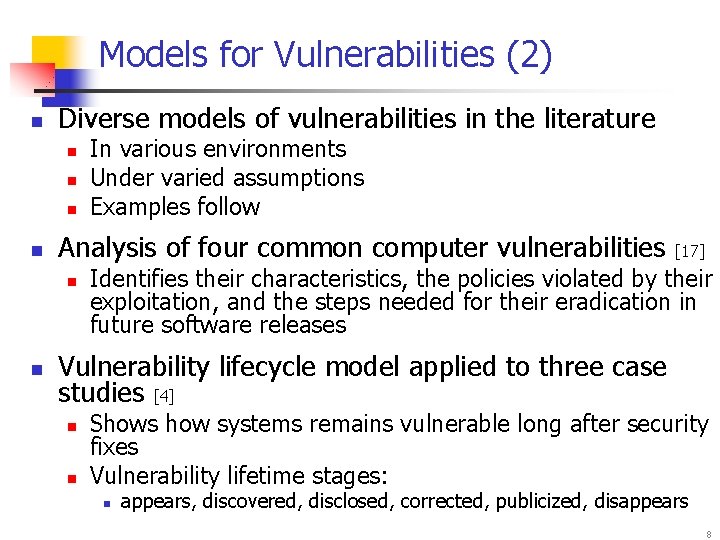

Models for Vulnerabilities (2) n Diverse models of vulnerabilities in the literature n n Analysis of four common computer vulnerabilities [17] n n In various environments Under varied assumptions Examples follow Identifies their characteristics, the policies violated by their exploitation, and the steps needed for their eradication in future software releases Vulnerability lifecycle model applied to three case studies [4] n n Shows how systems remains vulnerable long after security fixes Vulnerability lifetime stages: n appears, discovered, disclosed, corrected, publicized, disappears 8

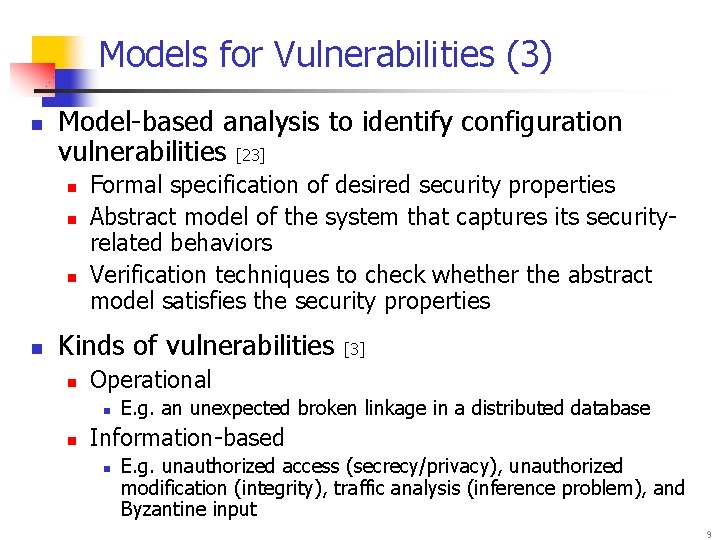

Models for Vulnerabilities (3) n Model-based analysis to identify configuration vulnerabilities [23] n n Formal specification of desired security properties Abstract model of the system that captures its securityrelated behaviors Verification techniques to check whether the abstract model satisfies the security properties Kinds of vulnerabilities [3] n Operational n n Information-based n E. g. an unexpected broken linkage in a distributed database E. g. unauthorized access (secrecy/privacy), unauthorized modification (integrity), traffic analysis (inference problem), and Byzantine input 9

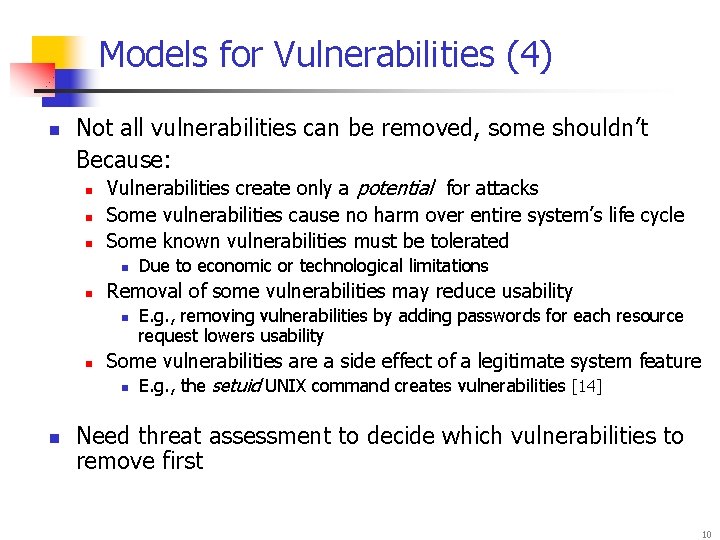

Models for Vulnerabilities (4) n Not all vulnerabilities can be removed, some shouldn’t Because: n n n Vulnerabilities create only a potential for attacks Some vulnerabilities cause no harm over entire system’s life cycle Some known vulnerabilities must be tolerated n n Removal of some vulnerabilities may reduce usability n n n Due to economic or technological limitations E. g. , removing vulnerabilities by adding passwords for each resource request lowers usability Some vulnerabilities are a side effect of a legitimate system feature n E. g. , the setuid UNIX command creates vulnerabilities [14] Need threat assessment to decide which vulnerabilities to remove first 10

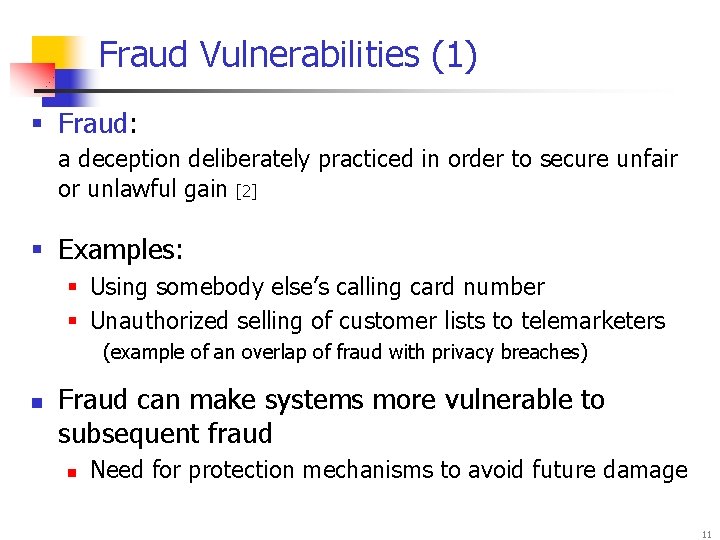

Fraud Vulnerabilities (1) § Fraud: a deception deliberately practiced in order to secure unfair or unlawful gain [2] § Examples: § Using somebody else’s calling card number § Unauthorized selling of customer lists to telemarketers (example of an overlap of fraud with privacy breaches) n Fraud can make systems more vulnerable to subsequent fraud n Need for protection mechanisms to avoid future damage 11

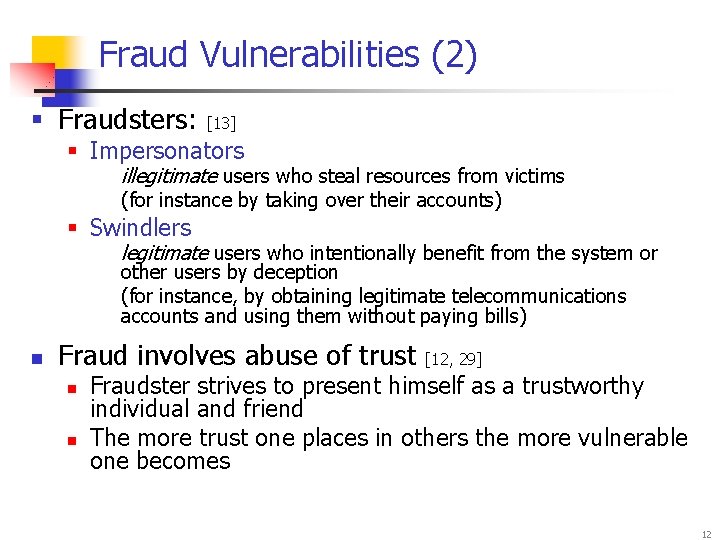

Fraud Vulnerabilities (2) § Fraudsters: [13] § Impersonators illegitimate users who steal resources from victims (for instance by taking over their accounts) § Swindlers legitimate users who intentionally benefit from the system or other users by deception (for instance, by obtaining legitimate telecommunications accounts and using them without paying bills) n Fraud involves abuse of trust [12, 29] n n Fraudster strives to present himself as a trustworthy individual and friend The more trust one places in others the more vulnerable one becomes 12

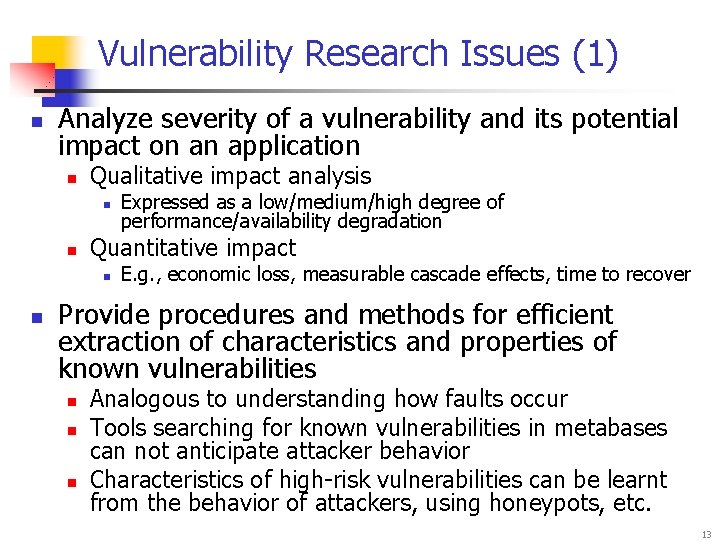

Vulnerability Research Issues (1) n Analyze severity of a vulnerability and its potential impact on an application n Qualitative impact analysis n n Quantitative impact n n E. g. , economic loss, measurable cascade effects, time to recover Provide procedures and methods for efficient extraction of characteristics and properties of known vulnerabilities n n n Expressed as a low/medium/high degree of performance/availability degradation Analogous to understanding how faults occur Tools searching for known vulnerabilities in metabases can not anticipate attacker behavior Characteristics of high-risk vulnerabilities can be learnt from the behavior of attackers, using honeypots, etc. 13

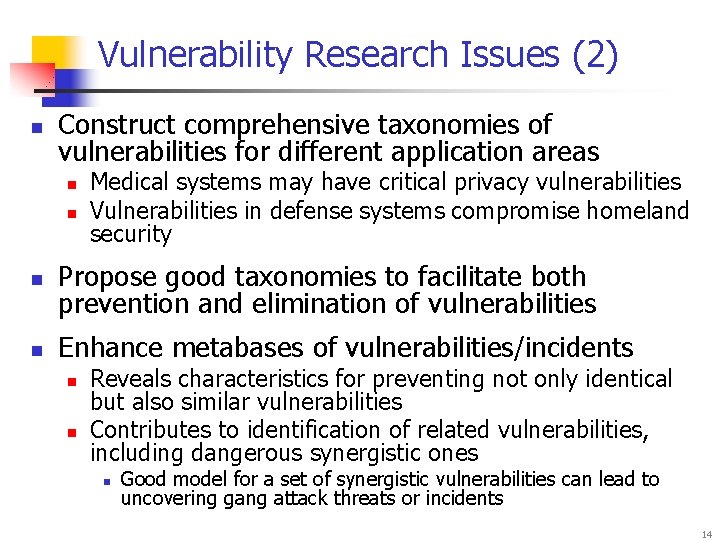

Vulnerability Research Issues (2) n Construct comprehensive taxonomies of vulnerabilities for different application areas n n Medical systems may have critical privacy vulnerabilities Vulnerabilities in defense systems compromise homeland security n Propose good taxonomies to facilitate both prevention and elimination of vulnerabilities n Enhance metabases of vulnerabilities/incidents n n Reveals characteristics for preventing not only identical but also similar vulnerabilities Contributes to identification of related vulnerabilities, including dangerous synergistic ones n Good model for a set of synergistic vulnerabilities can lead to uncovering gang attack threats or incidents 14

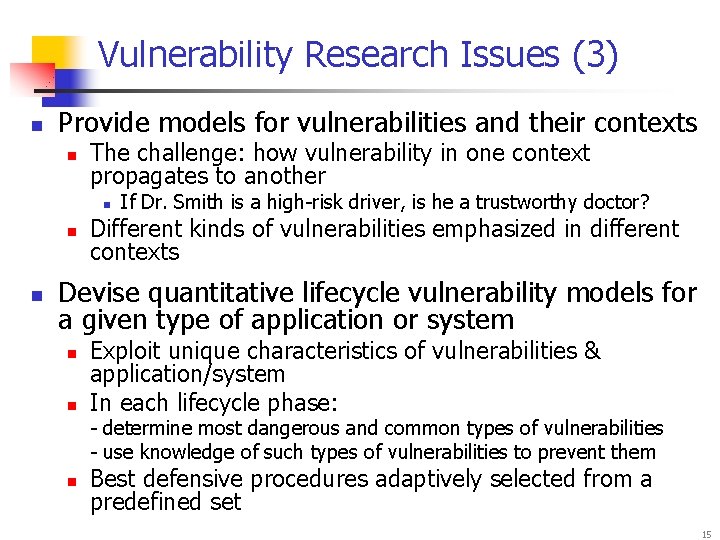

Vulnerability Research Issues (3) n Provide models for vulnerabilities and their contexts n The challenge: how vulnerability in one context propagates to another n n n If Dr. Smith is a high-risk driver, is he a trustworthy doctor? Different kinds of vulnerabilities emphasized in different contexts Devise quantitative lifecycle vulnerability models for a given type of application or system n n Exploit unique characteristics of vulnerabilities & application/system In each lifecycle phase: - determine most dangerous and common types of vulnerabilities - use knowledge of such types of vulnerabilities to prevent them n Best defensive procedures adaptively selected from a predefined set 15

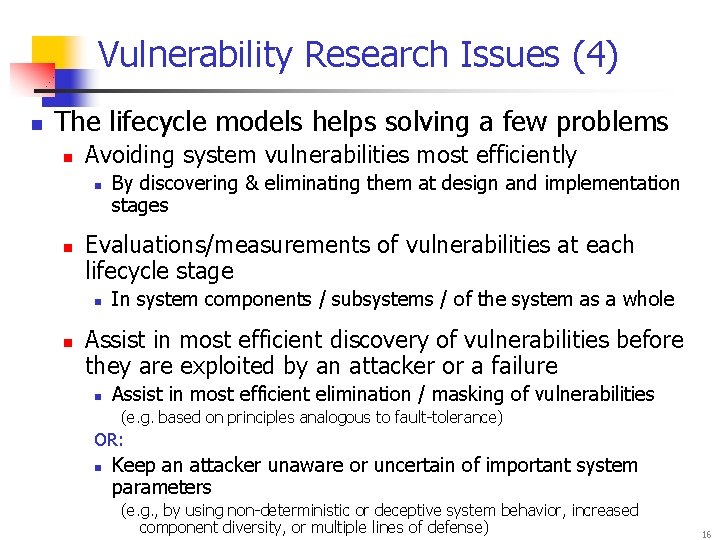

Vulnerability Research Issues (4) n The lifecycle models helps solving a few problems n Avoiding system vulnerabilities most efficiently n n Evaluations/measurements of vulnerabilities at each lifecycle stage n n By discovering & eliminating them at design and implementation stages In system components / subsystems / of the system as a whole Assist in most efficient discovery of vulnerabilities before they are exploited by an attacker or a failure n Assist in most efficient elimination / masking of vulnerabilities (e. g. based on principles analogous to fault-tolerance) OR: n Keep an attacker unaware or uncertain of important system parameters (e. g. , by using non-deterministic or deceptive system behavior, increased component diversity, or multiple lines of defense) 16

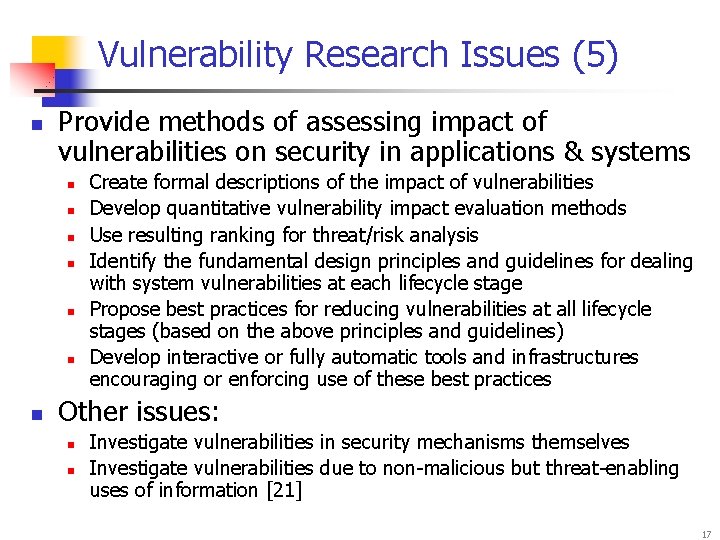

Vulnerability Research Issues (5) n Provide methods of assessing impact of vulnerabilities on security in applications & systems n n n n Other issues: n n Create formal descriptions of the impact of vulnerabilities Develop quantitative vulnerability impact evaluation methods Use resulting ranking for threat/risk analysis Identify the fundamental design principles and guidelines for dealing with system vulnerabilities at each lifecycle stage Propose best practices for reducing vulnerabilities at all lifecycle stages (based on the above principles and guidelines) Develop interactive or fully automatic tools and infrastructures encouraging or enforcing use of these best practices Investigate vulnerabilities in security mechanisms themselves Investigate vulnerabilities due to non-malicious but threat-enabling uses of information [21] 17
Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 18

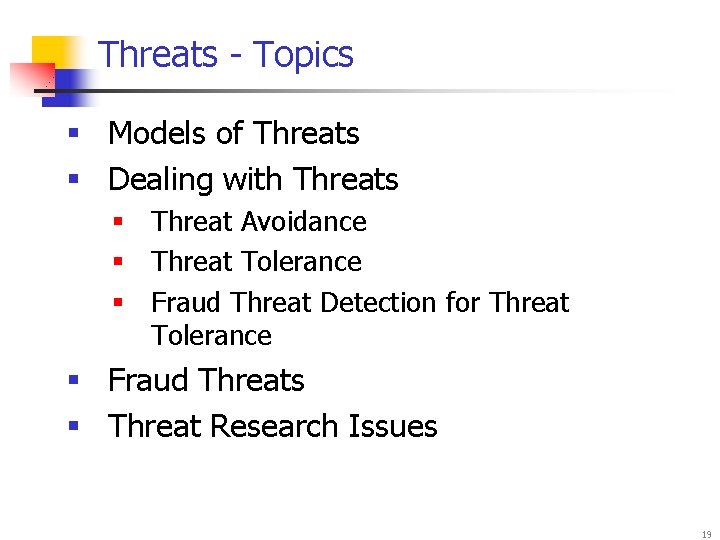

Threats - Topics § Models of Threats § Dealing with Threats § Threat Avoidance § Threat Tolerance § Fraud Threat Detection for Threat Tolerance § Fraud Threats § Threat Research Issues 19

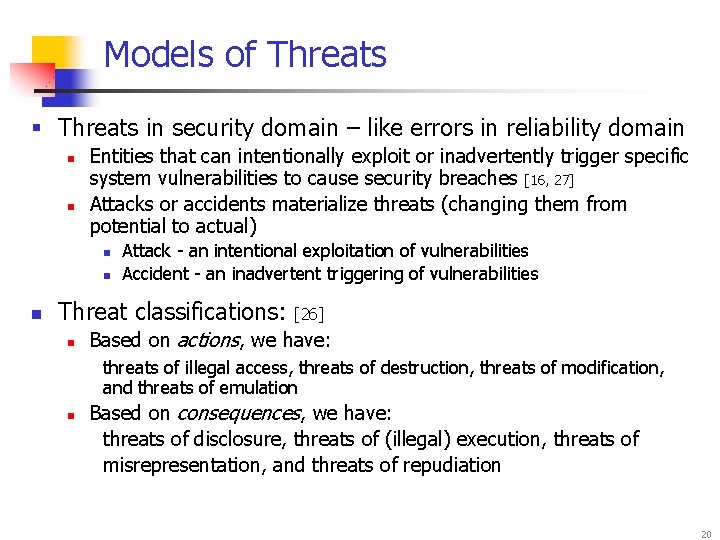

Models of Threats § Threats in security domain – like errors in reliability domain n n Entities that can intentionally exploit or inadvertently trigger specific system vulnerabilities to cause security breaches [16, 27] Attacks or accidents materialize threats (changing them from potential to actual) n n n Attack - an intentional exploitation of vulnerabilities Accident - an inadvertent triggering of vulnerabilities Threat classifications: [26] n Based on actions, we have: threats of illegal access, threats of destruction, threats of modification, and threats of emulation n Based on consequences, we have: threats of disclosure, threats of (illegal) execution, threats of misrepresentation, and threats of repudiation 20

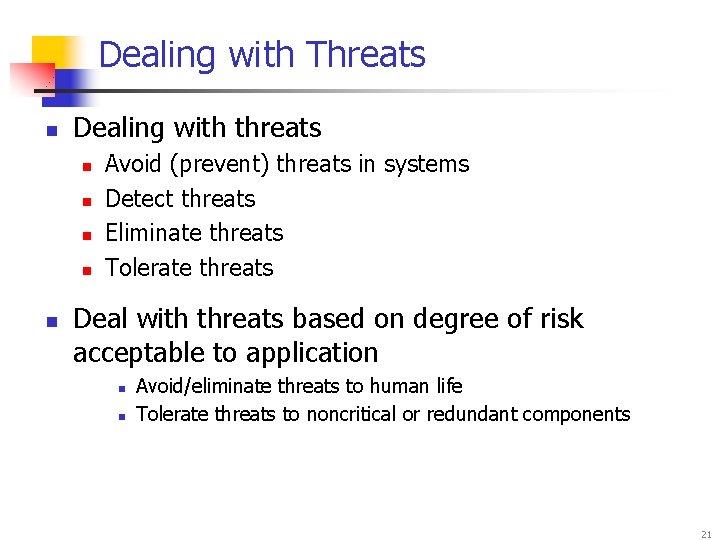

Dealing with Threats n Dealing with threats n n n Avoid (prevent) threats in systems Detect threats Eliminate threats Tolerate threats Deal with threats based on degree of risk acceptable to application n n Avoid/eliminate threats to human life Tolerate threats to noncritical or redundant components 21

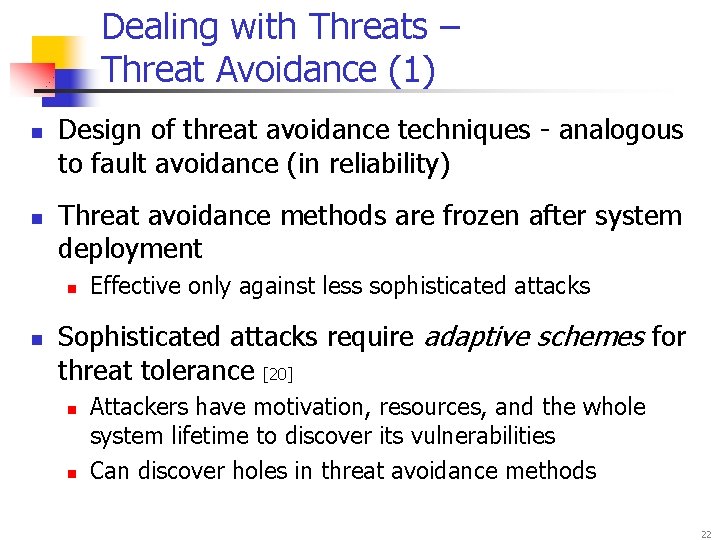

Dealing with Threats – Threat Avoidance (1) n n Design of threat avoidance techniques - analogous to fault avoidance (in reliability) Threat avoidance methods are frozen after system deployment n n Sophisticated attacks require adaptive schemes for threat tolerance [20] n n Effective only against less sophisticated attacks Attackers have motivation, resources, and the whole system lifetime to discover its vulnerabilities Can discover holes in threat avoidance methods 22

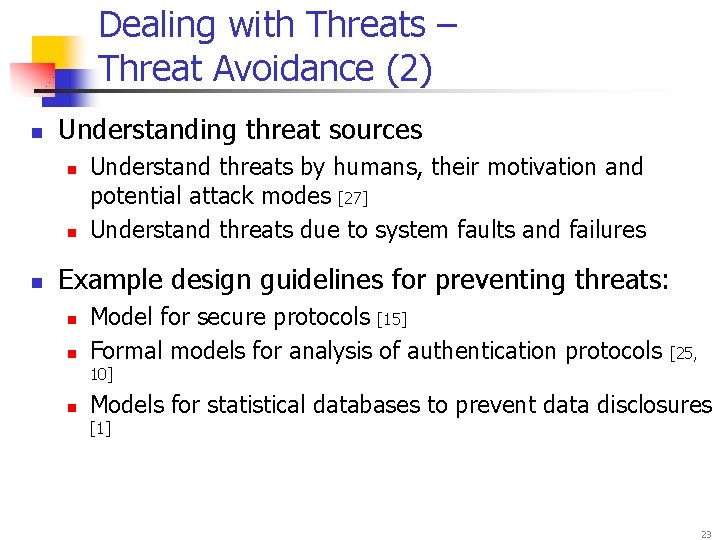

Dealing with Threats – Threat Avoidance (2) n Understanding threat sources n n n Understand threats by humans, their motivation and potential attack modes [27] Understand threats due to system faults and failures Example design guidelines for preventing threats: n n Model for secure protocols [15] Formal models for analysis of authentication protocols [25, 10] n Models for statistical databases to prevent data disclosures [1] 23

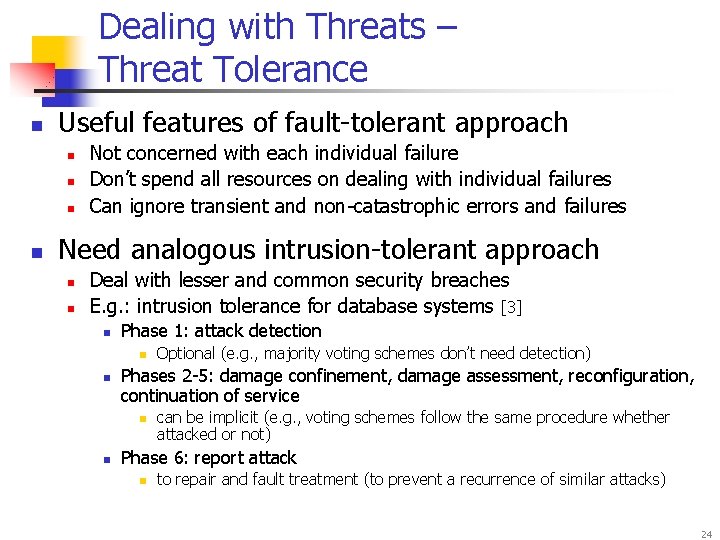

Dealing with Threats – Threat Tolerance n Useful features of fault-tolerant approach n n Not concerned with each individual failure Don’t spend all resources on dealing with individual failures Can ignore transient and non-catastrophic errors and failures Need analogous intrusion-tolerant approach n n Deal with lesser and common security breaches E. g. : intrusion tolerance for database systems [3] n Phase 1: attack detection n n Phases 2 -5: damage confinement, damage assessment, reconfiguration, continuation of service n n can be implicit (e. g. , voting schemes follow the same procedure whether attacked or not) Phase 6: report attack n Optional (e. g. , majority voting schemes don’t need detection) to repair and fault treatment (to prevent a recurrence of similar attacks) 24

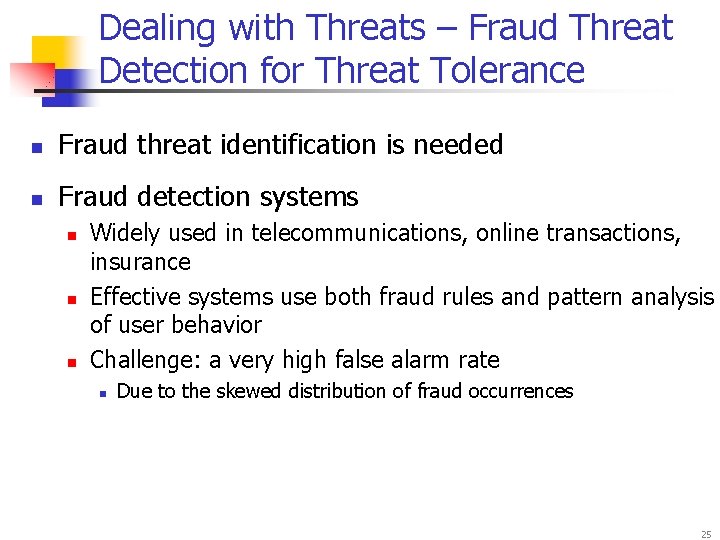

Dealing with Threats – Fraud Threat Detection for Threat Tolerance n Fraud threat identification is needed n Fraud detection systems n n n Widely used in telecommunications, online transactions, insurance Effective systems use both fraud rules and pattern analysis of user behavior Challenge: a very high false alarm rate n Due to the skewed distribution of fraud occurrences 25

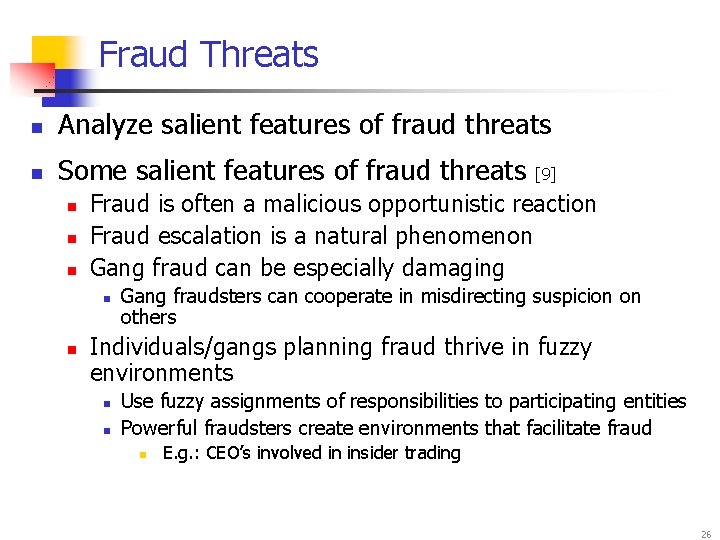

Fraud Threats n Analyze salient features of fraud threats n Some salient features of fraud threats [9] n n n Fraud is often a malicious opportunistic reaction Fraud escalation is a natural phenomenon Gang fraud can be especially damaging n n Gang fraudsters can cooperate in misdirecting suspicion on others Individuals/gangs planning fraud thrive in fuzzy environments n n Use fuzzy assignments of responsibilities to participating entities Powerful fraudsters create environments that facilitate fraud n E. g. : CEO’s involved in insider trading 26

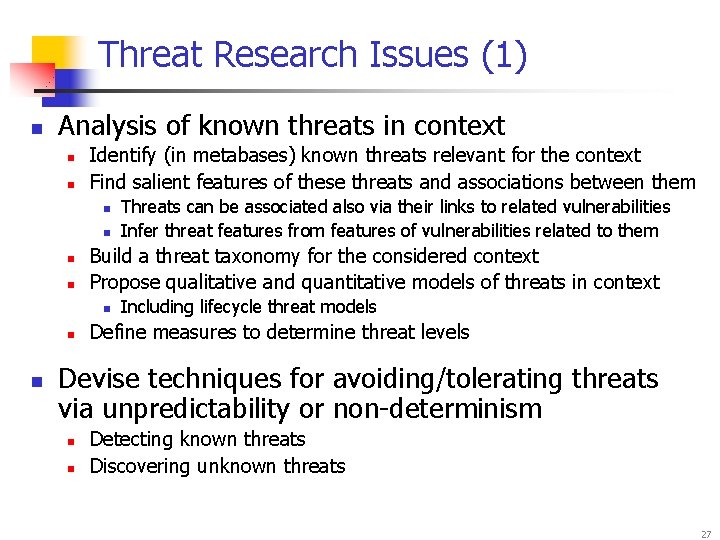

Threat Research Issues (1) n Analysis of known threats in context n n Identify (in metabases) known threats relevant for the context Find salient features of these threats and associations between them n n Build a threat taxonomy for the considered context Propose qualitative and quantitative models of threats in context n n n Including lifecycle threat models Define measures to determine threat levels Devise techniques for avoiding/tolerating threats via unpredictability or non-determinism n n Threats can be associated also via their links to related vulnerabilities Infer threat features from features of vulnerabilities related to them Detecting known threats Discovering unknown threats 27

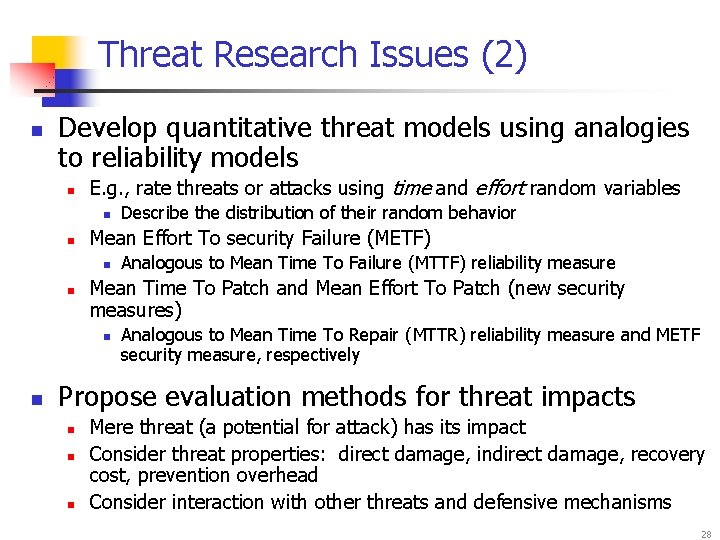

Threat Research Issues (2) n Develop quantitative threat models using analogies to reliability models n E. g. , rate threats or attacks using time and effort random variables n n Mean Effort To security Failure (METF) n n Analogous to Mean Time To Repair (MTTR) reliability measure and METF security measure, respectively Propose evaluation methods for threat impacts n n n Analogous to Mean Time To Failure (MTTF) reliability measure Mean Time To Patch and Mean Effort To Patch (new security measures) n n Describe the distribution of their random behavior Mere threat (a potential for attack) has its impact Consider threat properties: direct damage, indirect damage, recovery cost, prevention overhead Consider interaction with other threats and defensive mechanisms 28

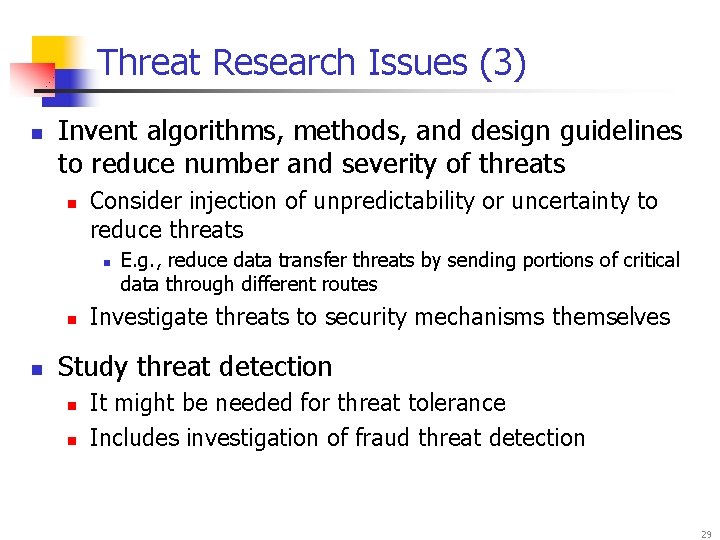

Threat Research Issues (3) n Invent algorithms, methods, and design guidelines to reduce number and severity of threats n Consider injection of unpredictability or uncertainty to reduce threats n n n Investigate threats to security mechanisms themselves Study threat detection n n E. g. , reduce data transfer threats by sending portions of critical data through different routes It might be needed for threat tolerance Includes investigation of fraud threat detection 29

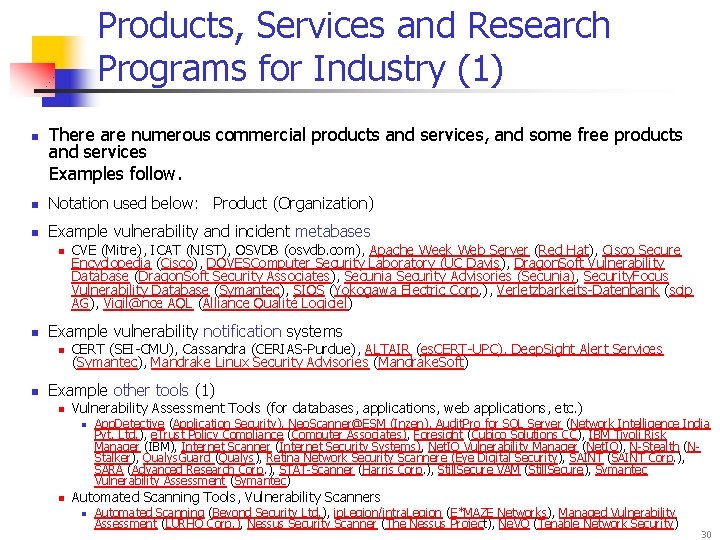

Products, Services and Research Programs for Industry (1) n There are numerous commercial products and services, and some free products and services Examples follow. n Notation used below: Product (Organization) n Example vulnerability and incident metabases n n Example vulnerability notification systems n n CVE (Mitre), ICAT (NIST), OSVDB (osvdb. com), Apache Week Web Server (Red Hat), Cisco Secure Encyclopedia (Cisco), DOVESComputer Security Laboratory (UC Davis), Dragon. Soft Vulnerability Database (Dragon. Soft Security Associates), Secunia Security Advisories (Secunia), Security. Focus Vulnerability Database (Symantec), SIOS (Yokogawa Electric Corp. ), Verletzbarkeits-Datenbank (scip AG), Vigil@nce AQL (Alliance Qualité Logiciel) CERT (SEI-CMU), Cassandra (CERIAS-Purdue), ALTAIR (es. CERT-UPC), Deep. Sight Alert Services (Symantec), Mandrake Linux Security Advisories (Mandrake. Soft) Example other tools (1) n Vulnerability Assessment Tools (for databases, applications, web applications, etc. ) n n Automated Scanning Tools, Vulnerability Scanners n App. Detective (Application Security), Neo. Scanner@ESM (Inzen), Audit. Pro for SQL Server (Network Intelligence India Pvt. Ltd. ), e. Trust Policy Compliance (Computer Associates), Foresight (Cubico Solutions CC), IBM Tivoli Risk Manager (IBM), Internet Scanner (Internet Security Systems), Net. IQ Vulnerability Manager (Net. IQ), N-Stealth (NStalker), Qualys. Guard (Qualys), Retina Network Security Scannere (Eye Digital Security), SAINT (SAINT Corp. ), SARA (Advanced Research Corp. ), STAT-Scanner (Harris Corp. ), Still. Secure VAM (Still. Secure), Symantec Vulnerability Assessment (Symantec) Automated Scanning (Beyond Security Ltd. ), ip. Legion/intra. Legion (E*MAZE Networks), Managed Vulnerability Assessment (LURHQ Corp. ), Nessus Security Scanner (The Nessus Project), Ne. VO (Tenable Network Security) 30

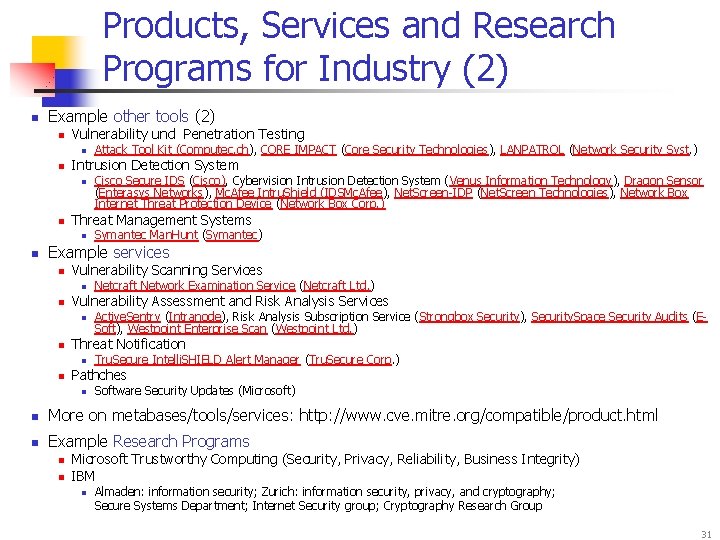

Products, Services and Research Programs for Industry (2) n Example other tools (2) n Vulnerability und Penetration Testing n n Intrusion Detection System n n Symantec Man. Hunt (Symantec) Example services n Vulnerability Scanning Services n n n Active. Sentry (Intranode), Risk Analysis Subscription Service (Strongbox Security), Security. Space Security Audits (ESoft), Westpoint Enterprise Scan (Westpoint Ltd. ) Threat Notification n n Netcraft Network Examination Service (Netcraft Ltd. ) Vulnerability Assessment and Risk Analysis Services n Tru. Secure Intelli. SHIELD Alert Manager (Tru. Secure Corp. ) Pathches n Software Security Updates (Microsoft) n More on metabases/tools/services: http: //www. cve. mitre. org/compatible/product. html n Example Research Programs n n Microsoft Trustworthy Computing (Security, Privacy, Reliability, Business Integrity) IBM n Cisco Secure IDS (Cisco), Cybervision Intrusion Detection System (Venus Information Technology), Dragon Sensor (Enterasys Networks), Mc. Afee Intru. Shield (IDSMc. Afee), Net. Screen-IDP (Net. Screen Technologies), Network Box Internet Threat Protection Device (Network Box Corp. ) Threat Management Systems n n Attack Tool Kit (Computec. ch), CORE IMPACT (Core Security Technologies), LANPATROL (Network Security Syst. ) Almaden: information security; Zurich: information security, privacy, and cryptography; Secure Systems Department; Internet Security group; Cryptography Research Group 31

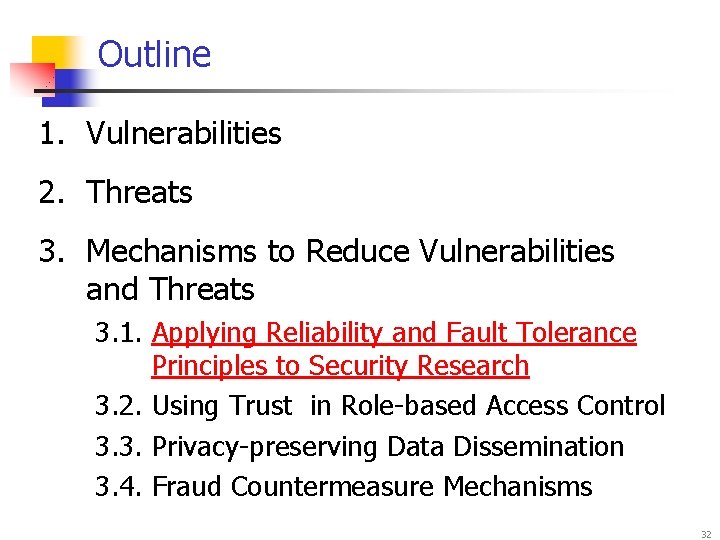

Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 32

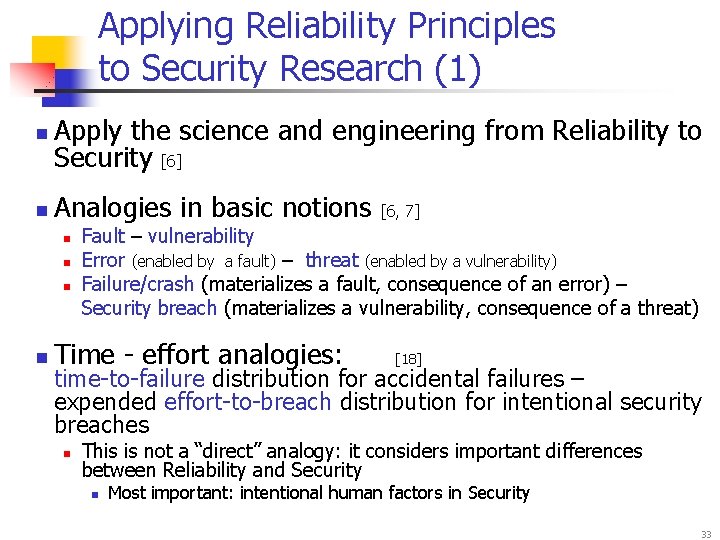

Applying Reliability Principles to Security Research (1) n Apply the science and engineering from Reliability to Security [6] n Analogies in basic notions [6, 7] n n Fault – vulnerability Error (enabled by a fault) – threat (enabled by a vulnerability) Failure/crash (materializes a fault, consequence of an error) – Security breach (materializes a vulnerability, consequence of a threat) Time - effort analogies: time-to-failure distribution for accidental failures – expended effort-to-breach distribution for intentional security breaches n This is not a “direct” analogy: it considers important differences between Reliability and Security n [18] Most important: intentional human factors in Security 33

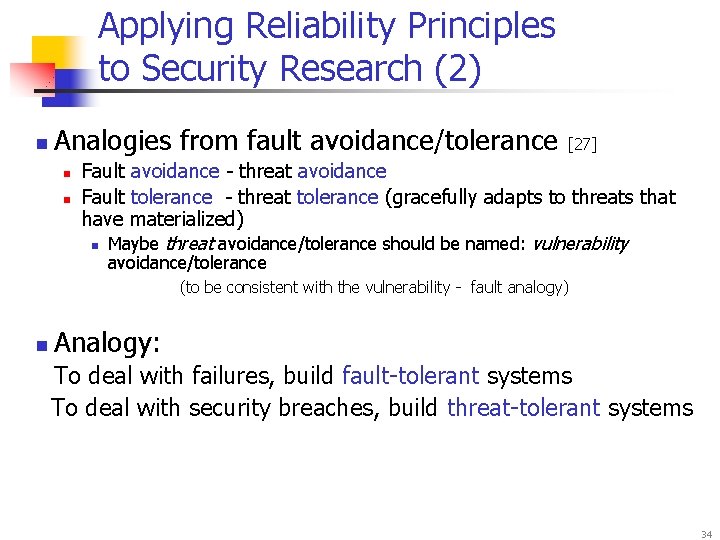

Applying Reliability Principles to Security Research (2) n Analogies from fault avoidance/tolerance [27] n n Fault avoidance - threat avoidance Fault tolerance - threat tolerance (gracefully adapts to threats that have materialized) n Maybe threat avoidance/tolerance should be named: vulnerability avoidance/tolerance (to be consistent with the vulnerability - fault analogy) n Analogy: To deal with failures, build fault-tolerant systems To deal with security breaches, build threat-tolerant systems 34

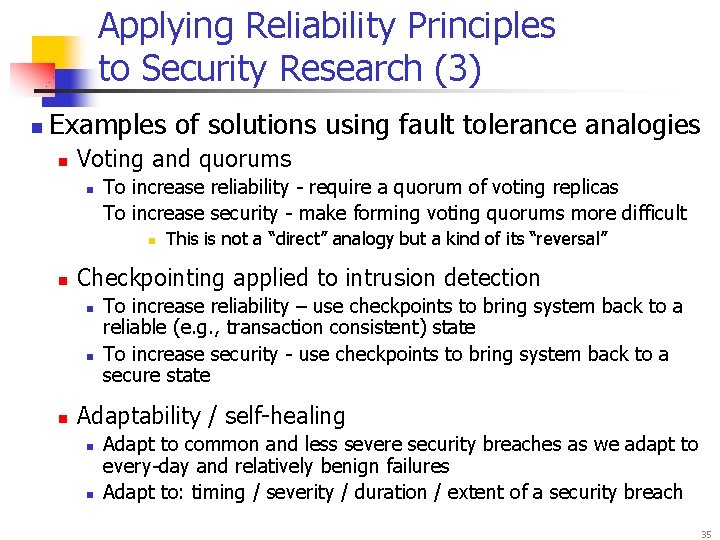

Applying Reliability Principles to Security Research (3) n Examples of solutions using fault tolerance analogies n Voting and quorums n To increase reliability - require a quorum of voting replicas To increase security - make forming voting quorums more difficult n n Checkpointing applied to intrusion detection n To increase reliability – use checkpoints to bring system back to a reliable (e. g. , transaction consistent) state To increase security - use checkpoints to bring system back to a secure state Adaptability / self-healing n n This is not a “direct” analogy but a kind of its “reversal” Adapt to common and less severe security breaches as we adapt to every-day and relatively benign failures Adapt to: timing / severity / duration / extent of a security breach 35

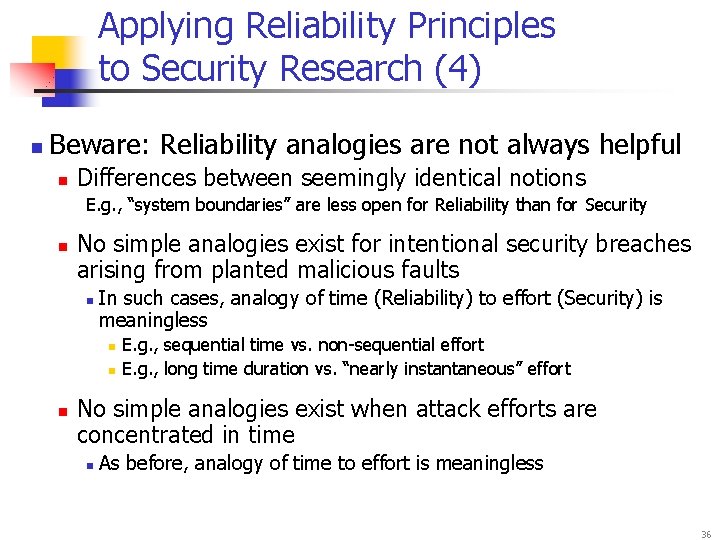

Applying Reliability Principles to Security Research (4) n Beware: Reliability analogies are not always helpful n Differences between seemingly identical notions E. g. , “system boundaries” are less open for Reliability than for Security n No simple analogies exist for intentional security breaches arising from planted malicious faults n In such cases, analogy of time (Reliability) to effort (Security) is meaningless n n n No simple analogies exist when attack efforts are concentrated in time n E. g. , sequential time vs. non-sequential effort E. g. , long time duration vs. “nearly instantaneous” effort As before, analogy of time to effort is meaningless 36

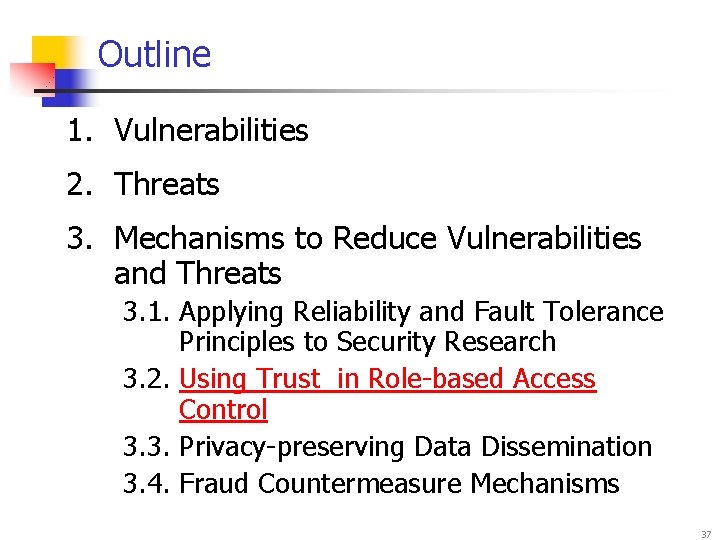

Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 37

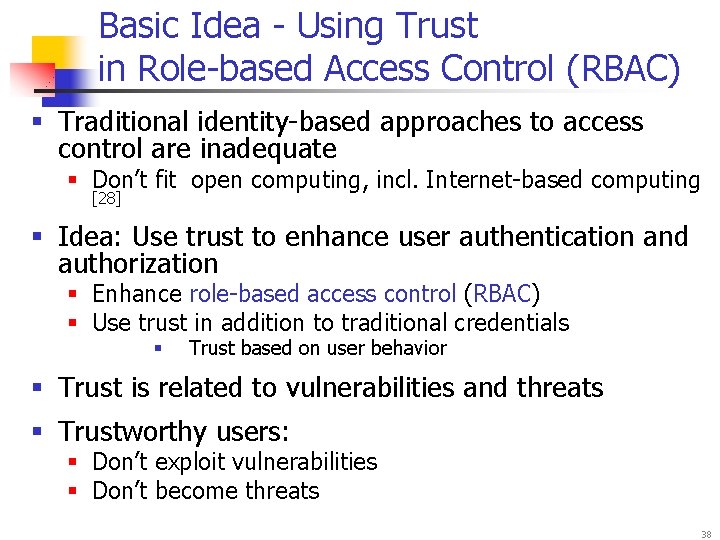

Basic Idea - Using Trust in Role-based Access Control (RBAC) § Traditional identity-based approaches to access control are inadequate § Don’t fit open computing, incl. Internet-based computing [28] § Idea: Use trust to enhance user authentication and authorization § Enhance role-based access control (RBAC) § Use trust in addition to traditional credentials § Trust based on user behavior § Trust is related to vulnerabilities and threats § Trustworthy users: § Don’t exploit vulnerabilities § Don’t become threats 38

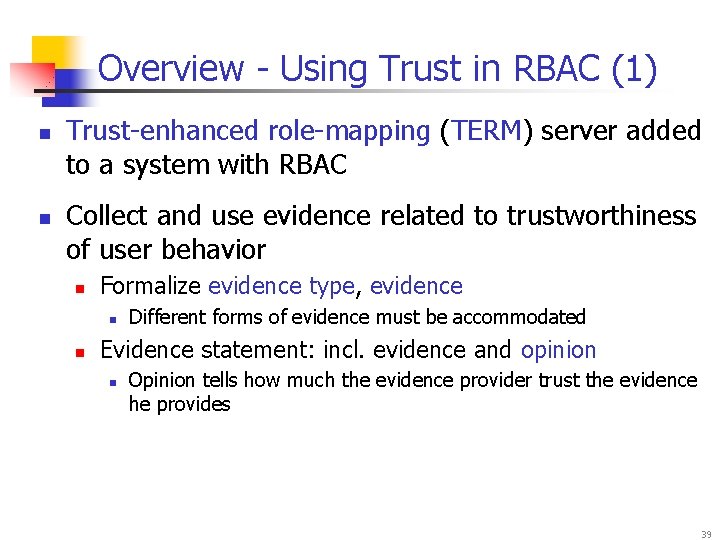

Overview - Using Trust in RBAC (1) n n Trust-enhanced role-mapping (TERM) server added to a system with RBAC Collect and use evidence related to trustworthiness of user behavior n Formalize evidence type, evidence n n Evidence statement: incl. evidence and opinion n Different forms of evidence must be accommodated Opinion tells how much the evidence provider trust the evidence he provides 39

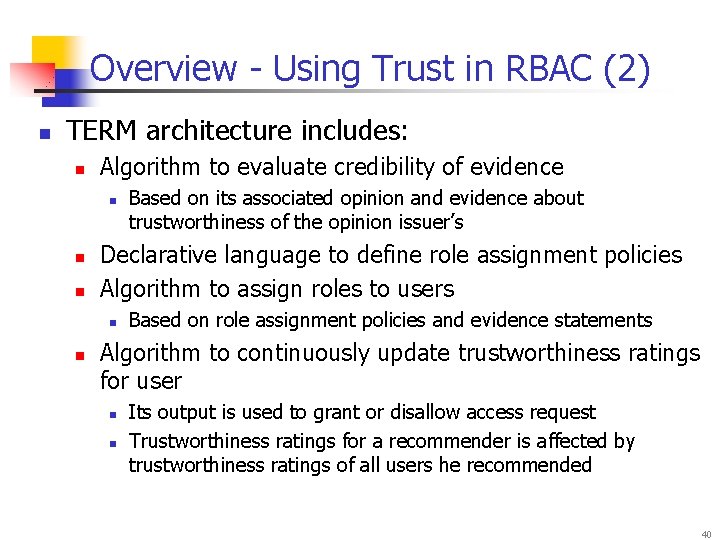

Overview - Using Trust in RBAC (2) n TERM architecture includes: n Algorithm to evaluate credibility of evidence n n n Declarative language to define role assignment policies Algorithm to assign roles to users n n Based on role assignment policies and evidence statements Algorithm to continuously update trustworthiness ratings for user n n Based on its associated opinion and evidence about trustworthiness of the opinion issuer’s Its output is used to grant or disallow access request Trustworthiness ratings for a recommender is affected by trustworthiness ratings of all users he recommended 40

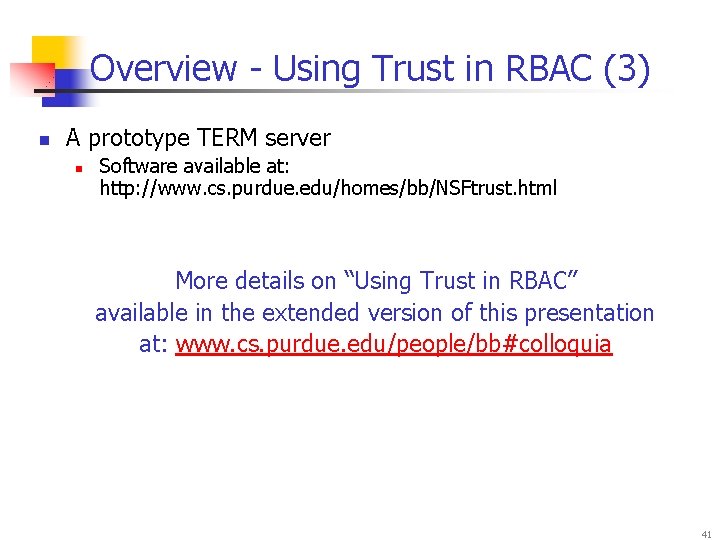

Overview - Using Trust in RBAC (3) n A prototype TERM server n Software available at: http: //www. cs. purdue. edu/homes/bb/NSFtrust. html More details on “Using Trust in RBAC” available in the extended version of this presentation at: www. cs. purdue. edu/people/bb#colloquia 41

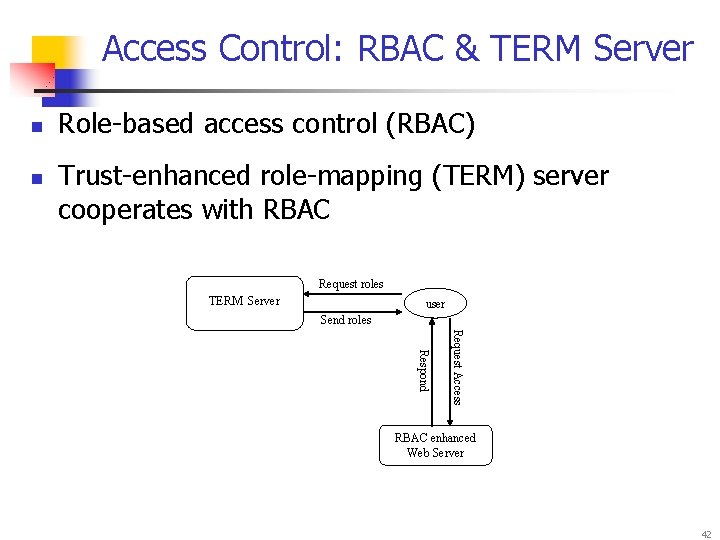

Access Control: RBAC & TERM Server n n Role-based access control (RBAC) Trust-enhanced role-mapping (TERM) server cooperates with RBAC Request roles TERM Server user Send roles Request Access Respond RBAC enhanced Web Server 42

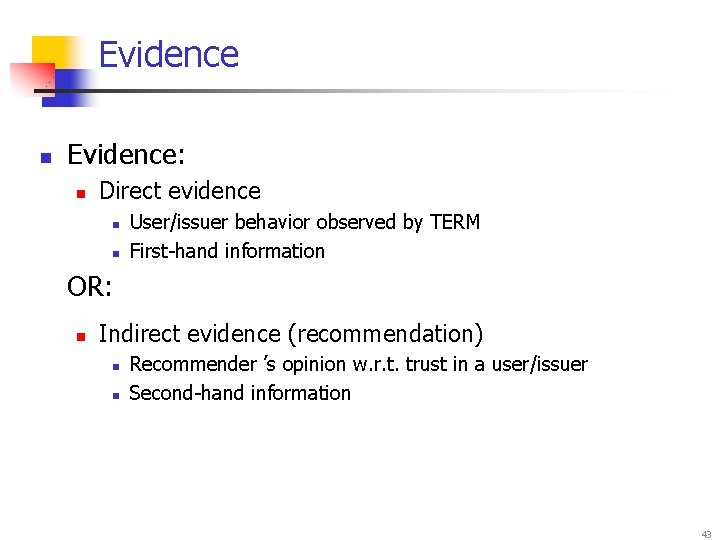

Evidence n Evidence: n Direct evidence n n User/issuer behavior observed by TERM First-hand information OR: n Indirect evidence (recommendation) n n Recommender ’s opinion w. r. t. trust in a user/issuer Second-hand information 43

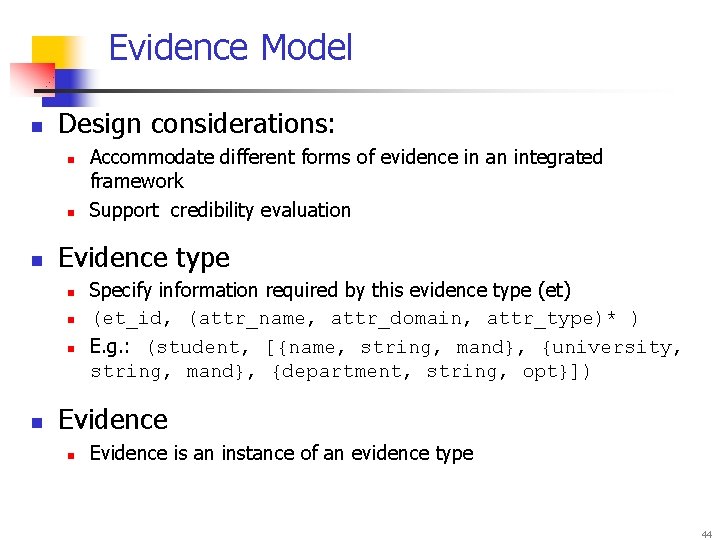

Evidence Model n Design considerations: n n n Evidence type n n Specify information required by this evidence type (et) (et_id, (attr_name, attr_domain, attr_type)* ) E. g. : (student, [{name, string, mand}, {university, string, mand}, {department, string, opt}]) Evidence n Accommodate different forms of evidence in an integrated framework Support credibility evaluation Evidence is an instance of an evidence type 44

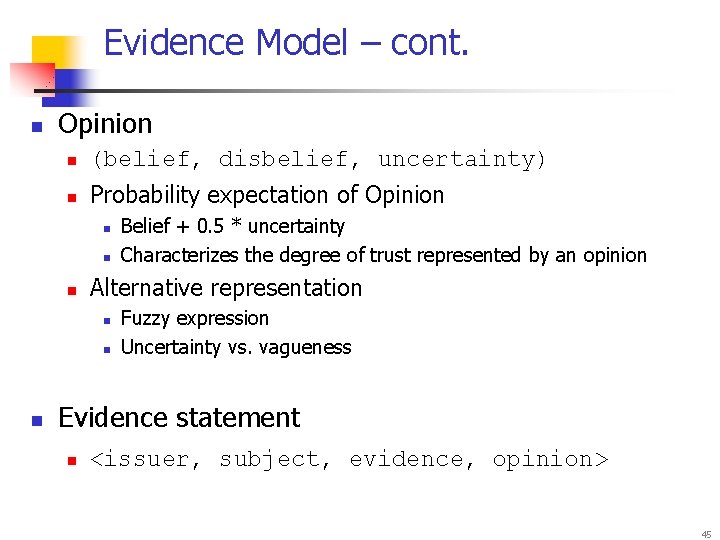

Evidence Model – cont. n Opinion n (belief, disbelief, uncertainty) n Probability expectation of Opinion n Alternative representation n Fuzzy expression Uncertainty vs. vagueness Evidence statement n Belief + 0. 5 * uncertainty Characterizes the degree of trust represented by an opinion <issuer, subject, evidence, opinion> 45

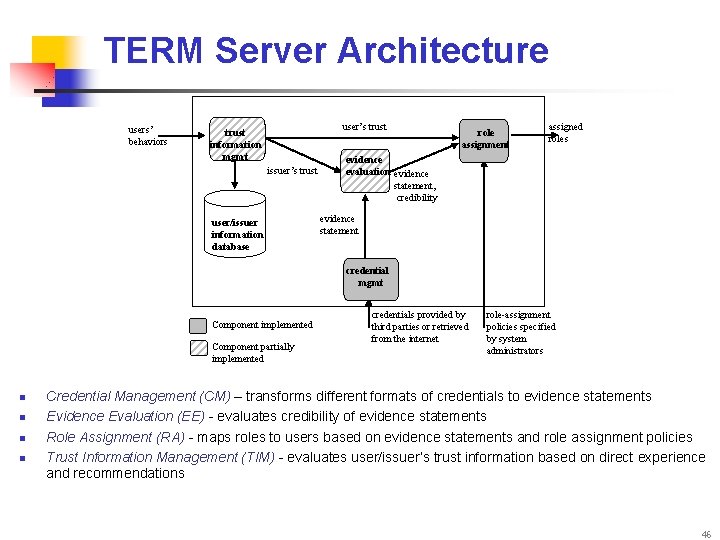

TERM Server Architecture users’ behaviors user’s trust information mgmt issuer’s trust user/issuer information database role assignment assigned roles evidence evaluation evidence statement, credibility evidence statement credential mgmt Component implemented Component partially implemented n n credentials provided by third parties or retrieved from the internet role-assignment policies specified by system administrators Credential Management (CM) – transforms different formats of credentials to evidence statements Evidence Evaluation (EE) - evaluates credibility of evidence statements Role Assignment (RA) - maps roles to users based on evidence statements and role assignment policies Trust Information Management (TIM) - evaluates user/issuer’s trust information based on direct experience and recommendations 46

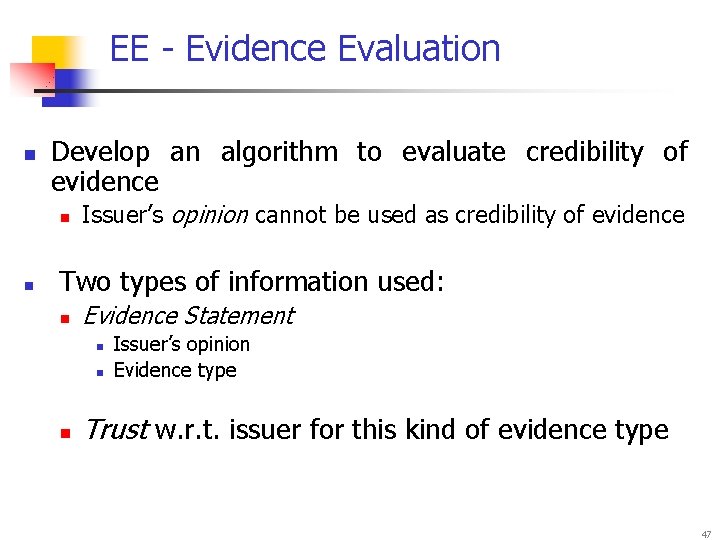

EE - Evidence Evaluation n Develop an algorithm to evaluate credibility of evidence n n Issuer’s opinion cannot be used as credibility of evidence Two types of information used: n Evidence Statement n n n Issuer’s opinion Evidence type Trust w. r. t. issuer for this kind of evidence type 47

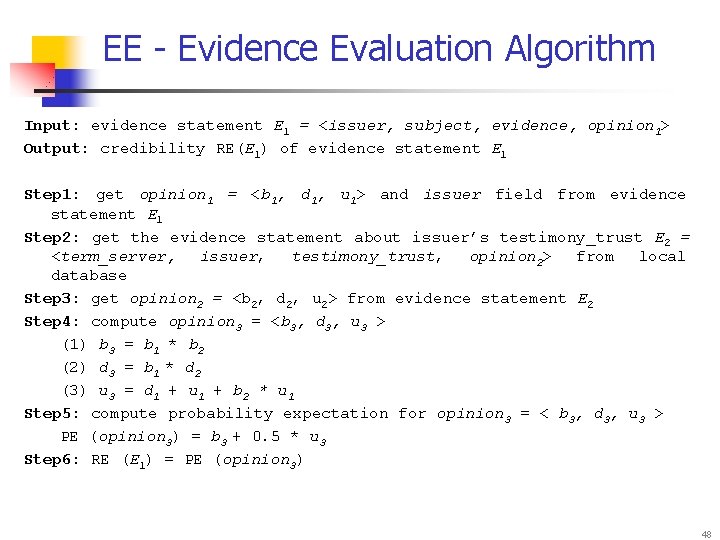

EE - Evidence Evaluation Algorithm Input: evidence statement E 1 = <issuer, subject, evidence, opinion 1> Output: credibility RE(E 1) of evidence statement E 1 Step 1: get opinion 1 = <b 1, d 1, u 1> and issuer field from evidence statement E 1 Step 2: get the evidence statement about issuer’s testimony_trust E 2 = <term_server, issuer, testimony_trust, opinion 2> from local database Step 3: get opinion 2 = <b 2, d 2, u 2> from evidence statement E 2 Step 4: compute opinion 3 = <b 3, d 3, u 3 > (1) b 3 = b 1 * b 2 (2) d 3 = b 1 * d 2 (3) u 3 = d 1 + u 1 + b 2 * u 1 Step 5: compute probability expectation for opinion 3 = < b 3, d 3, u 3 > PE (opinion 3) = b 3 + 0. 5 * u 3 Step 6: RE (E 1) = PE (opinion 3) 48

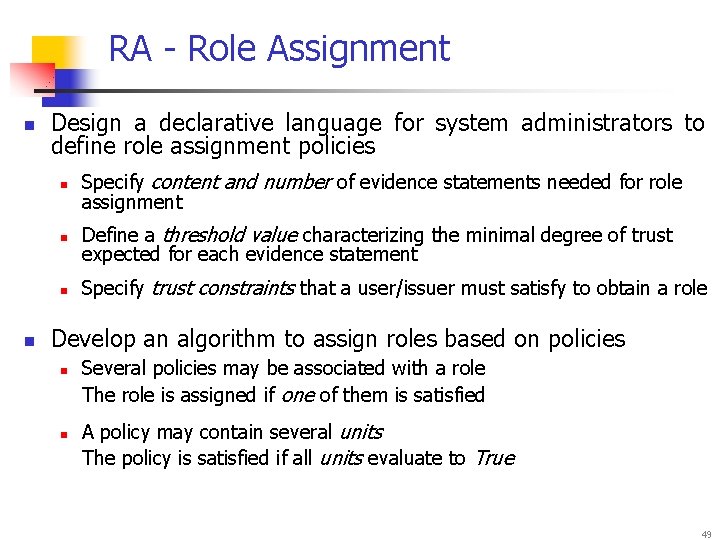

RA - Role Assignment n n Design a declarative language for system administrators to define role assignment policies n Specify content and number of evidence statements needed for role assignment n Define a threshold value characterizing the minimal degree of trust expected for each evidence statement n Specify trust constraints that a user/issuer must satisfy to obtain a role Develop an algorithm to assign roles based on policies n n Several policies may be associated with a role The role is assigned if one of them is satisfied A policy may contain several units The policy is satisfied if all units evaluate to True 49

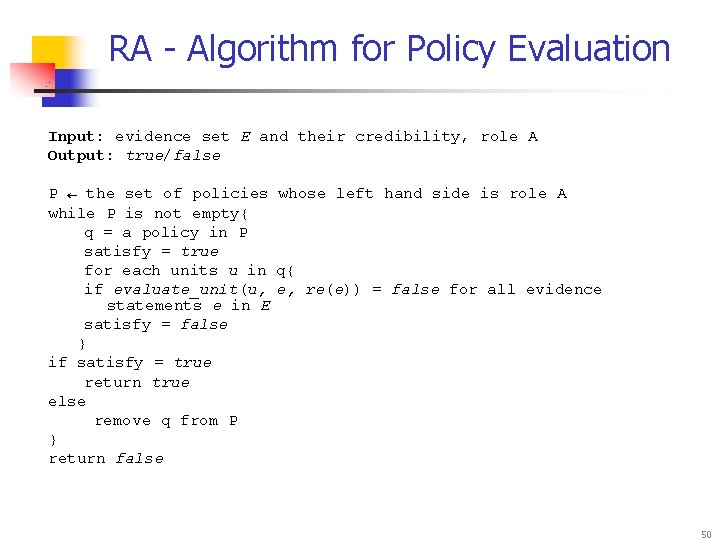

RA - Algorithm for Policy Evaluation Input: evidence set E and their credibility, role A Output: true/false P ← the set of policies whose left hand side is role A while P is not empty{ q = a policy in P satisfy = true for each units u in q{ if evaluate_unit(u, e, re(e)) = false for all evidence statements e in E satisfy = false } if satisfy = true return true else remove q from P } return false 50

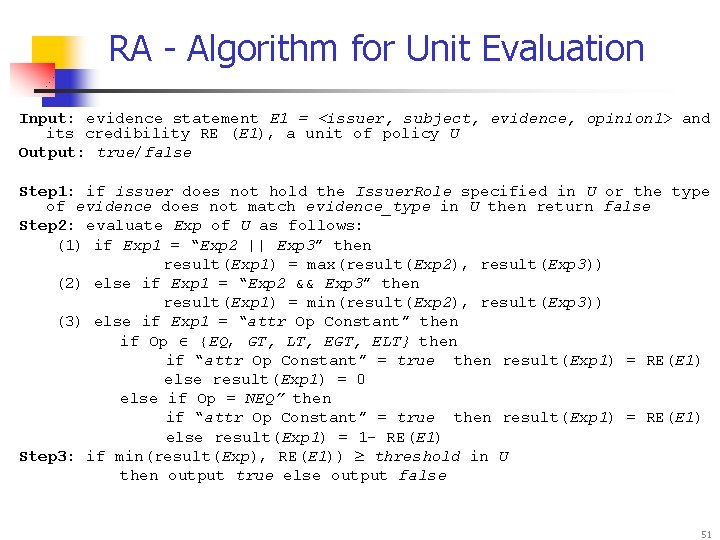

RA - Algorithm for Unit Evaluation Input: evidence statement E 1 = <issuer, subject, evidence, opinion 1> and its credibility RE (E 1), a unit of policy U Output: true/false Step 1: if issuer does not hold the Issuer. Role specified in U or the type of evidence does not match evidence_type in U then return false Step 2: evaluate Exp of U as follows: (1) if Exp 1 = “Exp 2 || Exp 3” then result(Exp 1) = max(result(Exp 2), result(Exp 3)) (2) else if Exp 1 = “Exp 2 && Exp 3” then result(Exp 1) = min(result(Exp 2), result(Exp 3)) (3) else if Exp 1 = “attr Op Constant” then if Op {EQ, GT, LT, EGT, ELT} then if “attr Op Constant” = true then result(Exp 1) = RE(E 1) else result(Exp 1) = 0 else if Op = NEQ” then if “attr Op Constant” = true then result(Exp 1) = RE(E 1) else result(Exp 1) = 1 - RE(E 1) Step 3: if min(result(Exp), RE(E 1)) threshold in U then output true else output false 51

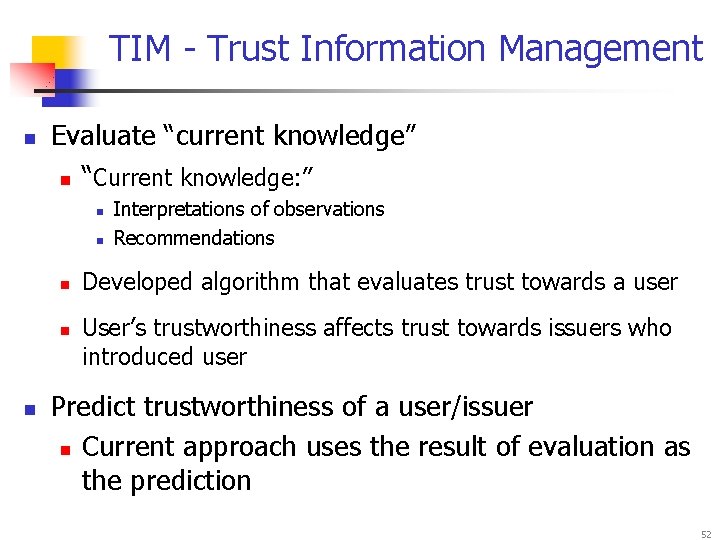

TIM - Trust Information Management n Evaluate “current knowledge” n “Current knowledge: ” n n n Interpretations of observations Recommendations Developed algorithm that evaluates trust towards a user User’s trustworthiness affects trust towards issuers who introduced user Predict trustworthiness of a user/issuer n Current approach uses the result of evaluation as the prediction 52

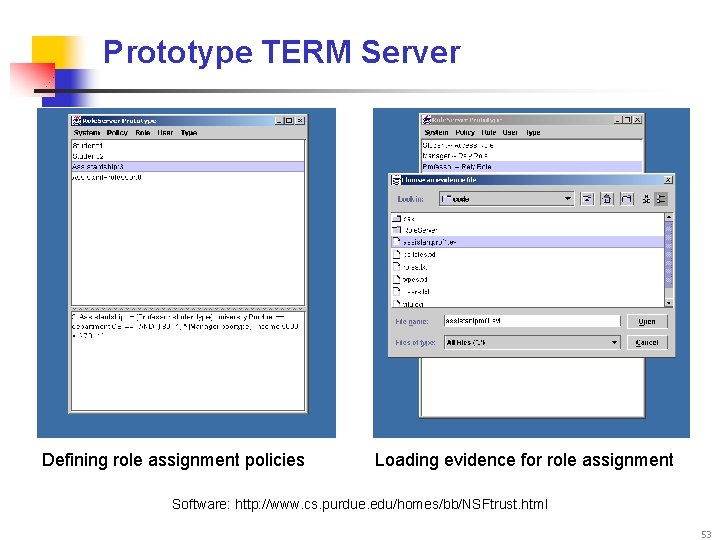

Prototype TERM Server Defining role assignment policies Loading evidence for role assignment Software: http: //www. cs. purdue. edu/homes/bb/NSFtrust. html 53
Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 54

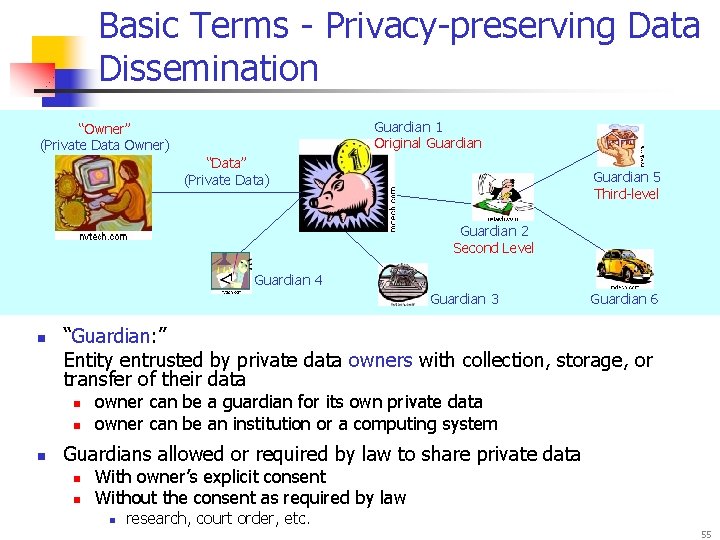

Basic Terms - Privacy-preserving Data Dissemination Guardian 1 Original Guardian “Owner” (Private Data Owner) “Data” (Private Data) Guardian 5 Third-level Guardian 2 Second Level Guardian 4 Guardian 3 n “Guardian: ” Entity entrusted by private data owners with collection, storage, or transfer of their data n n n owner can be a guardian for its own private data owner can be an institution or a computing system Guardians allowed or required by law to share private data n n Guardian 6 With owner’s explicit consent Without the consent as required by law n research, court order, etc. 55

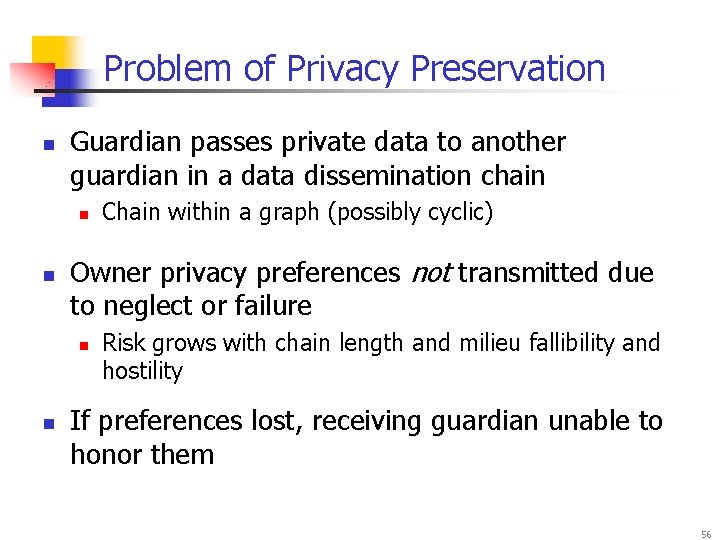

Problem of Privacy Preservation n Guardian passes private data to another guardian in a data dissemination chain n n Owner privacy preferences not transmitted due to neglect or failure n n Chain within a graph (possibly cyclic) Risk grows with chain length and milieu fallibility and hostility If preferences lost, receiving guardian unable to honor them 56

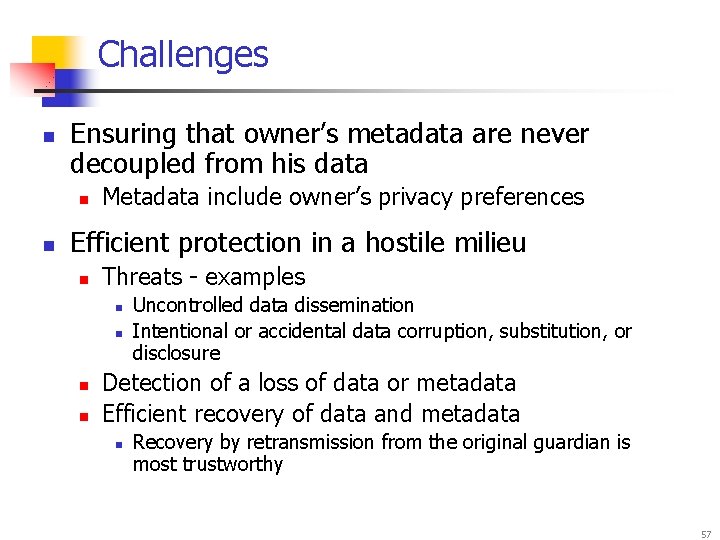

Challenges n Ensuring that owner’s metadata are never decoupled from his data n n Metadata include owner’s privacy preferences Efficient protection in a hostile milieu n Threats - examples n n Detection of a loss of data or metadata Efficient recovery of data and metadata n Uncontrolled data dissemination Intentional or accidental data corruption, substitution, or disclosure Recovery by retransmission from the original guardian is most trustworthy 57

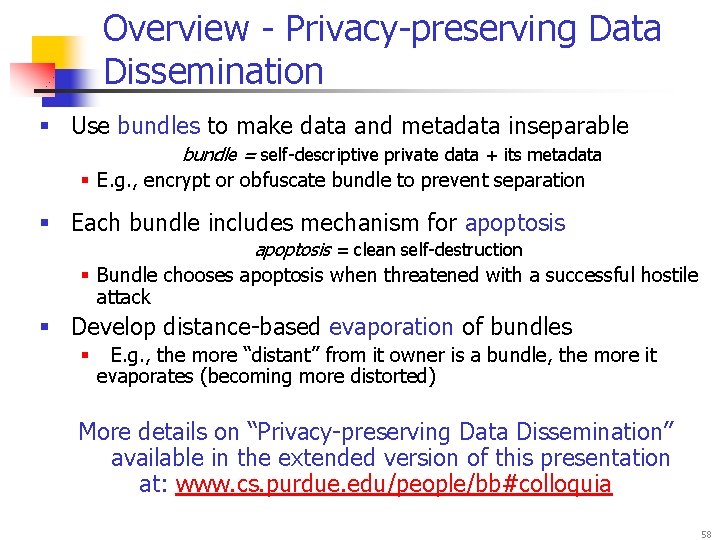

Overview - Privacy-preserving Data Dissemination § Use bundles to make data and metadata inseparable bundle = self-descriptive private data + its metadata § E. g. , encrypt or obfuscate bundle to prevent separation § Each bundle includes mechanism for apoptosis = clean self-destruction § Bundle chooses apoptosis when threatened with a successful hostile attack § Develop distance-based evaporation of bundles § E. g. , the more “distant” from it owner is a bundle, the more it evaporates (becoming more distorted) More details on “Privacy-preserving Data Dissemination” available in the extended version of this presentation at: www. cs. purdue. edu/people/bb#colloquia 58

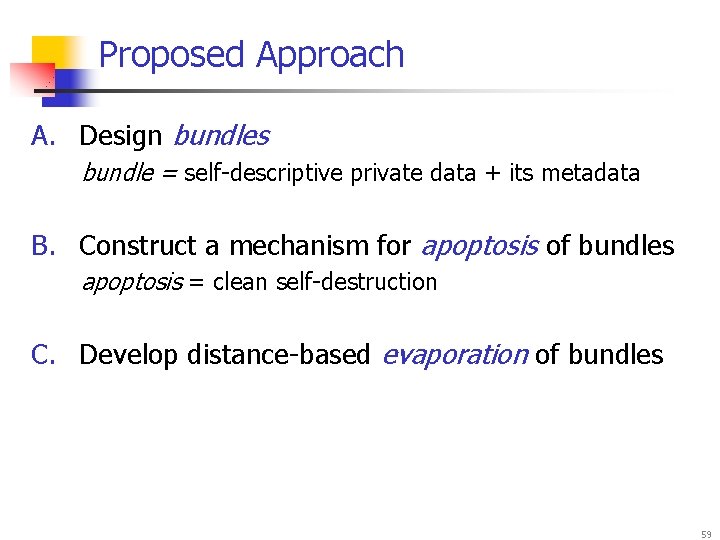

Proposed Approach A. Design bundles bundle = self-descriptive private data + its metadata B. Construct a mechanism for apoptosis of bundles apoptosis = clean self-destruction C. Develop distance-based evaporation of bundles 59

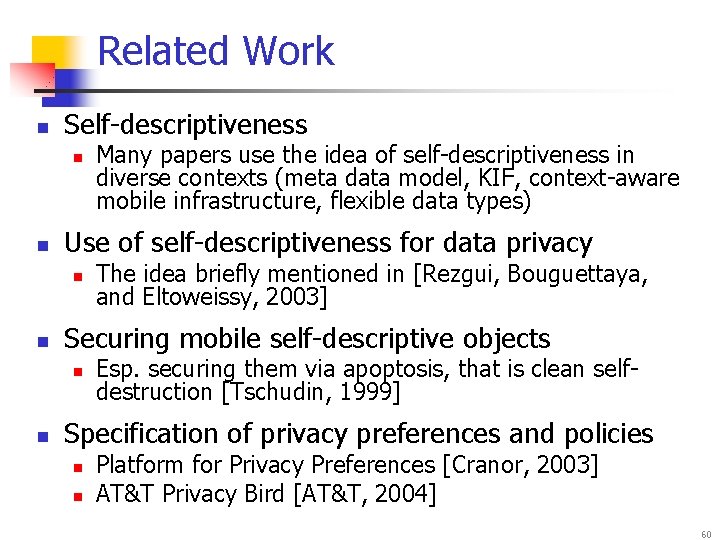

Related Work n Self-descriptiveness n n Use of self-descriptiveness for data privacy n n Esp. securing them via apoptosis, that is clean selfdestruction [Tschudin, 1999] Specification of privacy preferences and policies n n The idea briefly mentioned in [Rezgui, Bouguettaya, and Eltoweissy, 2003] Securing mobile self-descriptive objects n n Many papers use the idea of self-descriptiveness in diverse contexts (meta data model, KIF, context-aware mobile infrastructure, flexible data types) Platform for Privacy Preferences [Cranor, 2003] AT&T Privacy Bird [AT&T, 2004] 60

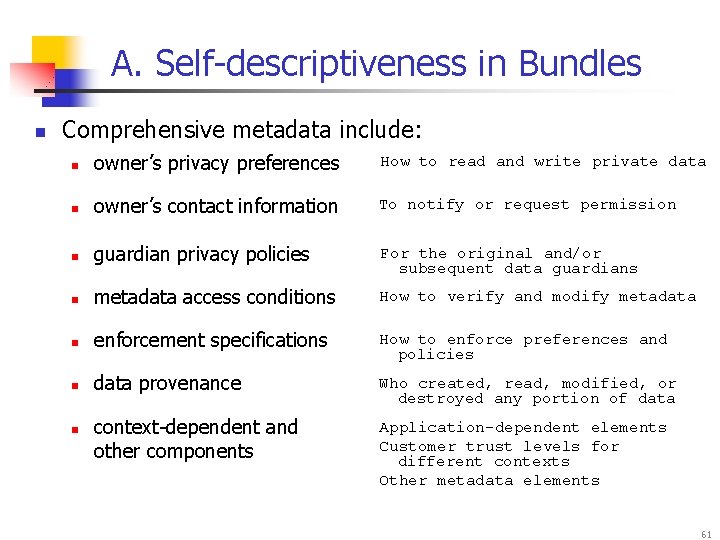

A. Self-descriptiveness in Bundles n Comprehensive metadata include: n owner’s privacy preferences How to read and write private data n owner’s contact information To notify or request permission n guardian privacy policies For the original and/or subsequent data guardians n metadata access conditions How to verify and modify metadata n enforcement specifications How to enforce preferences and policies n data provenance Who created, read, modified, or destroyed any portion of data context-dependent and other components Application-dependent elements Customer trust levels for different contexts Other metadata elements n 61

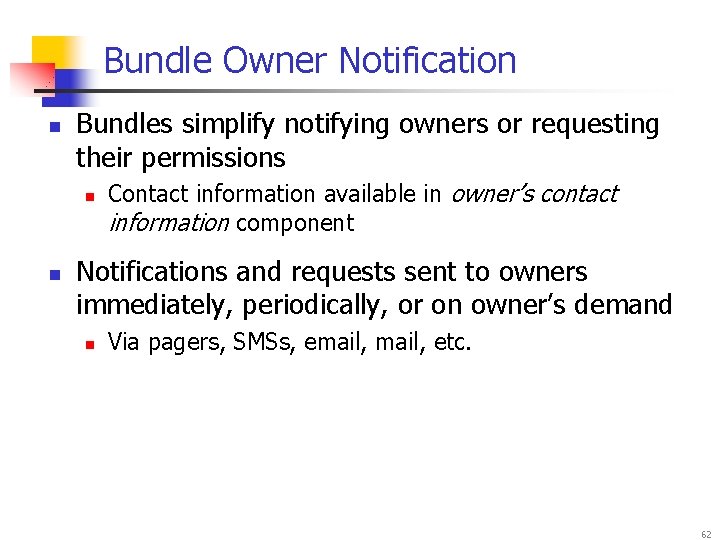

Bundle Owner Notification n Bundles simplify notifying owners or requesting their permissions n n Notifications and requests sent to owners immediately, periodically, or on owner’s demand n Contact information available in owner’s contact information component Via pagers, SMSs, email, etc. 62

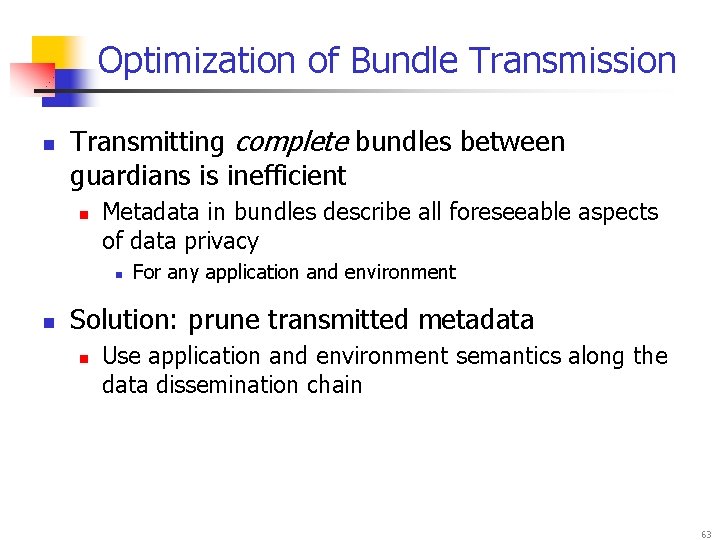

Optimization of Bundle Transmission n Transmitting complete bundles between guardians is inefficient n Metadata in bundles describe all foreseeable aspects of data privacy n n Solution: prune transmitted metadata n For any application and environment Use application and environment semantics along the data dissemination chain 63

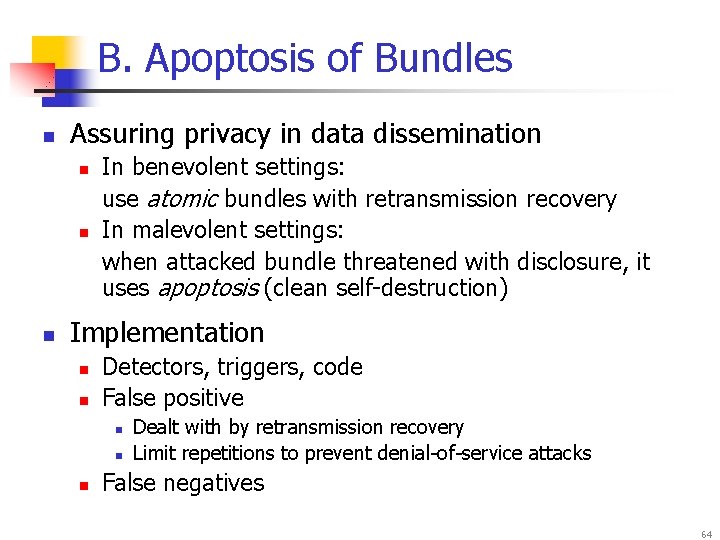

B. Apoptosis of Bundles n Assuring privacy in data dissemination n In benevolent settings: use atomic bundles with retransmission recovery In malevolent settings: when attacked bundle threatened with disclosure, it uses apoptosis (clean self-destruction) Implementation n n Detectors, triggers, code False positive n n n Dealt with by retransmission recovery Limit repetitions to prevent denial-of-service attacks False negatives 64

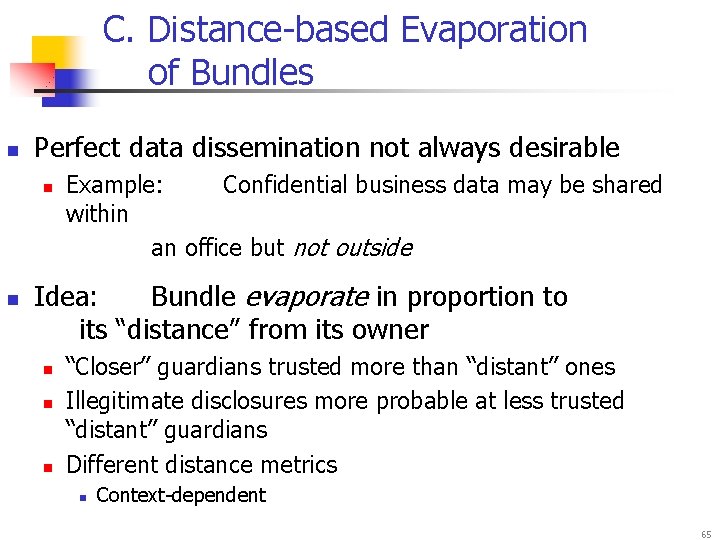

C. Distance-based Evaporation of Bundles n Perfect data dissemination not always desirable n n Example: Confidential business data may be shared within an office but not outside Idea: Bundle evaporate in proportion to its “distance” from its owner n n n “Closer” guardians trusted more than “distant” ones Illegitimate disclosures more probable at less trusted “distant” guardians Different distance metrics n Context-dependent 65

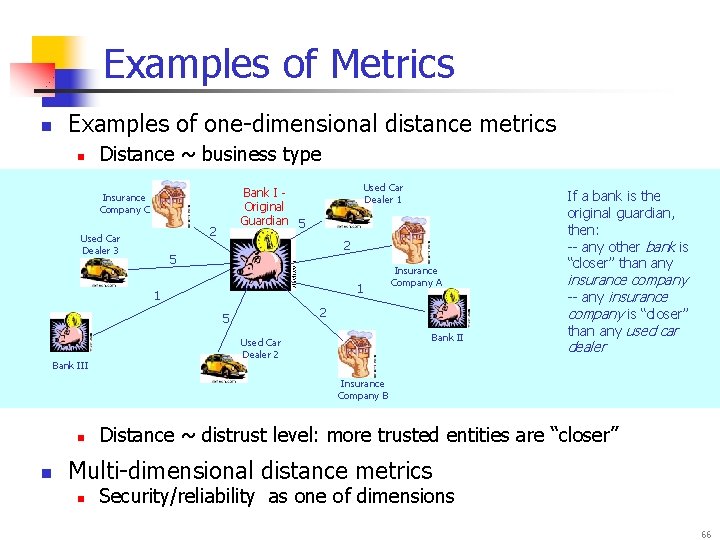

Examples of Metrics n Examples of one-dimensional distance metrics n Distance ~ business type 2 Used Car Dealer 3 Used Car Dealer 1 Bank I Original Guardian 5 Insurance Company C 2 5 1 1 2 5 Bank III Insurance Company A Bank II Used Car Dealer 2 If a bank is the original guardian, then: -- any other bank is “closer” than any insurance company -- any insurance company is “closer” than any used car dealer Insurance Company B n n Multi-dimensional distance metrics n Distance ~ distrust level: more trusted entities are “closer” Security/reliability as one of dimensions 66

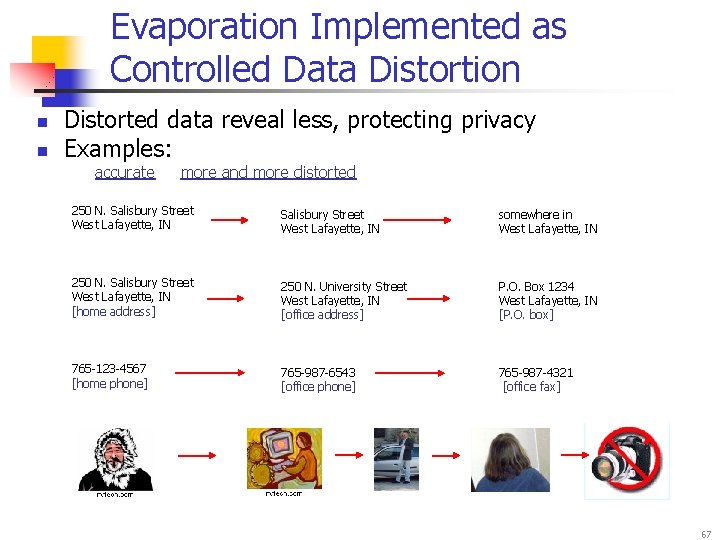

Evaporation Implemented as Controlled Data Distortion n n Distorted data reveal less, protecting privacy Examples: accurate more and more distorted 250 N. Salisbury Street West Lafayette, IN somewhere in West Lafayette, IN 250 N. Salisbury Street West Lafayette, IN [home address] 250 N. University Street West Lafayette, IN [office address] P. O. Box 1234 West Lafayette, IN [P. O. box] 765 -123 -4567 [home phone] 765 -987 -6543 [office phone] 765 -987 -4321 [office fax] 67

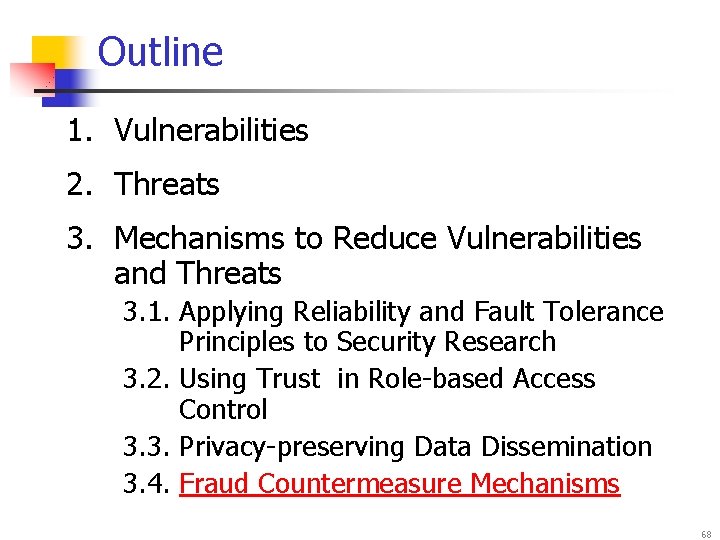

Outline 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 68

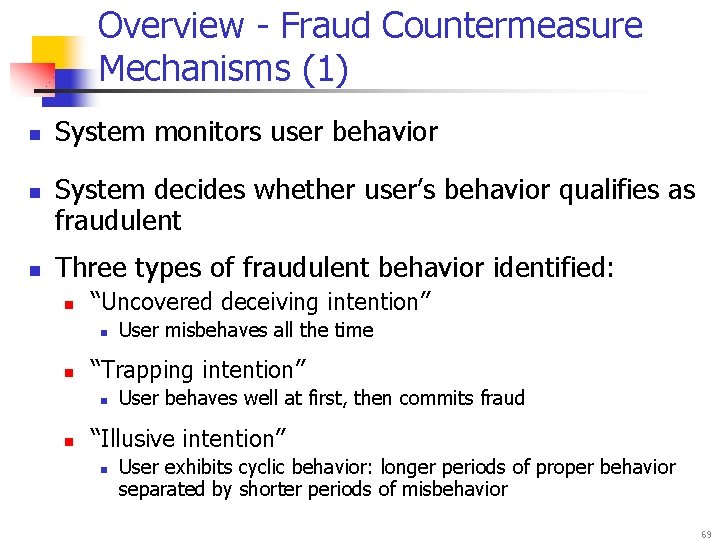

Overview - Fraud Countermeasure Mechanisms (1) n n n System monitors user behavior System decides whether user’s behavior qualifies as fraudulent Three types of fraudulent behavior identified: n “Uncovered deceiving intention” n n “Trapping intention” n n User behaves well at first, then commits fraud “Illusive intention” n User misbehaves all the time User exhibits cyclic behavior: longer periods of proper behavior separated by shorter periods of misbehavior 69

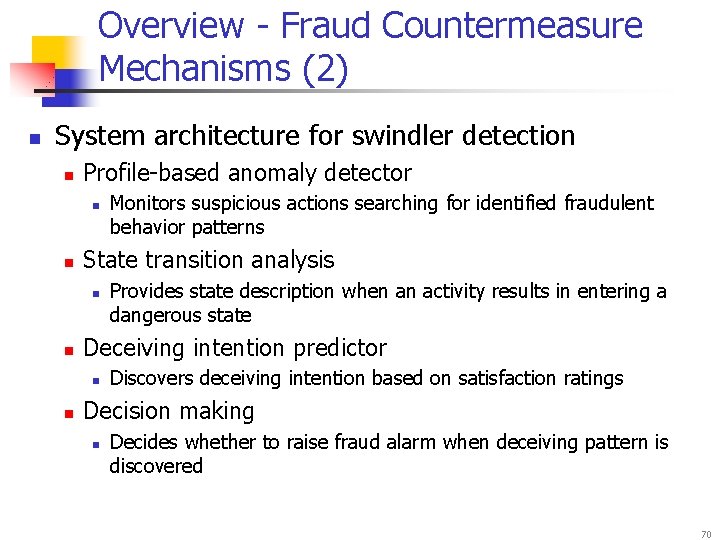

Overview - Fraud Countermeasure Mechanisms (2) n System architecture for swindler detection n Profile-based anomaly detector n n State transition analysis n n Discovers deceiving intention based on satisfaction ratings Decision making n Provides state description when an activity results in entering a dangerous state Deceiving intention predictor n n Monitors suspicious actions searching for identified fraudulent behavior patterns Decides whether to raise fraud alarm when deceiving pattern is discovered 70

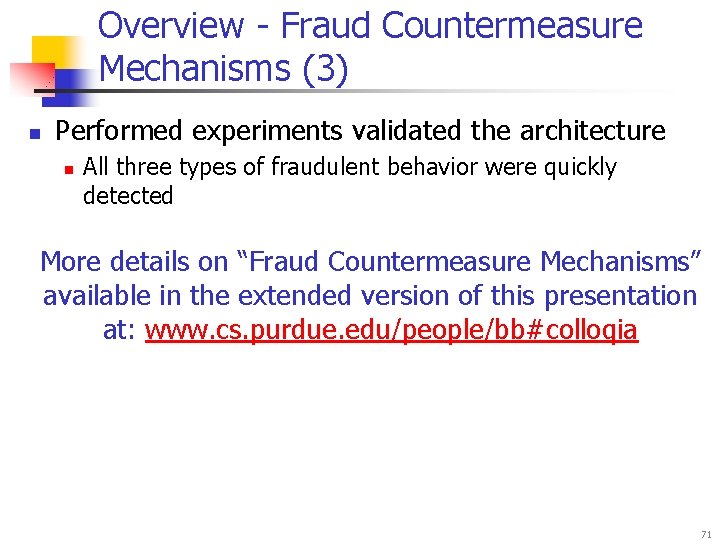

Overview - Fraud Countermeasure Mechanisms (3) n Performed experiments validated the architecture n All three types of fraudulent behavior were quickly detected More details on “Fraud Countermeasure Mechanisms” available in the extended version of this presentation at: www. cs. purdue. edu/people/bb#colloqia 71

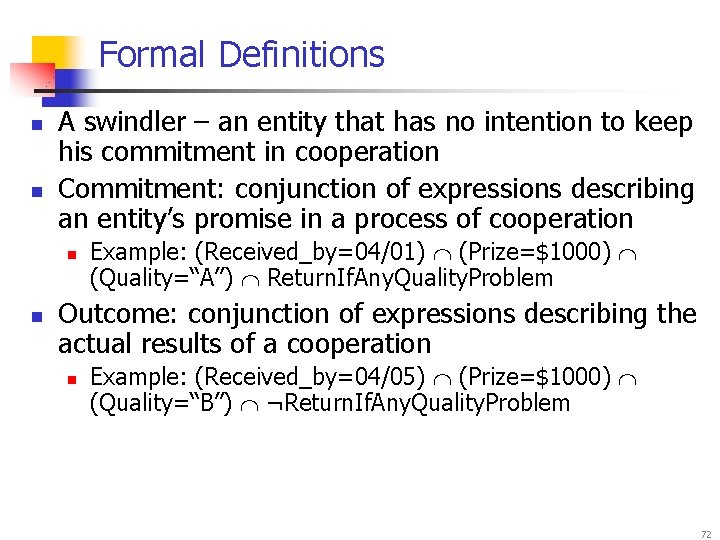

Formal Definitions n n A swindler – an entity that has no intention to keep his commitment in cooperation Commitment: conjunction of expressions describing an entity’s promise in a process of cooperation n n Outcome: conjunction of expressions describing the actual results of a cooperation n Example: (Received_by=04/01) (Prize=$1000) (Quality=“A”) Return. If. Any. Quality. Problem Example: (Received_by=04/05) (Prize=$1000) (Quality=“B”) ¬Return. If. Any. Quality. Problem 72

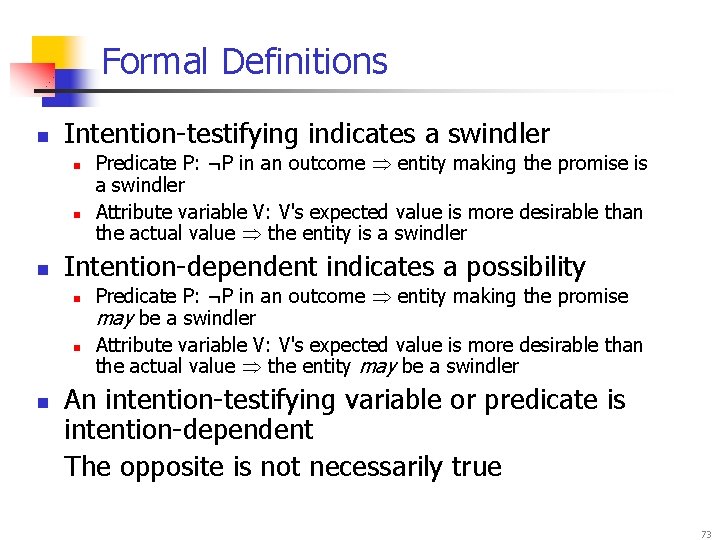

Formal Definitions n Intention-testifying indicates a swindler n n n Intention-dependent indicates a possibility n n n Predicate P: ¬P in an outcome entity making the promise is a swindler Attribute variable V: V's expected value is more desirable than the actual value the entity is a swindler Predicate P: ¬P in an outcome entity making the promise may be a swindler Attribute variable V: V's expected value is more desirable than the actual value the entity may be a swindler An intention-testifying variable or predicate is intention-dependent The opposite is not necessarily true 73

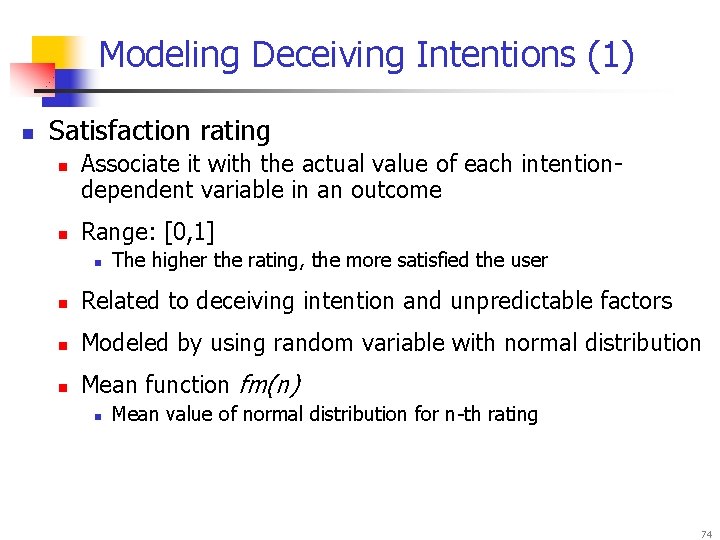

Modeling Deceiving Intentions (1) n Satisfaction rating n n Associate it with the actual value of each intentiondependent variable in an outcome Range: [0, 1] n n Related to deceiving intention and unpredictable factors n Modeled by using random variable with normal distribution n Mean function fm(n) n The higher the rating, the more satisfied the user Mean value of normal distribution for n-th rating 74

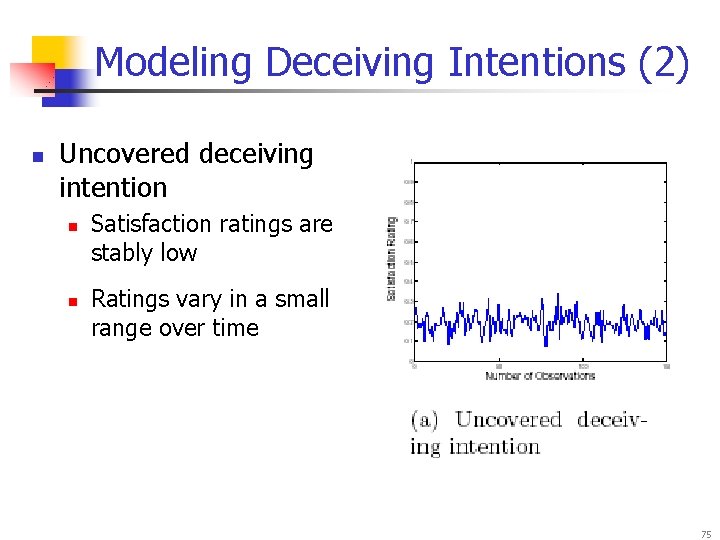

Modeling Deceiving Intentions (2) n Uncovered deceiving intention n n Satisfaction ratings are stably low Ratings vary in a small range over time 75

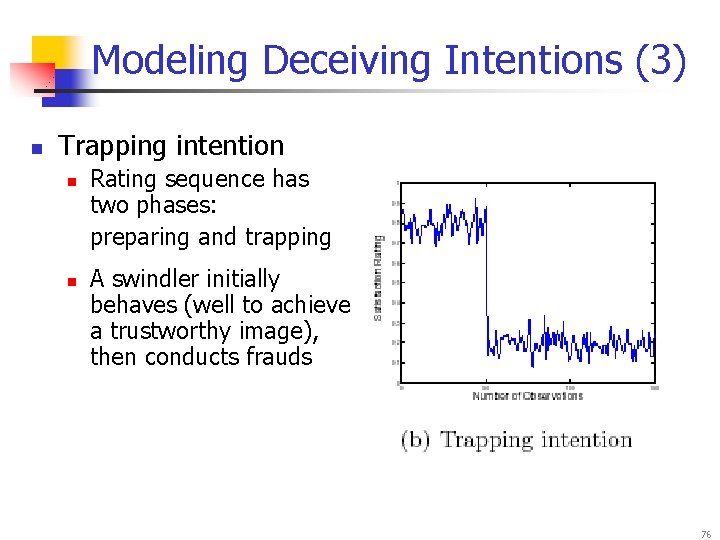

Modeling Deceiving Intentions (3) n Trapping intention n n Rating sequence has two phases: preparing and trapping A swindler initially behaves (well to achieve a trustworthy image), then conducts frauds 76

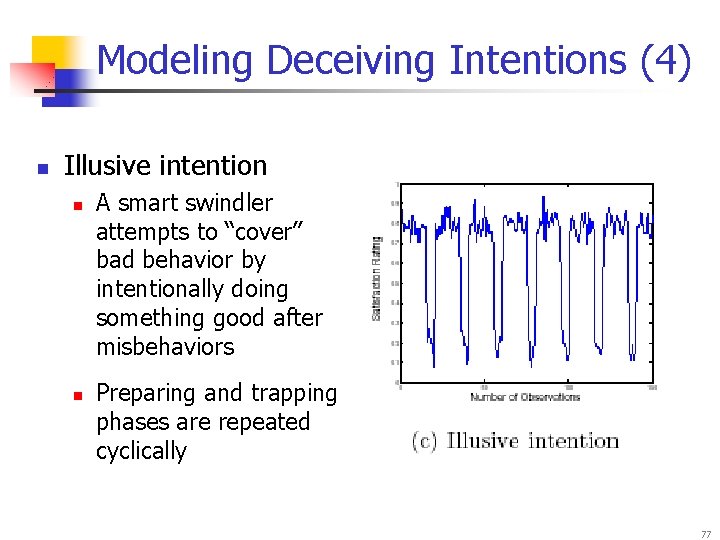

Modeling Deceiving Intentions (4) n Illusive intention n n A smart swindler attempts to “cover” bad behavior by intentionally doing something good after misbehaviors Preparing and trapping phases are repeated cyclically 77

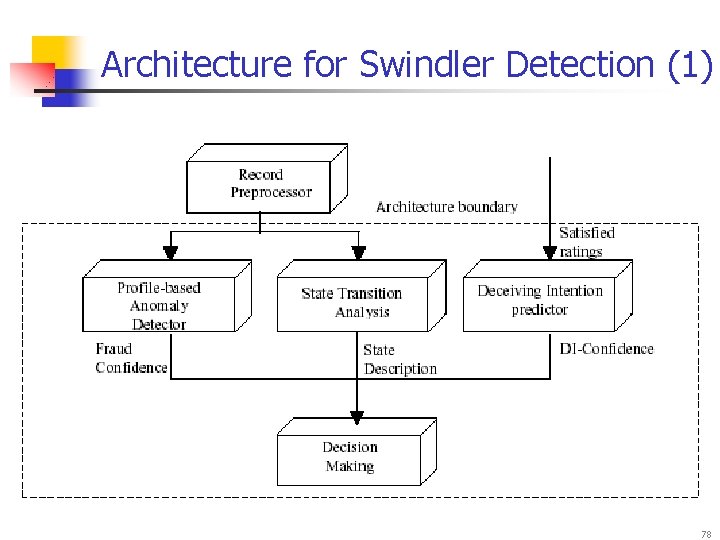

Architecture for Swindler Detection (1) 78

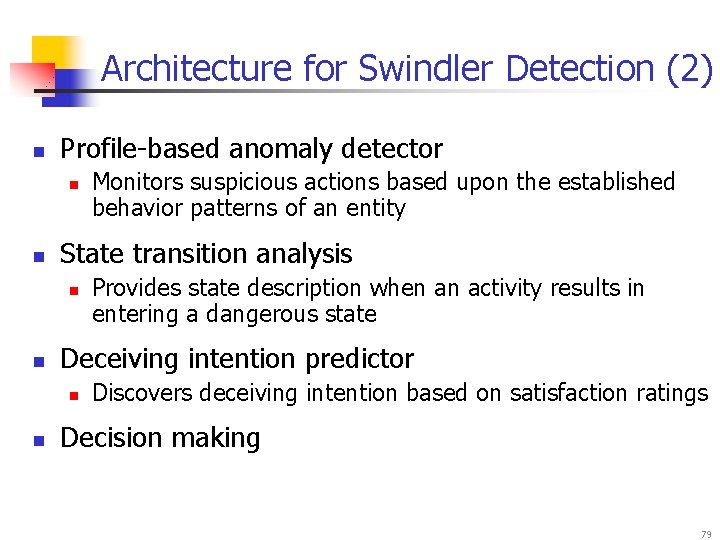

Architecture for Swindler Detection (2) n Profile-based anomaly detector n n State transition analysis n n Provides state description when an activity results in entering a dangerous state Deceiving intention predictor n n Monitors suspicious actions based upon the established behavior patterns of an entity Discovers deceiving intention based on satisfaction ratings Decision making 79

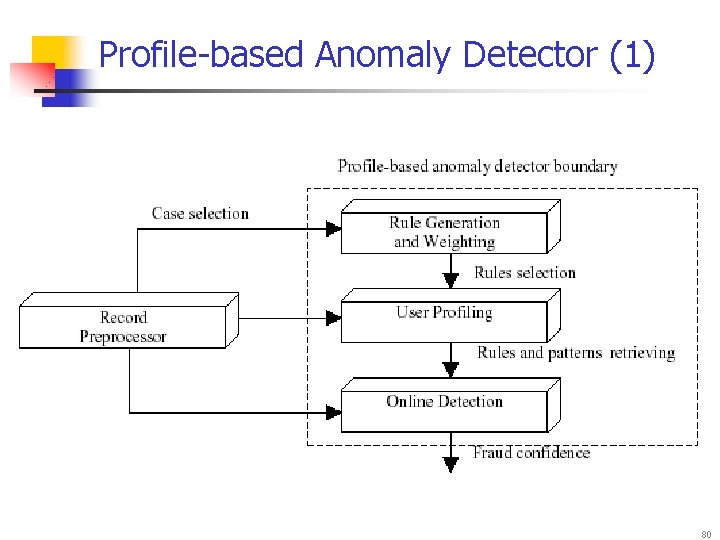

Profile-based Anomaly Detector (1) 80

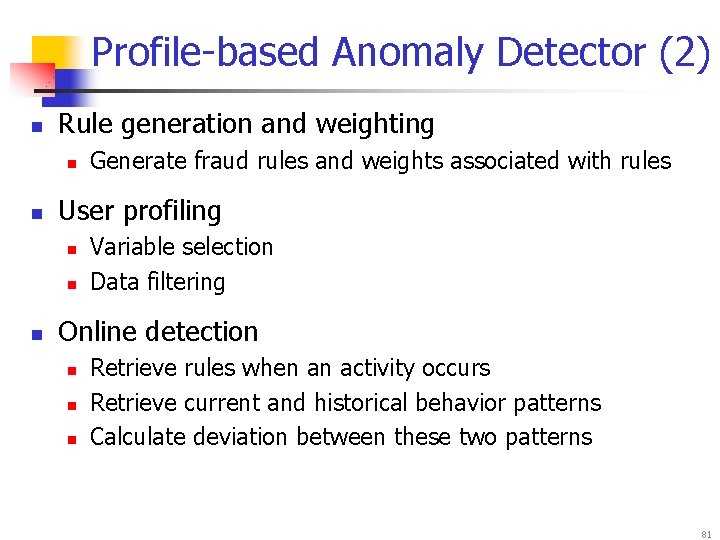

Profile-based Anomaly Detector (2) n Rule generation and weighting n n User profiling n n n Variable selection Data filtering Online detection n Generate fraud rules and weights associated with rules Retrieve rules when an activity occurs Retrieve current and historical behavior patterns Calculate deviation between these two patterns 81

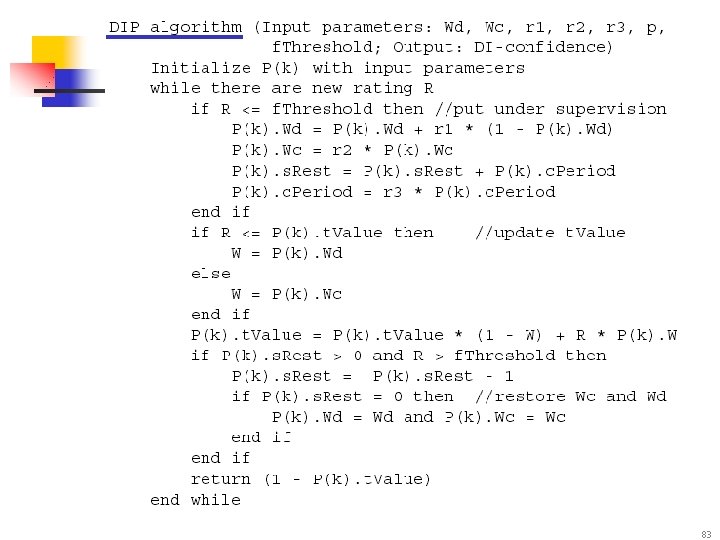

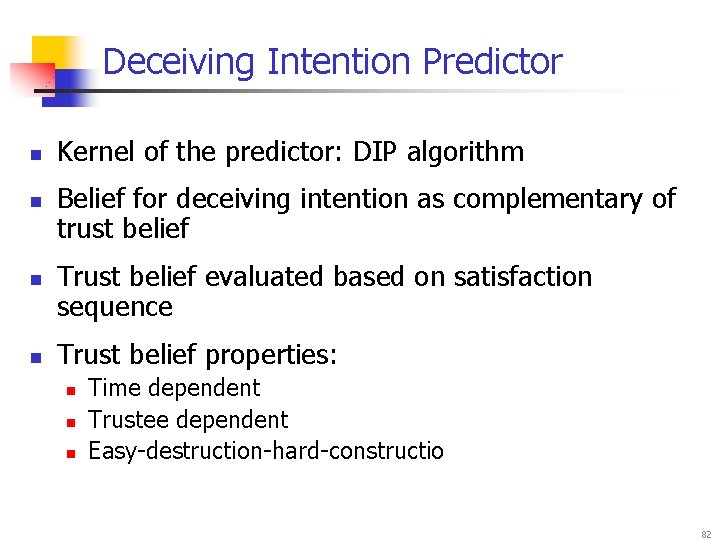

Deceiving Intention Predictor n n Kernel of the predictor: DIP algorithm Belief for deceiving intention as complementary of trust belief Trust belief evaluated based on satisfaction sequence Trust belief properties: n n n Time dependent Trustee dependent Easy-destruction-hard-constructio 82
83

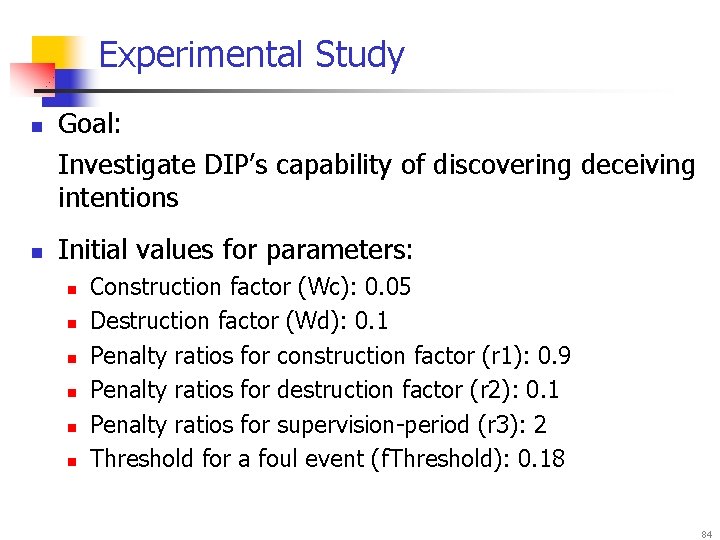

Experimental Study n n Goal: Investigate DIP’s capability of discovering deceiving intentions Initial values for parameters: n n n Construction factor (Wc): 0. 05 Destruction factor (Wd): 0. 1 Penalty ratios for construction factor (r 1): 0. 9 Penalty ratios for destruction factor (r 2): 0. 1 Penalty ratios for supervision-period (r 3): 2 Threshold for a foul event (f. Threshold): 0. 18 84

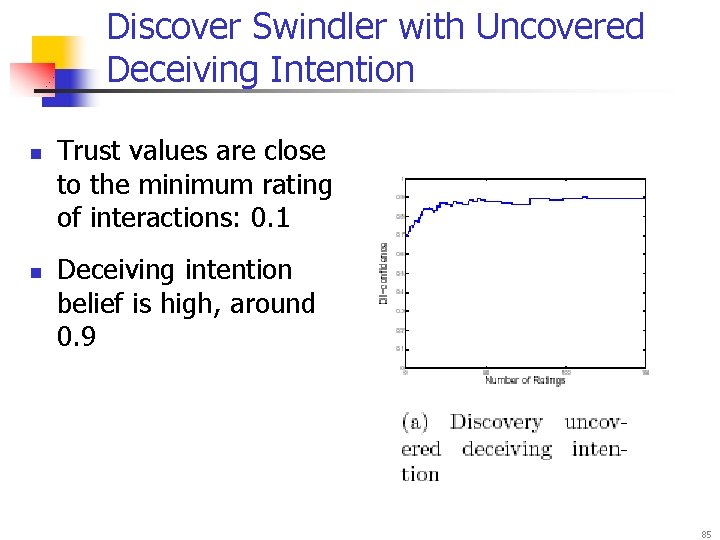

Discover Swindler with Uncovered Deceiving Intention n n Trust values are close to the minimum rating of interactions: 0. 1 Deceiving intention belief is high, around 0. 9 85

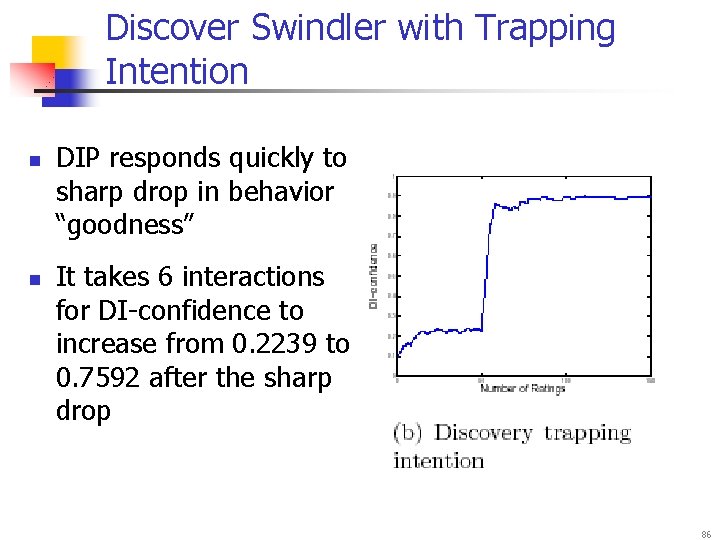

Discover Swindler with Trapping Intention n n DIP responds quickly to sharp drop in behavior “goodness” It takes 6 interactions for DI-confidence to increase from 0. 2239 to 0. 7592 after the sharp drop 86

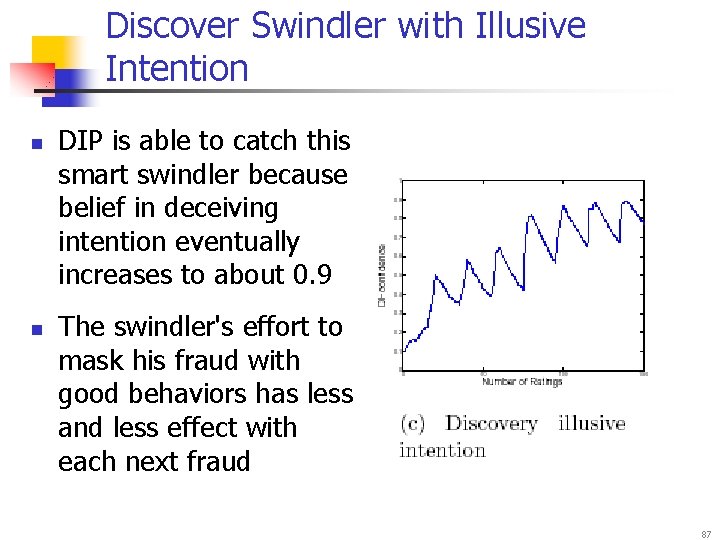

Discover Swindler with Illusive Intention n n DIP is able to catch this smart swindler because belief in deceiving intention eventually increases to about 0. 9 The swindler's effort to mask his fraud with good behaviors has less and less effect with each next fraud 87

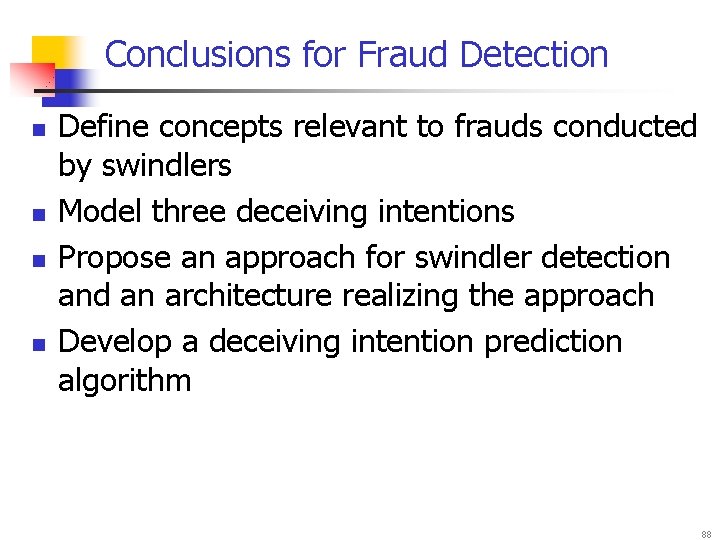

Conclusions for Fraud Detection n n Define concepts relevant to frauds conducted by swindlers Model three deceiving intentions Propose an approach for swindler detection and an architecture realizing the approach Develop a deceiving intention prediction algorithm 88

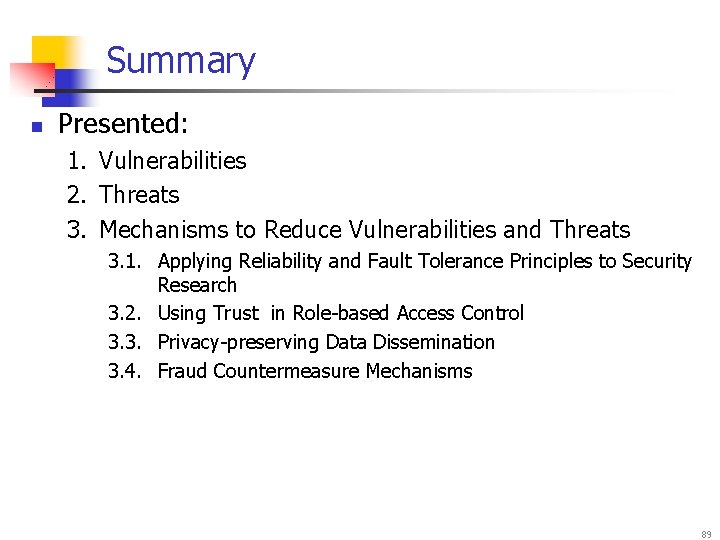

Summary n Presented: 1. Vulnerabilities 2. Threats 3. Mechanisms to Reduce Vulnerabilities and Threats 3. 1. Applying Reliability and Fault Tolerance Principles to Security Research 3. 2. Using Trust in Role-based Access Control 3. 3. Privacy-preserving Data Dissemination 3. 4. Fraud Countermeasure Mechanisms 89

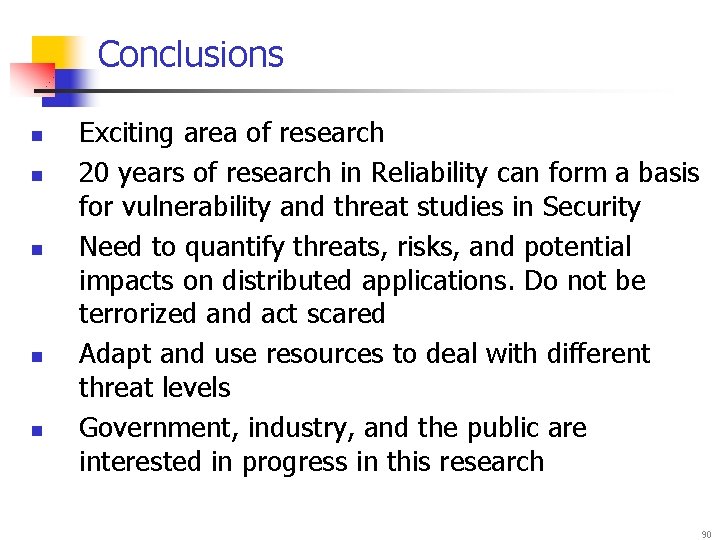

Conclusions n n n Exciting area of research 20 years of research in Reliability can form a basis for vulnerability and threat studies in Security Need to quantify threats, risks, and potential impacts on distributed applications. Do not be terrorized and act scared Adapt and use resources to deal with different threat levels Government, industry, and the public are interested in progress in this research 90

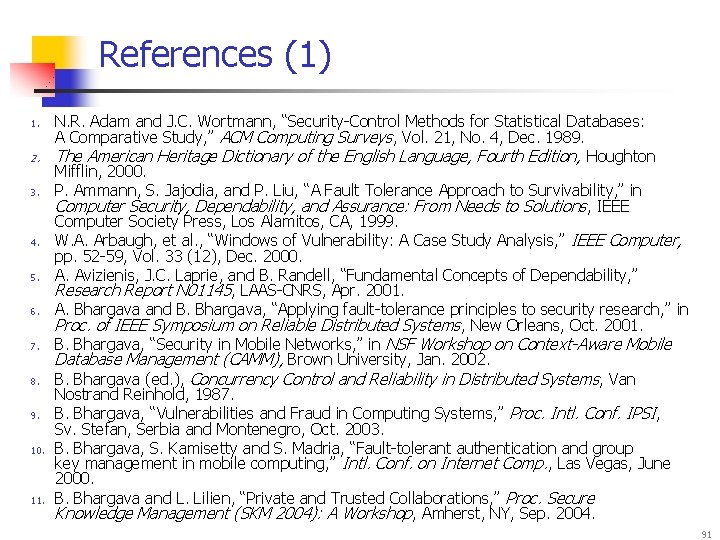

References (1) 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. N. R. Adam and J. C. Wortmann, “Security-Control Methods for Statistical Databases: A Comparative Study, ” ACM Computing Surveys, Vol. 21, No. 4, Dec. 1989. The American Heritage Dictionary of the English Language, Fourth Edition, Houghton Mifflin, 2000. P. Ammann, S. Jajodia, and P. Liu, “A Fault Tolerance Approach to Survivability, ” in Computer Security, Dependability, and Assurance: From Needs to Solutions , IEEE Computer Society Press, Los Alamitos, CA, 1999. W. A. Arbaugh, et al. , “Windows of Vulnerability: A Case Study Analysis, ” IEEE Computer, pp. 52 -59, Vol. 33 (12), Dec. 2000. A. Avizienis, J. C. Laprie, and B. Randell, “Fundamental Concepts of Dependability, ” Research Report N 01145, LAAS-CNRS, Apr. 2001. A. Bhargava and B. Bhargava, “Applying fault-tolerance principles to security research, ” in Proc. of IEEE Symposium on Reliable Distributed Systems, New Orleans, Oct. 2001. B. Bhargava, “Security in Mobile Networks, ” in NSF Workshop on Context-Aware Mobile Database Management (CAMM), Brown University, Jan. 2002. B. Bhargava (ed. ), Concurrency Control and Reliability in Distributed Systems, Van Nostrand Reinhold, 1987. B. Bhargava, “Vulnerabilities and Fraud in Computing Systems, ” Proc. Intl. Conf. IPSI, Sv. Stefan, Serbia and Montenegro, Oct. 2003. B. Bhargava, S. Kamisetty and S. Madria, “Fault-tolerant authentication and group key management in mobile computing, ” Intl. Conf. on Internet Comp. , Las Vegas, June 2000. B. Bhargava and L. Lilien, “Private and Trusted Collaborations, ” Proc. Secure Knowledge Management (SKM 2004): A Workshop, Amherst, NY, Sep. 2004. 91

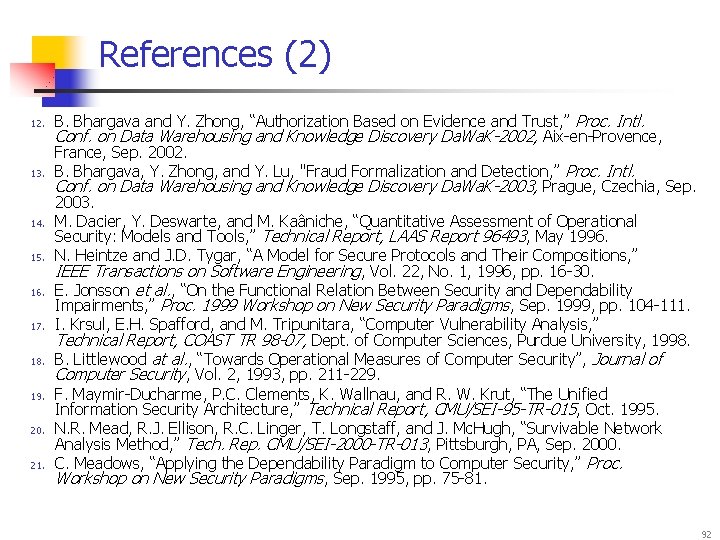

References (2) 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. B. Bhargava and Y. Zhong, “Authorization Based on Evidence and Trust, ” Proc. Intl. Conf. on Data Warehousing and Knowledge Discovery Da. Wa. K-2002, Aix-en-Provence, France, Sep. 2002. B. Bhargava, Y. Zhong, and Y. Lu, "Fraud Formalization and Detection, ” Proc. Intl. Conf. on Data Warehousing and Knowledge Discovery Da. Wa. K-2003, Prague, Czechia, Sep. 2003. M. Dacier, Y. Deswarte, and M. Kaâniche, “Quantitative Assessment of Operational Security: Models and Tools, ” Technical Report, LAAS Report 96493, May 1996. N. Heintze and J. D. Tygar, “A Model for Secure Protocols and Their Compositions, ” IEEE Transactions on Software Engineering, Vol. 22, No. 1, 1996, pp. 16 -30. E. Jonsson et al. , “On the Functional Relation Between Security and Dependability Impairments, ” Proc. 1999 Workshop on New Security Paradigms, Sep. 1999, pp. 104 -111. I. Krsul, E. H. Spafford, and M. Tripunitara, “Computer Vulnerability Analysis, ” Technical Report, COAST TR 98 -07, Dept. of Computer Sciences, Purdue University, 1998. B. Littlewood at al. , “Towards Operational Measures of Computer Security”, Journal of Computer Security, Vol. 2, 1993, pp. 211 -229. F. Maymir-Ducharme, P. C. Clements, K. Wallnau, and R. W. Krut, “The Unified Information Security Architecture, ” Technical Report, CMU/SEI-95 -TR-015, Oct. 1995. N. R. Mead, R. J. Ellison, R. C. Linger, T. Longstaff, and J. Mc. Hugh, “Survivable Network Analysis Method, ” Tech. Rep. CMU/SEI-2000 -TR-013, Pittsburgh, PA, Sep. 2000. C. Meadows, “Applying the Dependability Paradigm to Computer Security, ” Proc. Workshop on New Security Paradigms, Sep. 1995, pp. 75 -81. 92

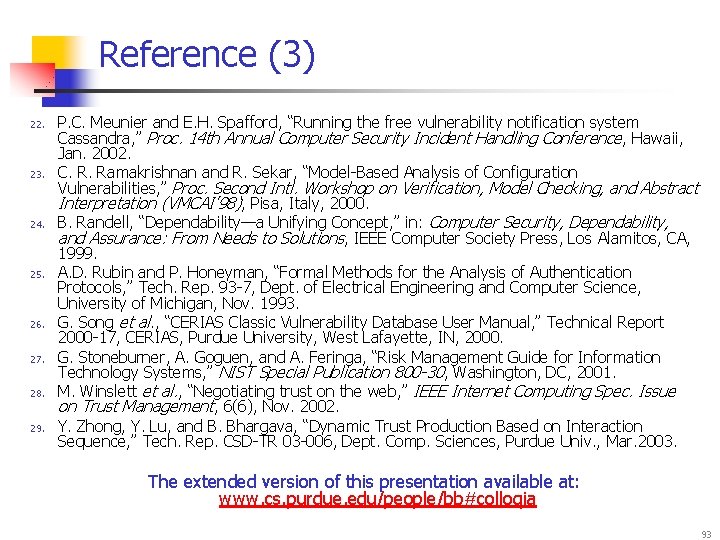

Reference (3) 22. 23. 24. 25. 26. 27. 28. 29. P. C. Meunier and E. H. Spafford, “Running the free vulnerability notification system Cassandra, ” Proc. 14 th Annual Computer Security Incident Handling Conference , Hawaii, Jan. 2002. C. R. Ramakrishnan and R. Sekar, “Model-Based Analysis of Configuration Vulnerabilities, ” Proc. Second Intl. Workshop on Verification, Model Checking, and Abstract Interpretation (VMCAI’ 98), Pisa, Italy, 2000. B. Randell, “Dependability—a Unifying Concept, ” in: Computer Security, Dependability, and Assurance: From Needs to Solutions, IEEE Computer Society Press, Los Alamitos, CA, 1999. A. D. Rubin and P. Honeyman, “Formal Methods for the Analysis of Authentication Protocols, ” Tech. Rep. 93 -7, Dept. of Electrical Engineering and Computer Science, University of Michigan, Nov. 1993. G. Song et al. , “CERIAS Classic Vulnerability Database User Manual, ” Technical Report 2000 -17, CERIAS, Purdue University, West Lafayette, IN, 2000. G. Stoneburner, A. Goguen, and A. Feringa, “Risk Management Guide for Information Technology Systems, ” NIST Special Publication 800 -30, Washington, DC, 2001. M. Winslett et al. , “Negotiating trust on the web, ” IEEE Internet Computing Spec. Issue on Trust Management, 6(6), Nov. 2002. Y. Zhong, Y. Lu, and B. Bhargava, “Dynamic Trust Production Based on Interaction Sequence, ” Tech. Rep. CSD-TR 03 -006, Dept. Comp. Sciences, Purdue Univ. , Mar. 2003. The extended version of this presentation available at: www. cs. purdue. edu/people/bb#colloqia 93
