VRF Compatibility Analysis Overview Super X Outdoor Unit
VRF Compatibility Analysis
Overview Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Non-Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Non-Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit
Overview Outdoor Unit Series Super X Indoor Unit Series 2 nd Generation (Remote Controllers/ Wired Controller/ KNX Gateway 1) 2 nd Generation Centralized Controllers √ × √ √ × × × √ √ 1 st Generation DC/AC Non- Super X For all series 1 st Generation (Remote Controllers/ Wired Controller/ KNX Gateway 1) 2 nd Generation DC Note: 1. KNX Gateway is only affected by the indoor unit series.
Outdoor Unit Series Indoor Unit Series Super X 1 st Generation (Centralized Controllers/ BMS Gateways 1/ Data Converter/ Network Control System) 2 nd Generation (BMS Gateways 1/ Data Converter/ Network Control System) 2 nd Generation Diagnosis Software × √ √ √ × √ For all series Non- Super X Note: 1. The BMS Gateways do not include KNX Gateway. The KNX Gateway is affected only by the indoor unit series.
Overview Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Non-Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Non- Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Controllers Line-up
Super X Outdoor Unit 2 nd Generation VRF DC Indoor Units
Controllers Line-up Outdoor Unit Series Indoor Unit Series Remote Controller/ Wired Controller 2 nd Generation (Remote Controller/ Wired Controller) Super X 2 nd Generation DC WL-12 D-CM WL-12 B-CM WR-86 KD-CM WR-120 G-CM Centralized Controller 2 nd Generation Centralized Controller CRF-180 A-CM CRF-270 A-CM BMS Gateway 2 nd Generation BMS Gateway NW-KNX 2 -CM (Under development) NW-BAC-CM NW-MOD-CM NW-LON-CM
Outdoor Unit Series Indoor Unit Series Data Converter (Under Development) Super X 2 nd Generation DC / Network Control System IMMPRO CRF-270 A-CM + 4 GNS-20 -IF or 4 GNS-20 -CM + 4 GNS-20 -IF Diagnosis Software Accessories 1 2 nd Generation Diagnosis Software Hotel Key Card Interface Modules/ Infrared Sensor Controllers VRF-DIAG-B CA-NIM 05/E CA-NIM 05 B/E CA-NIM 09 Note: 1. Hotel Key Card Interface Modules and Infrared Sensor Controllers are only compatible while using the infrared communication ports of wired Controllers (WR-86 K-CM and WR-120 G-CM).
Overview Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Non- Super X Outdoor Unit + Generation DC Indoor Unit 2 nd Non- Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Controllers Line-up Controllers Compatibility Analysis
Super X Outdoor Unit 1 st Generation VRF DC/AC Indoor Units

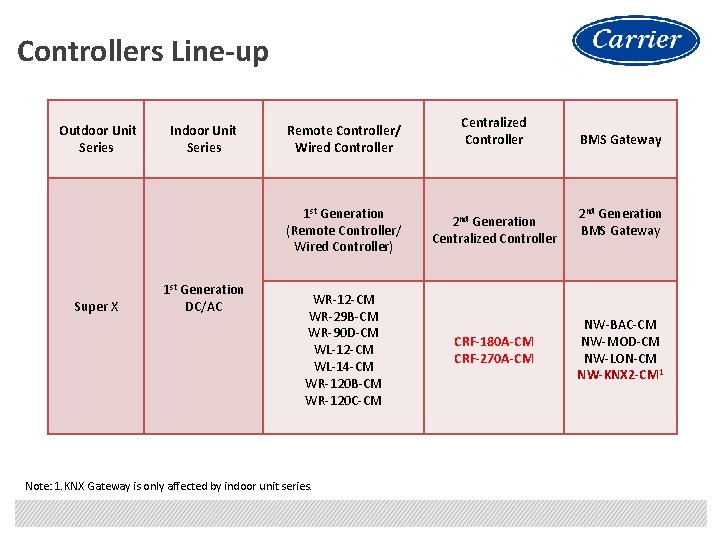

Controllers Line-up Outdoor Unit Series Indoor Unit Series Remote Controller/ Wired Controller 1 st Generation (Remote Controller/ Wired Controller) Super X 1 st Generation DC/AC WR-12 -CM WR-29 B-CM WR-90 D-CM WL-12 -CM WL-14 -CM WR-120 B-CM WR-120 C-CM Note: 1. KNX Gateway is only affected by indoor unit series. Centralized Controller 2 nd Generation Centralized Controller CRF-180 A-CM CRF-270 A-CM BMS Gateway 2 nd Generation BMS Gateway NW-BAC-CM NW-MOD-CM NW-LON-CM NW-KNX 2 -CM 1
Outdoor Unit Series Indoor Unit Series Data Converter Under developing Super X 1 st Generation DC/AC / Network Control System IMMPRO CRF-270 A-CM + 4 GNS-20 -IF or 4 GNS-20 -CM + 4 GNS-20 -IF Diagnosis Software Accessories 2 nd Generation Diagnosis Software Hotel Key Card Interface Modules/ Infrared Sensor Controller/ Indoor Unit Group Controller VRF-DIAG-B CA-NIM 05/E CA-NIM 05 B/E CA-NIM 09
Overview Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Controllers Line-up Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Controllers Compatibility Analysis Non- Super X Outdoor Unit + 2 nd Generation DC Indoor Unit CRF-270 A-CM Compatibility Analysis Non- Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit CRF-180 A-CM Compatibility Analysis
Non-Super X Outdoor Unit 2 nd Generation VRF DC Indoor Units
Controllers Line-up Outdoor Unit Series Non- Super X Indoor Unit Series 2 nd Generation DC Centralized Controller Remote Controller/ Wired Controller 2 nd Generation (Remote Controller/ Wired Controller) Generation Centralized Controller WL-12 D-CM WL-12 B-CM WR-86 KD-CM WR-120 G-CM CRF-10 -CM CRF-30 -CM WCRF-10 -CM CRC-10 -CM CRF-180 A-CM CRF-270 A-CM Notes: 1. KNX Gateway is only affected by indoor unit series. 1 st /2 nd BMS Gateway 1 st Generation BMS Gateway NW-BCN-CM CRF-18 -CM NW-LNWD-CM NW-KNX 2 -CM 1( Under development)
Outdoor Unit Series Non- Super X Indoor Unit Series Data Converter Network Control System 1 st Generation Data Converter IMM CIF-15 A-CM M-interface + IMM Diagnosis Software Accessories 1 2 nd Generation Diagnosis Software Hotel Key Card Interface Modules/ Infrared Sensor Controller/ Outdoor Unit Remote Alarm Controller VRF-DIAG-B CA-NIM 05/E CA-NIM 05 B/E CA-NIM 09 2 nd Generation DC Note: 1. Hotel Key Card Interface Modules and Infrared Sensor Controllers are only compatible while using the infrared communication ports of wired Controllers (WR-86 K-CM and WR-120 G-CM)
Matching Principle Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Super X Outdoor Unit + 1 st Generation DC/AC Indoor Unit Non- Super X Outdoor Unit + 2 nd Generation DC Indoor Unit Non-Super X Outdoor Units + 1 st Generation DC/AC Indoor Units Controllers Line-up
Non-Super X Outdoor Unit 1 st Generation AC/DC VRF Indoor Units

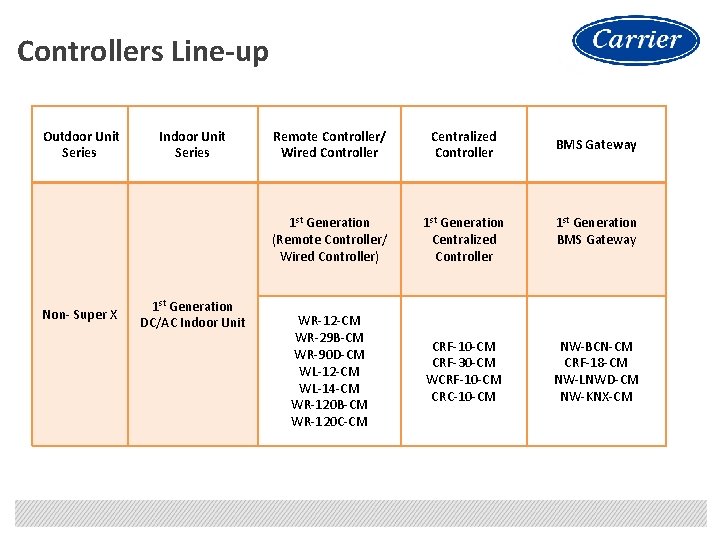

Controllers Line-up Outdoor Unit Series Non- Super X Indoor Unit Series 1 st Generation DC/AC Indoor Unit Remote Controller/ Wired Controller Centralized Controller 1 st Generation (Remote Controller/ Wired Controller) 1 st Generation Centralized Controller 1 st Generation BMS Gateway WR-12 -CM WR-29 B-CM WR-90 D-CM WL-12 -CM WL-14 -CM WR-120 B-CM WR-120 C-CM CRF-10 -CM CRF-30 -CM WCRF-10 -CM CRC-10 -CM NW-BCN-CM CRF-18 -CM NW-LNWD-CM NW-KNX-CM BMS Gateway
Outdoor Unit Series Indoor Unit Series Data Converter 1 st Generation Data Converter Non- Super X Network Control System IMM Diagnosis Software 2 nd Generation Diagnosis Software Accessories Hotel Key Card Interface Modules/ Infrared Sensor Controller/ Group Controller 1 st Generation DC/AC CIF-15 A-CM M-interface + IMM VRF-DIAG-B CA-NIM 05/E CA-NIM 05 B/E CA-NIM 09
Exercises
Super plus ODU 2 nd Generation VRF DC Indoor Units 2 nd Generation Centralized controllers
Super plus ODU 1 st Generation AC/DC VRF Indoor Units 2 nd Generation Centralized controllers
Super X ODU 1 st Generation AC/DC VRF Indoor Units 2 nd Generation Centralized controllers
Super plus ODU 2 nd Generation VRF DC Indoor Units 2 nd Generation Wired Controllers
Super X ODU 2 nd Generation VRF DC Indoor Units IMM
Super plus ODU 2 nd Generation VRF DC Indoor Units IMMPRO
Super plus ODU 2 nd Generation VRF DC Indoor Units 2 nd Generation Remote Controllers
Super plus ODU 1 st Generation AC/DC VRF Indoor Units VRF-DIAG-B (2 nd Generation Diagnosis Software)
Super X ODU 2 nd Generation VRF DC Indoor Units VRF-DIAG-B (2 nd Generation Diagnosis Software)
Super plus ODU 2 nd Generation VRF DC Indoor Units 1 st Generation Central controllers
Super X ODU 2 nd Generation VRF DC Indoor Units 1 st Generation Central controllers
