VP - SPEC Technologies Inc. INCREASING PLANT RELIABILITY & INTEGRITY MANAGEMENT USING CFD & CORROSION SIMULATION Regan Pooran, P. Eng. VP-SPEC TECHNOLOGIES INC.

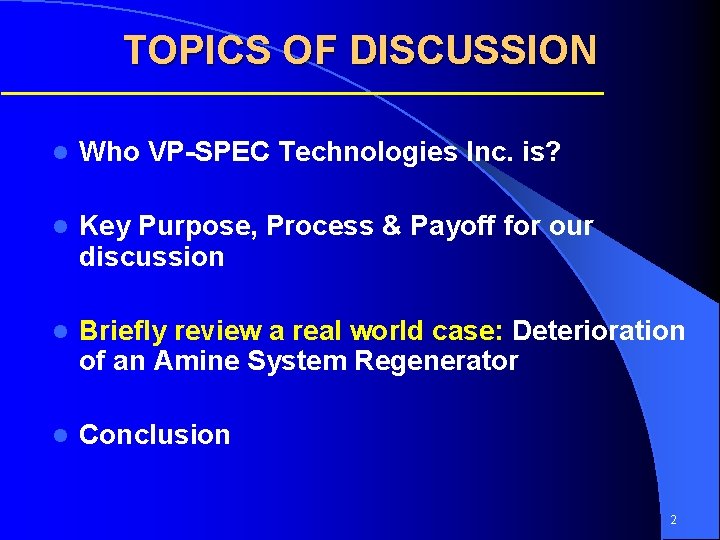

TOPICS OF DISCUSSION l Who VP-SPEC Technologies Inc. is? l Key Purpose, Process & Payoff for our discussion l Briefly review a real world case: Deterioration of an Amine System Regenerator l Conclusion 2

WHO ARE WE? 3

VP-SPEC TECHNOLOGIES INC BACKGROUND • We are a consulting company (based out of Oil Rich Alberta) specializing in Asset Management Systems – focusing mainly on the Process Industry. • Our customer base includes: Husky Energy, Suncor, Nalco/ Exxon, En. Cana Energy, Enerplus Trust etc… 4

PURPOSE, PROCESS, PAYOFF 5

PURPOSE, PROCESS, PAYOFF • Key Purpose: • • Process: • • • To demonstrate how CFD (Fluent Inc. , CFD Modeling ) & Corrosion Simulation (OLI Systems, Corrosion Analyzer) are applied synergistically to improve Plant Reliability & Integrity Management. Discuss how CFD & Corrosion Simulation were applied to confirm deterioration mechanisms in an Amine System Regenerator that has had multiple failures Open discussion – please interrupt if you have questions Payoff: • An understanding of how CFD & Corrosion Simulation can be applied to improve your Plant’s Reliability & Integrity Management 6

THE TRADITIONAL & THE IMPROVED PERSPECTIVE FOR ASSET INTEGRITY MANAGEMENT 7

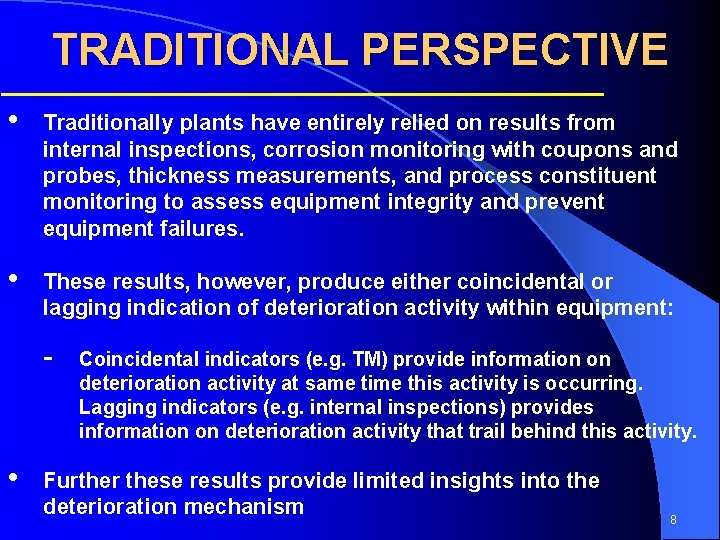

TRADITIONAL PERSPECTIVE • Traditionally plants have entirely relied on results from internal inspections, corrosion monitoring with coupons and probes, thickness measurements, and process constituent monitoring to assess equipment integrity and prevent equipment failures. • These results, however, produce either coincidental or lagging indication of deterioration activity within equipment: - • Coincidental indicators (e. g. TM) provide information on deterioration activity at same time this activity is occurring. Lagging indicators (e. g. internal inspections) provides information on deterioration activity that trail behind this activity. Further these results provide limited insights into the deterioration mechanism 8

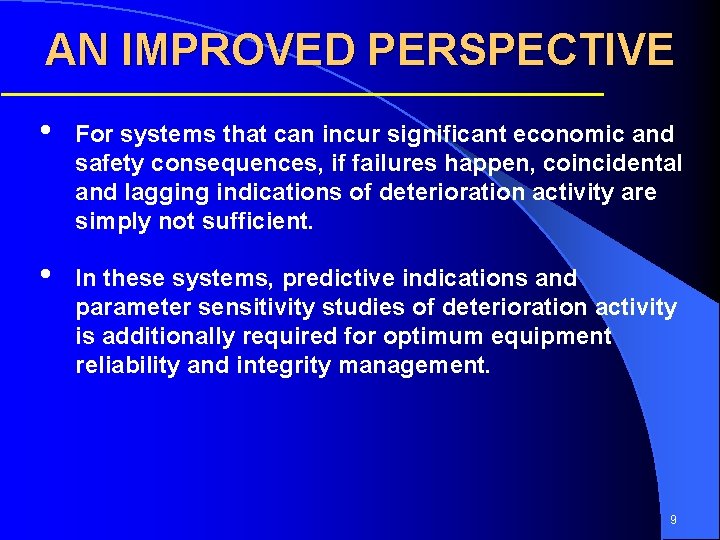

AN IMPROVED PERSPECTIVE • For systems that can incur significant economic and safety consequences, if failures happen, coincidental and lagging indications of deterioration activity are simply not sufficient. • In these systems, predictive indications and parameter sensitivity studies of deterioration activity is additionally required for optimum equipment reliability and integrity management. 9

REVIEW OF PROBLEMS WITHIN AN AMINE SYSTEM 10

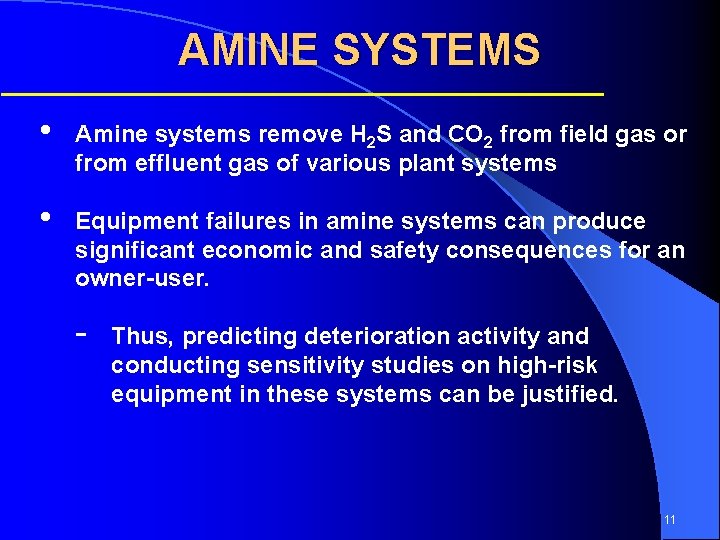

AMINE SYSTEMS • Amine systems remove H 2 S and CO 2 from field gas or from effluent gas of various plant systems • Equipment failures in amine systems can produce significant economic and safety consequences for an owner-user. - Thus, predicting deterioration activity and conducting sensitivity studies on high-risk equipment in these systems can be justified. 11

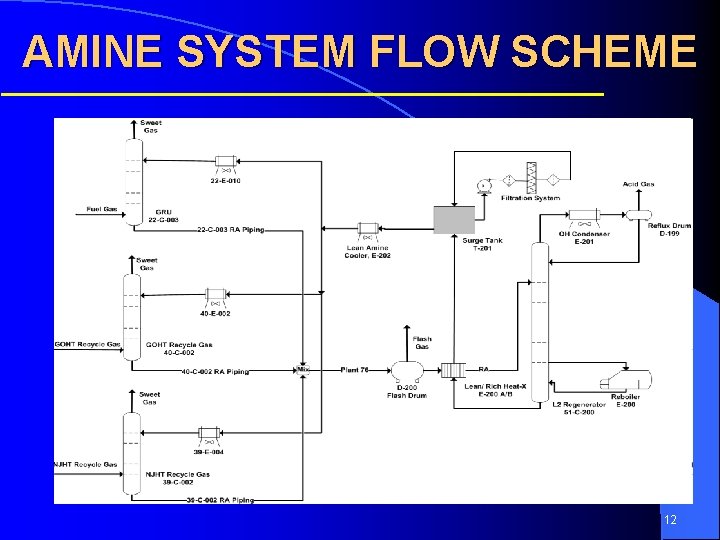

AMINE SYSTEM FLOW SCHEME 12

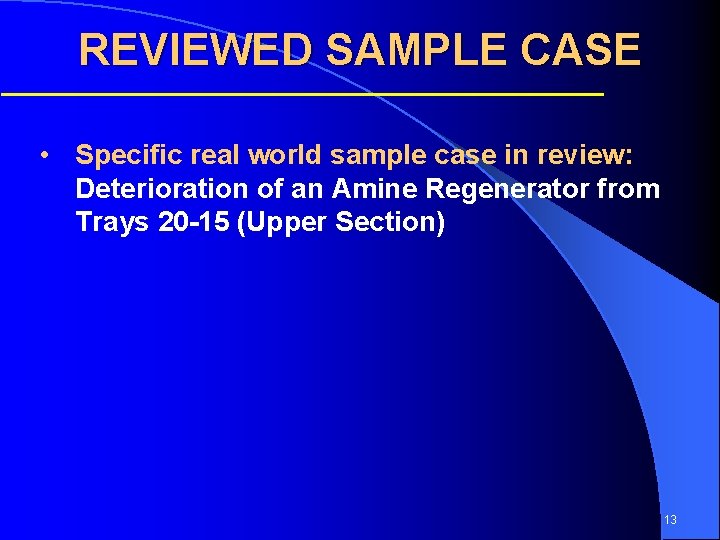

REVIEWED SAMPLE CASE • Specific real world sample case in review: Deterioration of an Amine Regenerator from Trays 20 -15 (Upper Section) 13

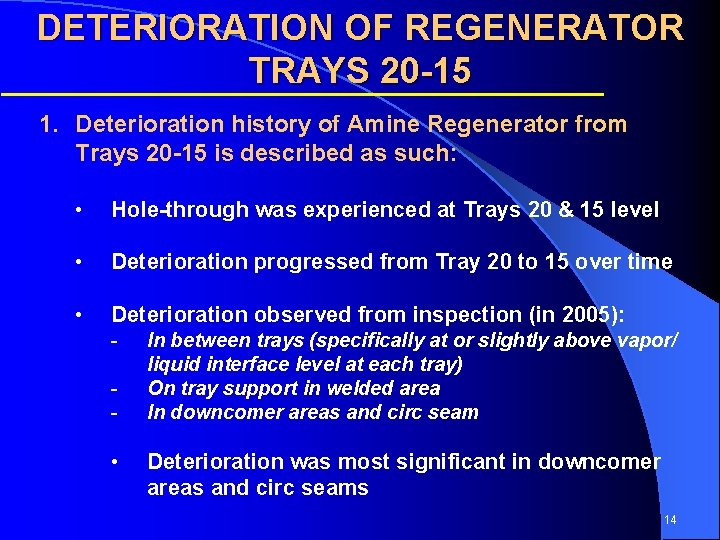

DETERIORATION OF REGENERATOR TRAYS 20 -15 1. Deterioration history of Amine Regenerator from Trays 20 -15 is described as such: • Hole-through was experienced at Trays 20 & 15 level • Deterioration progressed from Tray 20 to 15 over time • Deterioration observed from inspection (in 2005): - • In between trays (specifically at or slightly above vapor/ liquid interface level at each tray) On tray support in welded area In downcomer areas and circ seam Deterioration was most significant in downcomer areas and circ seams 14

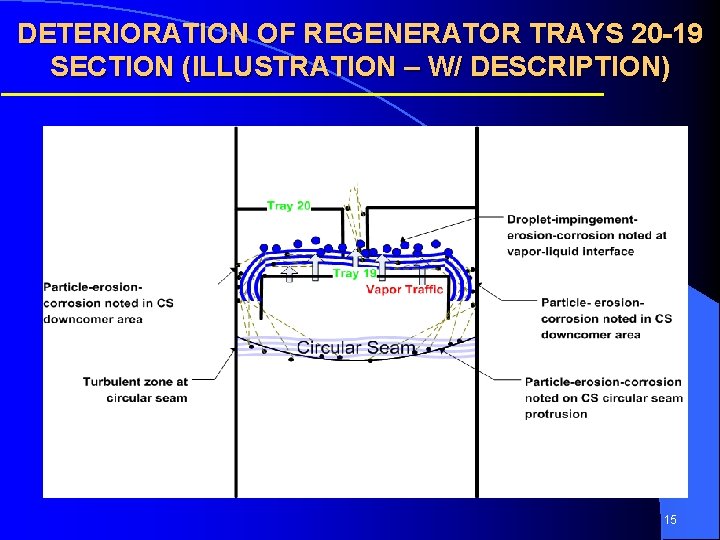

DETERIORATION OF REGENERATOR TRAYS 20 -19 SECTION (ILLUSTRATION – W/ DESCRIPTION) 15

ACTUAL CAUSE ANALYSIS: REGENERATOR DETERIORATION 16

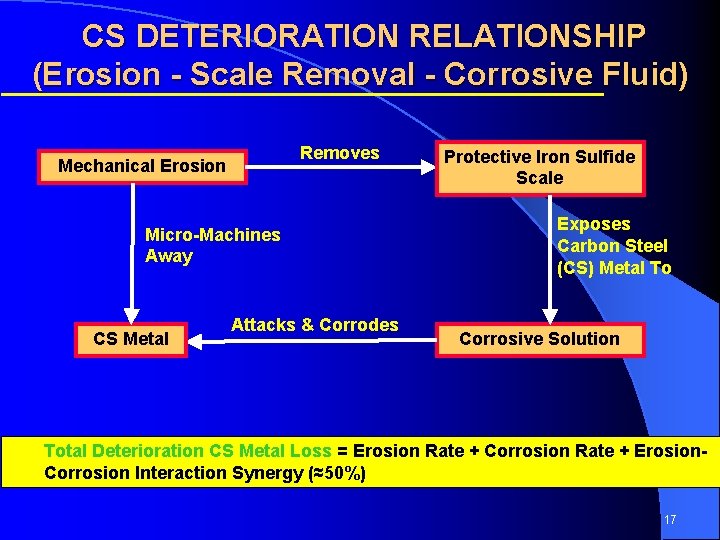

CS DETERIORATION RELATIONSHIP (Erosion - Scale Removal - Corrosive Fluid) Removes Mechanical Erosion Micro-Machines Away CS Metal Attacks & Corrodes Protective Iron Sulfide Scale Exposes Carbon Steel (CS) Metal To Corrosive Solution Total Deterioration CS Metal Loss = Erosion Rate + Corrosion Rate + Erosion. Corrosion Interaction Synergy (≈50%) 17

REGENERATOR UPPER SECTION DETERIORATION 18

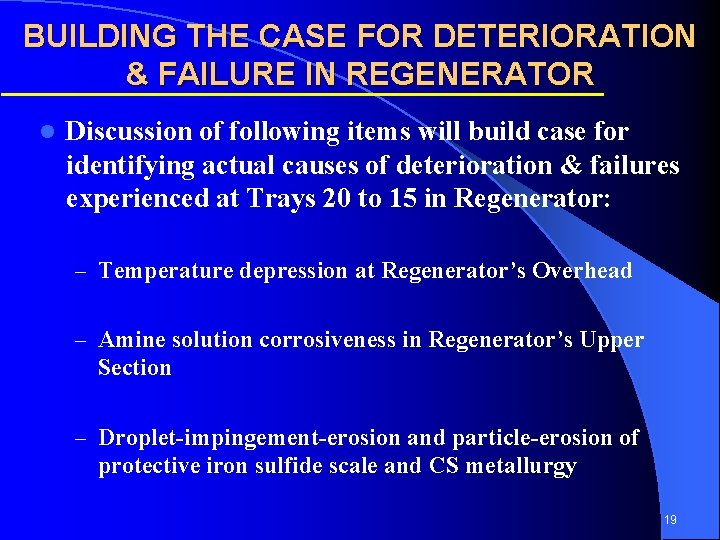

BUILDING THE CASE FOR DETERIORATION & FAILURE IN REGENERATOR l Discussion of following items will build case for identifying actual causes of deterioration & failures experienced at Trays 20 to 15 in Regenerator: – Temperature depression at Regenerator’s Overhead – Amine solution corrosiveness in Regenerator’s Upper Section – Droplet-impingement-erosion and particle-erosion of protective iron sulfide scale and CS metallurgy 19

DETERIORATION & FAILURE IN REGENERATOR (Temp Fluctuation) Regenerator OHD Temp (C) • Regenerator OHD temp depressed mid-Oct 04 (maybe related to amine type conversion? ) and increased mid-Oct 06 (maybe related to amine reclamation? ) • Thus, temperature at Trays 20 to 15 possibly depressed for 1 year 20 prior to time deterioration was noted (2005 inspections)

DETERIORATION & FAILURE IN REGENERATOR (Temp Fluctuation) Regenerator OHD Temp (C) • Temperature depression would increase H 2 S solubility and solid iron sulfide loadings in amine solution at Trays 20 to 15 level and make this solution more corrosive and erosive • There was no available data that could be credibly used as a proxy for H 2 S loading variability in amine solution at Trays 20 to 15 level 21

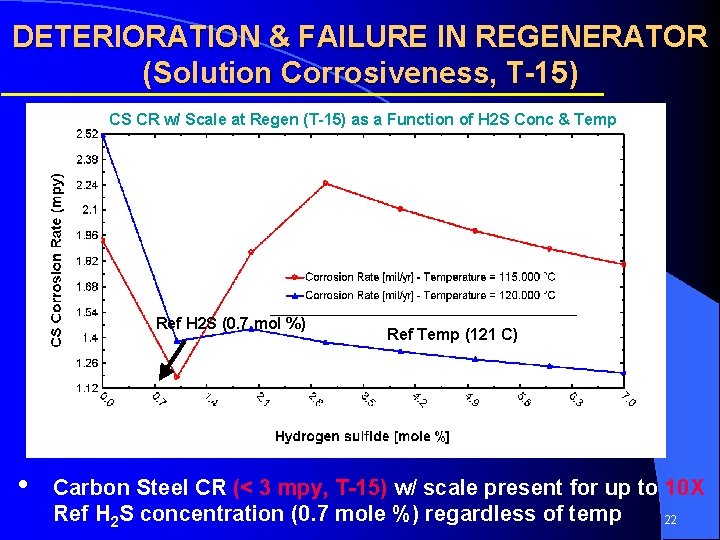

DETERIORATION & FAILURE IN REGENERATOR (Solution Corrosiveness, T-15) CS CR w/ Scale at Regen (T-15) as a Function of H 2 S Conc & Temp Ref H 2 S (0. 7 mol %) • Ref Temp (121 C) Carbon Steel CR (< 3 mpy, T-15) w/ scale present for up to 10 X Ref H 2 S concentration (0. 7 mole %) regardless of temp 22

DETERIORATION & FAILURE IN REGENERATOR (Solution Corrosiveness, T-15) CS CR w/o Scale at Regen (T-15) as a Function of H 2 S Conc & Temp Ref Temp (121 C) Ref H 2 S (0. 7 mol %) • Ref Temp (121 C) Carbon Steel CR (28 mpy, T-15) w/o scale present at 4 X Ref H 2 S concentration (0. 7 mole %) & lower temp (11523 C)

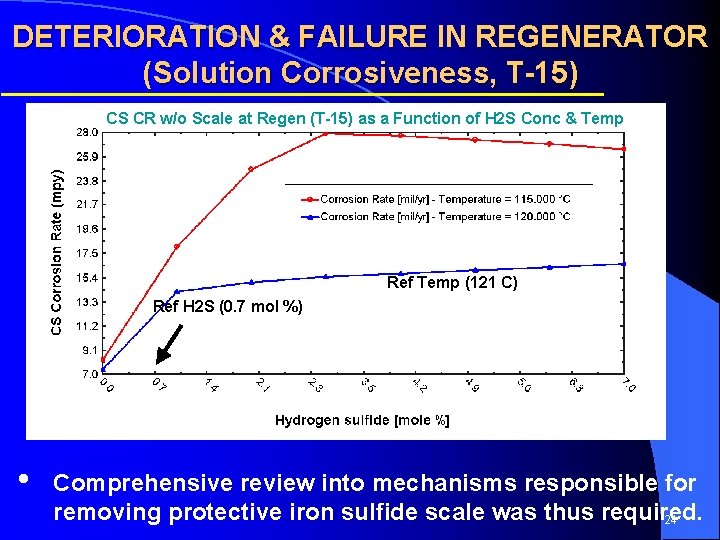

DETERIORATION & FAILURE IN REGENERATOR (Solution Corrosiveness, T-15) CS CR w/o Scale at Regen (T-15) as a Function of H 2 S Conc & Temp Ref Temp (121 C) Ref H 2 S (0. 7 mol %) • Ref Temp (121 C) Comprehensive review into mechanisms responsible for removing protective iron sulfide scale was thus required. 24

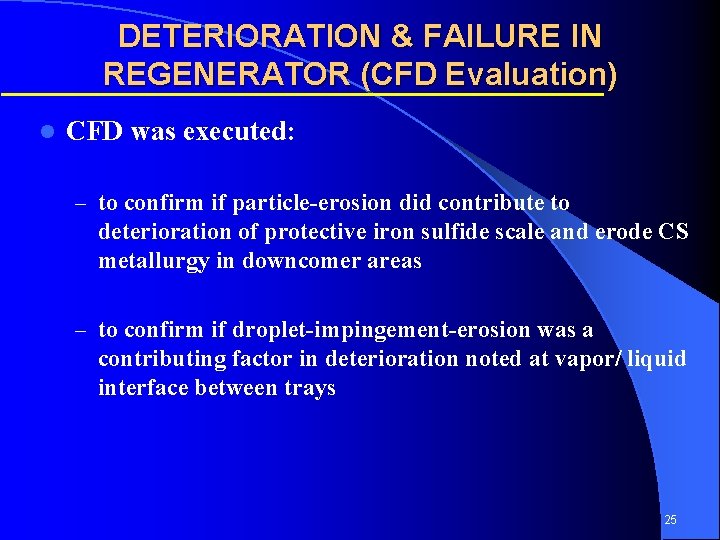

DETERIORATION & FAILURE IN REGENERATOR (CFD Evaluation) l CFD was executed: – to confirm if particle-erosion did contribute to deterioration of protective iron sulfide scale and erode CS metallurgy in downcomer areas – to confirm if droplet-impingement-erosion was a contributing factor in deterioration noted at vapor/ liquid interface between trays 25

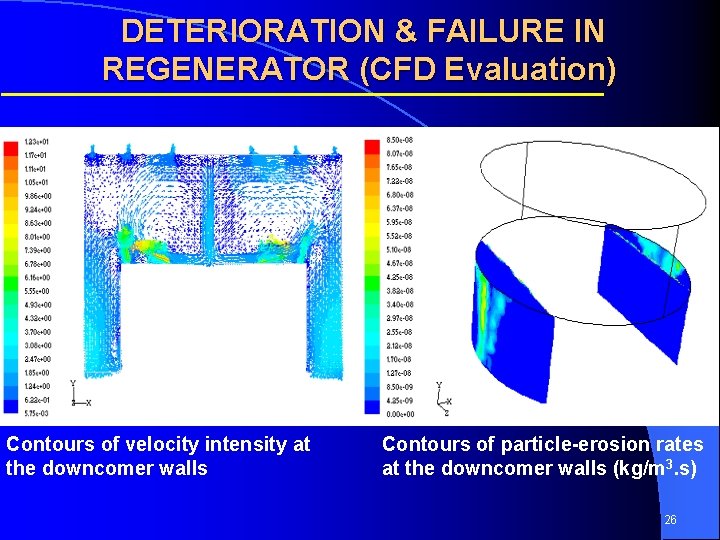

DETERIORATION & FAILURE IN REGENERATOR (CFD Evaluation) Contours of velocity intensity at the downcomer walls Contours of particle-erosion rates at the downcomer walls (kg/m 3. s) 26

DETERIORATION & FAILURE IN REGENERATOR (CFD Evaluation) • Parameter Case 1 Case 2 Solids (Iron Sulfide) Concentration wt. % in Rich Amine 1. 0 % 2. 0 % CFD Max CS Erosion Rate Predictions (mpy) 13 25 Max erosion rate in downcomer areas nearly double (13 → 25 mpy) with increased solids loading (1. 0 → 2. 0%) 27

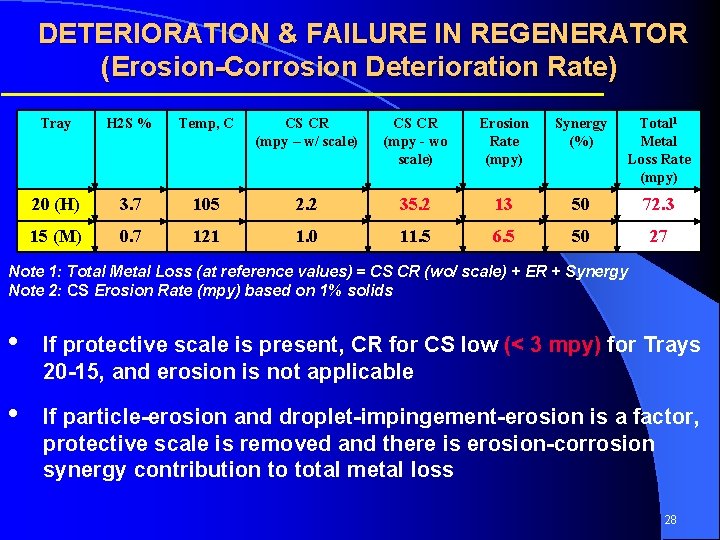

DETERIORATION & FAILURE IN REGENERATOR (Erosion-Corrosion Deterioration Rate) Tray H 2 S % Temp, C CS CR (mpy – w/ scale) CS CR (mpy - wo scale) Erosion Rate (mpy) Synergy (%) Total 1 Metal Loss Rate (mpy) 20 (H) 3. 7 105 2. 2 35. 2 13 50 72. 3 15 (M) 0. 7 121 1. 0 11. 5 6. 5 50 27 Note 1: Total Metal Loss (at reference values) = CS CR (wo/ scale) + ER + Synergy Note 2: CS Erosion Rate (mpy) based on 1% solids • If protective scale is present, CR for CS low (< 3 mpy) for Trays 20 -15, and erosion is not applicable • If particle-erosion and droplet-impingement-erosion is a factor, protective scale is removed and there is erosion-corrosion synergy contribution to total metal loss 28

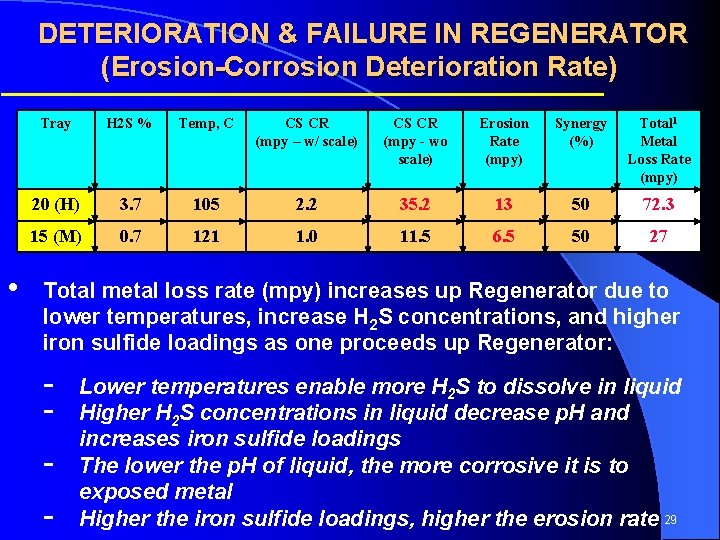

DETERIORATION & FAILURE IN REGENERATOR (Erosion-Corrosion Deterioration Rate) • Tray H 2 S % Temp, C CS CR (mpy – w/ scale) CS CR (mpy - wo scale) Erosion Rate (mpy) Synergy (%) Total 1 Metal Loss Rate (mpy) 20 (H) 3. 7 105 2. 2 35. 2 13 50 72. 3 15 (M) 0. 7 121 1. 0 11. 5 6. 5 50 27 Total metal loss rate (mpy) increases up Regenerator due to lower temperatures, increase H 2 S concentrations, and higher iron sulfide loadings as one proceeds up Regenerator: - Lower temperatures enable more H 2 S to dissolve in liquid Higher H 2 S concentrations in liquid decrease p. H and increases iron sulfide loadings The lower the p. H of liquid, the more corrosive it is to exposed metal Higher the iron sulfide loadings, higher the erosion rate 29

CONCLUSION 30

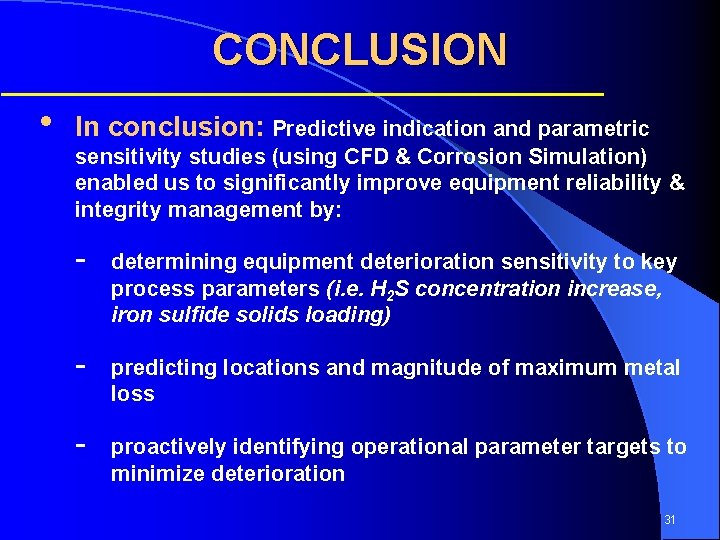

CONCLUSION • In conclusion: Predictive indication and parametric sensitivity studies (using CFD & Corrosion Simulation) enabled us to significantly improve equipment reliability & integrity management by: - determining equipment deterioration sensitivity to key process parameters (i. e. H 2 S concentration increase, iron sulfide solids loading) - predicting locations and magnitude of maximum metal loss - proactively identifying operational parameter targets to minimize deterioration 31

Any Questions? 32
