Voyager Results Revisited By Ed Sittler NASAGSFC CAPS
Voyager Results Revisited By Ed Sittler NASA/GSFC CAPS Team Meeting #28 Marseille, France July 26 -28, 2004
Voyager Encounter Geometry
Saturn Encounter Trajectories
Saturn’s Magnetospheric Plasma
Voyager 1 Plasma Electrons
Voyager 2 Plasma Electrons
Voyager 1 Electron Spectrum
Voyager 2 Electron Spectrum
Voyager Ion Measurements
Voyager 1 Ions at Ring Plane
Saturn’s Radiation Belts
Saturn’s Ring Current
Saturn’s Outer Magnetosphere
Saturn’s Outer Magnetosphere Energetic Ion and Electron Events
OH Cloud with Saturn’s Inner Magnetosphere (HST Observations)
Titan’s Nitrogen Torus
Enrichment of Nitrogen Ion’s within Saturn’s Inner Magnetosphere? • Solar wind source of ke. V protons and alphas • Titan Torus as source of ke. V Nitrogen Ions • Ions energized as they diffuse inward to form radiation belts within inner magnetosphere. – Radial diffusion and Convection • Charged particle sinks – – Wave scattering by MHD waves Satellite sweeping Loss due to dust particles Charge exchange losses with neutral clouds

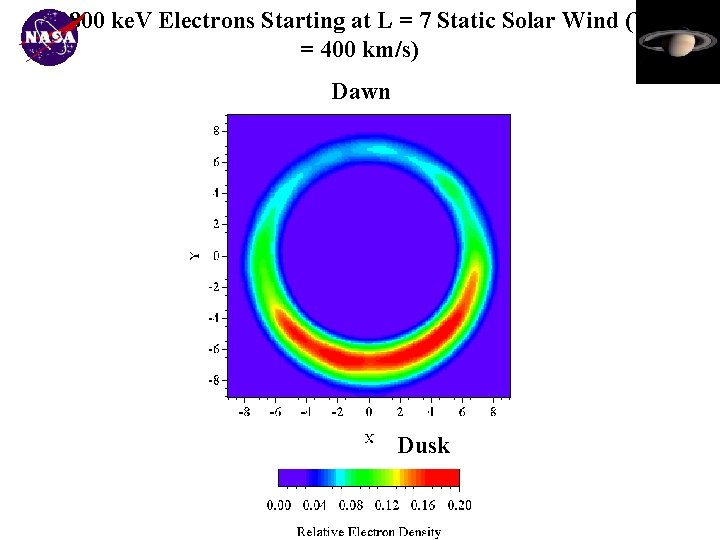

800 ke. V Electrons Starting at L = 7 Static Solar Wind (V = 400 km/s) Dawn Dusk
Energy Spectrum of Ions and Electrons within Titan’s Neutral Torus
Satellite Sweeping by Rhea
Energy Spectrum of Ions and Electrons at Dione’s L Shell

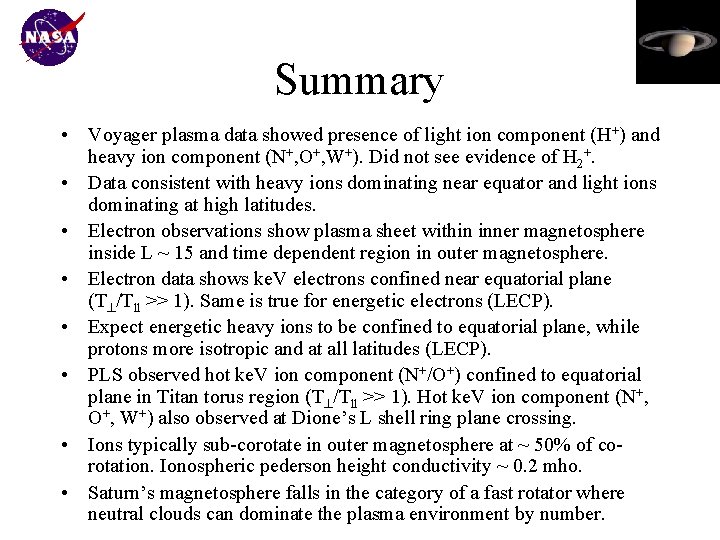

Summary • Voyager plasma data showed presence of light ion component (H+) and heavy ion component (N+, O+, W+). Did not see evidence of H 2+. • Data consistent with heavy ions dominating near equator and light ions dominating at high latitudes. • Electron observations show plasma sheet within inner magnetosphere inside L ~ 15 and time dependent region in outer magnetosphere. • Electron data shows ke. V electrons confined near equatorial plane (T /Tll >> 1). Same is true for energetic electrons (LECP). • Expect energetic heavy ions to be confined to equatorial plane, while protons more isotropic and at all latitudes (LECP). • PLS observed hot ke. V ion component (N+/O+) confined to equatorial plane in Titan torus region (T /Tll >> 1). Hot ke. V ion component (N+, O+, W+) also observed at Dione’s L shell ring plane crossing. • Ions typically sub-corotate in outer magnetosphere at ~ 50% of corotation. Ionospheric pederson height conductivity ~ 0. 2 mho. • Saturn’s magnetosphere falls in the category of a fast rotator where neutral clouds can dominate the plasma environment by number.
