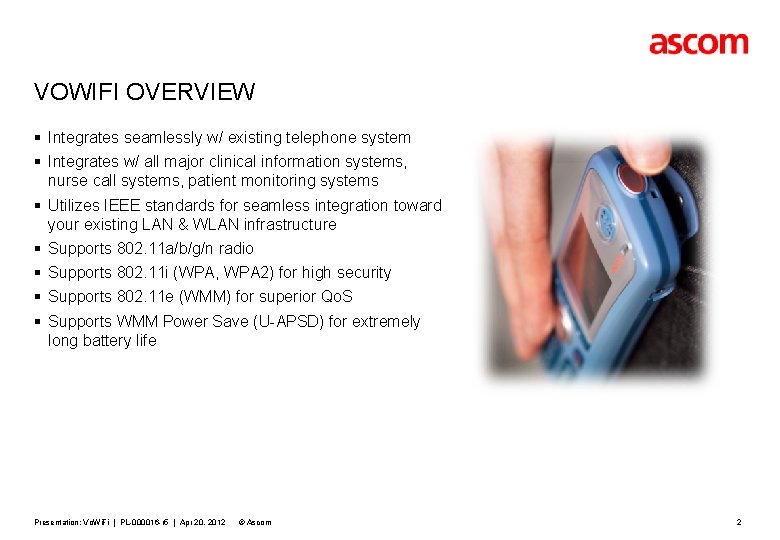

VOWIFI OVERVIEW § Integrates seamlessly w/ existing telephone system § Integrates w/ all major clinical information systems, nurse call systems, patient monitoring systems § Utilizes IEEE standards for seamless integration toward your existing LAN & WLAN infrastructure § Supports 802. 11 a/b/g/n radio § Supports 802. 11 i (WPA, WPA 2) for high security § Supports 802. 11 e (WMM) for superior Qo. S § Supports WMM Power Save (U-APSD) for extremely long battery life Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 2

KEY BENEFITS OF VOWIFI § § § Lower initial investment if voice-grade WLAN is in place Leverage IEEE 802. 11 standards platform Leverage WLAN infrastructure investment Leverages existing IT/IS departmental competence Superior purpose-built Vo. Wi. Fi handset portfolio Manage voice & data applications on one network Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 3

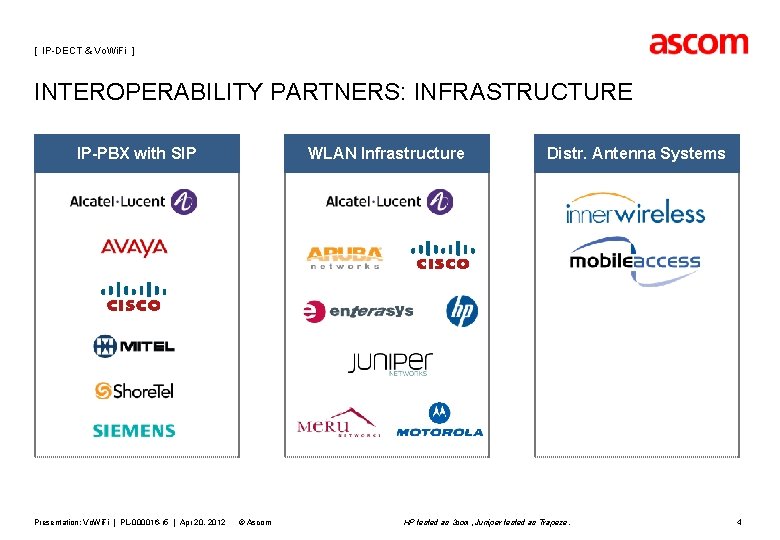

[ IP-DECT & Vo. Wi. Fi ] INTEROPERABILITY PARTNERS: INFRASTRUCTURE IP-PBX with SIP Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 WLAN Infrastructure © Ascom Distr. Antenna Systems HP tested as 3 com, Juniper tested as Trapeze. 4

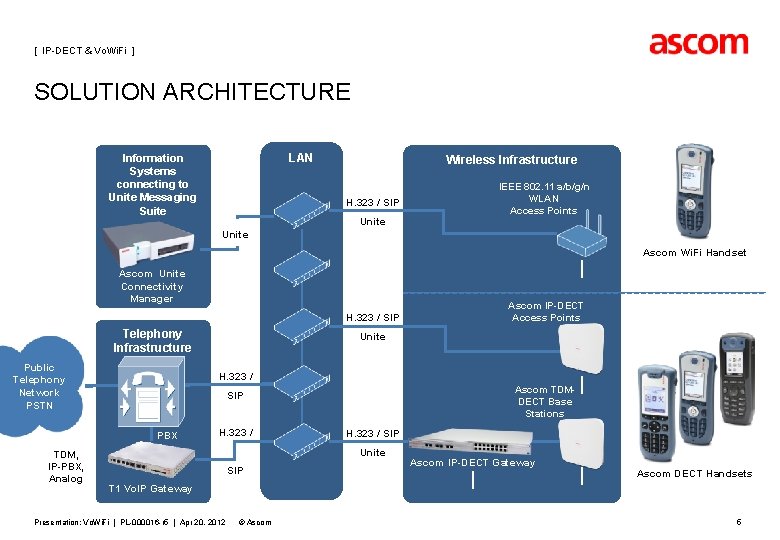

[ IP-DECT & Vo. Wi. Fi ] SOLUTION ARCHITECTURE LAN Information Systems connecting to Unite Messaging Suite Wireless Infrastructure H. 323 / SIP Unite IEEE 802. 11 a/b/g/n WLAN Access Points Unite Ascom Wi. Fi Handset Ascom Unite Connectivity Manager H. 323 / SIP Telephony Infrastructure Public Telephony Network PSTN Unite H. 323 / Ascom TDMDECT Base Stations SIP PBX TDM, IP-PBX, Analog Ascom IP-DECT Access Points H. 323 / SIP Unite SIP Ascom IP-DECT Gateway Ascom DECT Handsets T 1 Vo. IP Gateway Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 5

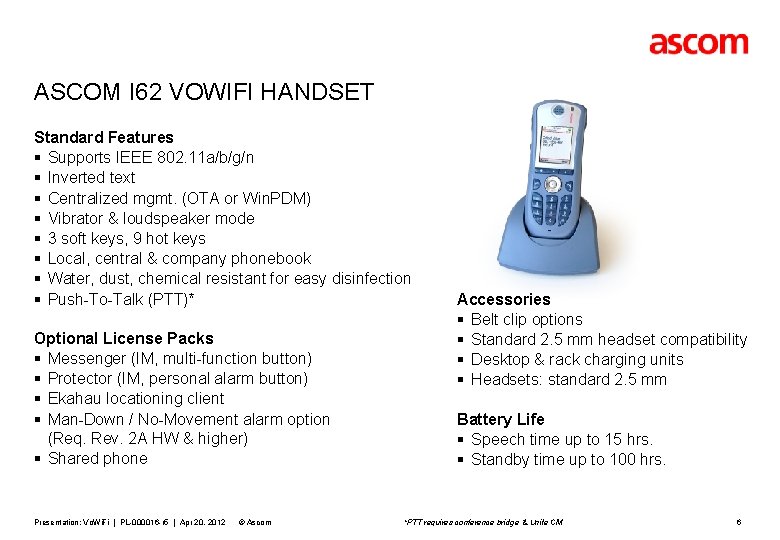

ASCOM I 62 VOWIFI HANDSET Standard Features § Supports IEEE 802. 11 a/b/g/n § Inverted text § Centralized mgmt. (OTA or Win. PDM) § Vibrator & loudspeaker mode § 3 soft keys, 9 hot keys § Local, central & company phonebook § Water, dust, chemical resistant for easy disinfection § Push-To-Talk (PTT)* Optional License Packs § Messenger (IM, multi-function button) § Protector (IM, personal alarm button) § Ekahau locationing client § Man-Down / No-Movement alarm option (Req. Rev. 2 A HW & higher) § Shared phone Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom Accessories § Belt clip options § Standard 2. 5 mm headset compatibility § Desktop & rack charging units § Headsets: standard 2. 5 mm Battery Life § Speech time up to 15 hrs. § Standby time up to 100 hrs. *PTT requires conference bridge & Unite CM 6

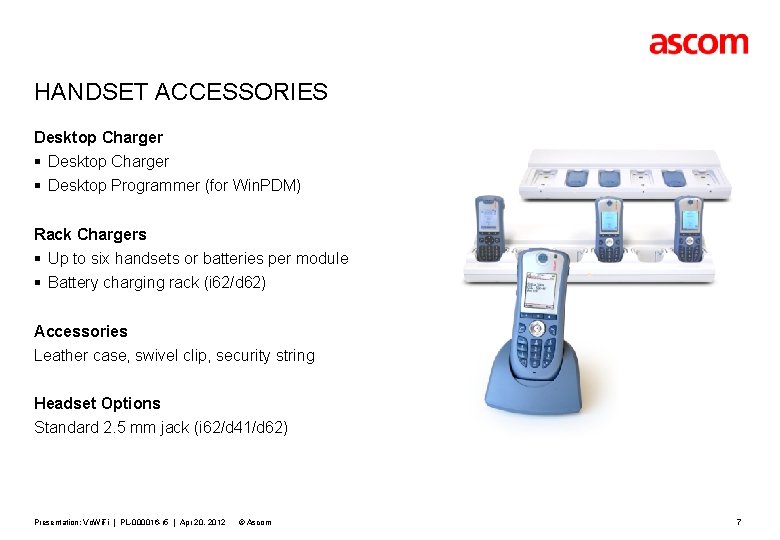

HANDSET ACCESSORIES Desktop Charger § Desktop Programmer (for Win. PDM) Rack Chargers § Up to six handsets or batteries per module § Battery charging rack (i 62/d 62) Accessories Leather case, swivel clip, security string Headset Options Standard 2. 5 mm jack (i 62/d 41/d 62) Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 7

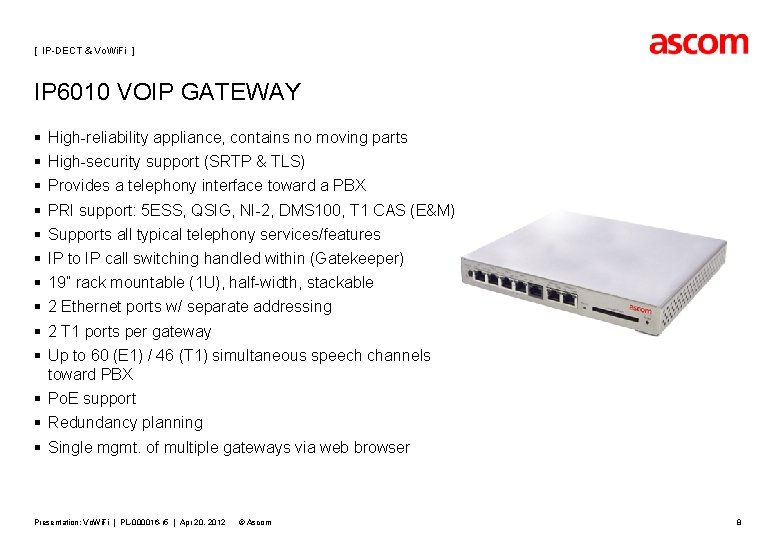

[ IP-DECT & Vo. Wi. Fi ] IP 6010 VOIP GATEWAY § § § § § High-reliability appliance, contains no moving parts High-security support (SRTP & TLS) Provides a telephony interface toward a PBX PRI support: 5 ESS, QSIG, NI-2, DMS 100, T 1 CAS (E&M) Supports all typical telephony services/features IP to IP call switching handled within (Gatekeeper) 19” rack mountable (1 U), half-width, stackable 2 Ethernet ports w/ separate addressing 2 T 1 ports per gateway Up to 60 (E 1) / 46 (T 1) simultaneous speech channels toward PBX § Po. E support § Redundancy planning § Single mgmt. of multiple gateways via web browser Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 8

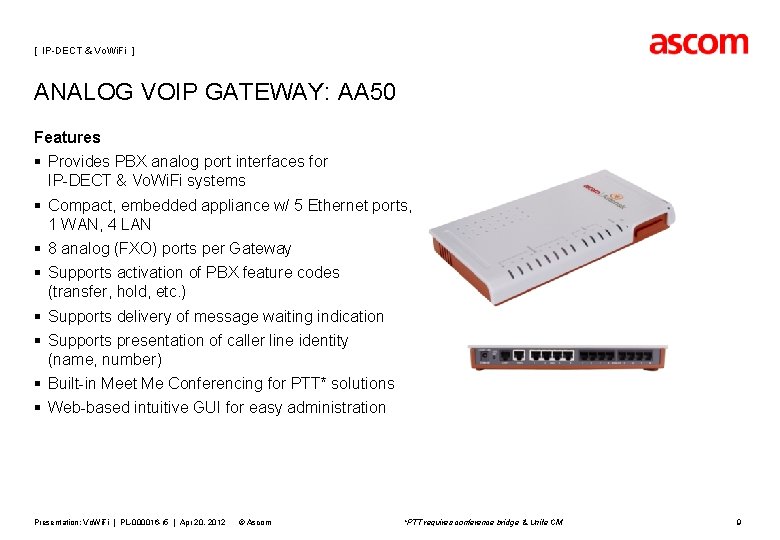

[ IP-DECT & Vo. Wi. Fi ] ANALOG VOIP GATEWAY: AA 50 Features § Provides PBX analog port interfaces for IP-DECT & Vo. Wi. Fi systems § Compact, embedded appliance w/ 5 Ethernet ports, 1 WAN, 4 LAN § 8 analog (FXO) ports per Gateway § Supports activation of PBX feature codes (transfer, hold, etc. ) § Supports delivery of message waiting indication § Supports presentation of caller line identity (name, number) § Built-in Meet Me Conferencing for PTT* solutions § Web-based intuitive GUI for easy administration Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom *PTT requires conference bridge & Unite CM 9

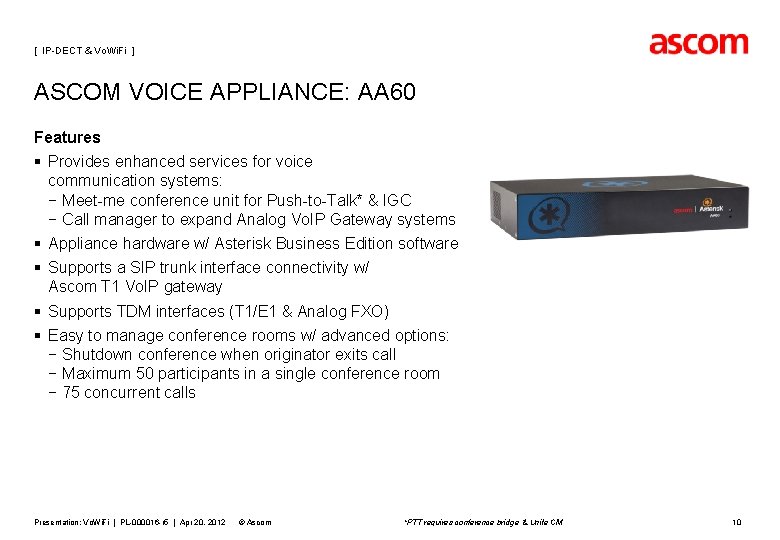

[ IP-DECT & Vo. Wi. Fi ] ASCOM VOICE APPLIANCE: AA 60 Features § Provides enhanced services for voice communication systems: − Meet-me conference unit for Push-to-Talk* & IGC − Call manager to expand Analog Vo. IP Gateway systems § Appliance hardware w/ Asterisk Business Edition software § Supports a SIP trunk interface connectivity w/ Ascom T 1 Vo. IP gateway § Supports TDM interfaces (T 1/E 1 & Analog FXO) § Easy to manage conference rooms w/ advanced options: − Shutdown conference when originator exits call − Maximum 50 participants in a single conference room − 75 concurrent calls Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom *PTT requires conference bridge & Unite CM 10

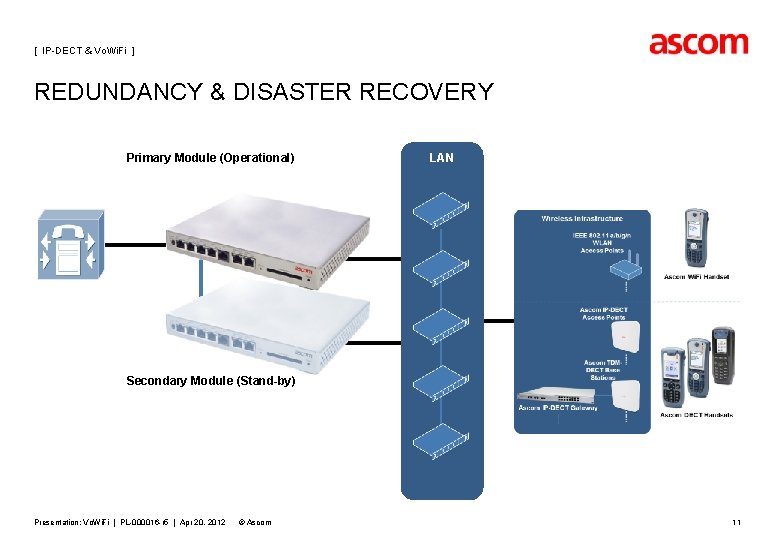

[ IP-DECT & Vo. Wi. Fi ] REDUNDANCY & DISASTER RECOVERY Primary Module (Operational) LAN Secondary Module (Stand-by) Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 11

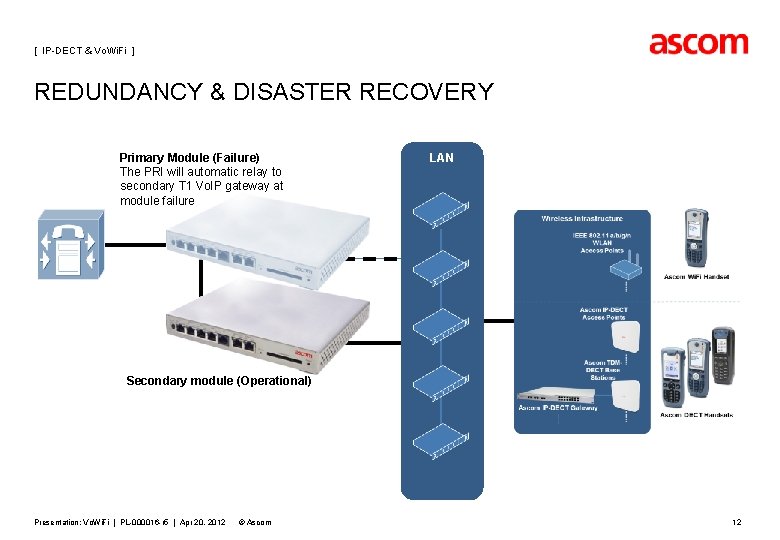

[ IP-DECT & Vo. Wi. Fi ] REDUNDANCY & DISASTER RECOVERY Primary Module (Failure) The PRI will automatic relay to secondary T 1 Vo. IP gateway at module failure LAN Secondary module (Operational) Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 12

EMERGENCY NOTIFICATION SYSTEM (ENS) Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom 13

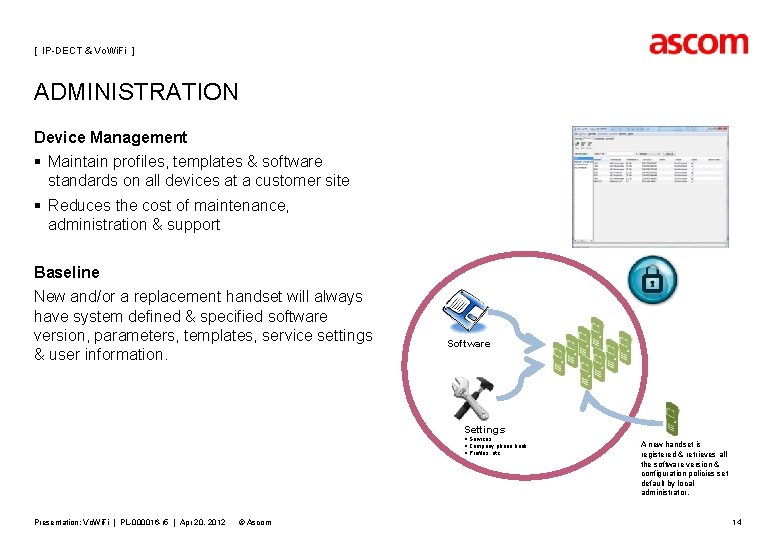

[ IP-DECT & Vo. Wi. Fi ] ADMINISTRATION Device Management § Maintain profiles, templates & software standards on all devices at a customer site § Reduces the cost of maintenance, administration & support Baseline New and/or a replacement handset will always have system defined & specified software version, parameters, templates, service settings & user information. Software Settings § Services § Company phone book § Profiles, etc. Presentation: Vo. Wi. Fi | PL-000016 -r 5 | Apr 20, 2012 © Ascom A new handset is registered & retrieves all the software version & configuration policies set default by local administrator. 14
