Von Neumann Machine Objectives Explain Von Neumann architecture

Von Neumann Machine Objectives: Explain Von Neumann architecture: Memory – Organization – Decoding memory addresses, MAR & MDR ALU and Control Unit – Executing arithmetic & logic operations, ALU register, CCR, multiplexor circuit – Decoding machine instructions, PC & IR Decode and trace machine language programs

Von Neumann Architecture A model for designing and building computers: Has following three characteristics 1. Has four major subsystems 1. memory 2. input-output (I/O) 3. arithmetic-logic unit (ALU) 4. control unit 2. Program is stored in memory 3. Each processor executes one instruction at a time (fetched, decoded and executed)

The Four Subsystems Bus Register RAM ROM Memory Control Unit Disks Screen Keyboard Register ALU Processor . . . Input-Output

Control circuits (Chap 4) Decoders and Multiplexors Decoder circuit (Figure 4. 25, p. 164) : takes n inputs and helps choose one of the 2 n outputs, numbered 0, 1, …, 2 n-1. (determines which binary number the inputs represent and activates the output with that binary as its ID. ) Multiplexor circuit (Figure 4. 26, p. 165): based on value of n selector lines (a binary number) selects one of the 2 n (0, 1, …, 2 n – 1) inputs as the output. So, it has just one output.

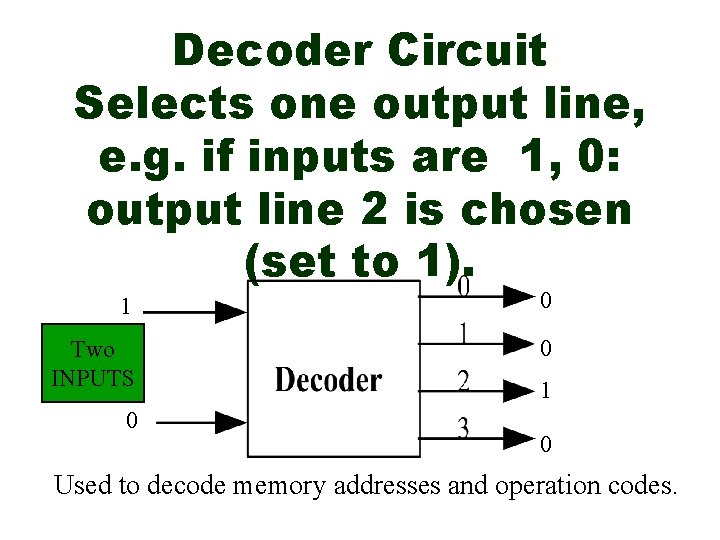

Decoder Circuit Selects one output line, e. g. if inputs are 1, 0: output line 2 is chosen (set to 1). 1 0 Two INPUTS 0 0 1 0 Used to decode memory addresses and operation codes.

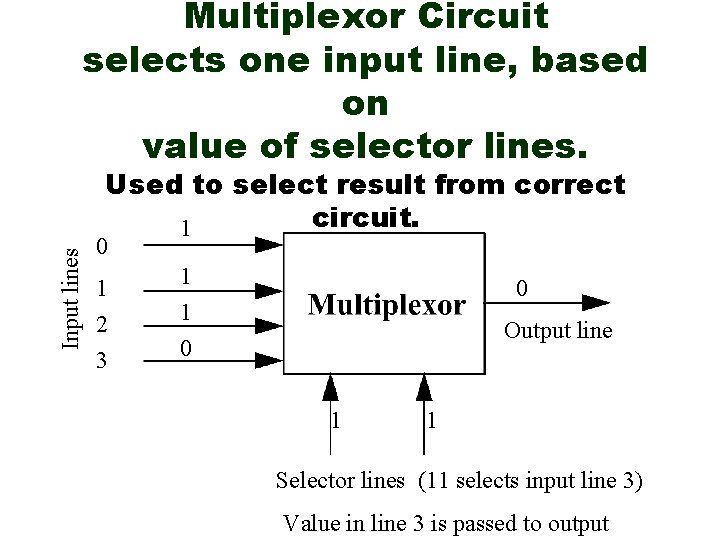

Multiplexor Circuit selects one input line, based on value of selector lines. Input lines Used to select result from correct circuit. 1 0 1 2 3 1 1 0 0 Output line 1 1 Selector lines (11 selects input line 3) Value in line 3 is passed to output

Internal Memory Random Access Memory (RAM) Stores in and retrieves from current programs and data from different parts of memory -Can retrieve without destroying the current content -Replaces the old with new when storing. -Takes the same time to access any part of the memory. Read Only Memory (ROM) -Stores permanent programs, e. g. start-up (Cannot overwrite). Sizes of memory (internal and/or external) -N Kilobytes (N * 210 -- thousands) N Megabytes (N * 220 -- millions) N Gigabytes (N * 230 -- billions)

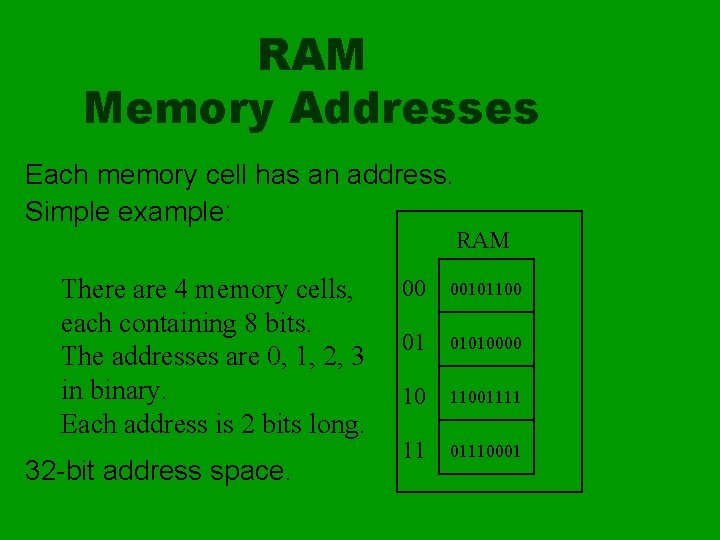

RAM Memory Addresses Each memory cell has an address. Simple example: There are 4 memory cells, each containing 8 bits. The addresses are 0, 1, 2, 3 in binary. Each address is 2 bits long. 32 -bit address space. RAM 00 00101100 01 01010000 10 11001111 11 01110001

Memory Address Register (MAR) Memory Data Register (MDR) Memory unit contains two of the special registers. MAR holds the current memory address. MDR hold the data which has been read from that memory address or about to be written to it.

How the MAR & MDR Work For simple 4 -cell example, showing one bit being read. MAR 0 0 00 RAM 01 10 Decoder 0 0 0 11 10 1 00 01 AND Bit goes to MDR because line 00 carries a 1. 11

Fetch (address) 1. Decode the address in the MAR 2. Load the address into MAR 3. Copy contents of that memory location into MDR (The fetch / store controller is set to fetch. )

Store (address, value) 1. Load the address into MAR 2. Load the value into MDR 3. Decode the address in the MAR 4. Store the contents of the MDR into that memory location. (The fetch / store controller is set to store. )

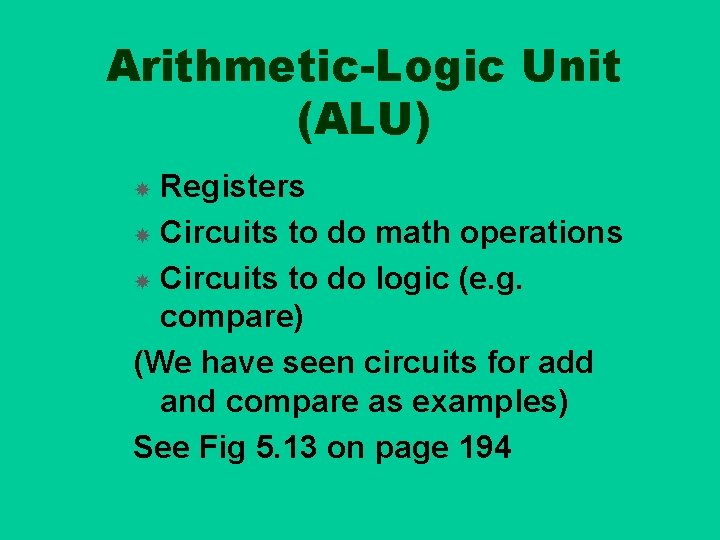

Arithmetic-Logic Unit (ALU) Registers Circuits to do math operations Circuits to do logic (e. g. compare) (We have seen circuits for add and compare as examples) See Fig 5. 13 on page 194

Circuits Inside the ALU See Figure 5. 12, p. 193 In example, all circuits produce results: 1001 + 0011 ----> 1100 on line 00 1001 - 0011 ----> 0110 on line 01 1001 = 0011 ----> 0000 on line 10 1001. 0011 ----> 0001 on line 11 Selector lines are 00 for add operation, so Multiplexor selects output on line 00: 1100

a b a+b a-b a=b a. b Line 0 (00) Line 1 (01) Line 2 (10) Line 3 (11) out Multiplexor

Overall ALU Organization BUS 0 BUS 1 R 0 R 1 R 2 ALU R 3 + BUS 2 - / = Multiplexor … Selector lines …

More about the Von Neumann Machine Stored Program—the most fundamental characteristics of Von Neumann machine. A sequence of machine language instructions stored as binary values in memory. Fetch----Decode----Execute----Store Op code and Operand

Op code & Operand Op code---A code for representing the operation parts of the machine instructions of a computer. Operand (Address in our book)---An entity on which an operation is performed or that which is operated upon. An operand is usually identified by an address part of an instruction.

CISC Machine & RISC Machine CISC--Complex Instruction Set Computers As few as 30 -50 instructions RISC--Reduced Instruction Set Computers As many as 200 -400 instructions

0 1 2 3 4 5 6 7 8 9 Simulator

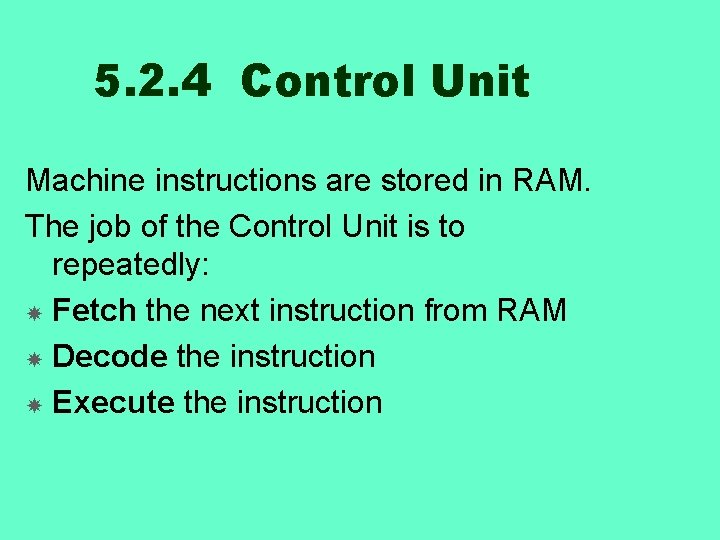

5. 2. 4 Control Unit Machine instructions are stored in RAM. The job of the Control Unit is to repeatedly: Fetch the next instruction from RAM Decode the instruction Execute the instruction

Flow Chart of an Instruction In a real computer, there are five(5) steps involved as follow: Instruction Fetch Unit 1 Instruction Decode Unit 2 Operand Fetch Unit 3 3 Instruction Execution Unit 4 Write Back Unit 5

Control Unit Registers PC : Program Counter Holds address of next instruction It will automatic incremented to next instruction address. IR : Instruction Register Holds current instruction Computer will find the instruction by the address Pointed by PC

Machine Instructions Each brand of processor has circuitry for a particular set of instructions. One brand may have 30 instructions, another 400 instructions. For any brand, a typical machine instruction will contain: – Operation code: tells which operation to do (Op Code) – One or more Addresses telling where the data (operands) are. (see Fig. 5. 14 Page 195)

Types of Operations Data transfer (Copy data from one place to another -RAM to Register, Register to RAM, one address to another in RAM) Arithmetic (e. g. add) Compare (e. g. are the operands equal) Branch (tells where the next instruction to be executed is stored)

5. 2. 5 The Entire Computer Look at Figure 5. 18, p. 203, and identify: --the four major subsystems --the registers used by each subsystem Trace the execution of a machine instruction through the computer.

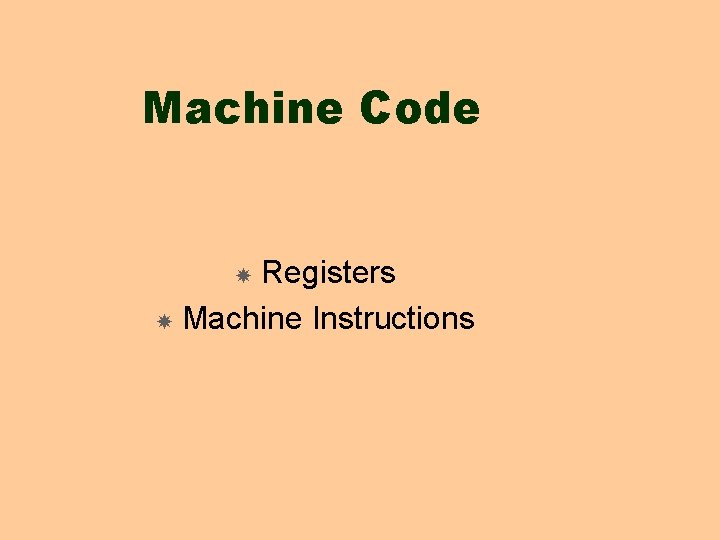

Machine Code Registers Machine Instructions

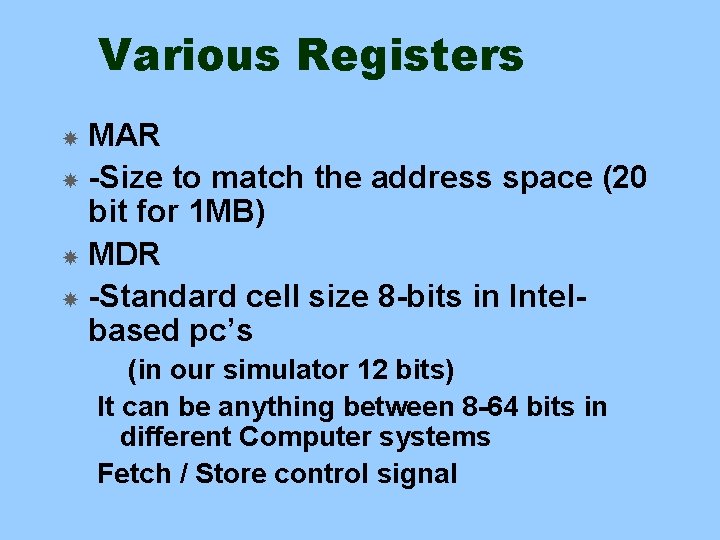

Various Registers MAR -Size to match the address space (20 bit for 1 MB) MDR -Standard cell size 8 -bits in Intelbased pc’s (in our simulator 12 bits) It can be anything between 8 -64 bits in different Computer systems Fetch / Store control signal

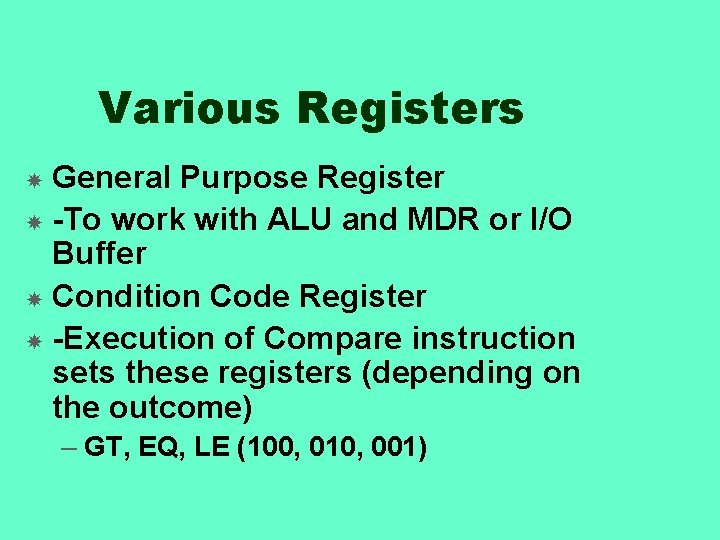

Various Registers General Purpose Register -To work with ALU and MDR or I/O Buffer Condition Code Register -Execution of Compare instruction sets these registers (depending on the outcome) – GT, EQ, LE (100, 010, 001)

Various Registers IR – Op code and Operands – Op code decoded and Control signals sent to memory, ALU, I/O – Operands used to fetch / store data from / to memory locations to / from general purpose registers. PC – holds address for the next instruction; usually it is incremented by 1, unless a JUMP Op-code is encountered.

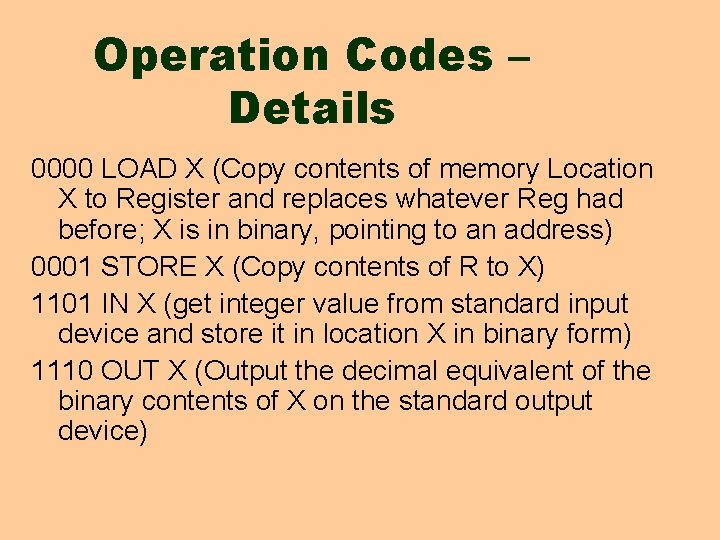

Operation Codes – Details 0000 LOAD X (Copy contents of memory Location X to Register and replaces whatever Reg had before; X is in binary, pointing to an address) 0001 STORE X (Copy contents of R to X) 1101 IN X (get integer value from standard input device and store it in location X in binary form) 1110 OUT X (Output the decimal equivalent of the binary contents of X on the standard output device)

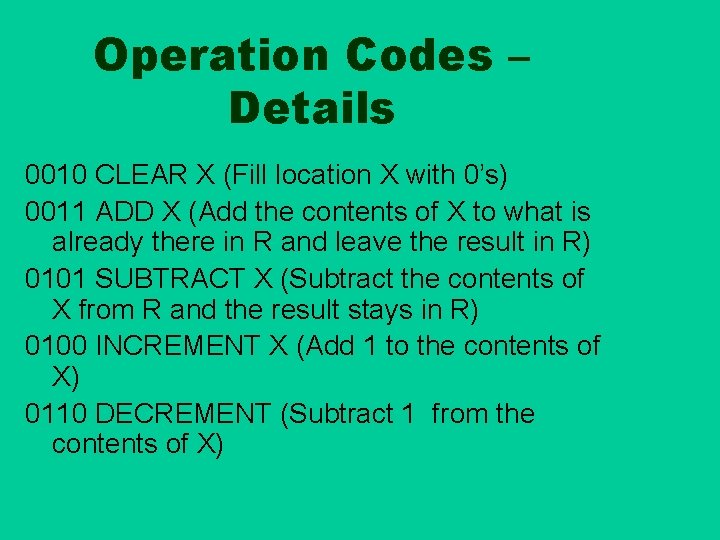

Operation Codes – Details 0010 CLEAR X (Fill location X with 0’s) 0011 ADD X (Add the contents of X to what is already there in R and leave the result in R) 0101 SUBTRACT X (Subtract the contents of X from R and the result stays in R) 0100 INCREMENT X (Add 1 to the contents of X) 0110 DECREMENT (Subtract 1 from the contents of X)

Operation Codes – Details 1000 JUMP X (Get the next instruction from the next location 1001 JUMPGT X (If the contents of GT condition code Register is 1, take the control (I. e. , the next instruction from X) 1010 JUMPEQ X (If (EQ CCR) = 1, . . ) 1011 JUMPLT X; (If (LT CCR = 1, …) 1100 JUMPNEQ X (If (EQ CCR) = 0, …) Note: (L) means contents of L.
