Volvo Construction Equipment Slide 4 Volvo Construction Equipment

Volvo Construction Equipment 날씨로 인해 작업 중단 가능성 全無 , Slide 4

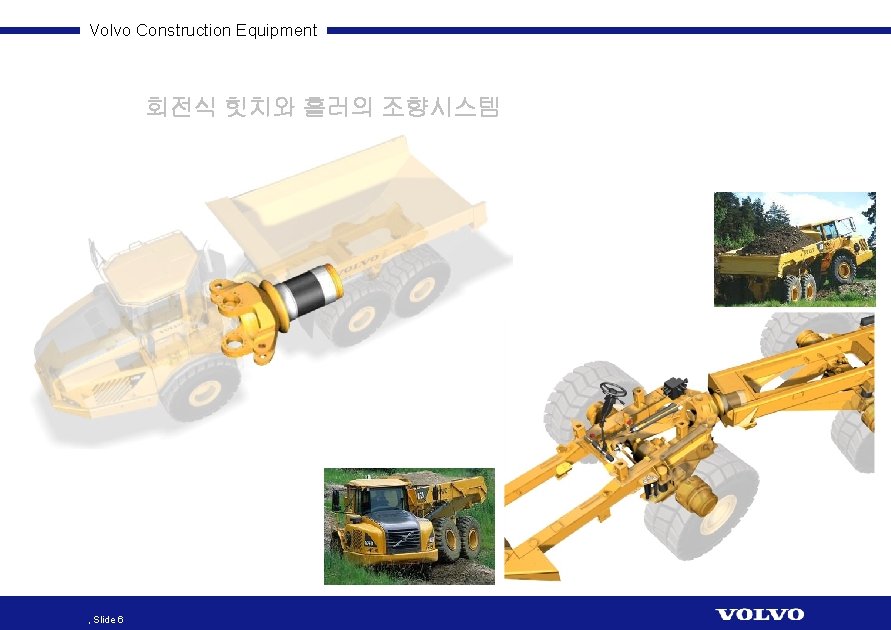

Volvo Construction Equipment 회전식 힛치와 홀러의 조향시스템 , Slide 6

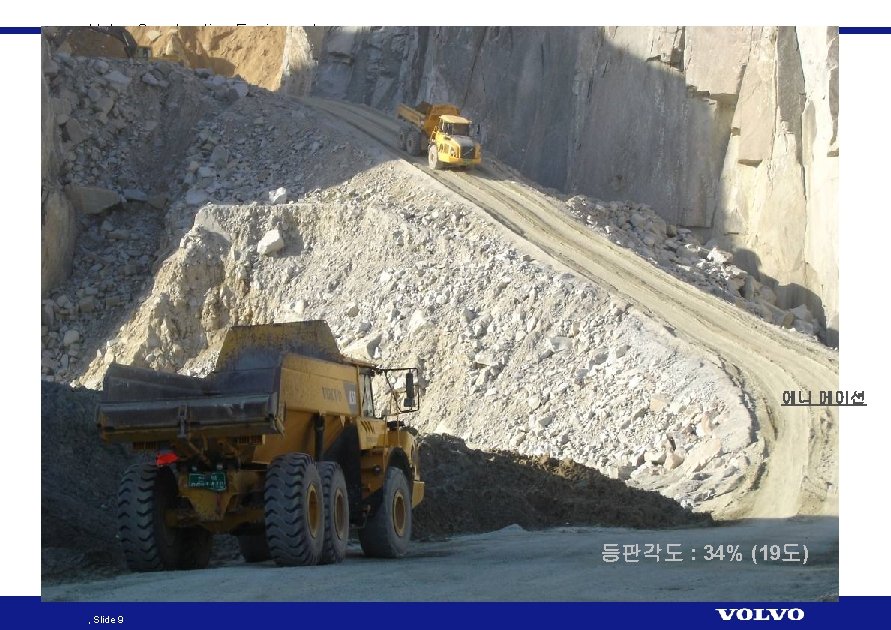

Volvo Construction Equipment 에니 메이션 등판각도 : 34% (19도) , Slide 9

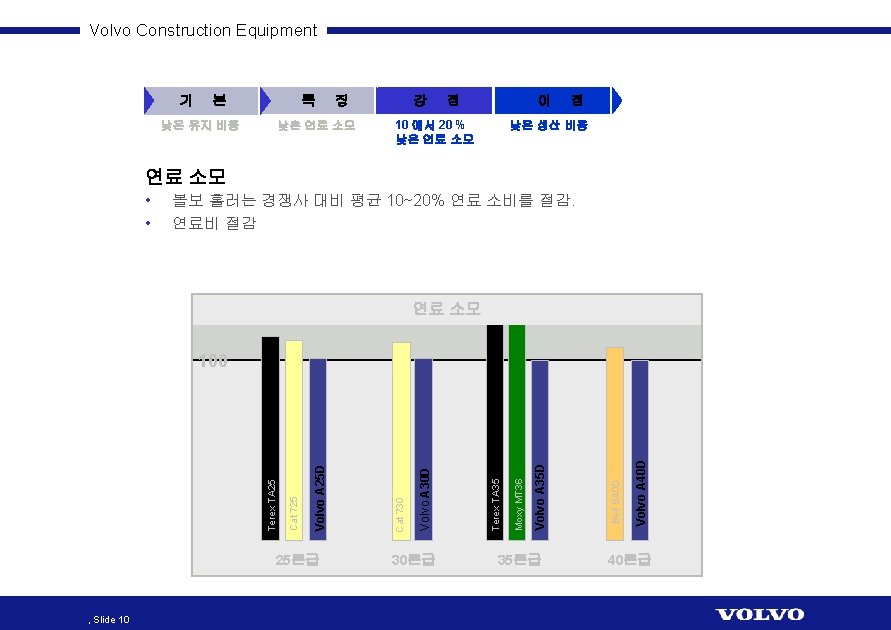

Volvo Construction Equipment 기 본 Cornerstone 특 징 Feature 낮은 유지 비용 낮은 연료 소모 강 점 이 10 에서 20 % 낮은 연료 소모 점 낮은 생산 비용 연료 소모 • • 볼보 홀러는 경쟁사 대비 평균 10~20% 연료 소비를 절감. 연료비 절감 연료 소모 25톤급 , Slide 10 30톤급 35톤급 Volvo A 40 D Bell B 40 D Volvo A 35 D Moxy MT 36 Terex TA 35 Volvo A 30 D Cat 730 Volvo A 25 D Cat 725 Terex TA 25 100 40톤급

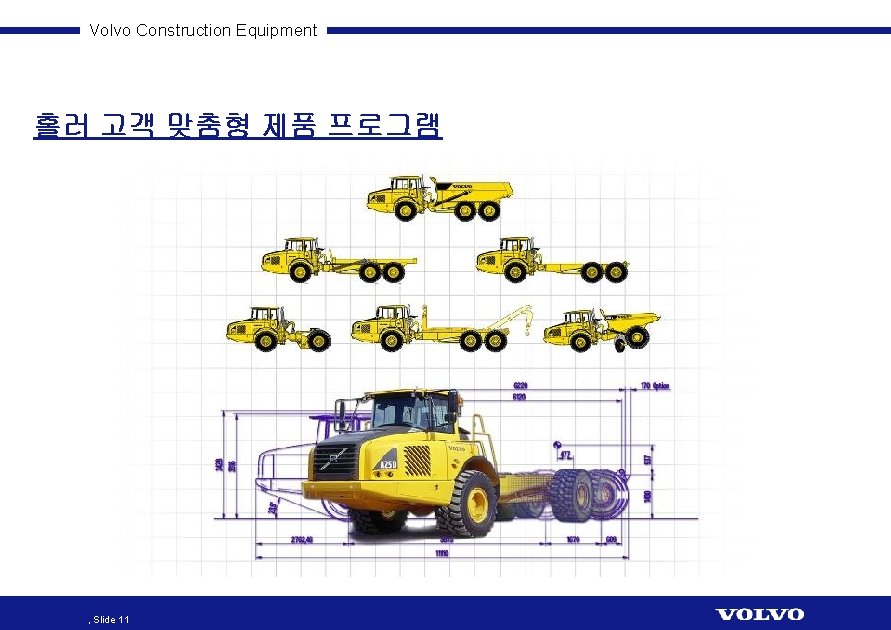

Volvo Construction Equipment 홀러 고객 맞춤형 제품 프로그램 , Slide 11

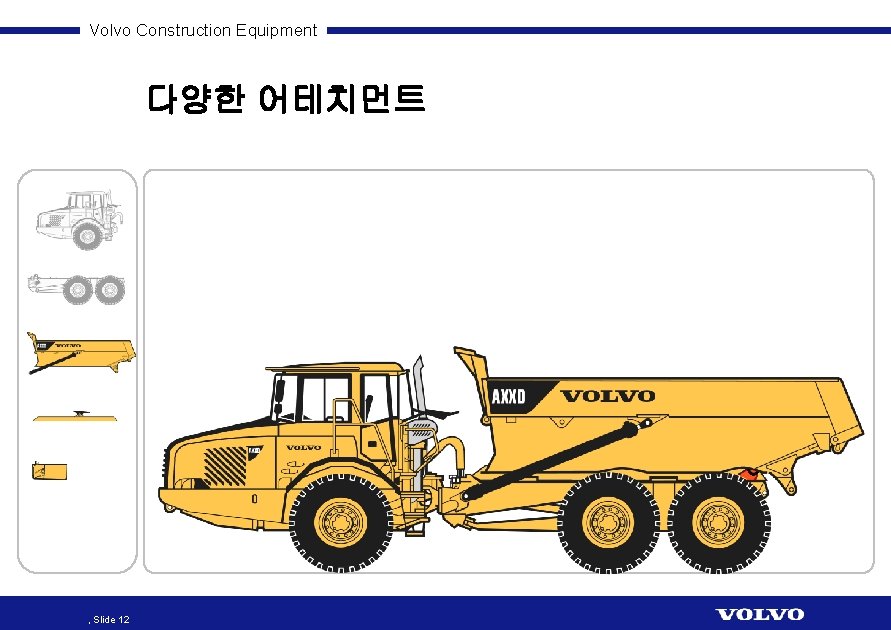

Volvo Construction Equipment 다양한 어테치먼트 , Slide 12

Volvo Construction Equipment , Slide 13

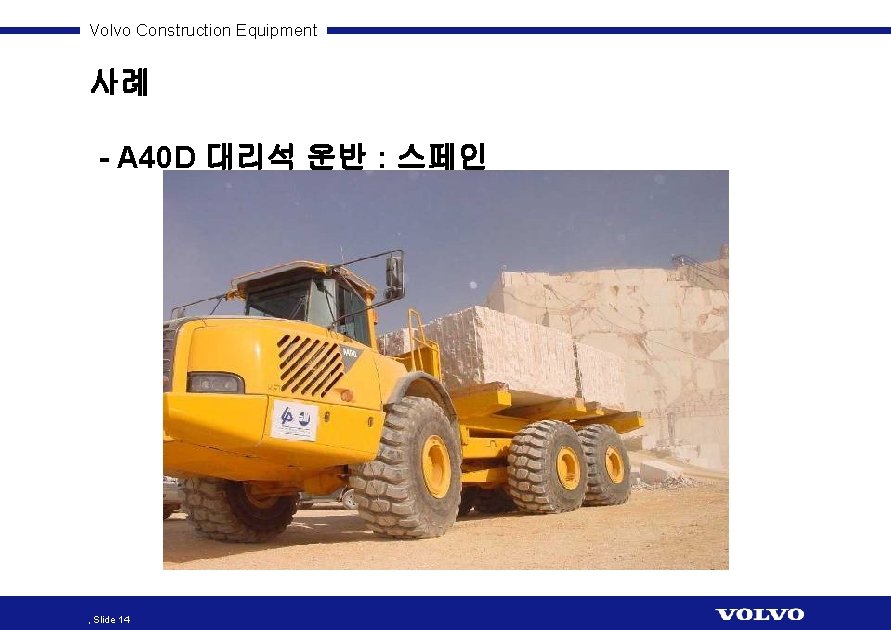

Volvo Construction Equipment 사례 - A 40 D 대리석 운반 : 스페인 , Slide 14

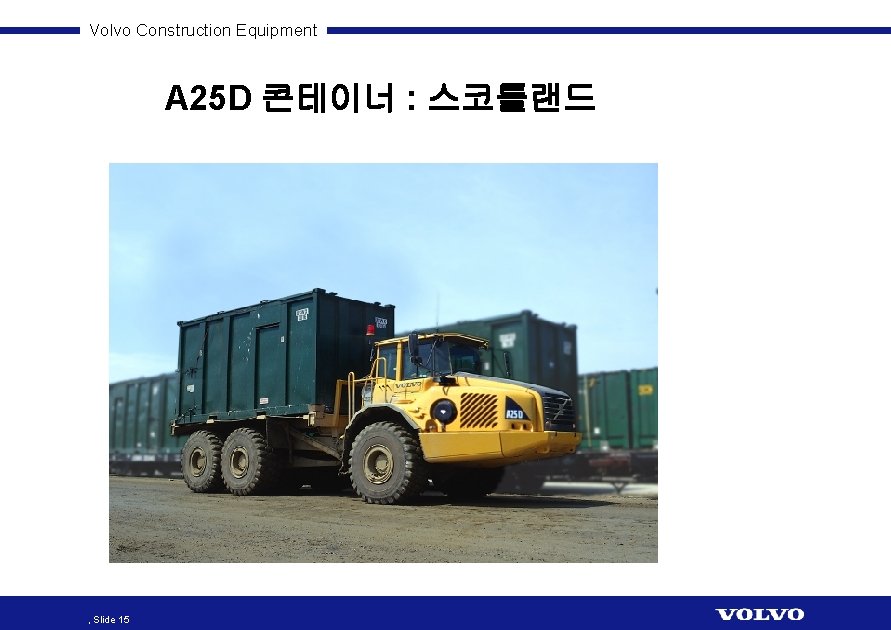

Volvo Construction Equipment A 25 D 콘테이너 : 스코틀랜드 , Slide 15

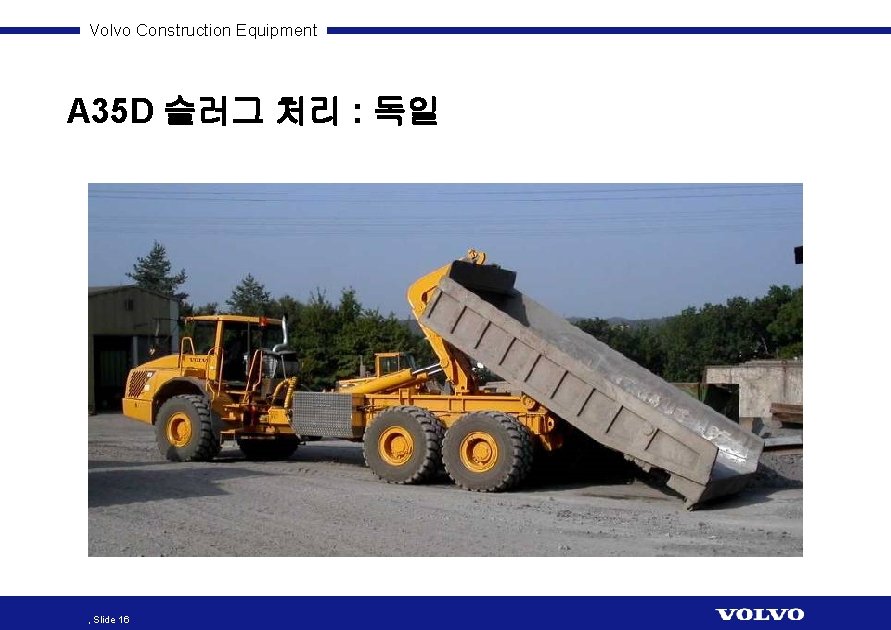

Volvo Construction Equipment A 35 D 슬러그 처리 : 독일 , Slide 16

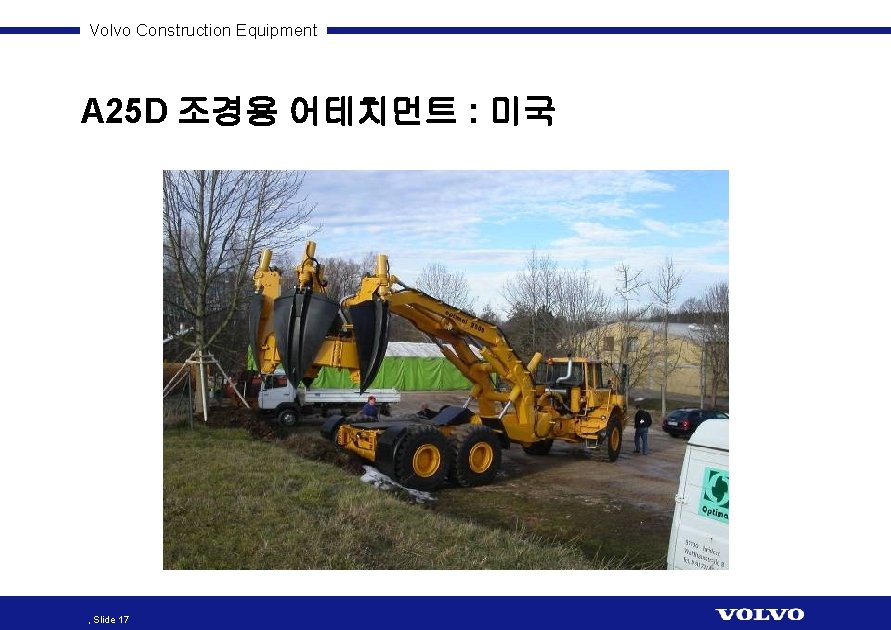

Volvo Construction Equipment A 25 D 조경용 어테치먼트 : 미국 , Slide 17

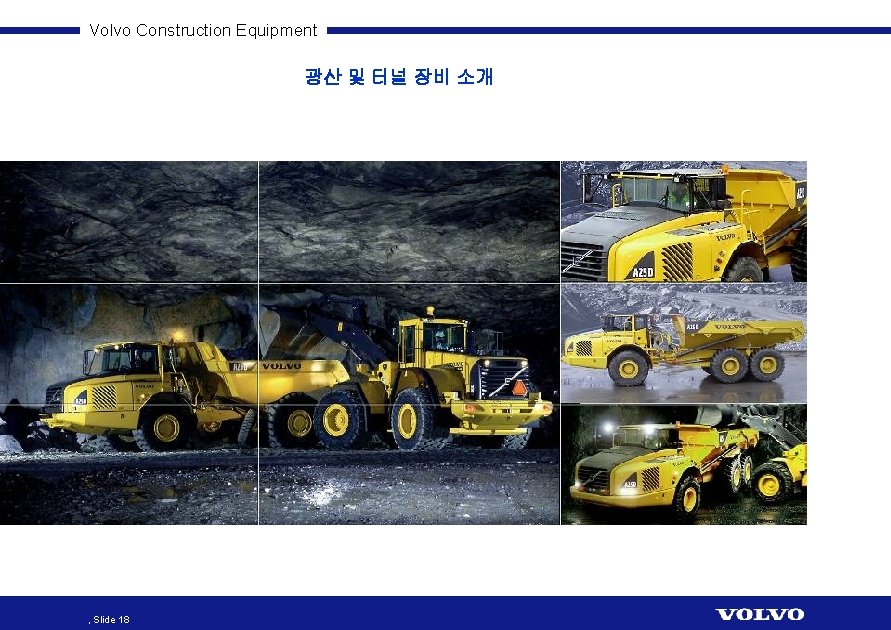

Volvo Construction Equipment 광산 및 터널 장비 소개 , Slide 18

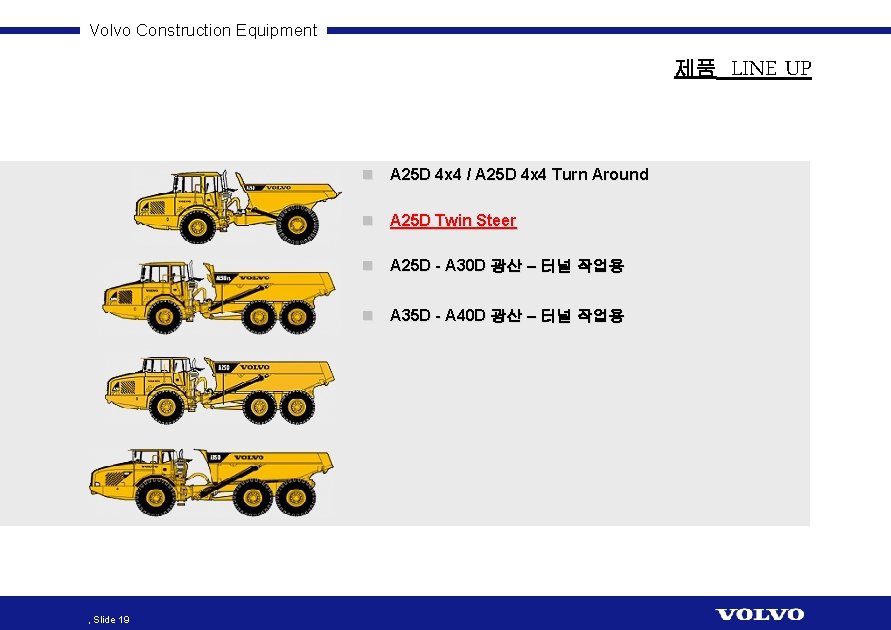

Volvo Construction Equipment 제품 n A 25 D 4 x 4 / A 25 D 4 x 4 Turn Around n A 25 D Twin Steer n A 25 D - A 30 D 광산 – 터널 작업용 n A 35 D - A 40 D 광산 – 터널 작업용 , Slide 19 LINE UP

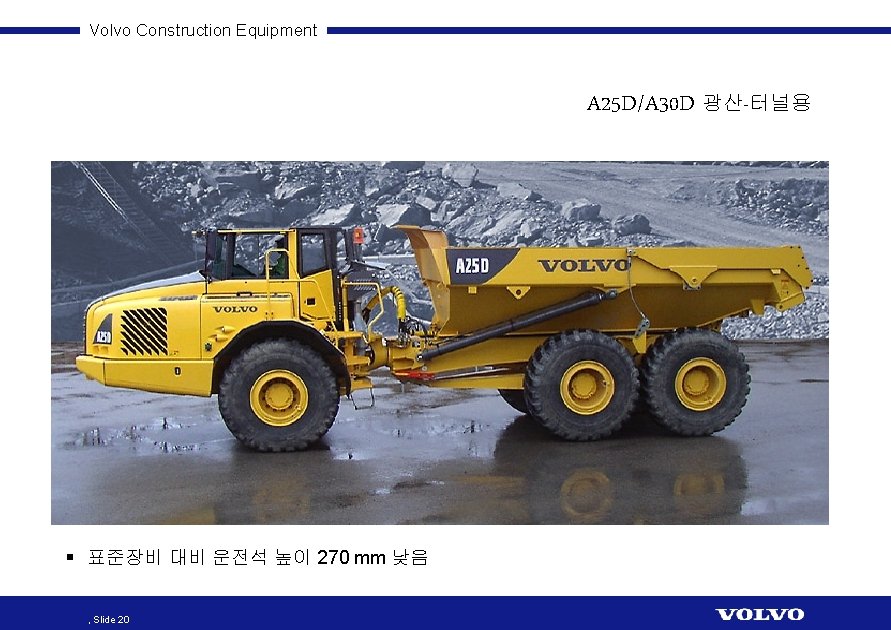

Volvo Construction Equipment A 25 D/A 30 D 광산-터널용 § 표준장비 대비 운전석 높이 270 mm 낮음 , Slide 20

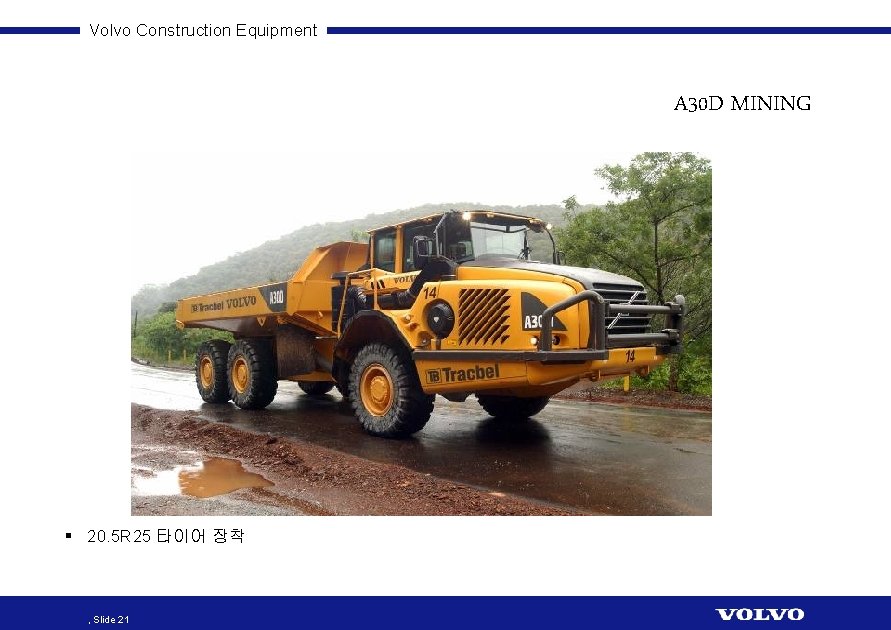

Volvo Construction Equipment A 30 D MINING § 20. 5 R 25 타이어 장착 , Slide 21

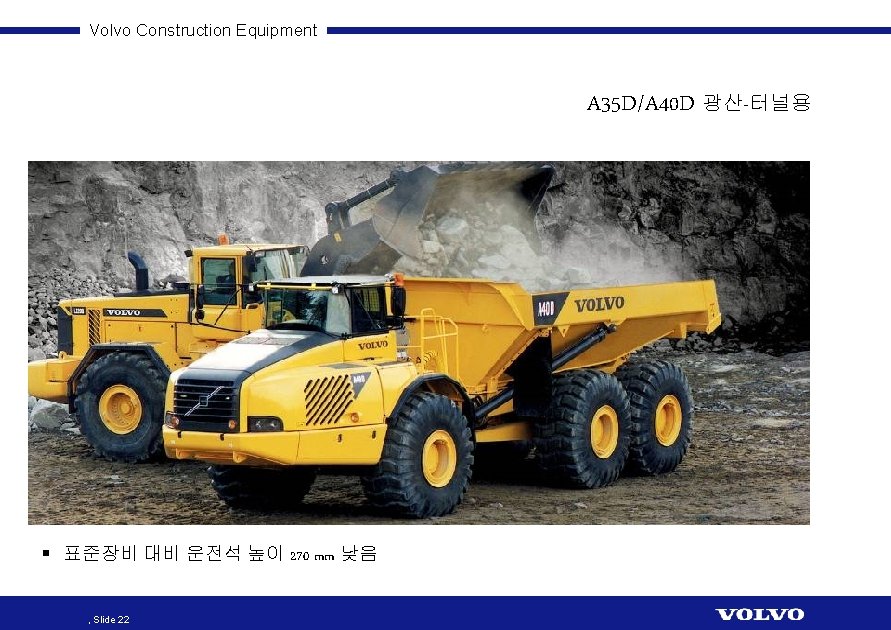

Volvo Construction Equipment A 35 D/A 40 D 광산-터널용 § 표준장비 대비 운전석 높이 270 mm 낮음 , Slide 22

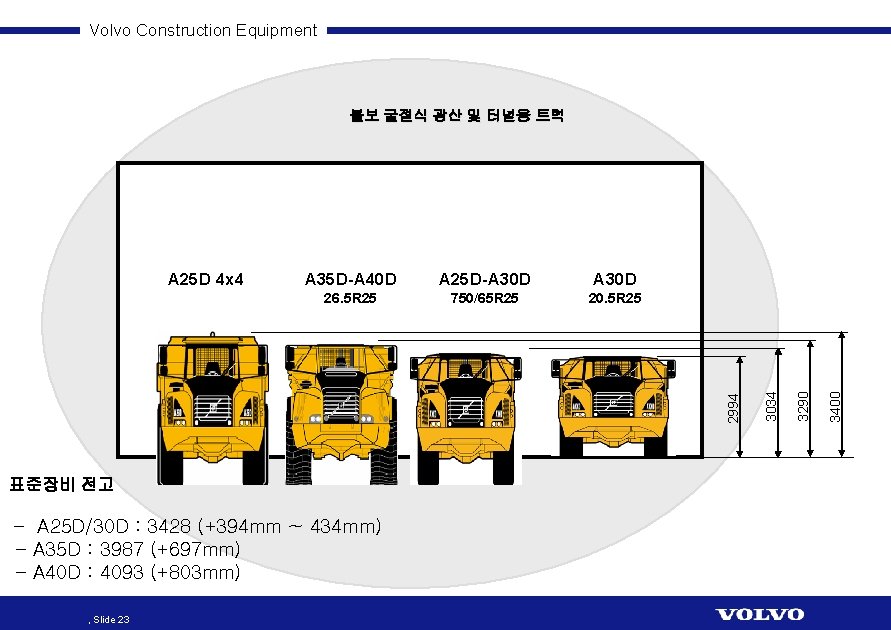

Volvo Construction Equipment A 30 D 26. 5 R 25 750/65 R 25 20. 5 R 25 표준장비 전고 - A 25 D/30 D : 3428 (+394 mm ~ 434 mm) - A 35 D : 3987 (+697 mm) - A 40 D : 4093 (+803 mm) , Slide 23 3400 A 25 D-A 30 D 3290 A 35 D-A 40 D 2994 A 25 D 4 x 4 3034 볼보 굴절식 광산 및 터널용 트럭

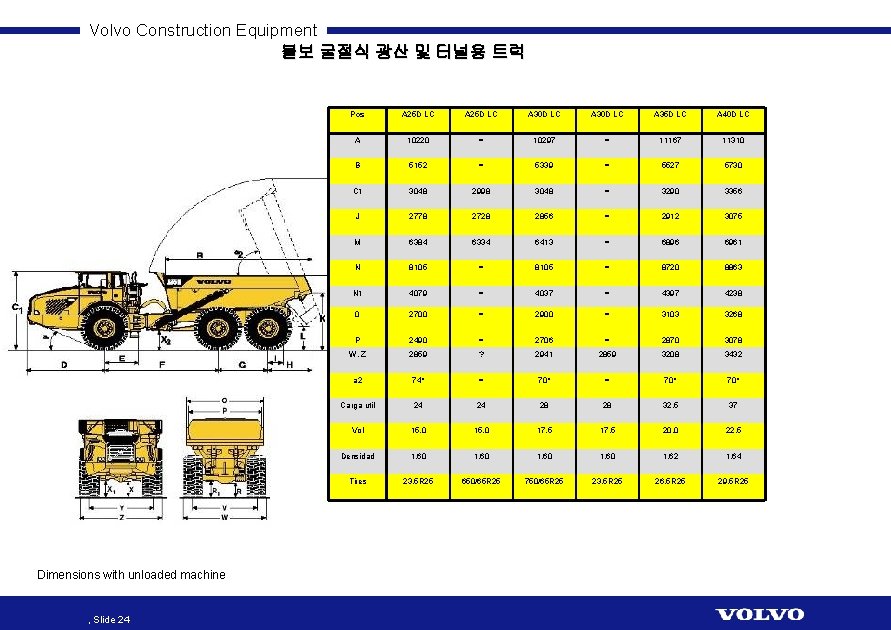

Volvo Construction Equipment 볼보 굴절식 광산 및 터널용 트럭 Dimensions with unloaded machine , Slide 24 Pos A 25 D LC A 30 D LC A 35 D LC A 40 D LC A 10220 = 10297 = 11167 11310 B 5152 = 5339 = 5527 5730 C 1 3048 2998 3048 = 3290 3356 J 2778 2728 2856 = 2912 3075 M 6384 6334 6413 = 6896 6961 N 8105 = 8720 8863 N 1 4079 = 4037 = 4397 4238 0 2700 = 2900 = 3103 3268 P 2490 = 2706 = 2870 3078 W, Z 2859 ? 2941 2859 3208 3432 a 2 74° = 70° 70° Carga util 24 24 28 28 32, 5 37 Vol 15, 0 17, 5 20, 0 22, 5 Densidad 1, 60 1, 62 1, 64 Tires 23. 5 R 25 650/65 R 25 750/65 R 25 23. 5 R 25 26. 5 R 25 29. 5 R 25

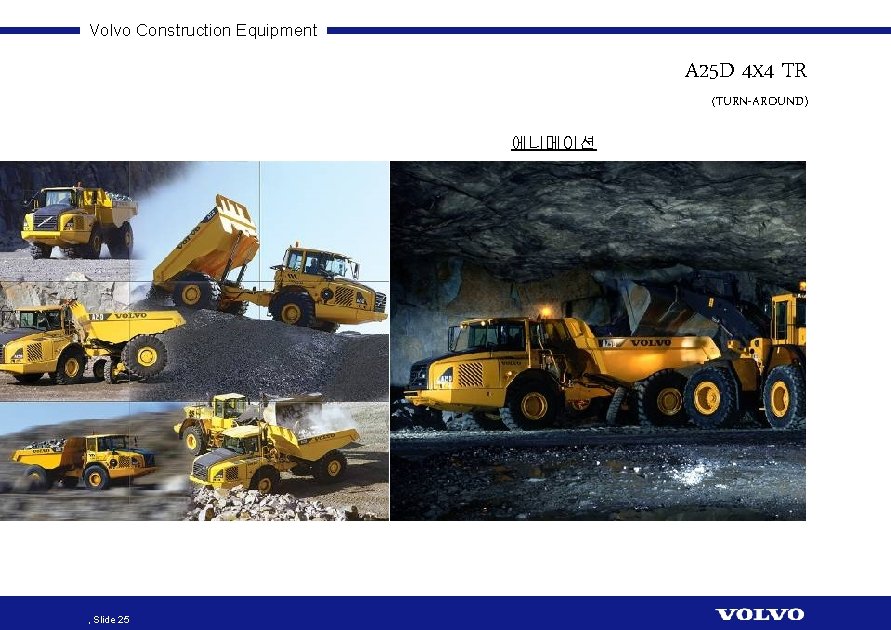

Volvo Construction Equipment A 25 D 4 X 4 TR (TURN-AROUND) 에니메이션 , Slide 25

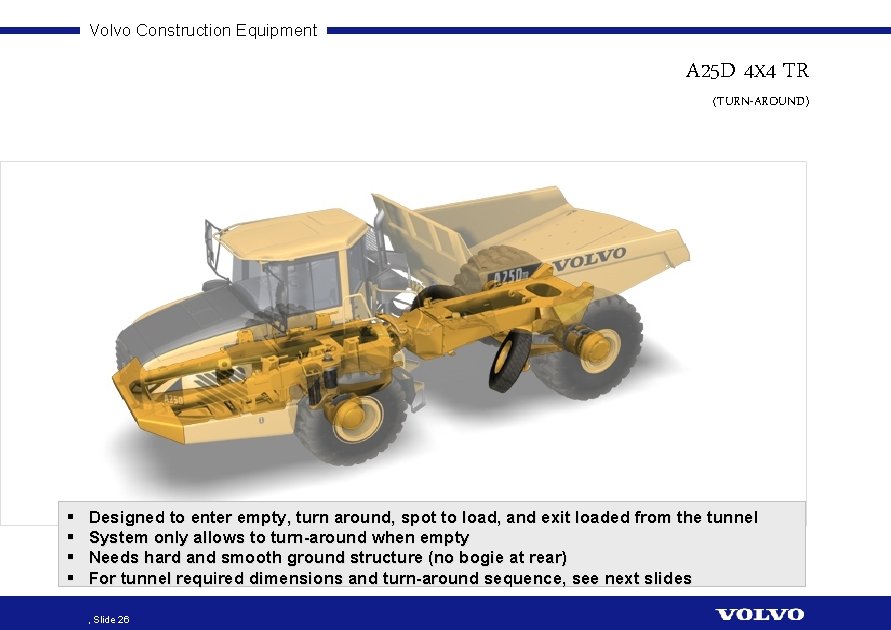

Volvo Construction Equipment A 25 D 4 X 4 TR (TURN-AROUND) § § Designed to enter empty, turn around, spot to load, and exit loaded from the tunnel System only allows to turn-around when empty Needs hard and smooth ground structure (no bogie at rear) For tunnel required dimensions and turn-around sequence, see next slides , Slide 26

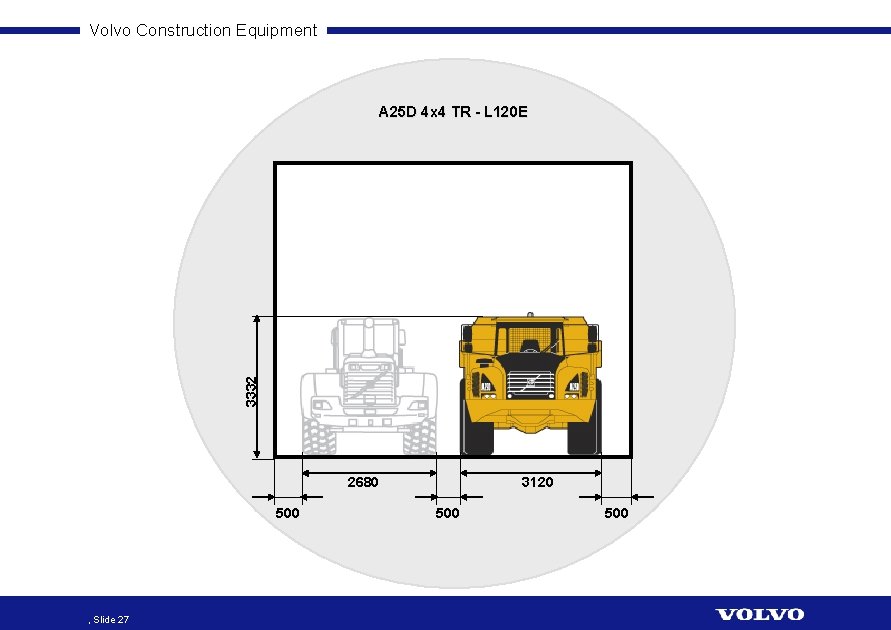

Volvo Construction Equipment 3332 A 25 D 4 x 4 TR - L 120 E 2680 500 , Slide 27 3120 500

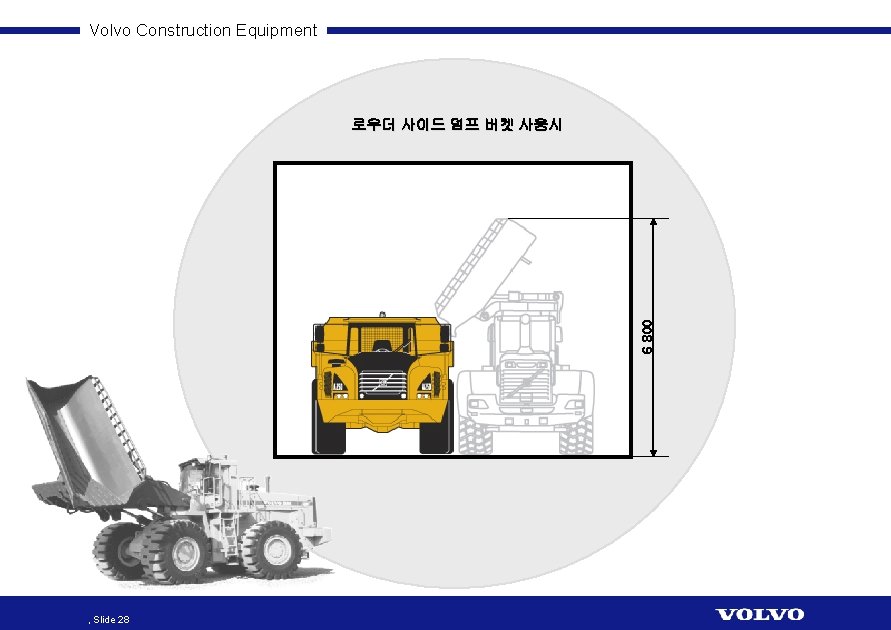

Volvo Construction Equipment 6 800 로우더 사이드 덤프 버켓 사용시 , Slide 28

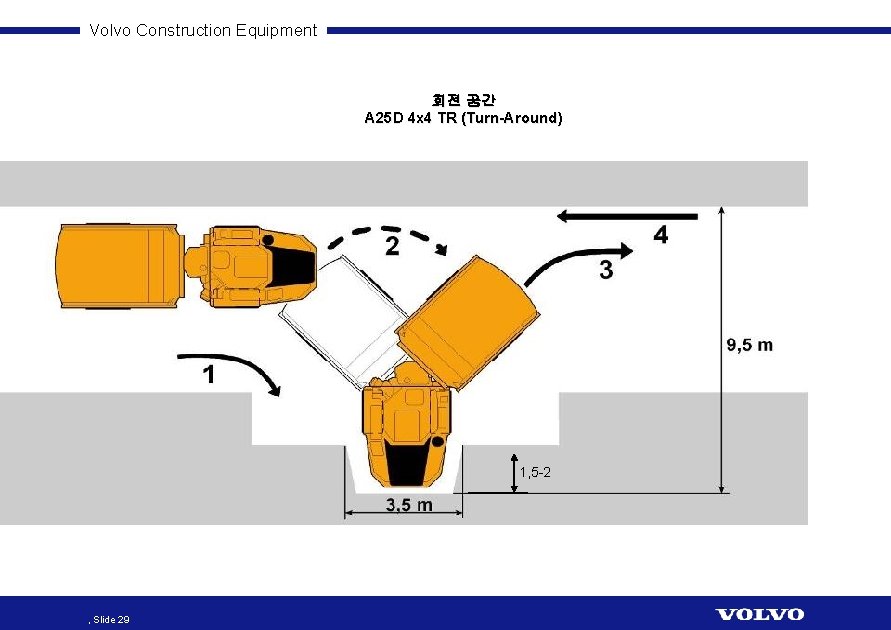

Volvo Construction Equipment 회전 공간 A 25 D 4 x 4 TR (Turn-Around) 1, 5 -2 , Slide 29

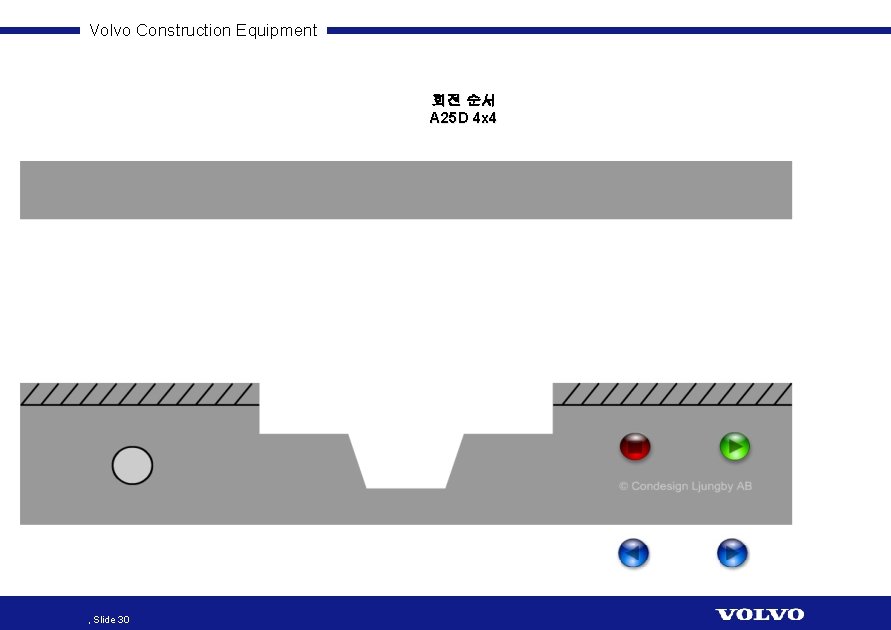

Volvo Construction Equipment 회전 순서 A 25 D 4 x 4 , Slide 30

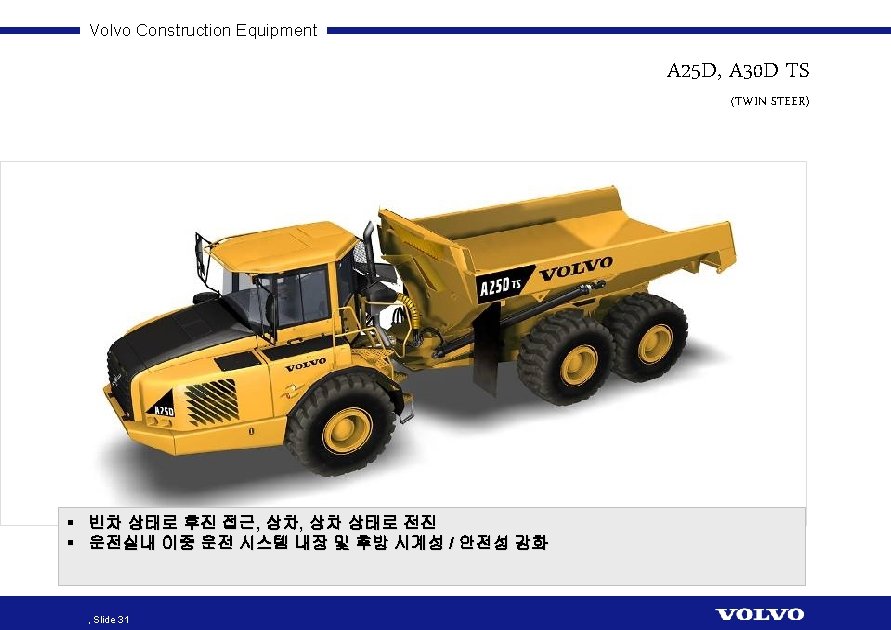

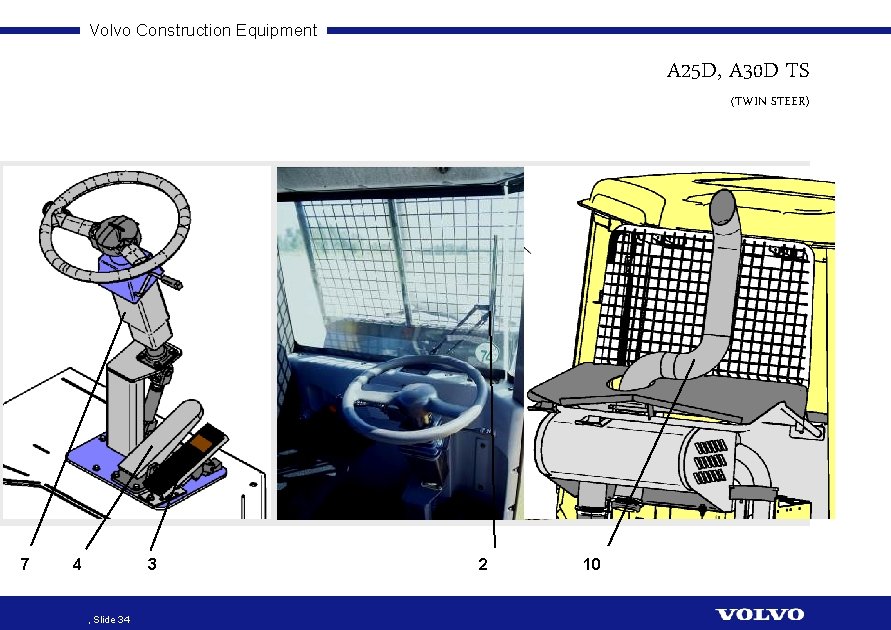

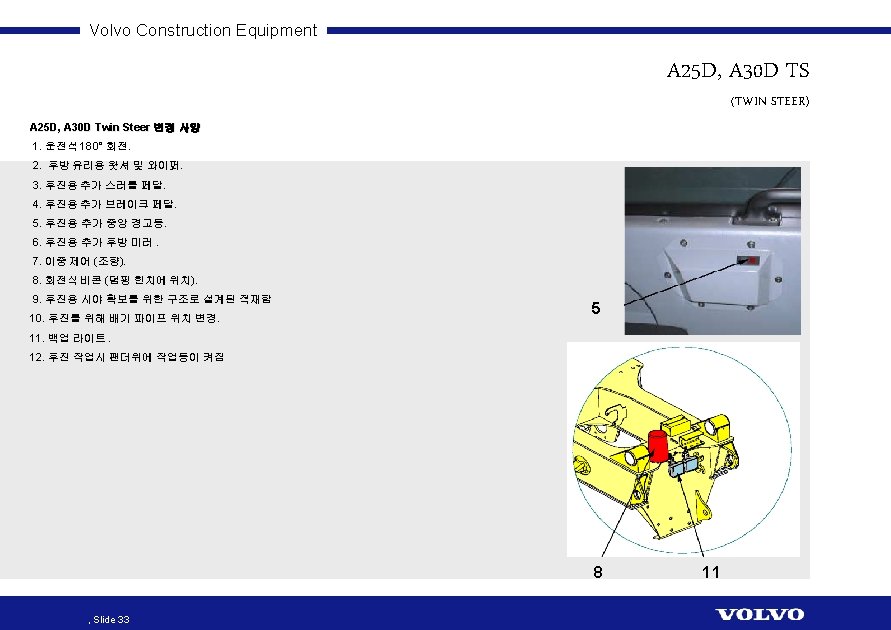

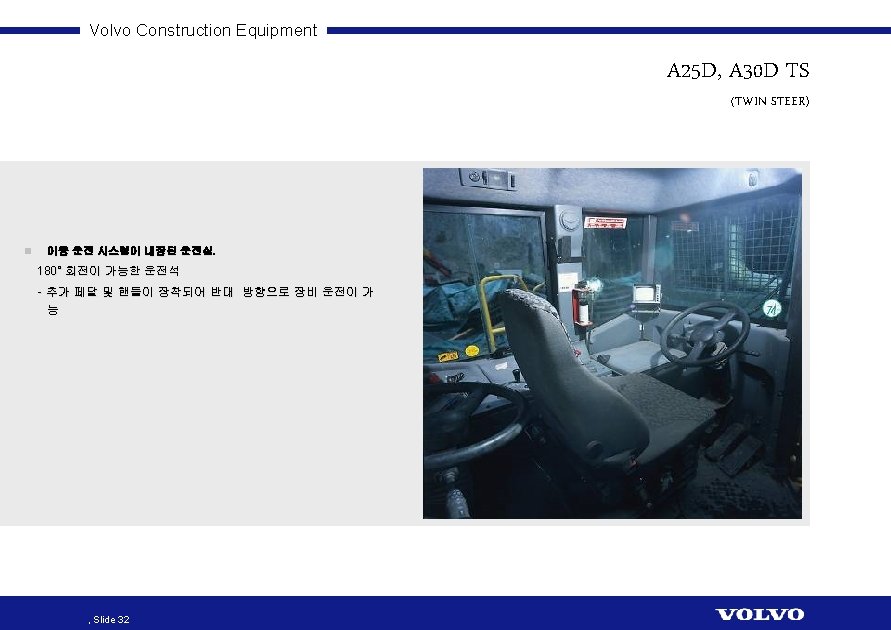

Volvo Construction Equipment A 25 D, A 30 D TS (TWIN STEER) 7 4 3 , Slide 34 2 10

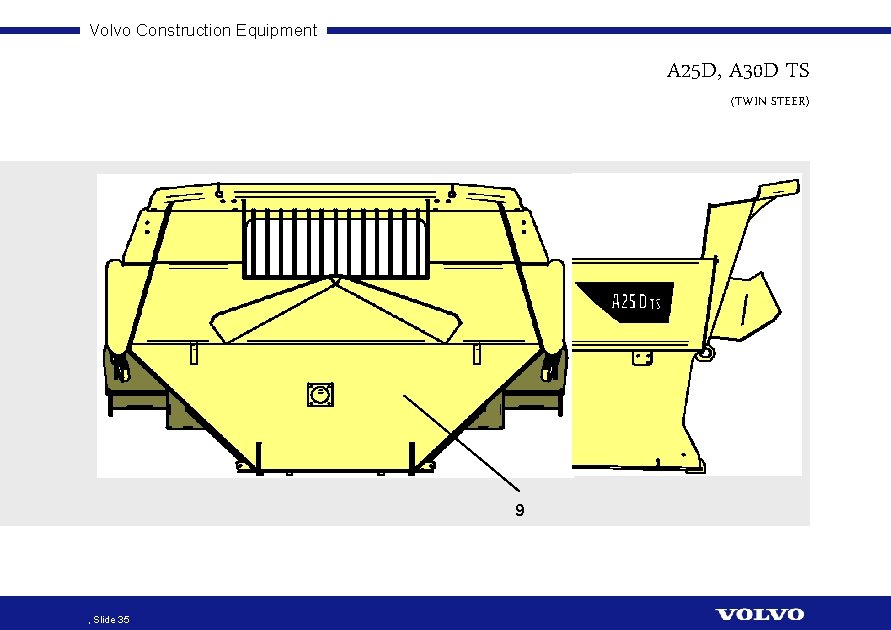

Volvo Construction Equipment A 25 D, A 30 D TS (TWIN STEER) 9 , Slide 35

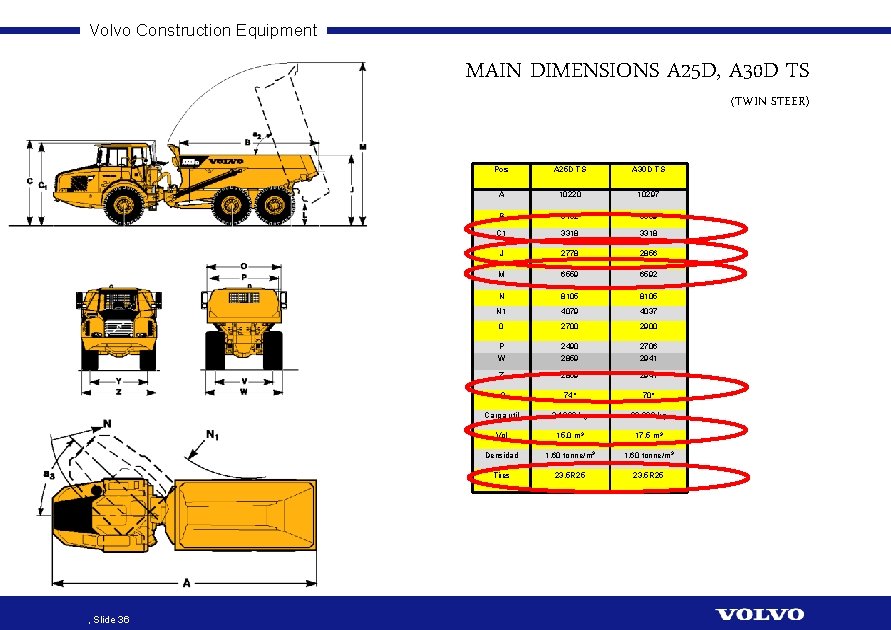

Volvo Construction Equipment MAIN DIMENSIONS A 25 D, A 30 D TS (TWIN STEER) , Slide 36 Pos A 25 D TS A 30 D TS A 10220 10297 B 5152 5339 C 1 3318 J 2778 2856 M 6559 6592 N 8105 N 1 4079 4037 0 2700 2900 P 2490 2706 W 2859 2941 Z 2859 2941 a 2 74° 70° Carga util 24 000 kg 28 000 kg Vol 15, 0 m 3 17, 5 m 3 Densidad 1, 60 tonne/m 3 Tires 23. 5 R 25

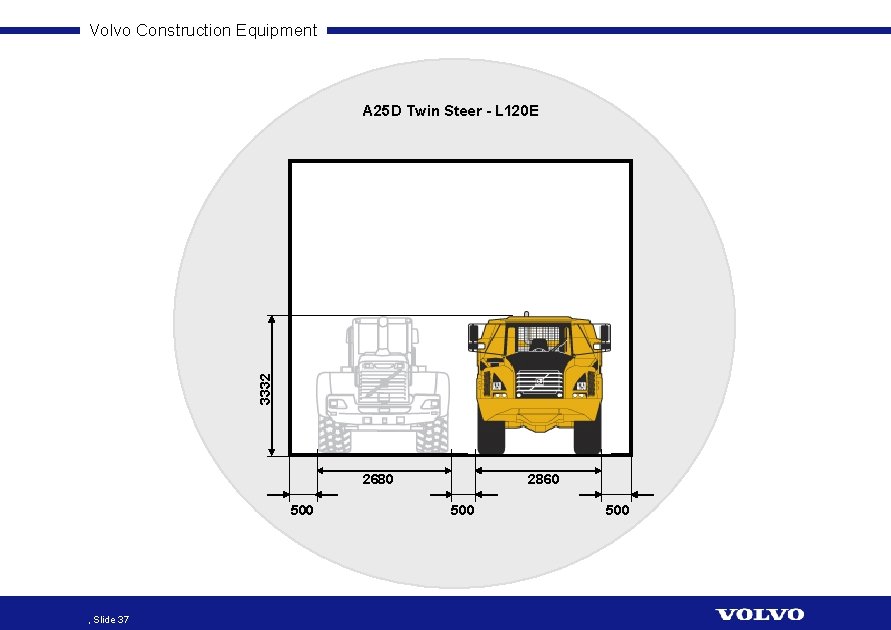

Volvo Construction Equipment 3332 A 25 D Twin Steer - L 120 E 2680 500 , Slide 37 2860 500

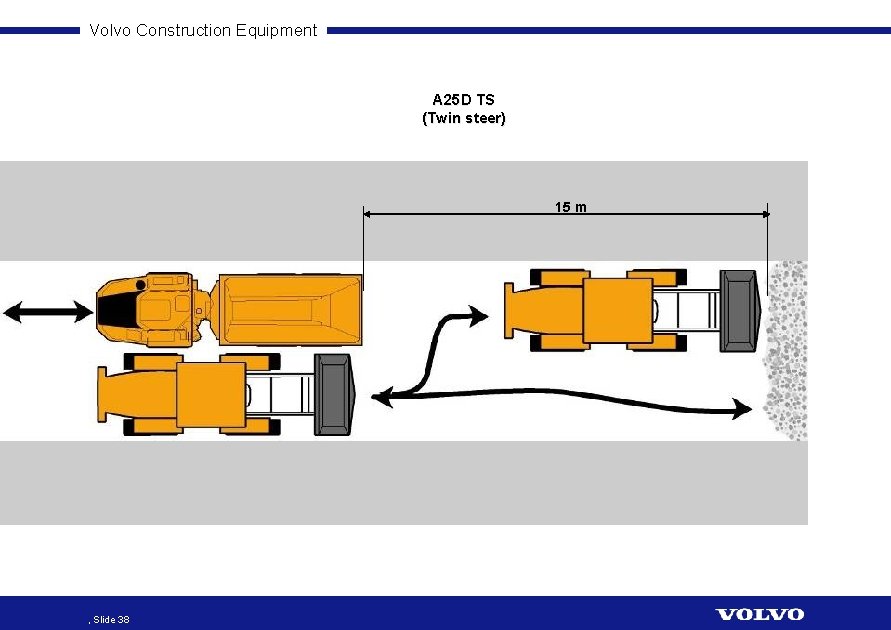

Volvo Construction Equipment A 25 D TS (Twin steer) 15 m , Slide 38

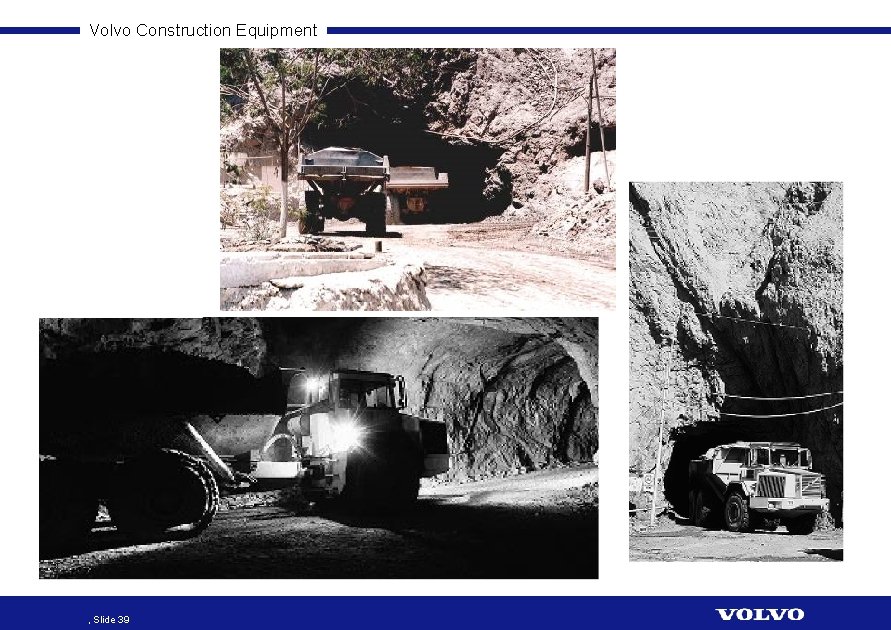

Volvo Construction Equipment , Slide 39

L 350 F

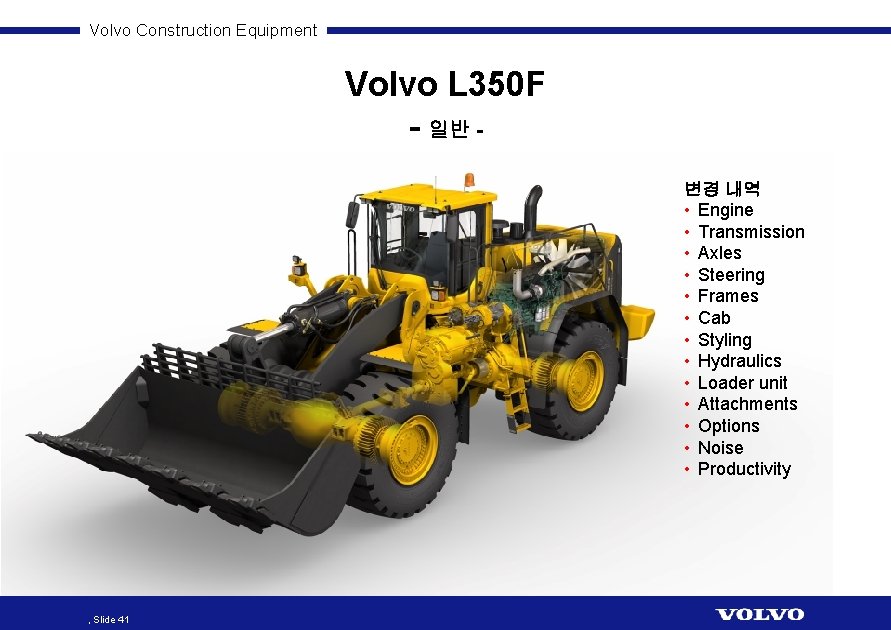

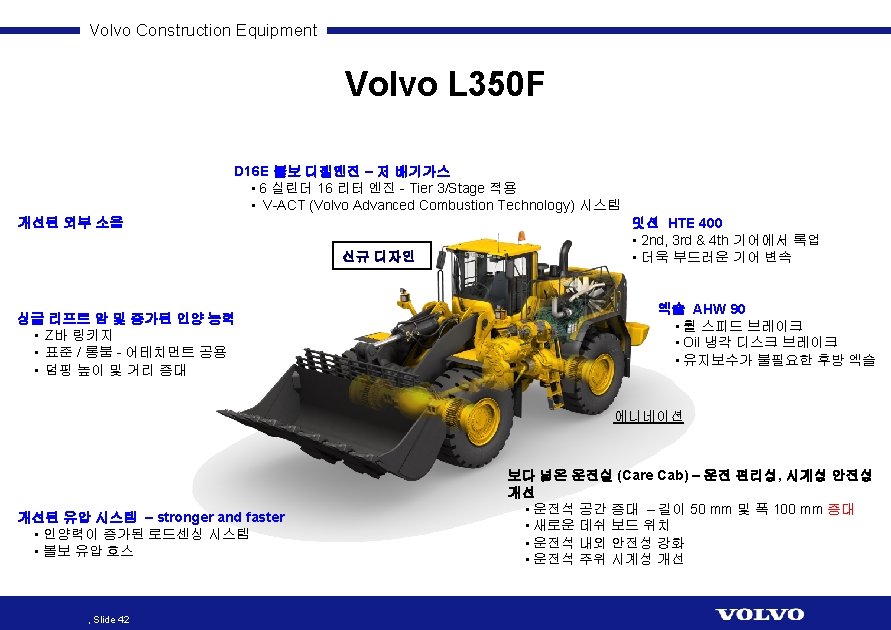

Volvo Construction Equipment Volvo L 350 F - 일반 변경 내역 • Engine • Transmission • Axles • Steering • Frames • Cab • Styling • Hydraulics • Loader unit • Attachments • Options • Noise • Productivity , Slide 41

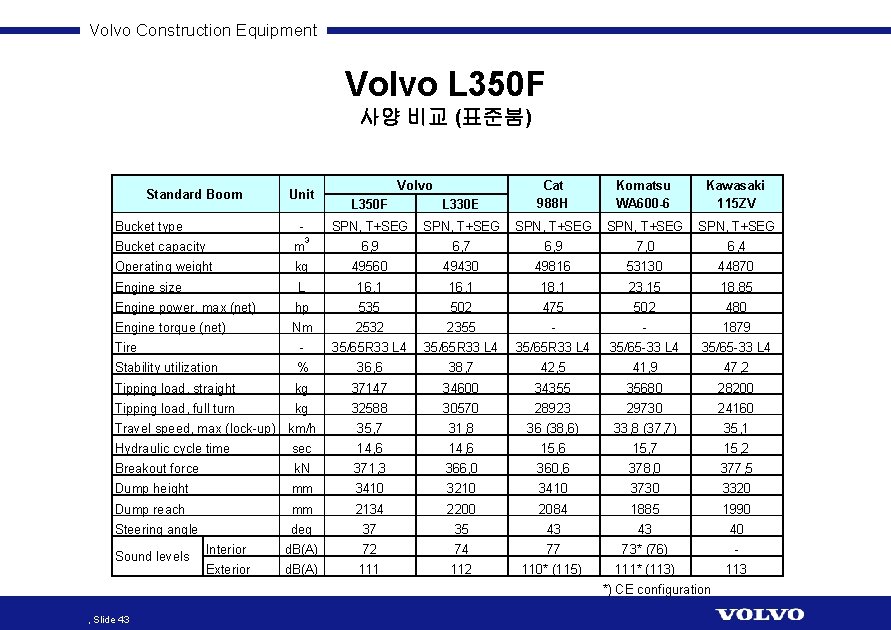

Volvo Construction Equipment Volvo L 350 F 사양 비교 (표준붐) Standard Boom Bucket type Unit 3 Volvo L 350 F L 330 E Cat 988 H Komatsu WA 600 -6 Kawasaki 115 ZV SPN, T+SEG SPN, T+SEG 6, 9 6, 7 6, 9 7, 0 6, 4 Bucket capacity m Operating weight kg 49560 49430 49816 53130 44870 Engine size L 16, 1 18, 1 23, 15 18, 85 Engine power, max (net) hp 535 502 475 502 480 Engine torque (net) Nm 2532 2355 - - 1879 Tire - 35/65 R 33 L 4 35/65 -33 L 4 Stability utilization % 36, 6 38, 7 42, 5 41, 9 47, 2 Tipping load, straight kg 37147 34600 34355 35680 28200 Tipping load, full turn kg 32588 30570 28923 29730 24160 Travel speed, max (lock-up) km/h 35, 7 31, 8 36 (38, 6) 33, 8 (37, 7) 35, 1 Hydraulic cycle time sec 14, 6 15, 7 15, 2 Breakout force k. N 371, 3 366, 0 360, 6 378, 0 377, 5 Dump height mm 3410 3210 3410 3730 3320 Dump reach mm 2134 2200 2084 1885 1990 Steering angle deg 37 35 43 43 40 Interior d. B(A) 72 74 77 73* (76) - Exterior d. B(A) 111 112 110* (115) Sound levels , Slide 43 111* (113) *) CE configuration 113

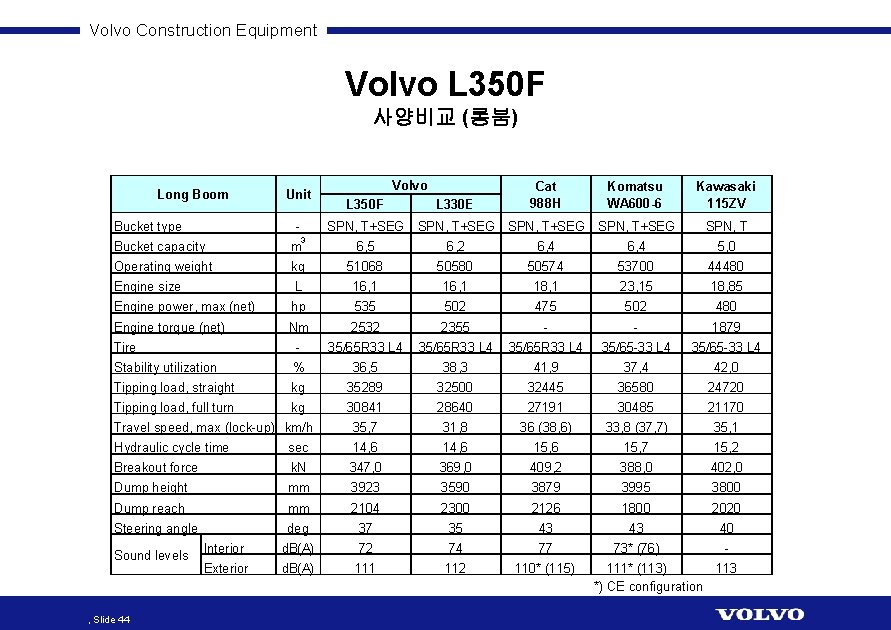

Volvo Construction Equipment Volvo L 350 F 사양비교 (롱붐) Long Boom Bucket type Unit 3 Volvo L 350 F L 330 E Cat 988 H Komatsu WA 600 -6 Kawasaki 115 ZV SPN, T+SEG SPN, T Bucket capacity m 6, 5 6, 2 6, 4 5, 0 Operating weight kg 51068 50580 50574 53700 44480 Engine size L 16, 1 18, 1 23, 15 18, 85 Engine power, max (net) hp 535 502 475 502 480 Engine torque (net) Nm 2532 2355 - - 1879 Tire - 35/65 R 33 L 4 35/65 -33 L 4 Stability utilization % 36, 5 38, 3 41, 9 37, 4 42, 0 Tipping load, straight kg 35289 32500 32445 36580 24720 Tipping load, full turn kg 30841 28640 27191 30485 21170 Travel speed, max (lock-up) km/h 35, 7 31, 8 36 (38, 6) 33, 8 (37, 7) 35, 1 Hydraulic cycle time sec 14, 6 15, 7 15, 2 Breakout force k. N 347, 0 369, 0 409, 2 388, 0 402, 0 Dump height mm 3923 3590 3879 3995 3800 Dump reach mm 2104 2300 2126 1800 2020 Steering angle deg 37 35 43 43 40 Interior d. B(A) 72 74 77 73* (76) - Exterior d. B(A) 111 112 110* (115) Sound levels , Slide 44 111* (113) 113 *) CE configuration

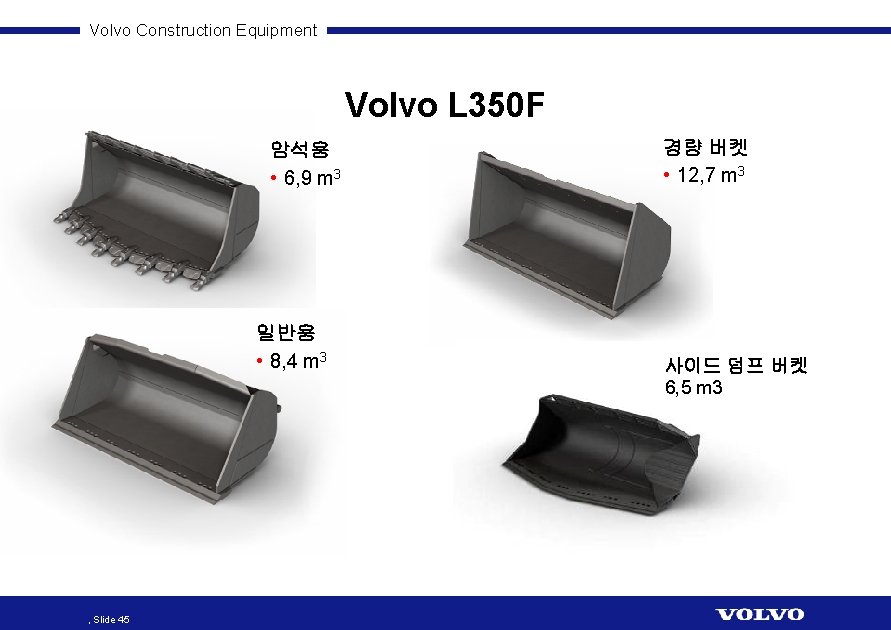

Volvo Construction Equipment Volvo L 350 F 암석용 • 6, 9 m 3 일반용 • 8, 4 m 3 , Slide 45 경량 버켓 • 12, 7 m 3 사이드 덤프 버켓 6, 5 m 3

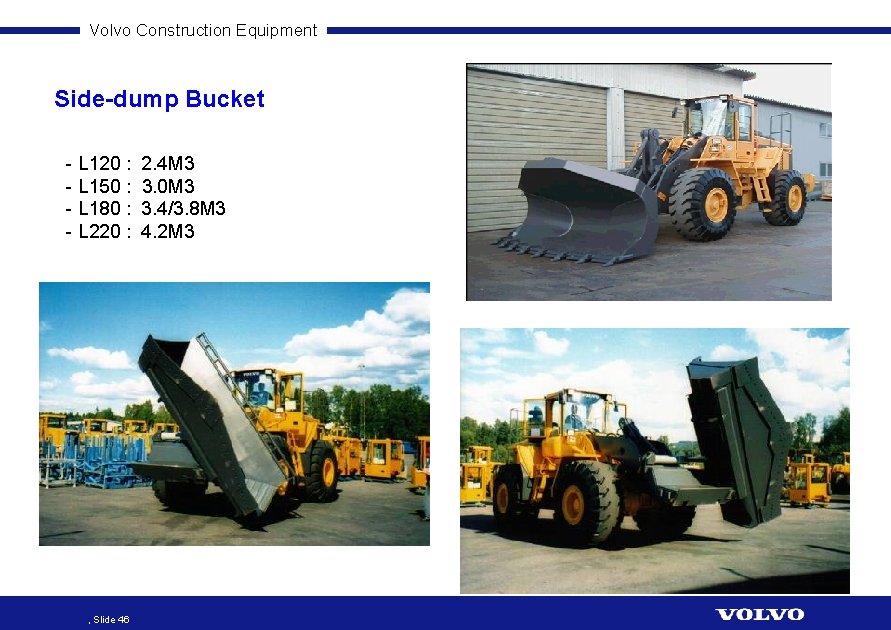

Volvo Construction Equipment Side-dump Bucket - L 120 : - L 150 : - L 180 : - L 220 : , Slide 46 2. 4 M 3 3. 0 M 3 3. 4/3. 8 M 3 4. 2 M 3
