VOLUSIA COUNTY PUBLIC WORKS DEPARTMENT ENGINEERING CONSTRUCTION DIVISION

VOLUSIA COUNTY PUBLIC WORKS DEPARTMENT ENGINEERING & CONSTRUCTION DIVISION GERALD N. BRINTON, P. E. COUNTY ENGINEER / DIRECTOR OF ENGINEERING & CONSTRUCTION

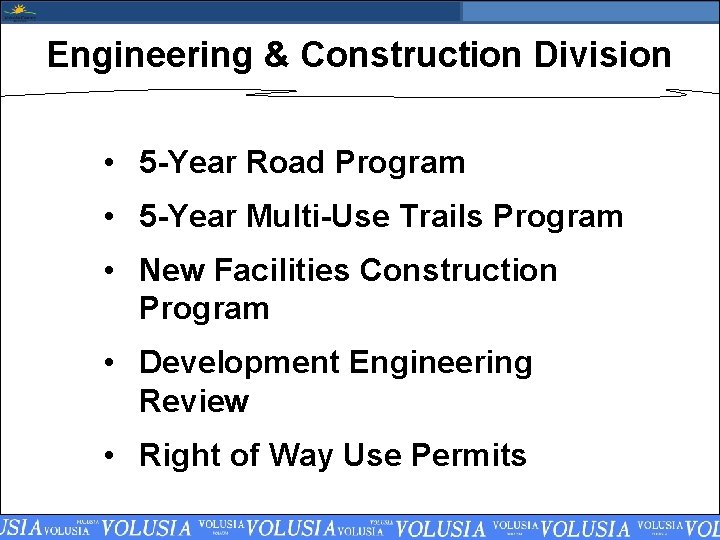

Engineering & Construction Division • 5 -Year Road Program • 5 -Year Multi-Use Trails Program • New Facilities Construction Program • Development Engineering Review • Right of Way Use Permits

Engineering & Construction Organizational Chart Gerald N. Brinton, P. E. County Engineer Right of Way Manager Registered Land Survey Manager Engineering Section Manager Right of Way Acquisition Survey Road Project Management Right of Way Appraisal Development Review Trails Project Management Plat Abandonment and Special Assessments Transportation Impact Fee Credit Review Administrative Coordinator Administration Engineering Supervisor Project Development and Design Architectural Manager Construction Manager Development Engineer Road Construction Subdivision, Site Plan, Stormwater Reviews Vertical Construction Use Permits Of County Property Showcase Trails Construction

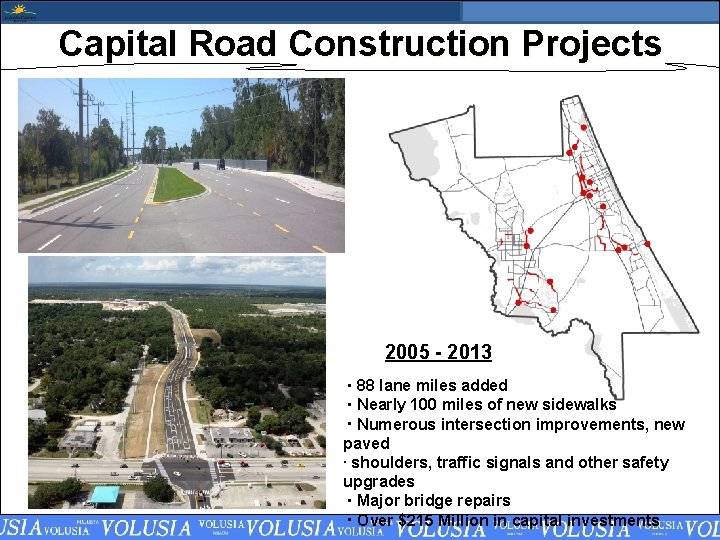

Capital Road Construction Projects 2005 - 2013 88 lane miles added Nearly 100 miles of new sidewalks Numerous intersection improvements, new paved shoulders, traffic signals and other safety upgrades Major bridge repairs Over $215 Million in capital investments

Five Year Road Program 1 4 3 2

Five Year Road Program

Funded Construction Projects FY 2012/2013 Ormond Beach • Tymber Cr Rd 4 Laning - SR 40 to Peruvian Ln $6, 133, 000 (County) Under Construction Orange City • Saxon Blvd 6 Laning - I-4 to Enterprise Rd Under Construction $2, 950, 000 (County) $1, 443, 000 (State Grant)

Funded Construction Projects Holly Hill FY 2013/2014 • LPGA Blvd 4 Laning - Jimmy Ann to Derbyshire $2, 630, 000 (County) $452, 000 (State Grant) Daytona Beach • Orange Av Reconstruction - Nova Rd to Beach St $1, 660, 000 (County) $4, 679, 000 (State Grant) • Dunn Av Paved Shldrs - Clyde Morris to Bill France $140, 000 (County) $1, 404, 000 (State Grant) Port Orange • S Williamson Ext - Airport Rd to Pioneer Trl (Partnership with Pioneer CDD) $9, 062, 000 (County)

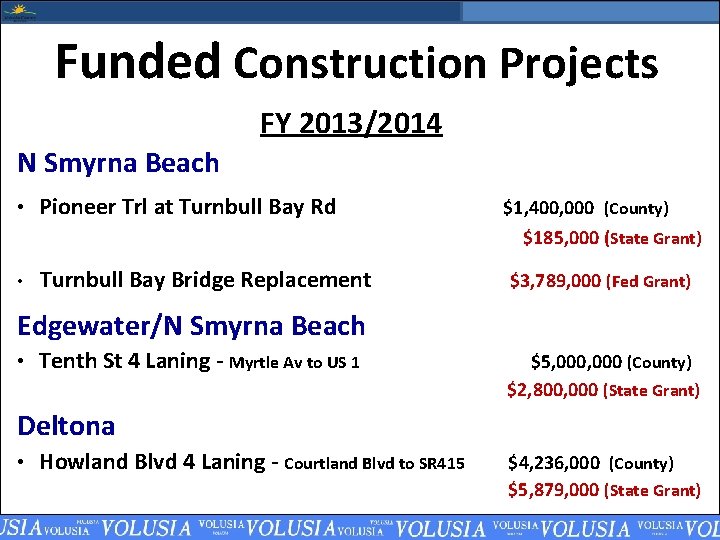

Funded Construction Projects FY 2013/2014 N Smyrna Beach • Pioneer Trl at Turnbull Bay Rd • Turnbull Bay Bridge Replacement $1, 400, 000 (County) $185, 000 (State Grant) $3, 789, 000 (Fed Grant) Edgewater/N Smyrna Beach • Tenth St 4 Laning - Myrtle Av to US 1 $5, 000 (County) $2, 800, 000 (State Grant) Deltona • Howland Blvd 4 Laning - Courtland Blvd to SR 415 $4, 236, 000 (County) $5, 879, 000 (State Grant)

Funded Construction Projects Deltona FY 2014/2015 • Doyle Rd Paved Shldrs - Courtland Blvd to SR 415 $1, 113, 000 (Fed grant) De. Land • Kepler Rd at SR 44 Intersection $2, 979, 000 (County) $821, 000 (State Grant) • Orange Camp Rd 4 Laning - MLK Blvd to I-4 $4, 690, 000 (County) Daytona Beach • Veterans Memorial Bridge Replacement $47, 950, 000 (Fed Grant)

Funded Construction Projects Success in Leveraging Grant Funding 1. 7 to 1 Ratio (in just 3 fiscal years) Grant Funds County Funds $70, 517, 000 $40, 880, 000 “Takes Money to Leverage Money”

Road Program…Road Program “The Last Hurrah” Volusia County Road Program Capital Investments 12/13 Zone 1 Zone 2 Zone 3 Zone 4 Total 15/16 16/17 $20. 03 M $47. 95 M* 0 0 $13. 17 M 0 0 0 $10. 12 M $1. 11 M 0 0 $8. 49 M 0 0 $10. 52 M $43. 32 M $57. 55 M 0 0 $6. 13 M 0 $4. 39 M 13/14 14/15 * Federal Grant for Veterans Memorial Bridge Replacement Excludes sidewalk & resurfacing improvements When Bond money is gone, limited revenues will be focused on safety and intersection upgrades. Significant issues continue with funding long term maintenance of the two remaining bascule bridges.

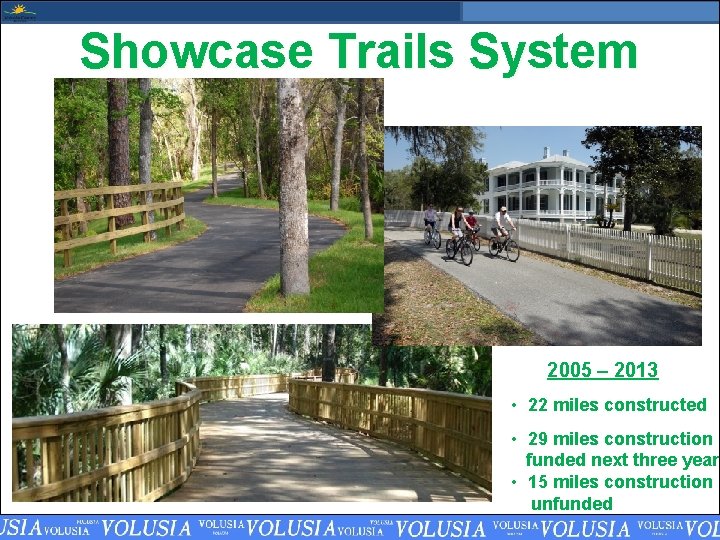

Showcase Trails System 2005 – 2013 • 22 miles constructed • 29 miles construction funded next three years • 15 miles construction unfunded

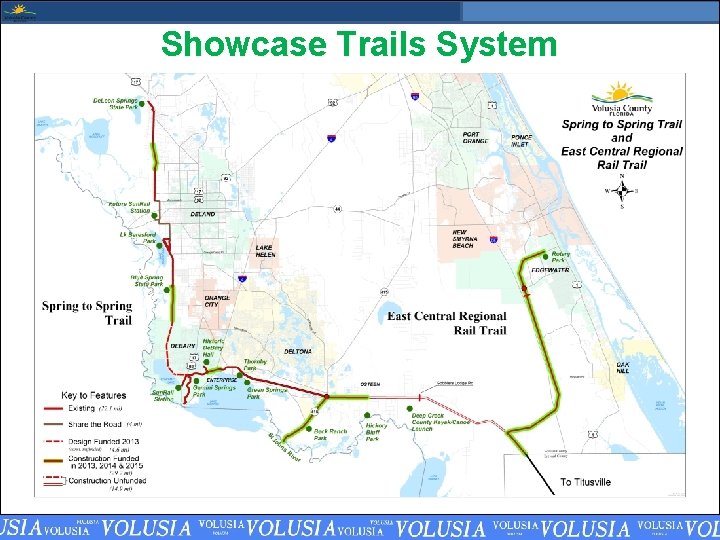

Showcase Trails System

5 -Year Trails Program
