Volume www mathsrevision com Level 2 Everyday Volumes

Volume www. mathsrevision. com Level 2 Everyday Volumes Liquid Volumes Counting Volume cubes Volume of a cuboid 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Starter Questions www. mathsrevision. com Level 2 Q 1. Write 67% as a fraction and then a decimal. Q 2. Find the perimeter of the rectangle. 9 m 6 m Q 3. Find the area the rectangle in Q 2. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volume www. mathsrevision. com Level 2 Learning Intention 1. We are learning the term volume. Success Criteria 1. Understand the term volume. 2. Be able volume in terms of capacity. 3. Answer to contain appropriate units. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volume www. mathsrevision. com Level 2 What is Volume ? The amount of space a shape takes up in 3 D ( Dimensions) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

www. mathsrevision. com Volume 08 -Mar-21 Put these everyday objects in order of volume. (smallest first) Compiled by Mr. Lafferty Maths Dept.

www. mathsrevision. com Volume 08 -Mar-21 Put these everyday objects in order of volume. (smallest first) Compiled by Mr. Lafferty Maths Dept.

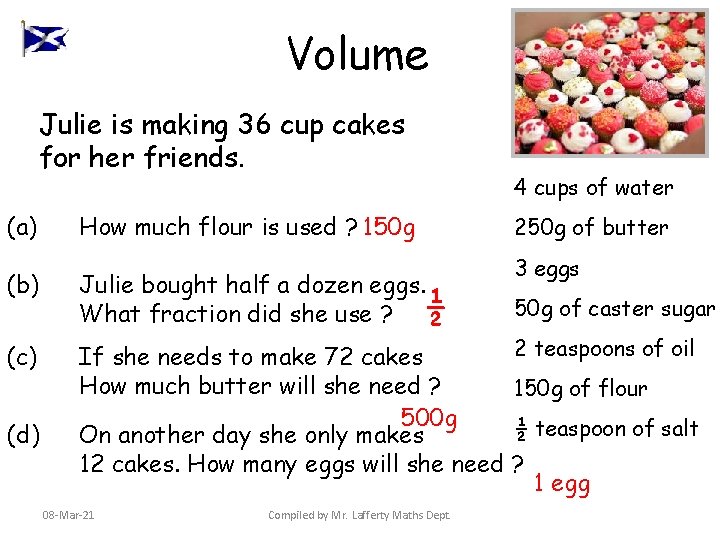

Volume Julie is making 36 cup cakes for her friends. (a) How much flour is used ? 150 g 4 cups of water 250 g of butter 3 eggs (b) Julie bought half a dozen eggs. What fraction did she use ? ½ (c) 2 teaspoons of oil If she needs to make 72 cakes How much butter will she need ? 150 g of flour 500 g ½ teaspoon of salt On another day she only makes 12 cakes. How many eggs will she need ? 1 egg (d) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept. 50 g of caster sugar

Liquid Volume www. mathsrevision. com Level 2 Now try TJ 2 a Ex 1 Ch 13 c (page 130) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Starter Questions www. mathsrevision. com Level 2 Q 1. What is volume. Q 2. 50% of 86. Q 3. 7. 9 x 1000 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Liquid Volume www. mathsrevision. com Level 2 Learning Intention 1. We are learning the term liquid volume using millilitres and litres. Success Criteria 1. Unerstand the term liquid volume. 2. Calculate volumes using 1 ml and litres. 3. Answer to contain appropriate units. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

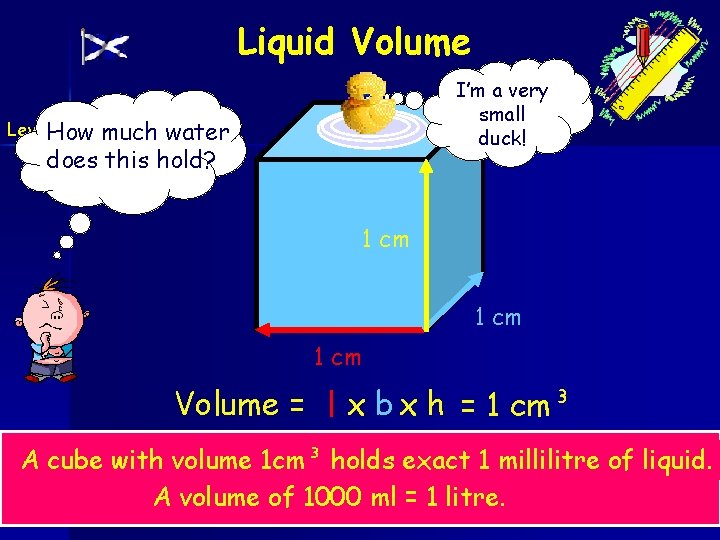

Liquid Volume I’m a very small duck! Level. How 2 much water does this hold? 1 cm Volume = l x b x h = 1 cm³ A cube with volume 1 cm³ holds exact 1 millilitre of liquid. A volume of 1000 ml = 1 litre. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Liquid Volume S 4 2 Level Reading Scales www. mathsrevision. com How much liquid in the jug ? Litres Count the number of small divisions 2 1 litre =51000 ml Each division is worth 1 1 litre ÷ 5 = 0 200 ml x 4 = 800 ml 08 -Mar-21 1000 ml ÷ 5 = 200 ml Compiled by Mr. Lafferty Maths Dept.

Liquid Volume Level 2 www. mathsrevision. com How much liquid in the jug ? Litres 2 1 Count the number of small divisions 1 litre =51000 ml Each division is worth 1 litre ÷ 5 = 1000 ml ÷ 5 = 200 ml 0 200 ml x 7 = 1400 ml or 1. 4 litres 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Liquid Volume Level 2 www. mathsrevision. com How much liquid in the jug ? ( Careful different scale) Litres 2 1 0 Count the number of small divisions 1 litre =41000 ml Each division is worth 1 litre ÷ 4 = 1000 ml ÷ 4 = 250 ml x 7 = 1750 ml or 1. 75 litres 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Conversion 1000 ml = 1 litre Millilitres to Litres www. mathsrevision. com Level 2 x 1000 Litres (l) millilitres (ml) ÷ 1000 08 -Mar-21 raindrop Created by Mr. Lafferty Maths Dept.

Conversion 1000 ml = 1 litre Millilitres to Litres www. mathsrevision. com Level 2 Convert the following to millilitres (a) 1. 1 litres (b) 1100 ml 3. 7 litres (c) 0. 85 litres 3700 ml 850 ml Convert the following to litres (a) 2500 ml 2. 5 litres 08 -Mar-21 (b) 6100 ml 6. 1 litres Created by Mr. Lafferty Maths Dept. (c) 450 ml 0. 45 litres

Liquid Volume www. mathsrevision. com Level 2 Now try TJ 2 a Ex 2 Ch 13 c (page 132) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

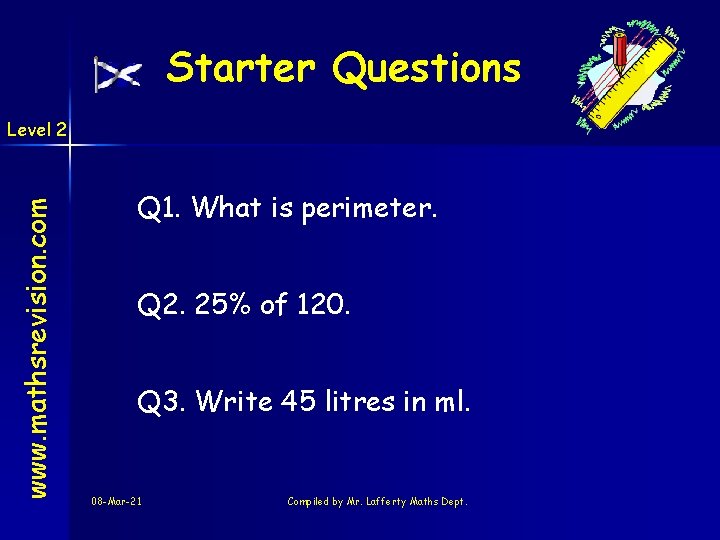

Starter Questions www. mathsrevision. com Level 2 Q 1. What is perimeter. Q 2. 25% of 120. Q 3. Write 45 litres in ml. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volumes by Counting Cubes www. mathsrevision. com Level 2 Learning Intention 1. We are learning the term volume in terms of counting cubes. Success Criteria 1. Understand the term volume. 2. Calculate volumes by 3 counting 1 cm cubes. 3. Answer to contain appropriate units. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

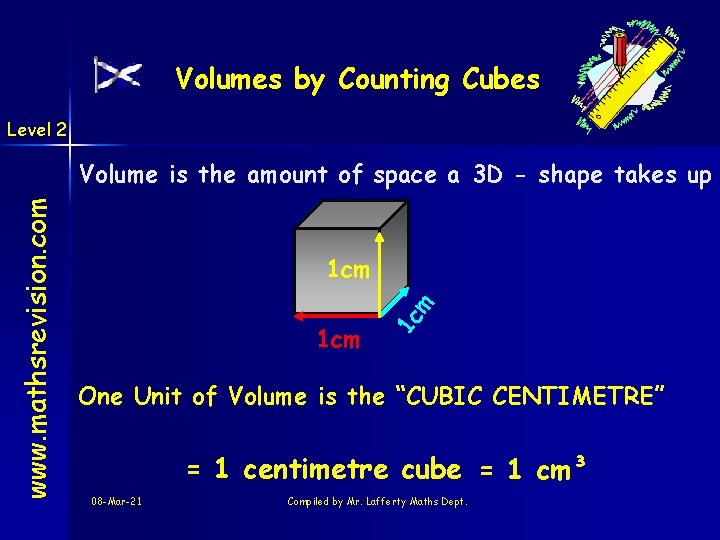

Volumes by Counting Cubes Level 2 m 1 cm 1 c www. mathsrevision. com Volume is the amount of space a 3 D - shape takes up One Unit of Volume is the “CUBIC CENTIMETRE” = 1 centimetre cube = 1 cm³ 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volumes by Counting Cubes This shape is made up of 1 centimetre cubes placed next to each other. What is its volume in cm³? m 1 cm 1 c www. mathsrevision. com Level 2 = 2 centimetre cubes = 2 cm³ 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

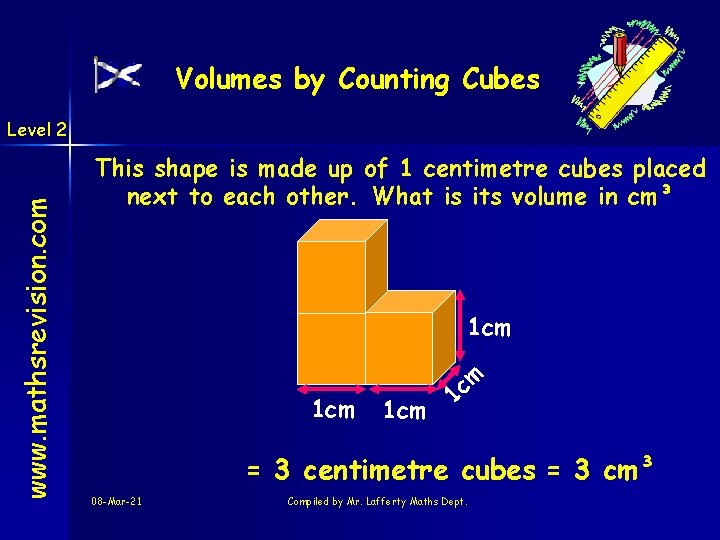

Volumes by Counting Cubes This shape is made up of 1 centimetre cubes placed next to each other. What is its volume in cm³ m 1 cm 1 c www. mathsrevision. com Level 2 1 cm = 3 centimetre cubes = 3 cm³ 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

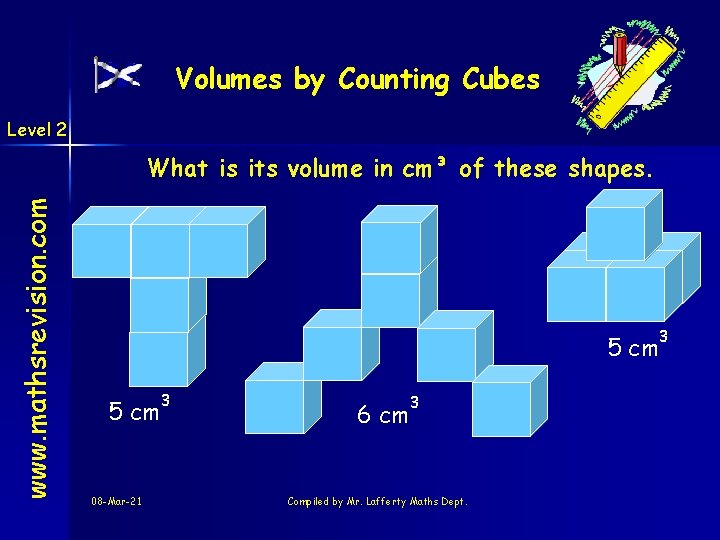

Volumes by Counting Cubes Level 2 www. mathsrevision. com What is its volume in cm³ of these shapes. 5 cm 08 -Mar-21 3 6 cm 3 Compiled by Mr. Lafferty Maths Dept. 3

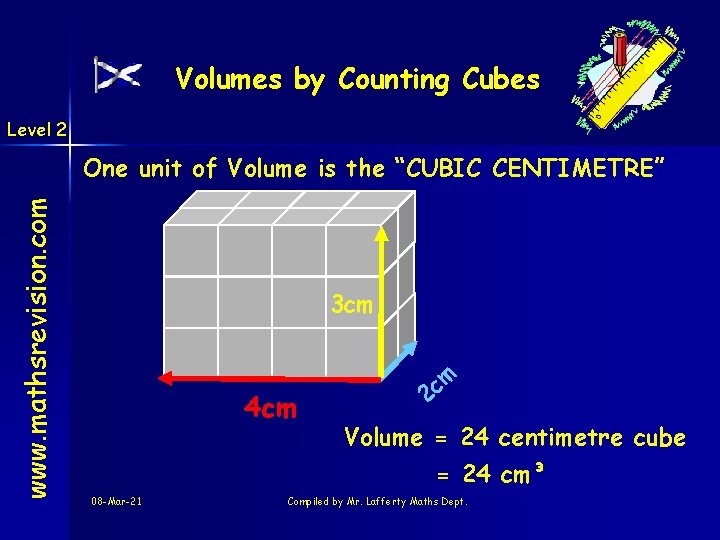

Volumes by Counting Cubes Level 2 m 3 cm 4 cm 2 c www. mathsrevision. com One unit of Volume is the “CUBIC CENTIMETRE” Volume = 24 centimetre cube = 24 cm³ 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volumes by Counting Cubes www. mathsrevision. com Level 2 Now try TJ 2 a Ex 3 Ch 13 c (page 134) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

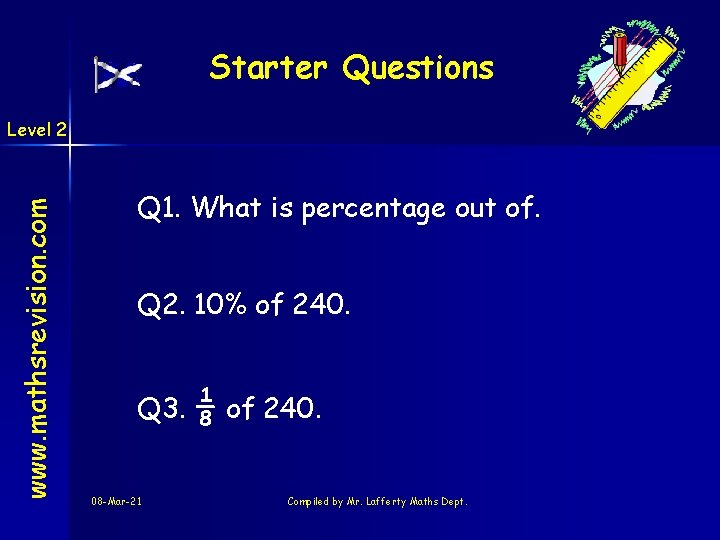

Starter Questions www. mathsrevision. com Level 2 Q 1. What is percentage out of. Q 2. 10% of 240. Q 3. ⅛ of 240. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Volume of a cuboid www. mathsrevision. com Level 2 Learning Intention 1. We are learning how to calculate the volume of a cuboid. Success Criteria 1. Remember the formula. 2. Apply formula correctly. 3. Show working and appropriate units. 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

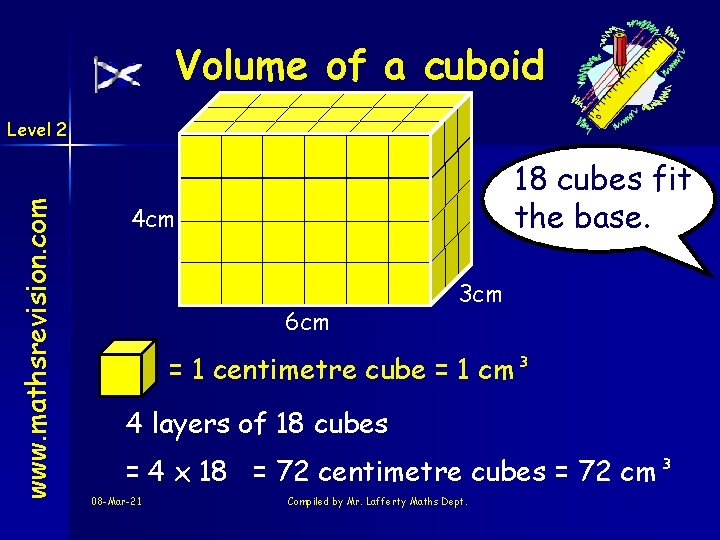

Volume of a cuboid www. mathsrevision. com Level 2 18 cubes fit the base. 4 cm 6 cm 3 cm = 1 centimetre cube = 1 cm³ 4 layers of 18 cubes = 4 x 18 = 72 centimetre cubes = 72 cm³ 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

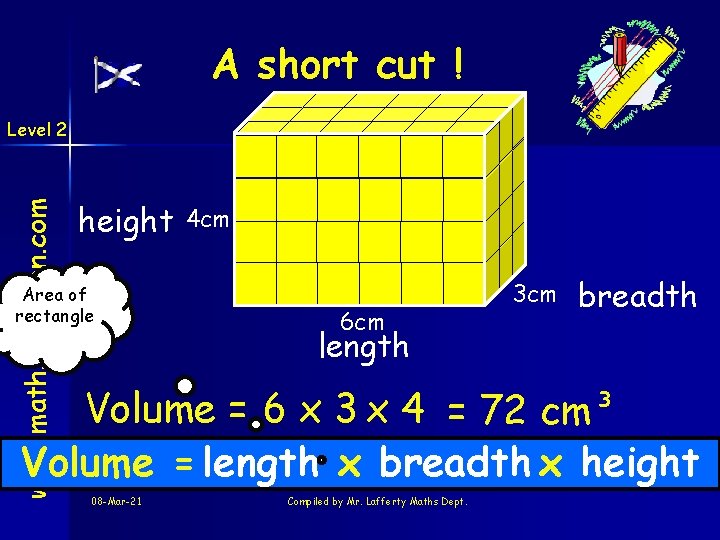

A short cut ! www. mathsrevision. com Level 2 height Area of rectangle 4 cm 6 cm 3 cm breadth length Volume = 6 x 3 x 4 = 72 cm³ Volume = length x breadth x height 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Working Volume = l x b x h Level 2 V = 18 x 5 x 27 V = 2430 cm³ 27 cm 5 Heilander’s cm Porridge Oats 18 cm 08 -Mar-21 Demo Compiled by Mr. Lafferty Maths Dept.

Working Volume = l x b x h www. mathsrevision. com Level 2 V=2 x 2 x 2 V = 8 cm³ 2 cm Demo 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Find the volume of the composite shape. www. mathsrevision. com Level 2 5 cm VT = V 1 + V 2 7 cm 3 cm VT = 105 + 720 9 cm V 1 = l x b x h =3 x 5 x 7 = 105 cm³ 10 cm 8 cm 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept. VT = 825 cm 3 V 2 = l x b x h = 8 x 10 x 9 = 720 cm³

Find the length the cuboid www. mathsrevision. com Level 2 4 cm V=200 cm 3 This just an equation. We know how to solve them ! Volume = L x B x H 5 cm 200 = L x 5 x 4 200 = 20 L 10 L cm 20 L = 200 L = 10 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.

Have you updated your Learning Log ? Volume of a cuboid www. mathsrevision. com Level 2 Now try TJ 2 a Ex 4 Ch 13 c (page 137) 08 -Mar-21 Compiled by Mr. Lafferty Maths Dept.
