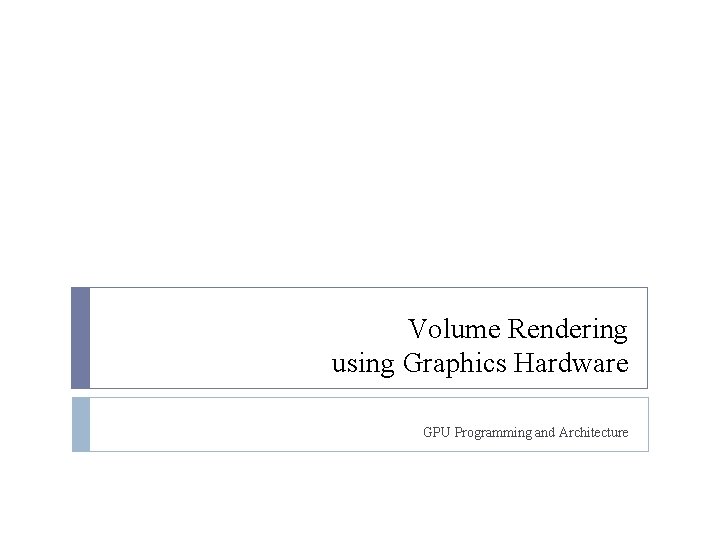

Volume Rendering using Graphics Hardware GPU Programming and
![Volume Rendering using Graphics Hardware GPU Programming and Architecture Volume Rendering using Graphics Hardware GPU Programming and Architecture](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-1.jpg)

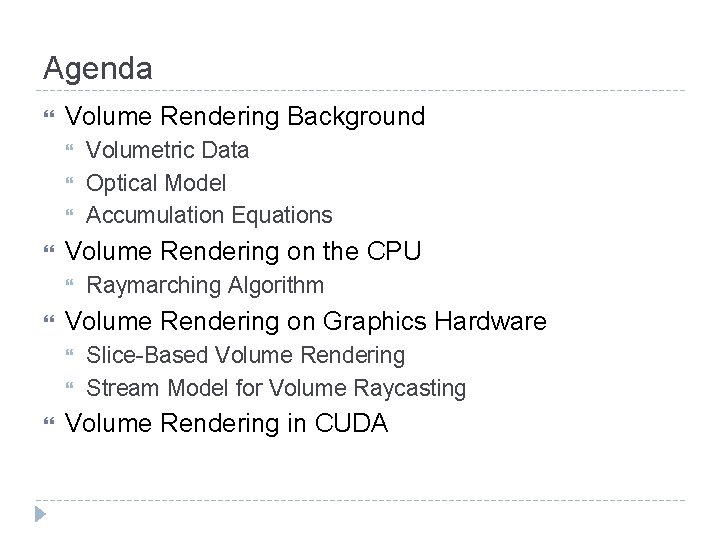

![Agenda Volume Rendering Background Volume Rendering on the CPU Raymarching Algorithm Volume Rendering on Agenda Volume Rendering Background Volume Rendering on the CPU Raymarching Algorithm Volume Rendering on](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-2.jpg)
![Thanks to… � Jerry Tessendorf � Travis Gorkin Thanks to… � Jerry Tessendorf � Travis Gorkin](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-3.jpg)

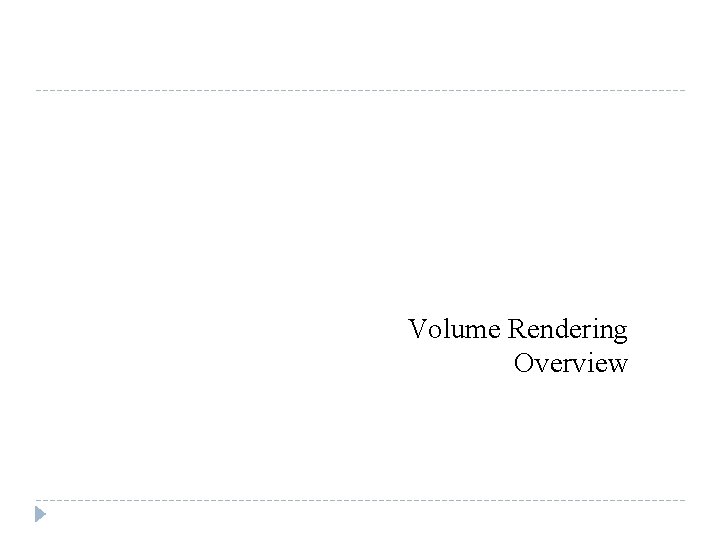

![Volume Rendering Overview Volume Rendering Overview](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-4.jpg)
![Volume Rendering Definition Generate 2 D projection of 3 D data set Visualization of Volume Rendering Definition Generate 2 D projection of 3 D data set Visualization of](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-5.jpg)

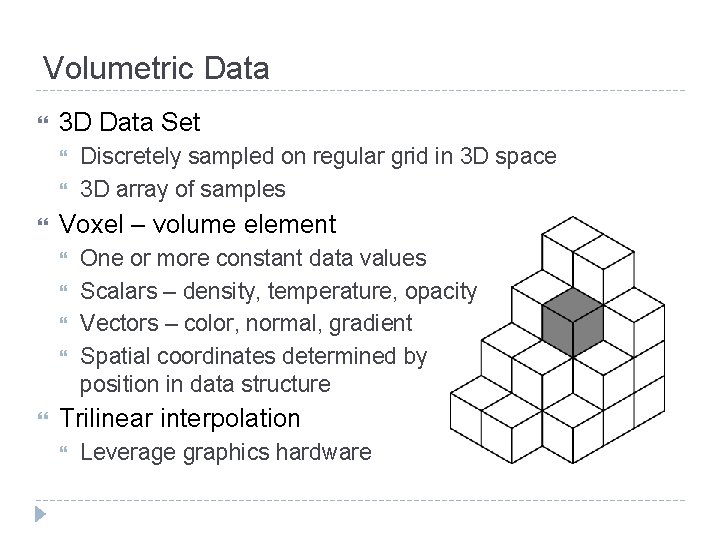

![Volumetric Data 3 D Data Set Voxel – volume element Discretely sampled on regular Volumetric Data 3 D Data Set Voxel – volume element Discretely sampled on regular](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-6.jpg)

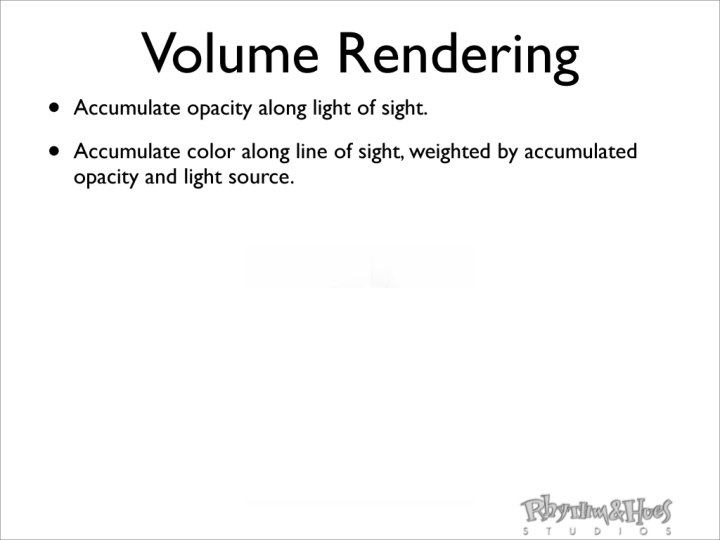

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-7.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-8.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-9.jpg)

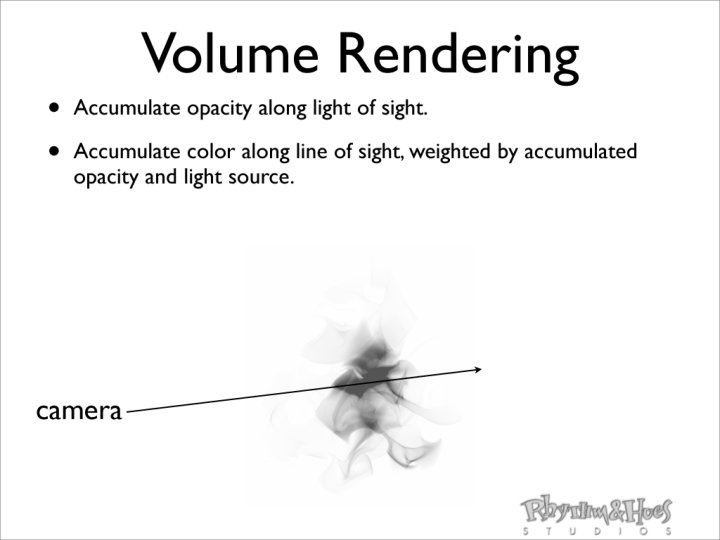

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-10.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-11.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-12.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-13.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-14.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-15.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-16.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-17.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-18.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-19.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-20.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-21.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-22.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-23.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-24.jpg)

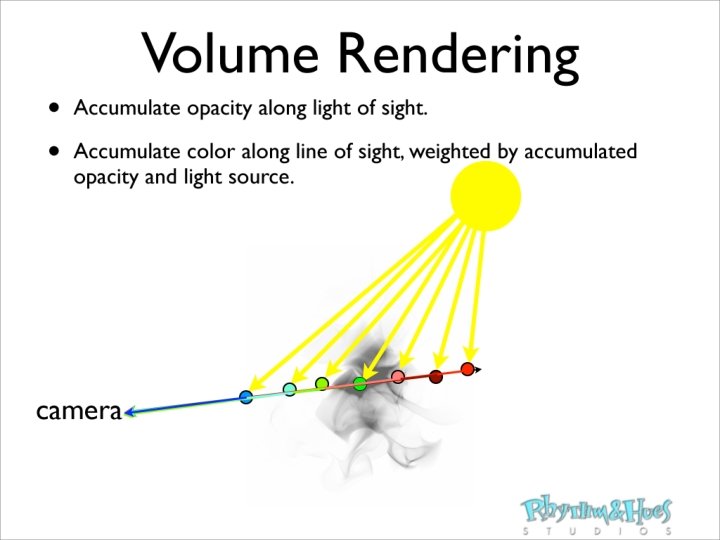

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-25.jpg)

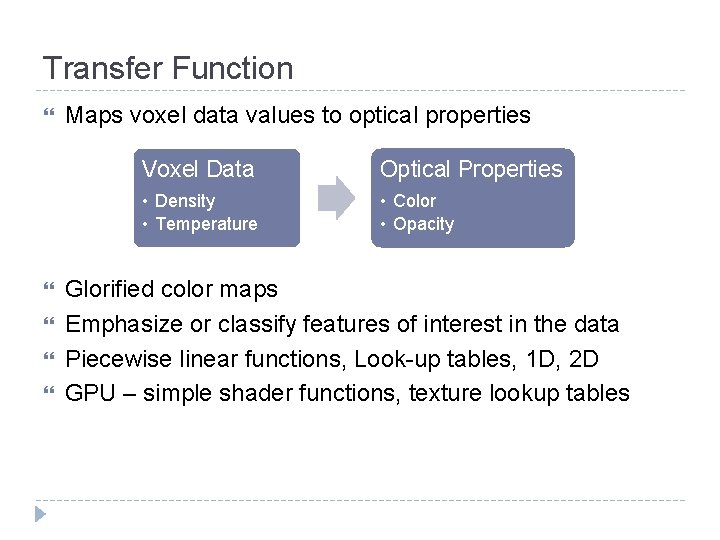

![Transfer Function Maps voxel data values to optical properties Voxel Data Optical Properties • Transfer Function Maps voxel data values to optical properties Voxel Data Optical Properties •](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-26.jpg)

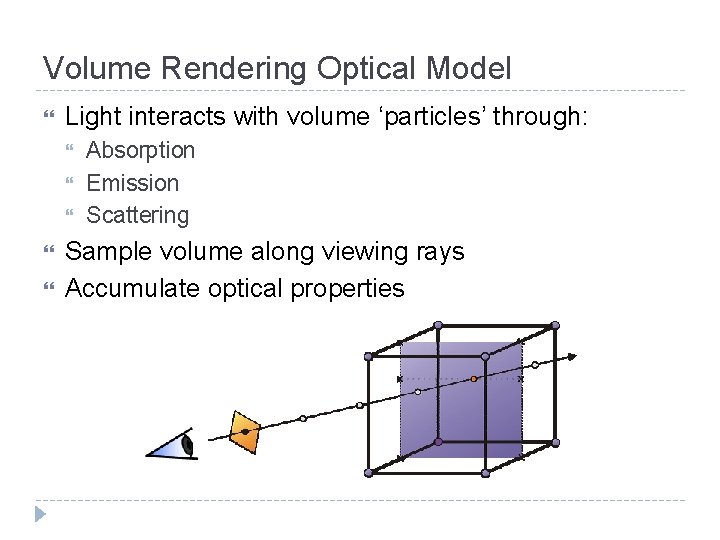

![Volume Rendering Optical Model Light interacts with volume ‘particles’ through: Absorption Emission Scattering Sample Volume Rendering Optical Model Light interacts with volume ‘particles’ through: Absorption Emission Scattering Sample](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-27.jpg)
![Volume Ray Marching 1. 2. 3. 4. Raycast – once per pixel Sample – Volume Ray Marching 1. 2. 3. 4. Raycast – once per pixel Sample –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-28.jpg)
![Ray Marching Accumulation Equations Accumulation = Integral Color Transmissivity = 1 - Opacity Total Ray Marching Accumulation Equations Accumulation = Integral Color Transmissivity = 1 - Opacity Total](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-29.jpg)
![Ray Marching Accumulation Equations Discrete Versions Accumulation = Sum Color Opacity Transmissivity = 1 Ray Marching Accumulation Equations Discrete Versions Accumulation = Sum Color Opacity Transmissivity = 1](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-30.jpg)
![CPU Based Volume Rendering Raycast and raymarch for each pixel in scene Camera (eye) CPU Based Volume Rendering Raycast and raymarch for each pixel in scene Camera (eye)](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-31.jpg)
![CPU Based Volume Rendering Sequential Process Minutes or Hours per frame Optimizations Space Partitioning CPU Based Volume Rendering Sequential Process Minutes or Hours per frame Optimizations Space Partitioning](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-32.jpg)
![Volumetric Shadows Light attenuated as passes through volume ‘Deeper’ samples receive less illumination Second Volumetric Shadows Light attenuated as passes through volume ‘Deeper’ samples receive less illumination Second](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-33.jpg)

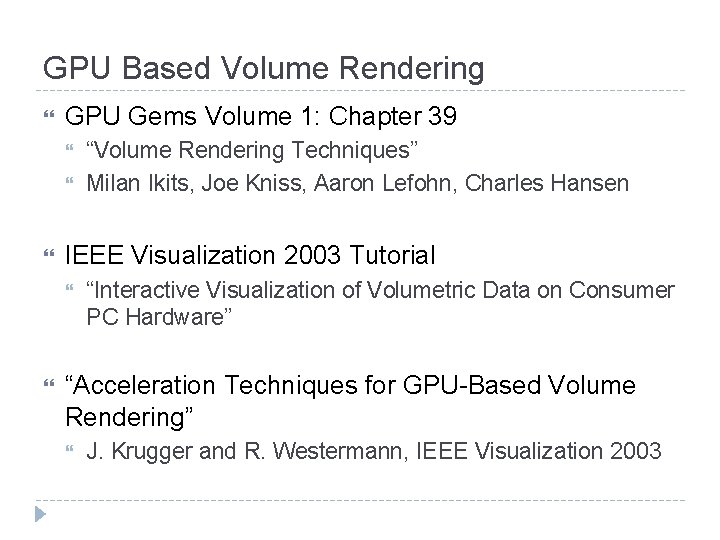

![GPU Based Volume Rendering GPU Gems Volume 1: Chapter 39 IEEE Visualization 2003 Tutorial GPU Based Volume Rendering GPU Gems Volume 1: Chapter 39 IEEE Visualization 2003 Tutorial](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-34.jpg)
![Volume Rendering “Volume Rendering Techniques” Volume Rendering “Volume Rendering Techniques”](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-35.jpg)
![Slice-Based Volume Rendering (SBVR) No volumetric primitive in graphics API Proxy geometry - polygon Slice-Based Volume Rendering (SBVR) No volumetric primitive in graphics API Proxy geometry - polygon](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-36.jpg)

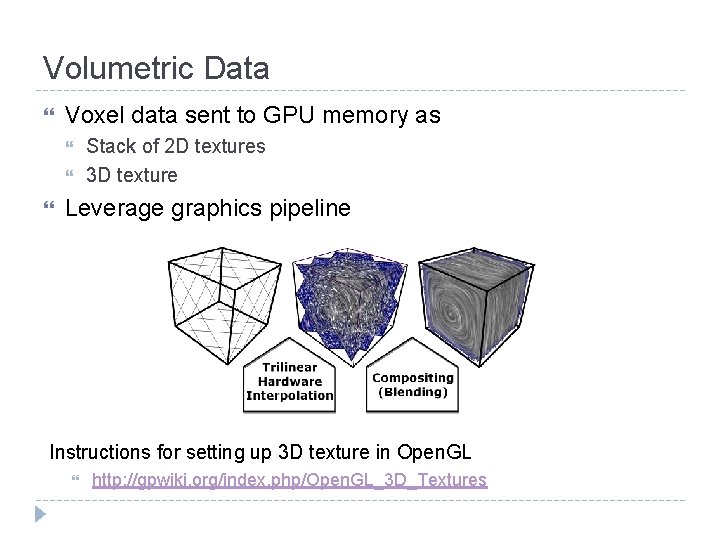

![Volumetric Data Voxel data sent to GPU memory as Stack of 2 D textures Volumetric Data Voxel data sent to GPU memory as Stack of 2 D textures](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-37.jpg)
![Proxy Geometry Slices through 3 D voxel data = 3 D texture on GPU Proxy Geometry Slices through 3 D voxel data = 3 D texture on GPU](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-38.jpg)

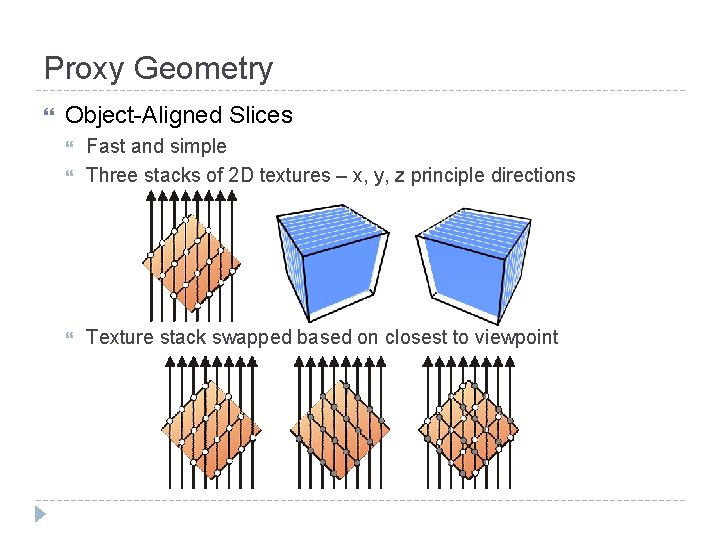

![Proxy Geometry Object-Aligned Slices Fast and simple Three stacks of 2 D textures – Proxy Geometry Object-Aligned Slices Fast and simple Three stacks of 2 D textures –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-39.jpg)
![Proxy Geometry Issues with Object-Aligned Slices 3 x memory consumption Change in viewpoint results Proxy Geometry Issues with Object-Aligned Slices 3 x memory consumption Change in viewpoint results](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-40.jpg)

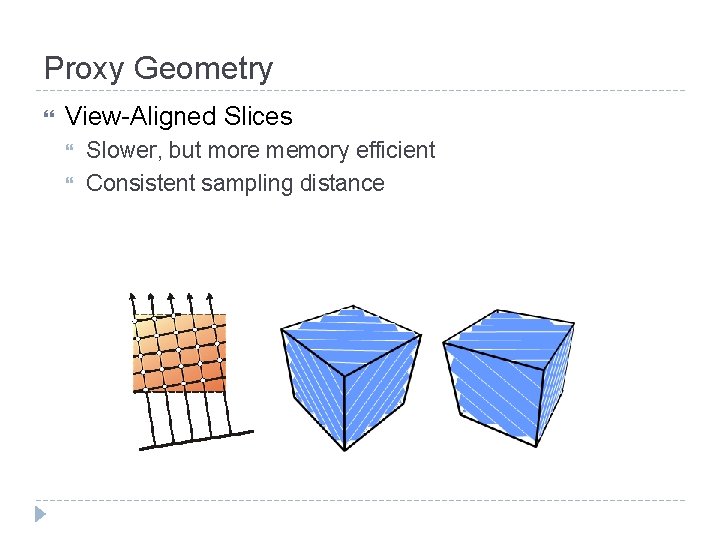

![Proxy Geometry View-Aligned Slices Slower, but more memory efficient Consistent sampling distance Proxy Geometry View-Aligned Slices Slower, but more memory efficient Consistent sampling distance](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-41.jpg)
![Proxy Geometry View-Aligned Slices Algorithm Intersect slicing planes with bounding box Sort resulting vertices Proxy Geometry View-Aligned Slices Algorithm Intersect slicing planes with bounding box Sort resulting vertices](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-42.jpg)

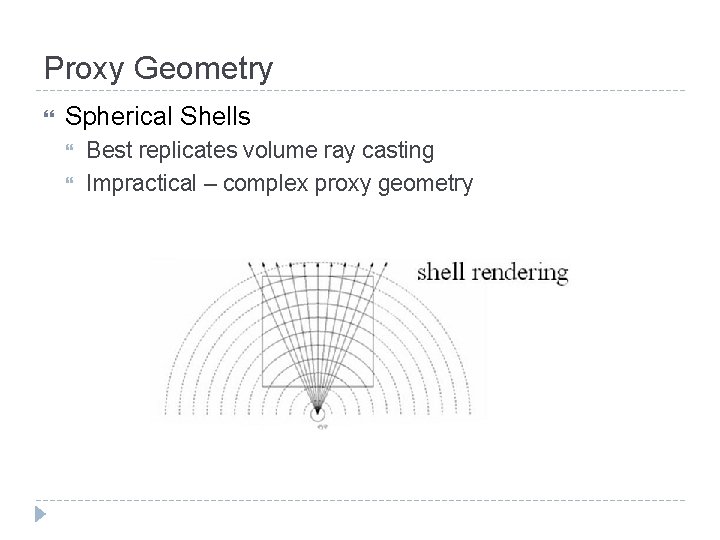

![Proxy Geometry Spherical Shells Best replicates volume ray casting Impractical – complex proxy geometry Proxy Geometry Spherical Shells Best replicates volume ray casting Impractical – complex proxy geometry](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-43.jpg)

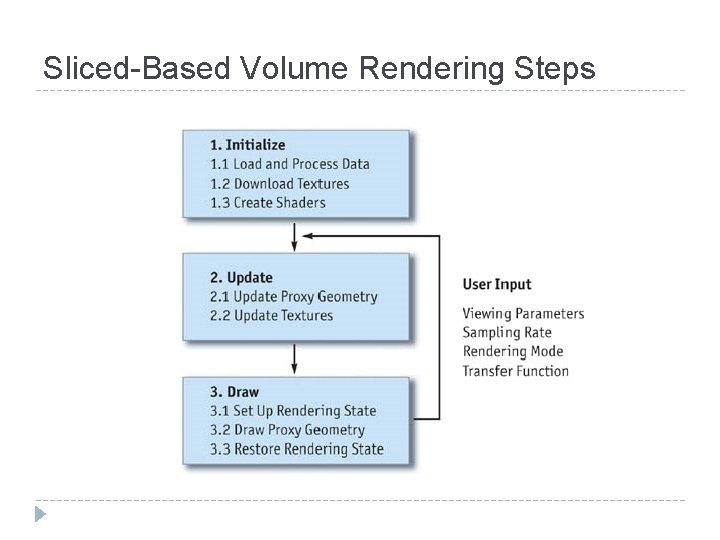

![Sliced-Based Volume Rendering Steps Sliced-Based Volume Rendering Steps](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-44.jpg)

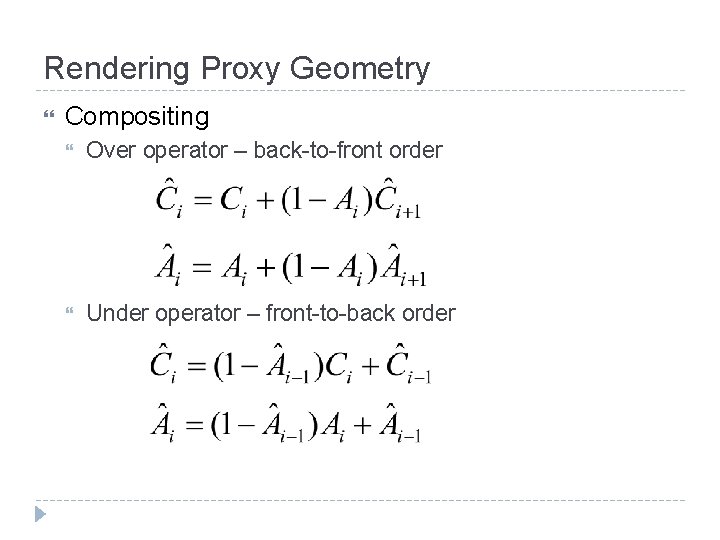

![Rendering Proxy Geometry Compositing Over operator – back-to-front order Under operator – front-to-back order Rendering Proxy Geometry Compositing Over operator – back-to-front order Under operator – front-to-back order](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-45.jpg)
![Rendering Proxy Geometry Compositing = Color and Alpha Accumulation Equations Easily implemented using hardware Rendering Proxy Geometry Compositing = Color and Alpha Accumulation Equations Easily implemented using hardware](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-46.jpg)

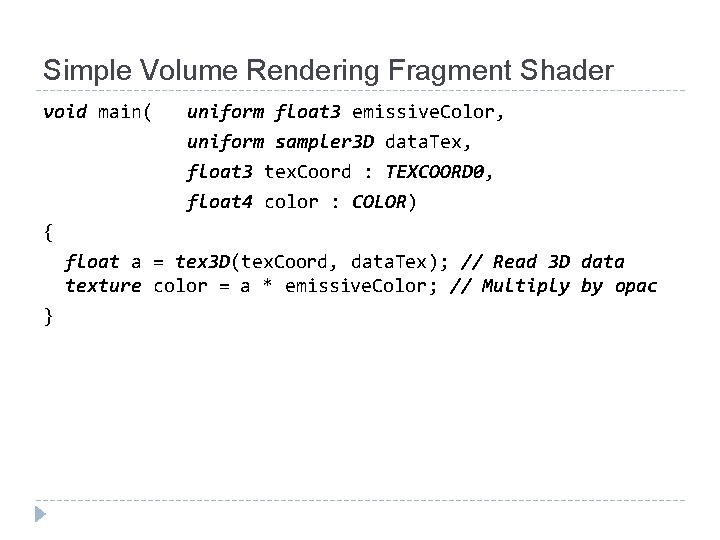

![Simple Volume Rendering Fragment Shader void main( uniform float 3 emissive. Color, uniform sampler Simple Volume Rendering Fragment Shader void main( uniform float 3 emissive. Color, uniform sampler](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-47.jpg)

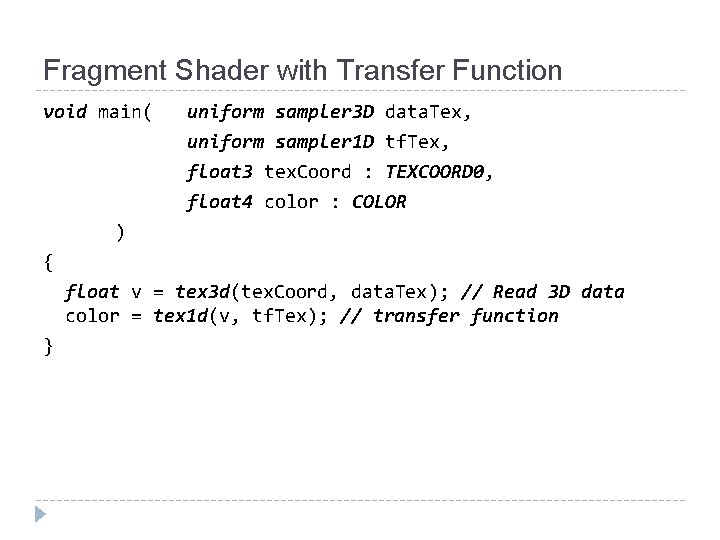

![Fragment Shader with Transfer Function void main( uniform sampler 3 D data. Tex, uniform Fragment Shader with Transfer Function void main( uniform sampler 3 D data. Tex, uniform](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-48.jpg)

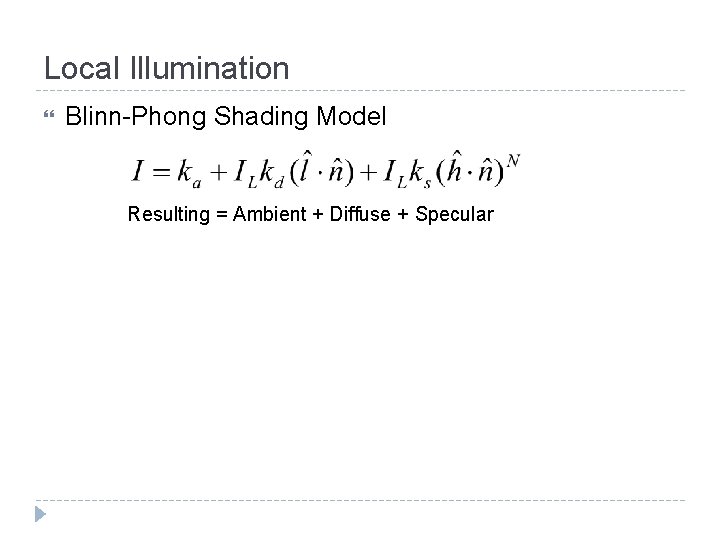

![Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-49.jpg)

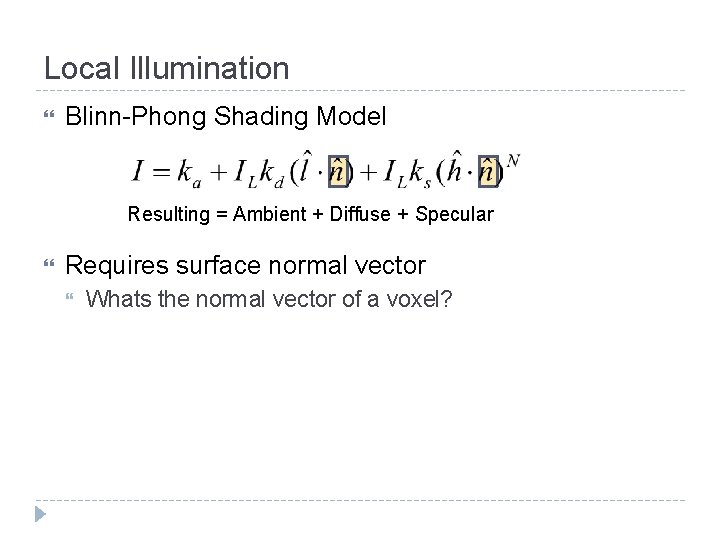

![Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-50.jpg)
![Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-51.jpg)
![Local Illumination Compute on-the-fly within fragment shader Requires 6 texture fetches per calculation Precalculate Local Illumination Compute on-the-fly within fragment shader Requires 6 texture fetches per calculation Precalculate](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-52.jpg)
![Local Illumination Improve perception of depth Amplify surface structure Local Illumination Improve perception of depth Amplify surface structure](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-53.jpg)

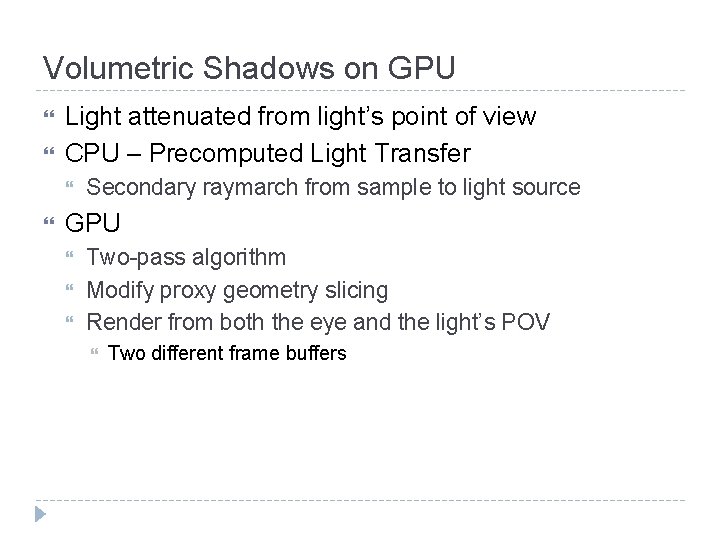

![Volumetric Shadows on GPU Light attenuated from light’s point of view CPU – Precomputed Volumetric Shadows on GPU Light attenuated from light’s point of view CPU – Precomputed](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-54.jpg)
![Two Pass Volume Rendering with Shadows Slice axis set half-way between view and light Two Pass Volume Rendering with Shadows Slice axis set half-way between view and light](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-55.jpg)

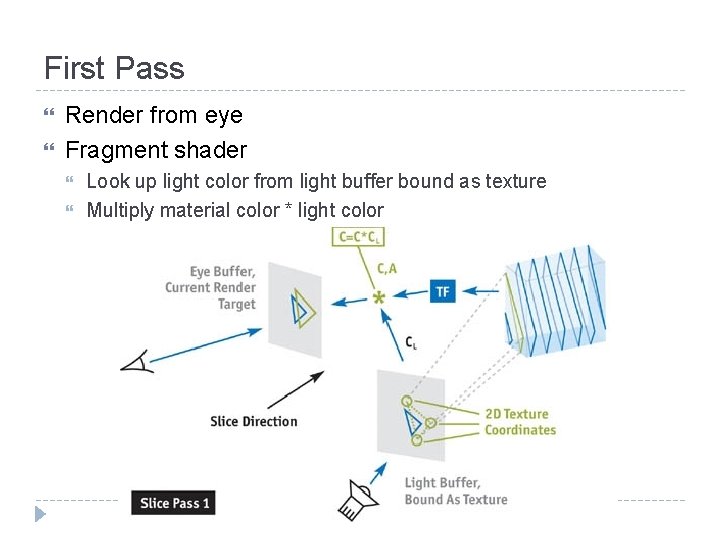

![First Pass Render from eye Fragment shader Look up light color from light buffer First Pass Render from eye Fragment shader Look up light color from light buffer](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-56.jpg)

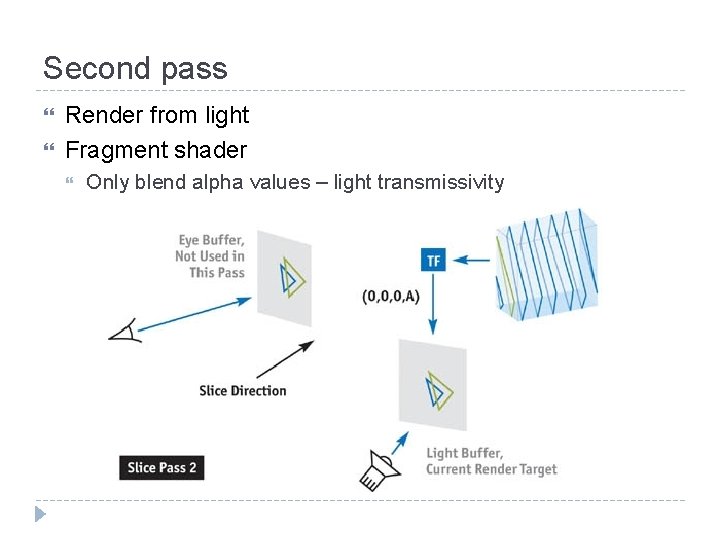

![Second pass Render from light Fragment shader Only blend alpha values – light transmissivity Second pass Render from light Fragment shader Only blend alpha values – light transmissivity](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-57.jpg)
![Volumetric Shadows Volumetric Shadows](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-58.jpg)

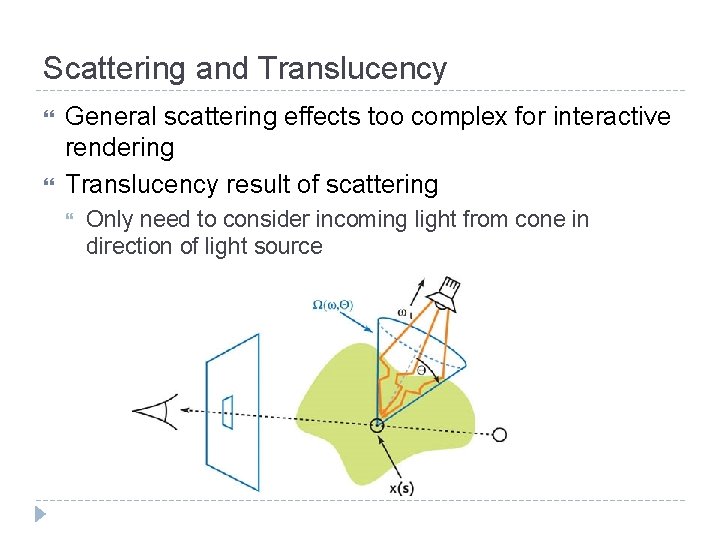

![Scattering and Translucency General scattering effects too complex for interactive rendering Translucency result of Scattering and Translucency General scattering effects too complex for interactive rendering Translucency result of](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-59.jpg)
![Scattering and Translucency Blurring operation Scattering and Translucency Blurring operation](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-60.jpg)

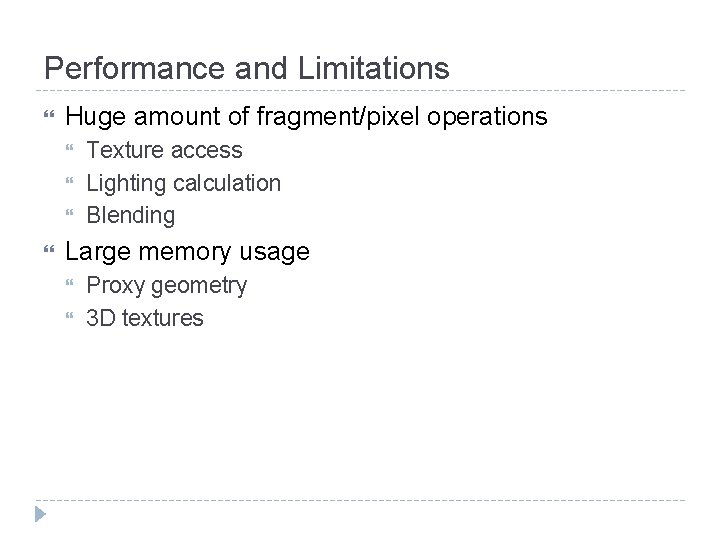

![Performance and Limitations Huge amount of fragment/pixel operations Texture access Lighting calculation Blending Large Performance and Limitations Huge amount of fragment/pixel operations Texture access Lighting calculation Blending Large](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-61.jpg)

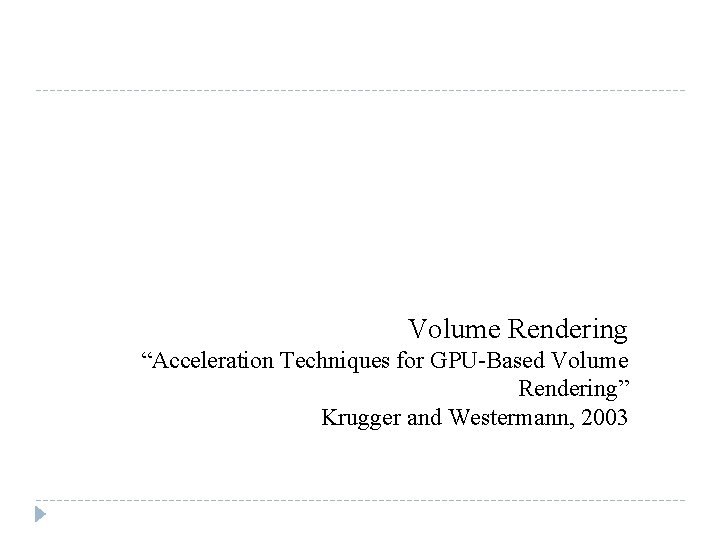

![Volume Rendering “Acceleration Techniques for GPU-Based Volume Rendering” Krugger and Westermann, 2003 Volume Rendering “Acceleration Techniques for GPU-Based Volume Rendering” Krugger and Westermann, 2003](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-62.jpg)

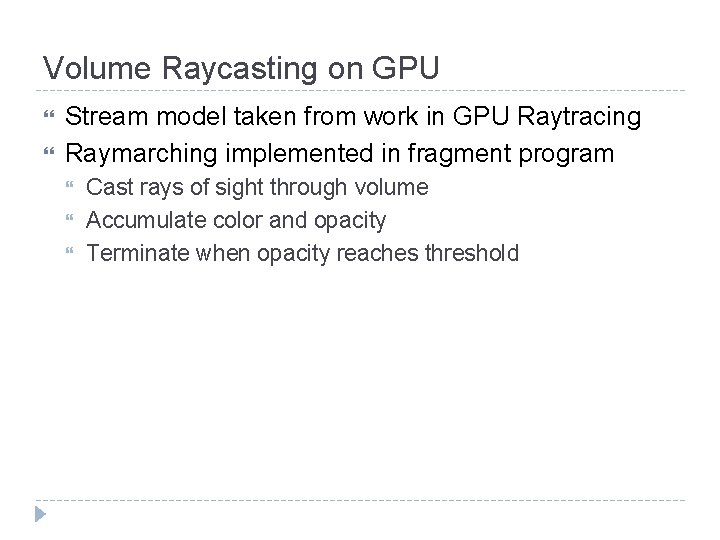

![Volume Raycasting on GPU Stream model taken from work in GPU Raytracing Raymarching implemented Volume Raycasting on GPU Stream model taken from work in GPU Raytracing Raymarching implemented](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-63.jpg)

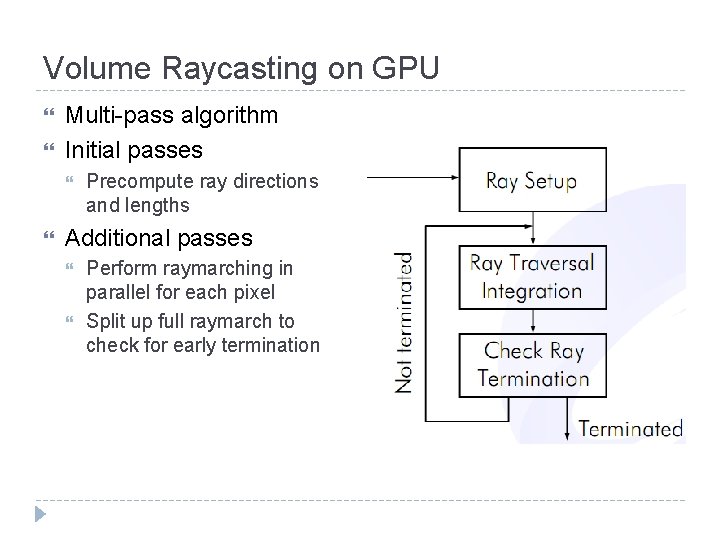

![Volume Raycasting on GPU Multi-pass algorithm Initial passes Precompute ray directions and lengths Additional Volume Raycasting on GPU Multi-pass algorithm Initial passes Precompute ray directions and lengths Additional](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-64.jpg)

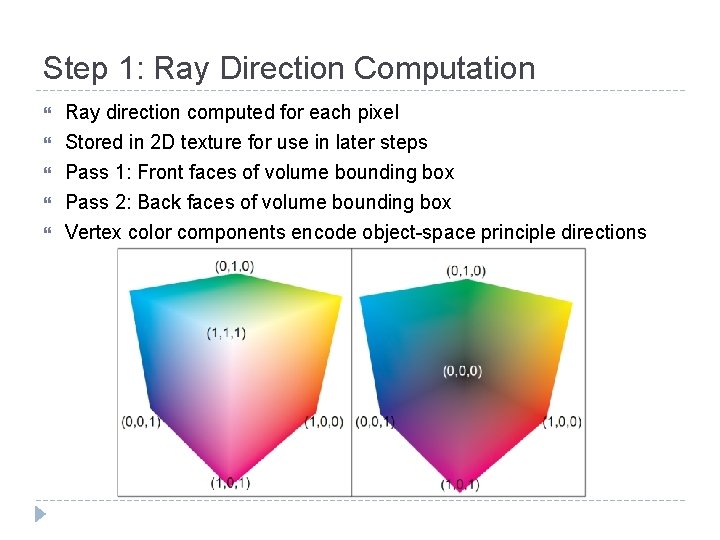

![Step 1: Ray Direction Computation Ray direction computed for each pixel Stored in 2 Step 1: Ray Direction Computation Ray direction computed for each pixel Stored in 2](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-65.jpg)

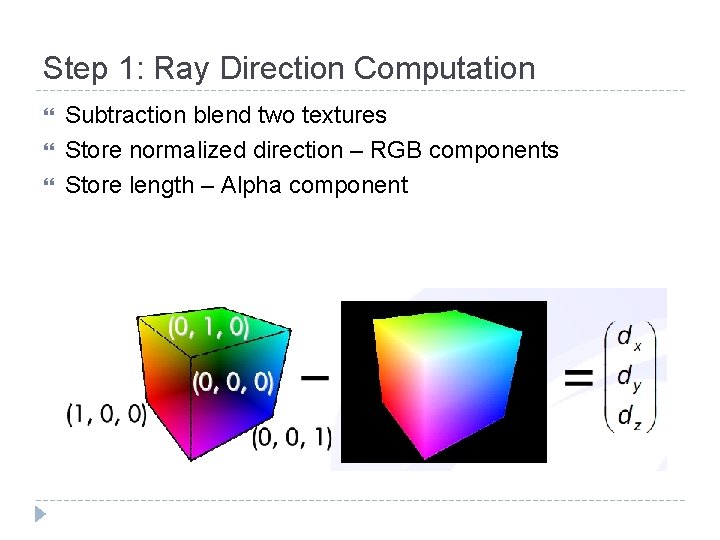

![Step 1: Ray Direction Computation Subtraction blend two textures Store normalized direction – RGB Step 1: Ray Direction Computation Subtraction blend two textures Store normalized direction – RGB](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-66.jpg)

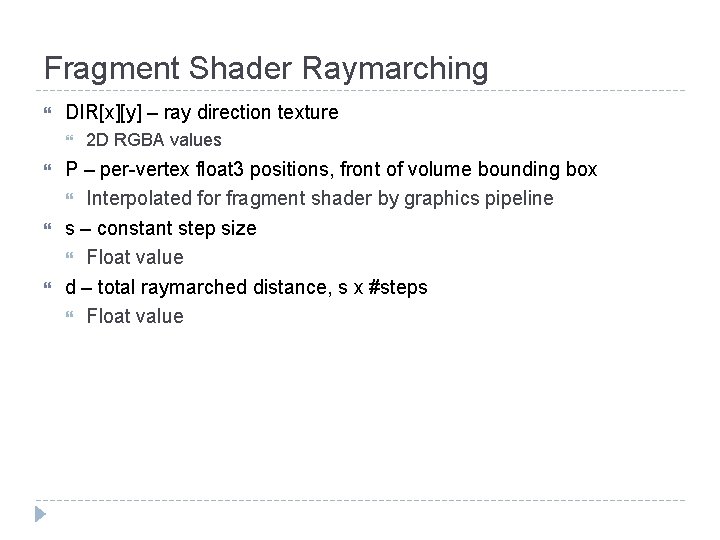

![Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P – Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-67.jpg)
![Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P – Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-68.jpg)

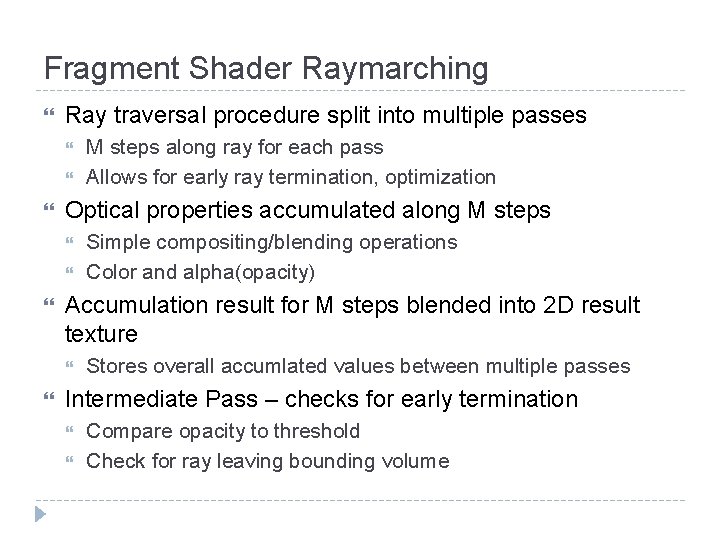

![Fragment Shader Raymarching Ray traversal procedure split into multiple passes Optical properties accumulated along Fragment Shader Raymarching Ray traversal procedure split into multiple passes Optical properties accumulated along](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-69.jpg)
![Optimizations Early Ray Termination Compare accumulated opacity against threshold Empty Space Skipping Additional data Optimizations Early Ray Termination Compare accumulated opacity against threshold Empty Space Skipping Additional data](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-70.jpg)

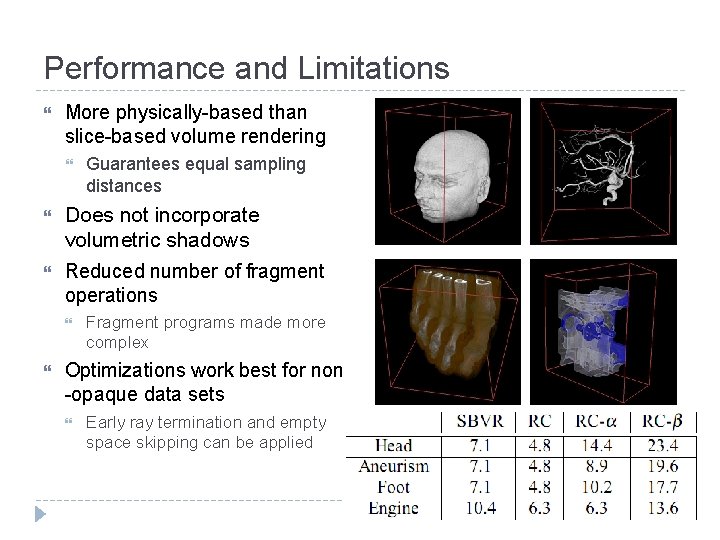

![Performance and Limitations More physically-based than slice-based volume rendering Does not incorporate volumetric shadows Performance and Limitations More physically-based than slice-based volume rendering Does not incorporate volumetric shadows](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-71.jpg)
![Volume Rendering CUDA Example Volume Rendering CUDA Example](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-72.jpg)

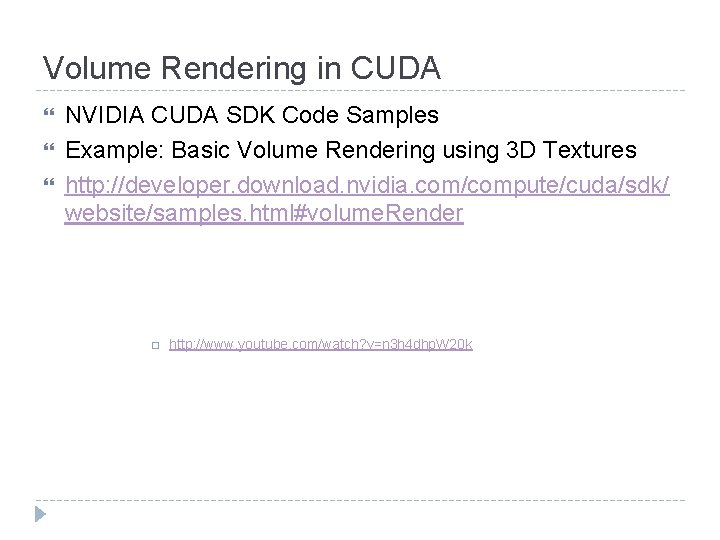

![Volume Rendering in CUDA NVIDIA CUDA SDK Code Samples Example: Basic Volume Rendering using Volume Rendering in CUDA NVIDIA CUDA SDK Code Samples Example: Basic Volume Rendering using](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-73.jpg)

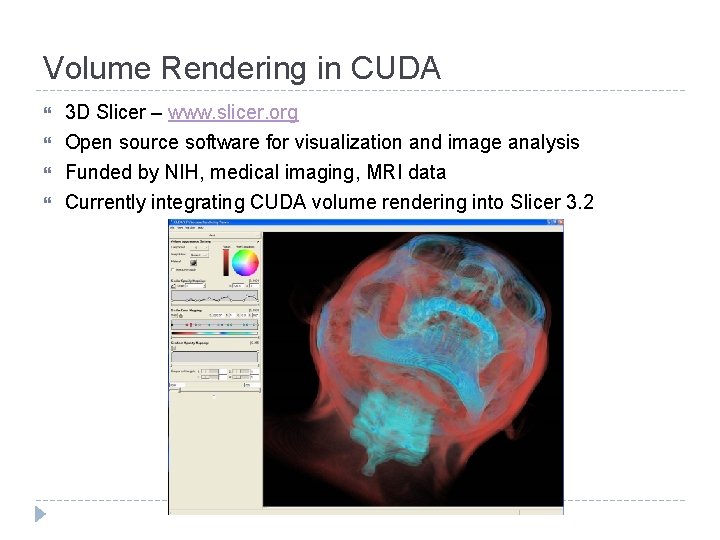

![Volume Rendering in CUDA 3 D Slicer – www. slicer. org Open source software Volume Rendering in CUDA 3 D Slicer – www. slicer. org Open source software](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-74.jpg)

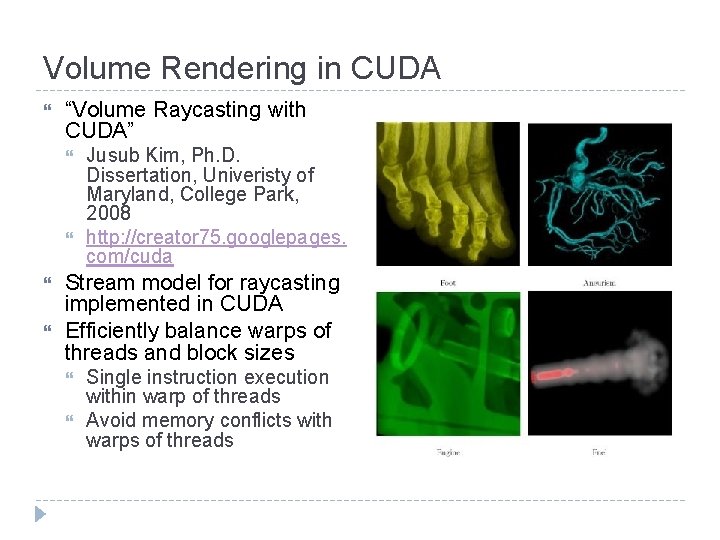

![Volume Rendering in CUDA “Volume Raycasting with CUDA” Jusub Kim, Ph. D. Dissertation, Univeristy Volume Rendering in CUDA “Volume Raycasting with CUDA” Jusub Kim, Ph. D. Dissertation, Univeristy](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-75.jpg)
![Slicer Slicer](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-76.jpg)

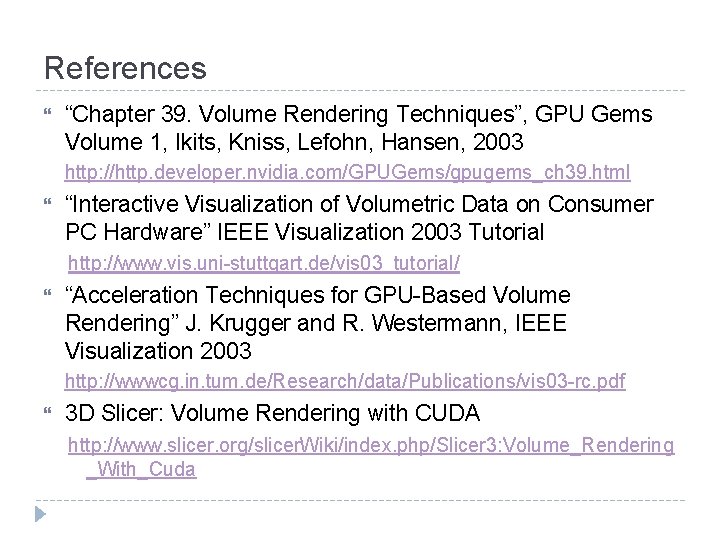

![References “Chapter 39. Volume Rendering Techniques”, GPU Gems Volume 1, Ikits, Kniss, Lefohn, Hansen, References “Chapter 39. Volume Rendering Techniques”, GPU Gems Volume 1, Ikits, Kniss, Lefohn, Hansen,](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-77.jpg)
![References “Volume Raycasting with Cuda”, Jusub Kim, 2008 http: //creator 75. googlepages. com/projects http: References “Volume Raycasting with Cuda”, Jusub Kim, 2008 http: //creator 75. googlepages. com/projects http:](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-78.jpg)
- Slides: 78
![Volume Rendering using Graphics Hardware GPU Programming and Architecture Volume Rendering using Graphics Hardware GPU Programming and Architecture](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-1.jpg)
Volume Rendering using Graphics Hardware GPU Programming and Architecture
![Agenda Volume Rendering Background Volume Rendering on the CPU Raymarching Algorithm Volume Rendering on Agenda Volume Rendering Background Volume Rendering on the CPU Raymarching Algorithm Volume Rendering on](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-2.jpg)
Agenda Volume Rendering Background Volume Rendering on the CPU Raymarching Algorithm Volume Rendering on Graphics Hardware Volumetric Data Optical Model Accumulation Equations Slice-Based Volume Rendering Stream Model for Volume Raycasting Volume Rendering in CUDA
![Thanks to Jerry Tessendorf Travis Gorkin Thanks to… � Jerry Tessendorf � Travis Gorkin](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-3.jpg)
Thanks to… � Jerry Tessendorf � Travis Gorkin
![Volume Rendering Overview Volume Rendering Overview](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-4.jpg)
Volume Rendering Overview
![Volume Rendering Definition Generate 2 D projection of 3 D data set Visualization of Volume Rendering Definition Generate 2 D projection of 3 D data set Visualization of](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-5.jpg)
Volume Rendering Definition Generate 2 D projection of 3 D data set Visualization of medical and scientific data Rendering natural effects - fluids, smoke, fire Direct Volume Rendering (DVR) Done without extracting any surface geometry
![Volumetric Data 3 D Data Set Voxel volume element Discretely sampled on regular Volumetric Data 3 D Data Set Voxel – volume element Discretely sampled on regular](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-6.jpg)
Volumetric Data 3 D Data Set Voxel – volume element Discretely sampled on regular grid in 3 D space 3 D array of samples One or more constant data values Scalars – density, temperature, opacity Vectors – color, normal, gradient Spatial coordinates determined by position in data structure Trilinear interpolation Leverage graphics hardware
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-7.jpg)

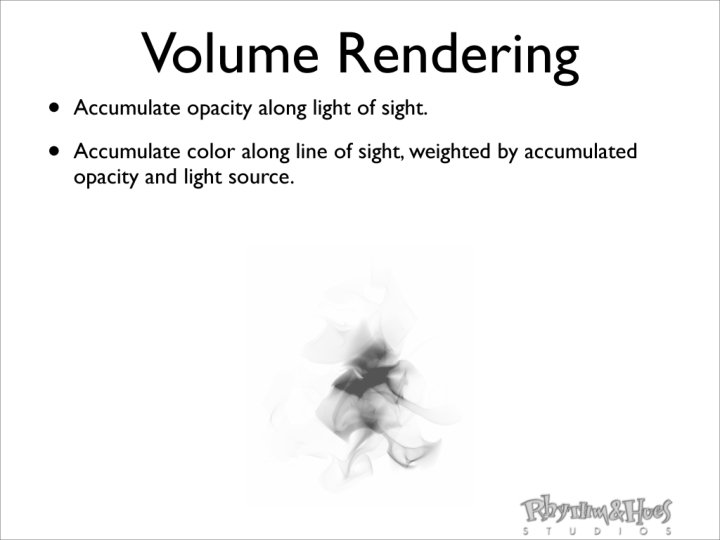

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-8.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-9.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-10.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-11.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-12.jpg)

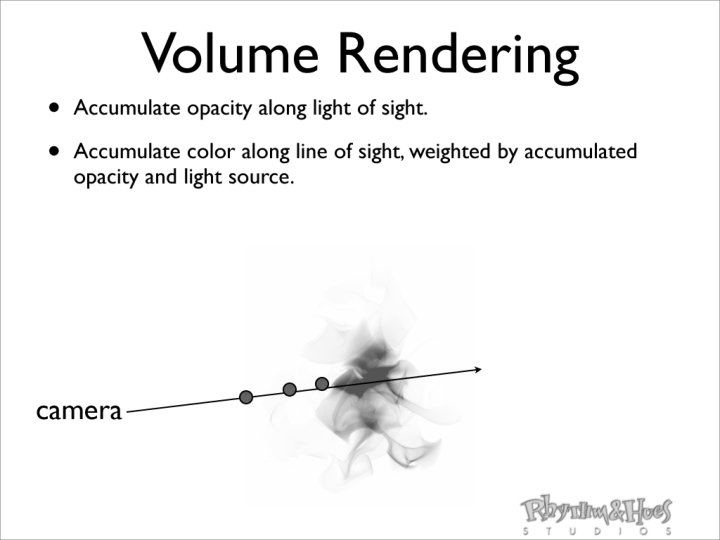

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-13.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-14.jpg)

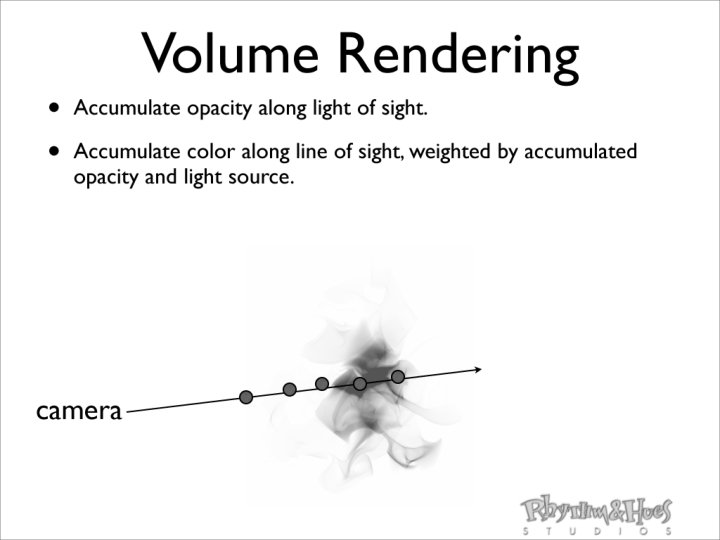

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-15.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-16.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-17.jpg)

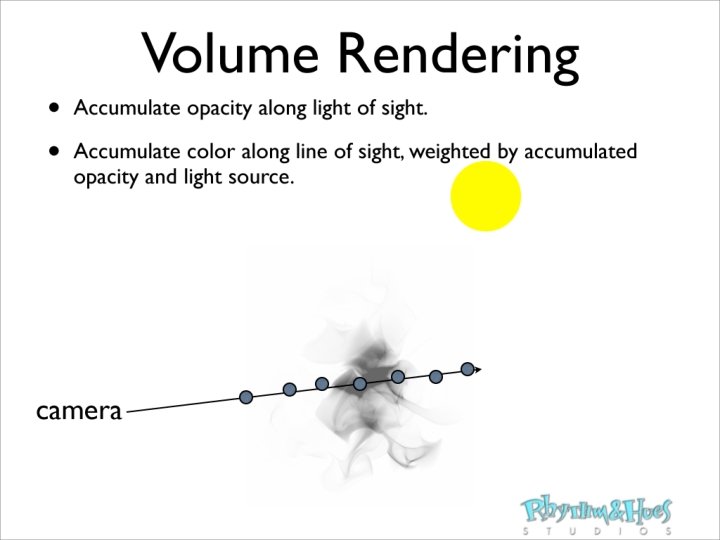

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-18.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-19.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-20.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-21.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-22.jpg)

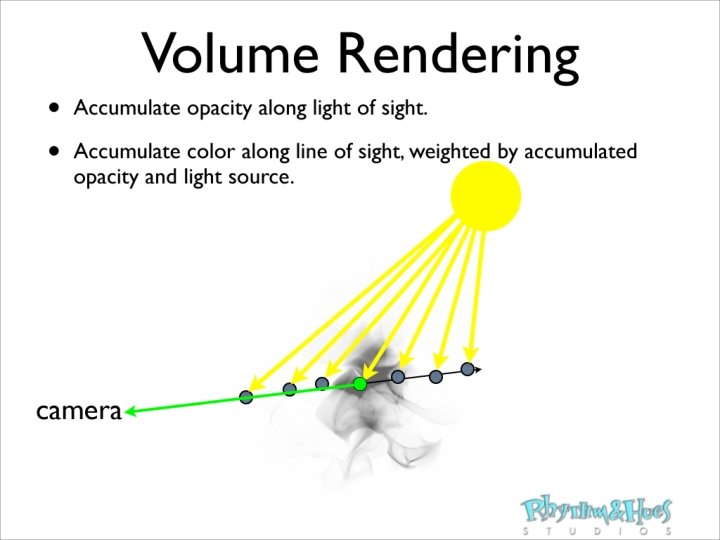

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-23.jpg)

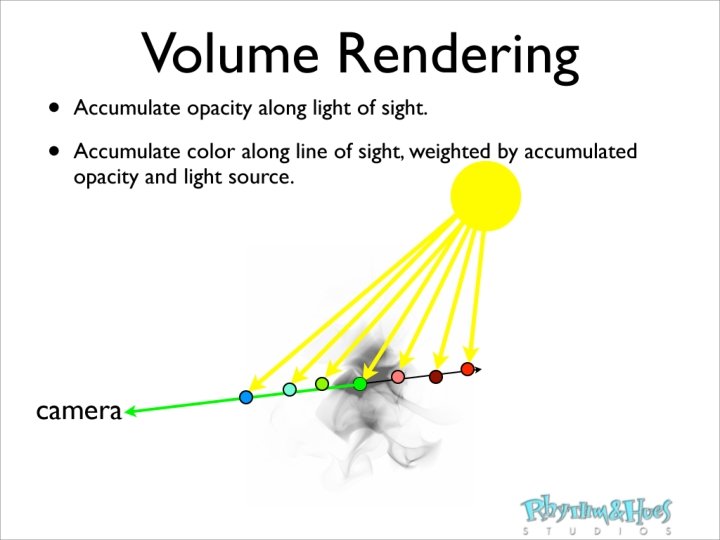

![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-24.jpg)
![](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-25.jpg)
![Transfer Function Maps voxel data values to optical properties Voxel Data Optical Properties Transfer Function Maps voxel data values to optical properties Voxel Data Optical Properties •](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-26.jpg)
Transfer Function Maps voxel data values to optical properties Voxel Data Optical Properties • Density • Temperature • Color • Opacity Glorified color maps Emphasize or classify features of interest in the data Piecewise linear functions, Look-up tables, 1 D, 2 D GPU – simple shader functions, texture lookup tables
![Volume Rendering Optical Model Light interacts with volume particles through Absorption Emission Scattering Sample Volume Rendering Optical Model Light interacts with volume ‘particles’ through: Absorption Emission Scattering Sample](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-27.jpg)
Volume Rendering Optical Model Light interacts with volume ‘particles’ through: Absorption Emission Scattering Sample volume along viewing rays Accumulate optical properties
![Volume Ray Marching 1 2 3 4 Raycast once per pixel Sample Volume Ray Marching 1. 2. 3. 4. Raycast – once per pixel Sample –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-28.jpg)
Volume Ray Marching 1. 2. 3. 4. Raycast – once per pixel Sample – uniform intervals along ray Interpolate – trilinear interpolate, apply transfer function Accumulate – integrate optical properties
![Ray Marching Accumulation Equations Accumulation Integral Color Transmissivity 1 Opacity Total Ray Marching Accumulation Equations Accumulation = Integral Color Transmissivity = 1 - Opacity Total](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-29.jpg)
Ray Marching Accumulation Equations Accumulation = Integral Color Transmissivity = 1 - Opacity Total Color = Accumulation (Sampled Colors x Sampled Transmissivities)
![Ray Marching Accumulation Equations Discrete Versions Accumulation Sum Color Opacity Transmissivity 1 Ray Marching Accumulation Equations Discrete Versions Accumulation = Sum Color Opacity Transmissivity = 1](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-30.jpg)
Ray Marching Accumulation Equations Discrete Versions Accumulation = Sum Color Opacity Transmissivity = 1 - Opacity
![CPU Based Volume Rendering Raycast and raymarch for each pixel in scene Camera eye CPU Based Volume Rendering Raycast and raymarch for each pixel in scene Camera (eye)](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-31.jpg)
CPU Based Volume Rendering Raycast and raymarch for each pixel in scene Camera (eye) location: For Each Pixel Look Direction: Cast Ray Along: Accumulate Color Along Line
![CPU Based Volume Rendering Sequential Process Minutes or Hours per frame Optimizations Space Partitioning CPU Based Volume Rendering Sequential Process Minutes or Hours per frame Optimizations Space Partitioning](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-32.jpg)
CPU Based Volume Rendering Sequential Process Minutes or Hours per frame Optimizations Space Partitioning Early Ray Termination
![Volumetric Shadows Light attenuated as passes through volume Deeper samples receive less illumination Second Volumetric Shadows Light attenuated as passes through volume ‘Deeper’ samples receive less illumination Second](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-33.jpg)
Volumetric Shadows Light attenuated as passes through volume ‘Deeper’ samples receive less illumination Second raymarch from sample point to light source Accumulate illumination from sample’s point of view Same accumulation equations Precomputed Light Transmissivity Precalculate illumination for each voxel center Trilinearly interpolate at render time View independent, scene/light source dependent
![GPU Based Volume Rendering GPU Gems Volume 1 Chapter 39 IEEE Visualization 2003 Tutorial GPU Based Volume Rendering GPU Gems Volume 1: Chapter 39 IEEE Visualization 2003 Tutorial](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-34.jpg)
GPU Based Volume Rendering GPU Gems Volume 1: Chapter 39 IEEE Visualization 2003 Tutorial “Volume Rendering Techniques” Milan Ikits, Joe Kniss, Aaron Lefohn, Charles Hansen “Interactive Visualization of Volumetric Data on Consumer PC Hardware” “Acceleration Techniques for GPU-Based Volume Rendering” J. Krugger and R. Westermann, IEEE Visualization 2003

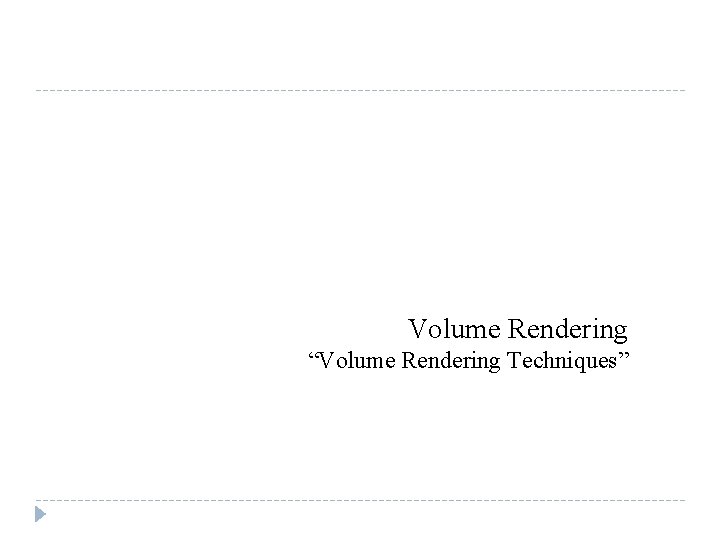

![Volume Rendering Volume Rendering Techniques Volume Rendering “Volume Rendering Techniques”](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-35.jpg)
Volume Rendering “Volume Rendering Techniques”
![SliceBased Volume Rendering SBVR No volumetric primitive in graphics API Proxy geometry polygon Slice-Based Volume Rendering (SBVR) No volumetric primitive in graphics API Proxy geometry - polygon](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-36.jpg)
Slice-Based Volume Rendering (SBVR) No volumetric primitive in graphics API Proxy geometry - polygon primitives as slices through volume Texture polygons with volumetric data Draw slices in sorted order – back-to-front Use fragment shader to perform compositing (blending)
![Volumetric Data Voxel data sent to GPU memory as Stack of 2 D textures Volumetric Data Voxel data sent to GPU memory as Stack of 2 D textures](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-37.jpg)
Volumetric Data Voxel data sent to GPU memory as Stack of 2 D textures 3 D texture Leverage graphics pipeline Instructions for setting up 3 D texture in Open. GL http: //gpwiki. org/index. php/Open. GL_3 D_Textures

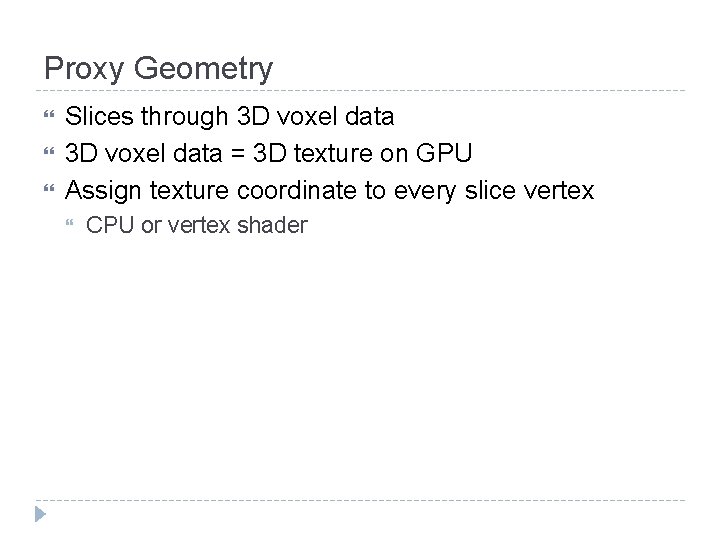

![Proxy Geometry Slices through 3 D voxel data 3 D texture on GPU Proxy Geometry Slices through 3 D voxel data = 3 D texture on GPU](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-38.jpg)
Proxy Geometry Slices through 3 D voxel data = 3 D texture on GPU Assign texture coordinate to every slice vertex CPU or vertex shader
![Proxy Geometry ObjectAligned Slices Fast and simple Three stacks of 2 D textures Proxy Geometry Object-Aligned Slices Fast and simple Three stacks of 2 D textures –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-39.jpg)
Proxy Geometry Object-Aligned Slices Fast and simple Three stacks of 2 D textures – x, y, z principle directions Texture stack swapped based on closest to viewpoint
![Proxy Geometry Issues with ObjectAligned Slices 3 x memory consumption Change in viewpoint results Proxy Geometry Issues with Object-Aligned Slices 3 x memory consumption Change in viewpoint results](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-40.jpg)
Proxy Geometry Issues with Object-Aligned Slices 3 x memory consumption Change in viewpoint results in stack swap Data replicated along 3 principle directions Image popping artifacts Lag while downloading new textures Sampling distance changes with viewpoint Intensity variations as camera moves
![Proxy Geometry ViewAligned Slices Slower but more memory efficient Consistent sampling distance Proxy Geometry View-Aligned Slices Slower, but more memory efficient Consistent sampling distance](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-41.jpg)
Proxy Geometry View-Aligned Slices Slower, but more memory efficient Consistent sampling distance
![Proxy Geometry ViewAligned Slices Algorithm Intersect slicing planes with bounding box Sort resulting vertices Proxy Geometry View-Aligned Slices Algorithm Intersect slicing planes with bounding box Sort resulting vertices](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-42.jpg)
Proxy Geometry View-Aligned Slices Algorithm Intersect slicing planes with bounding box Sort resulting vertices in (counter)clockwise order Construct polygon primitive from centroid as triangle fan
![Proxy Geometry Spherical Shells Best replicates volume ray casting Impractical complex proxy geometry Proxy Geometry Spherical Shells Best replicates volume ray casting Impractical – complex proxy geometry](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-43.jpg)
Proxy Geometry Spherical Shells Best replicates volume ray casting Impractical – complex proxy geometry
![SlicedBased Volume Rendering Steps Sliced-Based Volume Rendering Steps](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-44.jpg)
Sliced-Based Volume Rendering Steps
![Rendering Proxy Geometry Compositing Over operator backtofront order Under operator fronttoback order Rendering Proxy Geometry Compositing Over operator – back-to-front order Under operator – front-to-back order](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-45.jpg)
Rendering Proxy Geometry Compositing Over operator – back-to-front order Under operator – front-to-back order

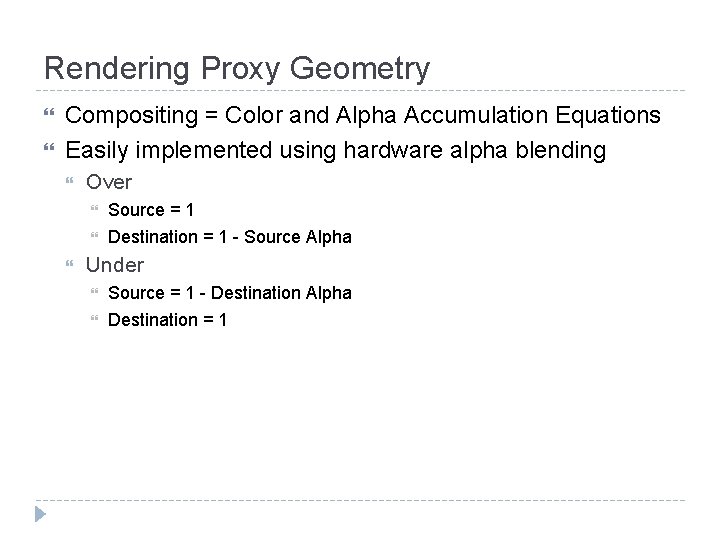

![Rendering Proxy Geometry Compositing Color and Alpha Accumulation Equations Easily implemented using hardware Rendering Proxy Geometry Compositing = Color and Alpha Accumulation Equations Easily implemented using hardware](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-46.jpg)
Rendering Proxy Geometry Compositing = Color and Alpha Accumulation Equations Easily implemented using hardware alpha blending Over Source = 1 Destination = 1 - Source Alpha Under Source = 1 - Destination Alpha Destination = 1
![Simple Volume Rendering Fragment Shader void main uniform float 3 emissive Color uniform sampler Simple Volume Rendering Fragment Shader void main( uniform float 3 emissive. Color, uniform sampler](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-47.jpg)
Simple Volume Rendering Fragment Shader void main( uniform float 3 emissive. Color, uniform sampler 3 D data. Tex, float 3 tex. Coord : TEXCOORD 0, float 4 color : COLOR) { float a = tex 3 D(tex. Coord, data. Tex); // Read 3 D data texture color = a * emissive. Color; // Multiply by opac }
![Fragment Shader with Transfer Function void main uniform sampler 3 D data Tex uniform Fragment Shader with Transfer Function void main( uniform sampler 3 D data. Tex, uniform](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-48.jpg)
Fragment Shader with Transfer Function void main( uniform sampler 3 D data. Tex, uniform sampler 1 D tf. Tex, float 3 tex. Coord : TEXCOORD 0, float 4 color : COLOR ) { float v = tex 3 d(tex. Coord, data. Tex); // Read 3 D data color = tex 1 d(v, tf. Tex); // transfer function }

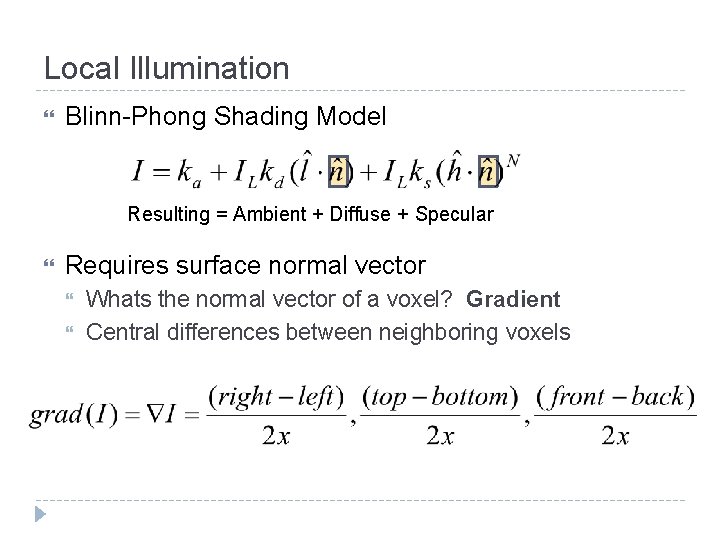

![Local Illumination BlinnPhong Shading Model Resulting Ambient Diffuse Specular Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-49.jpg)
Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular
![Local Illumination BlinnPhong Shading Model Resulting Ambient Diffuse Specular Requires surface Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-50.jpg)
Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface normal vector Whats the normal vector of a voxel?
![Local Illumination BlinnPhong Shading Model Resulting Ambient Diffuse Specular Requires surface Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-51.jpg)
Local Illumination Blinn-Phong Shading Model Resulting = Ambient + Diffuse + Specular Requires surface normal vector Whats the normal vector of a voxel? Gradient Central differences between neighboring voxels
![Local Illumination Compute onthefly within fragment shader Requires 6 texture fetches per calculation Precalculate Local Illumination Compute on-the-fly within fragment shader Requires 6 texture fetches per calculation Precalculate](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-52.jpg)
Local Illumination Compute on-the-fly within fragment shader Requires 6 texture fetches per calculation Precalculate on host and store in voxel data Requires 4 x texture memory Pack into 3 D RGBA texture to send to GPU Voxel Data 3 D Texture • X Gradient • Y Gradient • Z Gradient • Value • R • G • B • A
![Local Illumination Improve perception of depth Amplify surface structure Local Illumination Improve perception of depth Amplify surface structure](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-53.jpg)
Local Illumination Improve perception of depth Amplify surface structure
![Volumetric Shadows on GPU Light attenuated from lights point of view CPU Precomputed Volumetric Shadows on GPU Light attenuated from light’s point of view CPU – Precomputed](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-54.jpg)
Volumetric Shadows on GPU Light attenuated from light’s point of view CPU – Precomputed Light Transfer Secondary raymarch from sample to light source GPU Two-pass algorithm Modify proxy geometry slicing Render from both the eye and the light’s POV Two different frame buffers
![Two Pass Volume Rendering with Shadows Slice axis set halfway between view and light Two Pass Volume Rendering with Shadows Slice axis set half-way between view and light](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-55.jpg)
Two Pass Volume Rendering with Shadows Slice axis set half-way between view and light directions Allows each slice to be rendered from eye and light POV Render order for light – front-to-back Render order for eye – (a) front-to-back (b) back-to-front
![First Pass Render from eye Fragment shader Look up light color from light buffer First Pass Render from eye Fragment shader Look up light color from light buffer](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-56.jpg)
First Pass Render from eye Fragment shader Look up light color from light buffer bound as texture Multiply material color * light color
![Second pass Render from light Fragment shader Only blend alpha values light transmissivity Second pass Render from light Fragment shader Only blend alpha values – light transmissivity](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-57.jpg)
Second pass Render from light Fragment shader Only blend alpha values – light transmissivity
![Volumetric Shadows Volumetric Shadows](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-58.jpg)

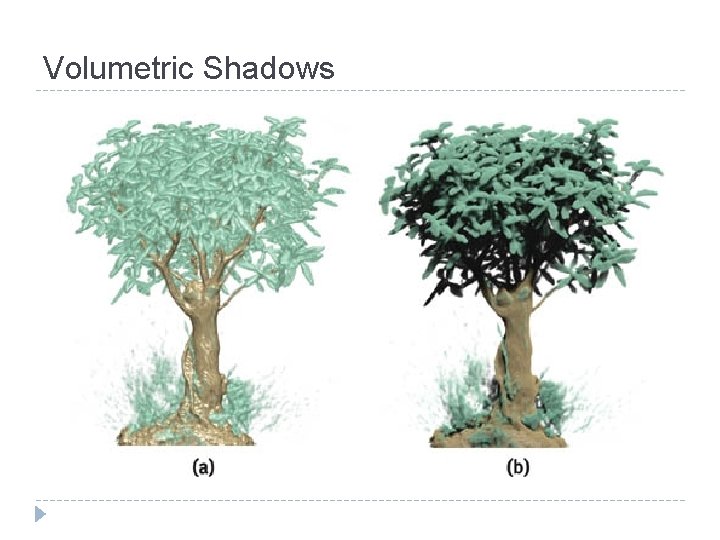

Volumetric Shadows
![Scattering and Translucency General scattering effects too complex for interactive rendering Translucency result of Scattering and Translucency General scattering effects too complex for interactive rendering Translucency result of](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-59.jpg)
Scattering and Translucency General scattering effects too complex for interactive rendering Translucency result of scattering Only need to consider incoming light from cone in direction of light source
![Scattering and Translucency Blurring operation Scattering and Translucency Blurring operation](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-60.jpg)
Scattering and Translucency Blurring operation
![Performance and Limitations Huge amount of fragmentpixel operations Texture access Lighting calculation Blending Large Performance and Limitations Huge amount of fragment/pixel operations Texture access Lighting calculation Blending Large](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-61.jpg)
Performance and Limitations Huge amount of fragment/pixel operations Texture access Lighting calculation Blending Large memory usage Proxy geometry 3 D textures
![Volume Rendering Acceleration Techniques for GPUBased Volume Rendering Krugger and Westermann 2003 Volume Rendering “Acceleration Techniques for GPU-Based Volume Rendering” Krugger and Westermann, 2003](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-62.jpg)
Volume Rendering “Acceleration Techniques for GPU-Based Volume Rendering” Krugger and Westermann, 2003
![Volume Raycasting on GPU Stream model taken from work in GPU Raytracing Raymarching implemented Volume Raycasting on GPU Stream model taken from work in GPU Raytracing Raymarching implemented](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-63.jpg)
Volume Raycasting on GPU Stream model taken from work in GPU Raytracing Raymarching implemented in fragment program Cast rays of sight through volume Accumulate color and opacity Terminate when opacity reaches threshold
![Volume Raycasting on GPU Multipass algorithm Initial passes Precompute ray directions and lengths Additional Volume Raycasting on GPU Multi-pass algorithm Initial passes Precompute ray directions and lengths Additional](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-64.jpg)
Volume Raycasting on GPU Multi-pass algorithm Initial passes Precompute ray directions and lengths Additional passes Perform raymarching in parallel for each pixel Split up full raymarch to check for early termination
![Step 1 Ray Direction Computation Ray direction computed for each pixel Stored in 2 Step 1: Ray Direction Computation Ray direction computed for each pixel Stored in 2](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-65.jpg)
Step 1: Ray Direction Computation Ray direction computed for each pixel Stored in 2 D texture for use in later steps Pass 1: Front faces of volume bounding box Pass 2: Back faces of volume bounding box Vertex color components encode object-space principle directions
![Step 1 Ray Direction Computation Subtraction blend two textures Store normalized direction RGB Step 1: Ray Direction Computation Subtraction blend two textures Store normalized direction – RGB](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-66.jpg)
Step 1: Ray Direction Computation Subtraction blend two textures Store normalized direction – RGB components Store length – Alpha component
![Fragment Shader Raymarching DIRxy ray direction texture 2 D RGBA values P Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-67.jpg)
Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P – per-vertex float 3 positions, front of volume bounding box Interpolated for fragment shader by graphics pipeline s – constant step size Float value d – total raymarched distance, s x #steps Float value
![Fragment Shader Raymarching DIRxy ray direction texture 2 D RGBA values P Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P –](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-68.jpg)
Fragment Shader Raymarching DIR[x][y] – ray direction texture 2 D RGBA values P – per-vertex float 3 positions, front of volume bounding box Interpolated for fragment shader by graphics pipeline s – constant step size Float value d – total raymarched distance, s x #steps Float value Parametric Ray Equation r – 3 D texture coordinates used to sample voxel data
![Fragment Shader Raymarching Ray traversal procedure split into multiple passes Optical properties accumulated along Fragment Shader Raymarching Ray traversal procedure split into multiple passes Optical properties accumulated along](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-69.jpg)
Fragment Shader Raymarching Ray traversal procedure split into multiple passes Optical properties accumulated along M steps Simple compositing/blending operations Color and alpha(opacity) Accumulation result for M steps blended into 2 D result texture M steps along ray for each pass Allows for early ray termination, optimization Stores overall accumlated values between multiple passes Intermediate Pass – checks for early termination Compare opacity to threshold Check for ray leaving bounding volume
![Optimizations Early Ray Termination Compare accumulated opacity against threshold Empty Space Skipping Additional data Optimizations Early Ray Termination Compare accumulated opacity against threshold Empty Space Skipping Additional data](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-70.jpg)
Optimizations Early Ray Termination Compare accumulated opacity against threshold Empty Space Skipping Additional data structure encoding empty space in volume Oct-tree Encode measure of empty within 3 D texture read from fragment shader Raymarching fragment shader can modulate sampling distance based on empty space value
![Performance and Limitations More physicallybased than slicebased volume rendering Does not incorporate volumetric shadows Performance and Limitations More physically-based than slice-based volume rendering Does not incorporate volumetric shadows](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-71.jpg)
Performance and Limitations More physically-based than slice-based volume rendering Does not incorporate volumetric shadows Reduced number of fragment operations Guarantees equal sampling distances Fragment programs made more complex Optimizations work best for non -opaque data sets Early ray termination and empty space skipping can be applied
![Volume Rendering CUDA Example Volume Rendering CUDA Example](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-72.jpg)
Volume Rendering CUDA Example
![Volume Rendering in CUDA NVIDIA CUDA SDK Code Samples Example Basic Volume Rendering using Volume Rendering in CUDA NVIDIA CUDA SDK Code Samples Example: Basic Volume Rendering using](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-73.jpg)
Volume Rendering in CUDA NVIDIA CUDA SDK Code Samples Example: Basic Volume Rendering using 3 D Textures http: //developer. download. nvidia. com/compute/cuda/sdk/ website/samples. html#volume. Render http: //www. youtube. com/watch? v=n 3 h 4 dhp. W 20 k
![Volume Rendering in CUDA 3 D Slicer www slicer org Open source software Volume Rendering in CUDA 3 D Slicer – www. slicer. org Open source software](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-74.jpg)
Volume Rendering in CUDA 3 D Slicer – www. slicer. org Open source software for visualization and image analysis Funded by NIH, medical imaging, MRI data Currently integrating CUDA volume rendering into Slicer 3. 2
![Volume Rendering in CUDA Volume Raycasting with CUDA Jusub Kim Ph D Dissertation Univeristy Volume Rendering in CUDA “Volume Raycasting with CUDA” Jusub Kim, Ph. D. Dissertation, Univeristy](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-75.jpg)
Volume Rendering in CUDA “Volume Raycasting with CUDA” Jusub Kim, Ph. D. Dissertation, Univeristy of Maryland, College Park, 2008 http: //creator 75. googlepages. com/cuda Stream model for raycasting implemented in CUDA Efficiently balance warps of threads and block sizes Single instruction execution within warp of threads Avoid memory conflicts with warps of threads

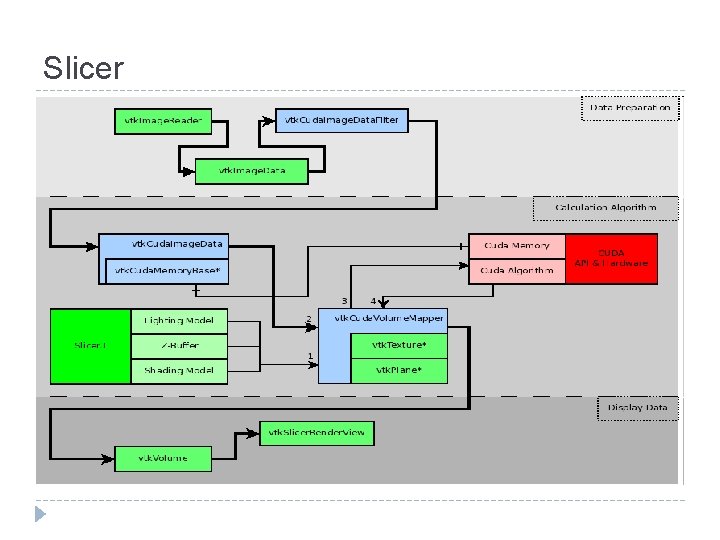

![Slicer Slicer](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-76.jpg)
Slicer
![References Chapter 39 Volume Rendering Techniques GPU Gems Volume 1 Ikits Kniss Lefohn Hansen References “Chapter 39. Volume Rendering Techniques”, GPU Gems Volume 1, Ikits, Kniss, Lefohn, Hansen,](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-77.jpg)
References “Chapter 39. Volume Rendering Techniques”, GPU Gems Volume 1, Ikits, Kniss, Lefohn, Hansen, 2003 http: //http. developer. nvidia. com/GPUGems/gpugems_ch 39. html “Interactive Visualization of Volumetric Data on Consumer PC Hardware” IEEE Visualization 2003 Tutorial http: //www. vis. uni-stuttgart. de/vis 03_tutorial/ “Acceleration Techniques for GPU-Based Volume Rendering” J. Krugger and R. Westermann, IEEE Visualization 2003 http: //wwwcg. in. tum. de/Research/data/Publications/vis 03 -rc. pdf 3 D Slicer: Volume Rendering with CUDA http: //www. slicer. org/slicer. Wiki/index. php/Slicer 3: Volume_Rendering _With_Cuda
![References Volume Raycasting with Cuda Jusub Kim 2008 http creator 75 googlepages comprojects http References “Volume Raycasting with Cuda”, Jusub Kim, 2008 http: //creator 75. googlepages. com/projects http:](https://slidetodoc.com/presentation_image/addf92461eafd2e786d3880b4d308065/image-78.jpg)
References “Volume Raycasting with Cuda”, Jusub Kim, 2008 http: //creator 75. googlepages. com/projects http: //creator 75. googlepages. com/cudachapter. pdf “Production Volume Rendering”, Jerry Tessendorf, Slides presented at University of Pennsylvania, 2008 “Real-Time Volume Graphics”, SIGGRAPH 2004 http: //old. vrvis. at/via/resources/course-volgraphics-2004/
Computer graphics introduction ppt
Computer graphics pipeline
Forma urbis
Graphics rendering
Volume rendering tutorial
Introduction to volume rendering
Indirect volume rendering
Raycasting dda
Vtk volume rendering c++ example
External hardware
Vbo1
Computer graphics hardware and software
Graphics monitors and workstations
Vhdl hardware description language
Hardware programming language
Realitykit example
Programming raster display system in computer graphics
Math for graphics programming
Programming graphics
Image-based modeling
Real time volume graphics
Perbedaan linear programming dan integer programming
Greedy vs dynamic programming
Runtime programming
Integer programming vs linear programming
Definisi integer
Berlatih teknik arsir gradasi
Blockinmax
Rendering pipeline
High dynamic range rendering
Christopher buehler
Reyes rendering
Photorealistic rendering carlsbad
Clustered shading
Types of rendering techniques
"splat"
Car paint rendering
Icc rendering intent to wcs gamut mapping
Light transport
Visual rendering
Rendering equation
Game rendering techniques
Rendering carcass
Advances in real-time rendering in games
Kajiya rendering equation
Rendering realtime compositing
Teknik rendering grafik tiga dimensi dengan interaksi sinar
Guillaume fenelon
Rendering fur with three dimensional textures
Kajiya rendering equation
Morgan kauffman
Eurographics symposium on rendering
Radiosity rendering
Rendering
Hair rendering
Radiosity rendering
Lumigraph rendering
Solid edge rendering
Multipass rendering
Inverse rendering
Blender distributed rendering
Vray render elements compositing
Real time rendering architecture
How to find the volume using density and mass
How do you find density using mass and volume
Glycerin specific gravity
Gpu memory test
Matlab parallel computing gpu
Gpu bubble
Gpu ocelot
Aufbau einer grafikkarte präsentation
Gpu architecture course
Gpu gems 3
Matlab gpu acceleration
Best gpu for scientific computing
Gpu cache coherence
Gpu sql databases
Fpga gpu comparison
Rendered insecure: gpu side channel attacks are practical
