Volcanoes 2 Cyamaba Volcano Ecuador Learning Goals n

Volcanoes 2 Cyamaba Volcano, Ecuador

Learning Goals n Learn about the role of plate tectonics in causing volcanoes and learn what causes eruptions to be gentle or highly explosive. n Identify the main types of volcanoes: shield volcanoes, stratovolcanoes, and cinder cones. n Learn about other forms of volcanic activity such as geysers, hot springs, hydrothermal vents, and geothermal energy.

Vocabulary Terms caldera n cinder cone volcano n crater geothermal energy hydrothermal vent lava magma n n n n magma chamber n Ring of Fire rock cycle n shield volcano n stratovolcano n vent

Volcanoes n The eruption of Mount St. Helens in 1980 reduced the height of this mountain from 2, 932 meters (9, 677 feet) to 2, 535 meters (8, 364 feet). n Early in the morning of May 18, 1980, an earthquake triggered a landslide that caused the bulge to eject magma, water, and gases.

Lava Tubes, Santa Cruz Island Galapagos, Ecuador

Lava Tubes, Santa Cruz Island Galapagos, Ecuador

Lava Tubes, Isabella Island Galapagos, Ecuador

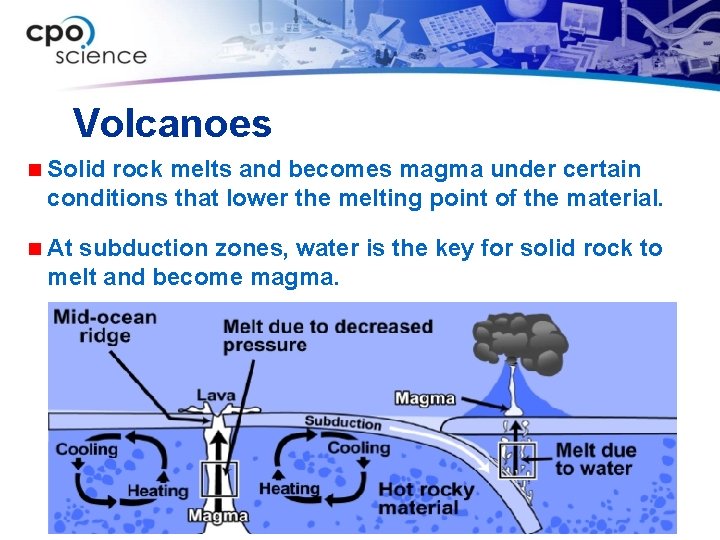

Volcanoes n Solid rock melts and becomes magma under certain conditions that lower the melting point of the material. n At subduction zones, water is the key for solid rock to melt and become magma.

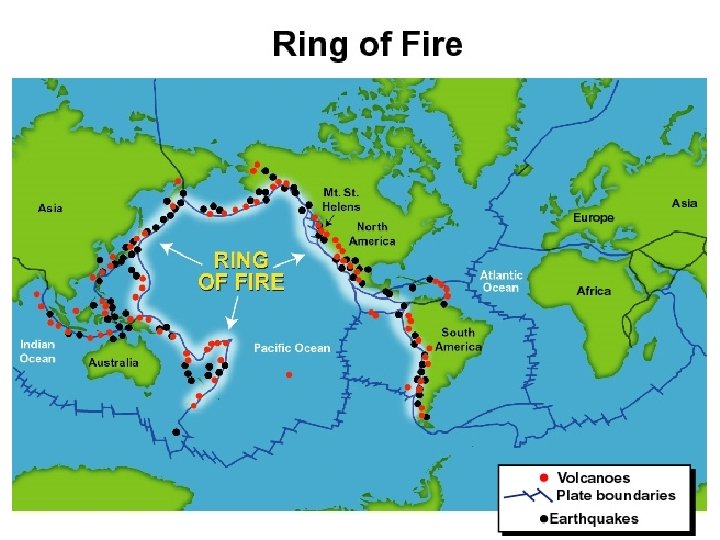

Volcanoes n Most volcanic activity is found at the edges of tectonic plates, namely at divergent and convergent plate boundaries, but does not occur at transform plate boundaries.

Volcanoes n High viscosity lava is associated with stratovolcanoes (also called composite volcanoes). n These volcanoes range in height from 500 to 10, 000 meters high.

Cotapoxi Volcano Summit, Ecuador

Cotapoxi Volcano, Ecuador

Laguna Cuicocha, Ecuador

Crater of the Extinct Volcano Puluahua, Ecuador

Tungurahua Volcano, Ecuador

Volcanoes n Low viscosity, fastflowing lava is associated with shield volcanoes. n Because this lava easily flows down hill, shield volcanoes are gently sloped and flattened.

Wolf Island, Galapagos, Ecuador

Bartolome Island Pinnacle Rock, Ecuador

Sunken Crater Bartolome Island, Ecuador

Volcanoes n Cinder cone volcanoes are steep stacks of loose pyroclasts (clumps and particles of lava). n Cinder cones are rarely higher than 300 meters.

Birth of Paricutin Volcano, Mexico 1943

Paricutin Volcano, Mexico

Paricutin Volcano, Mexico

Paricutin Volcano, Mexico 2000

Volcanoes n Lava viscosity also determines how explosive an eruption will be. n Explosive eruptions occur when the lava has a lot of water and dissolved gases. n Gentle eruptions are associated with fast-flowing lava from oceanic crust.

Volcanoes n Volcanoes also form when an oceanic plate slides under another oceanic plate.

Hydrothermal Vents n Hydrothermal vents are deep sea, chimney-like structures that occur along midocean ridges.

Volcanoes n Some gemstones are also associated with volcanic activity. n For example, diamonds form at high temperatures deep underground when carbon crystallizes inside rocks called kimberlites.

Volcanoes n Geothermal energy is the useful product of volcanic activity. n When steam from magma collects below ground, it can be tapped just like water in a well. n The pressurized steam can be used to generate electricity.

Volcanoes n Volcanic activity results in the formation of two kinds of igneous rocks: — extrusive — intrusive n. A batholith is a large underground rock that formed when a mass of magma cooled underground.

Volcanoes Key Question: n Why do some volcanoes erupt explosively?
