Voice Rehabilitation following Laryngectomy Balasubramanian Thiagarajan Introduction Total

Voice Rehabilitation following Laryngectomy Balasubramanian Thiagarajan

Introduction Total Laryngectomy is still the preferred management modality in advanced laryngeal malignancies Advances in medical oncology and radiation oncology combined with traditional surgical methods has increased longevity of these patients TEP (Tracheo-oesophageal puncture) is considered gold standard among various voice rehabilitation procedures A good percentage of patients undergoing total Laryngectomy regain esophageal voice The current 5 yr. survival rate of patients following total Laryngectomy is about 80% An initiative of drtbalu's otolaryngology online

Functional alterations following total Laryngectomy Loss of smell Changes in normal swallowing mechanism Changes in the pattern of respiration Most importantly Loss of speech. The importance of this function is not realized till it is lost An initiative of drtbalu's otolaryngology online

Components of phonation Articulators (Lips, tongue, teeth) Larynx (Vibrator) Lung (Bellows) An initiative of drtbalu's otolaryngology online

Requirements for normal phonation Active respiratory support Adequate glottic closure Normal mucosal covering of vocal cord Adequate vocal cord length and tension control An initiative of drtbalu's otolaryngology online

Glottic cycle One opening and one closing incident of glottis is known as glottic cycle The frequency of glottic cycle is determined by subglottic air pressure This frequency is unique for each individual An initiative of drtbalu's otolaryngology online

Vocal fold vibratory phases During phonation two types of vibratory phases occur (Open and closed phases) In open phase glottis is at least partially open Open phase can be divided into opening and closing phases In opening phase the vocal cords move away from one another In closing phase the vocal folds move closer to each other in unison Closed phase indicate complete closure of glottic chink An initiative of drtbalu's otolaryngology online

Vocal folds vibratory patterns Falsetto Modal voice Glottal fry An initiative of drtbalu's otolaryngology online

Falsetto vibration Vocal cord closure is not complete There is minimal air leak between the cords Only upper edge of vocal fold vibrates Also known as light voice An initiative of drtbalu's otolaryngology online

Modal voice This is the basic frequency at which a pt. phonates Complete glottal closure occurs during this phase Vocal fold mucosa vibrates independently of the underlying vocalis muscle Modal frequency in adult males is around 120 Hz Modal frequency in adult females is around 200 Hz An initiative of drtbalu's otolaryngology online

Glottal fry Low frequency phonation In this type of vocal fold vibration closed phase is longer when compared with that of open phase The vocal fold mucosa and vocalis muscle vibrate in unison An initiative of drtbalu's otolaryngology online

Mucosal wave Very important physiological parameter to be noted during vocal fold motion It is the undulation that occurs over vocal fold mucosa This wave travels in infero superior direction The speed of this wave 0. 5 – 1 m/sec Symmetry of these waves between both sides should be evaluated. Even mild degrees of asymmetry is pathological An initiative of drtbalu's otolaryngology online

Methods of speech following Laryngectomy Also known as alaryngeal speech Esophageal speech Electro larynx TEP (Tracheo-oesophageal puncture) An initiative of drtbalu's otolaryngology online

An initiative of drtbalu's otolaryngology online

Esophageal speech Alaryngeal speech An initiative of drtbalu's otolaryngology online

Contd… All pts. Develop some degree of esophageal speech following Laryngectomy All alaryngeal speech modalities are compared with this modality Till 1970’s this was the gold standard for all other post Laryngectomy speech rehabilitation procedures An initiative of drtbalu's otolaryngology online

Esophageal speech - Physiology Air is swallowed into cervical esophagus This swallowed air is expelled out causing vibrations of pharyngeal mucosa These vibrations along with articulations of tongue cause speech to occur The exact vibrating portion of pharynx is the pharyngo-oesophageal segment The vibrating muscles and mucosa of cervical oesophagus and hypopharynx cause speech An initiative of drtbalu's otolaryngology online

Oesophageal speech – PE segment This segment is made up of musculature and mucosa of lower cervical area (C 5 C 7 segments). Vibration of this segment causes speech in pts. Without larynx Cricopharyngeal area is important Cricopharyngeal spasm in these pts. Can lead to failure in developing Oesophageal speech Cricopharyngeal myotomy may help these pts. in developing Oesophageal speech An initiative of drtbalu's otolaryngology online

Pumping air into cervical oesophagus Injection method Inhalational method An initiative of drtbalu's otolaryngology online

Injection method Enough positive pressure is built inside oral cavity to force air into cervical oesophagus Lip closure and tongue elevation against palate causes increase intraoral pressure Air is injected into the cervical oesophagus by voluntary swallowing This method is also known as tongue pumping / glossopharyngeal press / glossopharyngeal closure This method is really useful before uttering plosives / fricatives / affricatives An initiative of drtbalu's otolaryngology online

Inhalational method Uses the negative pressure used in normal breathing to allow air to enter cervical oesophagus Air pressure in the cervical oesophagus below Cricopharyngeal sphincter is the same negative pressure as that of thoracic cavity Pts. Learn how to relax Cricopharyngeal sphincter during inspiration allowing air to flow into cervical oesophagus as it enters the lungs Pts. Are encouraged to consume carbonated drinks which facilitates air entry into cervical oesophagus helping in generation of Oesophageal speech An initiative of drtbalu's otolaryngology online

Esophageal speech - Advantages Patient’s hands are free No additional surgery / prosthesis needed. Hence no extra cost for the pt. Pts. Get easily adapted to esophageal voice An initiative of drtbalu's otolaryngology online

Esophageal speech - Disadvantages Nearly 40% of pts fail to develop esophageal speech Quality of voice generated is rather poor Pt. may not be able to continuously speak using esophageal voice without interruption. They will be able to speak only in short bursts Significant training is necessary Loudness / pitch control is difficult Fundamental frequency of esophageal speech is 65 Hz which is lower than that of male and female frequencies An initiative of drtbalu's otolaryngology online

Esophageal speech development causes for failure Presence of cricopharyngeal spasm Presence of reflux esophagitis Abnormalities involving PE segment – like thinning of muscle wall in that area Denervation of muscle in the PE segment Poorly motivated patient An initiative of drtbalu's otolaryngology online

Cricopharyngeal spasm Cricopharyngeal myotomy Botulinum toxin injection – 30 units can be injected via the tracheostome over the posterior pharyngeal wall bulge An initiative of drtbalu's otolaryngology online

Electrolarynx These are battery operated vibrating devices It is held in the submandibular region Muscle contraction and changes in facial muscle tension causes rudiments of speech Initial training to use this equipment should begin even before surgery An initiative of drtbalu's otolaryngology online

Electrolarynx - Types Pneumatic – Dutch speech aid, Tokyo artificial speech aid Neck Intraoral type An initiative of drtbalu's otolaryngology online

Electrolarynx - Contd Neck type is commonly used Hypoesthesia of neck during early phases of post op period can cause difficulties If neck type cannot be used intraoral type is the next preferred one An initiative of drtbalu's otolaryngology online

Intraoral artificial larynx Intraoral cup should form a tight seal over the stoma. There should not be any air leak Oral tip should be placed in the oral cavity Pts exhaled air rattles the cup placed over the stoma Changes in exhaled pressure can vary the quality of sound generated An initiative of drtbalu's otolaryngology online

Electrolarynx - advantages Can be easily learnt Immediate communication is possible Additional surgery is avoided Can be used as a interim measure till the patient masters the technique of esophageal speech or gets a TEP inserted An initiative of drtbalu's otolaryngology online

Electrolarynx - Disadvantages Expensive to maintain Speech generated is mechanical in quality Difficult while speaking over telephone An initiative of drtbalu's otolaryngology online

Types of voice restoration surgeries Neoglottic reconstruction Shunt technique An initiative of drtbalu's otolaryngology online

Neoglottis procedure Performing trachea hyoidopexy This can restore voice function in alaryngeal patients Abandoned due to increased incidence of complications like aspiration An initiative of drtbalu's otolaryngology online

Shunt technique Developed by Guttmann in 1930 Involves creation of shunt between trachea and esophagus Lots of modifications of this procedure is available, Basic principle is the same Aim is to divert air from trachea into the esophagus An initiative of drtbalu's otolaryngology online

Types of shunts High trachea-esophageal shunt (Barton) Low trachea-esophageal shunt (Stafferi) TEP shunts (Guttmann) An initiative of drtbalu's otolaryngology online

Causes of failure of shunt procedure Aspiration through the fistula Closure of the fistula To avoid these problems prosthesis was introduced An initiative of drtbalu's otolaryngology online

Types of Prosthesis An initiative of drtbalu's otolaryngology online

TEP Was first introduced by Blom and Singer in 1979 One way silicone valve is introduced via the fistula This valve served as one way conduit for air into esophagus while preventing aspiration This prosthesis has two flanges, one enters the esophagus while the other rests in the trachea. It fits snugly into the trachea-esophageal wound Indwelling prosthesis have more rigid flanges when compared to that of non indwelling ones A medallion ring is attached to the non indwelling prosthesis to prevent aspiration An initiative of drtbalu's otolaryngology online

Types of TEP Primary TEP – Performed during total laryngectomy Secondary TEP – Performed 6 months after surgery An initiative of drtbalu's otolaryngology online

Anatomical structures TEP is performed in midline (Less bleeding) Structures that are penetrated during TEP - membranous posterior wall of trachea, esophagus and its 3 muscle layers and esophageal mucosa Interconnecting tissue in the trachea-esophageal space An initiative of drtbalu's otolaryngology online

Advantages of TEP Can be performed after laryngectomy / irradiation / chemotherapy / neck dissection Fistula can be used for esophago-gastric feeding during immediate PO period Easily reversible Speech develops faster than esophageal speech High success rate Closely resembles laryngeal speech Speech is intelligible An initiative of drtbalu's otolaryngology online

Disadvantages of TEP Pt should manually cover the stoma during voicing Good pulmonary reserve is a must Additional surgical procedure is needed to introduce it Posterior esophageal wall can be breached Catheter can pass through the posterior wall An initiative of drtbalu's otolaryngology online

TEP – Patient selection Motivated patient Patient with stable mind Patient who has understood the anatomy & physiology of the process Patient should not be an alcoholic Good hand dexterity Good visual acuity Positive esophageal air insufflation test Patient should not have pharyngeal stricture / stenosis Stoma should be of adequate depth and diameter Intact trachea-esophageal wall An initiative of drtbalu's otolaryngology online

Contraindications of TEP Extensive surgery involving pharynx, larynx with separation of trachea-esophageal wall Inadequate psychological preparation Patient with doubtful ability to cope up with prosthesis Impaired hand dexterity Suspected difficulty during PO irradiation An initiative of drtbalu's otolaryngology online

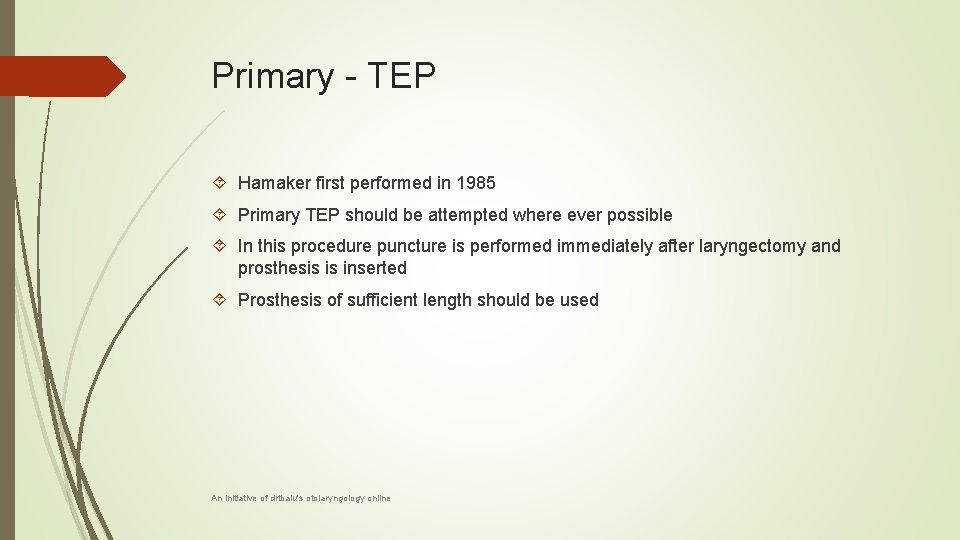

Primary - TEP Hamaker first performed in 1985 Primary TEP should be attempted where ever possible In this procedure puncture is performed immediately after laryngectomy and prosthesis is inserted Prosthesis of sufficient length should be used An initiative of drtbalu's otolaryngology online

Primary TEP - Advantages Risk of separation of trachea – esophageal wall is minimized Tracheo – esophageal wall is stabilized to some extent by the prosthesis Flanges of prosthesis protects trachea from aspiration Stomal irritation is less Patient becomes familiar with prosthesis immediately following surgery Post op irradiation is not a contraindication An initiative of drtbalu's otolaryngology online

Primary TEP - Procedure Because of exposure following laryngectomy it is easy to perform Ideally performed before pharyngeal closure Puncture is performed through pharyngotomy defect Ryles tube can be introduced via the fistula to provide gastric feeding in the post op period An initiative of drtbalu's otolaryngology online

Secondary TEP Usually performed 6 weeks following laryngectomy This allows pt time to develop esophageal speech Area of fistula identified using rigid esophagoscope Prosthesis can be inserted immediatly An initiative of drtbalu's otolaryngology online

Modified secondary TEP procedure Performed under local anesthesia Patient placed in recumbent position with mild extension of neck with a shoulder roll Tracheostomy tube is removed 12 0 clock position of tracheostoma visualized and infiltrated using 2% xylocaine with 1 in 100, 000 adrenaline Yanker’s suction tube is inserted into the oral cavity till it hitches against 12 -0 clock position of tracheostome This area is incised using 11 blade and widened using curved artery forceps Blom singer prosthesis is then introduced through this fistula An initiative of drtbalu's otolaryngology online

12 – 0 clock position of tracheostoma An initiative of drtbalu's otolaryngology online

Yanker’s suction tube inserted An initiative of drtbalu's otolaryngology online

TEP - Incision An initiative of drtbalu's otolaryngology online

TEP - widened An initiative of drtbalu's otolaryngology online

Prosthesis introduced An initiative of drtbalu's otolaryngology online

Prosthesis used in TEP Blom-Singer prosthesis Panje button Gronningen button Provox prosthesis An initiative of drtbalu's otolaryngology online

Panje voice button Biflanged tube with one way valve Can be inserted through the fistula created for this purpose It is supplied with an introducer which makes insertion simple Should be removed and cleaned every two days Can be removed, cleaned and reinserted by the patient An initiative of drtbalu's otolaryngology online

Gronningen button Introduced by Gronningen of Netherlands in 1980 Its high airflow resistance delayed speech in some patients Now low air flow resistance tubes have been introduced An initiative of drtbalu's otolaryngology online

Blom-Singer prosthesis Introduced by Blom and Singer in 1978 Commonly used prosthesis This prosthesis acts as one way valve allowing air to pass into the esophagus and prevents aspiration This prosthesis is shaped like a duck bill hence known as “Duck bill prosthesis” The duck bill end should reach up to oesophagus It is an indwelling prosthesis can be left in place for 3 months This prosthesis is available in varying lengths An initiative of drtbalu's otolaryngology online

Provox prosthesis Indwelling low air flow pressure prosthesis It has extended life time. Can last a couple of yeas if used properly Insertion is easy An initiative of drtbalu's otolaryngology online

Indwelling versus Non indwelling prosthesis Indwelling prosthesis Non indwelling prosthesis Can be left in place for 3 -6 months Should be removed and cleaned every couple of days Requires specialist to do the job Pt. Can do it themselves Less maintenance Periodical maintenance Stoma should be greater than 2 cms Oesophageal insufflation test should be positive An initiative of drtbalu's otolaryngology online

Problems with TEP insertion Leak through the prosthesis Leak around the prosthesis Immediate aphonia / dysphonia Hypertonicity problems Delayed speech An initiative of drtbalu's otolaryngology online

Oesophageal insufflation test Should be performed before TEP Assesses cricopharyngeal muscle response to esophageal distention A catheter is placed through the nostril up to 25 cm mark. This indicates probable site of puncture Pt is asked to count numbers or vocalize “Ah” An initiative of drtbalu's otolaryngology online

Insufflation test interpretation Fluent voice on minimal effort – normal Breathy voice indicating hypotonic cricopharyngeal muscle Hypertonic voice – “Cricopharyngeal spasm” Spasmodic voice – “Extreme cricopharyngeal spasm” An initiative of drtbalu's otolaryngology online

Common problems with TEP Improper location of puncture Inappropriate size of puncture Presence of cricopharyngeal spasm Leakage through and around the prosthesis An initiative of drtbalu's otolaryngology online

Location of TEP 12 -0 clock position of stoma About 1 -1. 5 cms from trachea-cutaneous junction If located superiorly pt may find it difficult to occlude If located deep into the trachea then it becomes difficult to introduce the prosthesis An initiative of drtbalu's otolaryngology online

Management of leak through the prosthesis Cause Solution Valve in contact with posterior wall of esophagus Replace prosthesis with different length and size Prosthesis length too short for the puncture “Pinched valve” Remeasure the puncture and replace with appropriate size prosthesis Valve deterioration Replace valve Fungal colonization of valve with yeast Treat with nystatin Back pressure High resistant prosthesis Mucous / food lodgment Prosthesis to be cleaned An initiative of drtbalu's otolaryngology online

Management of leak around the prosthesis Cause Solution TEP location Remove prosthesis allow puncture to close and repuncture Unnecessary dilatation during valve placement To be avoided Thin trachea-esophageal wall 6 mm or less Choose custom prosthesis Prosthesis of incorrect length and size Choose correct length Poor tissue integrity due to irradiation Custom prosthesis An initiative of drtbalu's otolaryngology online
