Voice Over IP Security Mark D Collier Chief
- Slides: 145
Voice Over IP Security Mark D. Collier Chief Technology Officer Secure. Logix Corporation mark. collier@securelogix. com David Endler Director of Security Research Tipping. Point dendler@tippingpoint. com
Who are we? • Mark Collier is the chief technology officer at Secure. Logix corporation, where he directs the company’s Vo. IP security research and development. Mark also defines and conducts Vo. IP security assessments for Secure. Logix’s enterprise customers. Mark is actively performing research for the U. S. Department of Defense, with a focus on developing SIP vulnerability assessment tools. Prior to Secure. Logix, Mark was with Southwest Research Institute (Sw. RI), where he directed a group performing research and development in the areas of computer security and information warfare. Mark is a frequent speaker at major Vo. IP and security conferences, has authored numerous articles and papers on Vo. IP security and is also a founding member of the Voice over IP Security Alliance (VOIPSA). Mark graduated magna cum laude graduate from St. Mary’s University, where he earned a bachelors’ degree in computer science. • David Endler is the director of security research for 3 Com's security division, Tipping. Point. In this role, he oversees 3 Com's product security testing, Vo. IP security research center, and Tipping. Point’s vulnerability research teams. While at Tipping. Point, David founded an industrywide group called the Voice over IP Security Alliance (VOIPSA) in 2005 (http: //www. voipsa. org). Previously, he has performed security research working for Xerox Corporation, the National Security Agency, and Massachusetts Institute of Technology. David has authored numerous articles and papers on computer security and was named one of the Top 100 Voices in IP Communications by IP Telephony Magazine. He graduated summa cum laude from Tulane University where he earned a bachelor’s and master’s degree in computer science.
Shameless Plug Alert We Just Wrote a Book We took on this project because there were no practical books on enterprise Vo. IP security that gave examples of how hackers attack Vo. IP deployments and explained to administrators how to defend against these attacks. We spent more than a year of research writing new Vo. IP security tools, using them to test the latest Vo. IP products, and scouring Vo. IP state-of-the-art security. This tutorial is based on material from the book. The book was published December 1, 2006 http: //www. hackingvoip. com 536 pages
Outline Overview Gathering Information: u Footprinting u Scanning u Enumeration Attacking the Network: u Network Infrastructure Denial of Service u Network Eavesdropping u Network and Application Interception Outline
Outline Attacking Vendor Platforms: u Avaya u Cisco Attacking the Application: u Fuzzing u Disruption of Service u Signaling and Media Manipulation Outline
Outline Social Attacks: u Voice SPAM/SPIT u Voice Phishing Outline
Introduction Vo. IP systems are vulnerable: u Platforms, networks, and applications are vulnerable u Vo. IP-specific attacks are becoming more common u Security isn’t always a consideration during deployment The threat is increasing: u Vo. IP deployment is growing u Deployments are critical to business operations u Greater integration with the data network u More attack tools being published u The hacking community is taking notice
Introduction Layers of Security Introduction
Slice of Vo. IP Security Pyramid Vo. IP Protocol and Application Security OS Security Supporting Service Security (web server, database, DHCP) Introduction Toll Fraud, SPIT, Phishing Malformed Messages (fuzzing) INVITE/BYECANCEL Floods CALL Hijacking Call Eavesdropping Call Modification Buffer Overflows, Worms, Denial of Service (Crash), Weak Configuration SQL Injection, DHCP resource exhaustion Network Security (IP, UDP , TCP, etc) Syn Flood, ICMP unreachable, trivial flooding attacks, DDo. S, etc. Physical Security Total Call Server Compromise, Reboot, Denial of Service Policies and Procedures Weak Voicemail Passwords Abuse of Long Distance Privileges
Introduction Campus Vo. IP TDM Phones Public Voice Network TDM Trunks IP PBX IP Phones Voice VLAN Data VLAN Internet Connection PCs
Introduction Public Vo. IP TDM Phones Public Voice Network Vo. IP Connection IP PBX IP Phones Voice VLAN Data VLAN Internet Connection PCs

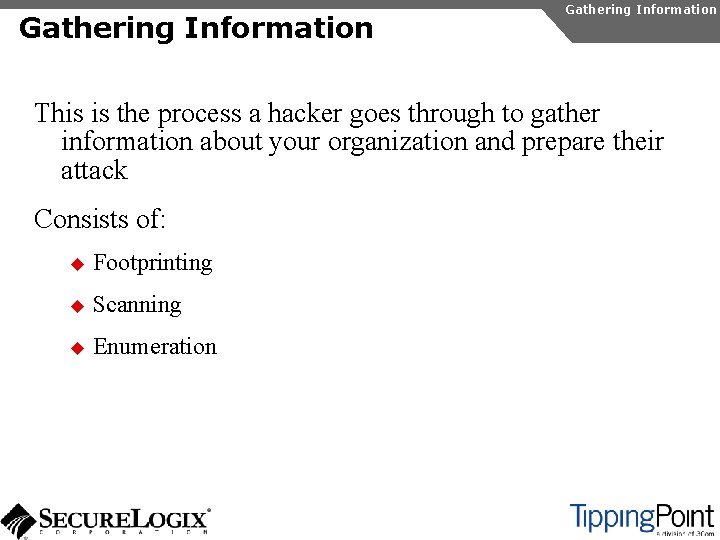

Gathering Information This is the process a hacker goes through to gather information about your organization and prepare their attack Consists of: u Footprinting u Scanning u Enumeration
Footprinting Gathering Information Footprinting Steps taken by a hacker to learn about your enterprise before they start the actual attack Consists of: u Public website research u Google hacking u Using WHOIS and DNS

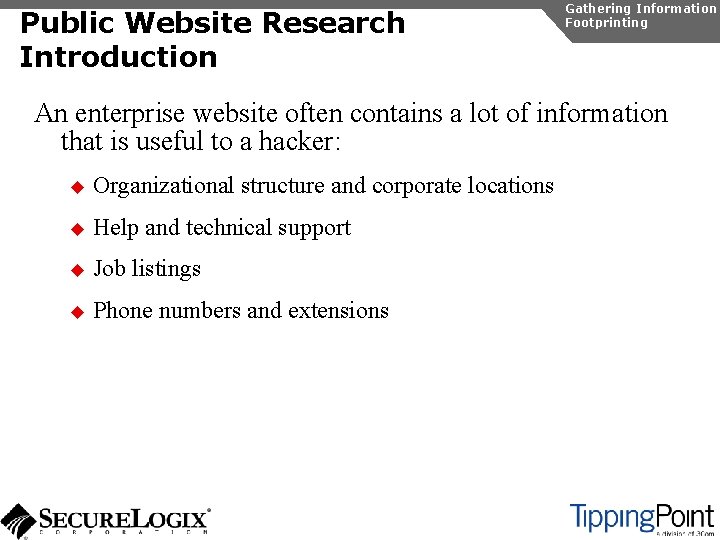

Public Website Research Introduction Gathering Information Footprinting An enterprise website often contains a lot of information that is useful to a hacker: u Organizational structure and corporate locations u Help and technical support u Job listings u Phone numbers and extensions
Public Website Research Organization Structure Gathering Information Footprinting
Public Website Research Corporate Locations Gathering Information Footprinting
Public Website Research Helpdesk Gathering Information Footprinting
Public Website Research Helpdesk Gathering Information Footprinting

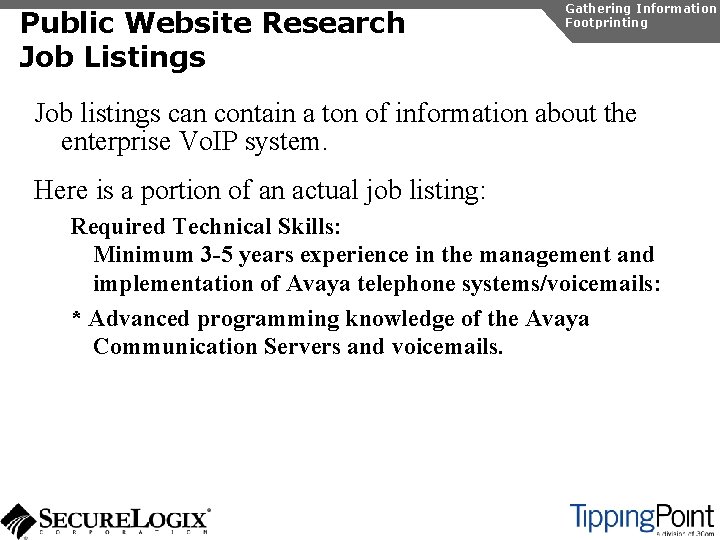

Public Website Research Job Listings Gathering Information Footprinting Job listings can contain a ton of information about the enterprise Vo. IP system. Here is a portion of an actual job listing: Required Technical Skills: Minimum 3 -5 years experience in the management and implementation of Avaya telephone systems/voicemails: * Advanced programming knowledge of the Avaya Communication Servers and voicemails.
Public Website Research Phone Numbers Gathering Information Footprinting Google can be used to find all phone numbers on an enterprise web site: u Type: “ 111. . 999 -1000. . 9999 site: www. mcgraw-hill. com”
Public Website Research Voice Mail Gathering Information Footprinting By calling into some of these numbers, you can listen to the voice mail system and determine the vendor Check out our voice mail hacking database at: u www. hackingvoip. com
Public Website Research Countermeasures Gathering Information Footprinting It is difficult to control what is on your enterprise website, but it is a good idea to be aware of what is on it Try to limit amount of detail in job postings Remove technical detail from help desk web pages
Google Hacking Introduction Gathering Information Footprinting Google is incredibly good at finding details on the web: u Vendor press releases and case studies u Resumes of Vo. IP personnel u Mailing lists and user group postings u Web-based Vo. IP logins
Google Hacking Gathering Information Footprinting Vendors and enterprises may post press releases and case studies: u Type: “site: avaya. com case study” or “site: avaya. company” Users place resumes on the Internet when searching for jobs u Search Monster for resumes for company employees Mailing lists and user group postings: u www. inuaa. org u www. innua. org u forums. cisco. com u forums. digium. com
Google Hacking Web-Based Vo. IP Logins Gathering Information Footprinting Some Vo. IP phones are accidentally exposed to the Internet Use Google to search for: u Type: inrul: ”ccmuser/logon. asp” u Type: inurl: ”ccmuser/logon. asp” site: example. com u Type: inurl: ”Network. Configuration” cisco
Google Hacking Web-Based Vo. IP Logins Gathering Information Footprinting
Google Hacking Countermeasures Gathering Information Footprinting Determine what your exposure is Be sure to remove any Vo. IP phones which are visible to the Internet Disable the web servers on your IP phones There are services that can help you monitor your exposure: u www. cyveilance. com u ww. baytsp. com
Google Hacking Countermeasures Attacking The Platform Cisco
WHOIS and DNS Introduction Gathering Information Footprinting Enterprises depend on DNS to route website visitors and external email WHOIS searches can reveal IP addresses used by an enterprise
WHOIS and DNS Countermeasures Gathering Information Footprinting Use generic names where possible Disable anonymous zone transfers on your DNS servers
Scanning Introduction Gathering Information Scanning Steps taken by a hacker to identify IP addresses and hosts running Vo. IP Consists: u Host/device discovery u Port scanning and service discovery u Host/device identification
Host/Device Discovery Gathering Information Scanning Consists of various techniques used to find hosts: u Ping sweeps u ARP pings u TCP ping scans u SNMP sweeps
Host/Device Discovery Using nmap Gathering Information Scanning nmap -O -P 0 192. 168. 1. 1 -254 Starting Nmap 4. 01 ( http: //www. insecure. org/nmap/ ) at 2006 -02 -20 01: 03 CST Interesting ports on 192. 168. 1. 21: (The 1671 ports scanned but not shown below are in state: filtered) PORT STATE SERVICE 23/tcp open telnet MAC Address: 00: 0 F: 34: 11: 80: 45 (Cisco Systems) Device type: Vo. IP phone Running: Cisco embedded OS details: Cisco IP phone (POS 3 -04 -3 -00, PC 030301) Interesting ports on 192. 168. 1. 23: (The 1671 ports scanned but not shown below are in state: closed) PORT STATE SERVICE 80/tcp open http MAC Address: 00: 15: 62: 86: BA: 3 E (Cisco Systems) Device type: Vo. IP phone|Vo. IP adapter Running: Cisco embedded OS details: Cisco Vo. IP Phone 7905/7912 or ATA 186 Analog Telephone Adapter Interesting ports on 192. 168. 1. 24: (The 1671 ports scanned but not shown below are in state: closed) PORT STATE SERVICE 80/tcp open http MAC Address: 00: 0 E: 08: DA: 17 (Sipura Technology) Device type: Vo. IP adapter Running: Sipura embedded OS details: Sipura SPA-841/1000/2000/3000 POTS<->Vo. IP gateway
Host/Device Discovery Ports Gathering Information Scanning SIP enabled devices will usually respond on UDP/TCP ports 5060 and 5061 SCCP enabled phones (Cisco) responds on UDP/TCP 2000 -2001 Sometimes you might see UDP or TCP port 17185 (VXWORKS remote debugging!)
Host/Device Discovery Ping Sweeps Gathering Information Scanning

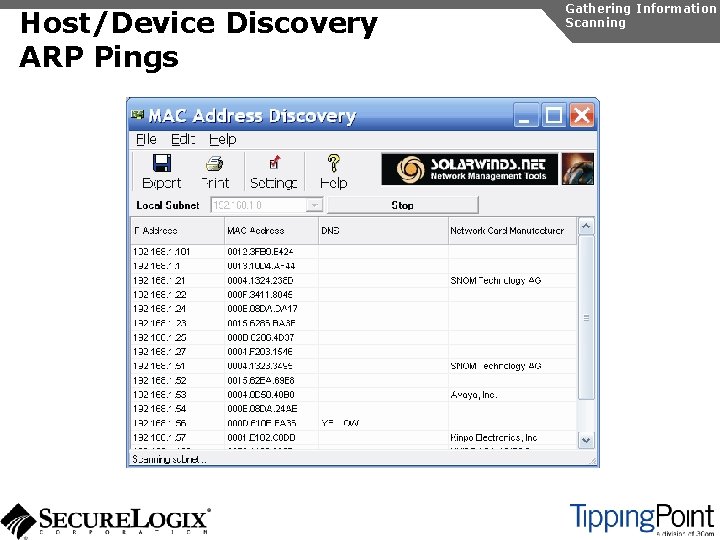

Host/Device Discovery ARP Pings Gathering Information Scanning
Host/Device Discovery TCP Ping Scans Several tools available: u nmap u hping Gathering Information Scanning
Host/Device Discovery SNMP Sweeps Gathering Information Scanning
Host/Device Discovery Countermeasures Gathering Information Scanning Use firewalls and Intrusion Prevention Systems (IPSs) to block ping and TCP sweeps VLANs can help isolate ARP pings Ping sweeps can be blocked at the perimeter firewall Use secure (SNMPv 3) version of SNMP Change SNMP public strings
Port Scanning/Service Discovery Gathering Information Scanning Consists of various techniques used to find open ports and services on hosts These ports can be targeted later nmap is the most commonly used tool for TCP SYN and UDP scans
Port Scanning/Service Discovery Countermeasures Gathering Information Scanning Using non-Internet routable IP addresses will prevent external scans Firewalls and IPSs can detect and possibly block scans VLANs can be used to partition the network to prevent scans from being effective
Host/Device Identification Gathering Information Scanning After hosts are found and ports identified, the type of device can be determined Classifies host/device by operating system Network stack fingerprinting is a common technique for identifying hosts/devices nmap is commonly used for this purpose
Host/Device Identification Countermeasures Gathering Information Scanning Firewalls and IPSs can detect and possibly block scans Disable unnecessary ports and services on hosts

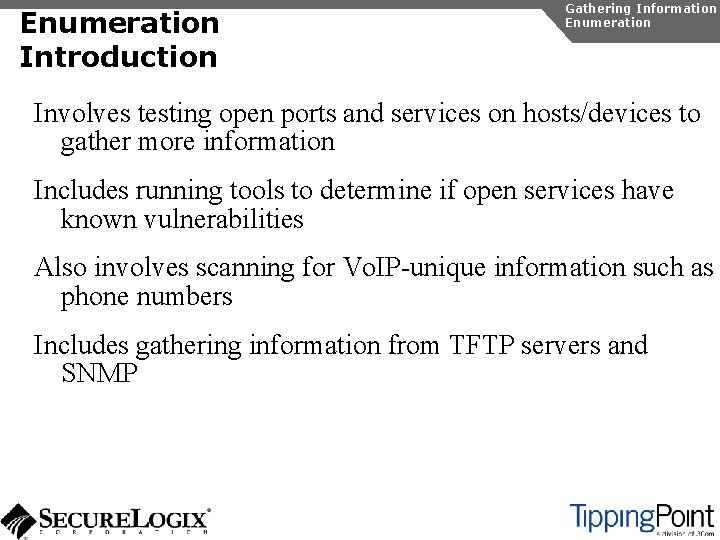

Enumeration Introduction Gathering Information Enumeration Involves testing open ports and services on hosts/devices to gather more information Includes running tools to determine if open services have known vulnerabilities Also involves scanning for Vo. IP-unique information such as phone numbers Includes gathering information from TFTP servers and SNMP
Vulnerability Testing Tools Gathering Information Enumeration
Vulnerability Testing Tools Gathering Information Enumeration
Vulnerability Testing Countermeasures Gathering Information Enumeration The best solution is to upgrade your applications and make sure you continually apply patches Some firewalls and IPSs can detect and mitigate vulnerability scans

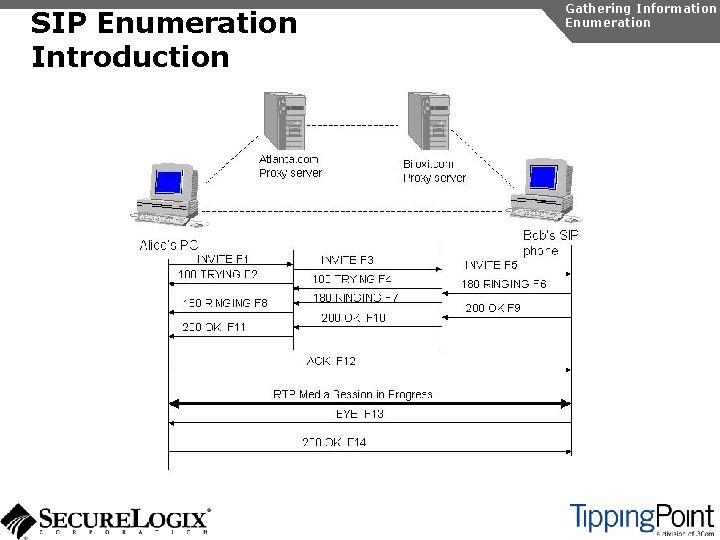

SIP Enumeration Introduction Gathering Information Enumeration
Gathering Information Enumeration SIP Enumeration Requests SIP Request Purpose RFC Reference INVITE to initiate a conversation RFC 3261 BYE to terminate an existing connection between two users in a session RFC 3261 OPTIONS to determine the SIP messages and codecs that the UA or Server understands RFC 3261 REGISTER to register a location from a SIP user RFC 3261 ACK To acknowledge a response from an INVITE request RFC 3261 CANCEL to cancel a pending INVITE request, but does not affect a completed request (for instance, to stop the call setup if the phone is still ringing) RFC 3261
SIP Enumeration Responses Gathering Information Enumeration SIP responses are 3 -digit codes much like HTTP. The first digit indicates the category of the response: u 1 xx responses – information responses u 2 xx responses – successful responses u 3 xx responses – redirection responses u 4 xx responses – request failure responses u 5 xx responses – server failure responses u 6 xx responses – global failure responses
SIP Enumeration Directory Scanning Gathering Information Enumeration [root@attacker]# nc 192. 168. 1. 104 5060 OPTIONS sip: test@192. 168. 1. 104 SIP/2. 0 Via: SIP/2. 0/TCP 192. 168. 1. 120; branch=4 iv. Bc. Vj 5 Zn. PYgb To: alice <sip: test@192. 168. 1. 104> Content-Length: 0 SIP/2. 0 404 Not Found Via: SIP/2. 0/TCP 192. 168. 1. 120; branch=4 iv. Bc. Vj 5 Zn. PYgb; received=192. 168. 1. 103 To: alice sip: test@192. 168. 1. 104>; tag=b 27 e 1 a 1 d 33761 e 85846 fc 98 f 5 f 3 a 7 e 58. 0503 Server: Sip EXpress router (0. 9. 6 (i 386/linux)) Content-Length: 0 Warning: 392 192. 168. 1. 104: 5060 "Noisy feedback tells: pid=29801 req_src_ip=192. 168. 1. 120 req_src_port=32773 in_uri=sip: test@192. 168. 1. 104 out_uri=sip: test@192. 168. 1. 104 via_cnt==1"
SIP Enumeration Directory Scanning Gathering Information Enumeration

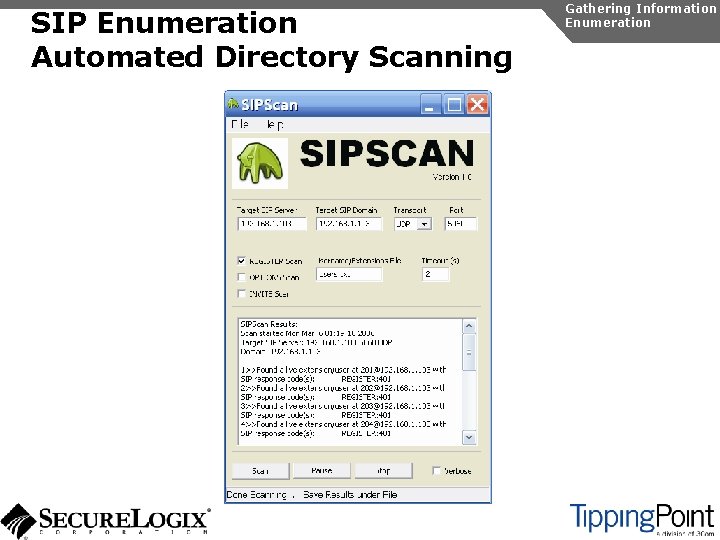

SIP Enumeration Automated Directory Scanning Gathering Information Enumeration
TFTP Enumeration Introduction Gathering Information Enumeration Almost all phones we tested use TFTP to download their configuration files The TFTP server is rarely well protected If you know or can guess the name of a configuration or firmware file, you can download it without even specifying a password The files are downloaded in the clear and can be easily sniffed Configuration files have usernames, passwords, IP addresses, etc. in them
Gathering Information Enumeration TFTP Enumeration Using TFTPBRUTE [root@attacker]# perl tftpbrute. pl 192. 168. 1. 103 brutefile. txt 100 tftpbrute. pl, , V 0. 1 TFTP file word database: brutefile. txt TFTP server 192. 168. 1. 103 Max processes 100 Processes are: 1 <snip> Processes are: 12 *** Found TFTP server remote filename Processes are: 13 Processes are: 14 *** Found TFTP server remote filename : sip. cfg : 46 xxsettings. txt : sip_4602 D 02 A. txt : XMLDefault. cnf. xml : Sip. Default. cnf
TFTP Enumeration Countermeasures Gathering Information Enumeration It is difficult not to use TFTP, since it is so commonly used by Vo. IP vendors Some vendors offer more secure alternatives Firewalls can be used to restrict access to TFTP servers to valid devices
SNMP Enumeration Introduction Gathering Information Enumeration SNMP is enabled by default on most IP PBXs and IP phones Simple SNMP sweeps will garner lots of useful information If you know the device type, you can use snmpwalk with the appropriate OID You can find the OID using Solarwinds MIB Default “passwords”, called community strings, are common
SNMP Enumeration Solarwinds Gathering Information Enumeration
SNMP Enumeration snmpwalk Gathering Information Enumeration [root@domain 2 ~]# snmpwalk -c public -v 1 192. 168. 1. 53 1. 3. 6. 1. 4. 1. 6889 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 1. 0 = STRING: "Obsolete" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 2. 0 = STRING: "4620 D 01 B" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 3. 0 = STRING: "Avaya. Callserver" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 4. 0 = Ip. Address: 192. 168. 1. 103 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 5. 0 = INTEGER: 1719 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 6. 0 = STRING: "051612501065" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 7. 0 = STRING: "700316698" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 8. 0 = STRING: "051611403489" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 9. 0 = STRING: "00: 04: 0 D: 50: 40: B 0" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 10. 0 = STRING: "100" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 11. 0 = Ip. Address: 192. 168. 1. 53 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 12. 0 = INTEGER: 0 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 13. 0 = INTEGER: 0 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 14. 0 = INTEGER: 0 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 15. 0 = STRING: "192. 168. 1. 1" SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 16. 0 = Ip. Address: 192. 168. 1. 1 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 1. 17. 0 = Ip. Address: 255. 0. . . SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 4. 8. 0 = INTEGER: 20 SNMPv 2 -SMI: : enterprises. 6889. 2. 69. 1. 4. 9. 0 = STRING: "503"
SNMP Enumeration Countermeasures Gathering Information Enumeration Disable SNMP on any devices where it is not needed Change default public and private community strings Try to use SNMPv 3, which supports authentication
Attacking The Network The Vo. IP network and supporting infrastructure are vulnerable to attacks Most attacks will originate inside the network, once access is gained Attacks include: u Network infrastructure Do. S u Network eavesdropping u Network and application interception
Attacking The Network Gaining Access Several attack vectors include: u Installing a simple wired hub u Wi-Fi sniffing u Compromising a network node u Compromising a Vo. IP phone u Compromising a switch u Compromising a proxy, gateway, or PC/softphone u ARP poisoning u Circumventing VLANs

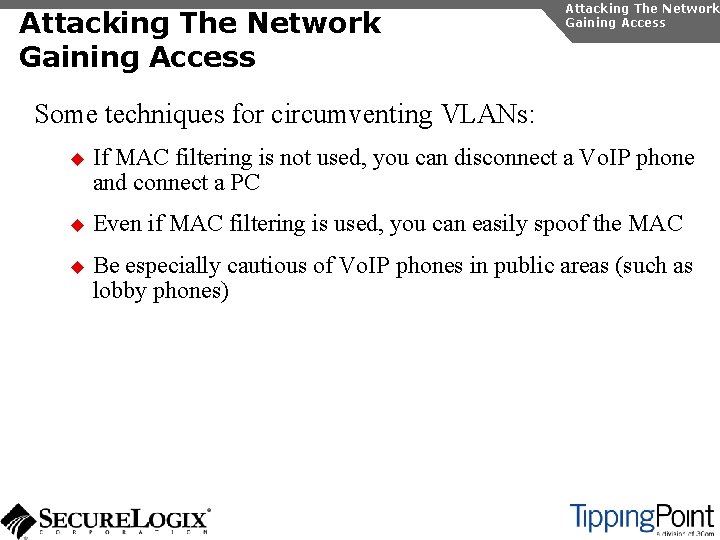

Attacking The Network Gaining Access Some techniques for circumventing VLANs: u If MAC filtering is not used, you can disconnect a Vo. IP phone and connect a PC u Even if MAC filtering is used, you can easily spoof the MAC u Be especially cautious of Vo. IP phones in public areas (such as lobby phones)
Attacking The Network Gaining Access Some other VLAN attacks: u MAC flooding attack u 802. 1 q and ISL tagging attack u Double-encapsulated 802. 1 q/Nested VLAN attack u Private VLAN attack u Spanning-tree protocol attack u VLAN trunking protocol attack
Network Infrastructure Do. S Attacking The Network Do. S The Vo. IP network and supporting infrastructure are vulnerable to attacks Vo. IP media/audio is particularly susceptible to any Do. S attack which introduces latency and jitter Attacks include: u Flooding attacks u Network availability attacks u Supporting infrastructure attacks
Flooding Attacks Introduction Attacking The Network Do. S Flooding attacks generate so many packets at a target, that it is overwhelmed and can’t process legitimate requests
Flooding Attacks Call Quality Attacking The Network Do. S Vo. IP is much more sensitive to network issues than traditional data applications like web and email: u Network Latency – amount of time it takes for a packet to travel from the speaker to the listener u Jitter – occurs when the speaker sends packets at constant rates but they arrive at the listener at variable rates u Packet Loss – occurs under heavy load and oversubscription Mean Opinion Score – subjective quality of a conversation measured from 1 (unintelligible) to 5 (very clear) R-value – mathematical measurement from 1 (unintelligible) to 100 (very clear)
Flooding Attacks Call Quality Attacking The Network Do. S Software applications (wireshark, adventnet, Wildpackets, etc. ) Hardware Appliances (Aglient, Empirix, Qovia, , etc. ) Integrated router and switches (e. g. Cisco Qo. S Policy Manager)
Flooding Attacks Types of Floods Some types of floods are: u UDP floods u TCP SYN floods u ICMP and Smurf floods u Worm and virus oversubscription side effect u Qo. S manipulation u Application flooding Attacking The Network Do. S
Flooding Attacks Countermeasures Attacking The Network Do. S Layer 2 and 3 Qo. S mechanisms are commonly used to give priority to Vo. IP media (and signaling) Use rate limiting in network switches Use anti-Do. S/DDo. S products Some vendors have Do. S support in their products (in newer versions of software)

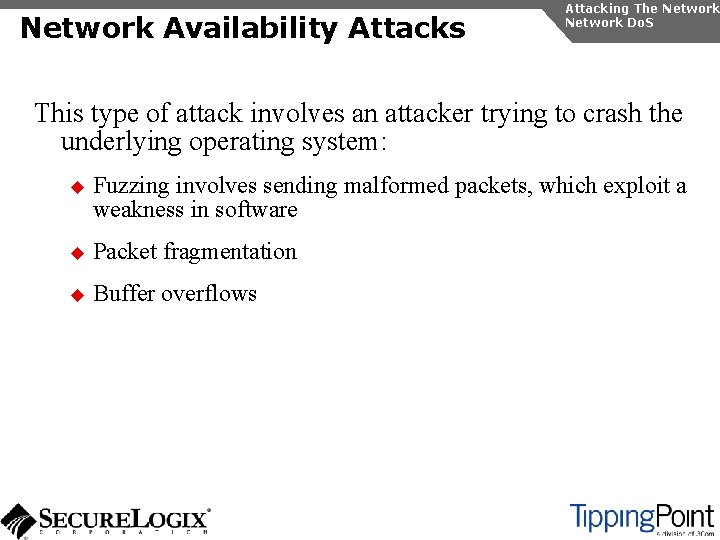

Network Availability Attacks Attacking The Network Do. S This type of attack involves an attacker trying to crash the underlying operating system: u Fuzzing involves sending malformed packets, which exploit a weakness in software u Packet fragmentation u Buffer overflows

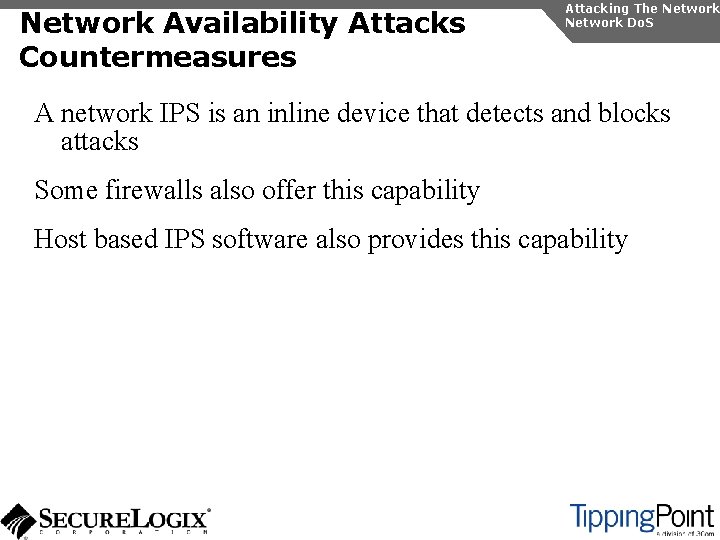

Network Availability Attacks Countermeasures Attacking The Network Do. S A network IPS is an inline device that detects and blocks attacks Some firewalls also offer this capability Host based IPS software also provides this capability
Supporting Infrastructure Attacks Attacking The Network Do. S Vo. IP systems rely heavily on supporting services such as DHCP, DNS, TFTP, etc. DHCP exhaustion is an example, where a hacker uses up all the IP addresses, denying service to Vo. IP phones DNS cache poisoning involves tricking a DNS server into using a fake DNS response
Supporting Infrastructure Attacks Countermeasures Attacking The Network Do. S Configure DHCP servers not to lease addresses to unknown MAC addresses DNS servers should be configured to analyze info from nonauthoritative servers and dropping any response not related to queries
Network Eavesdropping Introduction Attacking The Network Eavesdropping Vo. IP signaling, media, and configuration files are vulnerable to eavesdropping Attacks include: u TFTP configuration file sniffing u Number harvesting and call pattern tracking u Conversation eavesdropping
TFTP/Numbers/Call Patterns Attacking The Network Eavesdropping TFTP files are transmitted in the clear and can be sniffed One easy way is to connect a hub to a Vo. IP phone, reboot it, and capture the file By sniffing signaling, it is possible to build a directory of numbers and track calling patterns voipong automates the process of logging all calls

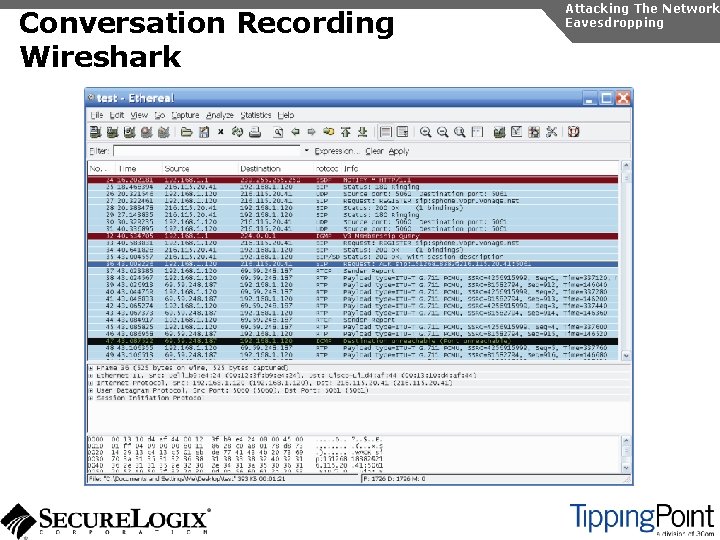

Conversation Recording Wireshark Attacking The Network Eavesdropping
Conversation Recording Wireshark Attacking The Network Eavesdropping
Conversation Recording Cain And Abel Attacking The Network Eavesdropping
Conversation Recording Other Tools Other tools include: u vomit u Voipong u voipcrack (not public) u DTMF decoder Attacking The Network Eavesdropping
Network Eavesdropping Countermeasures Attacking The Network Eavesdropping Place the TFTP server on the same VLAN as the Vo. IP phones and use a firewall to ensure that only Vo. IP phones communicate with it Use encryption: u Many vendors offer encryption for signaling u Use the Transport Layer Security (TLS) for signaling u Many vendors offer encryption for media u Use Secure Real-time Transport Protocol (SRTP) u Use ZRTP u Use proprietary encryption if you have to
Network/Application Interception Introduction Attacking The Network Net/App Interception The Vo. IP network is vulnerable to Man-In-The-Middle (MITM) attacks, allowing: u Eavesdropping on the conversation u Causing a Do. S condition u Altering the conversation by omitting, replaying, or inserting media u Redirecting calls Attacks include: u Network-level interception u Application-level interception
Network Interception ARP Poisoning Attacking The Network Net/App Interception The most common network-level MITM attack is ARP poisoning Involves tricking a host into thinking the MAC address of the attacker is the intended address There a number of tools available to support ARP poisoning: u Cain and Abel u ettercap u Dsniff u hunt
Network Interception ARP Poisoning Attacking The Network Net/App Interception
Network Interception ARP Poisoning Attacking The Network Net/App Interception
Network Interception ARP Poisoning Attacking The Network Net/App Interception
Network Interception Countermeasures Some countermeasures for ARP poisoning are: u Static OS mappings u Switch port security u Proper use of VLANs u Signaling encryption/authentication u ARP poisoning detection tools, such as arpwatch Attacking The Network Net/App Interception
Application Interception Introduction Attacking The Network Net/App Interception It is also possible to perform a MITM attack at the application layer Some possible ways to perform this attack include: u Registration hijacking u Redirection attacks u Vo. IP phone reconfiguration u Inserting a bridge via physical network access
Attacking The Network Net/App Interception Application Interception Proxy User Attacker Places Themselves Between Proxies Or Proxy/UA Proxy Attacker User
Application Interception Countermeasures Attacking The Network Net/App Interception Some countermeasures to application-level interception are: u Use VLANs for separation u Use TCP/IP u Use signaling encryption/authentication (such as TLS) u Enable authentication for requests u Deploy SIP firewalls to protect SIP proxies from attacks
Attacking The Platform This section describes unique attacks against specific Vo. IP vendor platforms, including: u Avaya u Cisco

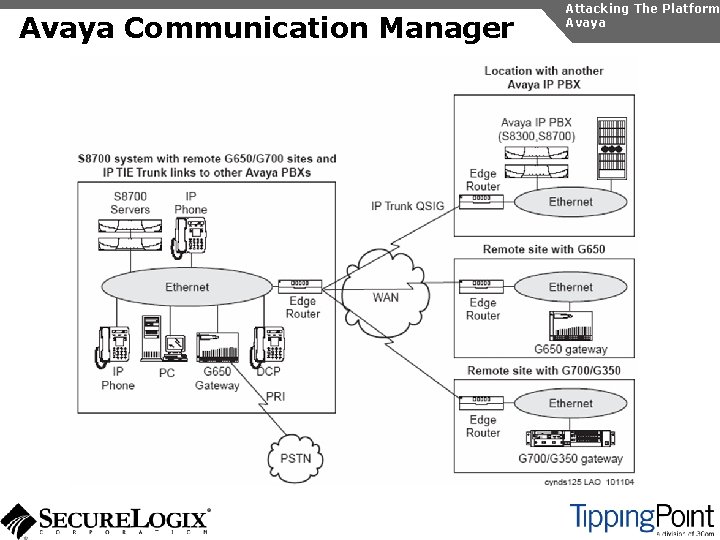

Avaya Communication Manager Attacking The Platform Avaya The Avaya Communication Manager is Avaya’s enterpriseclass offering Offers strong security, but some default configuration should be changed Avaya uses Linux and Vx. Works as the underlying operating system on many components, which is arguably more secure than Windows
Avaya Communication Manager Attacking The Platform Avaya

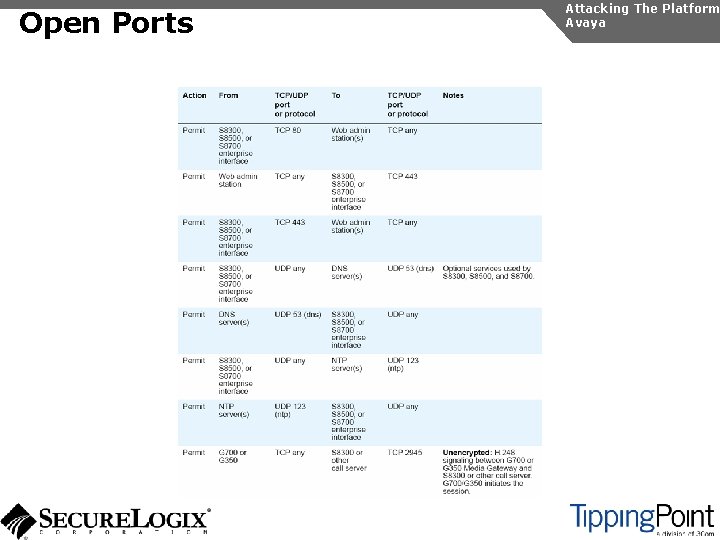

Open Ports Attacking The Platform Avaya
Open Ports Attacking The Platform Avaya
Open Ports Attacking The Platform Avaya
Open Ports Attacking The Platform Avaya
Open Ports Attacking The Platform Avaya
Open Ports Attacking The Platform Avaya

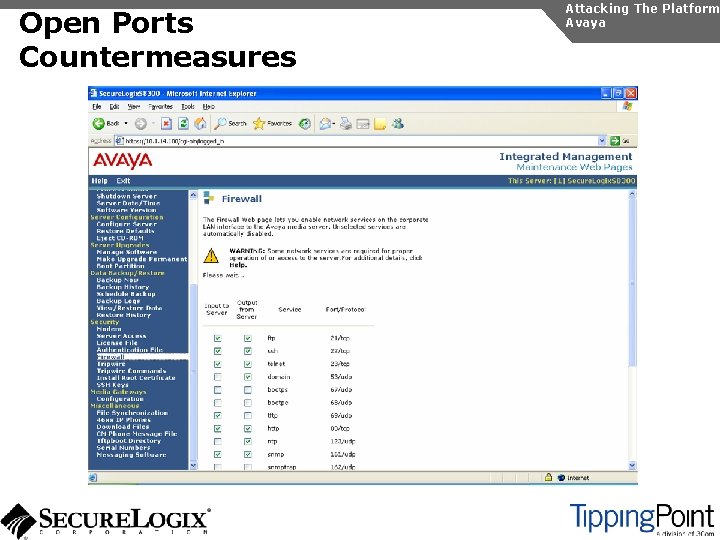

Open Ports Countermeasures Attacking The Platform Avaya
Open Ports Countermeasures Attacking The Platform Avaya
SNMP and TFTP Attacking The Platform Avaya uses TFTP and SNMP In 3. 0, SNMP is enabled by default on the IP PBX and IP phones Some components ship with default public and private community strings
SNMP and TFTP Countermeasures Attacking The Platform Avaya Use the same countermeasures as before Avaya provides a secure copy feature as an alternative to TFTP Communication Manager 4. 0 disables SNMP by default Version 2. 6 for IP phones does not ship with default community strings
Flooding Attacks Attacking The Platform Avaya We used udpflood and tcpsynflood to perform Do. S attacks against various components Unfortunately, these attacks were very disruptive
Flooding Attacks Countermeasures Attacking The Platform Avaya Use the same countermeasures as before Avaya C-LAN cards provide some level of Do. S mitigation Newer IP phone software provides better Do. S mitigation http: //support. avaya. com/security
Miscellaneous Security Issues Attacking The Platform Avaya signaling and media are vulnerable to eavesdropping Avaya uses some default passwords on key IP PBX components Password recommendations for IP phones are weak By default, Avaya IP phones can be reconfigured when booted

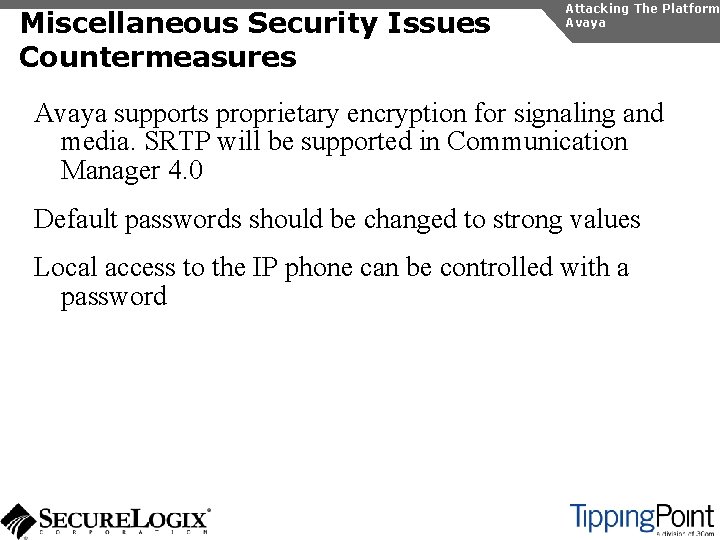

Miscellaneous Security Issues Countermeasures Attacking The Platform Avaya supports proprietary encryption for signaling and media. SRTP will be supported in Communication Manager 4. 0 Default passwords should be changed to strong values Local access to the IP phone can be controlled with a password
Cisco Unified Call Manager Attacking The Platform Avaya The Cisco Unified Call Manager is Cisco’s enterprise class offering Offers strong security, but requires some configuration Version 4. 1 is based on Windows. Version 5. 0 is based on Linux A Must Read Document is the Solution Reference Network Design (SRND) for Voice communications. (http: //tinyurl. com/gd 5 r 4). Includes great deployment scenarios and security use cases (lobby phone, desktop phone, call manager encryption how-to, etc. )
Cisco Introduction Attacking The Platform Cisco
Cisco Discovery Protocol Attacking The Platform Cisco Discovery Protocol – Cisco’s proprietary layer 2 network management protocol. Contains juicy information that is broadcast on the entire segment – Disable it!
Port Scanning Attacking The Platform Cisco Unified Call Manager requires a large number of open ports
Port Scanning Countermeasures Attacking The Platform Cisco IOS has a great feature called “autosecure” that” u disables a slew of services (finger, http, ICMP, source routing, etc. ) u enables some services (password encryption, TCP synwait-time, logging, etc. ). u And locks down the router and switch (enables only ssh, blocks private address blocks from traversing, enables netflow, etc. )
Flooding Countermeasures Attacking The Platform Cisco Network Flooding Countermeasures: u Another great feature from Cisco is Auto. Qos, a new IOS feature (auto qos command). u Enables Quality of Service for Vo. IP traffic across every Cisco router and switch u Scavenger class Qo. S also a relatively new Cisco strategy – rate shape all bursty non-Vo. IP traffic
Do. S and OS Exploitation Countermeasures Attacking The Platform Cisco Patch Management is key – use the Cisco Voice Technology Group Subscription Tool (http: //www. cisco. com/cgibin/Software/Newsbuilder/Builder/VOICE. cgi)
Eavesdropping and Interception Countermeasures Attacking The Platform Cisco Eavesdropping and Interception Countermeasures: u Enable port security on Cisco Switches to help mitigate ARP Spoofing u Enable Dynamic ARP inspection to thwart ARP Spoofing u Dynamically restrict Ethernet port access with 802. 1 x port authentication u Enable DHCP Snooping to prevent DHCP Spoofing u Configure IP source guard on Switches
Eavesdropping and Interception Countermeasures Attacking The Platform Cisco Eavesdropping and Interception Countermeasures: u Configure VTP Transparent Mode u Change the default Native VLAN Value to thwart VLAN hopping u Disable Dynamic Trunk Protocol (DTP) to thwart VLAN Hopping
Eavesdropping and Interception Countermeasures Attacking The Platform Cisco Eavesdropping and Interception Countermeasures: u Activate authentication and encryption of the signaling and media streams u Skinny over TLS u SRTP u Requires creating and distributing certificates on phones

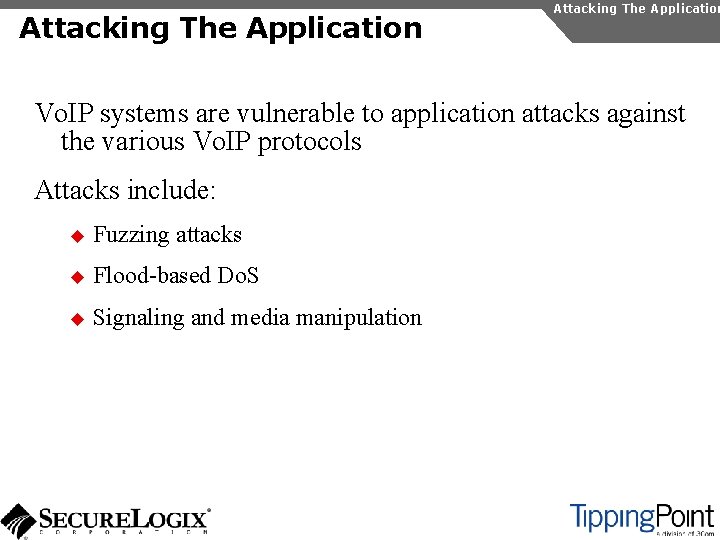

Attacking The Application Vo. IP systems are vulnerable to application attacks against the various Vo. IP protocols Attacks include: u Fuzzing attacks u Flood-based Do. S u Signaling and media manipulation

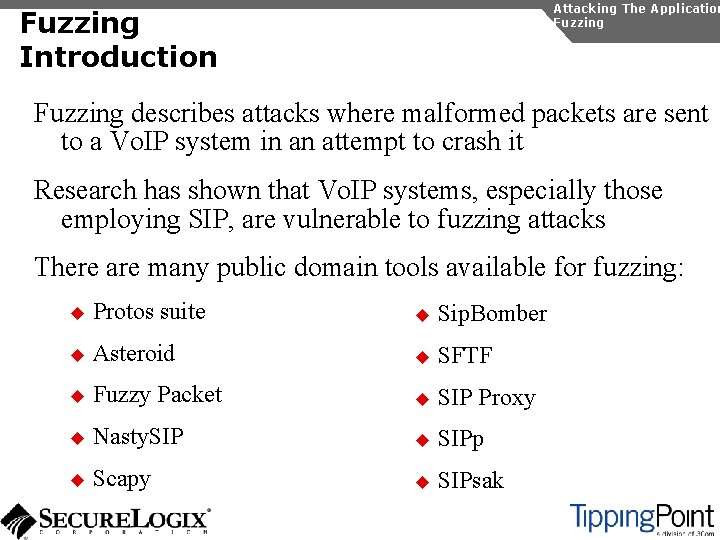

Attacking The Application Fuzzing Introduction Fuzzing describes attacks where malformed packets are sent to a Vo. IP system in an attempt to crash it Research has shown that Vo. IP systems, especially those employing SIP, are vulnerable to fuzzing attacks There are many public domain tools available for fuzzing: u Protos suite u Sip. Bomber u Asteroid u SFTF u Fuzzy Packet u SIP Proxy u Nasty. SIP u SIPp u Scapy u SIPsak

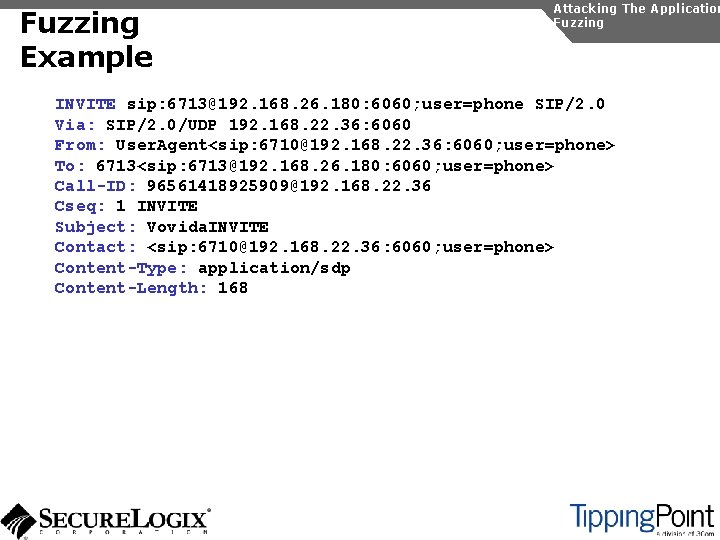

Fuzzing Example Attacking The Application Fuzzing INVITE sip: 6713@192. 168. 26. 180: 6060; user=phone SIP/2. 0 Via: SIP/2. 0/UDP 192. 168. 22. 36: 6060 From: User. Agent<sip: 6710@192. 168. 22. 36: 6060; user=phone> To: 6713<sip: 6713@192. 168. 26. 180: 6060; user=phone> Call-ID: 96561418925909@192. 168. 22. 36 Cseq: 1 INVITE Subject: Vovida. INVITE Contact: <sip: 6710@192. 168. 22. 36: 6060; user=phone> Content-Type: application/sdp Content-Length: 168
Fuzzing Example Attacking The Application Fuzzing INVITE sip: 6713@192. 168. 26. 180: 6060; user=phone SIP/2. 0 Via: aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa… From: User. Agent<sip: 6710@192. 168. 22. 36: 6060; user=phone> To: 6713<sip: 6713@192. 168. 26. 180: 6060; user=phone> Call-ID: 96561418925909@192. 168. 22. 36 Cseq: 1 INVITE Subject: Vovida. INVITE Contact: <sip: 6710@192. 168. 22. 36: 6060; user=phone> Content-Type: application/sdp Content-Length: 168
Attacking The Application Fuzzing Public Domain Tools There are many public domain tools available for fuzzing: u Protos suite u Sip. Bomber u Asteroid u SFTF u Fuzzy Packet u SIP Proxy u Nasty. SIP u SIPp u Scapy u SIPsak
Fuzzing Commercial Tools There are some commercial tools available: u Beyond Security Be. Storm u Codenomicon u Mu. Security Mu-4000 Security Analyzer u Security Innovation Hydra u Sipera Systems LAVA tools Attacking The Application Fuzzing
Fuzzing Countermeasures Attacking The Application Fuzzing Make sure your vendor has tested their systems for fuzzing attacks Consider running your own tests An Vo. IP-aware IPS can monitor for and block fuzzing attacks
Flood-Based Do. S Introduction Attacking The Application Flood-Based Do. S Describes an attack where a flood of packets overwhelms a target, such as a SIP proxy or phone
Flood-Based Do. S Attacking The Application Flood-Based Do. S Several tools are available to generate floods at the application layer: u rtpflood – generates a flood of RTP packets u inviteflood – generates a flood of SIP INVITE packets u Si. Vu. S – a tool which a GUI that enables a variety of floodbased attacks Virtually every device we tested was susceptible to these attacks
Flood-Based Do. S Si. Vu. S Attacking The Application Flood-Based Do. S
Flood-Based Do. S Countermeasures Attacking The Application Flood-Based Do. S There are several countermeasures you can use for floodbased Do. S: u Use VLANs to separate networks u Use TCP and TLS for SIP connections u Use rate limiting in switches u Enable authentication for requests u Use SIP firewalls/IPSs to monitor and block attacks
Signaling/Media Manipulation Introduction Attacking The Application Sig/Media Manipulation In SIP and RTP, there a number of attacks possible, which exploit the protocol: u Registration removal/addition u Registration hijacking u Redirection attacks u Session teardown u SIP phone reboot u RTP insertion/mixing
Registration Removal/Addition Proxy User Attacking The Application Sig/Media Manipulation Proxy Attacker Erases Or Adds Bogus Registrations, Causing Calls to be Dropped Or Sent to the Wrong Address User
Attacking The Application Sig/Media Manipulation Registration Hijacking Proxy Hijacked Session Hijacked Media User Attacker User
Registration Hijacking Attacking The Application Sig/Media Manipulation

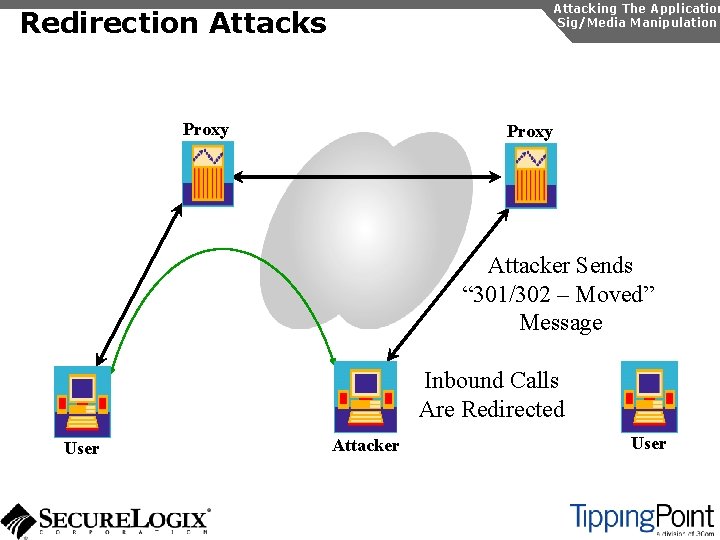

Attacking The Application Sig/Media Manipulation Redirection Attacks Proxy Attacker Sends “ 301/302 – Moved” Message Inbound Calls Are Redirected User Attacker User
Attacking The Application Sig/Media Manipulation Session Teardown Proxy Attacker Sends BYE Messages To UAs User Attacker User

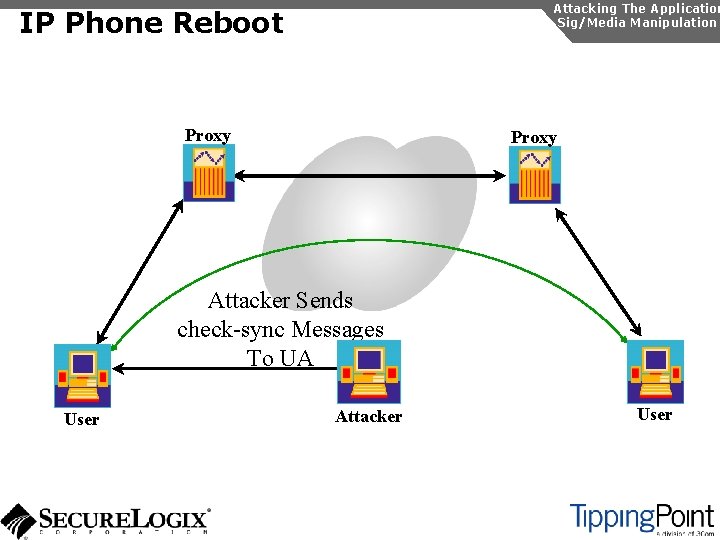

Attacking The Application Sig/Media Manipulation IP Phone Reboot Proxy Attacker Sends check-sync Messages To UA User Attacker User
Audio Insertion/Mixing Proxy User Attacker Sees Packets And Inserts/Mixes In New Audio Attacking The Application Sig/Media Manipulation Proxy Attacker User

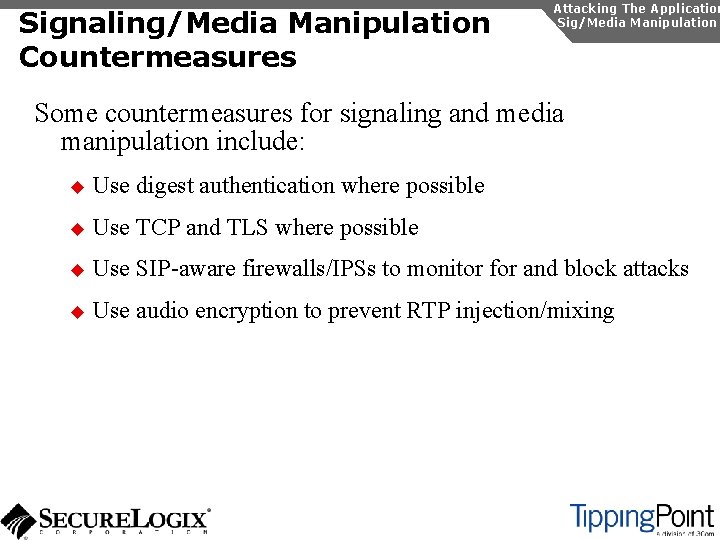

Signaling/Media Manipulation Countermeasures Attacking The Application Sig/Media Manipulation Some countermeasures for signaling and media manipulation include: u Use digest authentication where possible u Use TCP and TLS where possible u Use SIP-aware firewalls/IPSs to monitor for and block attacks u Use audio encryption to prevent RTP injection/mixing
Social Attacks There a couple of evolving social threats that will affect enterprises: u Voice SPAM or SPAM over Internet Telephony (SPIT) u Voice phishing
Voice SPAM Introduction Social Attacks Voice SPAM refers to bulk, automatically generated, unsolicited phone calls Similar to telemarketing, but occurring at the frequency of email SPAM Not an issue yet, but will become prevalent when: u The network makes it very inexpensive or free to generate calls u Attackers have access to Vo. IP networks that allow generation of a large number of calls It is easy to set up a voice SPAM operation, using Asterisk, tools like “spitter”, and free Vo. IP access
Voice SPAM Social Attacks Voice SPAM has the potential to be very disruptive because: u Voice calls tend to interrupt a user more than email u Calls arrive in realtime and the content can’t be analyzed to determine it is voice SPAM u Even calls saved to voice mail must be converted from audio to text, which is an imperfect process u There isn’t any capability in the protocols that looks like it will address Voice SPAM
Voice SPAM Countermeasures Social Attacks Voice SPAM Some potential countermeasures for voice SPAM are: u Authenticated identity movements, which may help to identify callers u Legal measures Enterprise voice SPAM filters: u Black lists/white lists u Approval systems u Audio content filtering u Turing tests
Vo. IP Phishing Introduction Social Attacks Phishing Similar to email phishing, but with a phone number delivered though email or voice When the victim dials the number, the recording requests entry of personal information The hacker comes back later and retrieves the touch tones or other information
Vo. IP Phishing Example Social Attacks Phishing “Hi, this is Bob from Bank of America calling. Sorry I missed you. If you could give us a call back at 1 -866 -555 -1324 we have an urgent issue to discuss with you about your bank account. ” Hello. This is Bank of America. So we may best serve you, please enter your account number followed by your PIN.

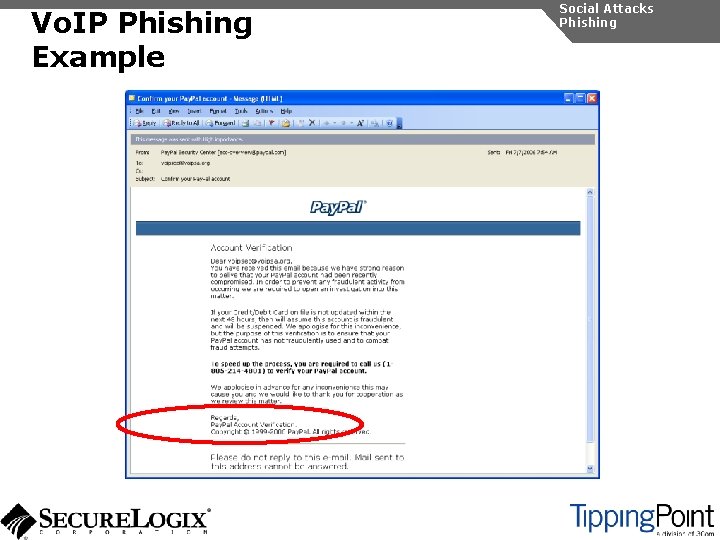

Vo. IP Phishing Example Social Attacks Phishing
Vo. IP Phishing Countermeasures Traditional email spam/phishing countermeasures come in to play here. Educating users is a key Social Attacks Phishing
