VOCATIONAL COMPETENCY OF VISUAL COMMUNICATION DESIGN Screen printing (Sablon) PART 7

VOCATIONAL COMPETENCY OF VISUAL COMMUNICATION DESIGN Screen printing (Sablon) PART 7

Tool and material for screen printing product A. Tool for screen printing 1. Screen

Tool and material for screen printing product A. Tool for screen printing 1. Screen There are many kind of screen as follow : a) Type S, it’s mean Light. b) Type M, it’s mean Medium. c) Type HD, it’s mean Extra-Heavy. d) Type T, it’s mean Heavy. Also have specification : a) Screen T 60, for cloth printing b) Screen T 120, T 165, for paper printing c) Screen T 180, T 200, T 220 for plastic printing (The number (60) indicates that screen has 60 hole per inches) Seni Kerajinan dan Pariwisata

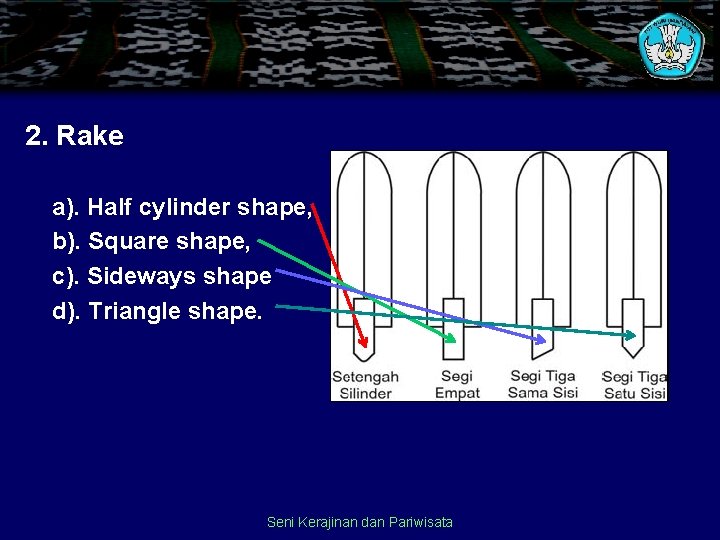

2. Rake a). Half cylinder shape, b). Square shape, c). Sideways shape d). Triangle

2. Rake a). Half cylinder shape, b). Square shape, c). Sideways shape d). Triangle shape. Seni Kerajinan dan Pariwisata

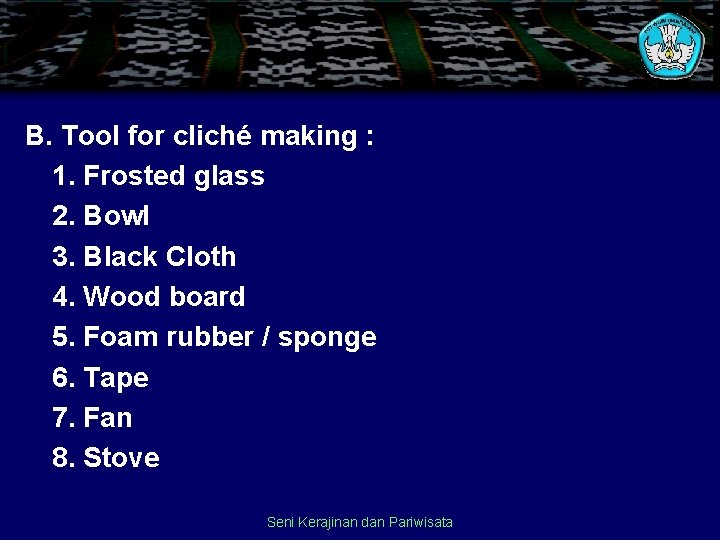

B. Tool for cliché making : 1. Frosted glass 2. Bowl 3. Black Cloth

B. Tool for cliché making : 1. Frosted glass 2. Bowl 3. Black Cloth 4. Wood board 5. Foam rubber / sponge 6. Tape 7. Fan 8. Stove Seni Kerajinan dan Pariwisata

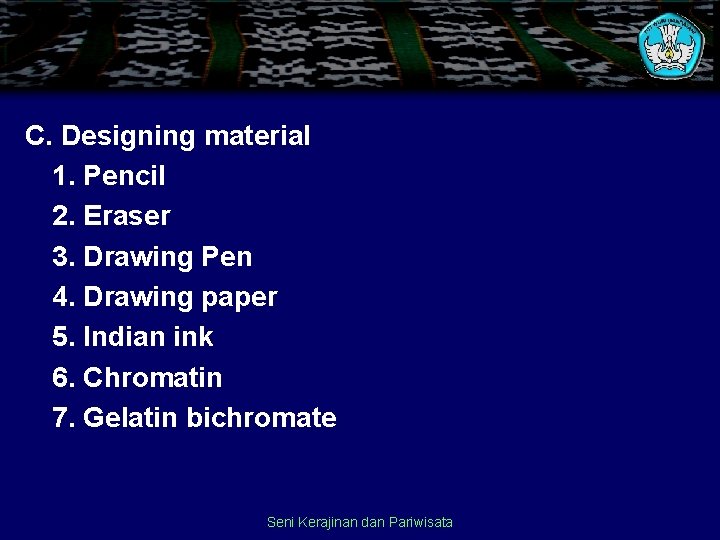

C. Designing material 1. Pencil 2. Eraser 3. Drawing Pen 4. Drawing paper 5.

C. Designing material 1. Pencil 2. Eraser 3. Drawing Pen 4. Drawing paper 5. Indian ink 6. Chromatin 7. Gelatin bichromate Seni Kerajinan dan Pariwisata

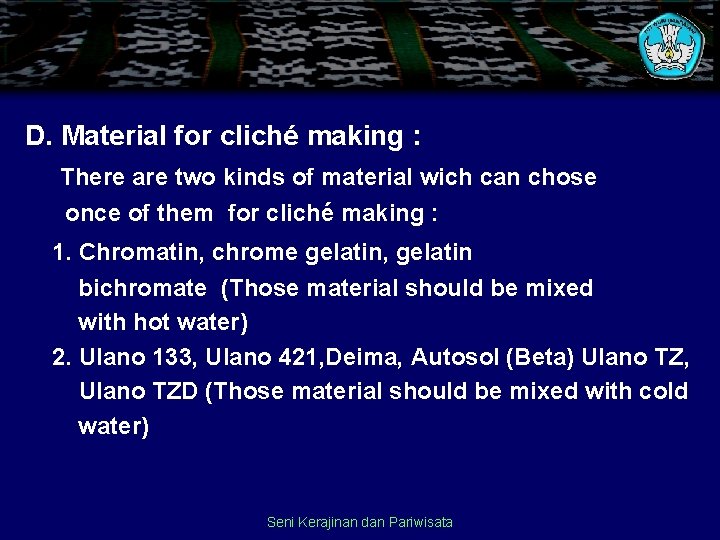

D. Material for cliché making : There are two kinds of material wich can

D. Material for cliché making : There are two kinds of material wich can chose once of them for cliché making : 1. Chromatin, chrome gelatin, gelatin bichromate (Those material should be mixed with hot water) 2. Ulano 133, Ulano 421, Deima, Autosol (Beta) Ulano TZ, Ulano TZD (Those material should be mixed with cold water) Seni Kerajinan dan Pariwisata

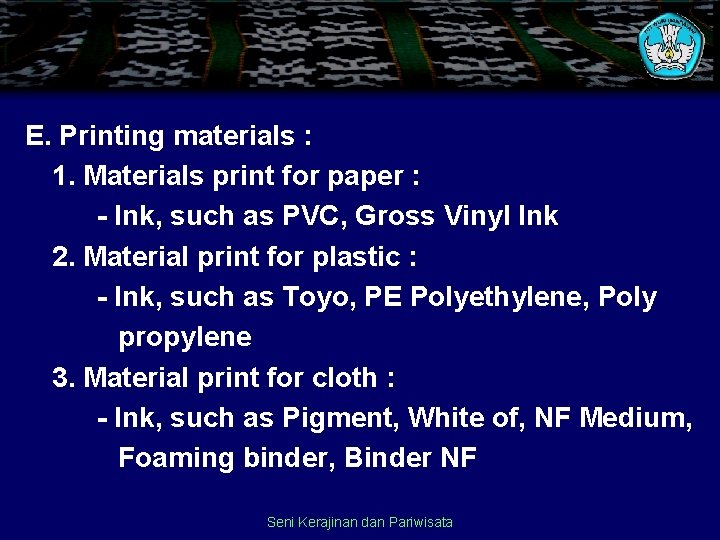

E. Printing materials : 1. Materials print for paper : - Ink, such as

E. Printing materials : 1. Materials print for paper : - Ink, such as PVC, Gross Vinyl Ink 2. Material print for plastic : - Ink, such as Toyo, PE Polyethylene, Poly propylene 3. Material print for cloth : - Ink, such as Pigment, White of, NF Medium, Foaming binder, Binder NF Seni Kerajinan dan Pariwisata

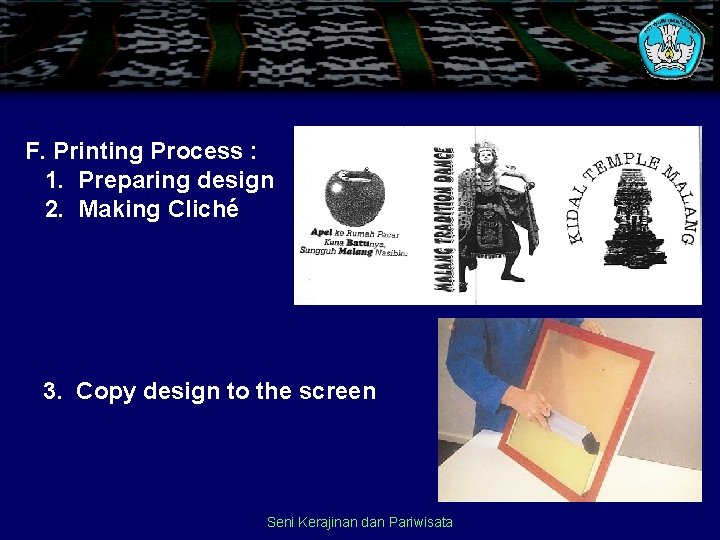

F. Printing Process : 1. Preparing design 2. Making Cliché 3. Copy design to

F. Printing Process : 1. Preparing design 2. Making Cliché 3. Copy design to the screen Seni Kerajinan dan Pariwisata

G. Copying process (Design/Picture to the screen) : 1. By direct sunlight Frosted glass

G. Copying process (Design/Picture to the screen) : 1. By direct sunlight Frosted glass Cliché Screen Black cloth Sponge Wood board Sunlight Seni Kerajinan dan Pariwisata

2. By using electricity lamp Wood board Sponge Black cloth Screen Cliché Electricity lamp

2. By using electricity lamp Wood board Sponge Black cloth Screen Cliché Electricity lamp Light table with Frosted glass Seni Kerajinan dan Pariwisata

H. Clean the screen with water to get the negative picture appearance Seni Kerajinan

H. Clean the screen with water to get the negative picture appearance Seni Kerajinan dan Pariwisata

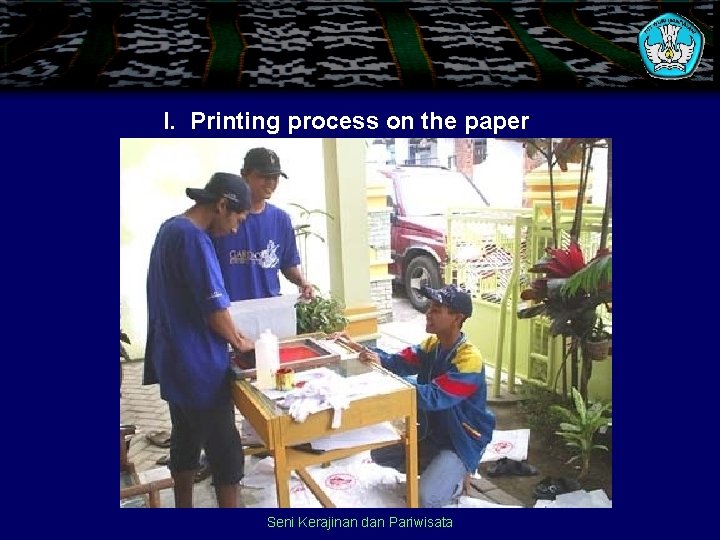

I. Printing process on the paper Seni Kerajinan dan Pariwisata

I. Printing process on the paper Seni Kerajinan dan Pariwisata

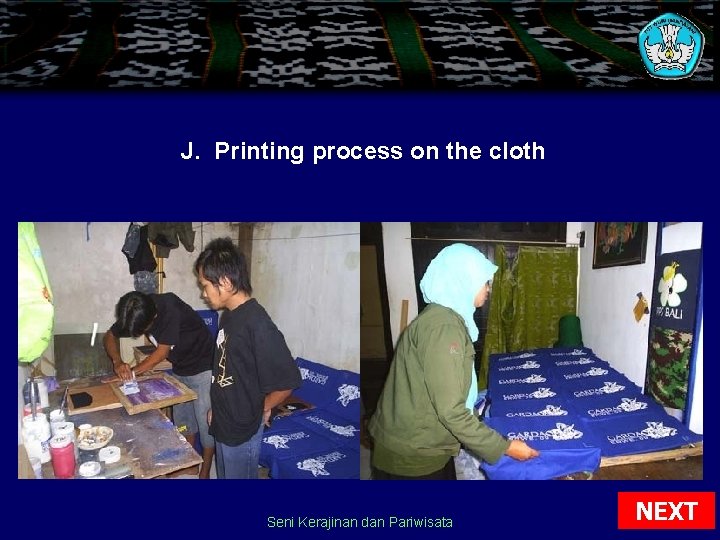

J. Printing process on the cloth Seni Kerajinan dan Pariwisata NEXT

J. Printing process on the cloth Seni Kerajinan dan Pariwisata NEXT
