VLSI drawings transferring limitations (AKA ‘conversion problem’)

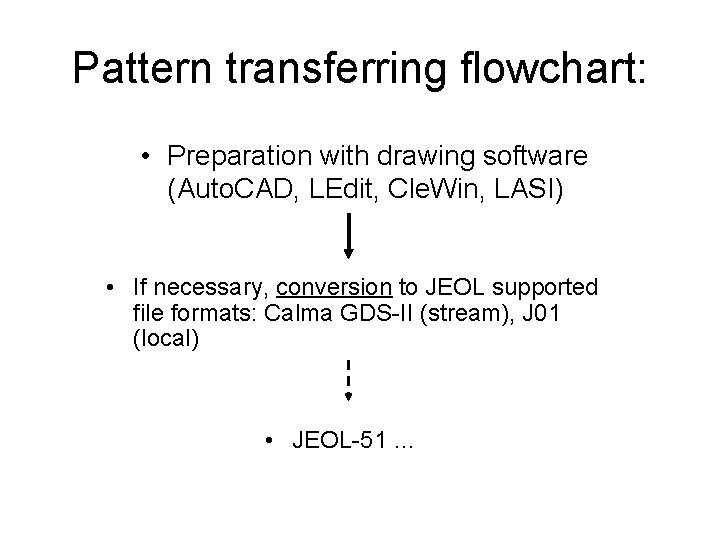

Pattern transferring flowchart: • Preparation with drawing software (Auto. CAD, LEdit, Cle. Win, LASI) • If necessary, conversion to JEOL supported file formats: Calma GDS-II (stream), J 01 (local) • JEOL-51 …

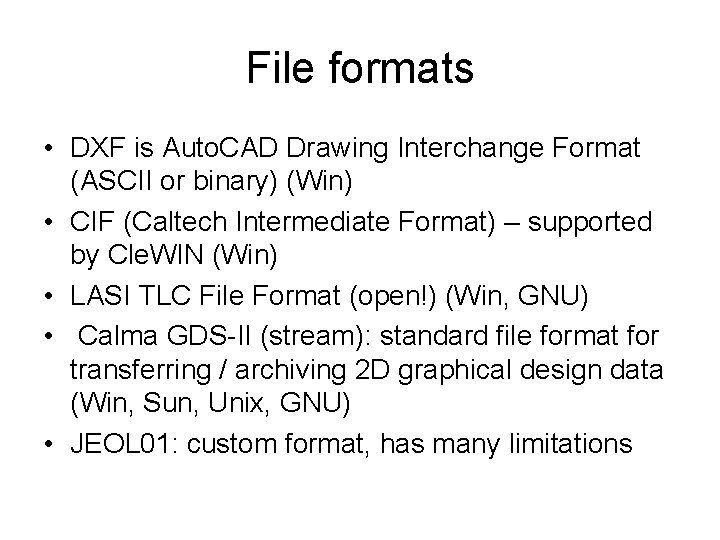

File formats • DXF is Auto. CAD Drawing Interchange Format (ASCII or binary) (Win) • CIF (Caltech Intermediate Format) – supported by Cle. WIN (Win) • LASI TLC File Format (open!) (Win, GNU) • Calma GDS-II (stream): standard file format for transferring / archiving 2 D graphical design data (Win, Sun, Unix, GNU) • JEOL 01: custom format, has many limitations

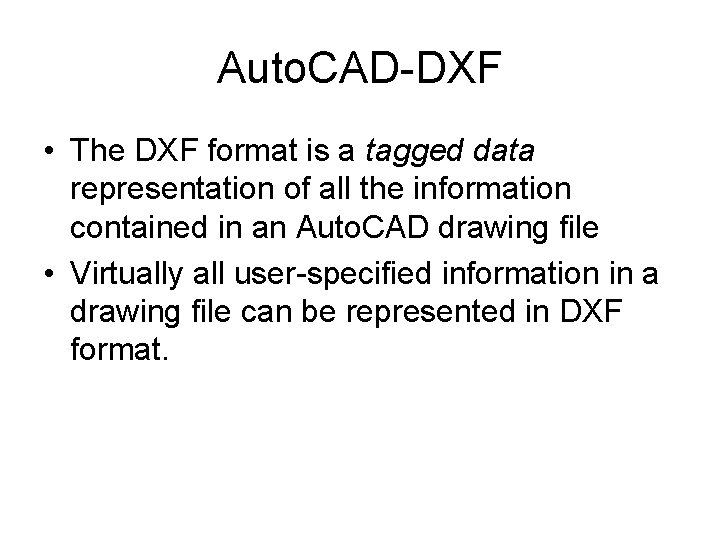

Auto. CAD-DXF • The DXF format is a tagged data representation of all the information contained in an Auto. CAD drawing file • Virtually all user-specified information in a drawing file can be represented in DXF format.

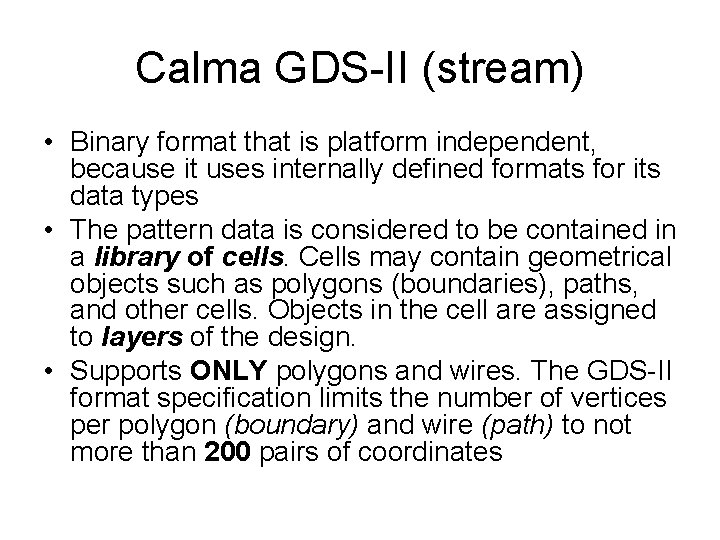

Calma GDS-II (stream) • Binary format that is platform independent, because it uses internally defined formats for its data types • The pattern data is considered to be contained in a library of cells. Cells may contain geometrical objects such as polygons (boundaries), paths, and other cells. Objects in the cell are assigned to layers of the design. • Supports ONLY polygons and wires. The GDS-II format specification limits the number of vertices per polygon (boundary) and wire (path) to not more than 200 pairs of coordinates

CIF (Caltech Intermediate Format) • CIF provides a limited set of graphics primitives that are useful for describing the two-dimensional shapes on the different layers of a chip. • The basic drawing primitives are boxes, circles, wires and polygons; CIF 2. 0+ : donuts and symbol scaling

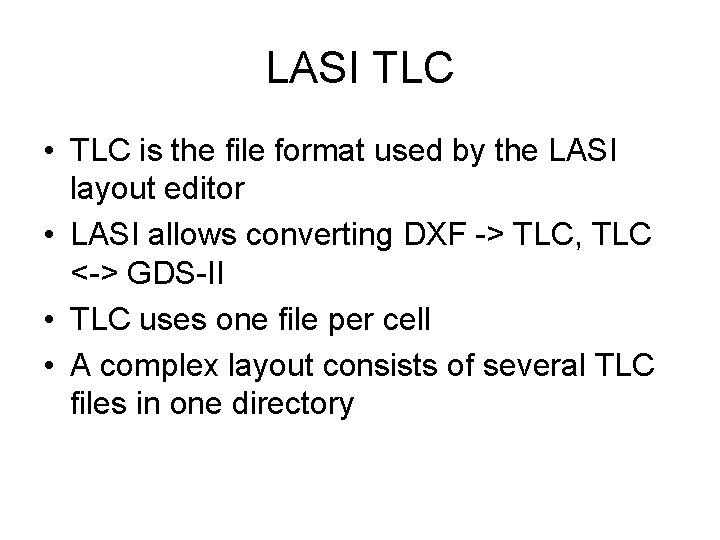

LASI TLC • TLC is the file format used by the LASI layout editor • LASI allows converting DXF -> TLC, TLC <-> GDS-II • TLC uses one file per cell • A complex layout consists of several TLC files in one directory

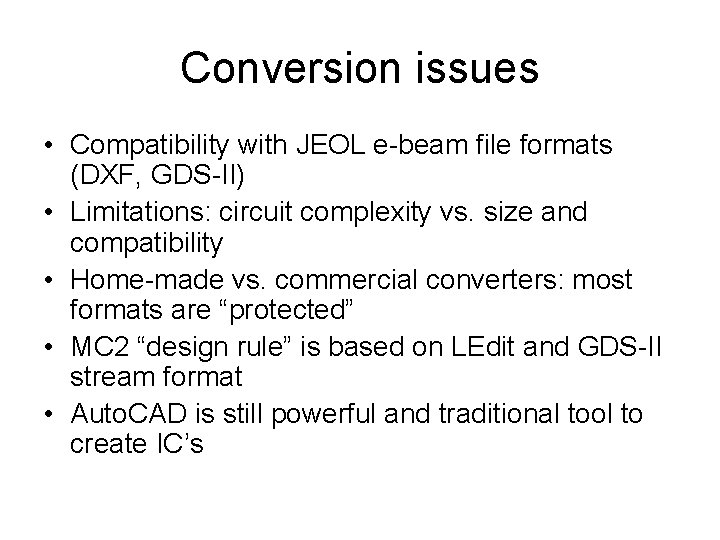

Conversion issues • Compatibility with JEOL e-beam file formats (DXF, GDS-II) • Limitations: circuit complexity vs. size and compatibility • Home-made vs. commercial converters: most formats are “protected” • MC 2 “design rule” is based on LEdit and GDS-II stream format • Auto. CAD is still powerful and traditional tool to create IC’s

DXF -> J 01 -> J 51 • Simplest and reliable way • Inconvenient for multiple layer layout • It has many vital limitations

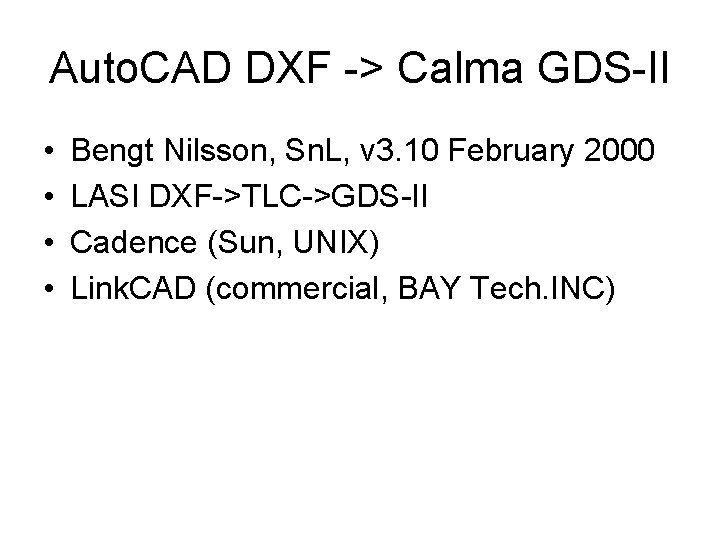

Auto. CAD DXF -> Calma GDS-II • • Bengt Nilsson, Sn. L, v 3. 10 February 2000 LASI DXF->TLC->GDS-II Cadence (Sun, UNIX) Link. CAD (commercial, BAY Tech. INC)

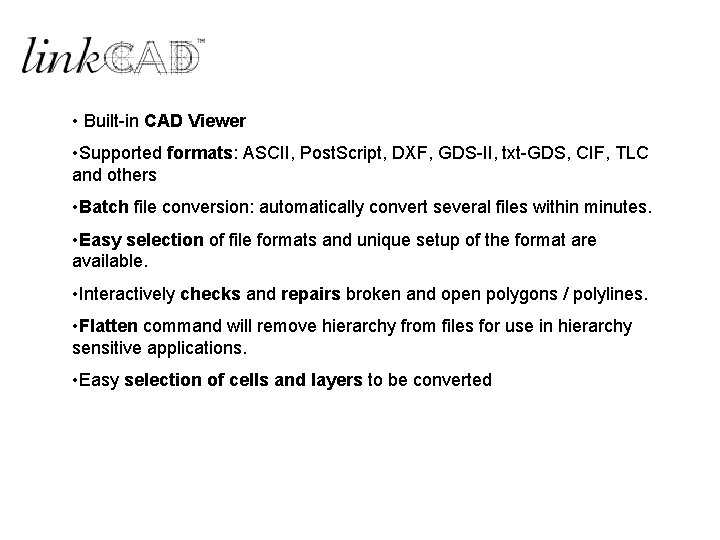

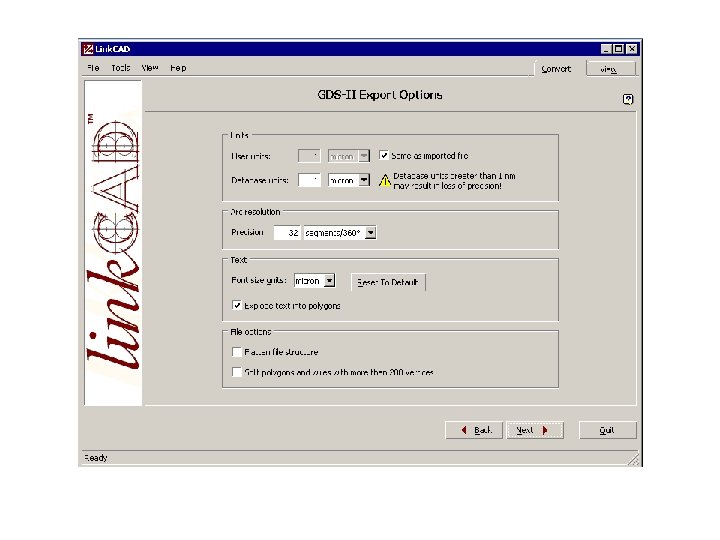

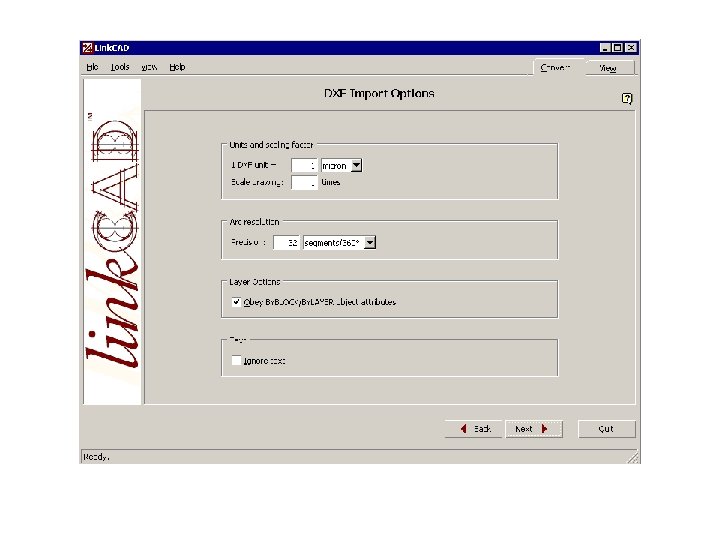

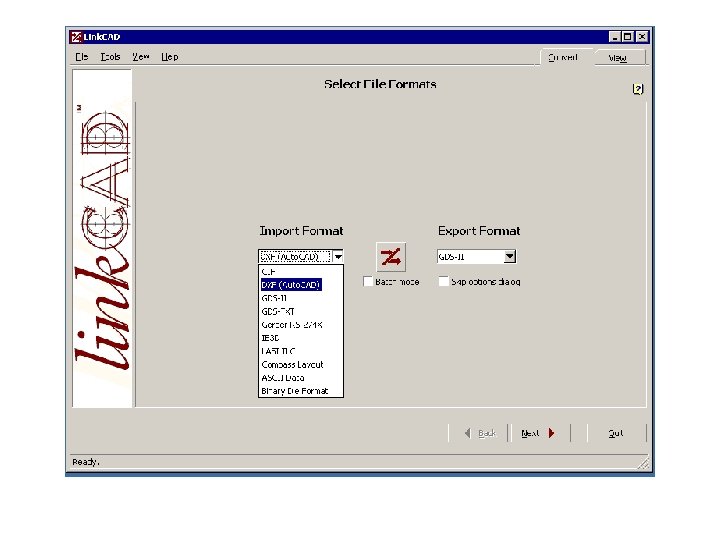

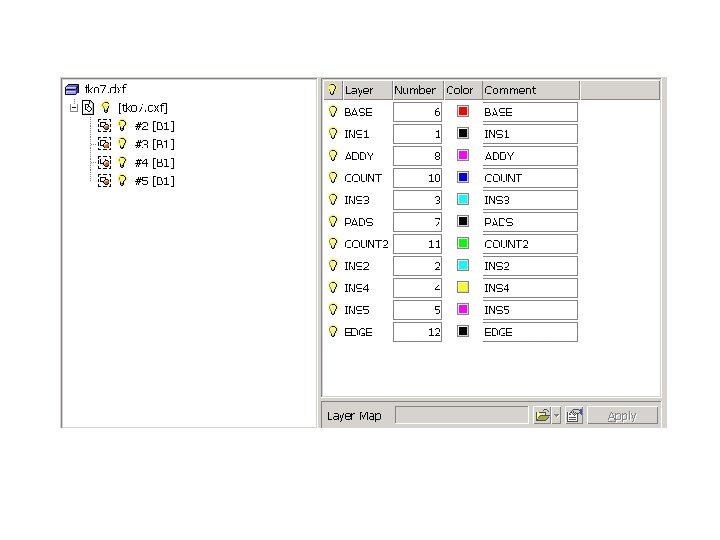

• Built-in CAD Viewer • Supported formats: ASCII, Post. Script, DXF, GDS-II, txt-GDS, CIF, TLC and others • Batch file conversion: automatically convert several files within minutes. • Easy selection of file formats and unique setup of the format are available. • Interactively checks and repairs broken and open polygons / polylines. • Flatten command will remove hierarchy from files for use in hierarchy sensitive applications. • Easy selection of cells and layers to be converted

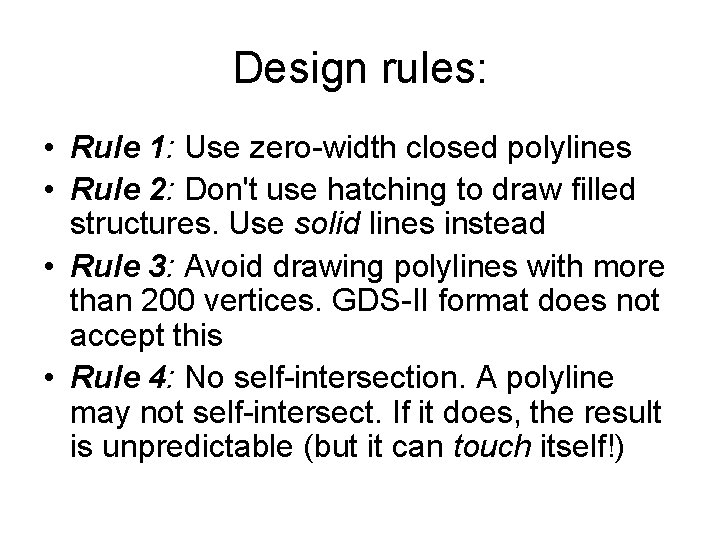

Design rules: • Rule 1: Use zero-width closed polylines • Rule 2: Don't use hatching to draw filled structures. Use solid lines instead • Rule 3: Avoid drawing polylines with more than 200 vertices. GDS-II format does not accept this • Rule 4: No self-intersection. A polyline may not self-intersect. If it does, the result is unpredictable (but it can touch itself!)

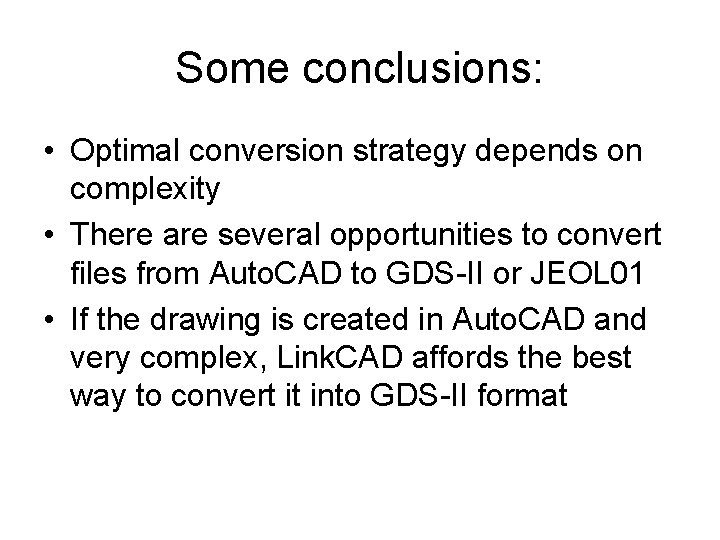

Some conclusions: • Optimal conversion strategy depends on complexity • There are several opportunities to convert files from Auto. CAD to GDS-II or JEOL 01 • If the drawing is created in Auto. CAD and very complex, Link. CAD affords the best way to convert it into GDS-II format
