Vital Signs Vital Signs Provide information about body
Vital Signs

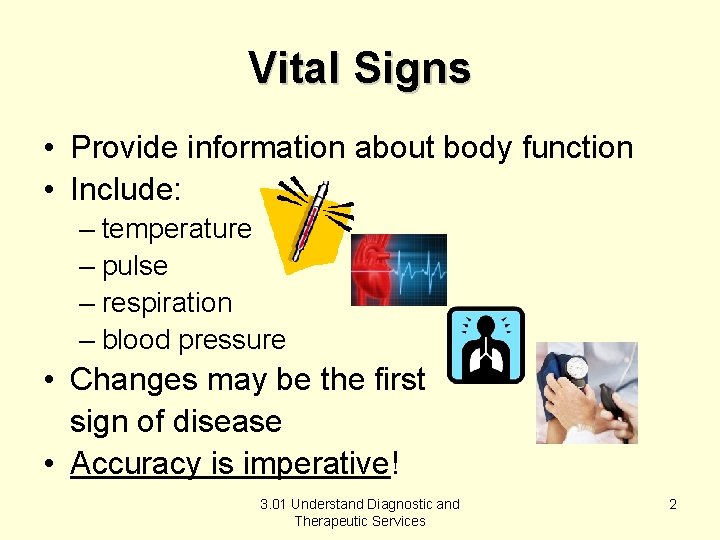

Vital Signs • Provide information about body function • Include: – temperature – pulse – respiration – blood pressure • Changes may be the first sign of disease • Accuracy is imperative! 3. 01 Understand Diagnostic and Therapeutic Services 2
Vital Signs Temperature Measurement of the balance between heat lost and heat produced Heat lost through: • • • Perspiration Respiration Excretion Heat produced by: • Metabolism of food • Muscle and gland activity 3. 01 Understand Diagnostic and Therapeutic Services 3
Vital Signs Temperature Normal ranges – 97º - 100º F – 36. 1º - 37. 8º C 3. 01 Understand Diagnostic and Therapeutic Services 4
Vital Signs Temperature Hypothermia • Temperature below 95º F • Death can occur if below 93º F 3. 01 Understand Diagnostic and Therapeutic Services 5

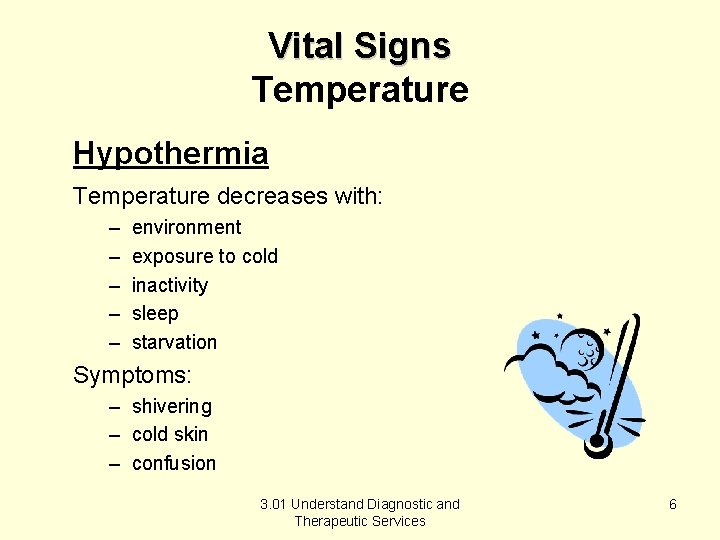

Vital Signs Temperature Hypothermia Temperature decreases with: – – – environment exposure to cold inactivity sleep starvation Symptoms: – shivering – cold skin – confusion 3. 01 Understand Diagnostic and Therapeutic Services 6
Vital Signs Temperature Hyperthermia • Temperature 100 -104º F • Temperature above 104º F is life-threatening • Prolonged hyperthermia may cause brain injury. 3. 01 Understand Diagnostic and Therapeutic Services 7
Vital Signs Temperature Hyperthermia Temperature increases with: – – environment exercise illness, infection, injury stress Symptoms: – – hot, dry, red skin nausea/vomiting headache low blood pressure 3. 01 Understand Diagnostic and Therapeutic Services 8
Vital Signs Temperature Thermometers Clinical Non-mercury glass Aural Electronic 3. 01 Understand Diagnostic and Therapeutic Services 9

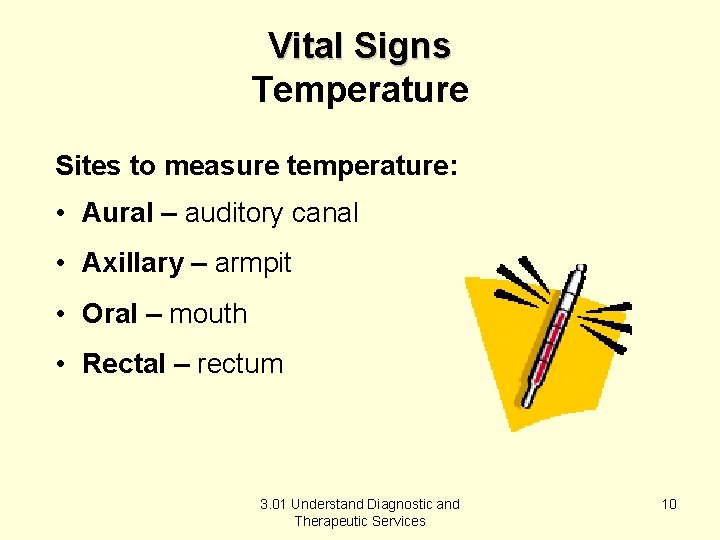

Vital Signs Temperature Sites to measure temperature: • Aural – auditory canal • Axillary – armpit • Oral – mouth • Rectal – rectum 3. 01 Understand Diagnostic and Therapeutic Services 10
Vital Signs Temperature To record temperature: – Oral 98. 6º (O) – Rectal 99. 6º (R) – Axillary 97. 6º (ax) – Aural 98. 6º (T) 3. 01 Understand Diagnostic and Therapeutic Services 11
Vital Signs Temperature Measurement Oral • Ask the patient if they have ingested hot or cold food or drink, or smoked within the last ½ hour • If yes, wait at least 15 minutes before measuring the oral temperature 3. 01 Understand Diagnostic and Therapeutic Services 12
Vital Signs REPORT ABNORMAL RESULTS OF ANY VITAL SIGN IMMEDIATELY 3. 01 Understand Diagnostic and Therapeutic Services 13

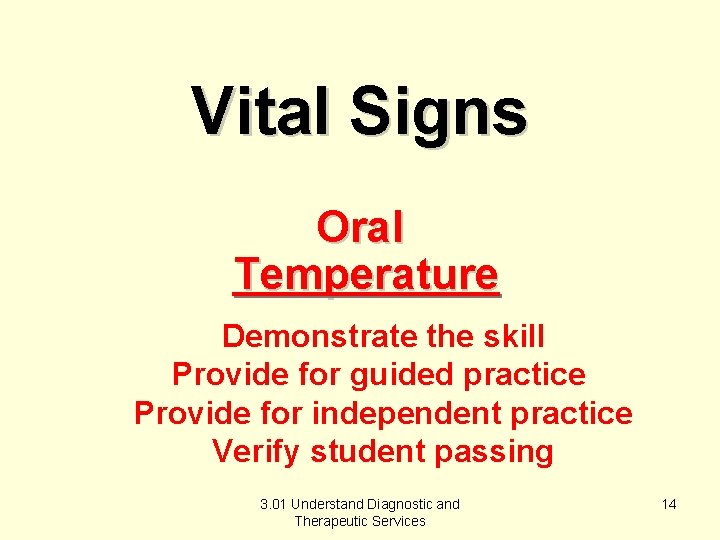

Vital Signs Oral Temperature Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 14
Vital Signs Temperature Measurement • Aural • Pros: – Measures core body temperature – Fast and convenient • Con: – Inaccurate if not placed correctly in the ear canal – Ear infection – Ear wax 3. 01 Understand Diagnostic and Therapeutic Services 15
Vital Signs Aural Temperature Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 16
Vital Signs Pulse Pressure of blood on artery walls as the heart beats and relaxes • Sites: Temporal – side of the forehead Carotid – side of the neck Brachial – inner elbow Radial – above thumb at radius Femoral – upper thigh Popliteal – behind the knee Dorsalis pedis – top of the arch of the foot 3. 01 Understand Diagnostic and Therapeutic Services 17

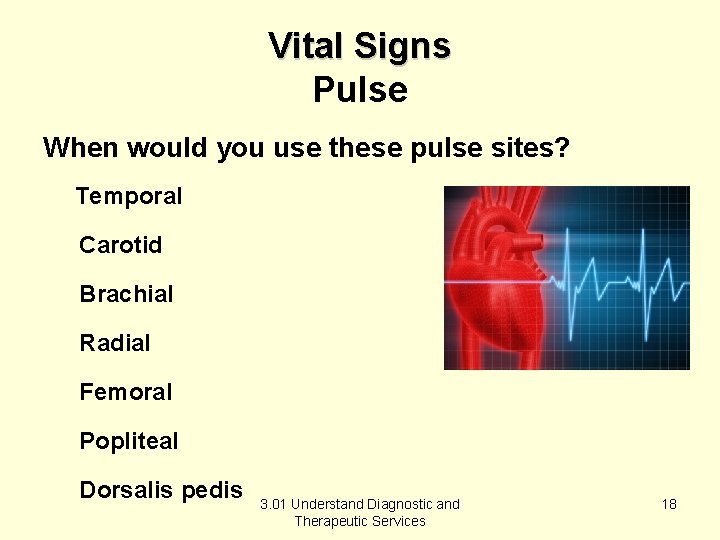

Vital Signs Pulse When would you use these pulse sites? Temporal Carotid Brachial Radial Femoral Popliteal Dorsalis pedis 3. 01 Understand Diagnostic and Therapeutic Services 18
Vital Signs Pulse Normal rate adult (male) 60 – 70 beats per minute adult (female) 65 – 80 beats per minute children (over 7) 70 – 100 beats per minute children (1 – 7) 80 – 110 beats per minute infants (less than 1 year) 100 – 160 beats per minute Rhythm regular or irregular Volume strength of the pulse 3. 01 Understand Diagnostic and Therapeutic Services 19
Vital Signs Pulse • Pulse can be increased by: – exercise – stimulant drugs – excitement – fever – shock – nervousness 3. 01 Understand Diagnostic and Therapeutic Services 20
Vital Signs Pulse • Pulse can be decreased by: – sleep – depressant drugs – heart disease – coma 3. 01 Understand Diagnostic and Therapeutic Services 21

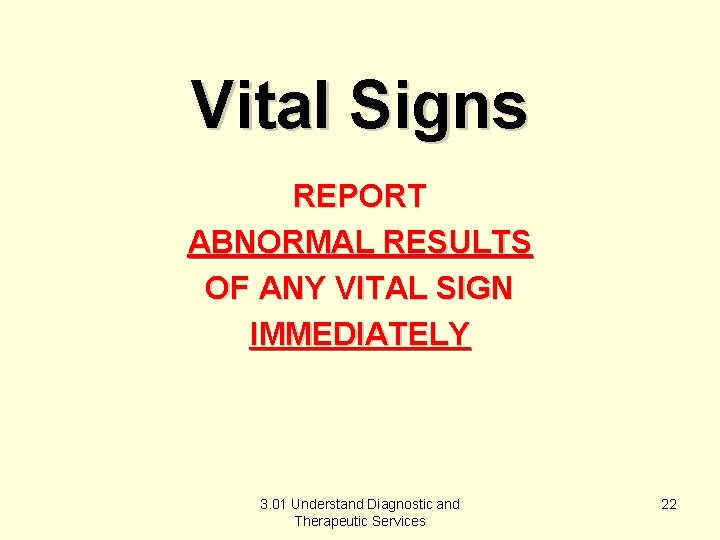

Vital Signs REPORT ABNORMAL RESULTS OF ANY VITAL SIGN IMMEDIATELY 3. 01 Understand Diagnostic and Therapeutic Services 22
Vital Signs Radial Pulse Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 23
Vital Signs Apical Pulse • Pulse count taken with the stethoscope. • Use if the patient has: – Irregular heartbeat – Arteriosclerosis – Weak or rapid radial pulse – Infants and children 3. 01 Understand Diagnostic and Therapeutic Services 24

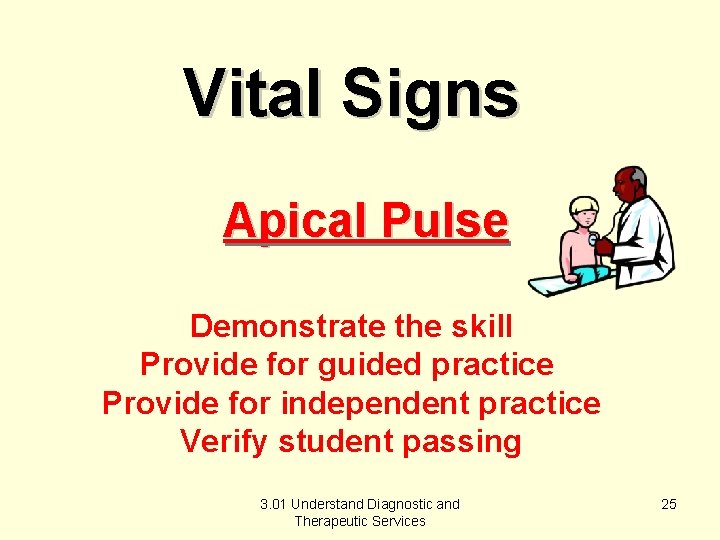

Vital Signs Apical Pulse Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 25
Vital Signs Respiration Process of taking in oxygen and expelling carbon dioxide 1 inspiration + 1 expiration = respiration Normal rate: adults – 12 – 20 breaths per minute children – 16 – 30 breaths per minute Evaluate for rhythm and character Rhythm – regular or irregular Character – depth, ease of breaths 3. 01 Understand Diagnostic and Therapeutic Services 26

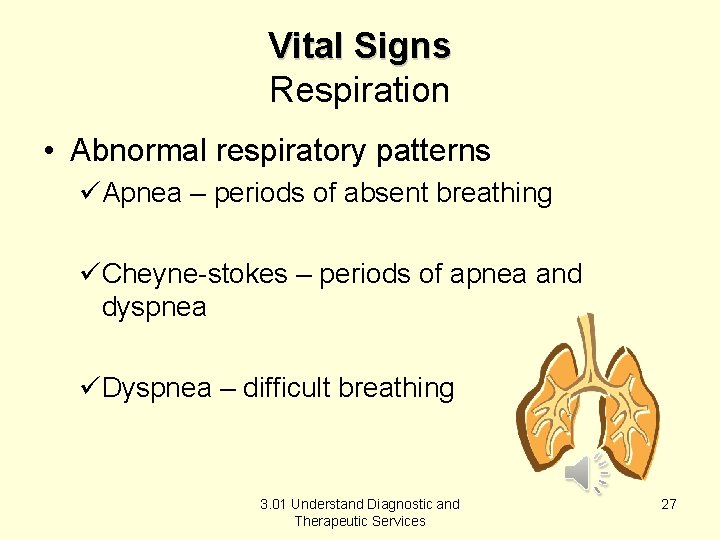

Vital Signs Respiration • Abnormal respiratory patterns üApnea – periods of absent breathing üCheyne-stokes – periods of apnea and dyspnea üDyspnea – difficult breathing 3. 01 Understand Diagnostic and Therapeutic Services 27

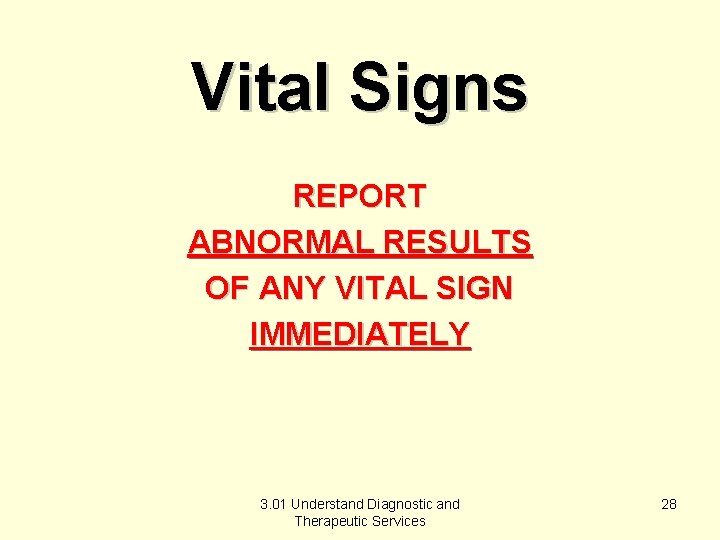

Vital Signs REPORT ABNORMAL RESULTS OF ANY VITAL SIGN IMMEDIATELY 3. 01 Understand Diagnostic and Therapeutic Services 28

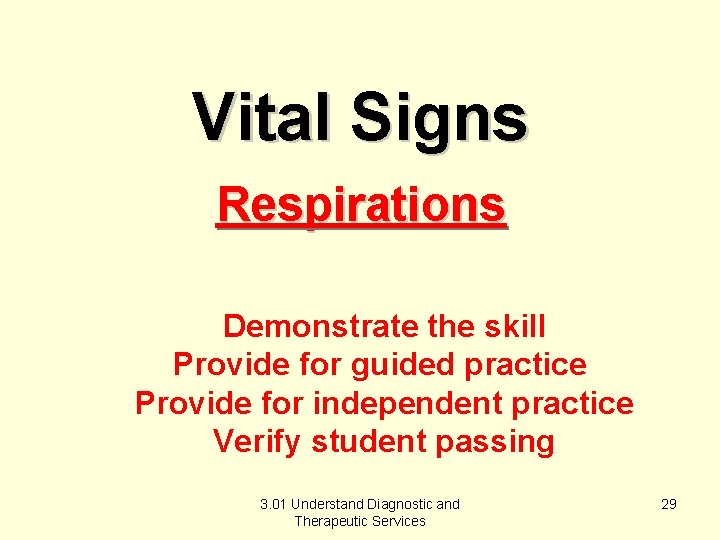

Vital Signs Respirations Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 29

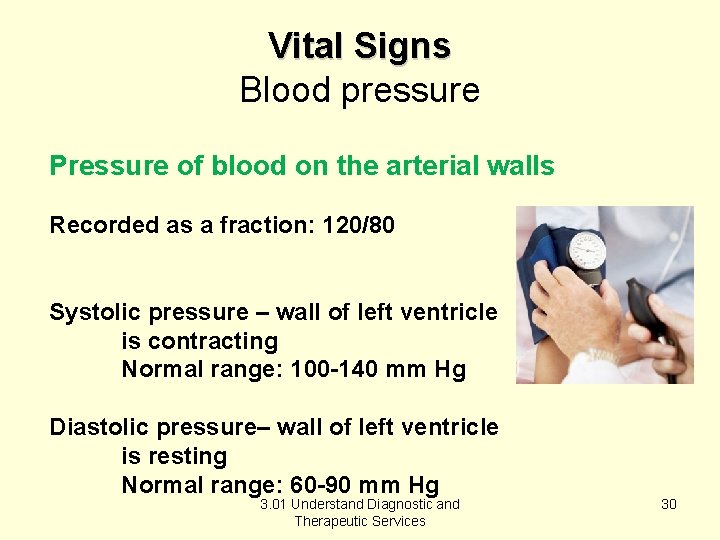

Vital Signs Blood pressure Pressure of blood on the arterial walls Recorded as a fraction: 120/80 Systolic pressure – wall of left ventricle is contracting Normal range: 100 -140 mm Hg Diastolic pressure– wall of left ventricle is resting Normal range: 60 -90 mm Hg 3. 01 Understand Diagnostic and Therapeutic Services 30
Vital Signs Blood pressure Factors that elevate blood pressure: – anxiety – – eating exercise excitement stimulant drugs Factors that lower blood pressure: – – depressant drugs excessive loss of blood rest shock 3. 01 Understand Diagnostic and Therapeutic Services 31
Vital Signs REPORT ABNORMAL RESULTS OF ANY VITAL SIGN IMMEDIATELY 3. 01 Understand Diagnostic and Therapeutic Services 32

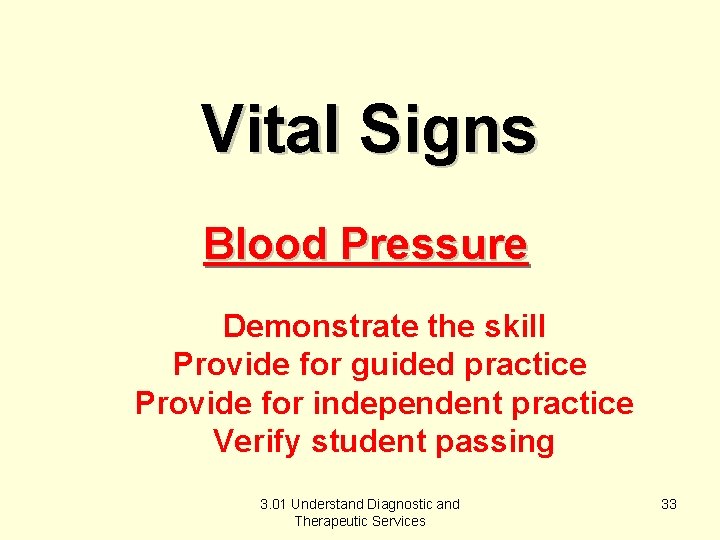

Vital Signs Blood Pressure Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 33

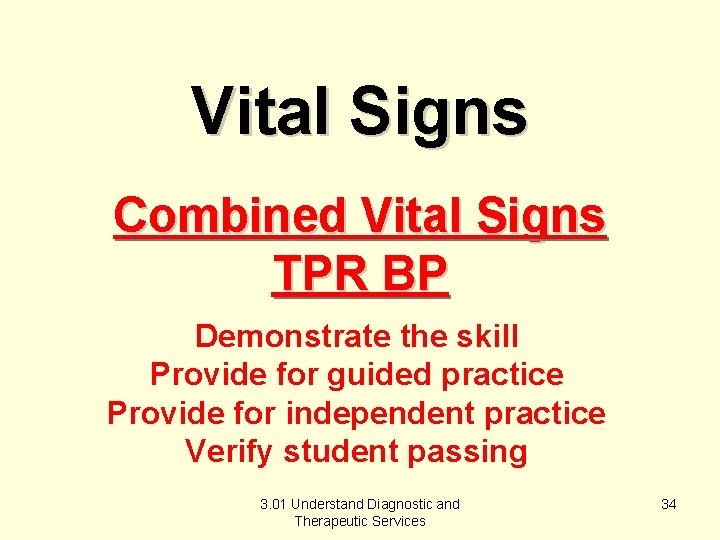

Vital Signs Combined Vital Signs TPR BP Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 34
Diagnostic Skills: Height and Weight Measured if warranted by patient’s age and physical condition • Measured routinely: – on admission to health care facility – as part of annual physical examination – each provider visit for children • Important for evaluation of laboratory tests and calculation of medications 3. 01 Understand Diagnostic and Therapeutic Services 35

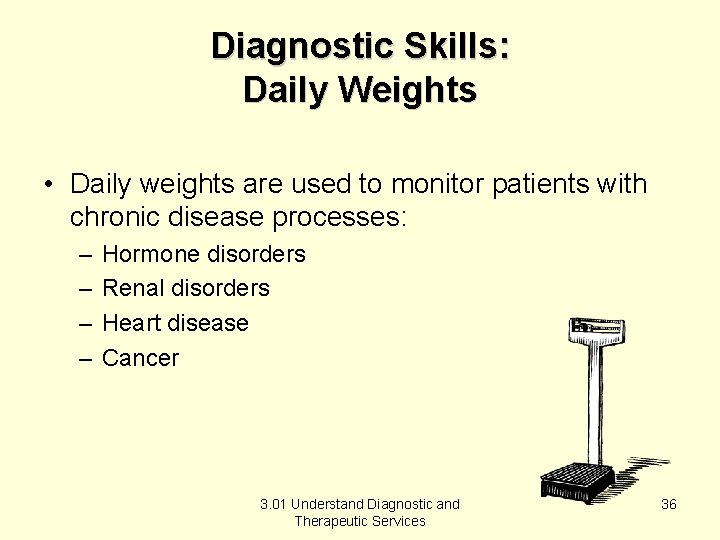

Diagnostic Skills: Daily Weights • Daily weights are used to monitor patients with chronic disease processes: – – Hormone disorders Renal disorders Heart disease Cancer 3. 01 Understand Diagnostic and Therapeutic Services 36
Diagnostic Skills: Daily Weights • Guidelines for daily weights: use the same scales at the same time wearing the same type of clothing patient voids to empty bladder • Make sure to balance the scales before weighing the patient. 3. 01 Understand Diagnostic and Therapeutic Services 37
Diagnostic Skills: Daily Weights OBSERVE SAFETY PRECAUTONS! Prevent injury from falls and the protruding height lever. 3. 01 Understand Diagnostic and Therapeutic Services 38

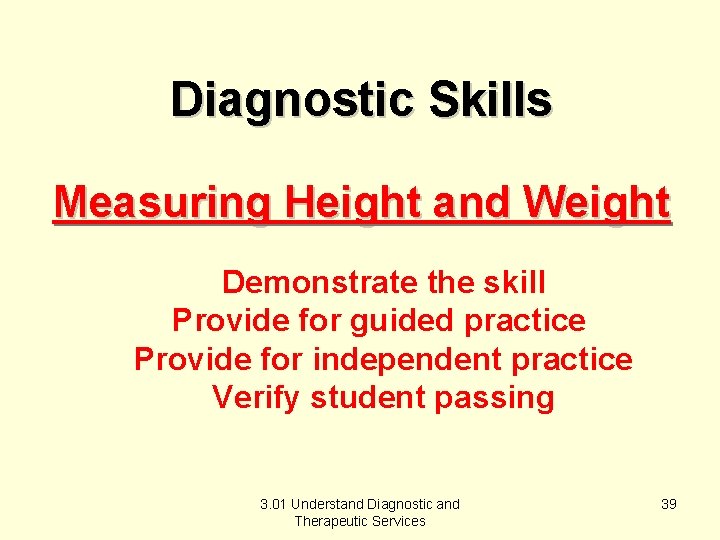

Diagnostic Skills Measuring Height and Weight Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 39
Diagnostic Skills: Measure Visual Acuity • Used to measure the ability to see • Snellen charts: used to measure distant vision • Ishihara method tests for color • Tonometer measures intraocular pressure 3. 01 Understand Diagnostic and Therapeutic Services 40
Diagnostic Skills: Measure Visual Acuity • OD – right eye (oculus dexter) • OS – left eye (oculus sinister) • OU – both eyes (oculus uterque) • Myopia – nearsightedness, defect in distant vision • Hyperopia – farsightedness, defect in near vision 3. 01 Understand Diagnostic and Therapeutic Services 41
Diagnostic Skills Measure Visual Acuity Demonstrate the skill Provide for guided practice Provide for independent practice Verify student passing 3. 01 Understand Diagnostic and Therapeutic Services 42
