Visual Studio Debugger Tips And Tricks John Cunningham

Visual Studio Debugger Tips And Tricks John Cunningham Development Manager Microsoft DTL 323

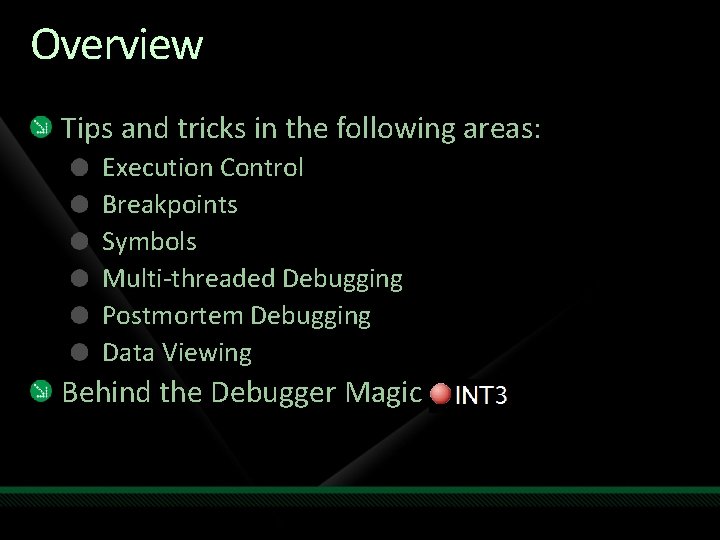

Overview Tips and tricks in the following areas: Execution Control Breakpoints Symbols Multi-threaded Debugging Postmortem Debugging Data Viewing Behind the Debugger Magic

VS Debugger Overview Debugs many different code environments Native Windows X 86 X 64 IA 64 Managed code Windows (32 bit and 64 bit) SQLCLR Script T-SQL Native device programs And many, many more…

VS Debugger Architecture VSDebug Package SDM CPDE (Managed) Nat. Dbg. DE (Native) Your Engine Here Your EE Here See resources at the end for more info on extending and customizing

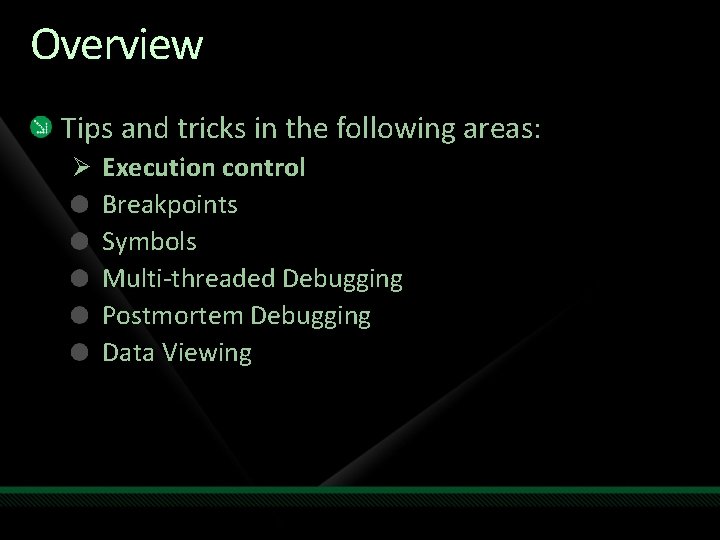

Overview Tips and tricks in the following areas: Ø Execution control Breakpoints Symbols Multi-threaded Debugging Postmortem Debugging Data Viewing

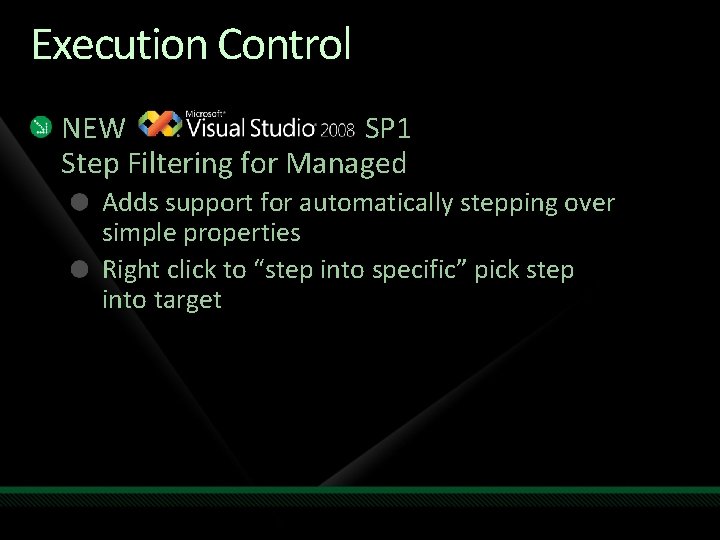

Execution Control NEW SP 1 Step Filtering for Managed Adds support for automatically stepping over simple properties Right click to “step into specific” pick step into target

demo Step Filtering

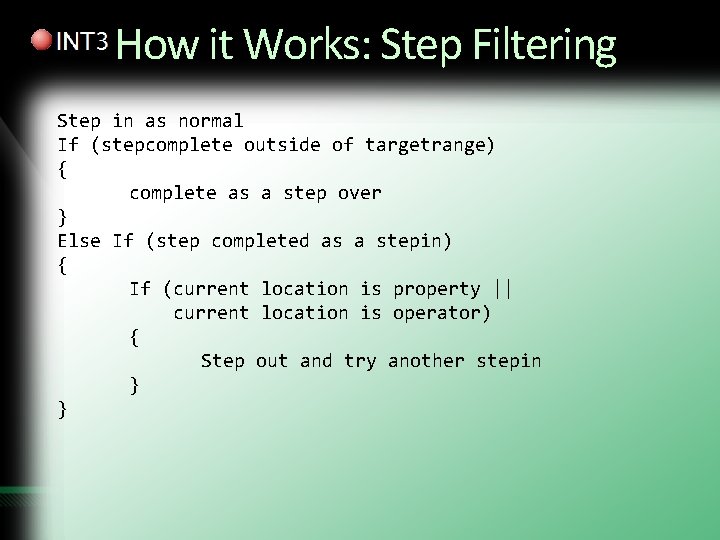

How it Works: Step Filtering Step in as normal If (stepcomplete outside of targetrange) { complete as a step over } Else If (step completed as a stepin) { If (current location is property || current location is operator) { Step out and try another stepin } }

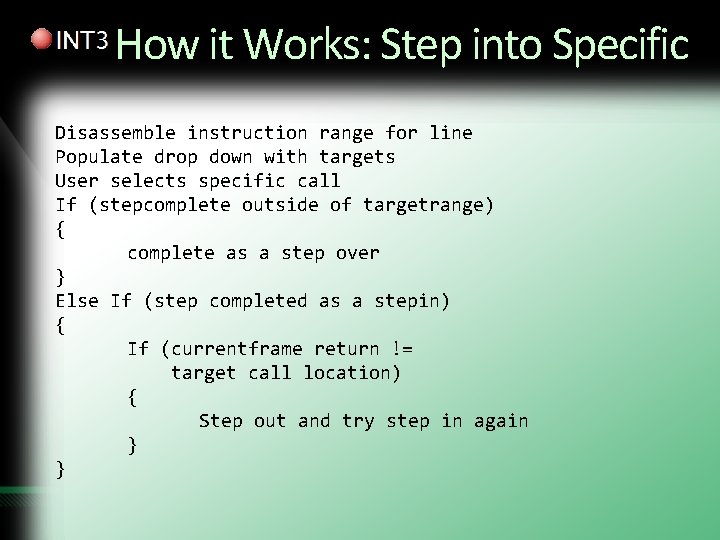

How it Works: Step into Specific Disassemble instruction range for line Populate drop down with targets User selects specific call If (stepcomplete outside of targetrange) { complete as a step over } Else If (step completed as a stepin) { If (currentframe return != target call location) { Step out and try step in again } }

Overview Tips and tricks in the following areas: Execution Control Ø Breakpoints Symbols Multi-threaded Debugging Postmortem Debugging Data Viewing

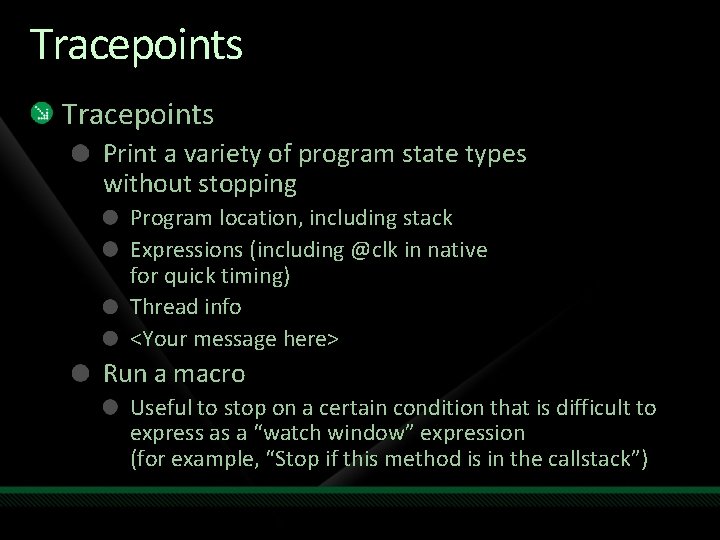

Tracepoints Print a variety of program state types without stopping Program location, including stack Expressions (including @clk in native for quick timing) Thread info <Your message here> Run a macro Useful to stop on a certain condition that is difficult to express as a “watch window” expression (for example, “Stop if this method is in the callstack”)

demo Tracepoints

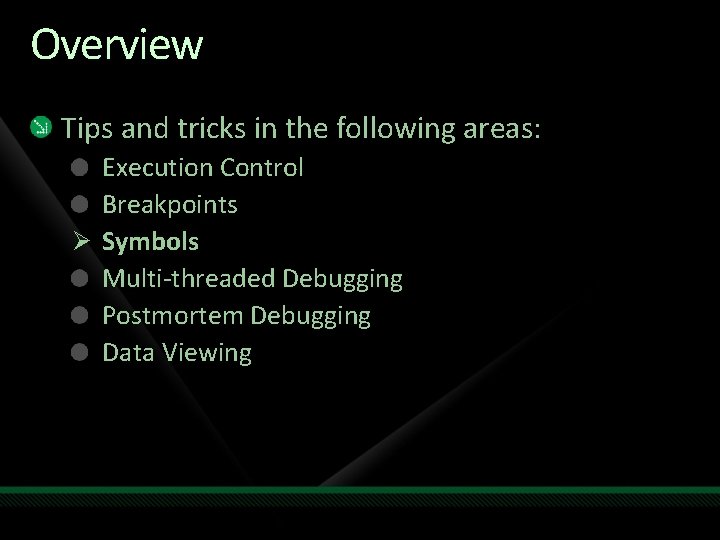

Overview Tips and tricks in the following areas: Execution Control Breakpoints Ø Symbols Multi-threaded Debugging Postmortem Debugging Data Viewing

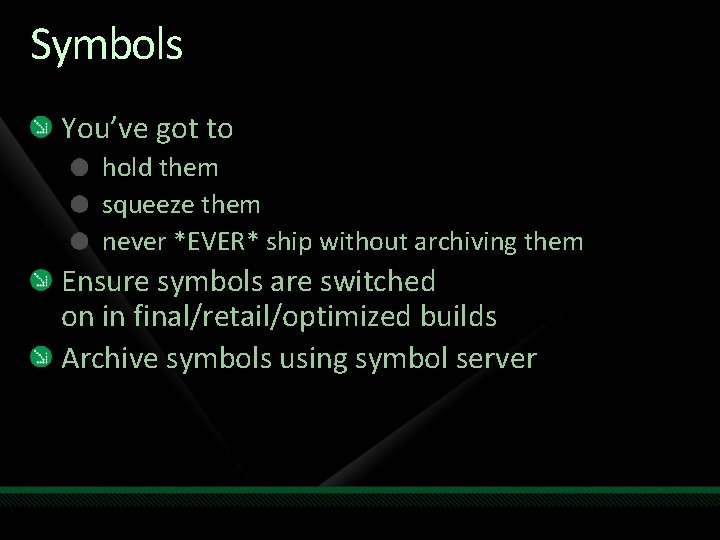

Symbols You’ve got to hold them squeeze them never *EVER* ship without archiving them Ensure symbols are switched on in final/retail/optimized builds Archive symbols using symbol server

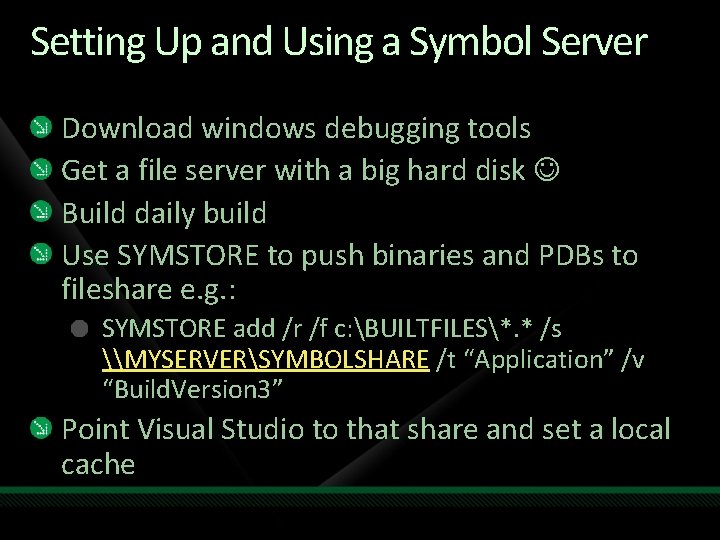

Setting Up and Using a Symbol Server Download windows debugging tools Get a file server with a big hard disk Build daily build Use SYMSTORE to push binaries and PDBs to fileshare e. g. : SYMSTORE add /r /f c: BUILTFILES*. * /s \MYSERVERSYMBOLSHARE /t “Application” /v “Build. Version 3” Point Visual Studio to that share and set a local cache

demo Symbol Paths

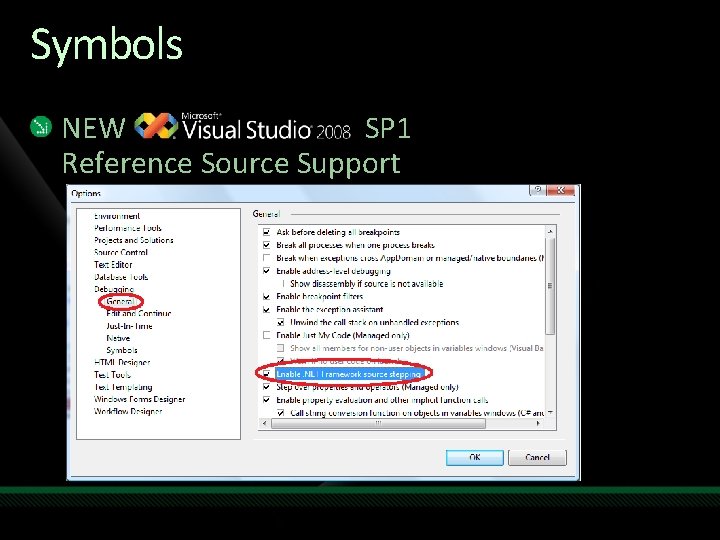

Symbols NEW SP 1 Reference Source Support

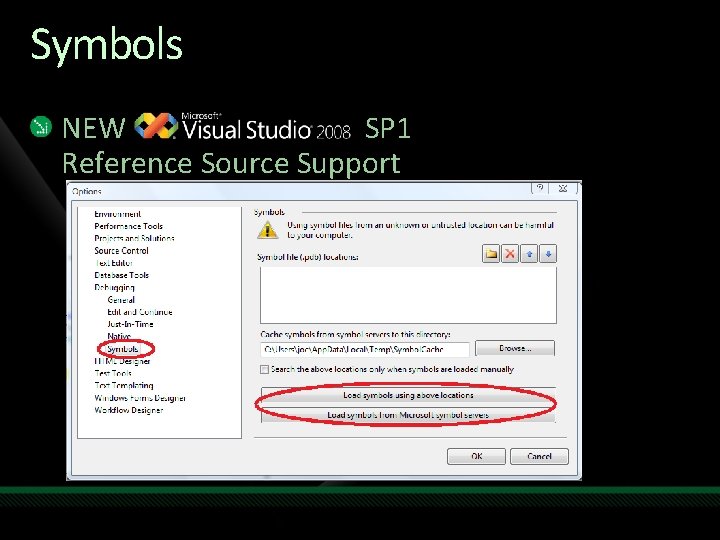

Symbols NEW SP 1 Reference Source Support

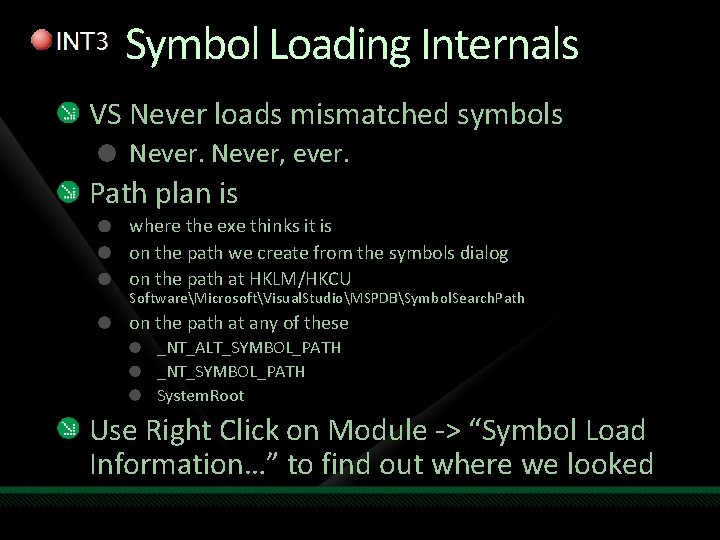

Symbol Loading Internals VS Never loads mismatched symbols Never, ever. Path plan is where the exe thinks it is on the path we create from the symbols dialog on the path at HKLM/HKCU SoftwareMicrosoftVisual. StudioMSPDBSymbol. Search. Path on the path at any of these _NT_ALT_SYMBOL_PATH _NT_SYMBOL_PATH System. Root Use Right Click on Module -> “Symbol Load Information…” to find out where we looked

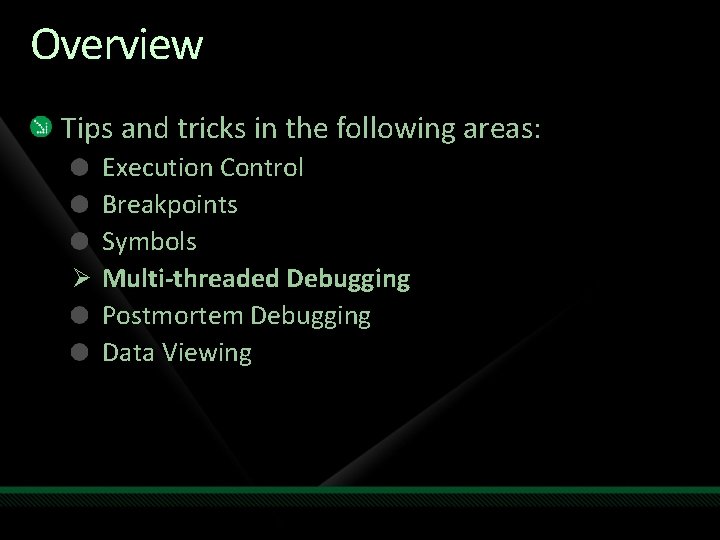

Overview Tips and tricks in the following areas: Execution Control Breakpoints Symbols Ø Multi-threaded Debugging Postmortem Debugging Data Viewing

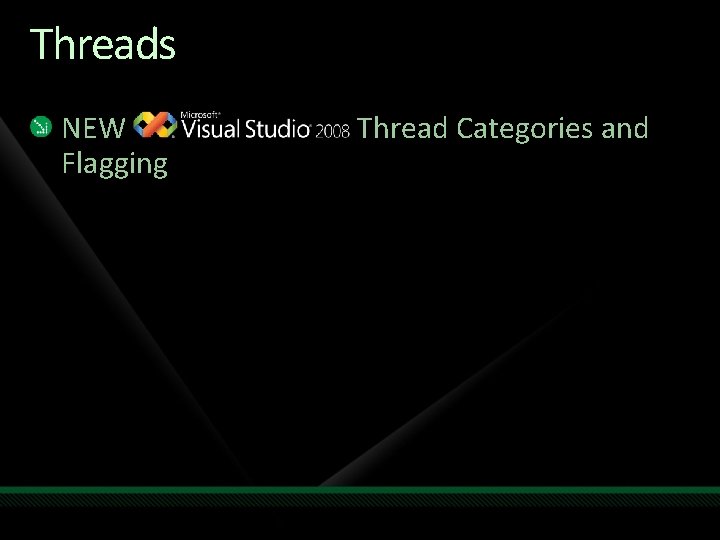

Threads NEW Flagging Thread Categories and

demo Threads

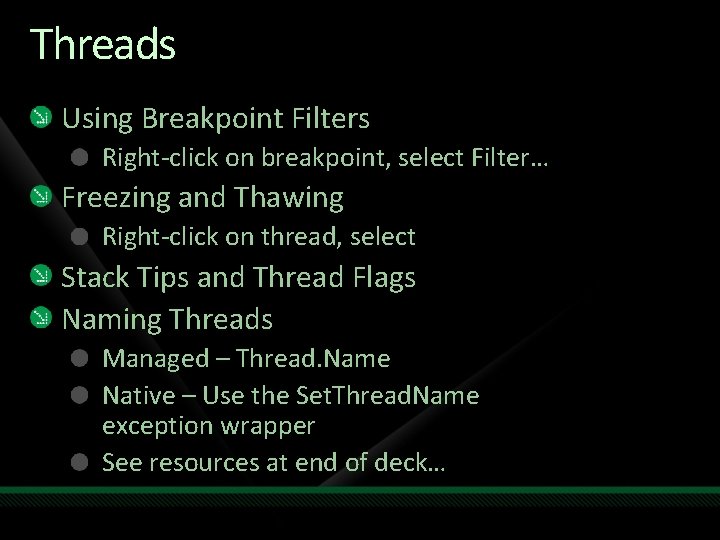

Threads Using Breakpoint Filters Right-click on breakpoint, select Filter… Freezing and Thawing Right-click on thread, select Stack Tips and Thread Flags Naming Threads Managed – Thread. Name Native – Use the Set. Thread. Name exception wrapper See resources at end of deck…

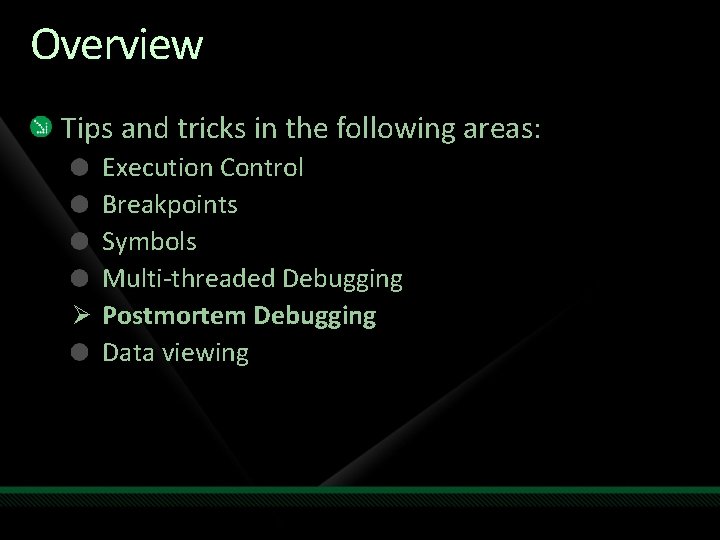

Overview Tips and tricks in the following areas: Execution Control Breakpoints Symbols Multi-threaded Debugging Ø Postmortem Debugging Data viewing

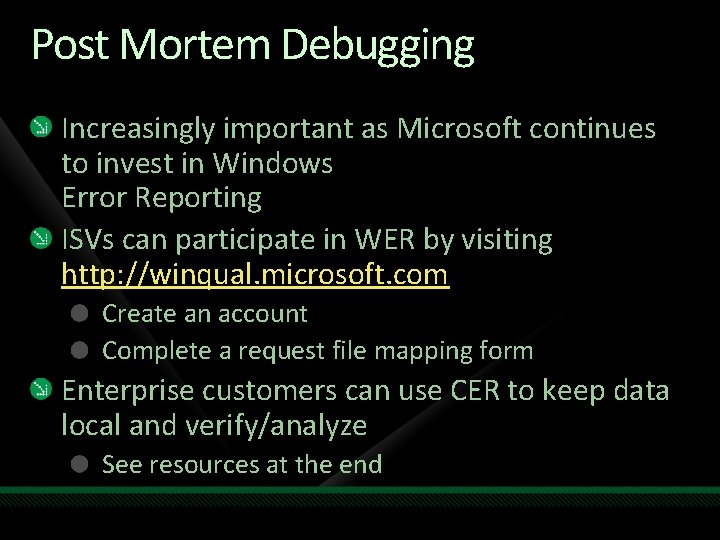

Post Mortem Debugging Increasingly important as Microsoft continues to invest in Windows Error Reporting ISVs can participate in WER by visiting http: //winqual. microsoft. com Create an account Complete a request file mapping form Enterprise customers can use CER to keep data local and verify/analyze See resources at the end

demo Postmortem debugging

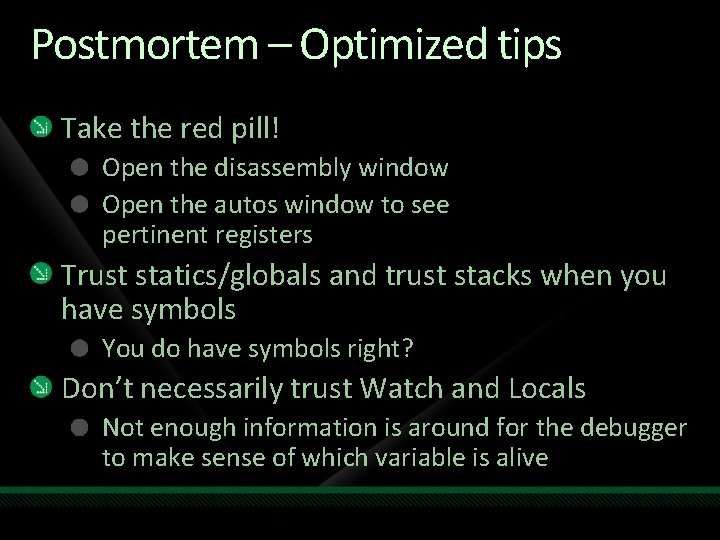

Postmortem – Optimized tips Take the red pill! Open the disassembly window Open the autos window to see pertinent registers Trust statics/globals and trust stacks when you have symbols You do have symbols right? Don’t necessarily trust Watch and Locals Not enough information is around for the debugger to make sense of which variable is alive

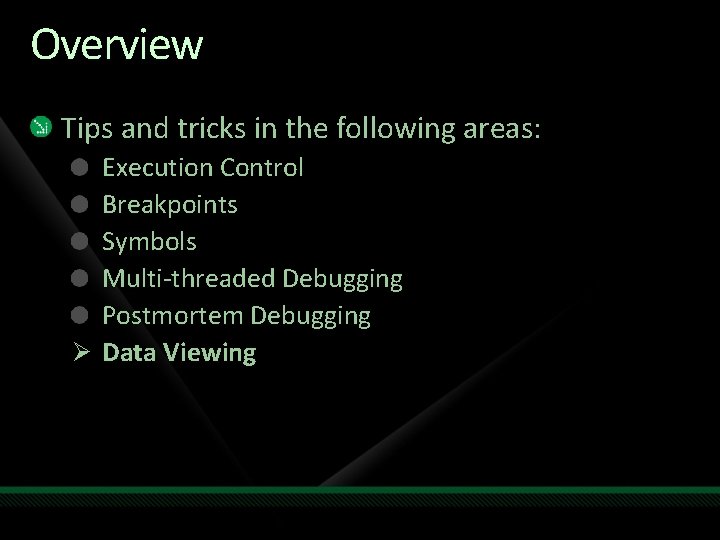

Overview Tips and tricks in the following areas: Execution Control Breakpoints Symbols Multi-threaded Debugging Postmortem Debugging Ø Data Viewing

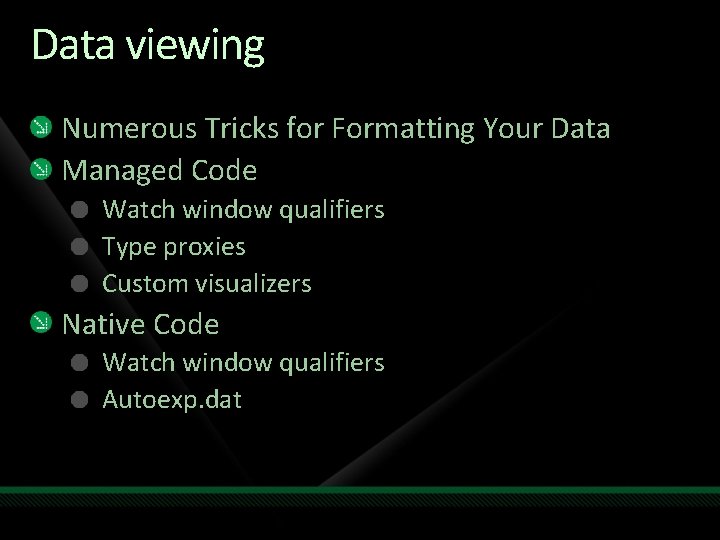

Data viewing Numerous Tricks for Formatting Your Data Managed Code Watch window qualifiers Type proxies Custom visualizers Native Code Watch window qualifiers Autoexp. dat

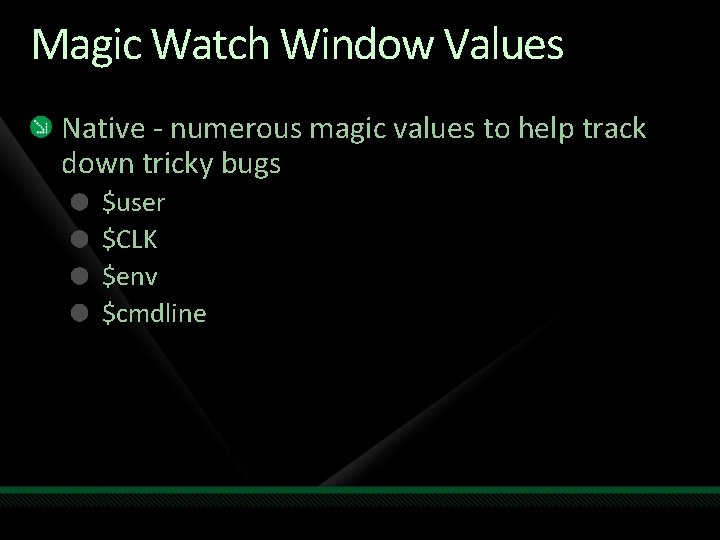

Magic Watch Window Values Native - numerous magic values to help track down tricky bugs $user $CLK $env $cmdline

demo Data Viewing and Watch Magic

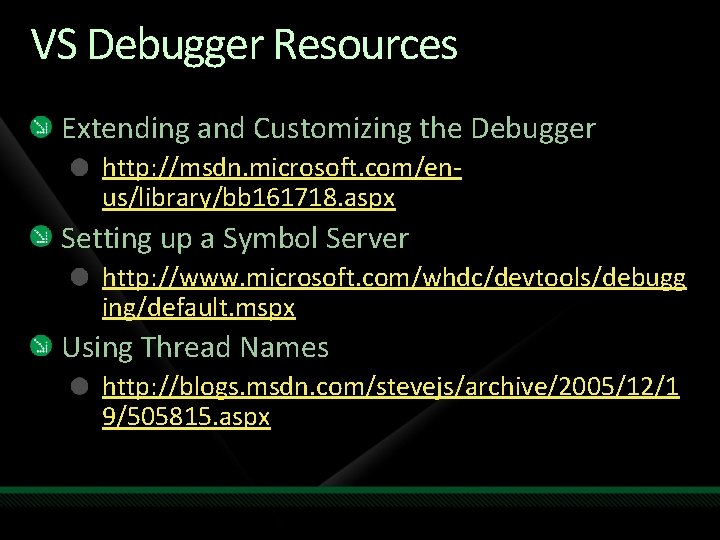

VS Debugger Resources Extending and Customizing the Debugger http: //msdn. microsoft. com/enus/library/bb 161718. aspx Setting up a Symbol Server http: //www. microsoft. com/whdc/devtools/debugg ing/default. mspx Using Thread Names http: //blogs. msdn. com/stevejs/archive/2005/12/1 9/505815. aspx

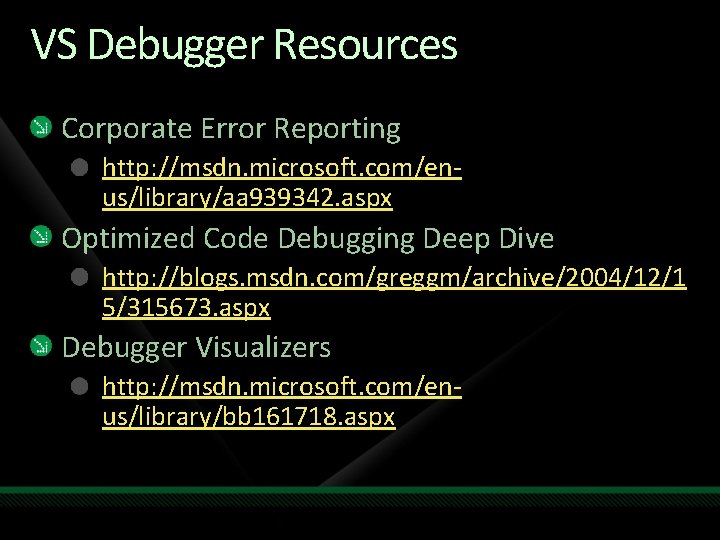

VS Debugger Resources Corporate Error Reporting http: //msdn. microsoft. com/enus/library/aa 939342. aspx Optimized Code Debugging Deep Dive http: //blogs. msdn. com/greggm/archive/2004/12/1 5/315673. aspx Debugger Visualizers http: //msdn. microsoft. com/enus/library/bb 161718. aspx

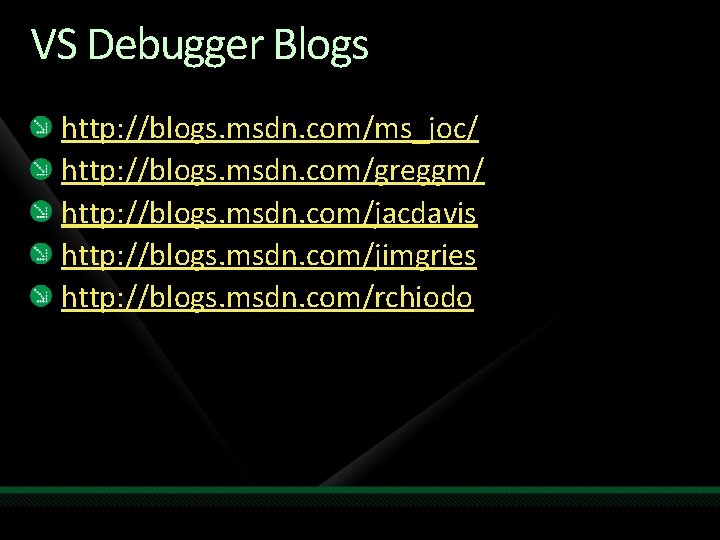

VS Debugger Blogs http: //blogs. msdn. com/ms_joc/ http: //blogs. msdn. com/greggm/ http: //blogs. msdn. com/jacdavis http: //blogs. msdn. com/jimgries http: //blogs. msdn. com/rchiodo
