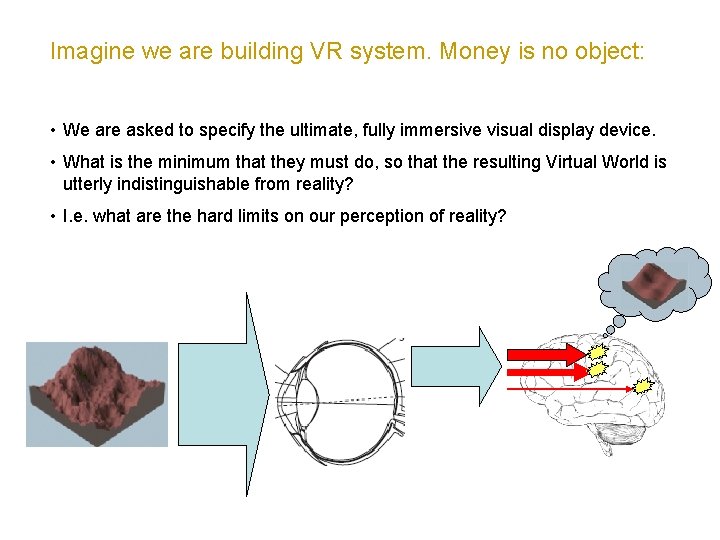

Imagine we are building VR system. Money is no object: • We are asked to specify the ultimate, fully immersive visual display device. • What is the minimum that they must do, so that the resulting Virtual World is utterly indistinguishable from reality? • I. e. what are the hard limits on our perception of reality?

How to start to answer this question? • Basic visual hardware: Visual anatomy & physiology • The fundamental unit of visual coding: Receptive fields • Visual pathways: The split of information streams • Brief aside: How do photoreceptors change EM radiation into neural activity? • How well can you really see? Resolution and acuity • Seeing the sun and the stars: Brightness adaption • Colour perception We’re going to keep in mind: The So What? Implications for Computer Graphics?

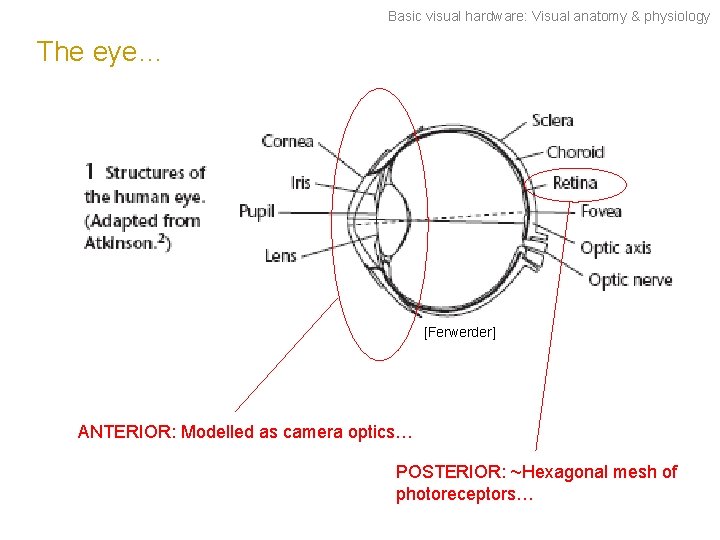

Basic visual hardware: Visual anatomy & physiology The eye… [Ferwerder] ANTERIOR: Modelled as camera optics… POSTERIOR: ~Hexagonal mesh of photoreceptors…

Basic visual hardware: Visual anatomy & physiology Photoreceptors in the retina: Rods & Cones Pigmented layer Start of the ‘brain’… To the optic nerve LIGHT Adapted from: [Ferwerder]

Basic visual hardware: Visual anatomy & physiology Photoreceptors in the retina: Rods & Cones (2) • Extremely sensitive to light • Provide achromatic vision • Work at low level (scotopic) illumination • Large receptive fields • Peak absorbance (sensitivity) at ~500 nm • Less sensitive to light • Provide colour vision • Work at high level (photopic) illumination • Three types: ‘B’ peak at 437 nm, ‘G’ peak at 533 nm, ‘R’ peak: 564 nm Much smaller receptive fields [Ferwerder]

Basic visual hardware: Visual anatomy & physiology SO WHAT? • Understanding of “hardware” gives insight into kinds of information that can be coded • Real VR system: focus resource on right areas • Some colour representations have more bits for green

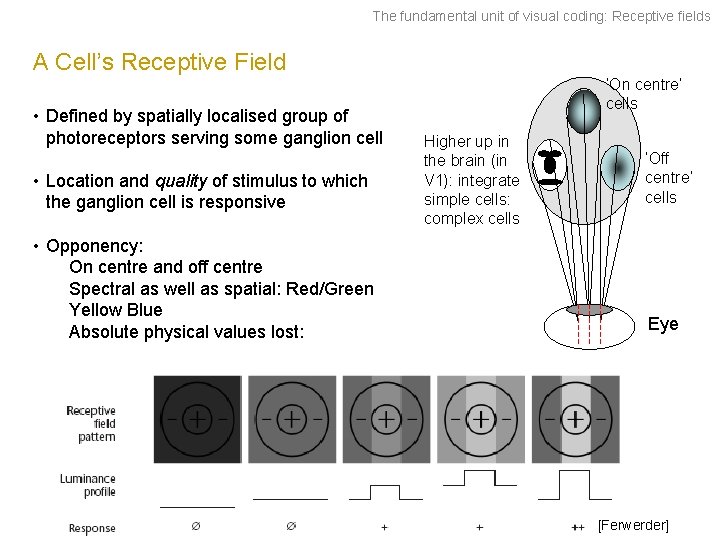

The fundamental unit of visual coding: Receptive fields A Cell’s Receptive Field • Defined by spatially localised group of photoreceptors serving some ganglion cell • Location and quality of stimulus to which the ganglion cell is responsive • Opponency: On centre and off centre Spectral as well as spatial: Red/Green Yellow Blue Absolute physical values lost: ‘On centre’ cells Higher up in the brain (in V 1): integrate simple cells: complex cells ‘Off centre’ cells Eye [Ferwerder]

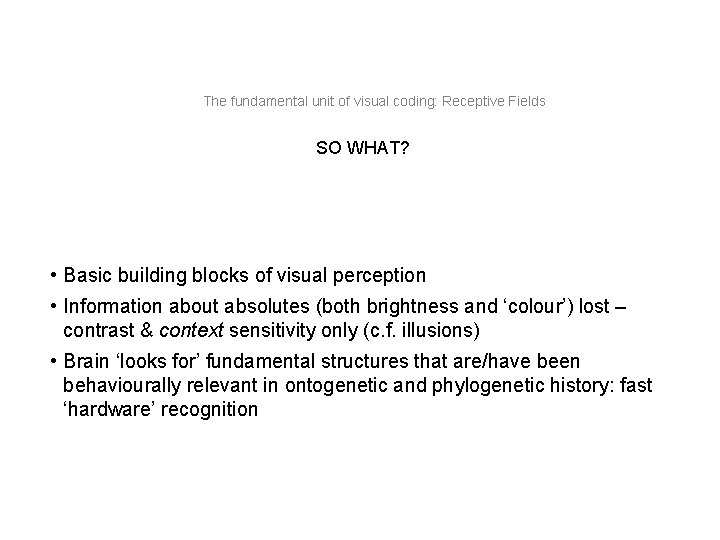

The fundamental unit of visual coding: Receptive Fields SO WHAT? • Basic building blocks of visual perception • Information about absolutes (both brightness and ‘colour’) lost – contrast & context sensitivity only (c. f. illusions) • Brain ‘looks for’ fundamental structures that are/have been behaviourally relevant in ontogenetic and phylogenetic history: fast ‘hardware’ recognition

Visual pathways: The split of information streams From the eye to the brain LGN: 6 layers: [Ferwerder] Magnocellular layers – primary input from peripheral retina – non spectrally opponent ganglions, large receptive fields Parvocellular layers – primary input from the foveal region – spectrally opponent cells, small receptive fields Area V 1 (Visual Cortex): more complex cells (I. e. with more complex receptive fields) Deals with What? And Where? …Separately?

Visual pathways: The split of information streams SO WHAT? Eyes may be serving 2 relatively separate visual systems: • Fast response, achromatic system, motion sensitive, low res. (Magnocellular layers) • Slow response trichromatic system, motion insensitive, high res. (Parvocellular layers)

How do photoreceptors change EM radiation into neural activity? Rods & Cones: Outersegment: billions of light sensitive pigment molecules Molecules embedded in disks, stacked like pancakes Rods: Pigment is Rhodopsin Al cu ters rre flo nt w in of m ole cu le El e pr ctr sy opa ical na ga ch ps te an e to ge s Ne af uro ne fect tran ur th sm on e n it ex ter s t es ng M sh olec ap ule e c ha ed rb bs o na oto mo lec ule Ph Rh od op sin Ph oto n γ

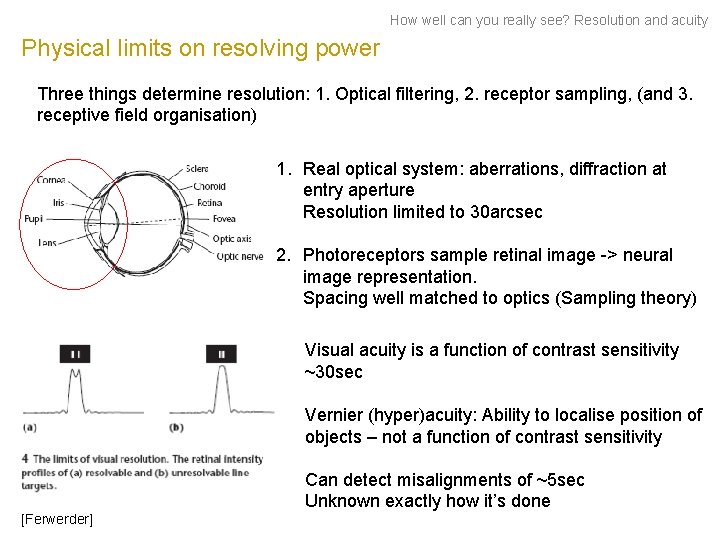

How well can you really see? Resolution and acuity Physical limits on resolving power Three things determine resolution: 1. Optical filtering, 2. receptor sampling, (and 3. receptive field organisation) 1. Real optical system: aberrations, diffraction at entry aperture Resolution limited to 30 arcsec 2. Photoreceptors sample retinal image -> neural image representation. Spacing well matched to optics (Sampling theory) Visual acuity is a function of contrast sensitivity ~30 sec Vernier (hyper)acuity: Ability to localise position of objects – not a function of contrast sensitivity Can detect misalignments of ~5 sec Unknown exactly how it’s done [Ferwerder]

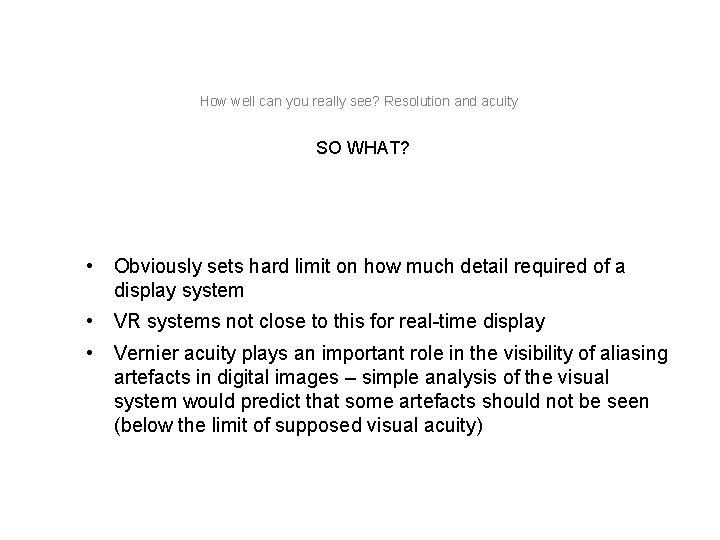

How well can you really see? Resolution and acuity SO WHAT? • Obviously sets hard limit on how much detail required of a display system • VR systems not close to this for real-time display • Vernier acuity plays an important role in the visibility of aliasing artefacts in digital images – simple analysis of the visual system would predict that some artefacts should not be seen (below the limit of supposed visual acuity)

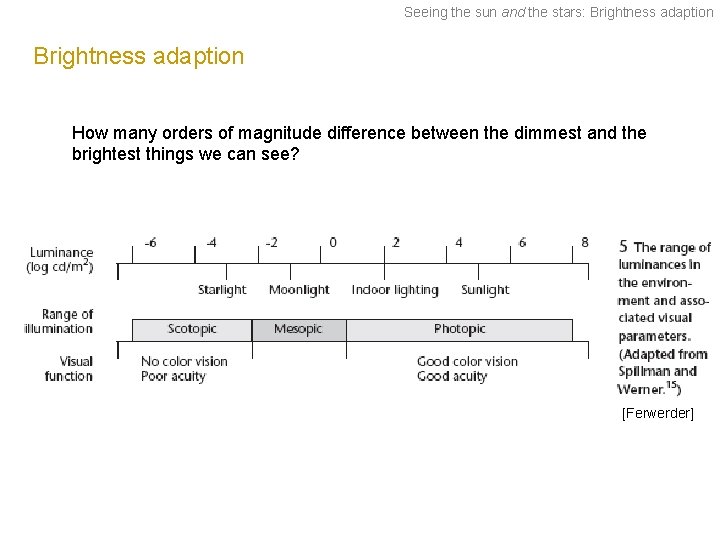

Seeing the sun and the stars: Brightness adaption How many orders of magnitude difference between the dimmest and the brightest things we can see? [Ferwerder]

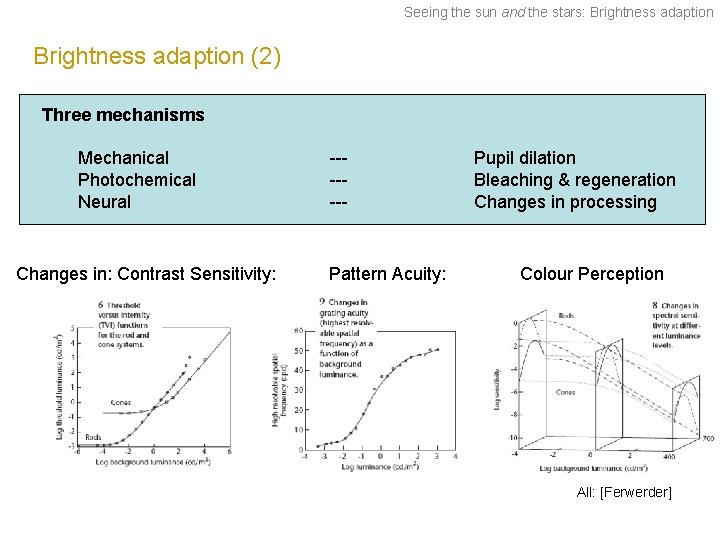

Seeing the sun and the stars: Brightness adaption (2) Three mechanisms Mechanical Photochemical Neural Changes in: Contrast Sensitivity: ------- Pattern Acuity: Pupil dilation Bleaching & regeneration Changes in processing Colour Perception All: [Ferwerder]

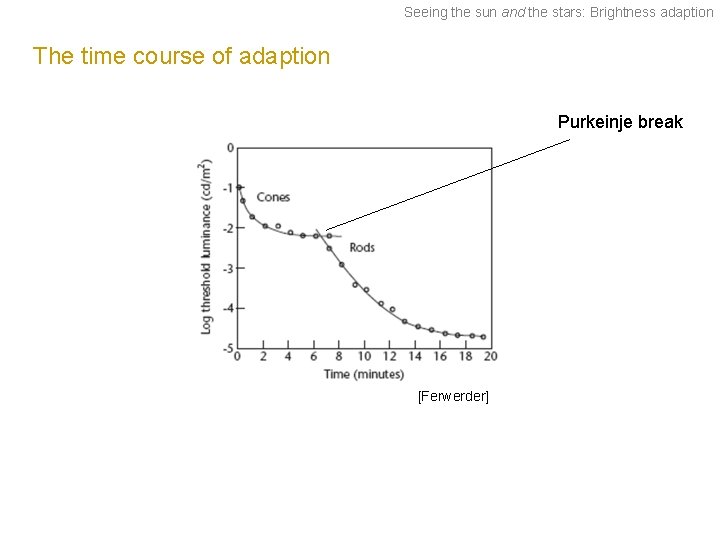

Seeing the sun and the stars: Brightness adaption The time course of adaption Purkeinje break [Ferwerder]

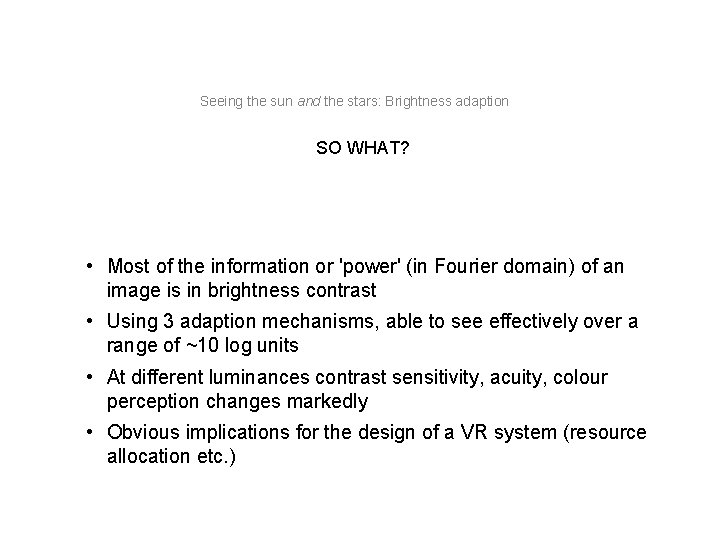

Seeing the sun and the stars: Brightness adaption SO WHAT? • Most of the information or 'power' (in Fourier domain) of an image is in brightness contrast • Using 3 adaption mechanisms, able to see effectively over a range of ~10 log units • At different luminances contrast sensitivity, acuity, colour perception changes markedly • Obvious implications for the design of a VR system (resource allocation etc. )

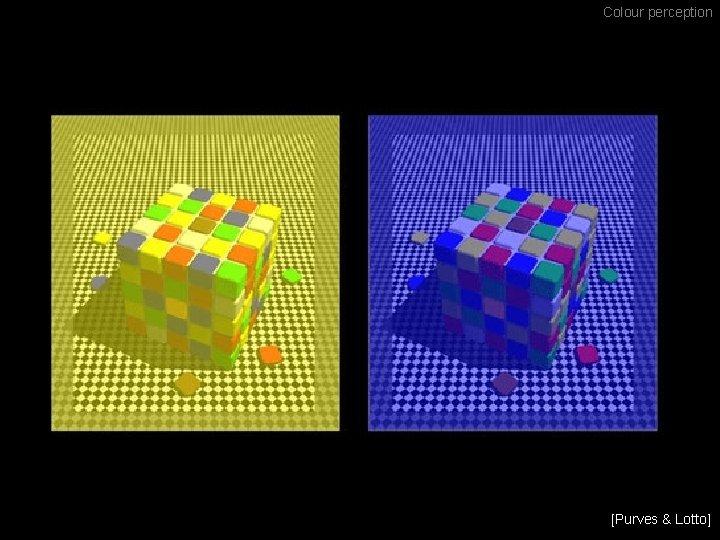

Colour perception [Purves & Lotto]

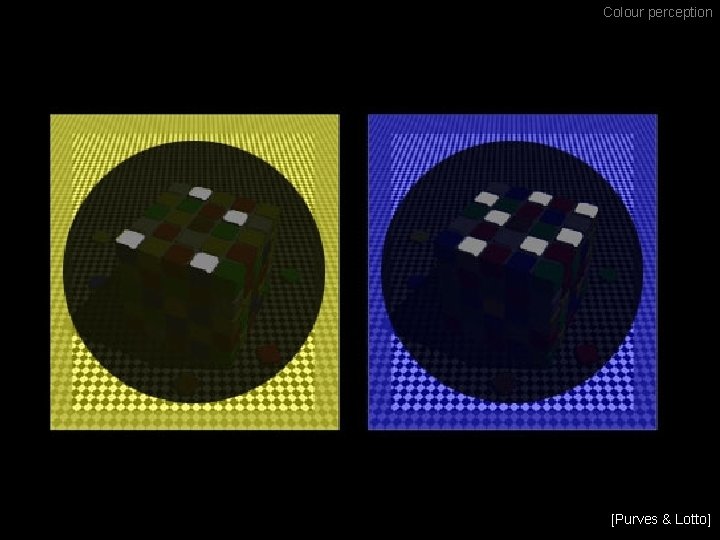

Colour perception [Purves & Lotto]

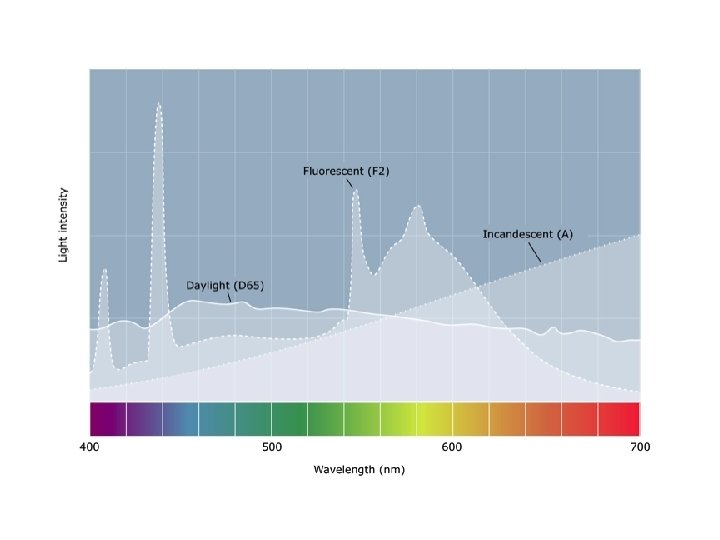

Colour perception What is colour perception? How do we (efficiently) recreate it? Relative stimulation of each cone type in your retina (RGB) in the context of some visual field Different spectral distributions of light should be able to stimulate the photoreceptors identically: Spectral distributions Receptor sensitivity SD a SD b Distinct distributions that are perceived identically w. r. t some visual system METAMERS

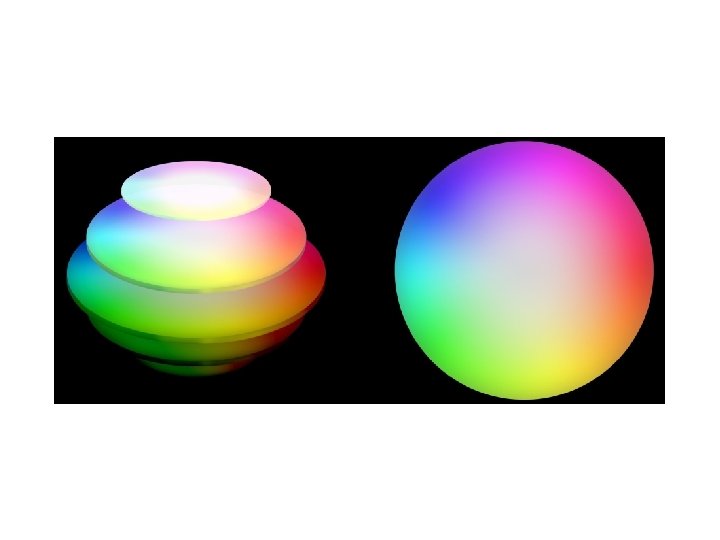

Colour Perception SO WHAT? • Sensible choice of some colour primaries should allow you to re -create any visible colour simply (without recreating the whole C(λ) distribution • Not quite as simple as that…but right primaries will produce a colour gamut that covers most visible colours

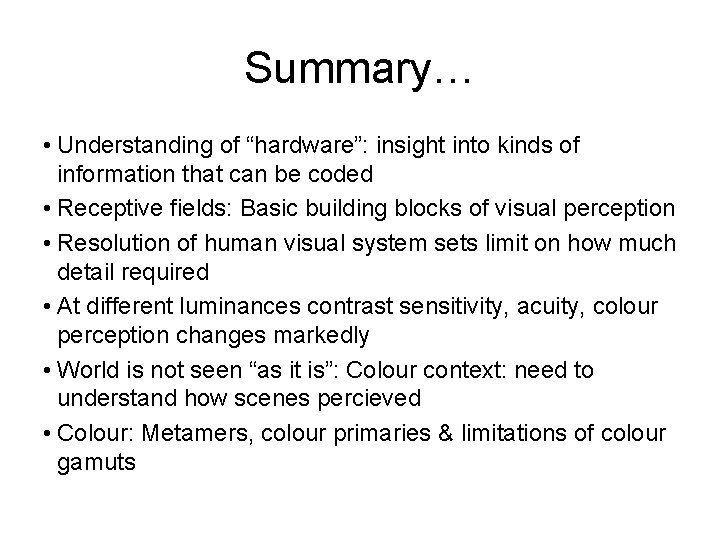

Summary… • Understanding of “hardware”: insight into kinds of information that can be coded • Receptive fields: Basic building blocks of visual perception • Resolution of human visual system sets limit on how much detail required • At different luminances contrast sensitivity, acuity, colour perception changes markedly • World is not seen “as it is”: Colour context: need to understand how scenes percieved • Colour: Metamers, colour primaries & limitations of colour gamuts

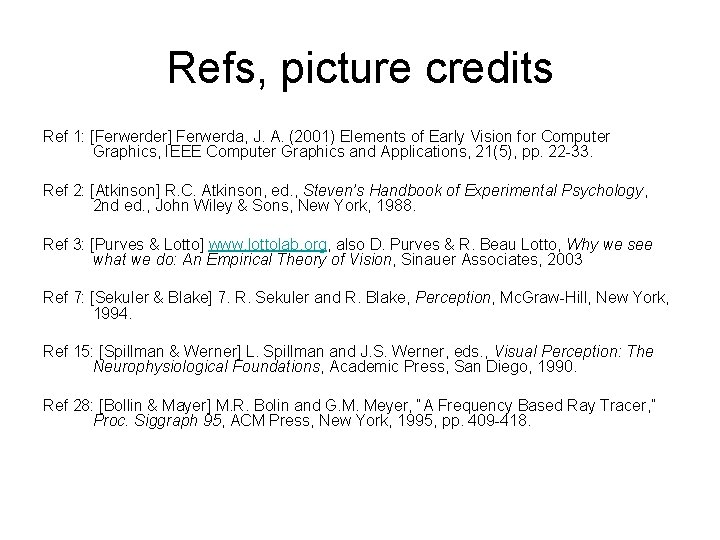

Refs, picture credits Ref 1: [Ferwerder] Ferwerda, J. A. (2001) Elements of Early Vision for Computer Graphics, IEEE Computer Graphics and Applications, 21(5), pp. 22 -33. Ref 2: [Atkinson] R. C. Atkinson, ed. , Steven’s Handbook of Experimental Psychology, 2 nd ed. , John Wiley & Sons, New York, 1988. Ref 3: [Purves & Lotto] www. lottolab. org, also D. Purves & R. Beau Lotto, Why we see what we do: An Empirical Theory of Vision, Sinauer Associates, 2003 Ref 7: [Sekuler & Blake] 7. R. Sekuler and R. Blake, Perception, Mc. Graw-Hill, New York, 1994. Ref 15: [Spillman & Werner] L. Spillman and J. S. Werner, eds. , Visual Perception: The Neurophysiological Foundations, Academic Press, San Diego, 1990. Ref 28: [Bollin & Mayer] M. R. Bolin and G. M. Meyer, “A Frequency Based Ray Tracer, ” Proc. Siggraph 95, ACM Press, New York, 1995, pp. 409 -418.
