Visual Pathway: Lesions

Visual Pathway: Lesions

VISUAL PATHWAY ANATOMY

VISUAL PATHWAY ANATOMY

COMPONENTS OF VISUAL PATHWAY

COMPONENTS OF VISUAL PATHWAY

VISUAL PATHWAY

VISUAL PATHWAY

Anopia

Anopia

• Hemianopia: Loss of vision in one half of visual field Heteronymous hemianopia

• Hemianopia: Loss of vision in one half of visual field Heteronymous hemianopia

Quadrantanopia Loss of vision in a quadrant of visual field Homonymous type

Quadrantanopia Loss of vision in a quadrant of visual field Homonymous type

Homonynous hemianopia Congruous Defects are identical in size, shape, location, slope of margins eg-Post

Homonynous hemianopia Congruous Defects are identical in size, shape, location, slope of margins eg-Post optic radiation lesions Incongruous Defects are dissimilar eg-Optic tract & LGB lesions

reversed inverted

reversed inverted

LESIONS OF VISUAL PATHWAY

LESIONS OF VISUAL PATHWAY

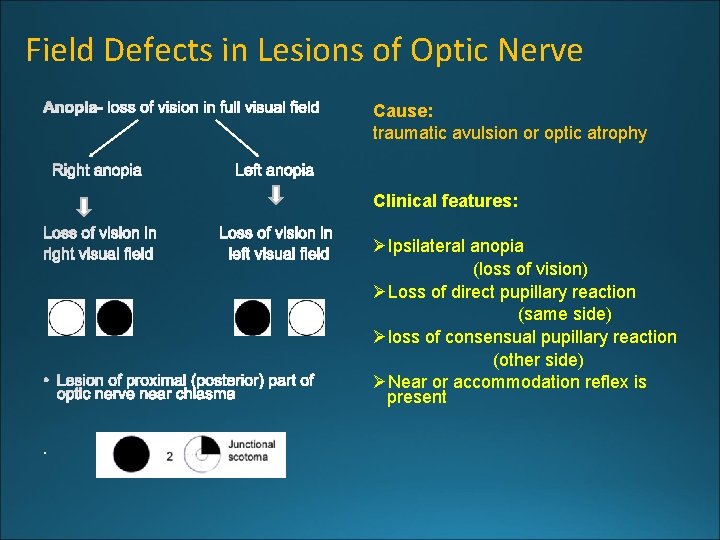

Field Defects in Lesions of Optic Nerve Cause: traumatic avulsion or optic atrophy Clinical

Field Defects in Lesions of Optic Nerve Cause: traumatic avulsion or optic atrophy Clinical features: ØIpsilateral anopia (loss of vision) ØLoss of direct pupillary reaction (same side) Øloss of consensual pupillary reaction (other side) ØNear or accommodation reflex is present

Field Defects in Lesions of Optic Chiasma (Less common) Ø IIIrd ventricle enlargement /

Field Defects in Lesions of Optic Chiasma (Less common) Ø IIIrd ventricle enlargement / dilatation Ø Atheroma of carotids or posterior communicating arteries Ø Pituitary adenoma or malignancy Ø Craniopharyngioma Ø Chronic chiasmal arachnoiditis Ø Fracture of the base of skull

Pituitary Adenoma

Pituitary Adenoma

Craniopharyngioma

Craniopharyngioma

Field Defects in Lesions of Optic Tract left optic tract lesion involving left cerebral

Field Defects in Lesions of Optic Tract left optic tract lesion involving left cerebral peduncle and left 3 rd nerve.

Causes of optic tract lesion

Causes of optic tract lesion

Field Defects in Lesions of Lateral geniculate Body (LGB) sparing of pupillary reflexes

Field Defects in Lesions of Lateral geniculate Body (LGB) sparing of pupillary reflexes

Lesion of optic radiations Anterior temporal lobe Parietal lobe Pie in the sky Pie

Lesion of optic radiations Anterior temporal lobe Parietal lobe Pie in the sky Pie on the floor Posterior part of Internal capsule (Ant occipital cortex)

Common causes of lesions of optic radiations

Common causes of lesions of optic radiations

lesions of optic radiations-Clinical presentation

lesions of optic radiations-Clinical presentation

Field Defects in Lesions of Visual Cortex

Field Defects in Lesions of Visual Cortex

Common causes of lesions of Visual Cortex

Common causes of lesions of Visual Cortex

Clinical presentation in Visual Cortex Lesions (Cortical blindness) [Anton syndrome] [Riddoch phenomenon] [Alexia]

Clinical presentation in Visual Cortex Lesions (Cortical blindness) [Anton syndrome] [Riddoch phenomenon] [Alexia]

Differences between occipital lobe and optic tract lesions Clinical Features Occipital lobe lesion Optic

Differences between occipital lobe and optic tract lesions Clinical Features Occipital lobe lesion Optic tract lesion Pupillary reaction Normal Abnormal Field defect Congruous Incongruous Macular involvement Sparing Optic atrophy - Involved +
