Visual FAQs on Real Options Celebrating the Fifth

Visual FAQ’s on Real Options Celebrating the Fifth Anniversary of the Website: Real Options Approach to Petroleum Investments http: //www. puc-rio. br/marco. ind/ Real Options 2000 Conference Capitalizing on Uncertainty and Volatility in the New Millennium September 25, 2000 - Chicago By: Marco Antônio Guimarães Dias Petrobras and PUC-Rio, Brazil

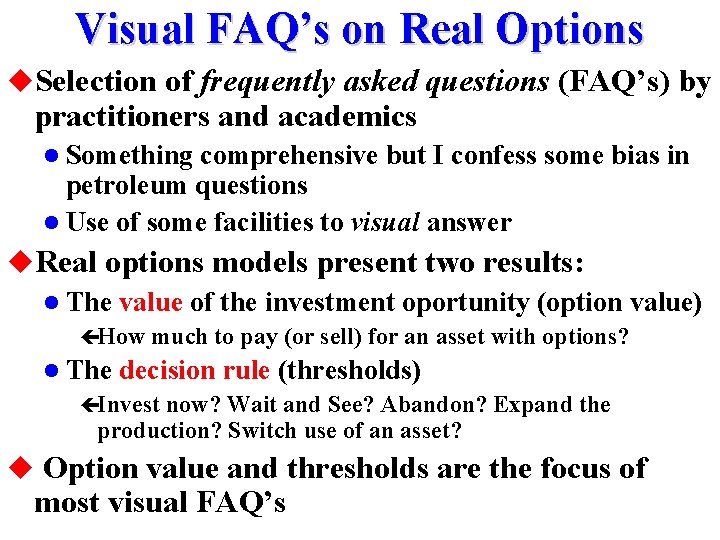

Visual FAQ’s on Real Options u. Selection of frequently asked questions (FAQ’s) by practitioners and academics l Something comprehensive but I confess some bias in petroleum questions l Use of some facilities to visual answer u. Real options models present two results: l The value of the investment oportunity (option value) çHow much to pay (or sell) for an asset with options? l The decision rule (thresholds) çInvest now? Wait and See? Abandon? Expand the production? Switch use of an asset? u Option value and thresholds are the focus of most visual FAQ’s

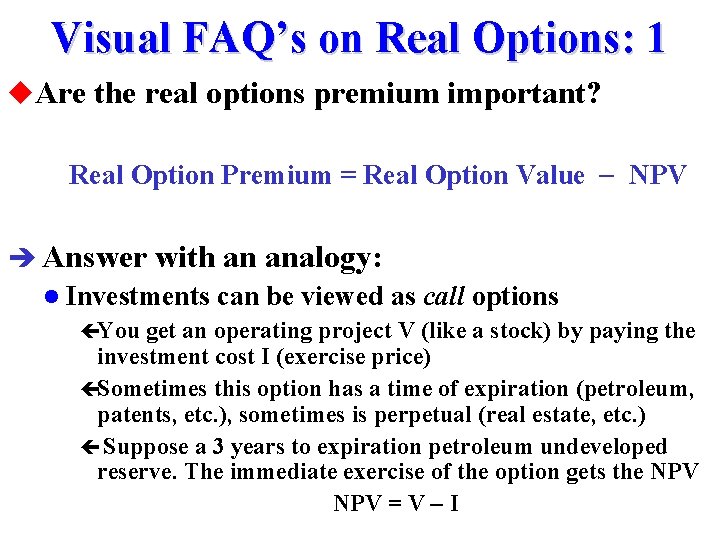

Visual FAQ’s on Real Options: 1 u. Are the real options premium important? Real Option Premium = Real Option Value - NPV è Answer with an analogy: l Investments can be viewed as call options çYou get an operating project V (like a stock) by paying the investment cost I (exercise price) çSometimes this option has a time of expiration (petroleum, patents, etc. ), sometimes is perpetual (real estate, etc. ) ç Suppose a 3 years to expiration petroleum undeveloped reserve. The immediate exercise of the option gets the NPV = V - I

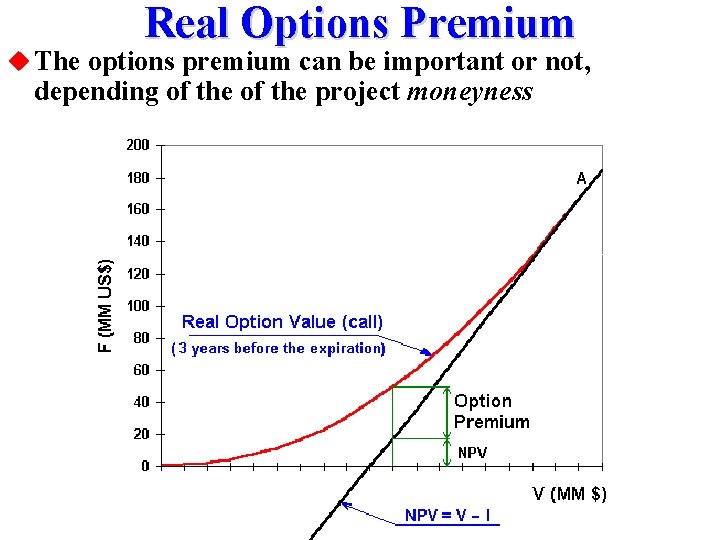

Real Options Premium u The options premium can be important or not, depending of the project moneyness

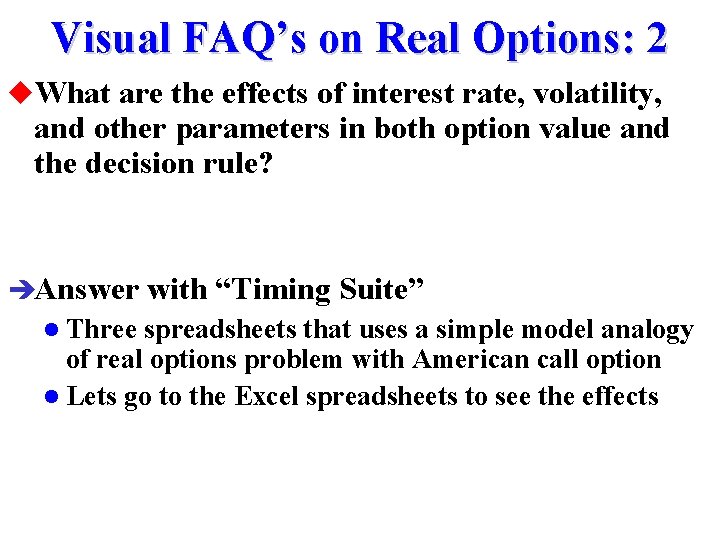

Visual FAQ’s on Real Options: 2 u. What are the effects of interest rate, volatility, and other parameters in both option value and the decision rule? èAnswer with “Timing Suite” l Three spreadsheets that uses a simple model analogy of real options problem with American call option l Lets go to the Excel spreadsheets to see the effects

Visual FAQ’s on Real Options: 3 u. Where the real options value comes from? u. Why real options value is different of the static net present value (NPV)? èAnswer with example: option to expand l Suppose a manager embed an option to expand into her project, by a cost of US$ 1 million l The static NPV = - 5 million if the option is exercise today, and in future is expected the same negative NPV l Spending a million $ for an expected negative NPV: Is the manager becoming crazy?

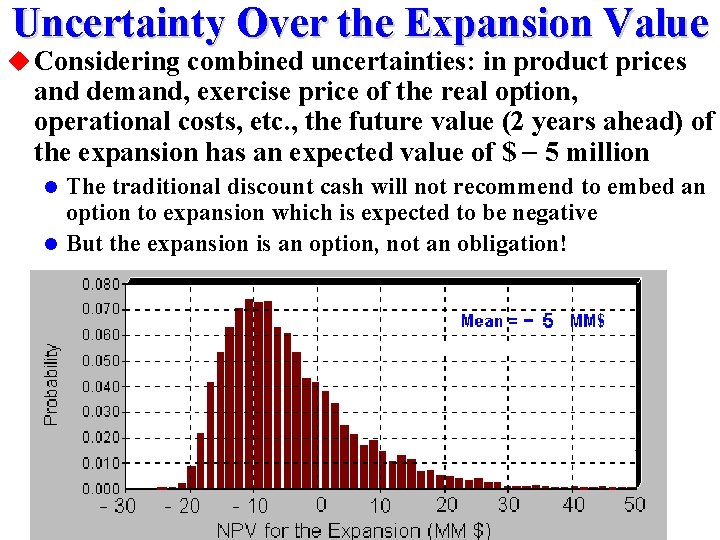

Uncertainty Over the Expansion Value u Considering combined uncertainties: in product prices and demand, exercise price of the real option, operational costs, etc. , the future value (2 years ahead) of the expansion has an expected value of $ - 5 million The traditional discount cash will not recommend to embed an option to expansion which is expected to be negative l But the expansion is an option, not an obligation! l

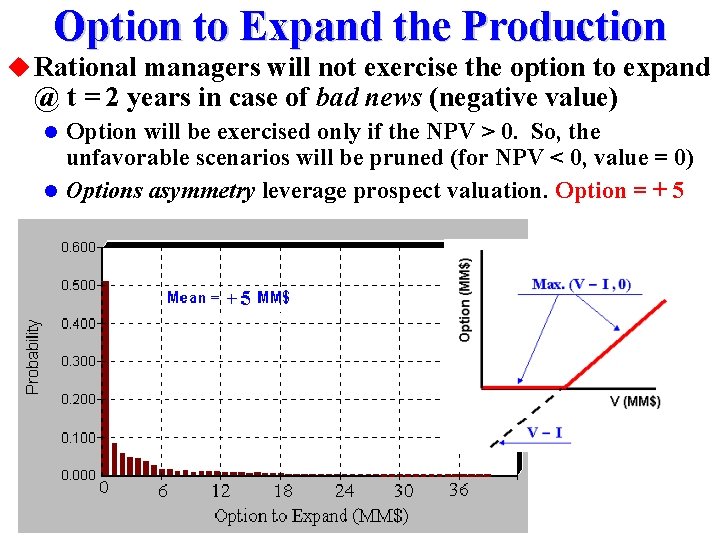

Option to Expand the Production u Rational managers will not exercise the option to expand @ t = 2 years in case of bad news (negative value) Option will be exercised only if the NPV > 0. So, the unfavorable scenarios will be pruned (for NPV < 0, value = 0) l Options asymmetry leverage prospect valuation. Option = + 5 l

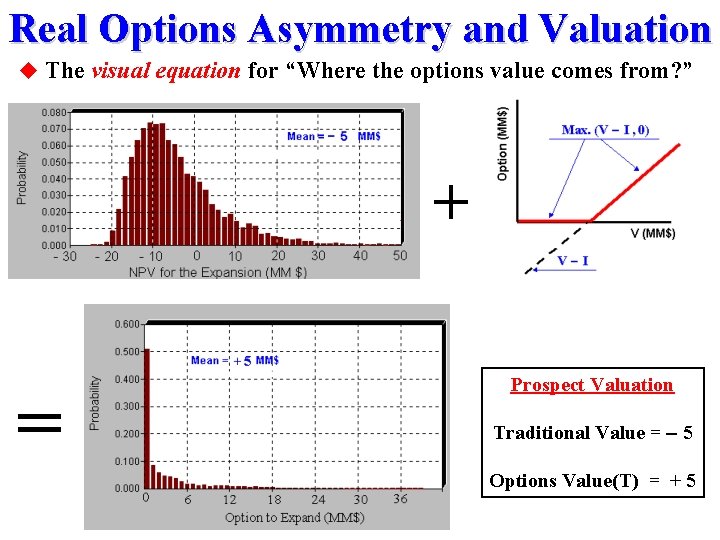

Real Options Asymmetry and Valuation u The visual equation for “Where the options value comes from? ” + = Prospect Valuation Traditional Value = - 5 Options Value(T) = + 5

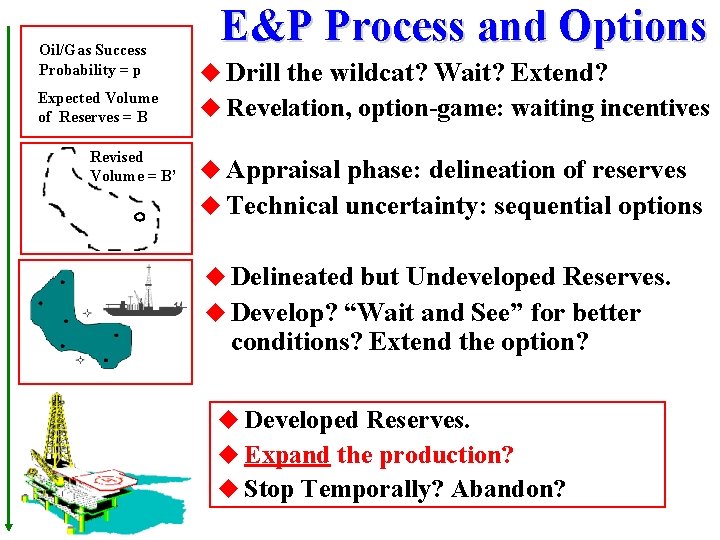

Oil/Gas Success Probability = p Expected Volume of Reserves = B Revised Volume = B’ E&P Process and Options u Drill the wildcat? Wait? Extend? u Revelation, option-game: waiting incentives u Appraisal phase: delineation of reserves u Technical uncertainty: sequential options u Delineated but Undeveloped Reserves. u Develop? “Wait and See” for better conditions? Extend the option? u Developed Reserves. u Expand the production? u Stop Temporally? Abandon?

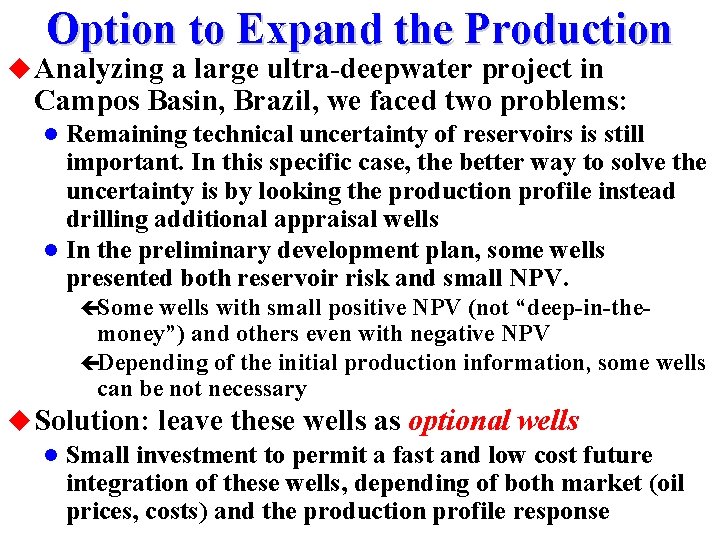

Option to Expand the Production u Analyzing a large ultra-deepwater project in Campos Basin, Brazil, we faced two problems: Remaining technical uncertainty of reservoirs is still important. In this specific case, the better way to solve the uncertainty is by looking the production profile instead drilling additional appraisal wells l In the preliminary development plan, some wells presented both reservoir risk and small NPV. l çSome wells with small positive NPV (not “deep-in-themoney”) and others even with negative NPV çDepending of the initial production information, some wells can be not necessary u Solution: leave these wells as optional wells l Small investment to permit a fast and low cost future integration of these wells, depending of both market (oil prices, costs) and the production profile response

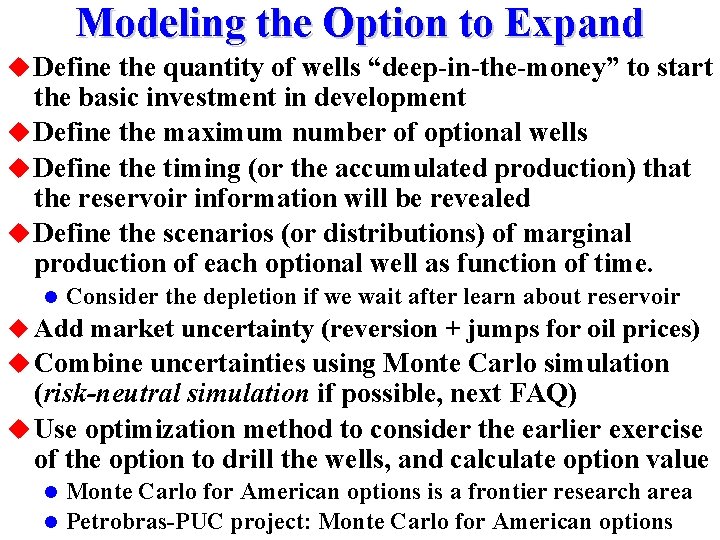

Modeling the Option to Expand u Define the quantity of wells “deep-in-the-money” to start the basic investment in development u Define the maximum number of optional wells u Define the timing (or the accumulated production) that the reservoir information will be revealed u Define the scenarios (or distributions) of marginal production of each optional well as function of time. l Consider the depletion if we wait after learn about reservoir u Add market uncertainty (reversion + jumps for oil prices) u Combine uncertainties using Monte Carlo simulation (risk-neutral simulation if possible, next FAQ) u Use optimization method to consider the earlier exercise of the option to drill the wells, and calculate option value Monte Carlo for American options is a frontier research area l Petrobras-PUC project: Monte Carlo for American options l

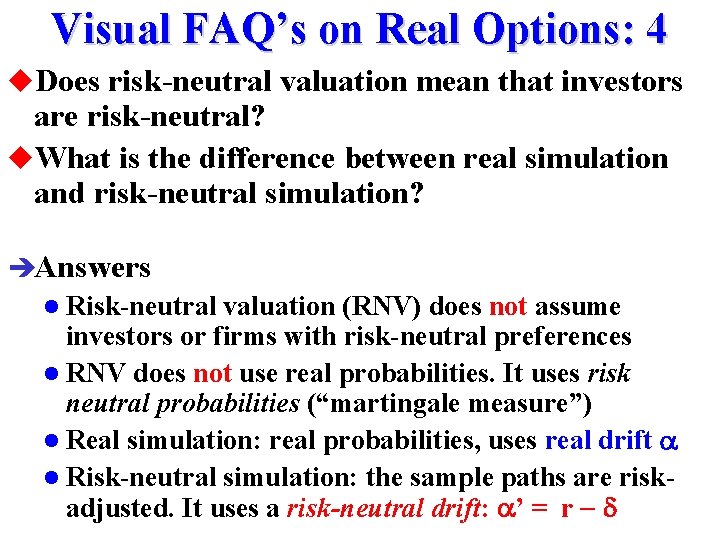

Visual FAQ’s on Real Options: 4 u. Does risk-neutral valuation mean that investors are risk-neutral? u. What is the difference between real simulation and risk-neutral simulation? èAnswers l Risk-neutral valuation (RNV) does not assume investors or firms with risk-neutral preferences l RNV does not use real probabilities. It uses risk neutral probabilities (“martingale measure”) l Real simulation: real probabilities, uses real drift a l Risk-neutral simulation: the sample paths are riskadjusted. It uses a risk-neutral drift: a’ = r - d

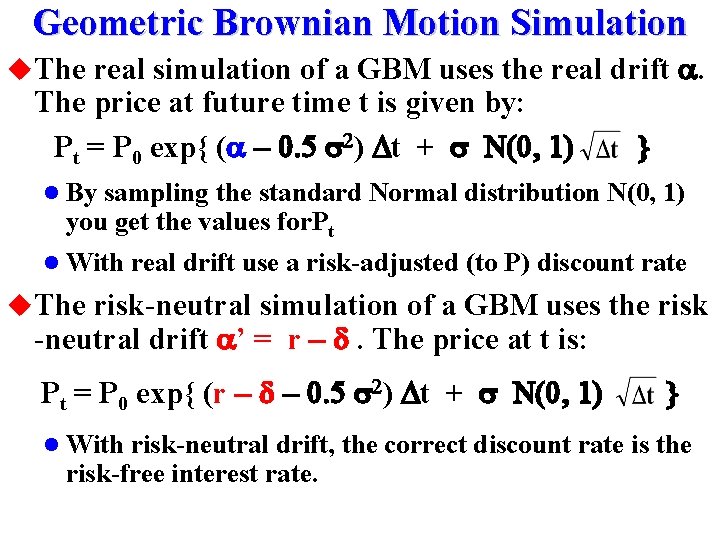

Geometric Brownian Motion Simulation u. The real simulation of a GBM uses the real drift a. The price at future time t is given by: Pt = P 0 exp{ (a - 0. 5 s 2) Dt + s N(0, 1) } l By sampling the standard Normal distribution N(0, 1) you get the values for. Pt l With real drift use a risk-adjusted (to P) discount rate u. The risk-neutral simulation of a GBM uses the risk -neutral drift a’ = r - d. The price at t is: Pt = P 0 exp{ (r - d - 0. 5 s 2) Dt + s N(0, 1) l With } risk-neutral drift, the correct discount rate is the risk-free interest rate.

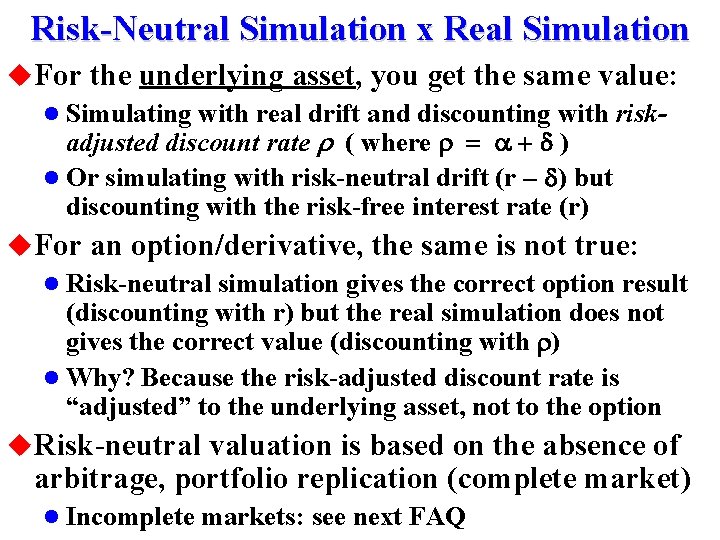

Risk-Neutral Simulation x Real Simulation u. For the underlying asset, you get the same value: l Simulating with real drift and discounting with riskadjusted discount rate r ( where r = a + d ) l Or simulating with risk-neutral drift (r - d) but discounting with the risk-free interest rate (r) u. For an option/derivative, the same is not true: l Risk-neutral simulation gives the correct option result (discounting with r) but the real simulation does not gives the correct value (discounting with r) l Why? Because the risk-adjusted discount rate is “adjusted” to the underlying asset, not to the option u. Risk-neutral valuation is based on the absence of arbitrage, portfolio replication (complete market) l Incomplete markets: see next FAQ

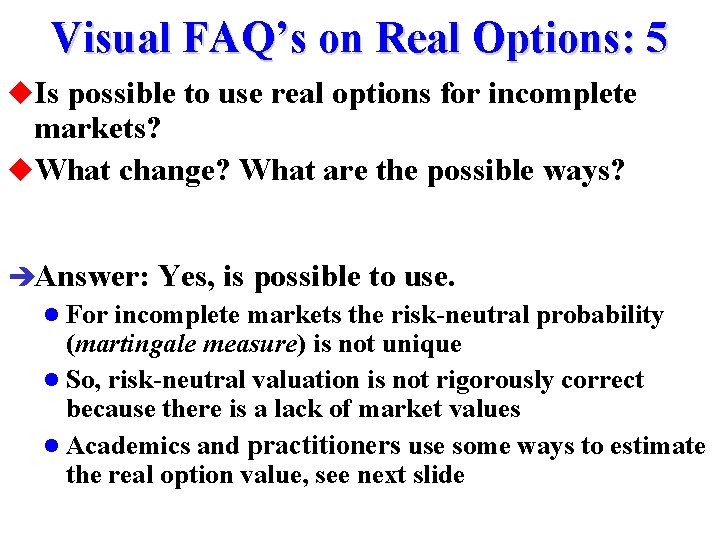

Visual FAQ’s on Real Options: 5 u. Is possible to use real options for incomplete markets? u. What change? What are the possible ways? èAnswer: Yes, is possible to use. l For incomplete markets the risk-neutral probability (martingale measure) is not unique l So, risk-neutral valuation is not rigorously correct because there is a lack of market values l Academics and practitioners use some ways to estimate the real option value, see next slide

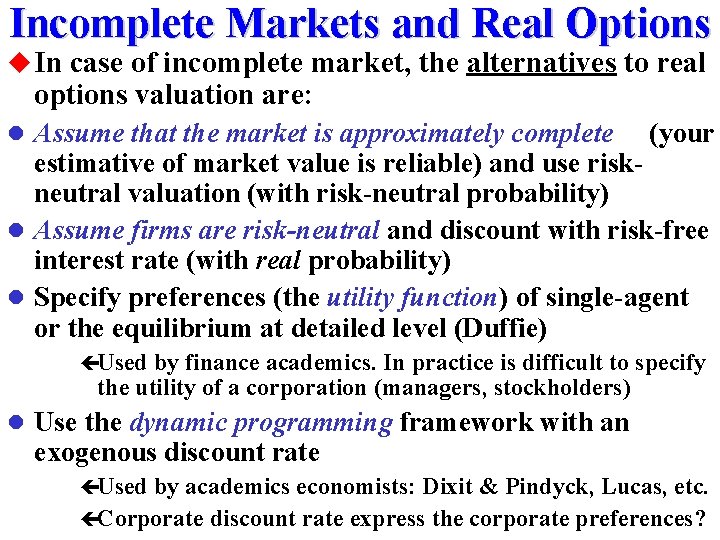

Incomplete Markets and Real Options u In case of incomplete market, the alternatives to real options valuation are: l Assume that the market is approximately complete (your estimative of market value is reliable) and use riskneutral valuation (with risk-neutral probability) l Assume firms are risk-neutral and discount with risk-free interest rate (with real probability) l Specify preferences (the utility function) of single-agent or the equilibrium at detailed level (Duffie) çUsed by finance academics. In practice is difficult to specify the utility of a corporation (managers, stockholders) l Use the dynamic programming framework with an exogenous discount rate çUsed by academics economists: Dixit & Pindyck, Lucas, etc. çCorporate discount rate express the corporate preferences?

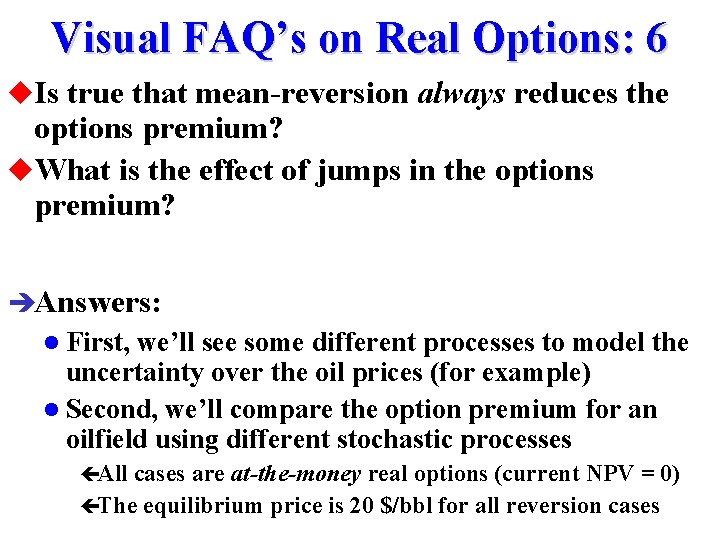

Visual FAQ’s on Real Options: 6 u. Is true that mean-reversion always reduces the options premium? u. What is the effect of jumps in the options premium? èAnswers: l First, we’ll see some different processes to model the uncertainty over the oil prices (for example) l Second, we’ll compare the option premium for an oilfield using different stochastic processes çAll cases are at-the-money real options (current NPV = 0) çThe equilibrium price is 20 $/bbl for all reversion cases

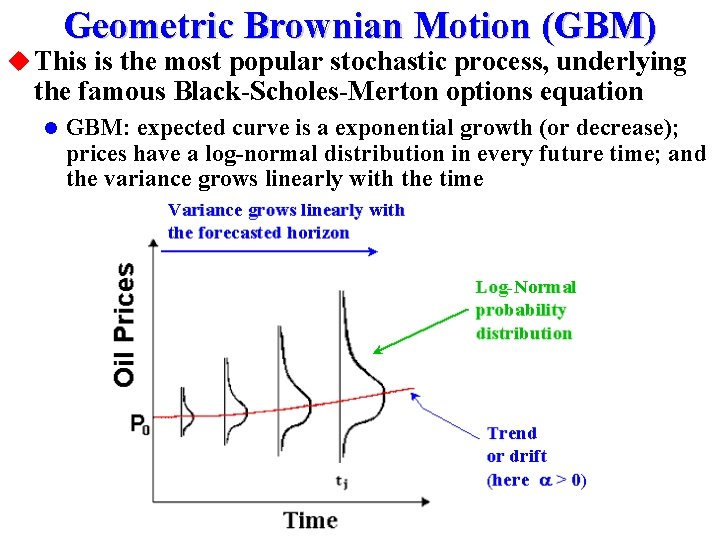

Geometric Brownian Motion (GBM) u This is the most popular stochastic process, underlying the famous Black-Scholes-Merton options equation l GBM: expected curve is a exponential growth (or decrease); prices have a log-normal distribution in every future time; and the variance grows linearly with the time

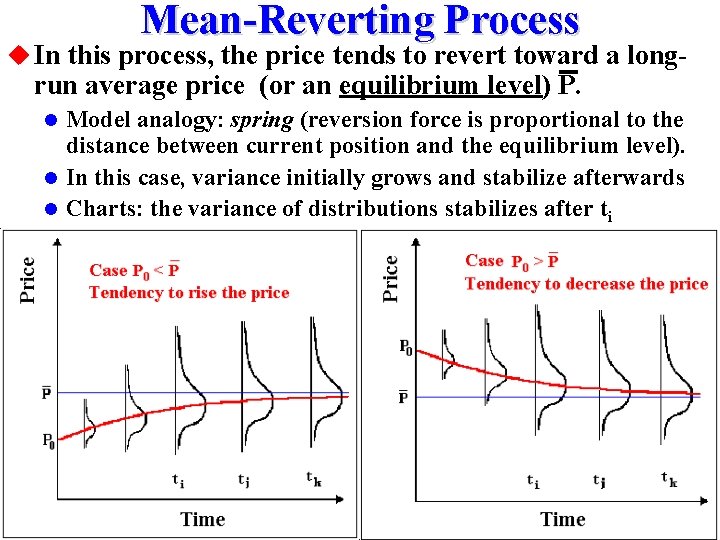

Mean-Reverting Process u In this process, the price tends to revert toward a long- run average price (or an equilibrium level) P. Model analogy: spring (reversion force is proportional to the distance between current position and the equilibrium level). l In this case, variance initially grows and stabilize afterwards l Charts: the variance of distributions stabilizes after ti l

Nominal Prices for Brent and Similar Oils (1970 -1999) u We see oil prices jumps in both directions, depending of the kind of abnormal news: jumps-up in 1973/4, 1978/9, 1990, 1999; and jumps-down in 1986, 1991, 1997 Jumps-up Jumps-down

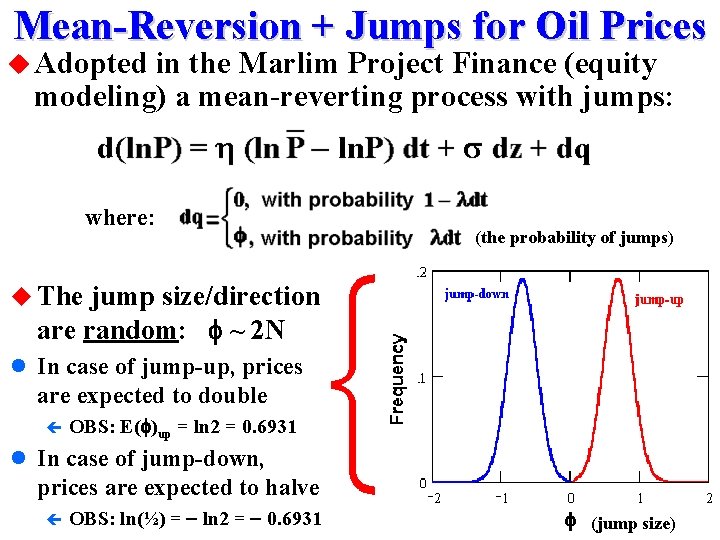

Mean-Reversion + Jumps for Oil Prices u Adopted in the Marlim Project Finance (equity modeling) a mean-reverting process with jumps: where: (the probability of jumps) u The jump size/direction are random: f ~ 2 N l In case of jump-up, prices are expected to double ç OBS: E(f)up = ln 2 = 0. 6931 l In case of jump-down, prices are expected to halve ç OBS: ln(½) = - ln 2 = - 0. 6931 (jump size)

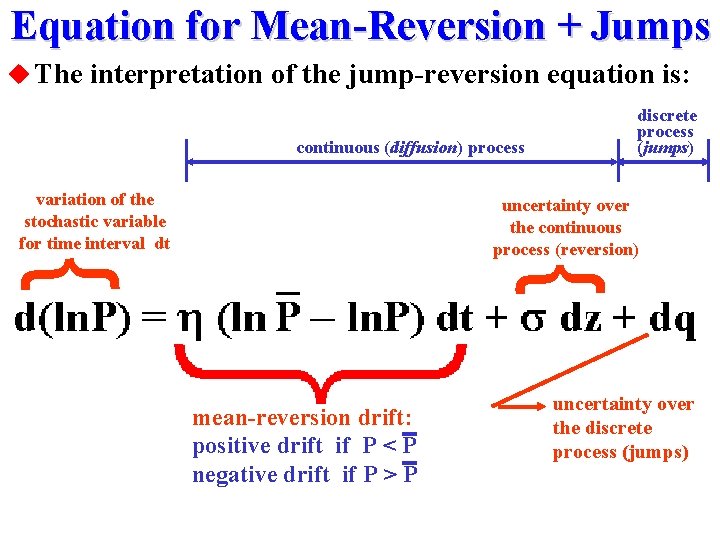

Equation for Mean-Reversion + Jumps u The interpretation of the jump-reversion equation is: discrete process (jumps) continuous (diffusion) process variation of the stochastic variable for time interval dt { { uncertainty over the continuous process (reversion) mean-reversion drift: positive drift if P < P negative drift if P > P uncertainty over the discrete process (jumps)

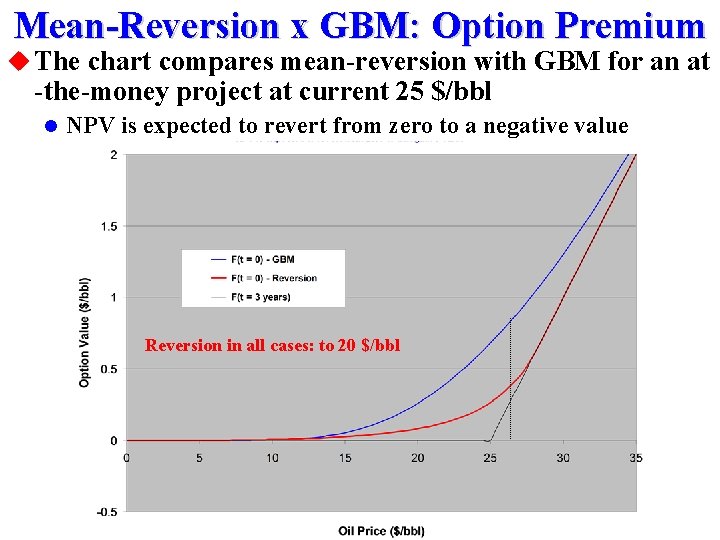

Mean-Reversion x GBM: Option Premium u The chart compares mean-reversion with GBM for an at -the-money project at current 25 $/bbl l NPV is expected to revert from zero to a negative value Reversion in all cases: to 20 $/bbl

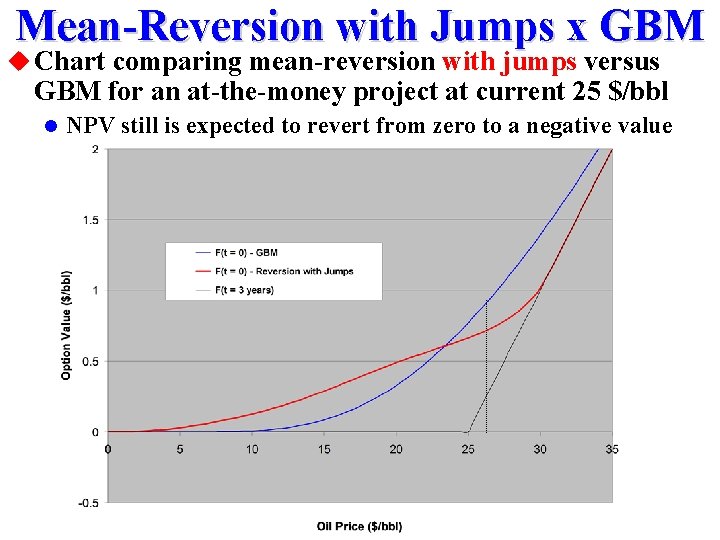

Mean-Reversion with Jumps x GBM u Chart comparing mean-reversion with jumps versus GBM for an at-the-money project at current 25 $/bbl l NPV still is expected to revert from zero to a negative value

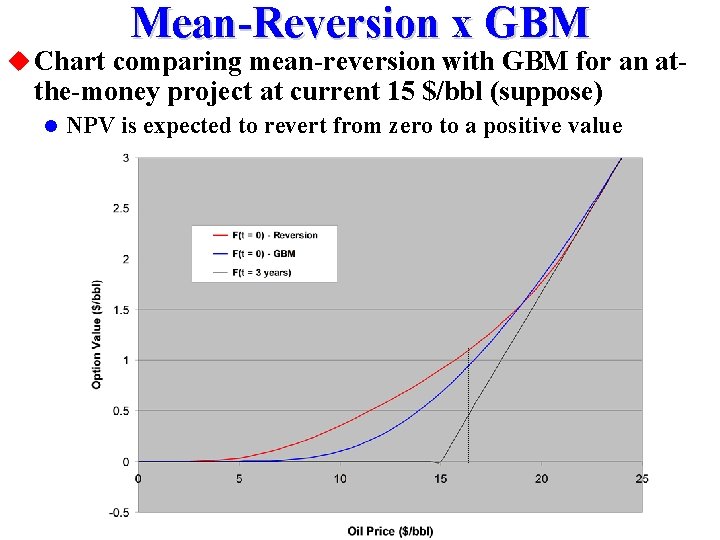

Mean-Reversion x GBM u Chart comparing mean-reversion with GBM for an at- the-money project at current 15 $/bbl (suppose) l NPV is expected to revert from zero to a positive value

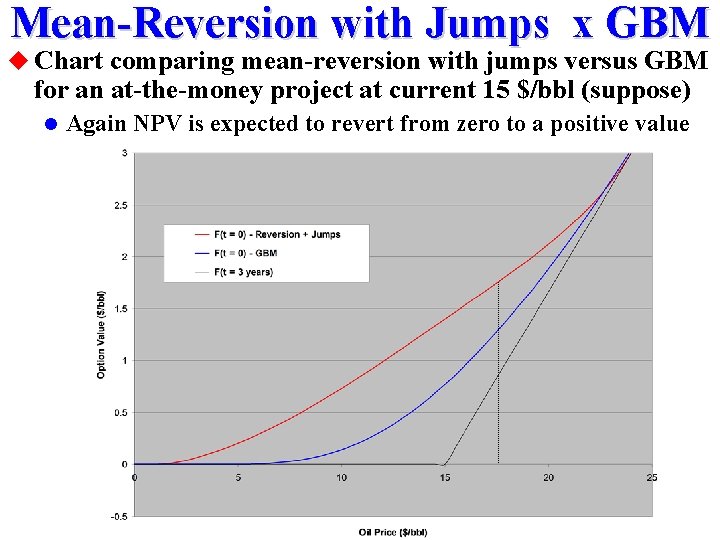

Mean-Reversion with Jumps x GBM u Chart comparing mean-reversion with jumps versus GBM for an at-the-money project at current 15 $/bbl (suppose) l Again NPV is expected to revert from zero to a positive value

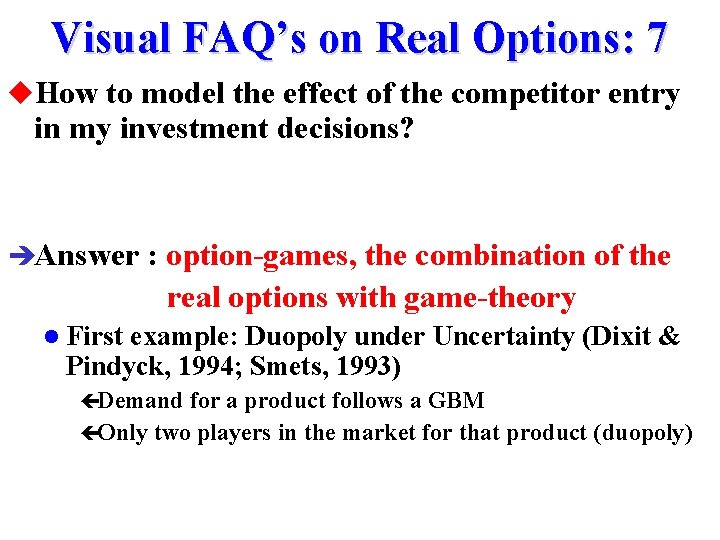

Visual FAQ’s on Real Options: 7 u. How to model the effect of the competitor entry in my investment decisions? èAnswer : option-games, the combination of the real options with game-theory l First example: Duopoly under Uncertainty (Dixit & Pindyck, 1994; Smets, 1993) çDemand for a product follows a GBM çOnly two players in the market for that product (duopoly)

Duopoly Entry under Uncertainty u The leader entry threshold: both players are indifferent about to be the leader or the follower. l Entry: NPV > 0 but earlier than monopolistic case

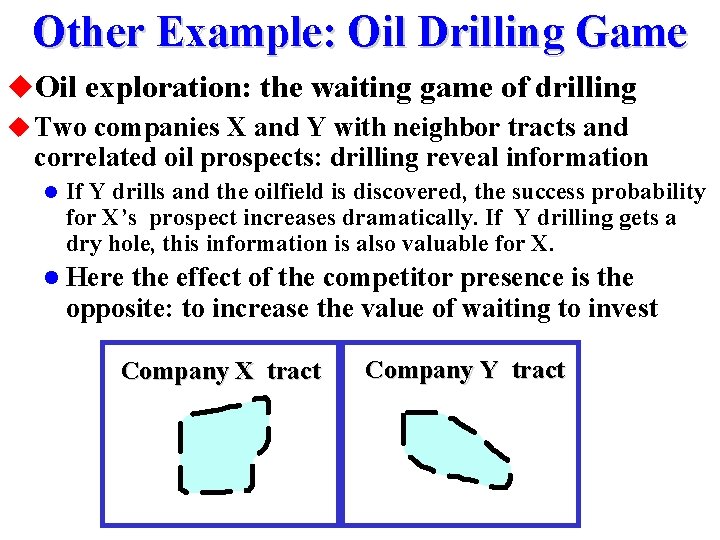

Other Example: Oil Drilling Game u. Oil exploration: the waiting game of drilling u Two companies X and Y with neighbor tracts and correlated oil prospects: drilling reveal information l If Y drills and the oilfield is discovered, the success probability for X’s prospect increases dramatically. If Y drilling gets a dry hole, this information is also valuable for X. l Here the effect of the competitor presence is the opposite: to increase the value of waiting to invest Company X tract Company Y tract

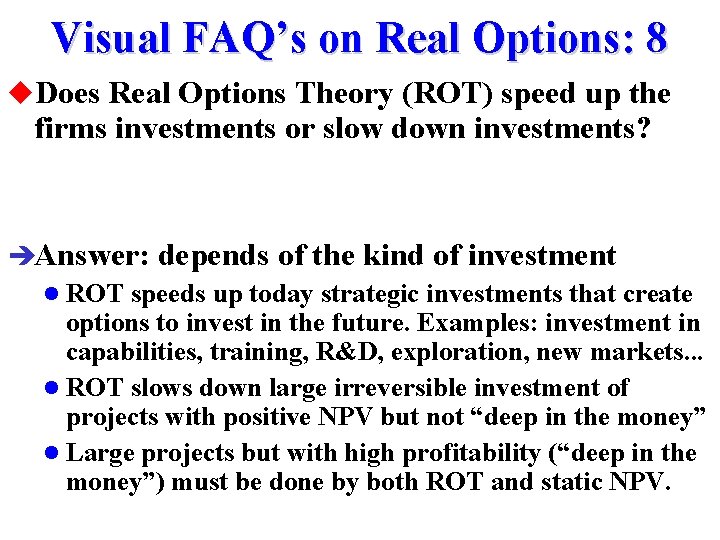

Visual FAQ’s on Real Options: 8 u. Does Real Options Theory (ROT) speed up the firms investments or slow down investments? èAnswer: depends of the kind of investment l ROT speeds up today strategic investments that create options to invest in the future. Examples: investment in capabilities, training, R&D, exploration, new markets. . . l ROT slows down large irreversible investment of projects with positive NPV but not “deep in the money” l Large projects but with high profitability (“deep in the money”) must be done by both ROT and static NPV.

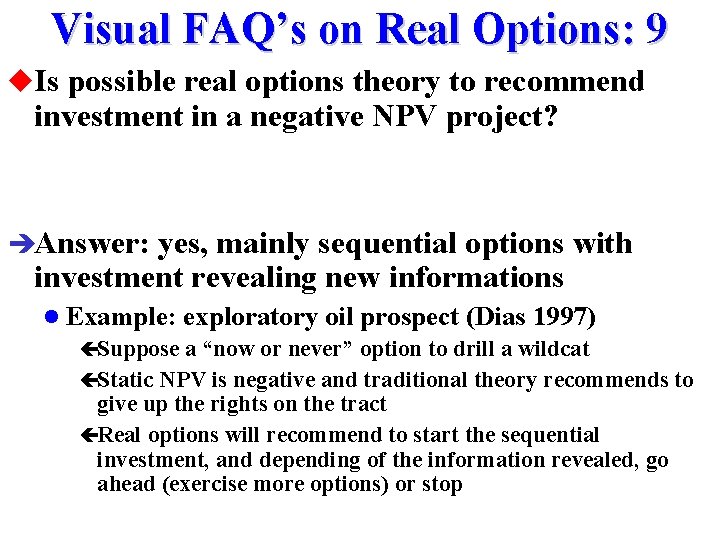

Visual FAQ’s on Real Options: 9 u. Is possible real options theory to recommend investment in a negative NPV project? èAnswer: yes, mainly sequential options with investment revealing new informations l Example: exploratory oil prospect (Dias 1997) çSuppose a “now or never” option to drill a wildcat çStatic NPV is negative and traditional theory recommends to give up the rights on the tract çReal options will recommend to start the sequential investment, and depending of the information revealed, go ahead (exercise more options) or stop

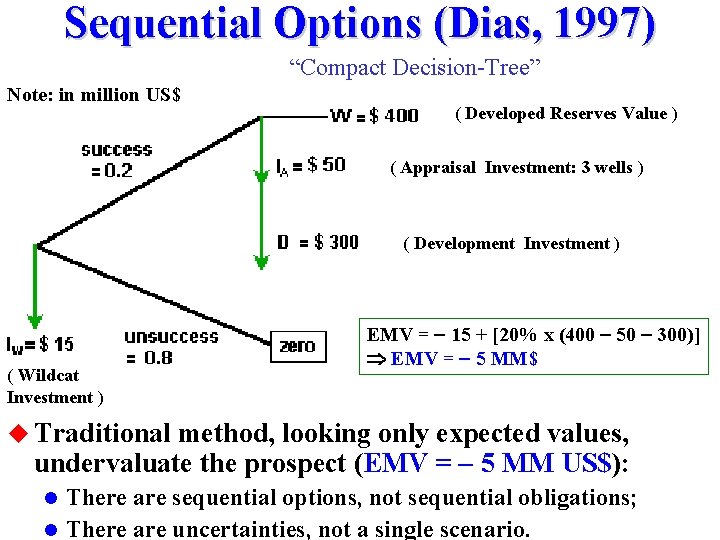

Sequential Options (Dias, 1997) “Compact Decision-Tree” Note: in million US$ ( Developed Reserves Value ) ( Appraisal Investment: 3 wells ) ( Development Investment ) ( Wildcat Investment ) EMV = - 15 + [20% x (400 - 50 - 300)] EMV = - 5 MM$ u Traditional method, looking only expected values, undervaluate the prospect (EMV = - 5 MM US$): There are sequential options, not sequential obligations; l There are uncertainties, not a single scenario. l

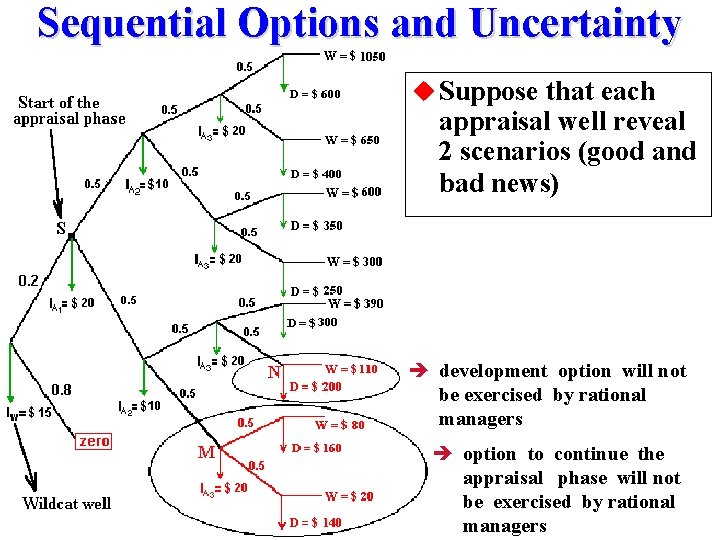

Sequential Options and Uncertainty u Suppose that each appraisal well reveal 2 scenarios (good and bad news) è development option will not be exercised by rational managers è option to continue the appraisal phase will not be exercised by rational managers

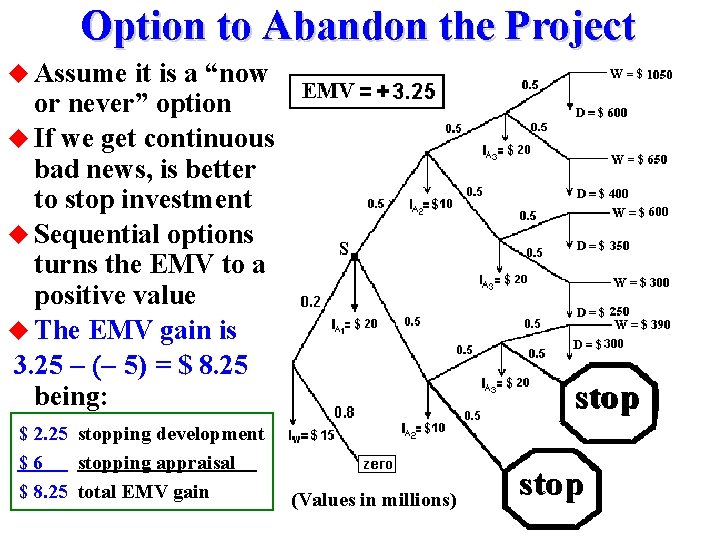

Option to Abandon the Project u Assume it is a “now or never” option u If we get continuous bad news, is better to stop investment u Sequential options turns the EMV to a positive value u The EMV gain is 3. 25 - (- 5) = $ 8. 25 being: $ 2. 25 stopping development $6 stopping appraisal $ 8. 25 total EMV gain (Values in millions)

Visual FAQ’s on Real Options: 10 u. Is the options decision rule (invest at or above threshold curve) the policy to get the maximum option value? u. How much value I lose if I invest a little above or little below the optimum threshold? èAnswer: yes, investing at or above threshold line you maximize the option value. èBut sometimes you don’t lose much investing near of the optimum (instead at the optimum) l Example: oilfield development as American call option. Suppose oil prices follow a GBM to simplify.

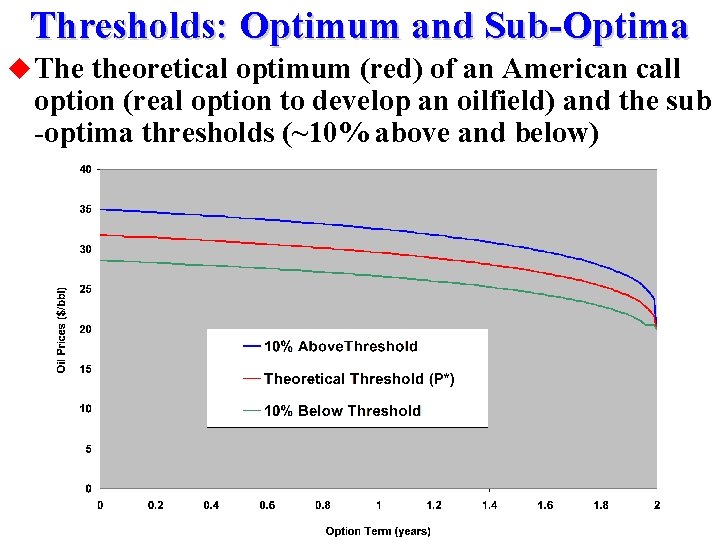

Thresholds: Optimum and Sub-Optima u The theoretical optimum (red) of an American call option (real option to develop an oilfield) and the sub -optima thresholds (~10% above and below)

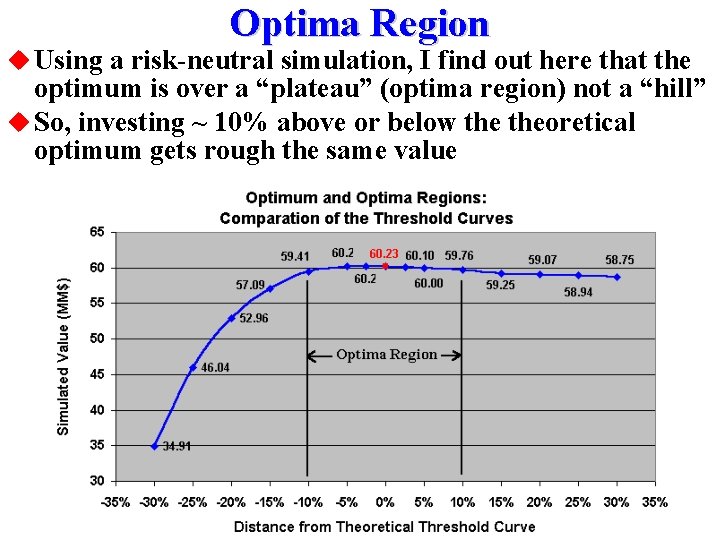

Optima Region u Using a risk-neutral simulation, I find out here that the optimum is over a “plateau” (optima region) not a “hill” u So, investing ~ 10% above or below theoretical optimum gets rough the same value

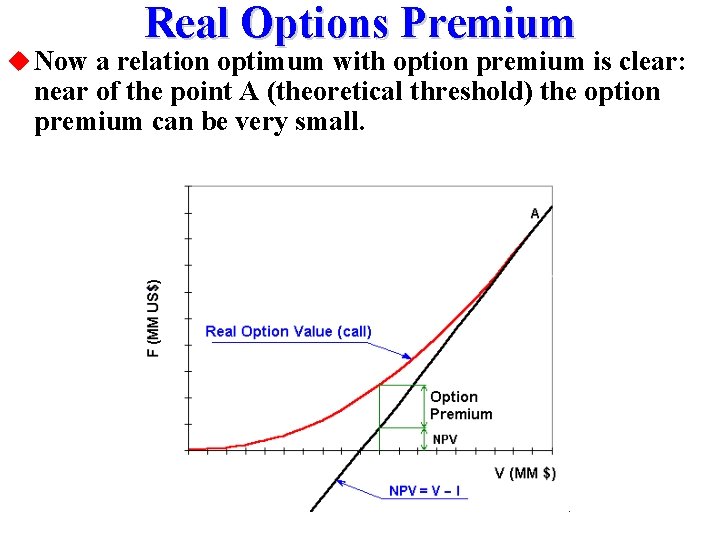

Real Options Premium u Now a relation optimum with option premium is clear: near of the point A (theoretical threshold) the option premium can be very small.

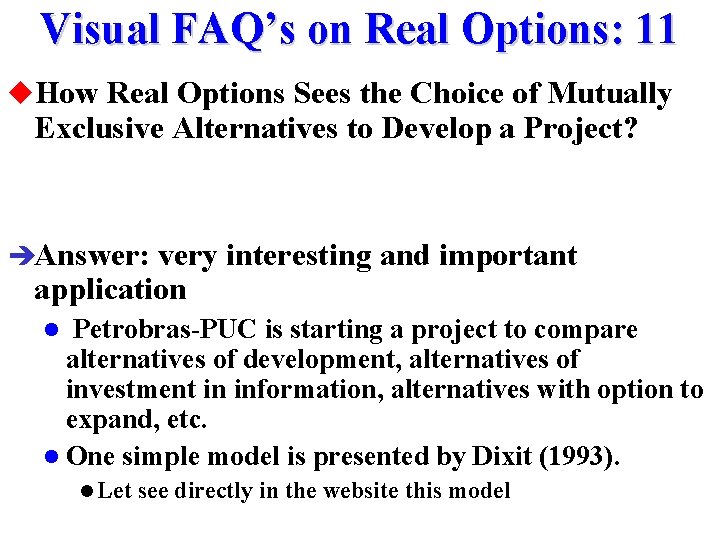

Visual FAQ’s on Real Options: 11 u. How Real Options Sees the Choice of Mutually Exclusive Alternatives to Develop a Project? èAnswer: very interesting and important application Petrobras-PUC is starting a project to compare alternatives of development, alternatives of investment in information, alternatives with option to expand, etc. l One simple model is presented by Dixit (1993). l l Let see directly in the website this model

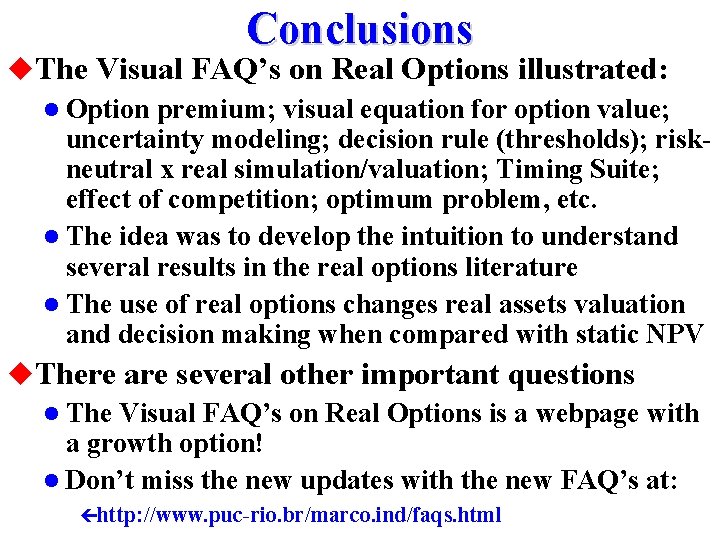

Conclusions u. The Visual FAQ’s on Real Options illustrated: l Option premium; visual equation for option value; uncertainty modeling; decision rule (thresholds); riskneutral x real simulation/valuation; Timing Suite; effect of competition; optimum problem, etc. l The idea was to develop the intuition to understand several results in the real options literature l The use of real options changes real assets valuation and decision making when compared with static NPV u. There are several other important questions l The Visual FAQ’s on Real Options is a webpage with a growth option! l Don’t miss the new updates with the new FAQ’s at: çhttp: //www. puc-rio. br/marco. ind/faqs. html
