Visual Basic Database Programming Topic Structure of the

Visual Basic Database Programming

Topic & Structure of the lesson Database Programming • Introduction • Database Concepts • Active X ADODB • Add Records • Update • Delete Records Visual Basic 2

Learning Outcomes Database Programming At the end of this lecture, you should be able to : 1. Create a database table 2. Use Active X Data Objects (ADODB) 3. Write Structured Query Language (SQL) 4. Add Records 5. Update Records Visual Basic 3

Key Words used in this lecture Database Programming If you have mastered this topic, you should be able to use the following terms correctly in your assignments and exams: 1. ADODB 2. Add New 3. Update 4. Open 5. Close 6. EOF Visual Basic 4

Creating a Database Table Database Programming 1. 2. 3. 4. 5. Visual Basic Start Microsoft Access Create a table Enter the field names Ensure that you have a primary key field Save the table as tblstudent 5

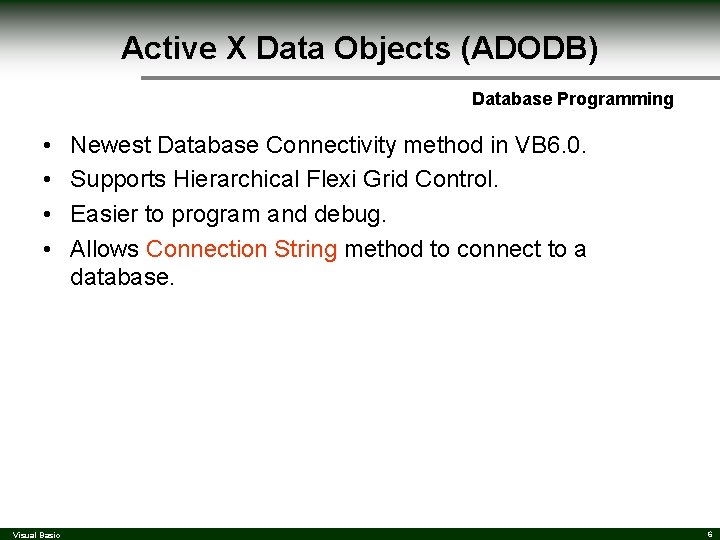

Active X Data Objects (ADODB) Database Programming • • Visual Basic Newest Database Connectivity method in VB 6. 0. Supports Hierarchical Flexi Grid Control. Easier to program and debug. Allows Connection String method to connect to a database. 6

Steps to Connect To A Database Programming 1. Select Project References 2. Select Microsoft Active. X Data Objects 2. 1 Library 3. Write the connection string to connect to a database Visual Basic 7

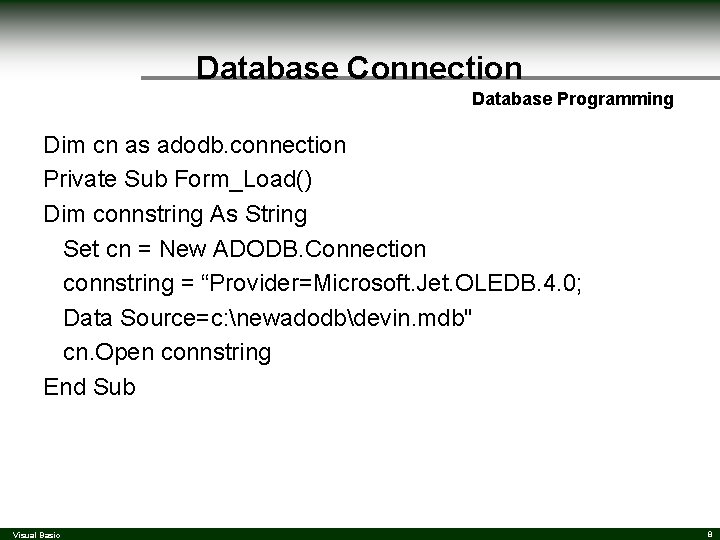

Database Connection Database Programming Dim cn as adodb. connection Private Sub Form_Load() Dim connstring As String Set cn = New ADODB. Connection connstring = “Provider=Microsoft. Jet. OLEDB. 4. 0; Data Source=c: newadodbdevin. mdb" cn. Open connstring End Sub Visual Basic 8

Group Exercise Database Programming • Write a procedure to connect to a database called library. mdb Visual Basic 9

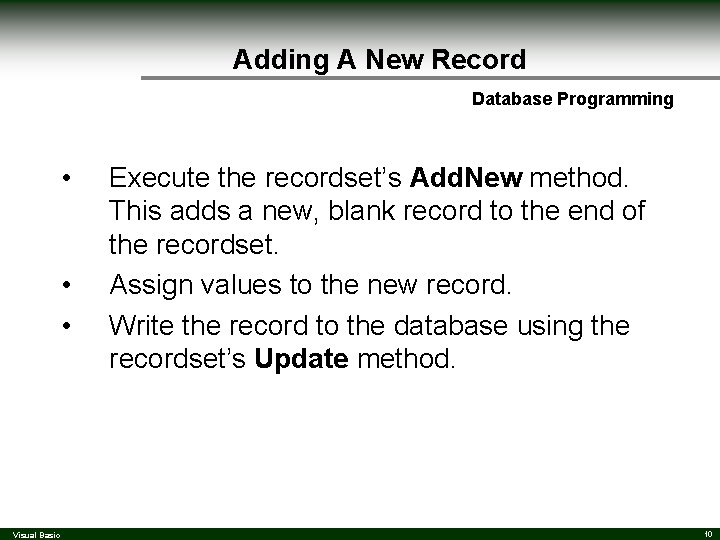

Adding A New Record Database Programming • • • Visual Basic Execute the recordset’s Add. New method. This adds a new, blank record to the end of the recordset. Assign values to the new record. Write the record to the database using the recordset’s Update method. 10

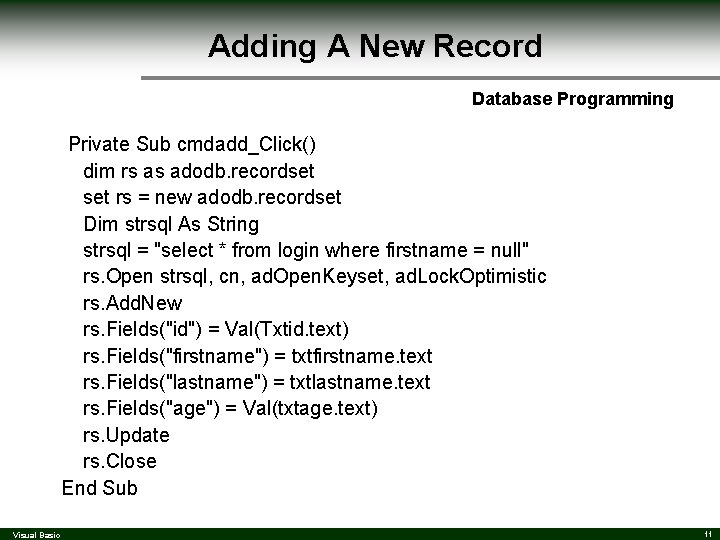

Adding A New Record Database Programming Private Sub cmdadd_Click() dim rs as adodb. recordset rs = new adodb. recordset Dim strsql As String strsql = "select * from login where firstname = null" rs. Open strsql, cn, ad. Open. Keyset, ad. Lock. Optimistic rs. Add. New rs. Fields("id") = Val(Txtid. text) rs. Fields("firstname") = txtfirstname. text rs. Fields("lastname") = txtlastname. text rs. Fields("age") = Val(txtage. text) rs. Update rs. Close End Sub Visual Basic 11

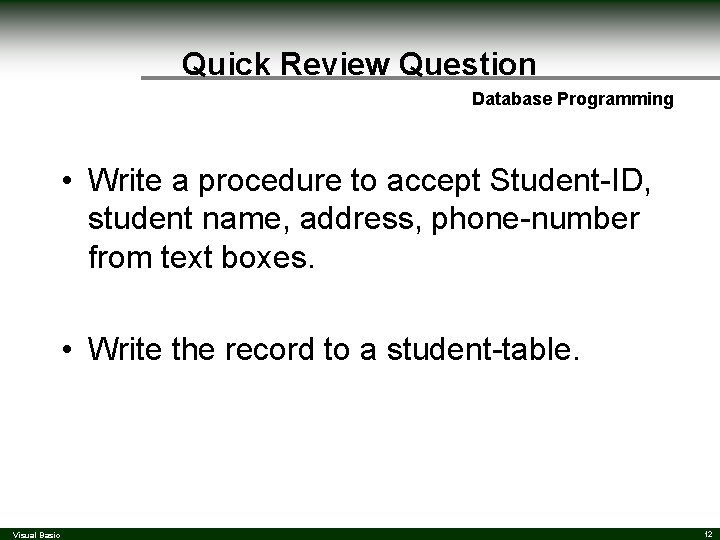

Quick Review Question Database Programming • Write a procedure to accept Student-ID, student name, address, phone-number from text boxes. • Write the record to a student-table. Visual Basic 12

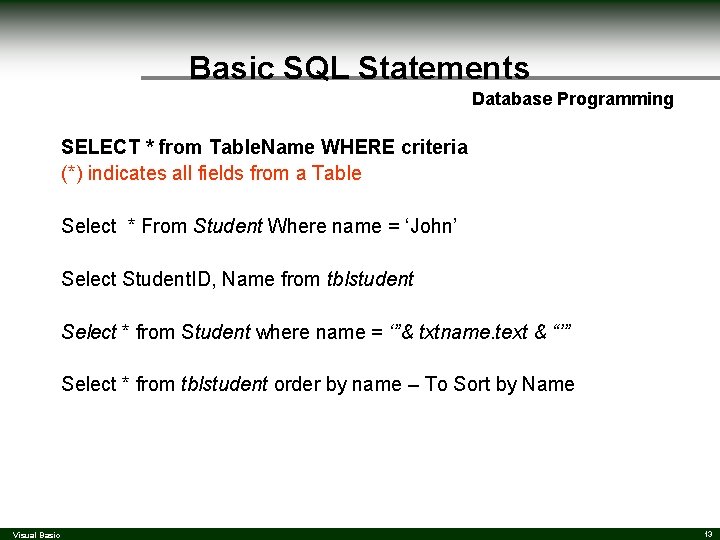

Basic SQL Statements Database Programming SELECT * from Table. Name WHERE criteria (*) indicates all fields from a Table Select * From Student Where name = ‘John’ Select Student. ID, Name from tblstudent Select * from Student where name = ‘”& txtname. text & “’” Select * from tblstudent order by name – To Sort by Name Visual Basic 13

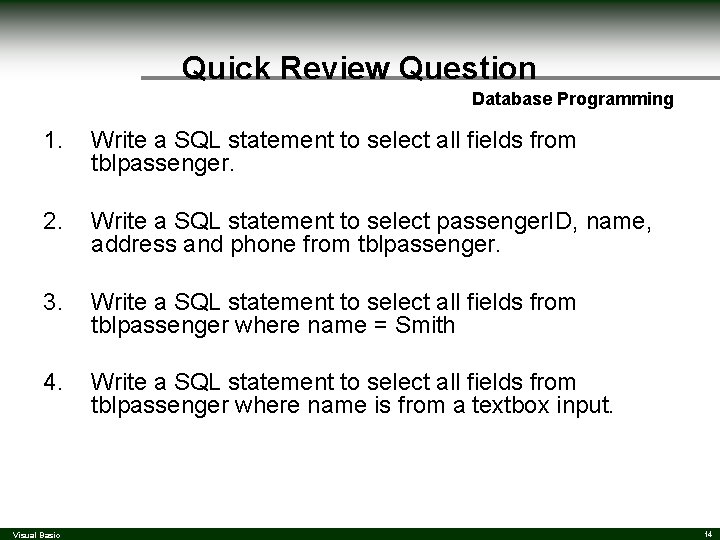

Quick Review Question Database Programming 1. Write a SQL statement to select all fields from tblpassenger. 2. Write a SQL statement to select passenger. ID, name, address and phone from tblpassenger. 3. Write a SQL statement to select all fields from tblpassenger where name = Smith 4. Write a SQL statement to select all fields from tblpassenger where name is from a textbox input. Visual Basic 14

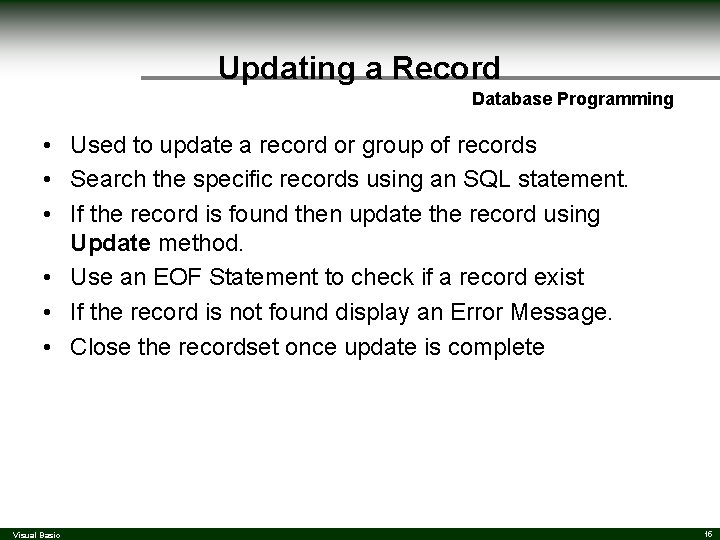

Updating a Record Database Programming • Used to update a record or group of records • Search the specific records using an SQL statement. • If the record is found then update the record using Update method. • Use an EOF Statement to check if a record exist • If the record is not found display an Error Message. • Close the recordset once update is complete Visual Basic 15

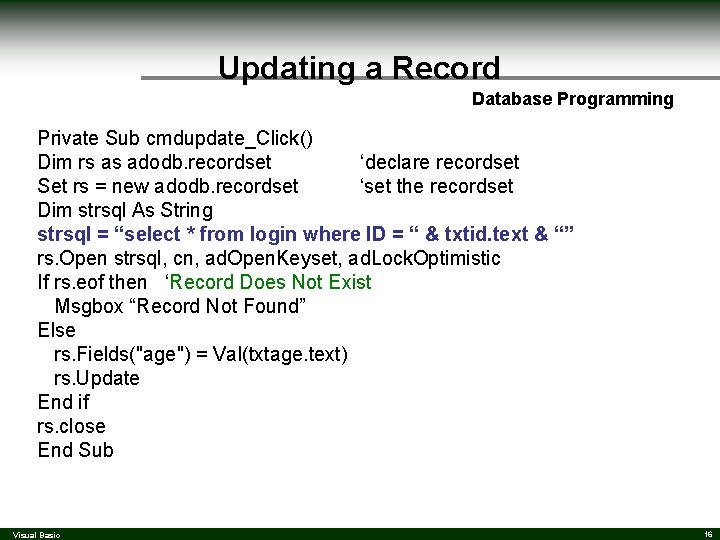

Updating a Record Database Programming Private Sub cmdupdate_Click() Dim rs as adodb. recordset ‘declare recordset Set rs = new adodb. recordset ‘set the recordset Dim strsql As String strsql = “select * from login where ID = “ & txtid. text & “” rs. Open strsql, cn, ad. Open. Keyset, ad. Lock. Optimistic If rs. eof then ‘Record Does Not Exist Msgbox “Record Not Found” Else rs. Fields("age") = Val(txtage. text) rs. Update End if rs. close End Sub Visual Basic 16

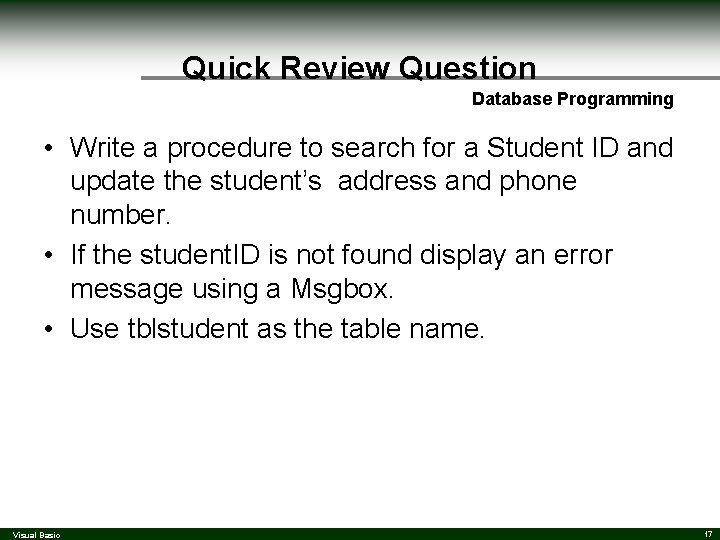

Quick Review Question Database Programming • Write a procedure to search for a Student ID and update the student’s address and phone number. • If the student. ID is not found display an error message using a Msgbox. • Use tblstudent as the table name. Visual Basic 17

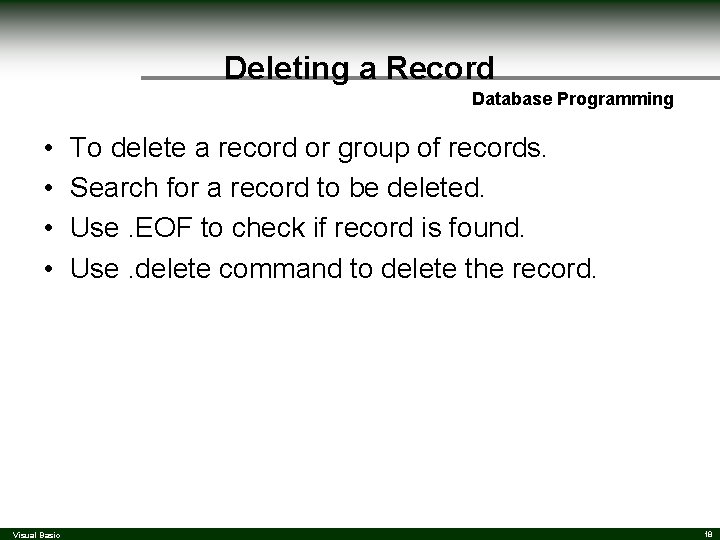

Deleting a Record Database Programming • • Visual Basic To delete a record or group of records. Search for a record to be deleted. Use. EOF to check if record is found. Use. delete command to delete the record. 18

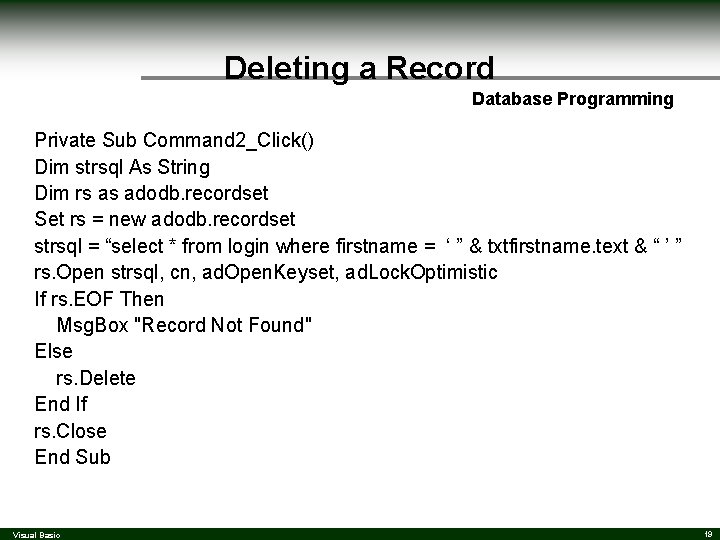

Deleting a Record Database Programming Private Sub Command 2_Click() Dim strsql As String Dim rs as adodb. recordset Set rs = new adodb. recordset strsql = “select * from login where firstname = ‘ ” & txtfirstname. text & “ ’ ” rs. Open strsql, cn, ad. Open. Keyset, ad. Lock. Optimistic If rs. EOF Then Msg. Box "Record Not Found" Else rs. Delete End If rs. Close End Sub Visual Basic 19

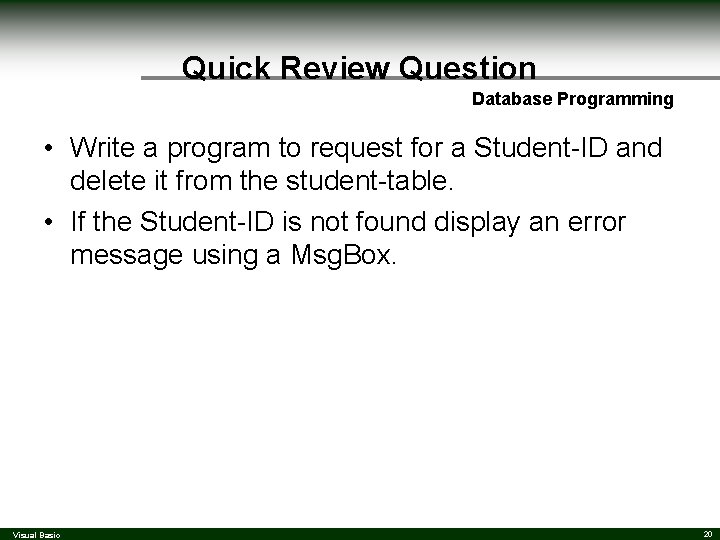

Quick Review Question Database Programming • Write a program to request for a Student-ID and delete it from the student-table. • If the Student-ID is not found display an error message using a Msg. Box. Visual Basic 20

Question and Answer Session Database Programming Q&A Visual Basic 21

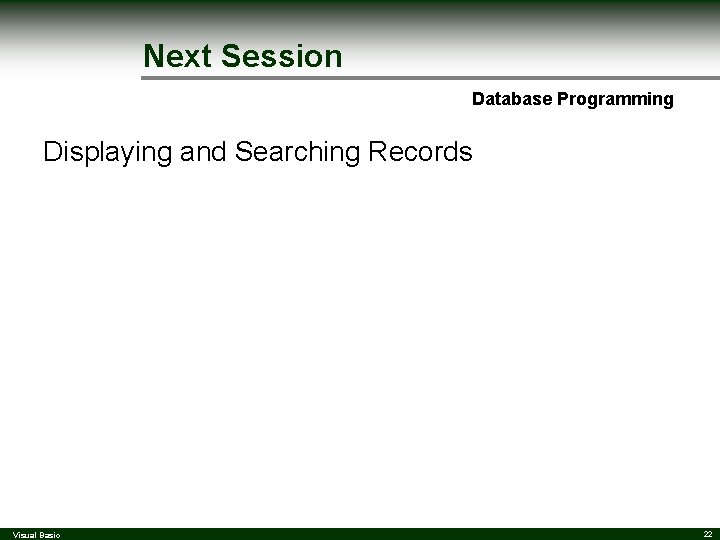

Next Session Database Programming Displaying and Searching Records Visual Basic 22

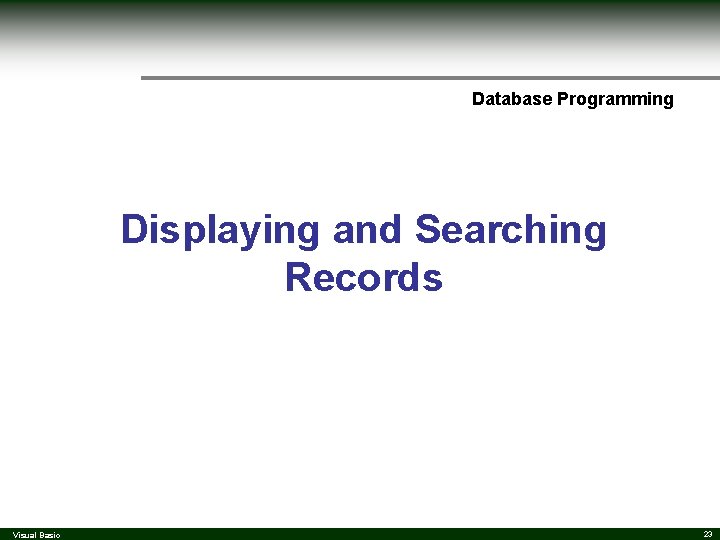

Database Programming Displaying and Searching Records Visual Basic 23

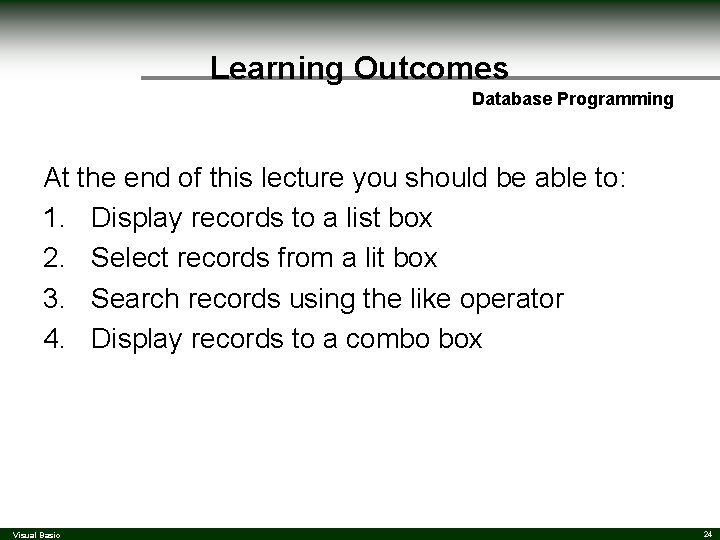

Learning Outcomes Database Programming At the end of this lecture you should be able to: 1. Display records to a list box 2. Select records from a lit box 3. Search records using the like operator 4. Display records to a combo box Visual Basic 24

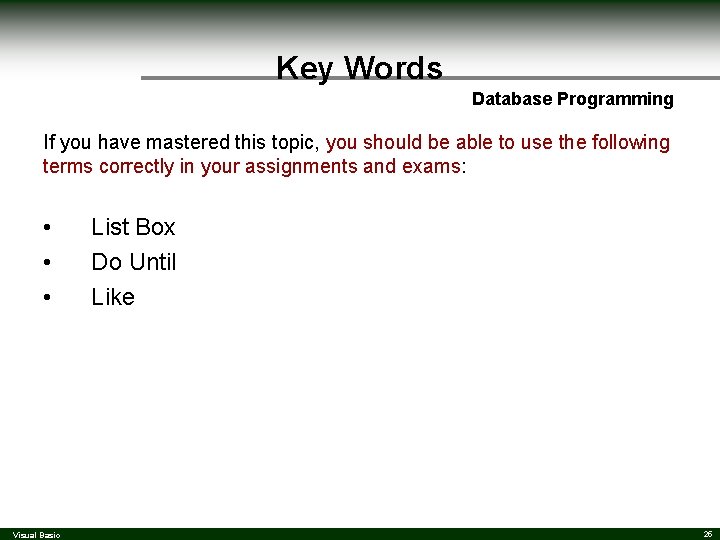

Key Words Database Programming If you have mastered this topic, you should be able to use the following terms correctly in your assignments and exams: • • • Visual Basic List Box Do Until Like 25

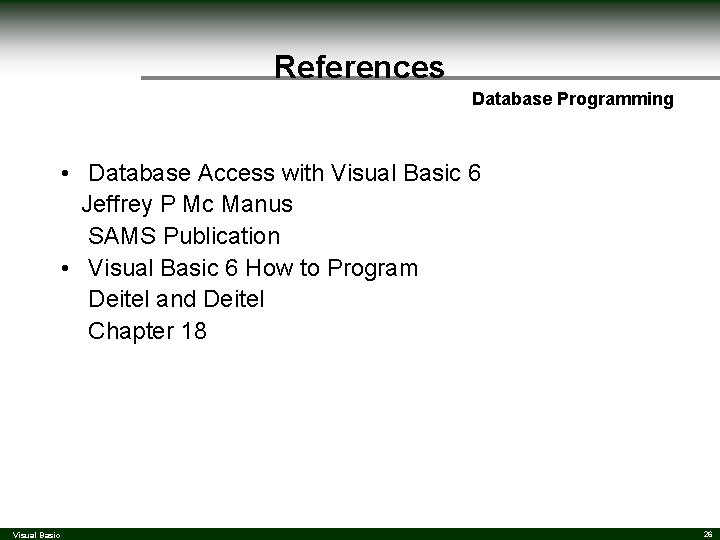

References Database Programming • Database Access with Visual Basic 6 Jeffrey P Mc Manus SAMS Publication • Visual Basic 6 How to Program Deitel and Deitel Chapter 18 Visual Basic 26

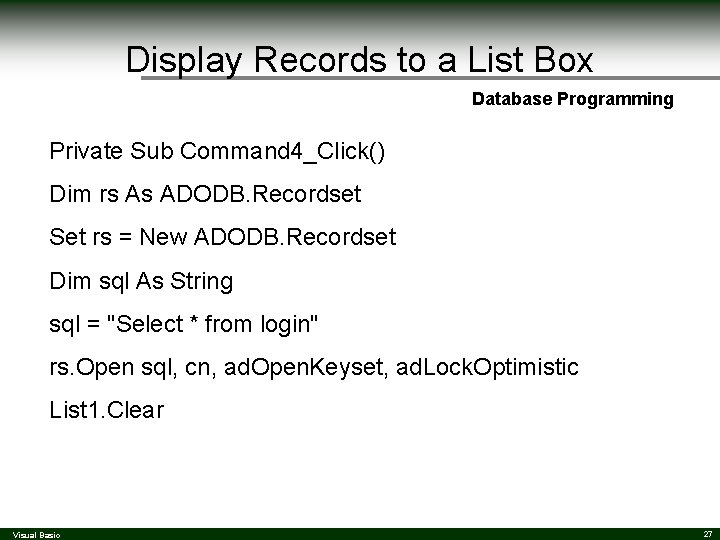

Display Records to a List Box Database Programming Private Sub Command 4_Click() Dim rs As ADODB. Recordset Set rs = New ADODB. Recordset Dim sql As String sql = "Select * from login" rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic List 1. Clear Visual Basic 27

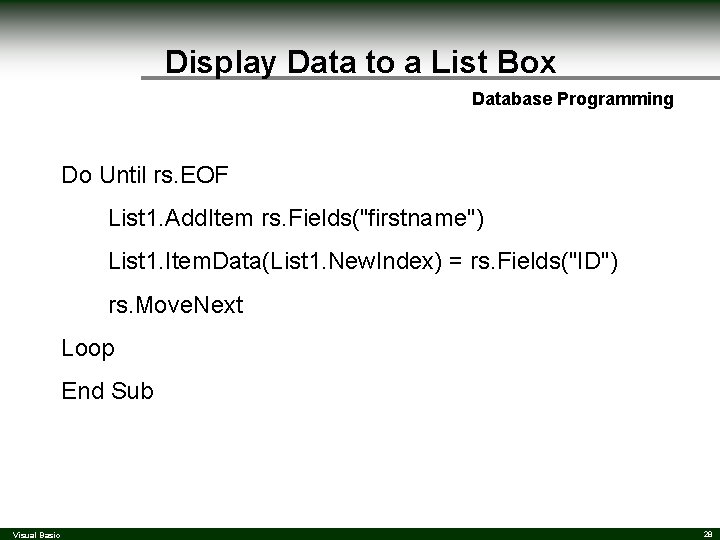

Display Data to a List Box Database Programming Do Until rs. EOF List 1. Add. Item rs. Fields("firstname") List 1. Item. Data(List 1. New. Index) = rs. Fields("ID") rs. Move. Next Loop End Sub Visual Basic 28

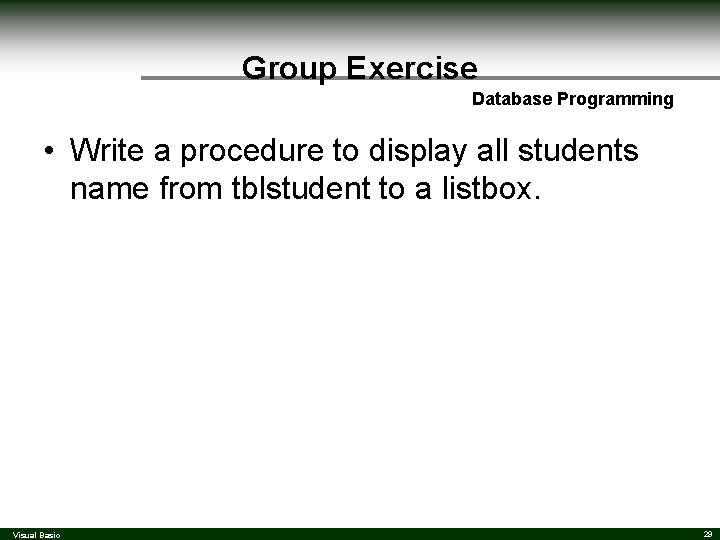

Group Exercise Database Programming • Write a procedure to display all students name from tblstudent to a listbox. Visual Basic 29

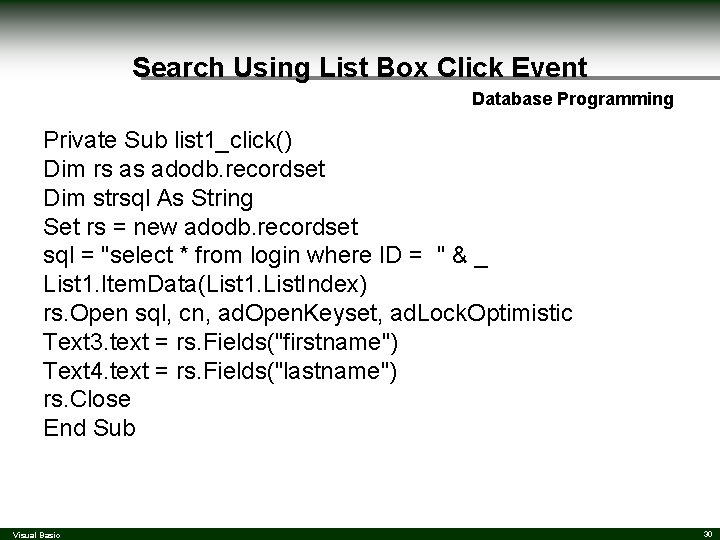

Search Using List Box Click Event Database Programming Private Sub list 1_click() Dim rs as adodb. recordset Dim strsql As String Set rs = new adodb. recordset sql = "select * from login where ID = " & _ List 1. Item. Data(List 1. List. Index) rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic Text 3. text = rs. Fields("firstname") Text 4. text = rs. Fields("lastname") rs. Close End Sub Visual Basic 30

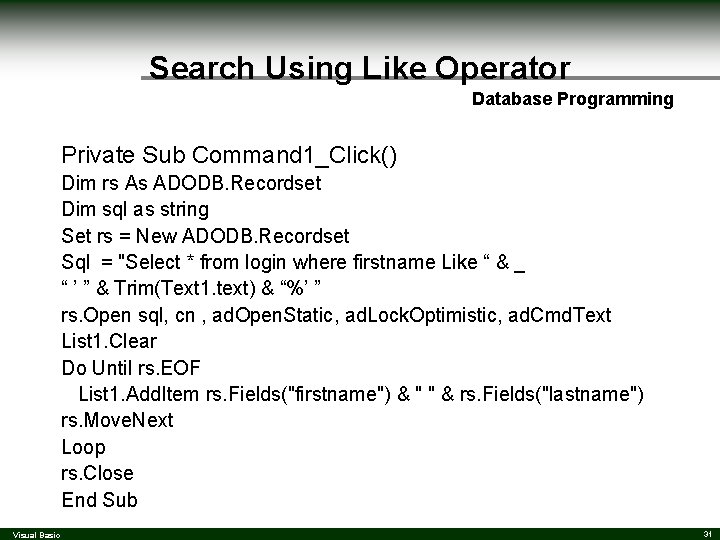

Search Using Like Operator Database Programming Private Sub Command 1_Click() Dim rs As ADODB. Recordset Dim sql as string Set rs = New ADODB. Recordset Sql = "Select * from login where firstname Like “ & _ “ ’ ” & Trim(Text 1. text) & “%’ ” rs. Open sql, cn , ad. Open. Static, ad. Lock. Optimistic, ad. Cmd. Text List 1. Clear Do Until rs. EOF List 1. Add. Item rs. Fields("firstname") & " " & rs. Fields("lastname") rs. Move. Next Loop rs. Close End Sub Visual Basic 31

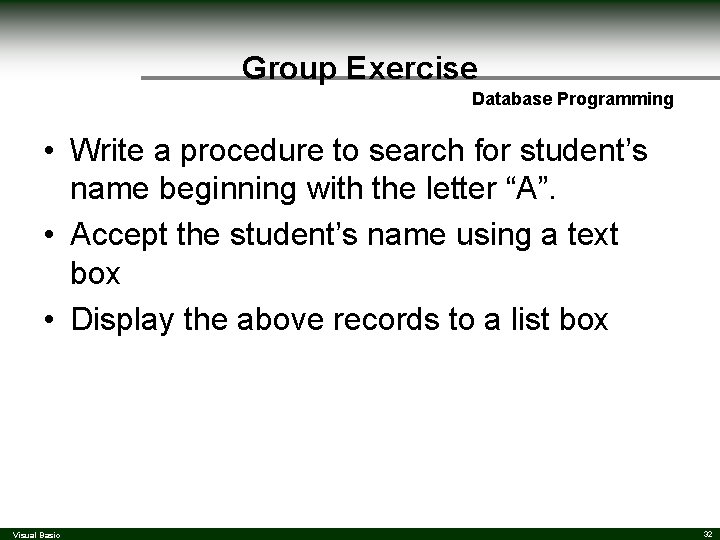

Group Exercise Database Programming • Write a procedure to search for student’s name beginning with the letter “A”. • Accept the student’s name using a text box • Display the above records to a list box Visual Basic 32

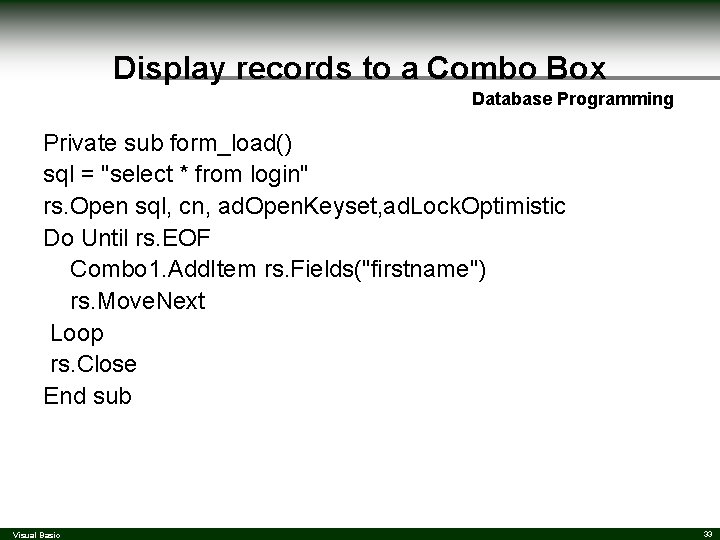

Display records to a Combo Box Database Programming Private sub form_load() sql = "select * from login" rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic Do Until rs. EOF Combo 1. Add. Item rs. Fields("firstname") rs. Move. Next Loop rs. Close End sub Visual Basic 33

Combo Click Database Programming Private Sub Combo 1_click() Dim sql As String sql = "Select * from login where firstname = '" & Combo 1. text & "'" rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic Text 8. text = rs. Fields("ID") Text 1. text = rs. Fields("firstname") Text 2. text = rs. Fields("lastname") Text 5. text = rs. Fields("age") rs. Close Visual Basic 34

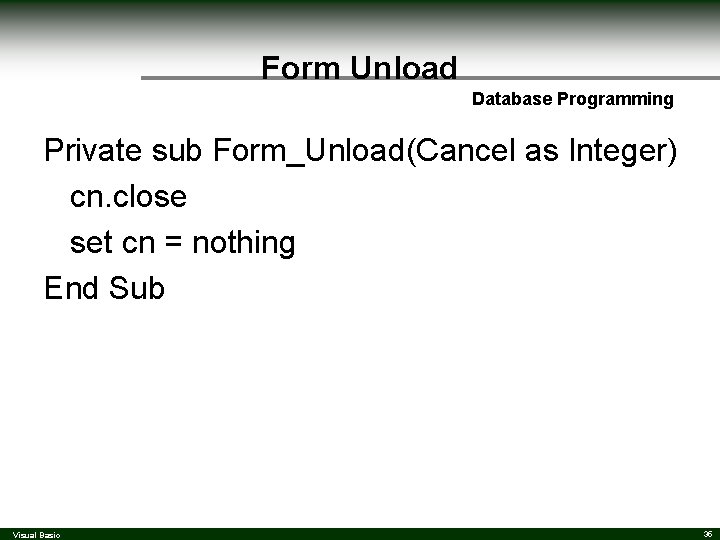

Form Unload Database Programming Private sub Form_Unload(Cancel as Integer) cn. close set cn = nothing End Sub Visual Basic 35

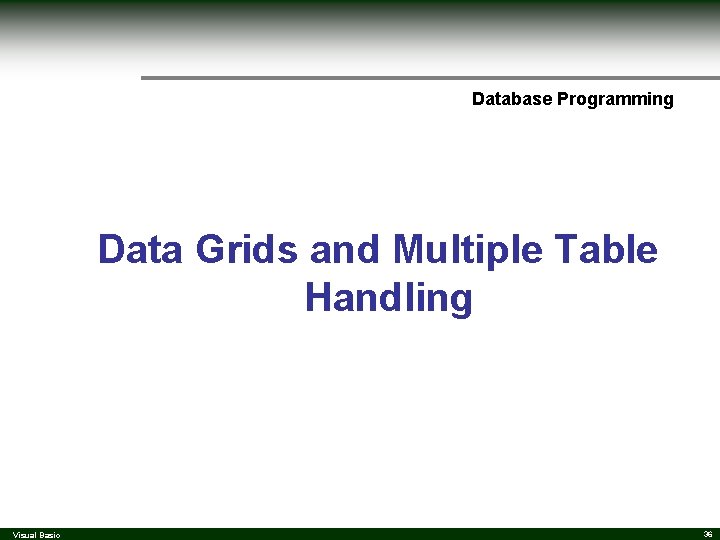

Database Programming Data Grids and Multiple Table Handling Visual Basic 36

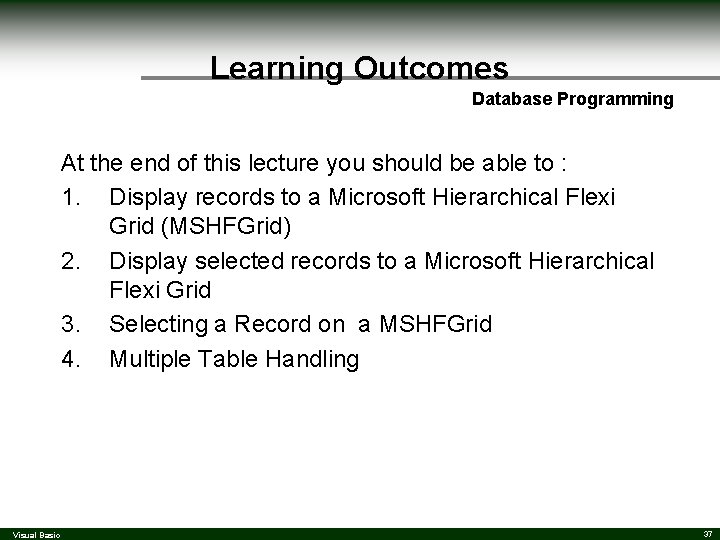

Learning Outcomes Database Programming At the end of this lecture you should be able to : 1. Display records to a Microsoft Hierarchical Flexi Grid (MSHFGrid) 2. Display selected records to a Microsoft Hierarchical Flexi Grid 3. Selecting a Record on a MSHFGrid 4. Multiple Table Handling Visual Basic 37

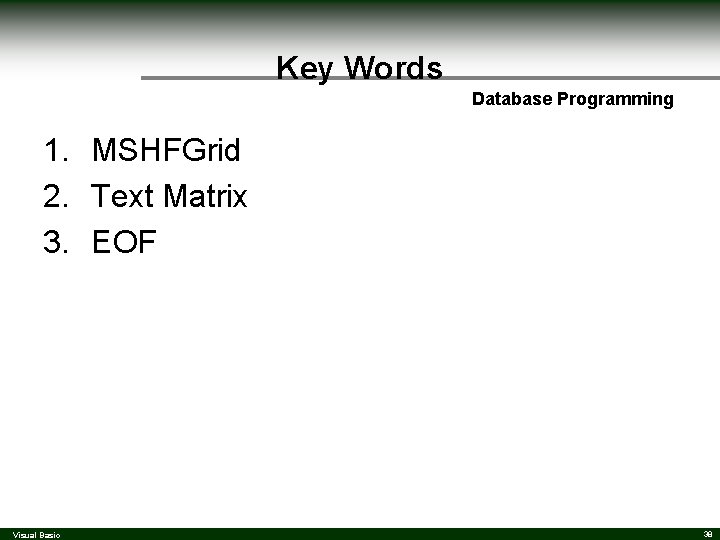

Key Words Database Programming 1. MSHFGrid 2. Text Matrix 3. EOF Visual Basic 38

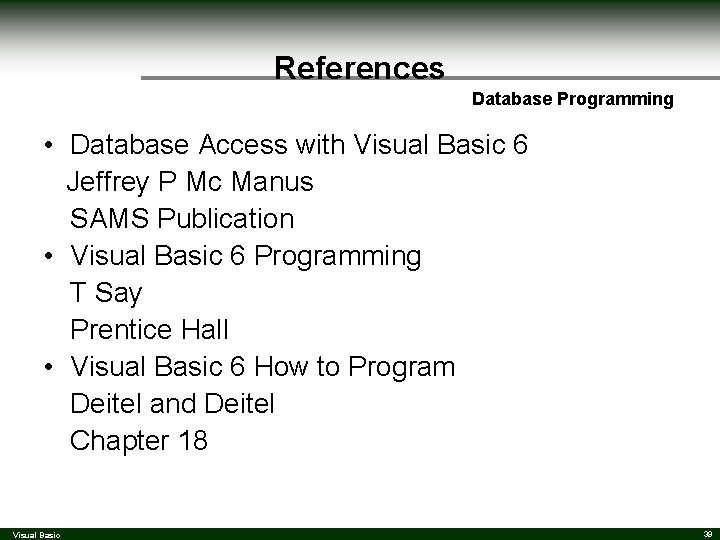

References Database Programming • Database Access with Visual Basic 6 Jeffrey P Mc Manus SAMS Publication • Visual Basic 6 Programming T Say Prentice Hall • Visual Basic 6 How to Program Deitel and Deitel Chapter 18 Visual Basic 39

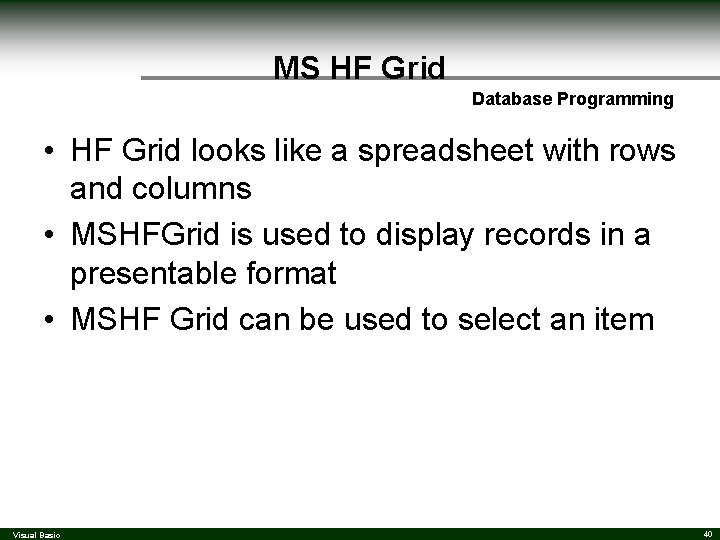

MS HF Grid Database Programming • HF Grid looks like a spreadsheet with rows and columns • MSHFGrid is used to display records in a presentable format • MSHF Grid can be used to select an item Visual Basic 40

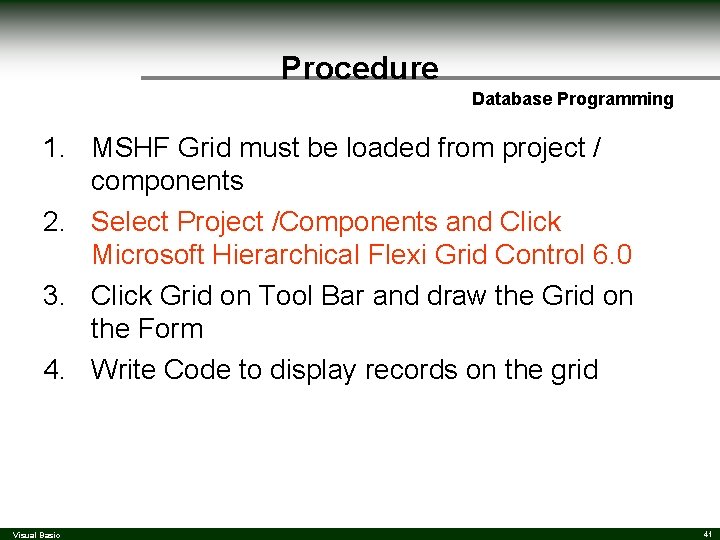

Procedure Database Programming 1. MSHF Grid must be loaded from project / components 2. Select Project /Components and Click Microsoft Hierarchical Flexi Grid Control 6. 0 3. Click Grid on Tool Bar and draw the Grid on the Form 4. Write Code to display records on the grid Visual Basic 41

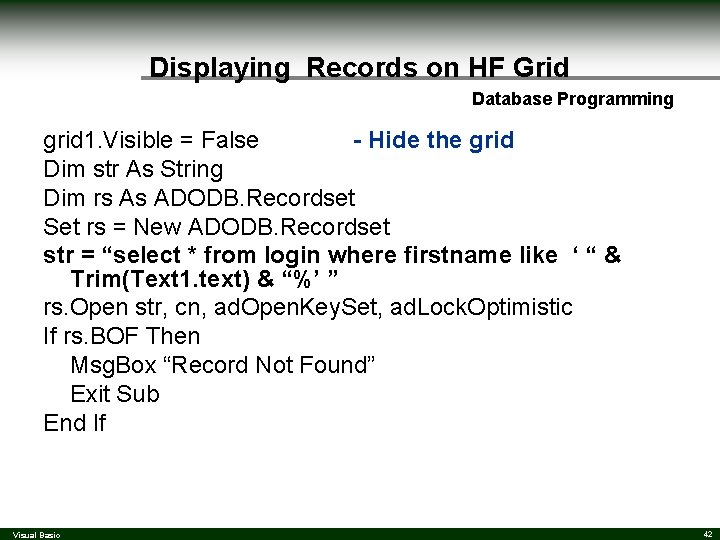

Displaying Records on HF Grid Database Programming grid 1. Visible = False - Hide the grid Dim str As String Dim rs As ADODB. Recordset Set rs = New ADODB. Recordset str = “select * from login where firstname like ‘ “ & Trim(Text 1. text) & “%’ ” rs. Open str, cn, ad. Open. Key. Set, ad. Lock. Optimistic If rs. BOF Then Msg. Box “Record Not Found” Exit Sub End If Visual Basic 42

Displaying Records on HF Grid Database Programming grid 1. Refresh Set grid 1. Data. Source = rs With grid 1. Text. Matrix(0, 1) = "ID". Text. Matrix(0, 2) = "Firstname". Text. Matrix(0, 3) = "Lastname". Text. Matrix(0, 4) = "DOB". Text. Matrix(0, 5) = "AGE" End With grid 1. Visible = True - Show the Grid rs. close Visual Basic 43

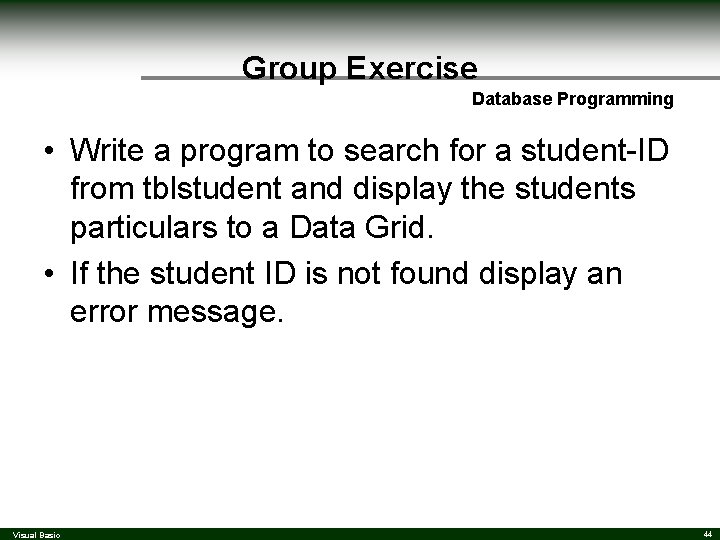

Group Exercise Database Programming • Write a program to search for a student-ID from tblstudent and display the students particulars to a Data Grid. • If the student ID is not found display an error message. Visual Basic 44

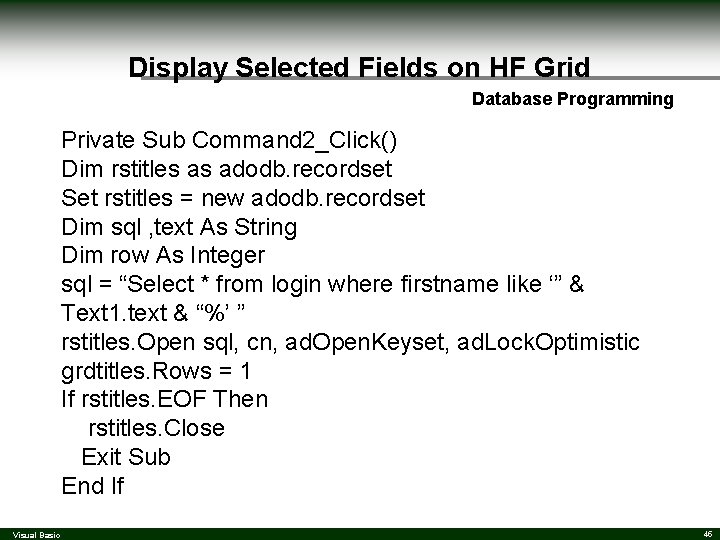

Display Selected Fields on HF Grid Database Programming Private Sub Command 2_Click() Dim rstitles as adodb. recordset Set rstitles = new adodb. recordset Dim sql , text As String Dim row As Integer sql = “Select * from login where firstname like ‘” & Text 1. text & “%’ ” rstitles. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic grdtitles. Rows = 1 If rstitles. EOF Then rstitles. Close Exit Sub End If Visual Basic 45

Display Selected Fields on HF Grid Database Programming Do Until rstitles. EOF row = row + 1 text = row & vb. Tab & rstitles. Fields("firstname") & vb. Tab & rstitles. Fields("lastname") grdtitles. Add. Item text rstitles. Move. Next Loop rstitles. Close End Sub Visual Basic 46

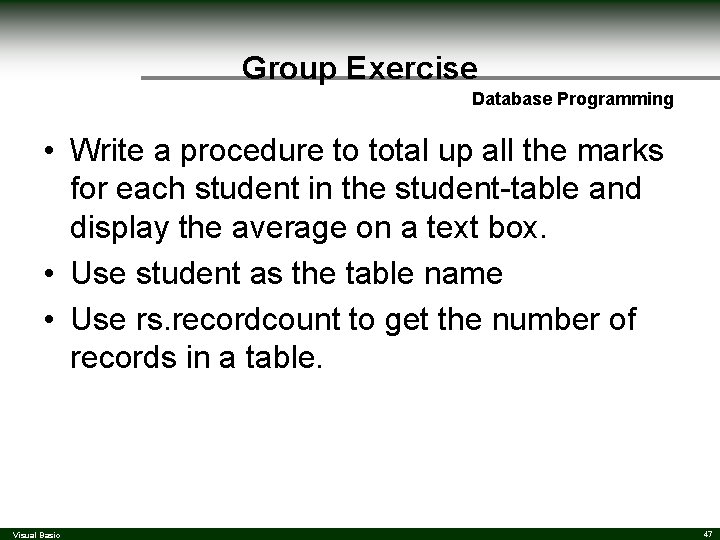

Group Exercise Database Programming • Write a procedure to total up all the marks for each student in the student-table and display the average on a text box. • Use student as the table name • Use rs. recordcount to get the number of records in a table. Visual Basic 47

Selecting a Record on a Grid Database Programming Private Sub grid 1_Click() a = grid 1. Text. Matrix(grid 1. row, grid 1. Col) Msgbox a End Sub Visual Basic 48

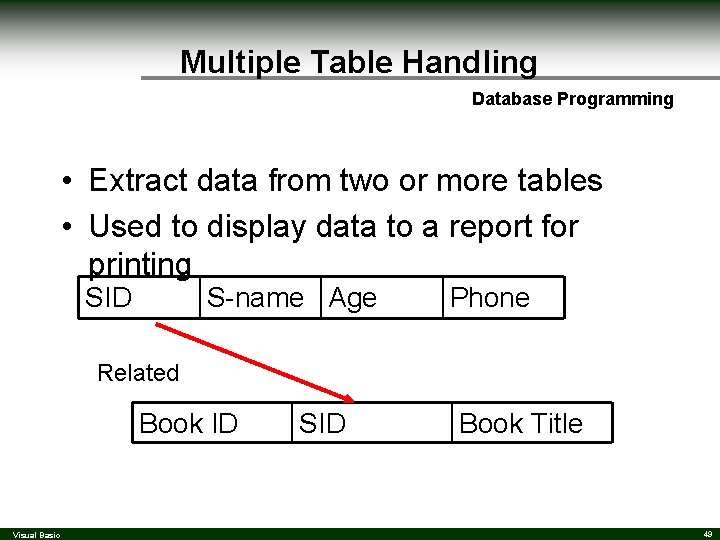

Multiple Table Handling Database Programming • Extract data from two or more tables • Used to display data to a report for printing SID S-name Age Phone Related Book ID Visual Basic SID Book Title 49

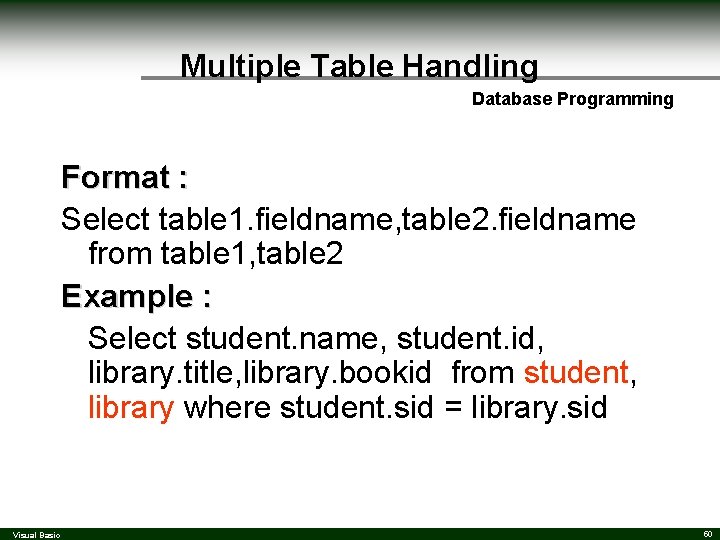

Multiple Table Handling Database Programming Format : Select table 1. fieldname, table 2. fieldname from table 1, table 2 Example : Select student. name, student. id, library. title, library. bookid from student, library where student. sid = library. sid Visual Basic 50

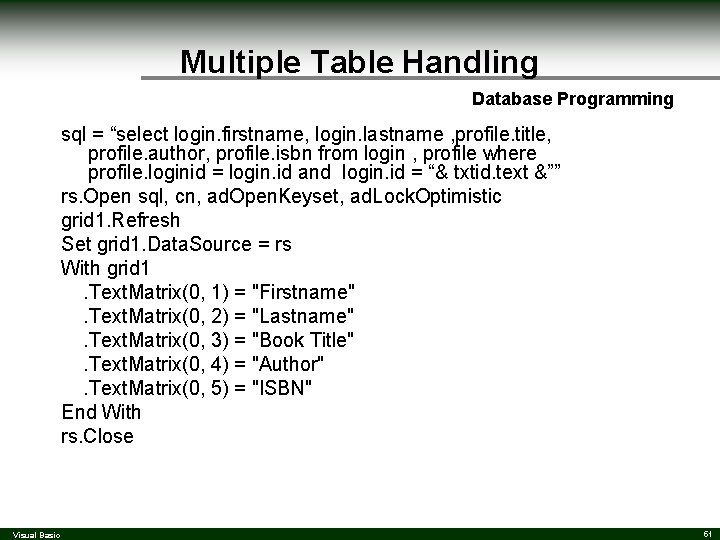

Multiple Table Handling Database Programming sql = “select login. firstname, login. lastname , profile. title, profile. author, profile. isbn from login , profile where profile. loginid = login. id and login. id = “& txtid. text &”” rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic grid 1. Refresh Set grid 1. Data. Source = rs With grid 1. Text. Matrix(0, 1) = "Firstname". Text. Matrix(0, 2) = "Lastname". Text. Matrix(0, 3) = "Book Title". Text. Matrix(0, 4) = "Author". Text. Matrix(0, 5) = "ISBN" End With rs. Close Visual Basic 51

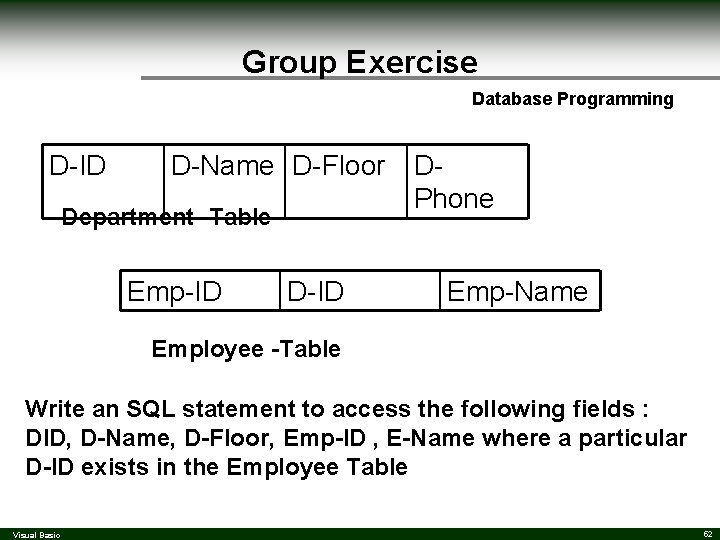

Group Exercise Database Programming D-ID D-Name D-Floor Department -Table Emp-ID DPhone Emp-Name Employee -Table Write an SQL statement to access the following fields : DID, D-Name, D-Floor, Emp-ID , E-Name where a particular D-ID exists in the Employee Table Visual Basic 52

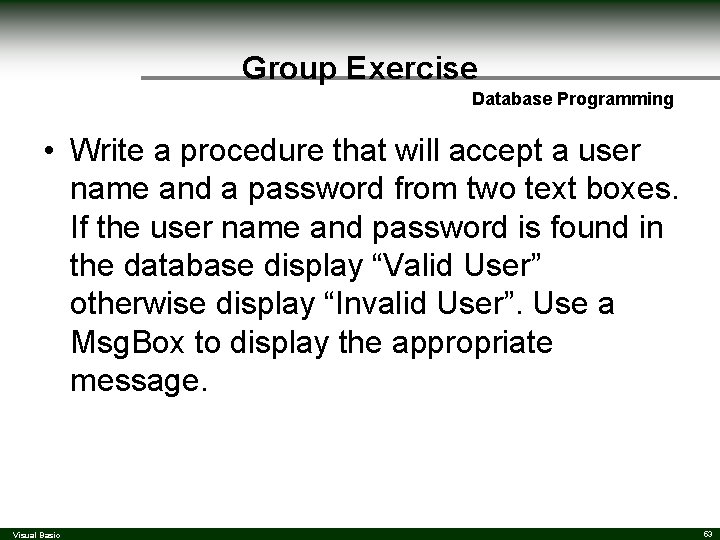

Group Exercise Database Programming • Write a procedure that will accept a user name and a password from two text boxes. If the user name and password is found in the database display “Valid User” otherwise display “Invalid User”. Use a Msg. Box to display the appropriate message. Visual Basic 53

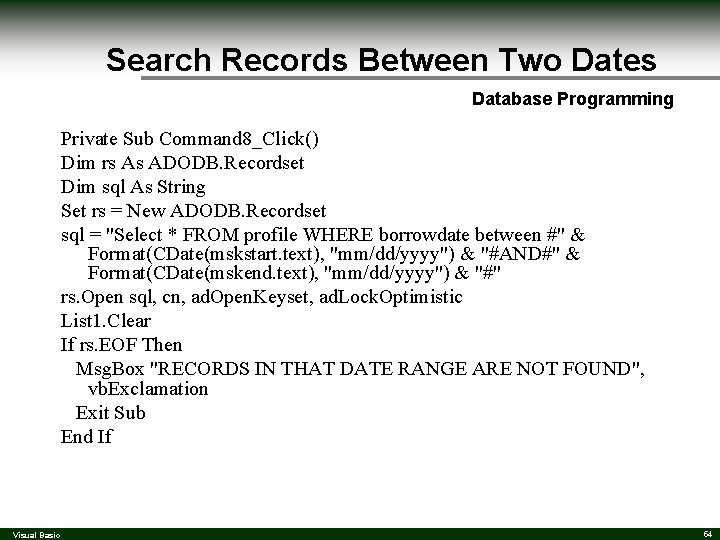

Search Records Between Two Dates Database Programming Private Sub Command 8_Click() Dim rs As ADODB. Recordset Dim sql As String Set rs = New ADODB. Recordset sql = "Select * FROM profile WHERE borrowdate between #" & Format(CDate(mskstart. text), "mm/dd/yyyy") & "#AND#" & Format(CDate(mskend. text), "mm/dd/yyyy") & "#" rs. Open sql, cn, ad. Open. Keyset, ad. Lock. Optimistic List 1. Clear If rs. EOF Then Msg. Box "RECORDS IN THAT DATE RANGE ARE NOT FOUND", vb. Exclamation Exit Sub End If Visual Basic 54

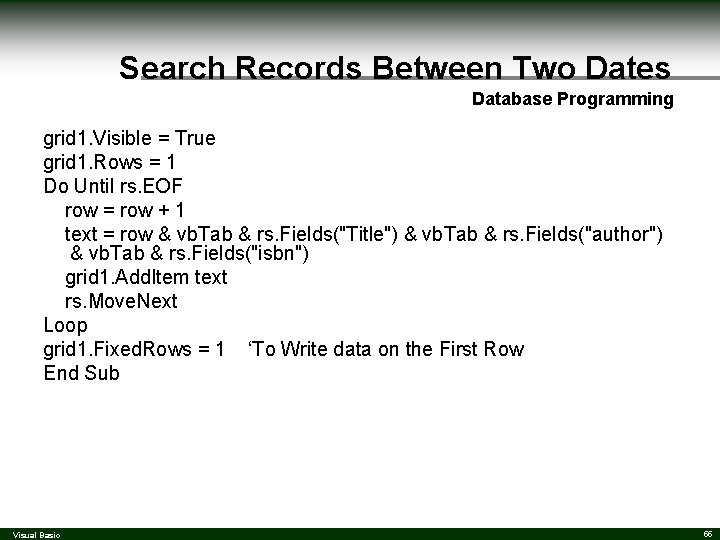

Search Records Between Two Dates Database Programming grid 1. Visible = True grid 1. Rows = 1 Do Until rs. EOF row = row + 1 text = row & vb. Tab & rs. Fields("Title") & vb. Tab & rs. Fields("author") & vb. Tab & rs. Fields("isbn") grid 1. Add. Item text rs. Move. Next Loop grid 1. Fixed. Rows = 1 ‘To Write data on the First Row End Sub Visual Basic 55

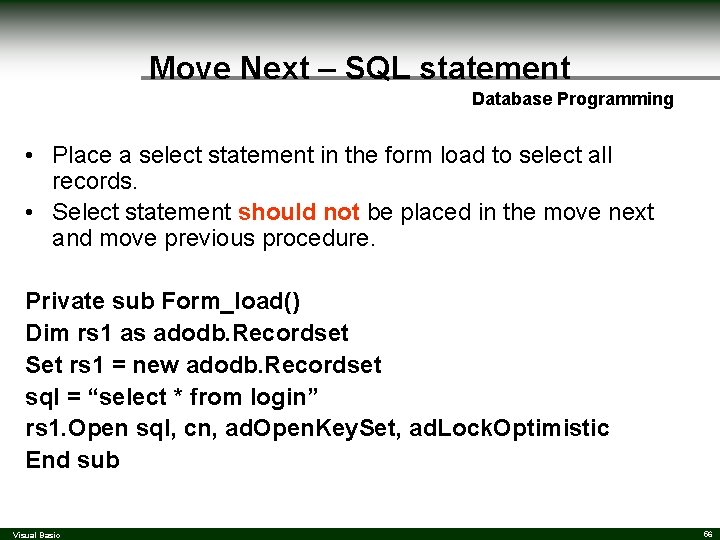

Move Next – SQL statement Database Programming • Place a select statement in the form load to select all records. • Select statement should not be placed in the move next and move previous procedure. Private sub Form_load() Dim rs 1 as adodb. Recordset Set rs 1 = new adodb. Recordset sql = “select * from login” rs 1. Open sql, cn, ad. Open. Key. Set, ad. Lock. Optimistic End sub Visual Basic 56

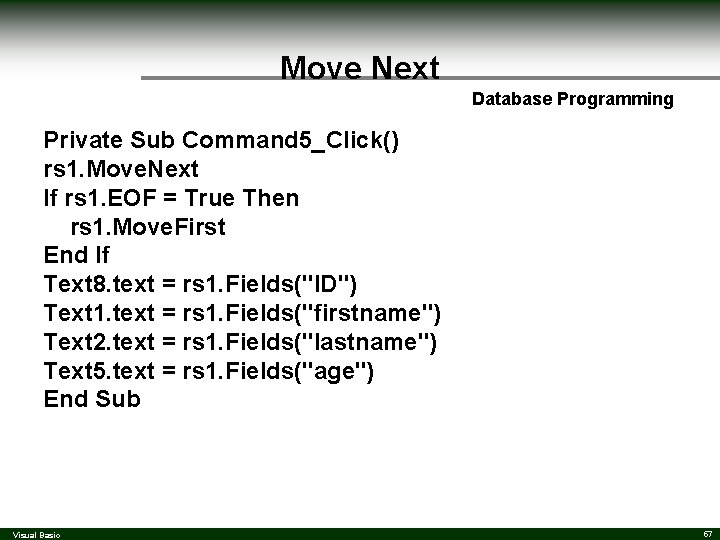

Move Next Database Programming Private Sub Command 5_Click() rs 1. Move. Next If rs 1. EOF = True Then rs 1. Move. First End If Text 8. text = rs 1. Fields("ID") Text 1. text = rs 1. Fields("firstname") Text 2. text = rs 1. Fields("lastname") Text 5. text = rs 1. Fields("age") End Sub Visual Basic 57

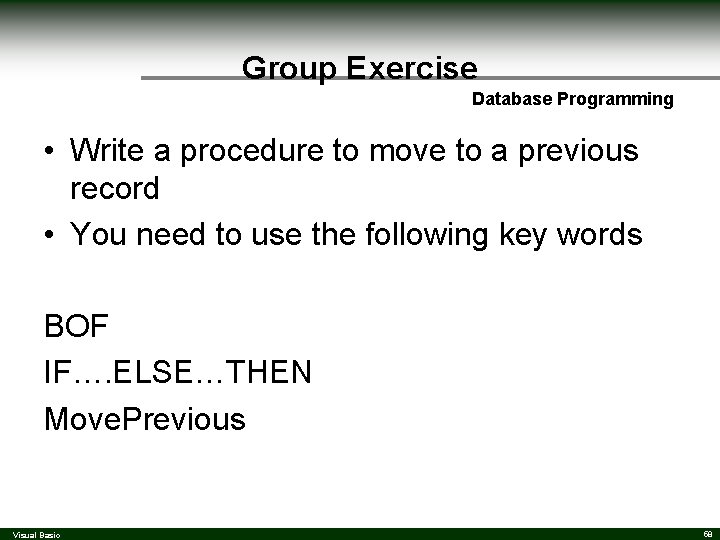

Group Exercise Database Programming • Write a procedure to move to a previous record • You need to use the following key words BOF IF…. ELSE…THEN Move. Previous Visual Basic 58

Move Previous Database Programming To move to a previous record rs 1. Move. Previous If rs 1. BOF = True Then rs 1. Move. Last End If Text 8. text = rs 1. Fields("ID") Text 1. text = rs 1. Fields("firstname") Text 2. text = rs 1. Fields("lastname") Text 5. text = rs 1. Fields("age") Visual Basic 59

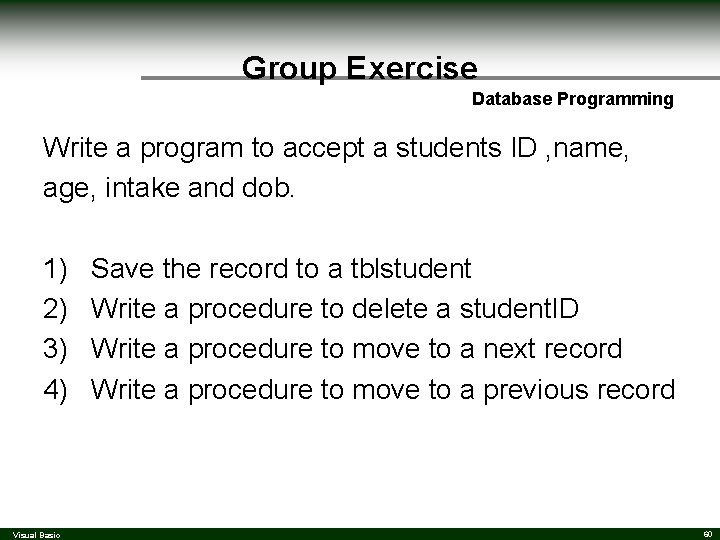

Group Exercise Database Programming Write a program to accept a students ID , name, age, intake and dob. 1) 2) 3) 4) Visual Basic Save the record to a tblstudent Write a procedure to delete a student. ID Write a procedure to move to a next record Write a procedure to move to a previous record 60

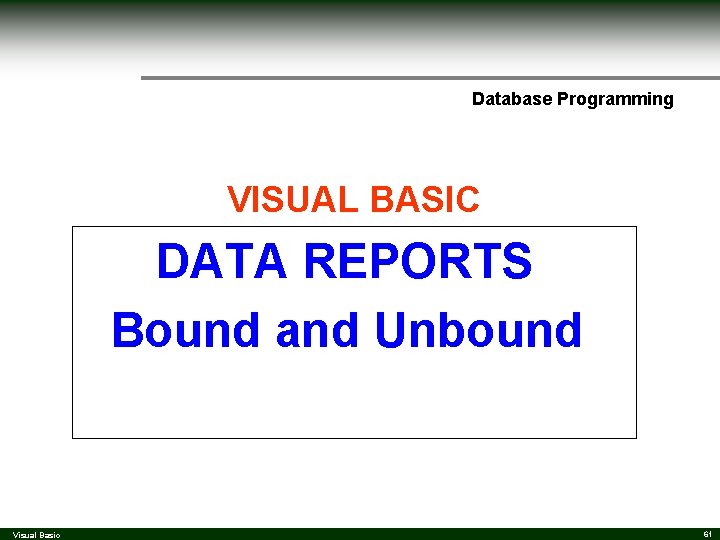

Database Programming VISUAL BASIC DATA REPORTS Bound and Unbound Visual Basic 61

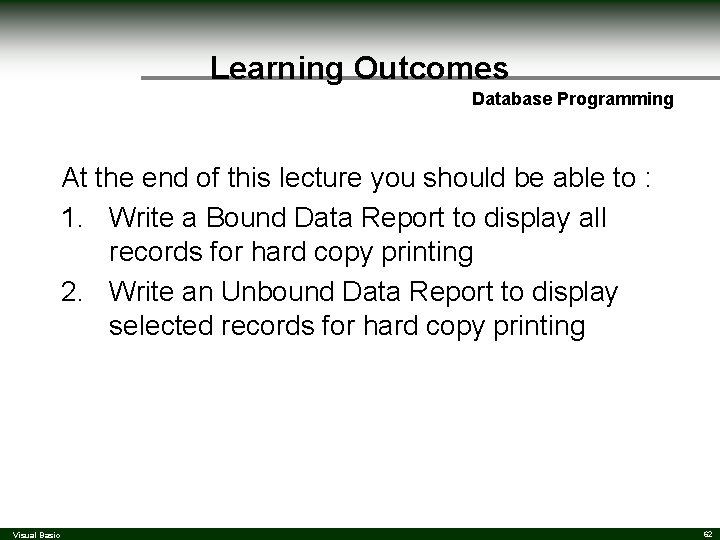

Learning Outcomes Database Programming At the end of this lecture you should be able to : 1. Write a Bound Data Report to display all records for hard copy printing 2. Write an Unbound Data Report to display selected records for hard copy printing Visual Basic 62

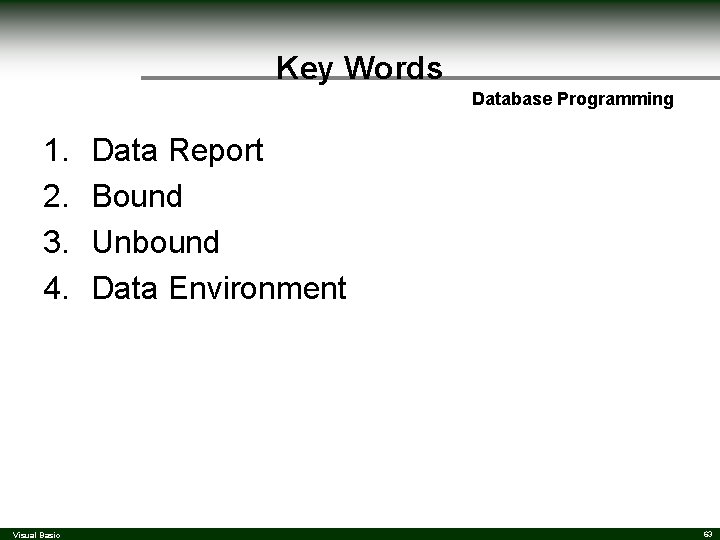

Key Words Database Programming 1. 2. 3. 4. Visual Basic Data Report Bound Unbound Data Environment 63

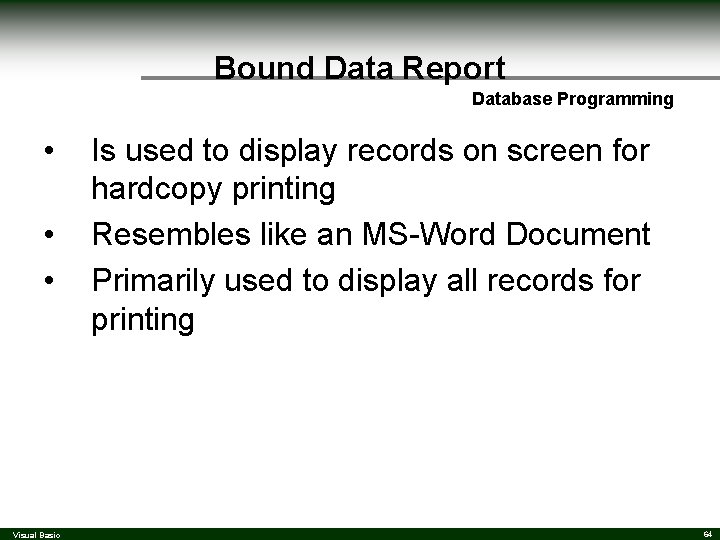

Bound Data Report Database Programming • • • Visual Basic Is used to display records on screen for hardcopy printing Resembles like an MS-Word Document Primarily used to display all records for printing 64

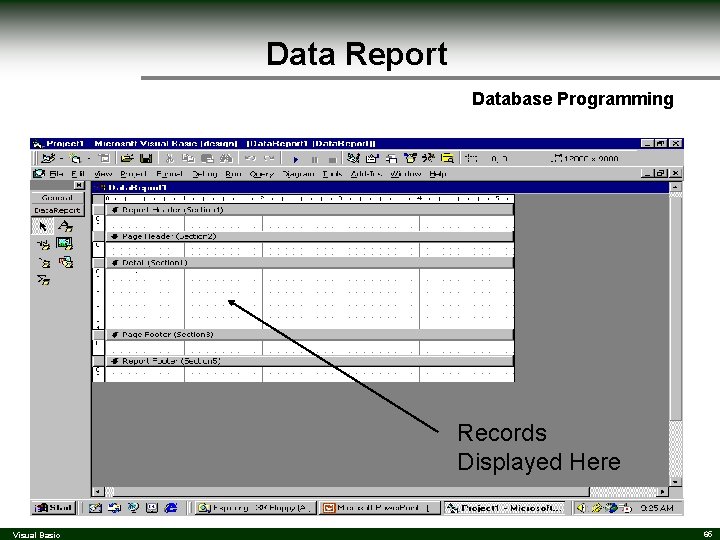

Data Report Database Programming Records Displayed Here Visual Basic 65

Bound Data Report - Step 1 Database Programming Select Project Click Components Visual Basic 66

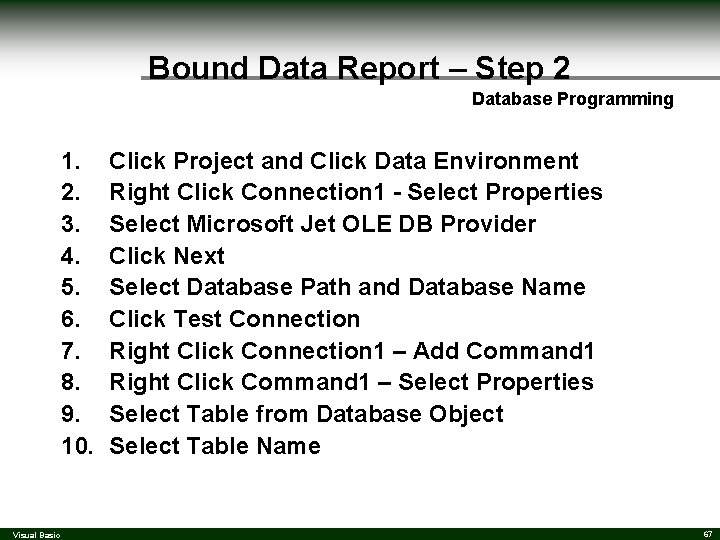

Bound Data Report – Step 2 Database Programming 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Visual Basic Click Project and Click Data Environment Right Click Connection 1 - Select Properties Select Microsoft Jet OLE DB Provider Click Next Select Database Path and Database Name Click Test Connection Right Click Connection 1 – Add Command 1 Right Click Command 1 – Select Properties Select Table from Database Object Select Table Name 67

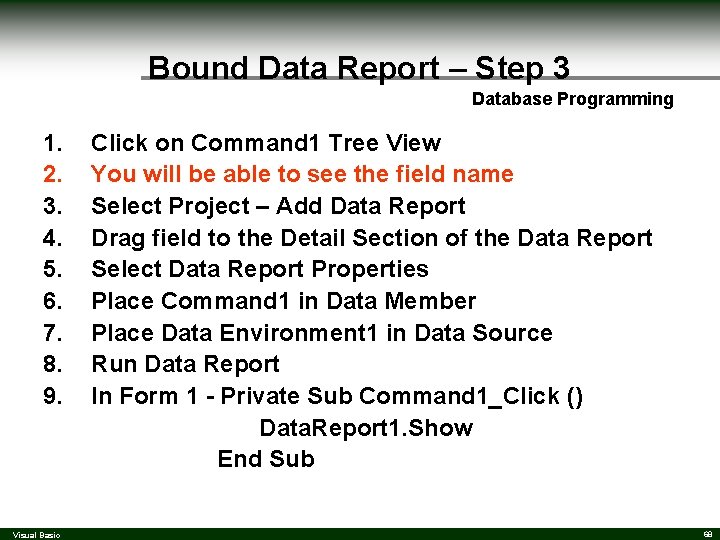

Bound Data Report – Step 3 Database Programming 1. 2. 3. 4. 5. 6. 7. 8. 9. Visual Basic Click on Command 1 Tree View You will be able to see the field name Select Project – Add Data Report Drag field to the Detail Section of the Data Report Select Data Report Properties Place Command 1 in Data Member Place Data Environment 1 in Data Source Run Data Report In Form 1 - Private Sub Command 1_Click () Data. Report 1. Show End Sub 68

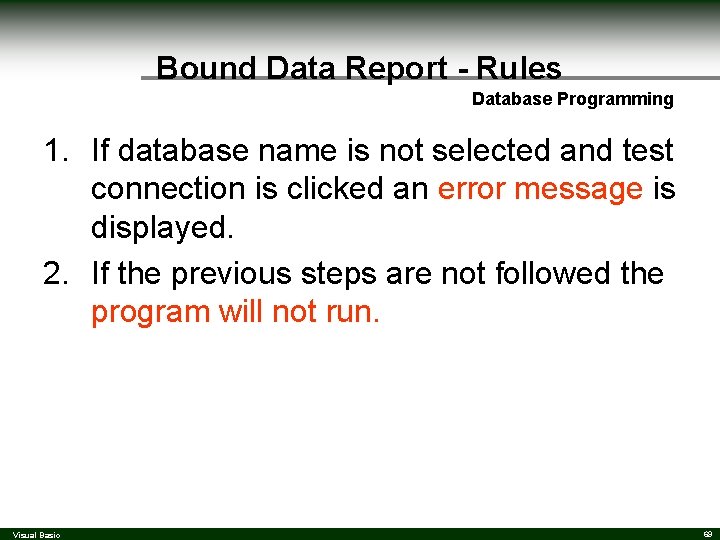

Bound Data Report - Rules Database Programming 1. If database name is not selected and test connection is clicked an error message is displayed. 2. If the previous steps are not followed the program will not run. Visual Basic 69

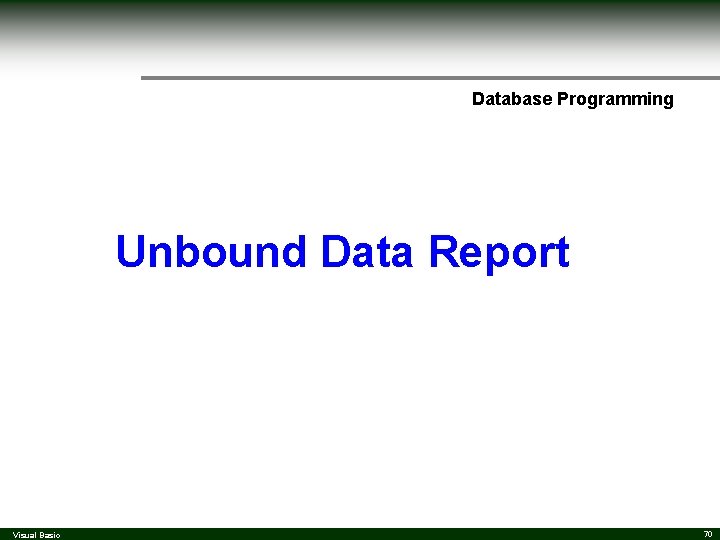

Database Programming Unbound Data Report Visual Basic 70

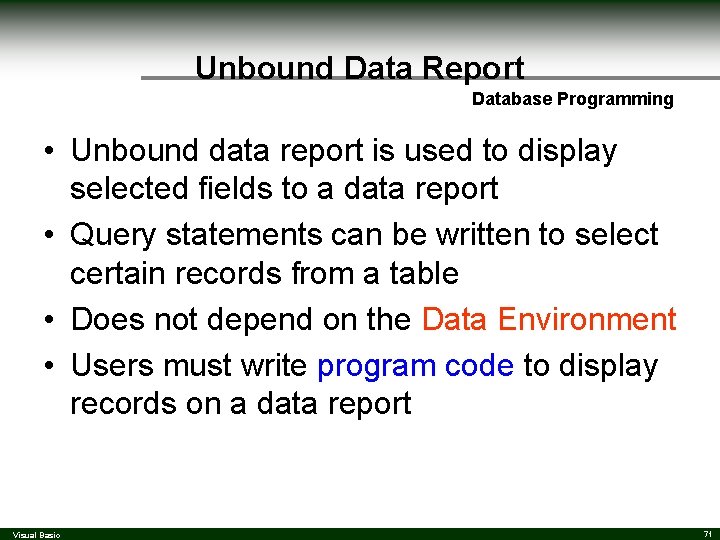

Unbound Data Report Database Programming • Unbound data report is used to display selected fields to a data report • Query statements can be written to select certain records from a table • Does not depend on the Data Environment • Users must write program code to display records on a data report Visual Basic 71

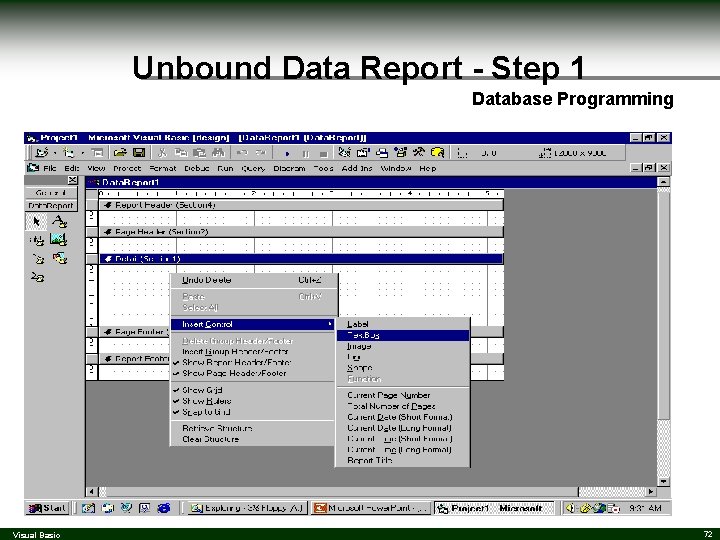

Unbound Data Report - Step 1 Database Programming Visual Basic 72

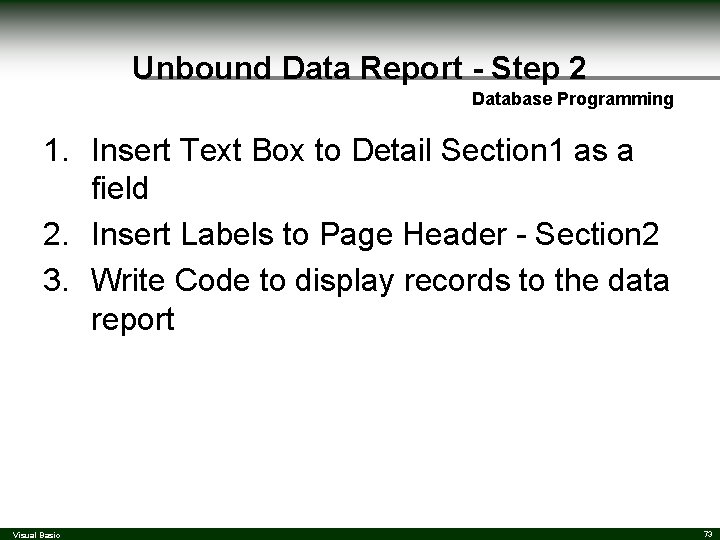

Unbound Data Report - Step 2 Database Programming 1. Insert Text Box to Detail Section 1 as a field 2. Insert Labels to Page Header - Section 2 3. Write Code to display records to the data report Visual Basic 73

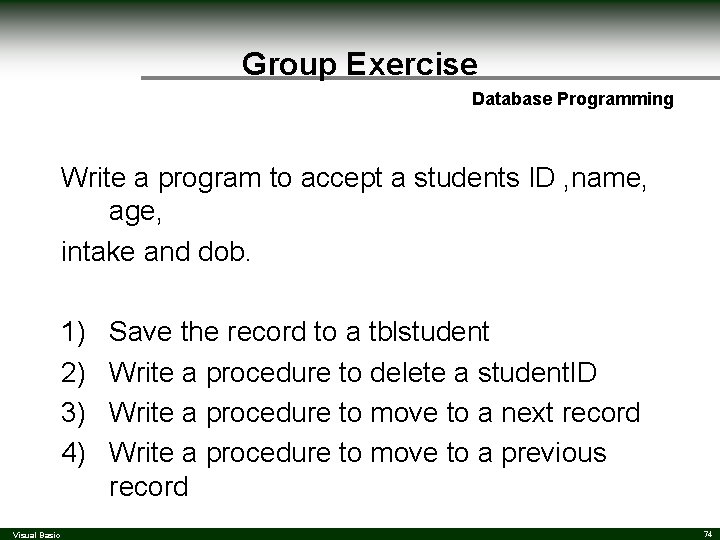

Group Exercise Database Programming Write a program to accept a students ID , name, age, intake and dob. 1) 2) 3) 4) Visual Basic Save the record to a tblstudent Write a procedure to delete a student. ID Write a procedure to move to a next record Write a procedure to move to a previous record 74

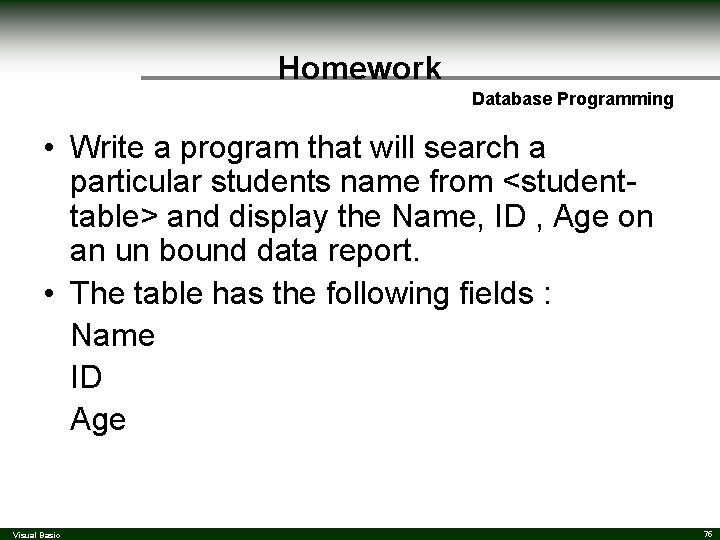

Homework Database Programming • Write a program that will search a particular students name from <studenttable> and display the Name, ID , Age on an un bound data report. • The table has the following fields : Name ID Age Visual Basic 75

Homework Database Programming • Write a program to display all records from a table to a data report • Write a program to search for a users IC Number and display his/her name, address, postcode, age , gender, tel-no to a bound data report Visual Basic 76
