Visio Shapes basics

Visio Shapes basics

Course contents • Overview: Shapes fulfill your Visio vision • Lesson 1: An introduction

Course contents • Overview: Shapes fulfill your Visio vision • Lesson 1: An introduction to shapes • Lesson 2: How to get shapes Shapes basics

Overview: Shapes fulfill your Visio vision From flowcharts to office layouts, shapes form the

Overview: Shapes fulfill your Visio vision From flowcharts to office layouts, shapes form the essence of any Visio diagram. You can arrange and connect shapes to represent objects, actions, and ideas and then form visual relationships among them. This course provides the fundamentals you need to be able to put shapes where you want, make them look right and do what you need them to do, and fulfill your overall vision. Shapes basics

Course goals • Identify the two types of Visio shapes: 1 -D and 2

Course goals • Identify the two types of Visio shapes: 1 -D and 2 -D. • See how 1 -D and 2 -D shapes behave. • Find the shapes you need. Shapes basics

Lesson 1 An introduction to shapes Shapes basics

Lesson 1 An introduction to shapes Shapes basics

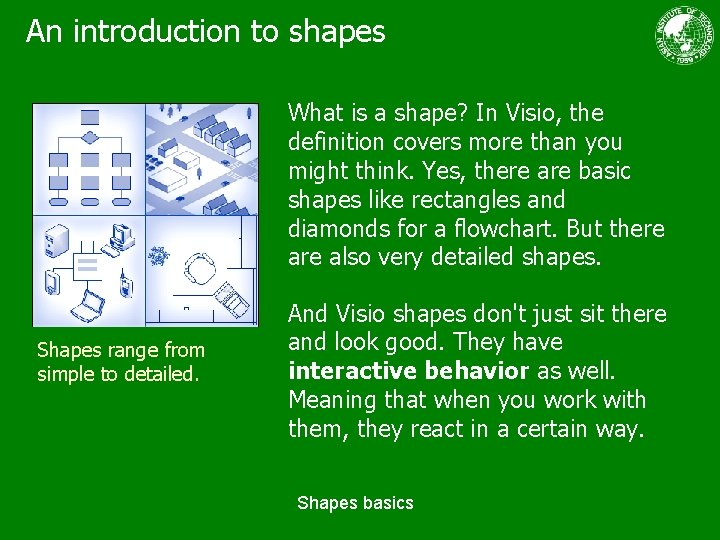

An introduction to shapes What is a shape? In Visio, the definition covers more

An introduction to shapes What is a shape? In Visio, the definition covers more than you might think. Yes, there are basic shapes like rectangles and diamonds for a flowchart. But there also very detailed shapes. Shapes range from simple to detailed. And Visio shapes don't just sit there and look good. They have interactive behavior as well. Meaning that when you work with them, they react in a certain way. Shapes basics

Two types of shapes When you work with Visio shapes, you can resize them,

Two types of shapes When you work with Visio shapes, you can resize them, rotate them, move them around, and so on. But how the shape behaves when you do those things depends on the type of shape that it is. 1 -D and 2 -D shapes Shapes basics

Two types of shapes There are two types of shapes in Visio: • One-dimensional

Two types of shapes There are two types of shapes in Visio: • One-dimensional (1 -D) • Two-dimensional (2 -D) 1 -D and 2 -D shapes Each type of shape behaves a certain way. Once you know the type that a shape belongs to, you’ll be able to work with it successfully. Shapes basics

1 -D shapes A 1 -D shape is a shape that, when selected, has

1 -D shapes A 1 -D shape is a shape that, when selected, has a beginning point and an ending point. As the picture shows, 1 -D shapes typically look like lines. Examples of 1 -D shapes How do 1 -D shapes behave when you work with them? If you move the beginning point or ending point, only one dimension changes: the length. Shapes basics

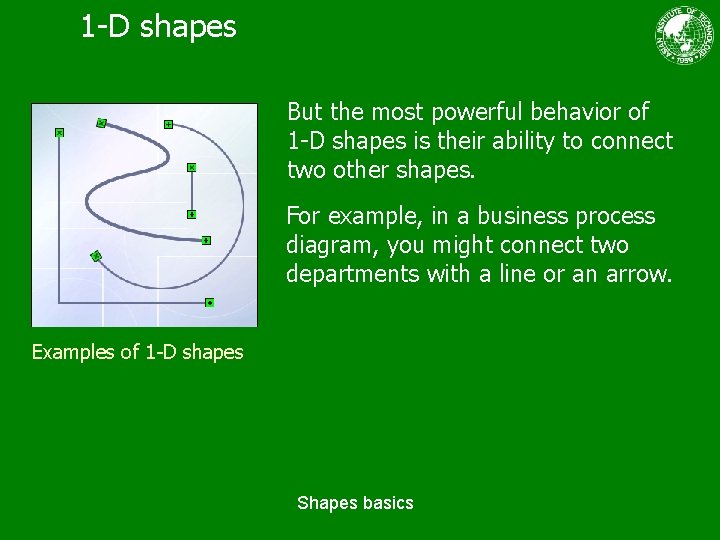

1 -D shapes But the most powerful behavior of 1 -D shapes is their

1 -D shapes But the most powerful behavior of 1 -D shapes is their ability to connect two other shapes. For example, in a business process diagram, you might connect two departments with a line or an arrow. Examples of 1 -D shapes Shapes basics

2 -D shapes A 2 -D shape is a shape that, when selected, does

2 -D shapes A 2 -D shape is a shape that, when selected, does not have a beginning or an ending point. Instead, a 2 -D shape has eight selection handles. Examples of 2 -D shapes How do 2 -D shapes behave? When you click and drag a corner selection handle, you can change two dimensions: the length and the width. Shapes basics

2 -D shapes are typically used to represent something: either a general concept or

2 -D shapes are typically used to represent something: either a general concept or a specific object. Examples of 2 -D shapes Like the laptop and the block shown here, some 2 -D shapes are drawn to look three-dimensional. But they’re still 2 -D shapes, which you know because of the eight selection handles. Shapes basics

1 -D or 2 -D? How to be sure. At first glance, some shapes

1 -D or 2 -D? How to be sure. At first glance, some shapes look like 2 -D shapes but are really 1 -D shapes. And vice-versa. Which is 1 -D and which is 2 -D? Don’t be fooled! To avoid any confusion, always select the shape, and Visio will tell you what it is. Shapes basics

1 -D or 2 -D? How to be sure. For example, the arrow shape

1 -D or 2 -D? How to be sure. For example, the arrow shape at the top of this illustration appears to be two dimensional because of its thickness. Which is 1 -D and which is 2 -D? Don’t be fooled! But if you selected it, you would see its beginning point and its ending point, so it is 1 -D for sure. Shapes basics

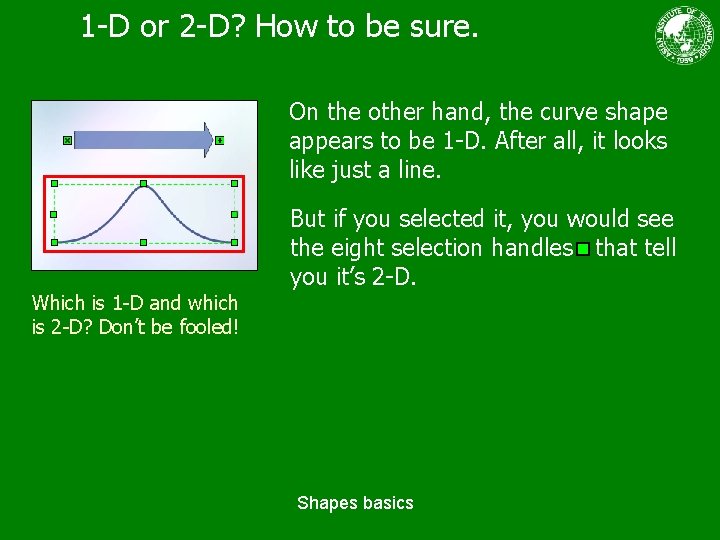

1 -D or 2 -D? How to be sure. On the other hand, the

1 -D or 2 -D? How to be sure. On the other hand, the curve shape appears to be 1 -D. After all, it looks like just a line. Which is 1 -D and which is 2 -D? Don’t be fooled! But if you selected it, you would see the eight selection handles that tell you it’s 2 -D. Shapes basics

1 -D or 2 -D? How to be sure. To many people, “ 1

1 -D or 2 -D? How to be sure. To many people, “ 1 -D” describes a shape with one dimension, and “ 2 -D” describes a shape with two dimensions. These are familiar definitions of 1 -D and 2 -D. Which is 1 -D and which is 2 -D? Don’t be fooled! However, as you can see from these examples, the Visio definitions depend on how the shapes behave, not on how they look. Shapes basics

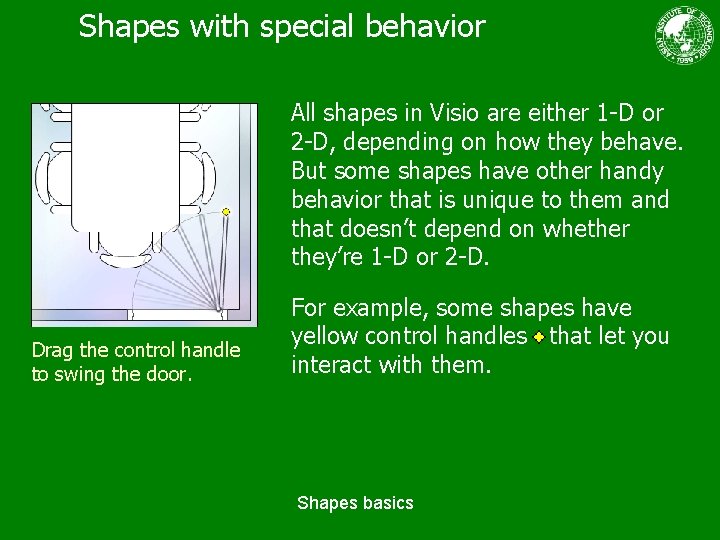

Shapes with special behavior All shapes in Visio are either 1 -D or 2

Shapes with special behavior All shapes in Visio are either 1 -D or 2 -D, depending on how they behave. But some shapes have other handy behavior that is unique to them and that doesn’t depend on whether they’re 1 -D or 2 -D. Drag the control handle to swing the door. For example, some shapes have yellow control handles that let you interact with them. Shapes basics

Shapes with special behavior In this illustration, the door shape has a control handle

Shapes with special behavior In this illustration, the door shape has a control handle that you can drag to swing the door open and closed. Will it clear the table nearby? Drag the control handle to swing the door. It appears not. Better find a smaller table or make other adjustments to the furniture so that this problem doesn’t occur in the real world. Shapes basics

Anything is a shape When working with Visio, you’ll probably want to add text,

Anything is a shape When working with Visio, you’ll probably want to add text, photos, or clip art. Although these are not shapes created by Visio, in Visio all of these things are shapes nonetheless. In Visio, anything is a shape. Shapes basics

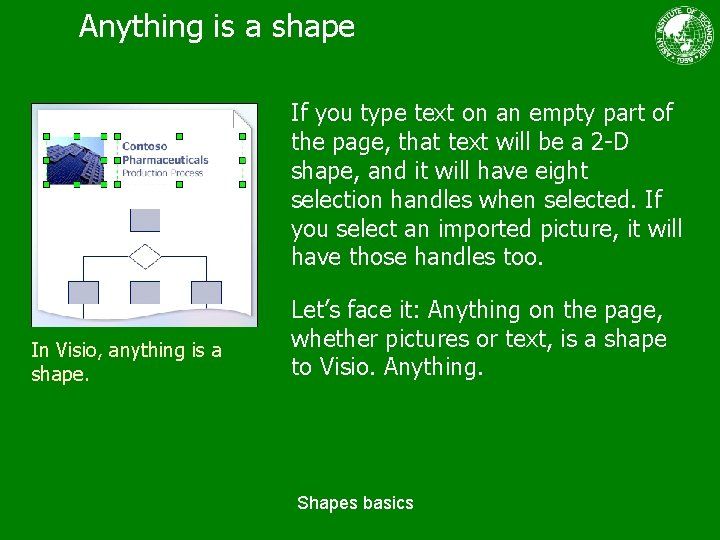

Anything is a shape If you type text on an empty part of the

Anything is a shape If you type text on an empty part of the page, that text will be a 2 -D shape, and it will have eight selection handles when selected. If you select an imported picture, it will have those handles too. In Visio, anything is a shape. Let’s face it: Anything on the page, whether pictures or text, is a shape to Visio. Anything. Shapes basics

Suggestions for practice 1. Open the exercise 1. 2. Observe 2 -D behavior. 3.

Suggestions for practice 1. Open the exercise 1. 2. Observe 2 -D behavior. 3. Observe 1 -D behavior. 4. Look at more 1 -D and 2 -D shapes on the other diagrams. 5. Explore the special behavior some shapes have. Shapes basics

Lesson 2 How to get shapes Shapes basics

Lesson 2 How to get shapes Shapes basics

How to get shapes In Visio, all the world’s…a shape. And there are hundreds

How to get shapes In Visio, all the world’s…a shape. And there are hundreds of Visio shapes to choose from, more than you can memorize. So it’s good to know how to find them when you need them. Six ways to get shapes The ways to get shapes aren’t quite as numerous as the shapes themselves. But there are plenty of ways, each one good for different purposes. Shapes basics

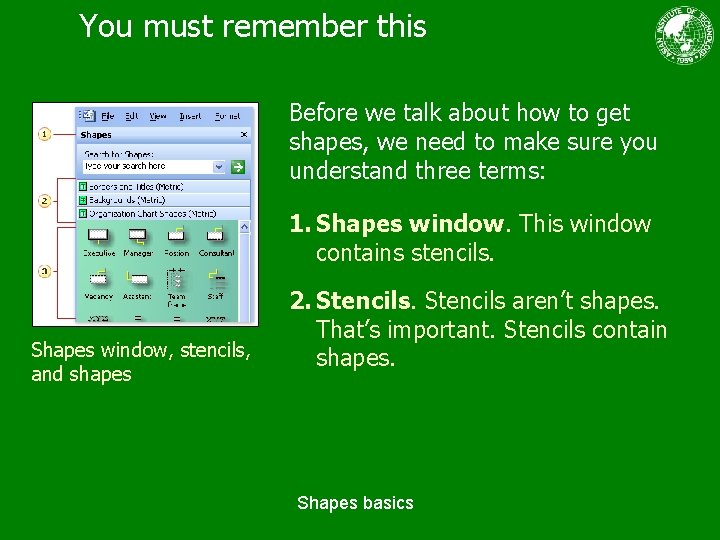

You must remember this Before we talk about how to get shapes, we need

You must remember this Before we talk about how to get shapes, we need to make sure you understand three terms: 1. Shapes window. This window contains stencils. Shapes window, stencils, and shapes 2. Stencils aren’t shapes. That’s important. Stencils contain shapes. Shapes basics

You must remember this Before we talk about how to get shapes, we need

You must remember this Before we talk about how to get shapes, we need to make sure you understand three terms: 3. Shapes, in Visio, are everything. But shapes aren’t stencils. Stencils contain shapes. Shapes window, stencils, and shapes Shapes basics

You must remember this The illustration shows the Organization Chart Shapes stencil and its

You must remember this The illustration shows the Organization Chart Shapes stencil and its shapes. Shapes window, stencils, and shapes Notice the two other stencils: Borders and Titles and Backgrounds. To see the shapes in either of those stencils, you’d just click the name of the stencil. Shapes basics

Get shapes with templates One way to get shapes is to choose a template.

Get shapes with templates One way to get shapes is to choose a template. A template is one of the drawing type options you see when you start Visio. Choosing a template brings you shapes automatically. The illustration shows how when you choose a template, the stencils and shapes for the template appear in the Shapes window, ready to work with. Shapes basics

Get shapes with templates The advantage of using a template is that it provides

Get shapes with templates The advantage of using a template is that it provides you with lots of shapes organized for a specific purpose and related to each other. Choosing a template brings you shapes automatically. In this example, the shapes are specific to flowcharts. If you chose another template, you’d get shapes designed and organized for that template’s purpose instead. Shapes basics

Get shapes by searching If you need more shapes than a template gives you,

Get shapes by searching If you need more shapes than a template gives you, you can use the Search for Shapes box to search for them. To search for a shape: 1. Type one or two words in the Search for Shapes box, for example, “arrows. ” Shapes window and Search for Shapes box 2. Visio creates a temporary stencil to hold the shapes it finds. Shapes basics

Get shapes by searching In this example, that temporary stencil would have the name

Get shapes by searching In this example, that temporary stencil would have the name arrows. To use a shape, you would drag it from the arrows stencil onto your drawing. Shapes window and Search for Shapes box Shapes basics

Get shapes by searching Search for Shapes searches the Visio stencils that are installed

Get shapes by searching Search for Shapes searches the Visio stencils that are installed on your computer. If you have an Internet connection, Search for Shapes also searches the Microsoft Web sites for new and updated Visio shapes. Shapes window and Search for Shapes box Shapes basics

Draw your own shapes If you can’t find the shape you need in Visio,

Draw your own shapes If you can’t find the shape you need in Visio, you can always draw your own shape. Your own shape can be simple or complex, from a wiggly line to a piece of custom office equipment. Create your own shapes by using the Drawing toolbar. Shapes basics

Draw your own shapes While drawing your own shapes is beyond the scope of

Draw your own shapes While drawing your own shapes is beyond the scope of this course, the tip of the iceberg is the Drawing toolbar, shown here. It lets you create shapes from scratch by using simple tools. Create your own shapes by using the Drawing toolbar. Shapes basics

Get shapes from other people Sometimes other people have made shapes that you want

Get shapes from other people Sometimes other people have made shapes that you want to use. Contoso. Shapes. vss on the My Shapes submenu When you want to use shapes made by others, they could send you a copy of a Visio drawing with those shapes in it. Often, however, what you’ll get is a stencil of shapes. Shapes basics

Get shapes from other people A stencil is a file with “. vss” or

Get shapes from other people A stencil is a file with “. vss” or “. vsx” in the name. When you receive a stencil file, copy it to this location: C: Documents and SettingsusernameMy DocumentsMy Shapes Contoso. Shapes. vss on the My Shapes submenu After you do that, the stencil will be available through Visio menu commands. Shapes basics

Get shapes from other people For example, the picture illustrates that someone copied Contoso.

Get shapes from other people For example, the picture illustrates that someone copied Contoso. Shapes. vss to My DocumentsMy Shapes. Contoso. Shapes. vss on the My Shapes submenu Now the Contoso. Shapes command appears on the File menu, Shapes submenu, My Shapes submenu. Shapes basics

Insert pictures Suppose you’d like to insert a photograph into a diagram to show

Insert pictures Suppose you’d like to insert a photograph into a diagram to show people’s pictures in an org chart. Inserting a picture as a Visio shape To do that, on the Insert menu, you’d point to Picture and then click From File. Visio automatically makes the photograph a 2 -D shape and puts the eight handles on it. Shapes basics

Insert pictures Shapes made by inserting pictures aren’t as intelligent as the shapes that

Insert pictures Shapes made by inserting pictures aren’t as intelligent as the shapes that come from stencils. As far as interactive behavior goes, they’re not much more than a square on the page. Inserting a picture as a Visio shape Nonetheless, they are shapes, which means you can connect them with 1 -D shapes, resize them, position them, and so on. Shapes basics

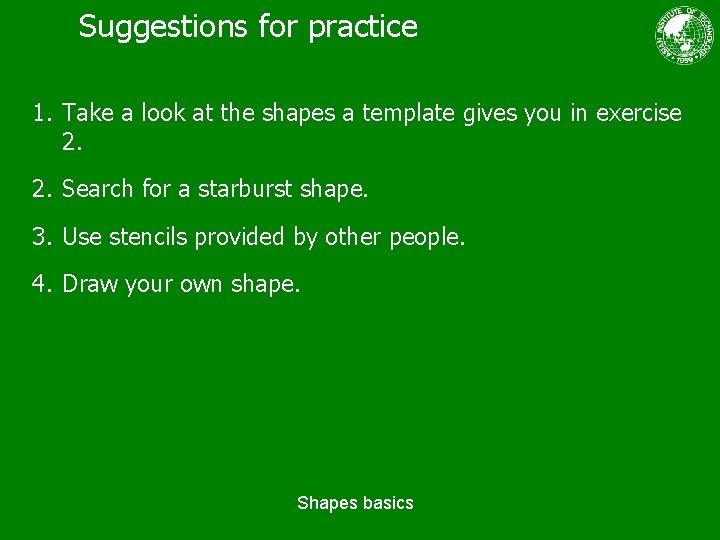

Suggestions for practice 1. Take a look at the shapes a template gives you

Suggestions for practice 1. Take a look at the shapes a template gives you in exercise 2. 2. Search for a starburst shape. 3. Use stencils provided by other people. 4. Draw your own shape. Shapes basics
