VisibleSurface Detection Jehee Lee Seoul National University VisibleSurface

Visible-Surface Detection Jehee Lee Seoul National University

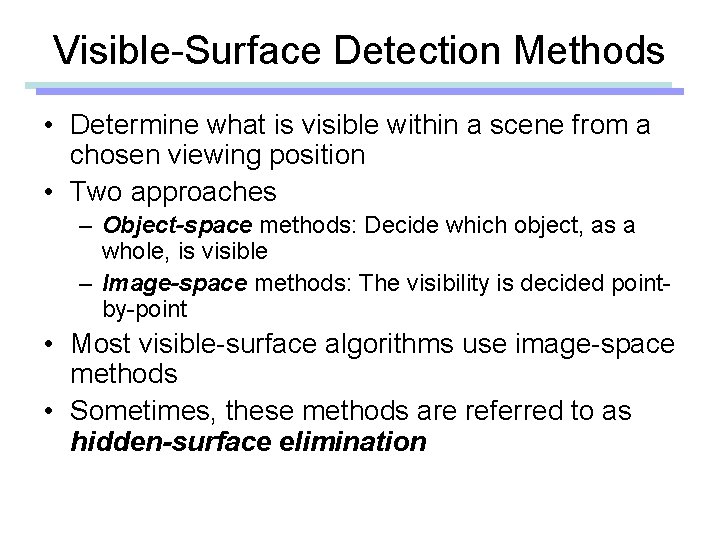

Visible-Surface Detection Methods • Determine what is visible within a scene from a chosen viewing position • Two approaches – Object-space methods: Decide which object, as a whole, is visible – Image-space methods: The visibility is decided pointby-point • Most visible-surface algorithms use image-space methods • Sometimes, these methods are referred to as hidden-surface elimination

Approaches • • • Back-Face Removal Depth Buffer A-Buffer Scanline Depth Sorting BSP Tree Area Subdivision Octree Raycasting

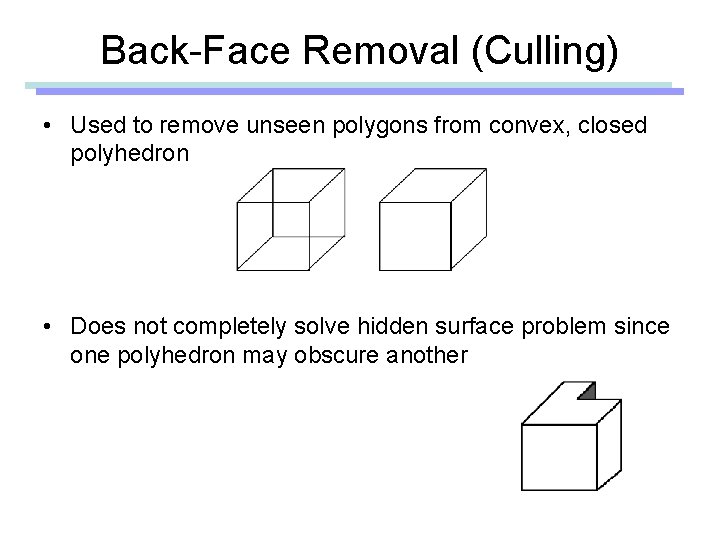

Back-Face Removal (Culling) • Used to remove unseen polygons from convex, closed polyhedron • Does not completely solve hidden surface problem since one polyhedron may obscure another

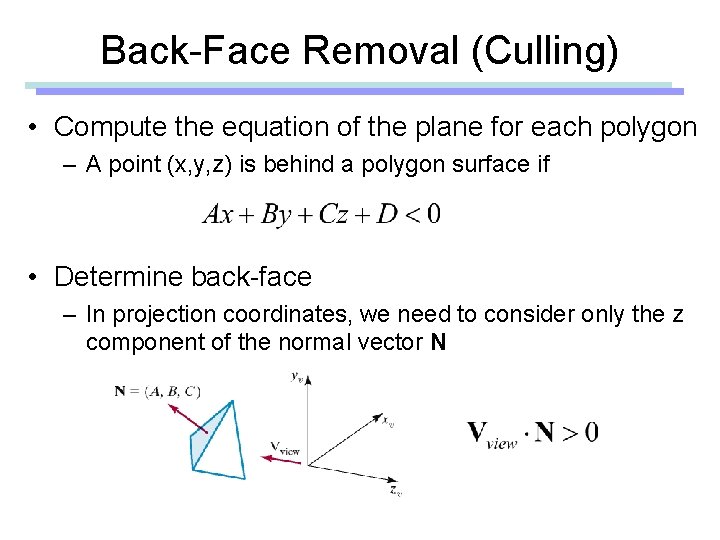

Back-Face Removal (Culling) • Compute the equation of the plane for each polygon – A point (x, y, z) is behind a polygon surface if • Determine back-face – In projection coordinates, we need to consider only the z component of the normal vector N

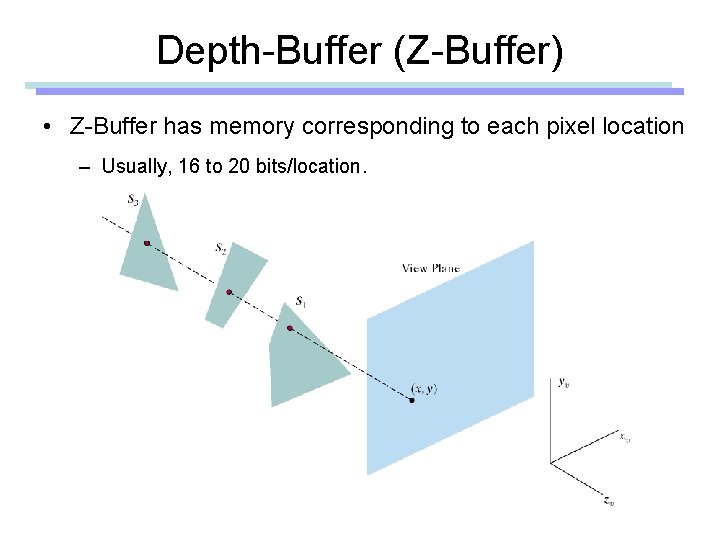

Depth-Buffer (Z-Buffer) • Z-Buffer has memory corresponding to each pixel location – Usually, 16 to 20 bits/location.

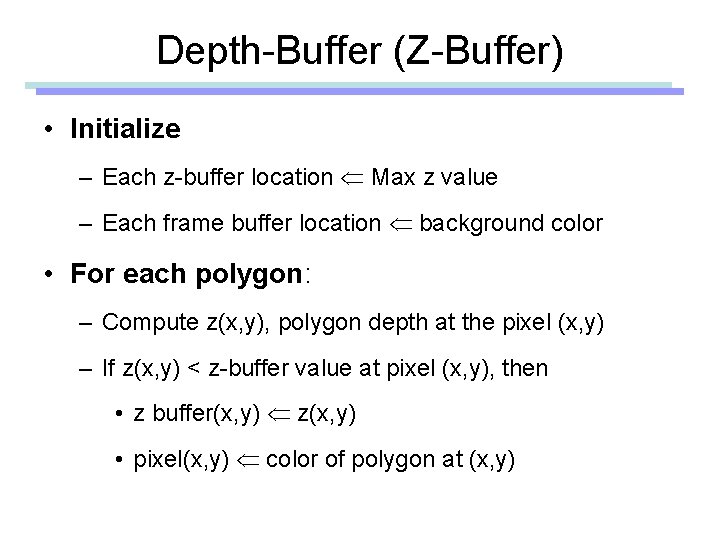

Depth-Buffer (Z-Buffer) • Initialize – Each z-buffer location Max z value – Each frame buffer location background color • For each polygon: – Compute z(x, y), polygon depth at the pixel (x, y) – If z(x, y) < z-buffer value at pixel (x, y), then • z buffer(x, y) z(x, y) • pixel(x, y) color of polygon at (x, y)

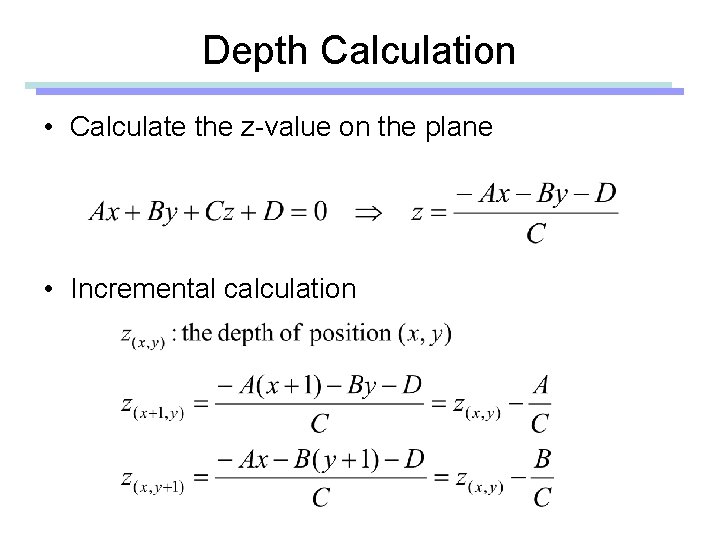

Depth Calculation • Calculate the z-value on the plane • Incremental calculation

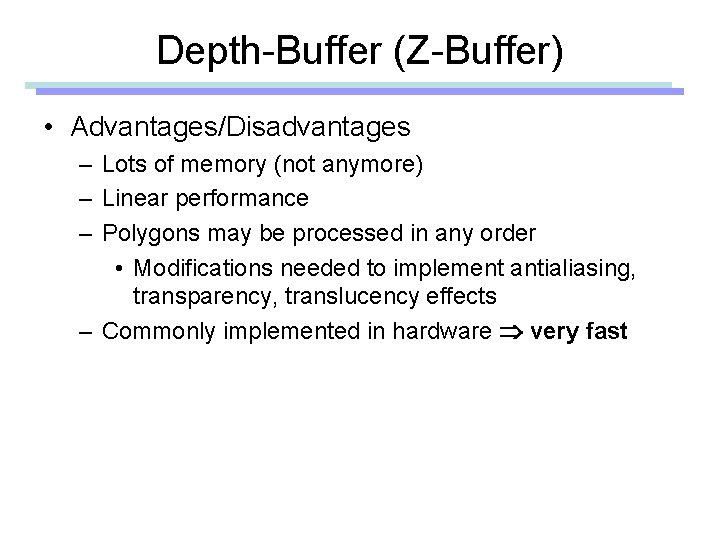

Depth-Buffer (Z-Buffer) • Advantages/Disadvantages – Lots of memory (not anymore) – Linear performance – Polygons may be processed in any order • Modifications needed to implement antialiasing, transparency, translucency effects – Commonly implemented in hardware very fast

Depth-Buffer (Z-Buffer) Backface culling Z-buffer algorithm

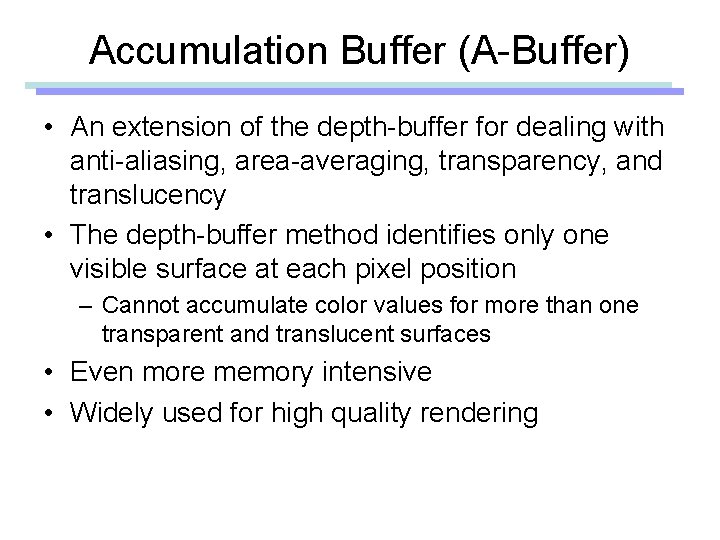

Accumulation Buffer (A-Buffer) • An extension of the depth-buffer for dealing with anti-aliasing, area-averaging, transparency, and translucency • The depth-buffer method identifies only one visible surface at each pixel position – Cannot accumulate color values for more than one transparent and translucent surfaces • Even more memory intensive • Widely used for high quality rendering

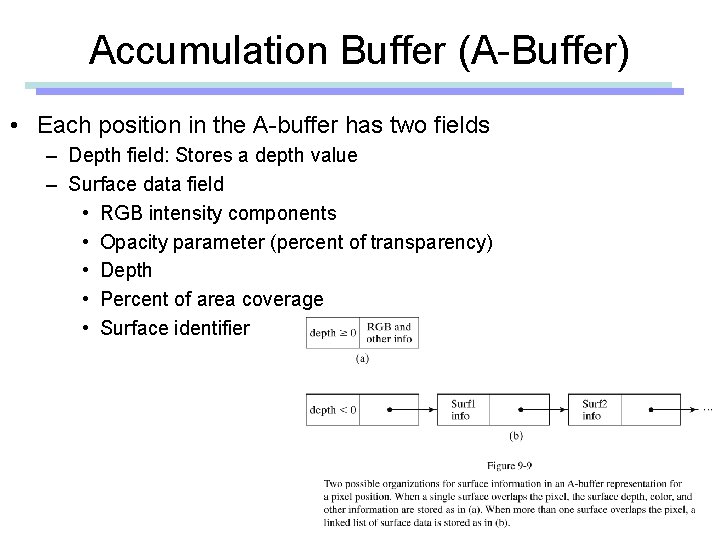

Accumulation Buffer (A-Buffer) • Each position in the A-buffer has two fields – Depth field: Stores a depth value – Surface data field • RGB intensity components • Opacity parameter (percent of transparency) • Depth • Percent of area coverage • Surface identifier

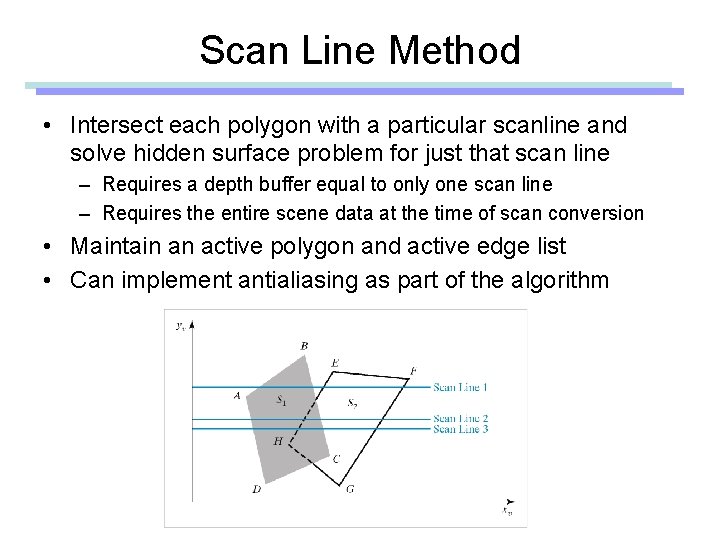

Scan Line Method • Intersect each polygon with a particular scanline and solve hidden surface problem for just that scan line – Requires a depth buffer equal to only one scan line – Requires the entire scene data at the time of scan conversion • Maintain an active polygon and active edge list • Can implement antialiasing as part of the algorithm

Depth Sorting • Painter’s algorithm – Draw polygons as an oil painters might do • Sort polygons by depth and draw them from back to front • Depth sorting is NOT simple

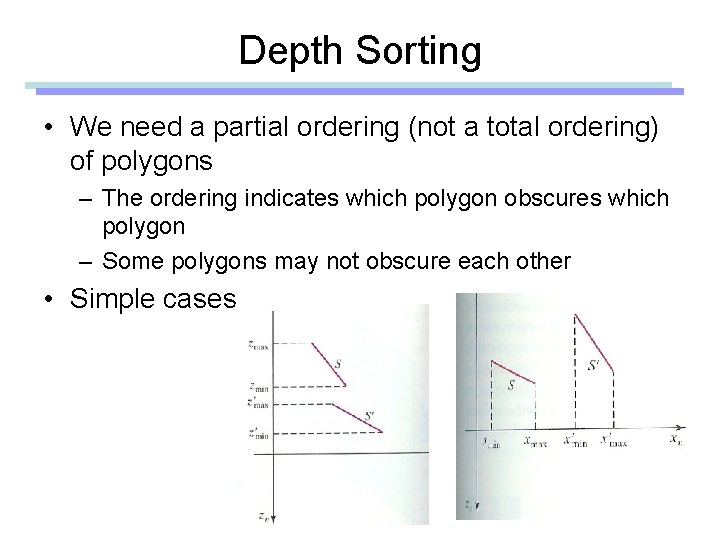

Depth Sorting • We need a partial ordering (not a total ordering) of polygons – The ordering indicates which polygon obscures which polygon – Some polygons may not obscure each other • Simple cases

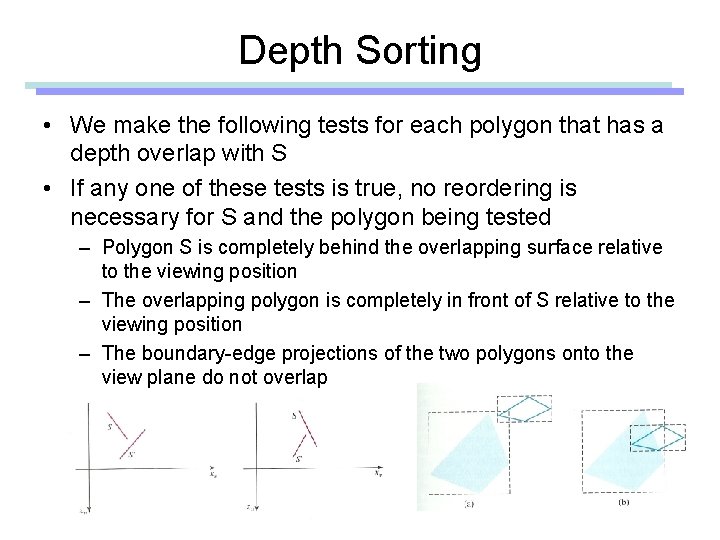

Depth Sorting • We make the following tests for each polygon that has a depth overlap with S • If any one of these tests is true, no reordering is necessary for S and the polygon being tested – Polygon S is completely behind the overlapping surface relative to the viewing position – The overlapping polygon is completely in front of S relative to the viewing position – The boundary-edge projections of the two polygons onto the view plane do not overlap

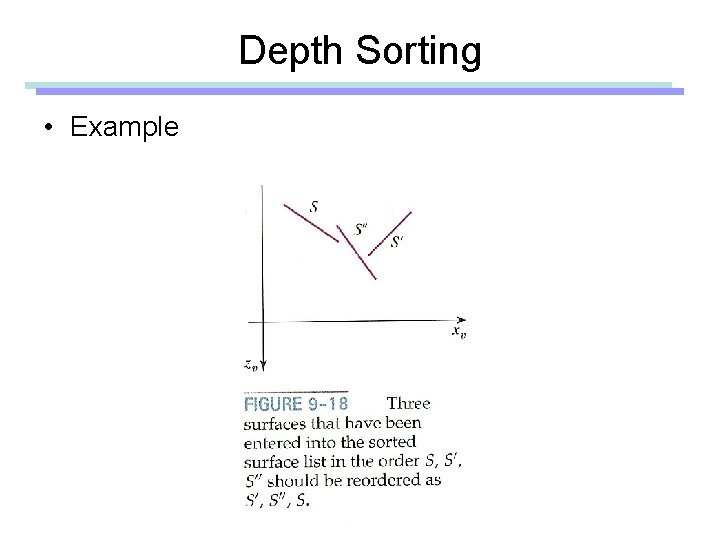

Depth Sorting • Example

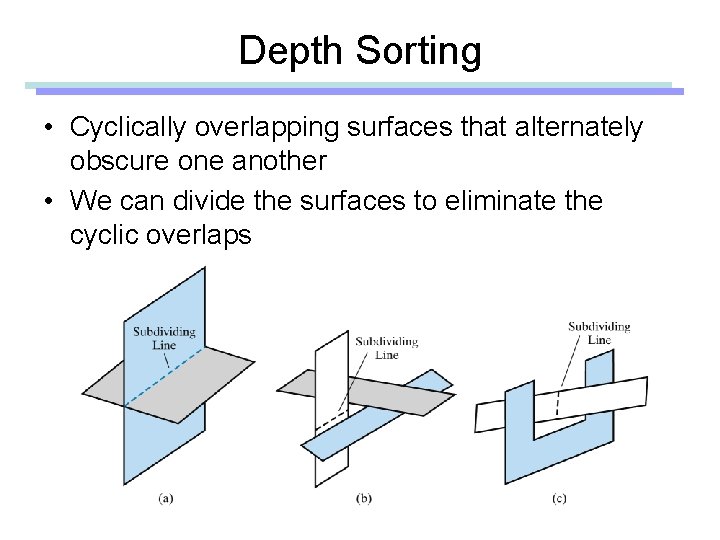

Depth Sorting • Cyclically overlapping surfaces that alternately obscure one another • We can divide the surfaces to eliminate the cyclic overlaps

BSP Trees • Binary space partitioning is an efficient method for determining object visibility • Paint surfaces into the frame buffer from back to front • Particularly useful when the view reference point changes, but the objects are at fixed positions

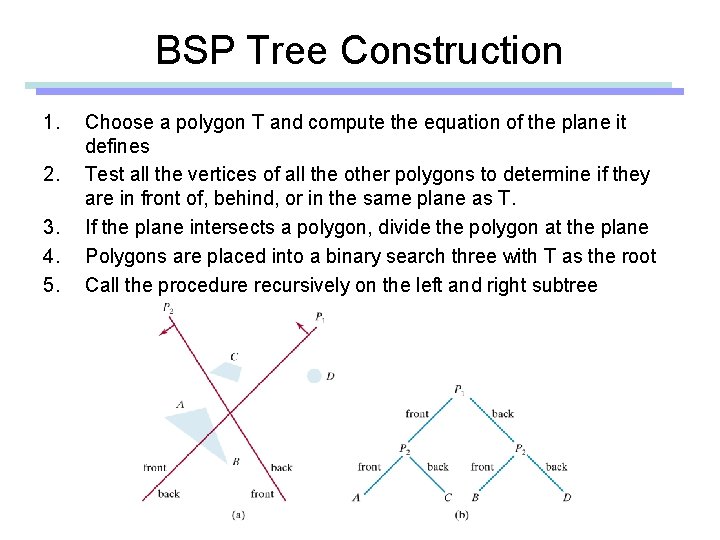

BSP Tree Construction 1. 2. 3. 4. 5. Choose a polygon T and compute the equation of the plane it defines Test all the vertices of all the other polygons to determine if they are in front of, behind, or in the same plane as T. If the plane intersects a polygon, divide the polygon at the plane Polygons are placed into a binary search three with T as the root Call the procedure recursively on the left and right subtree

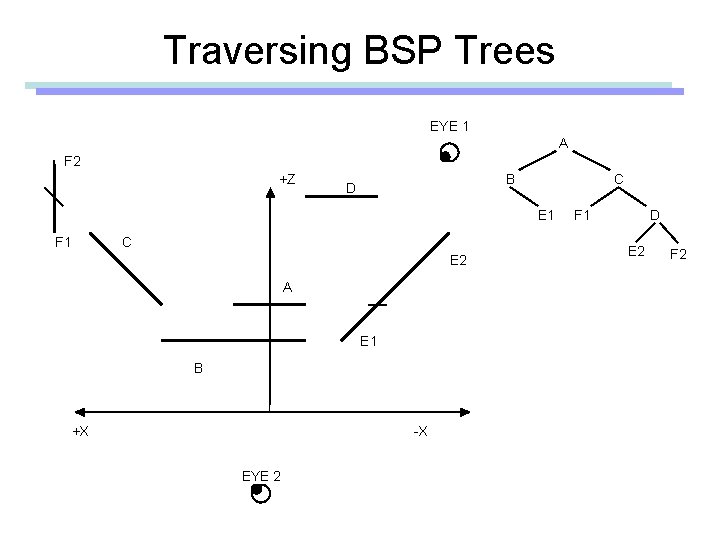

Traversing BSP Trees EYE 1 A F 2 +Z B D C E 1 F 1 C E 2 A E 1 B +X -X EYE 2 F 1 D E 2 F 2

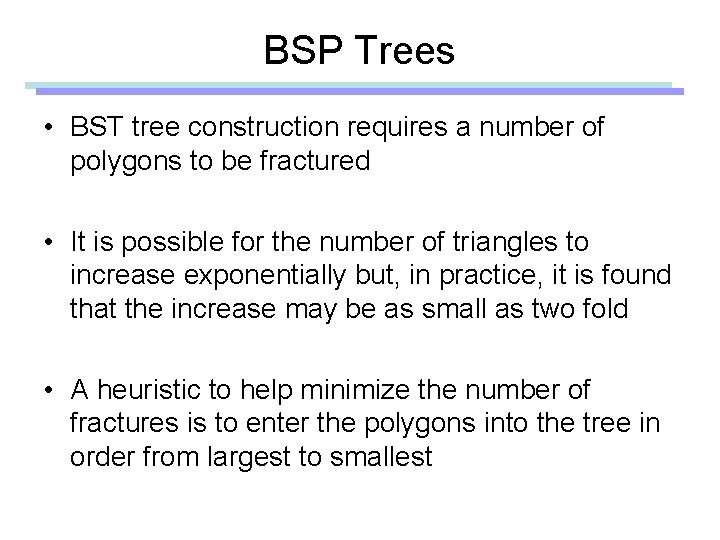

BSP Trees • BST tree construction requires a number of polygons to be fractured • It is possible for the number of triangles to increase exponentially but, in practice, it is found that the increase may be as small as two fold • A heuristic to help minimize the number of fractures is to enter the polygons into the tree in order from largest to smallest

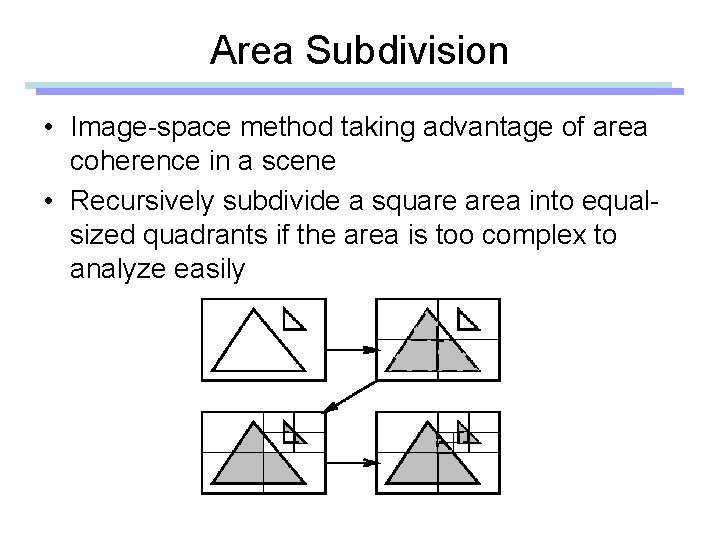

Area Subdivision • Image-space method taking advantage of area coherence in a scene • Recursively subdivide a square area into equalsized quadrants if the area is too complex to analyze easily

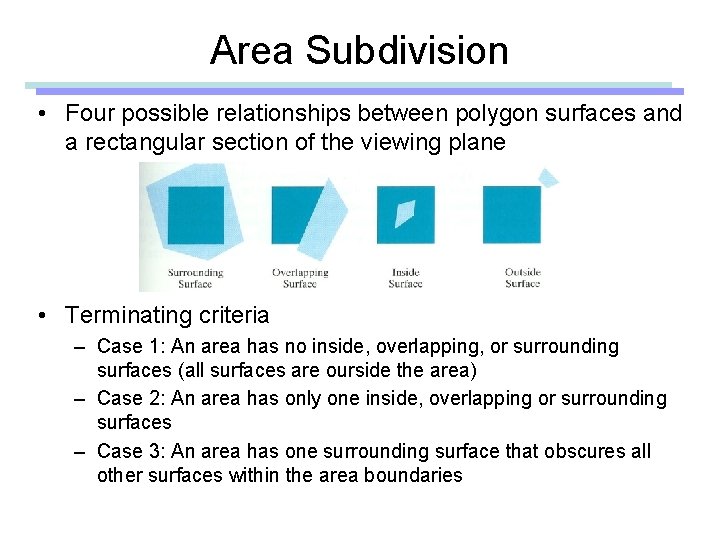

Area Subdivision • Four possible relationships between polygon surfaces and a rectangular section of the viewing plane • Terminating criteria – Case 1: An area has no inside, overlapping, or surrounding surfaces (all surfaces are ourside the area) – Case 2: An area has only one inside, overlapping or surrounding surfaces – Case 3: An area has one surrounding surface that obscures all other surfaces within the area boundaries

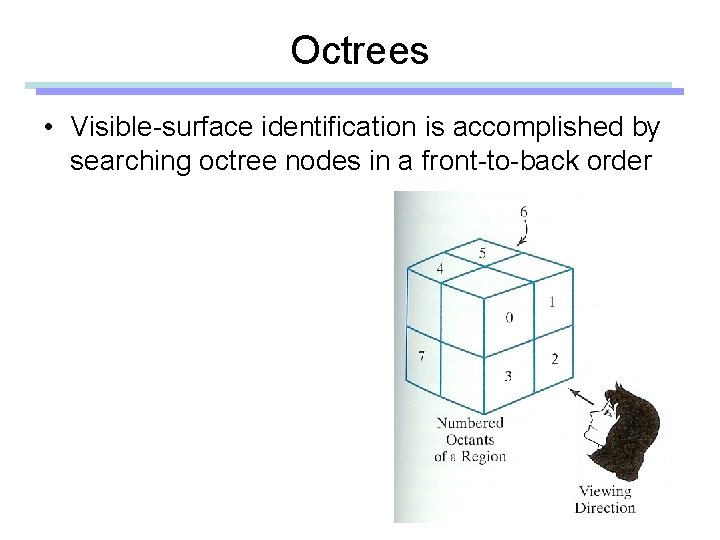

Octrees • Visible-surface identification is accomplished by searching octree nodes in a front-to-back order

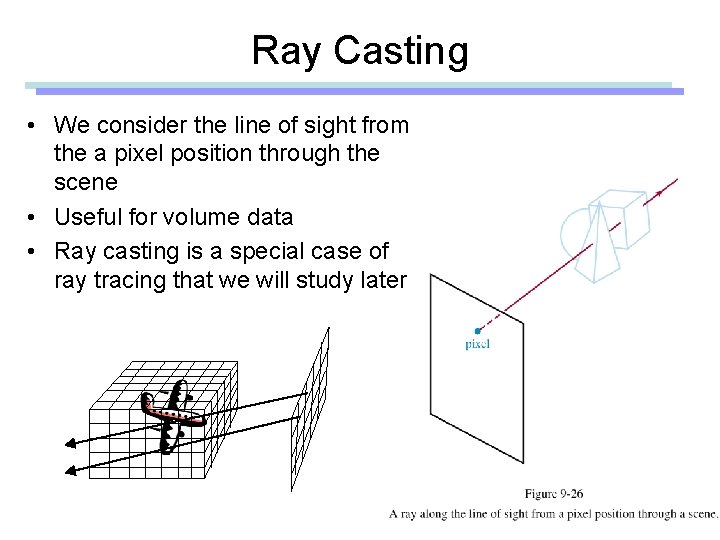

Ray Casting • We consider the line of sight from the a pixel position through the scene • Useful for volume data • Ray casting is a special case of ray tracing that we will study later

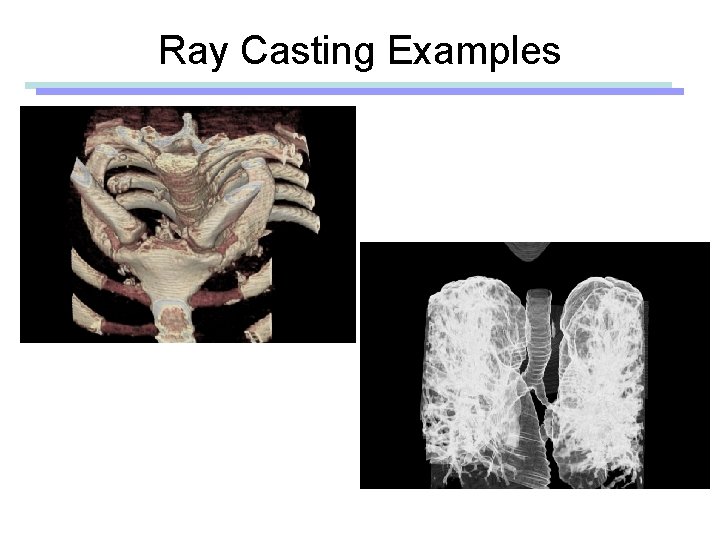

Ray Casting Examples
