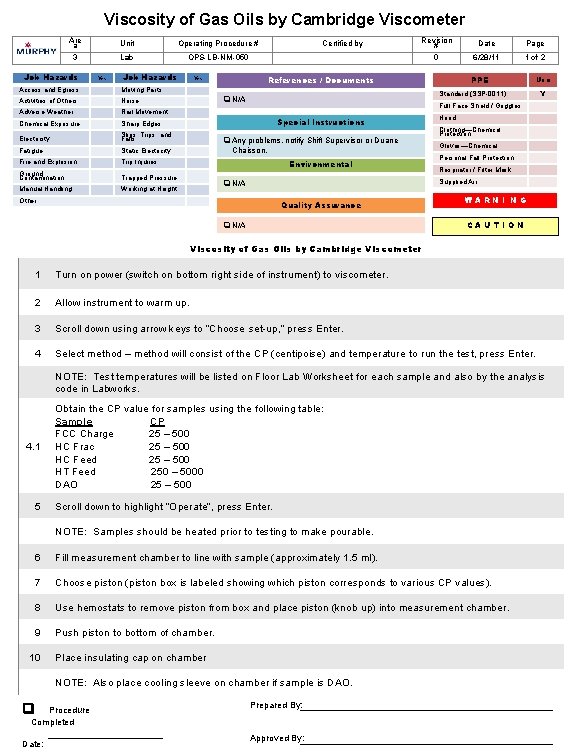

Viscosity of Gas Oils by Cambridge Viscometer Are a Unit Operating Procedure # 3 Lab OPS-LB-NM-050 Job Hazards Yes Job Hazards Access and Egress Moving Parts Activities of Others Noise Adverse Weather Rail Movement Chemical Exposure Sharp Edges Electricity Slips, Trips, and Falls Fatigue Static Electricity Fire and Explosion Trip Injuries Ground Contamination Trapped Pressure Manual Handling Working at Height Certified by Revision # Date Page 0 6/28/11 1 of 2 References / Documents Yes PPE Use Standard (SSP-0011) q N/A Y Full Face Shield / Goggles Special Instructions q Any problems, notify Shift Supervisor or Duane Chaisson. Environmental Hood Clothing—Chemical Protection Gloves—Chemical Personal Fall Protection Respirator / Filter Mask Supplied Air q N/A Other: Quality Assurance WARNI NG CAUTION q N/A Viscosity of Gas Oils by Cambridge Viscometer 1 Turn on power (switch on bottom right side of instrument) to viscometer. 2 Allow instrument to warm up. 3 Scroll down using arrow keys to “Choose set-up, ” press Enter. 4 Select method – method will consist of the CP (centipoise) and temperature to run the test, press Enter. NOTE: Test temperatures will be listed on Floor Lab Worksheet for each sample and also by the analysis code in Labworks. 4. 1 5 Obtain the CP value for samples using the following table: Sample CP FCC Charge 25 – 500 HC Frac 25 – 500 HC Feed 25 – 500 HT Feed 250 – 5000 DAO 25 – 500 Scroll down to highlight “Operate”, press Enter. NOTE: Samples should be heated prior to testing to make pourable. 6 Fill measurement chamber to line with sample (approximately 1. 5 ml). 7 Choose piston (piston box is labeled showing which piston corresponds to various CP values). 8 Use hemostats to remove piston from box and place piston (knob up) into measurement chamber. 9 Push piston to bottom of chamber. 10 Place insulating cap on chamber NOTE: Also place cooling sleeve on chamber if sample is DAO. q Procedure Completed Date: Prepared By: Approved By:

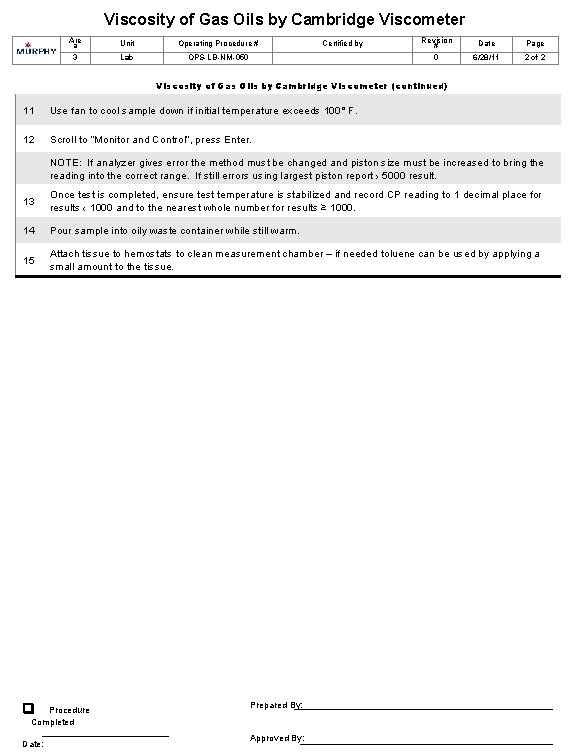

Viscosity of Gas Oils by Cambridge Viscometer Are a Unit Operating Procedure # 3 Lab OPS-LB-NM-050 Certified by Revision # Date Page 0 6/28/11 2 of 2 Viscosity of Gas Oils by Cambridge Viscometer (continued) 11 Use fan to cool sample down if initial temperature exceeds 100° F. 12 Scroll to “Monitor and Control”, press Enter. NOTE: If analyzer gives error the method must be changed and piston size must be increased to bring the reading into the correct range. If still errors using largest piston report › 5000 result. 13 Once test is completed, ensure test temperature is stabilized and record CP reading to 1 decimal place for results ‹ 1000 and to the nearest whole number for results ≥ 1000. 14 Pour sample into oily waste container while still warm. 15 Attach tissue to hemostats to clean measurement chamber – if needed toluene can be used by applying a small amount to the tissue. q Procedure Completed Date: Prepared By: Approved By:
