Objectives 3 Students should be able to understand the: Image Based (Panoramic) VR Definition of Panoramic VR Concept of Panoramic VR Software and hardware requirements for Panoramic VR Types of Panoramic VR Object panorama Spherical panorama Cylindrical panorama Multi-row / cubic panorama Dr. Naji Shukri Alzaza

Image Based VR 4 Dr. Naji Shukri Alzaza

Image Based VR 5 Image Based VR is a non-linear movie format, that enables users to work interactively with 2 D/3 D objects in a variety of ways that enhance visualization as compared to still images or linear movie files. Image Based VR movies can be viewed with an Internet browser when the proper plug-in viewer has been installed. This makes the format well suited for integration into web pages. Dr. Naji Shukri Alzaza

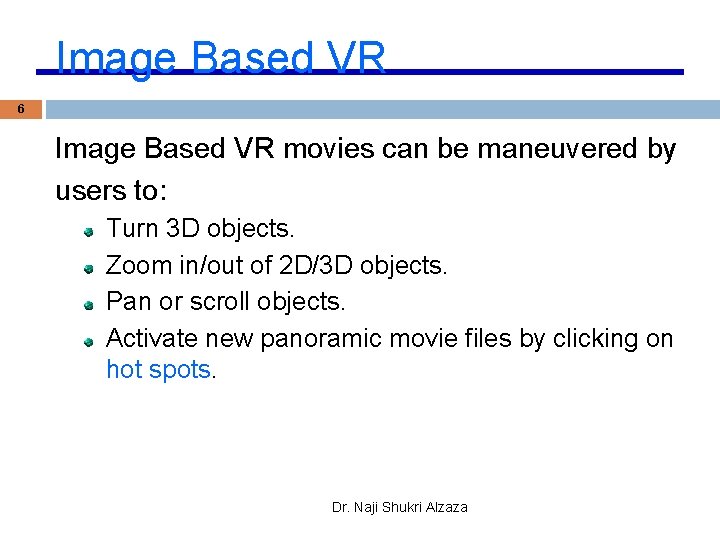

Image Based VR 6 Image Based VR movies can be maneuvered by users to: Turn 3 D objects. Zoom in/out of 2 D/3 D objects. Pan or scroll objects. Activate new panoramic movie files by clicking on hot spots. Dr. Naji Shukri Alzaza

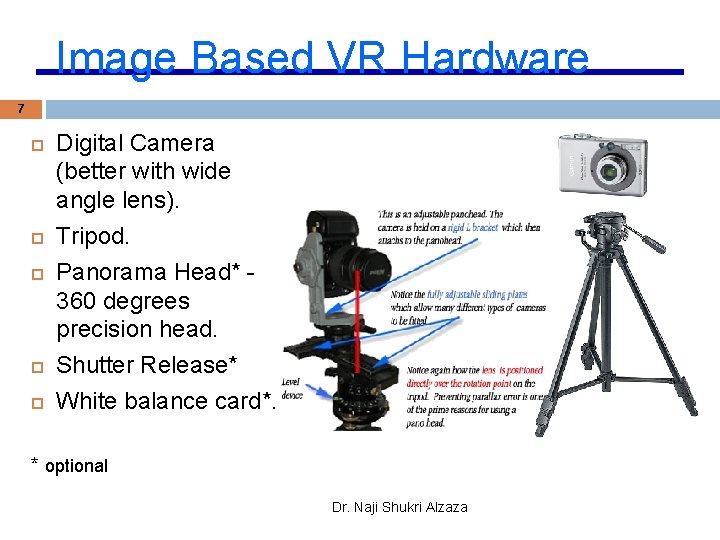

Image Based VR Hardware 7 Digital Camera (better with wide angle lens). Tripod. Panorama Head* 360 degrees precision head. Shutter Release* White balance card*. * optional Dr. Naji Shukri Alzaza

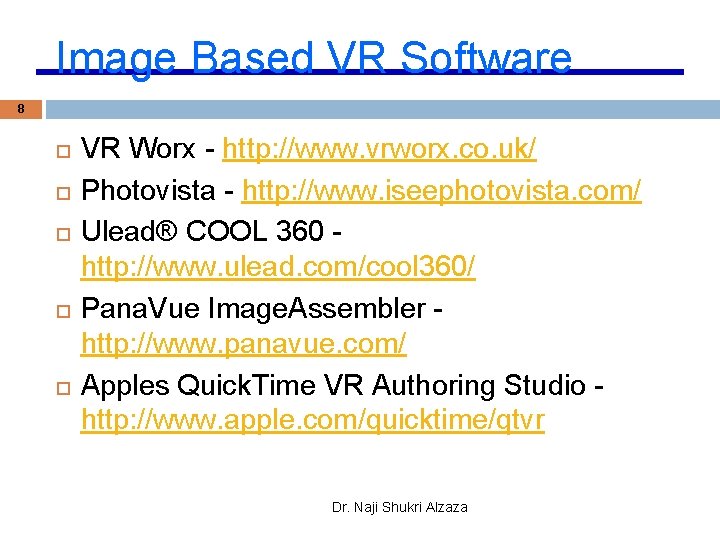

Image Based VR Software 8 VR Worx - http: //www. vrworx. co. uk/ Photovista - http: //www. iseephotovista. com/ Ulead® COOL 360 http: //www. ulead. com/cool 360/ Pana. Vue Image. Assembler http: //www. panavue. com/ Apples Quick. Time VR Authoring Studio http: //www. apple. com/quicktime/qtvr Dr. Naji Shukri Alzaza

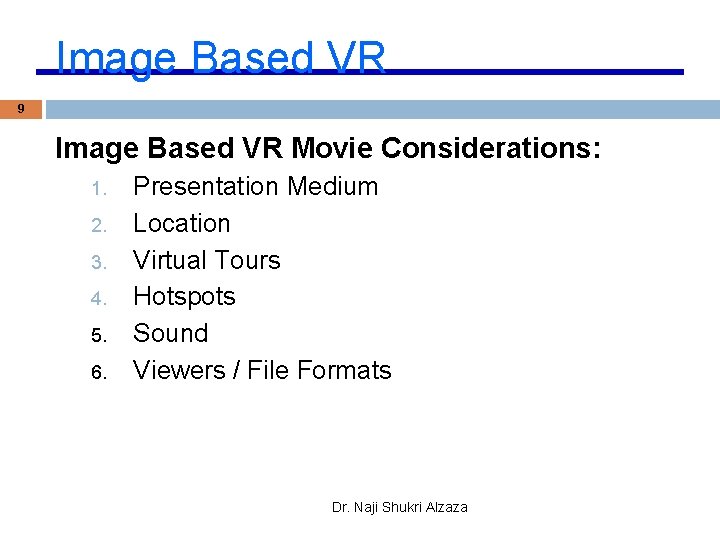

Image Based VR 9 Image Based VR Movie Considerations: 1. 2. 3. 4. 5. 6. Presentation Medium Location Virtual Tours Hotspots Sound Viewers / File Formats Dr. Naji Shukri Alzaza

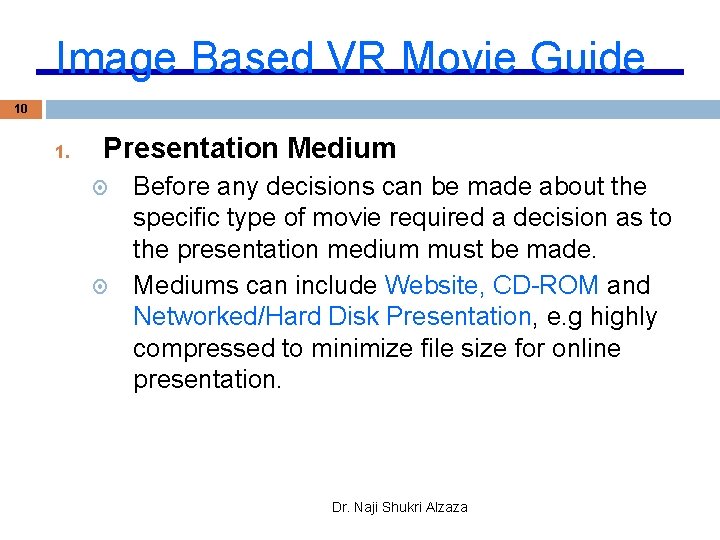

Image Based VR Movie Guide 10 1. Presentation Medium Before any decisions can be made about the specific type of movie required a decision as to the presentation medium must be made. Mediums can include Website, CD-ROM and Networked/Hard Disk Presentation, e. g highly compressed to minimize file size for online presentation. Dr. Naji Shukri Alzaza

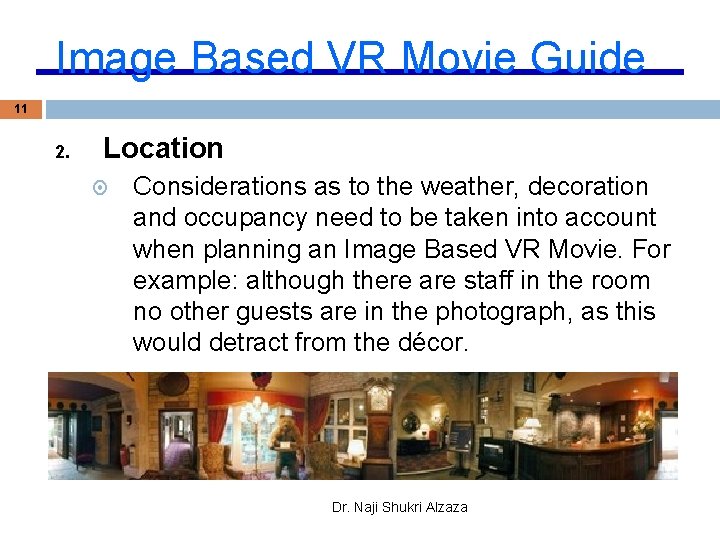

Image Based VR Movie Guide 11 2. Location Considerations as to the weather, decoration and occupancy need to be taken into account when planning an Image Based VR Movie. For example: although there are staff in the room no other guests are in the photograph, as this would detract from the décor. Dr. Naji Shukri Alzaza

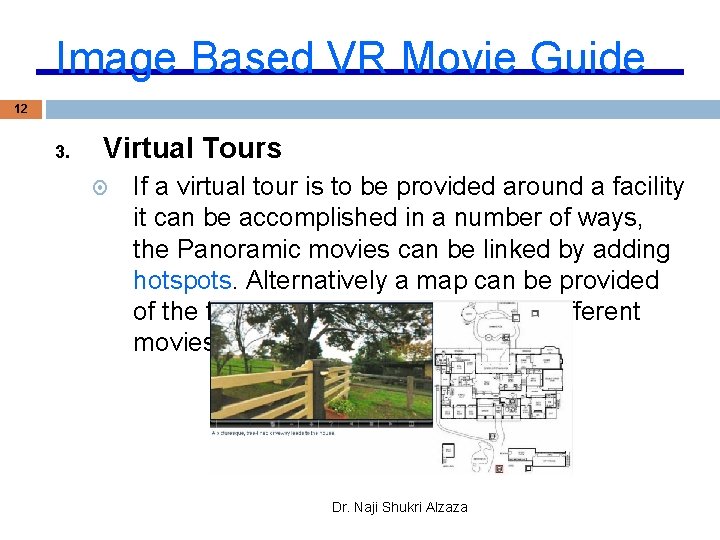

Image Based VR Movie Guide 12 3. Virtual Tours If a virtual tour is to be provided around a facility it can be accomplished in a number of ways, the Panoramic movies can be linked by adding hotspots. Alternatively a map can be provided of the facility and links added to the different movies. Dr. Naji Shukri Alzaza

Image Based VR Movie Guide 13 4. Hotspots/map Only certain viewers/file formats support hotspots. Hotspots areas that have function assigned to them by mouse click or roll over. Standard functions include linking to other movies, providing text about the area of the movie and opening a hyperlink. Dr. Naji Shukri Alzaza

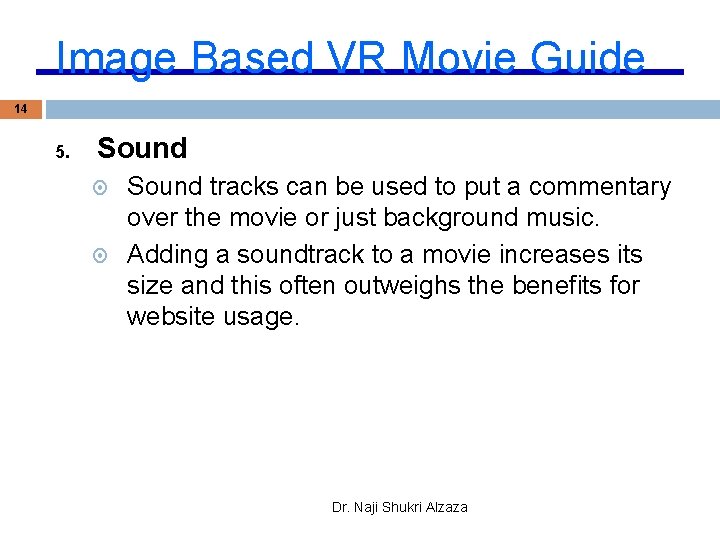

Image Based VR Movie Guide 14 5. Sound tracks can be used to put a commentary over the movie or just background music. Adding a soundtrack to a movie increases its size and this often outweighs the benefits for website usage. Dr. Naji Shukri Alzaza

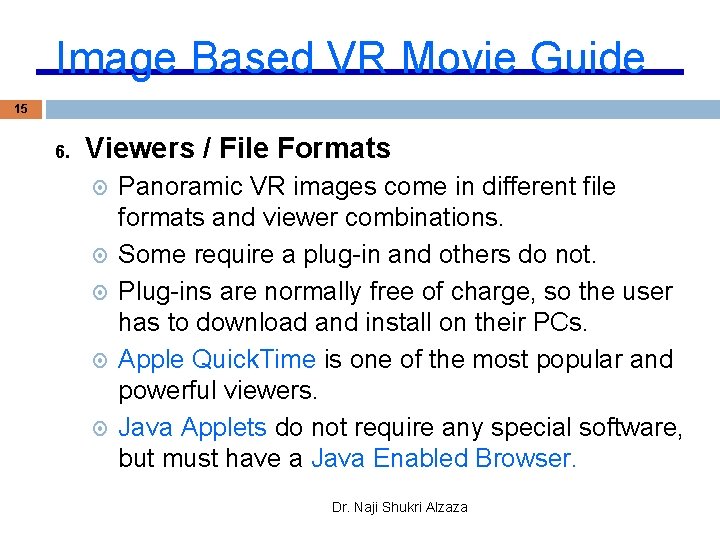

Image Based VR Movie Guide 15 6. Viewers / File Formats Panoramic VR images come in different file formats and viewer combinations. Some require a plug-in and others do not. Plug-ins are normally free of charge, so the user has to download and install on their PCs. Apple Quick. Time is one of the most popular and powerful viewers. Java Applets do not require any special software, but must have a Java Enabled Browser. Dr. Naji Shukri Alzaza

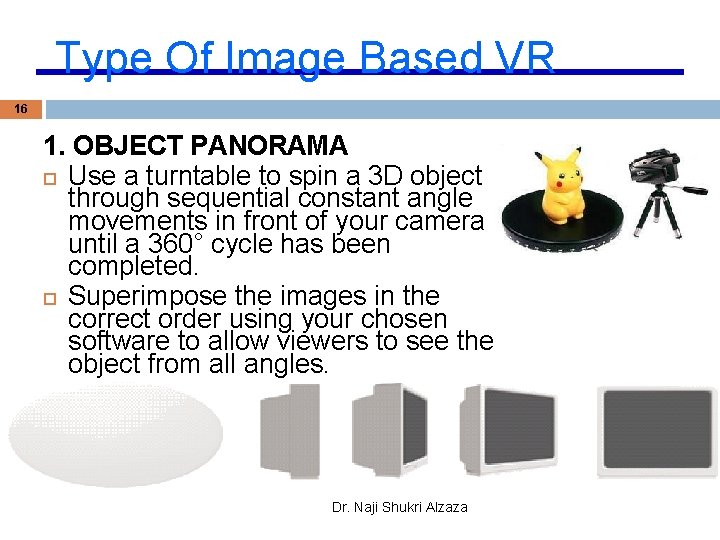

Type Of Image Based VR 16 1. OBJECT PANORAMA Use a turntable to spin a 3 D object through sequential constant angle movements in front of your camera until a 360° cycle has been completed. Superimpose the images in the correct order using your chosen software to allow viewers to see the object from all angles. Dr. Naji Shukri Alzaza

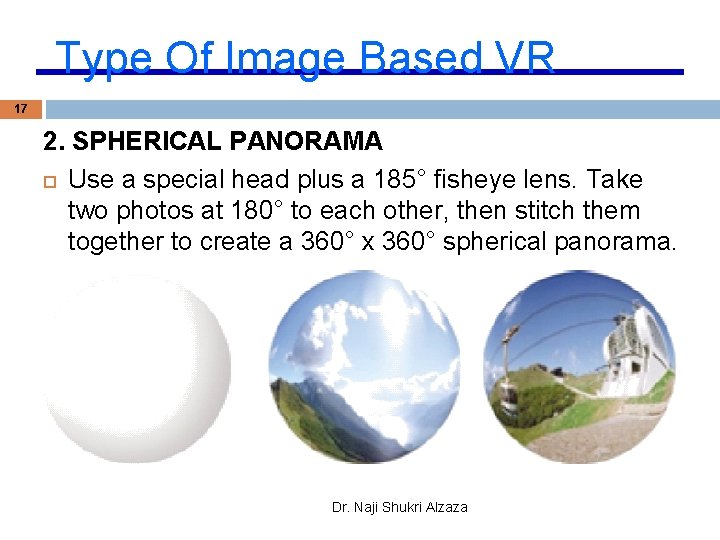

Type Of Image Based VR 17 2. SPHERICAL PANORAMA Use a special head plus a 185° fisheye lens. Take two photos at 180° to each other, then stitch them together to create a 360° x 360° spherical panorama. Dr. Naji Shukri Alzaza

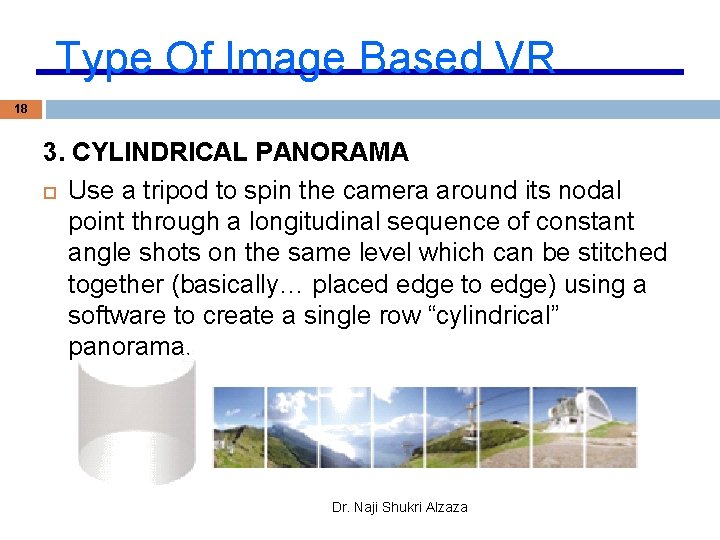

Type Of Image Based VR 18 3. CYLINDRICAL PANORAMA Use a tripod to spin the camera around its nodal point through a longitudinal sequence of constant angle shots on the same level which can be stitched together (basically… placed edge to edge) using a software to create a single row “cylindrical” panorama. Dr. Naji Shukri Alzaza

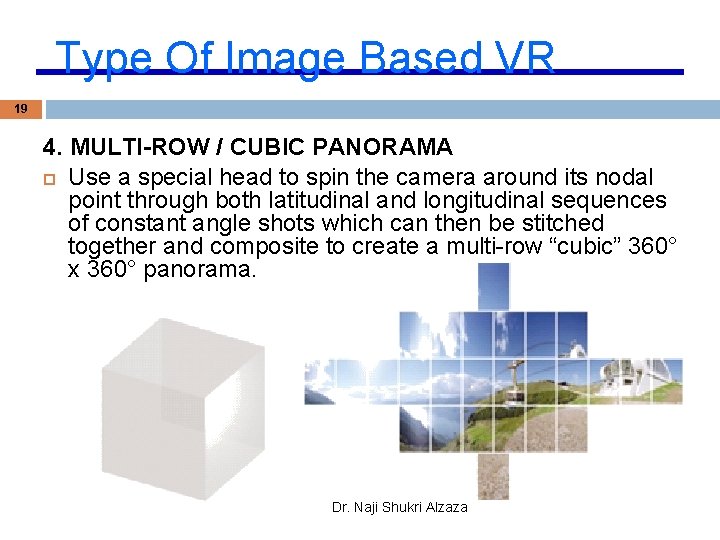

Type Of Image Based VR 19 4. MULTI-ROW / CUBIC PANORAMA Use a special head to spin the camera around its nodal point through both latitudinal and longitudinal sequences of constant angle shots which can then be stitched together and composite to create a multi-row “cubic” 360° x 360° panorama. Dr. Naji Shukri Alzaza

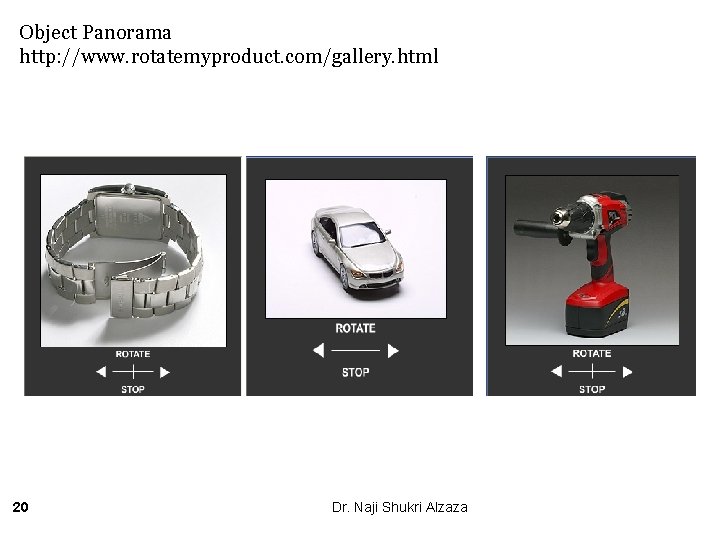

Object Panorama http: //www. rotatemyproduct. com/gallery. html 20 Dr. Naji Shukri Alzaza

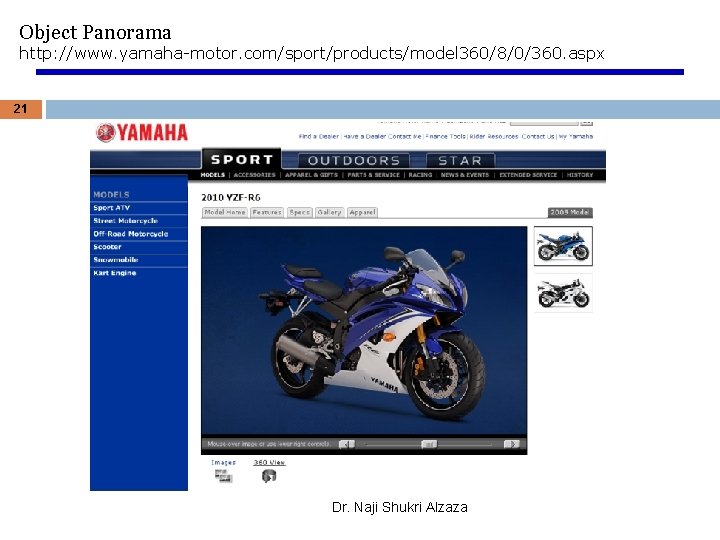

Object Panorama http: //www. yamaha-motor. com/sport/products/model 360/8/0/360. aspx 21 Dr. Naji Shukri Alzaza

22 Image Based VR Applications Institution Virtual tour of Oxford - http: //www. chem. ox. ac. uk/oxfordtour/ Dr. Naji Shukri Alzaza

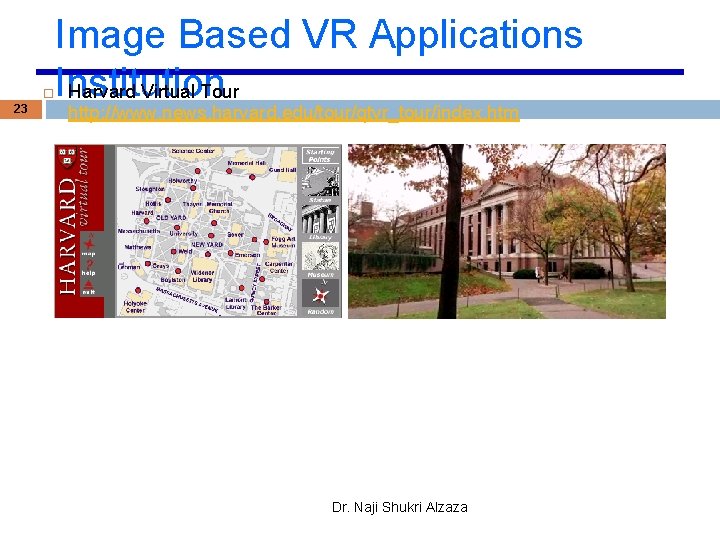

23 Image Based VR Applications Institution Harvard Virtual Tour http: //www. news. harvard. edu/tour/qtvr_tour/index. htm Dr. Naji Shukri Alzaza

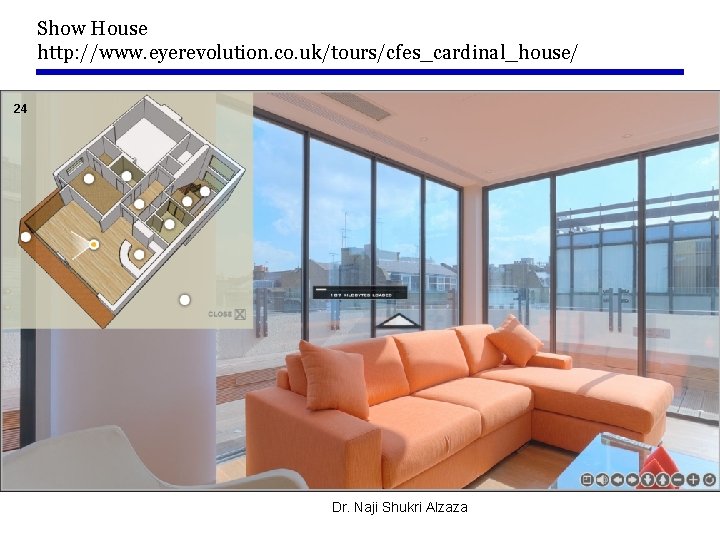

Show House http: //www. eyerevolution. co. uk/tours/cfes_cardinal_house/ 24 Dr. Naji Shukri Alzaza

Tourist Attraction http: //www. eyerevolution. co. uk/tours/furnace_creek/ 25 Dr. Naji Shukri Alzaza

World Heritage http: //www. world-heritage-tour. org/earth/map. html 26 Dr. Naji Shukri Alzaza

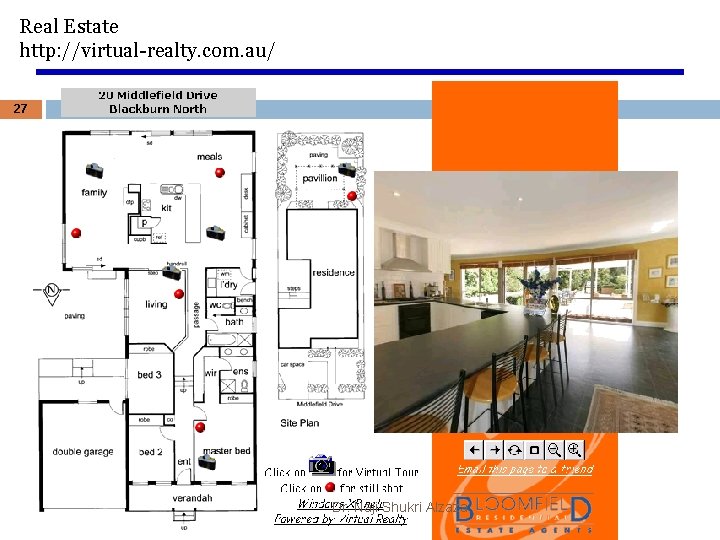

Real Estate http: //virtual-realty. com. au/ 27 Dr. Naji Shukri Alzaza

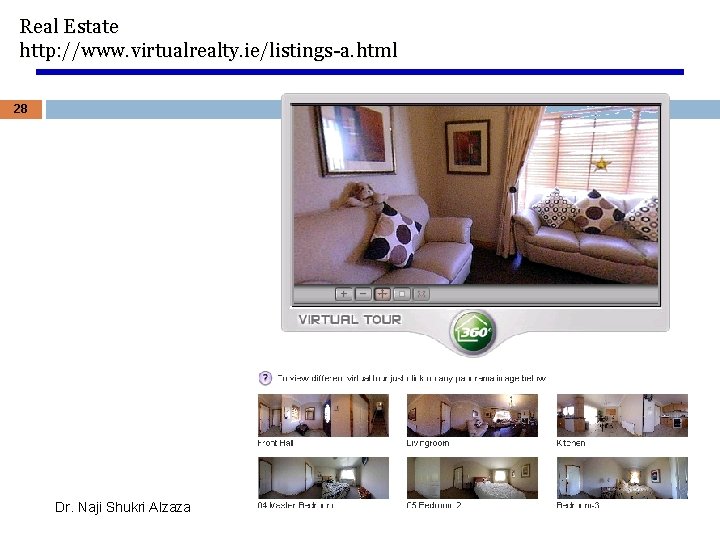

Real Estate http: //www. virtualrealty. ie/listings-a. html 28 Dr. Naji Shukri Alzaza
