Virtual Queues as a Trade Processing Pattern Uri

Virtual Queues as a Trade Processing Pattern Uri Cohen @uri 1803 | github. com/uric Head of Product @ Giga. Spaces

Event Processing at Massive Scale Approaches to Concurrency Uri Cohen @uri 1803 | github. com/uric Head of Product @ Giga. Spaces

This is What It Used to Be Like

That’s What It’s Like Now

Some Numbers 15 Billion Trades / Day on NYSE alone http: //www. nytimes. com/2011/08/27/business/as-trade-volumes-soar-exchanges-cash-in. html

Some Numbers That’s 641 K Trades / Second http: //www. nytimes. com/2011/08/27/business/as-trade-volumes-soar-exchanges-cash-in. html

Some Numbers 12 Billion Shares change hands every day http: //www. bloomberg. com/news/2012 -01 -23/stock-trading-is-lowest-in-u-s-since-2008. html

Some Numbers $4 Million The cost of 1 millisecond of latency to a broker http: //www. tabbgroup. com/Publication. Detail. aspx? Publication. ID=346

The Problem Massive stream of events Time is money, literally Can’t lose a single message Fairness is a must

Order Book Simplistic Example Buy Sell 50, $12 60, $10 60, $11 100, $11 30, $10 30, $12

Order Book Simplistic Example Price: $10 Buy Sell 50, $12 60, $10 60, $11 100, $11 30, $10 30, $12

Order Book Simplistic Example Price: $10 Buy Sell 60, $11 10, $10 30, $10 100, $11 30, $12

Order Book Simplistic Example Price: $10 Buy Sell 60, $11 10, $10 30, $10 100, $11 30, $12

Order Book Simplistic Example Price: $10 Buy Sell 50, $11 100, $11 30, $10 30, $12

Order Book Simplistic Example Price: $11 Buy Sell 50, $11 100, $11 30, $10 30, $12

Order Book Simplistic Example Price: $11 Buy Sell 30, $10 50, $11 30, $12

Low latency What it Really Means In memory, GC tuning Scalability Multi-core Multi-node Ordering By price, order time Exclusivity Resiliency

Trading is Just One Use Case All things FCFS, with a limited stock Flight booking Betting Online Auctions Cloud Spot Instances e. Commerce

Let’s Talk Solutions

Queue (SEDA/Actor Style) Not Validated Validator Processed Processor

Queue (SEDA /Actor Style) The Good: Ordered (Is it fair? ) Multi-threaded The Bad: Not very scalable Locking Context switching Transient

The Cost of Locking Method Time in msec Single Thread 300 Single Thread w/ Lock 10. 000 2 Threads w/ Lock 224. 000 Single Thread w/ CAS 5. 700 2 Threads w/ CAS 30. 000 Single Thread w/ Volatile Write 4. 700 http: //disruptor. googlecode. com/files/Disruptor-1. 0. pdf

Queue (Lack of) Fairness Buy 50 Sell 100 60 Consumer Thread 1 Consumer Thread 2

Queue (Lack of) Fairness Buy 50 100 60 Consumer Thread 1 Sell Consumer Thread 2

Queue (Lack of) Fairness Can you tell which order will be executed 1 st? Buy Sell 100 60 50 Consumer Thread 1 Consumer Thread 2

Single-Threaded Queue Validator Processor

The Good: Single. Threaded Queue Fast, very fast No contention No context switches Always fair The Bad: Multi-core? Not fit for Intense compute & I/O Need to be async. Transient

Single. Threaded Queue They do it…

Disruptor (LMAX)

Segmented Queue Processor thread pool per segment Symbol=A-H Symbol=I-S Symbol=T-Z Validator Processor

Segmented Queue - Optimization Single Processor thread pool, pick random segment Symbol=A-H Symbol=I-S Processor Symbol=T-Z

The Good: Scalable But segments can get hot Segmented Queue Minimizes contention The Bad: Not trivial to implement Still unfair Is total ordering needed? Transient

Exclusivity is Key What about Fairness? Process one message for each segment at the same time No exclusivity across segments

Implicit Exclusivity Single processor thread per segment Symbol=A-H Symbol=I-S Symbol=T-Z Processor

Explicit Exclusivity Shared thread pool, mark segments under processing (CAS) Segment 1 Segment 2 Segment 3 Processor Segment 3

Explicit Exclusivity Shared thread pool, mark segments under processing (CAS) Segment 1 X Segment 1 Segment 2 Segment 3 Processor Segment 3

Explicit Exclusivity Shared thread pool, mark segments under processing (CAS) Segment 1 X Segment 1 Segment 2 Segment 3 X Processor Segment 3

Explicit Exclusivity Shared thread pool, mark segments under processing (CAS) Segment 1 Segment 2 Segment 3 X Processor Segment 3

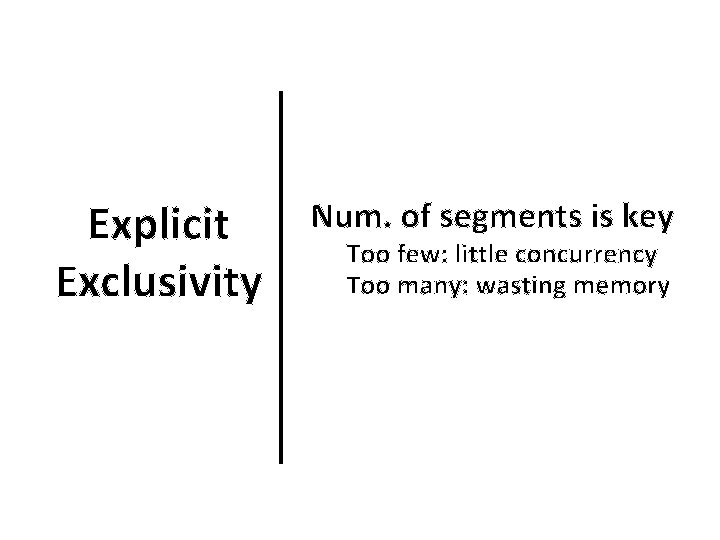

Explicit Exclusivity Num. of segments is key Too few: little concurrency Too many: wasting memory

Dynamic Segmentation Segments are created and removed as needed Processor

Dynamic Segmentation Segments are created and removed as needed “GOOG” Processor

Dynamic Segmentation Segments are created and removed as needed “GOOG” Processor

Dynamic Segmentation Segments are created and removed as needed GOOG “GOOG” “AAPL” AAPL Processor

Dynamic Segmentation Segments are created and removed as needed GOOG X “GOOG” “AAPL” AAPL AMZN Processor “AMZN”

Segments created as needed Dynamic Segmentation Randomize on segments until available one found Fast, scalable, fair We call it “FIFO groups” or “Virtual Queues”

It Can (and Does) Get Much More Complex Memory state can get corrupt on errors It’s not always as simple as “pop off the queue” limits, priorities, circuit breakers, etc. Resiliency is always a pain

What you don’t want to do A Bit about Usability Implement data structures Handle concurrency Handle HA Handle transactions

What you want to control A Bit about Usability Event flow Grouping attribute (e. g symbol) Event handlers

Data Grid as a Foundation Transactional Highly available Supports complex matching

How We Thought of It

How We Thought of It

How We Thought of It

How We Thought of It

How We Thought of It

Thank You! References: http: //martinfowler. com/articles/lmax. html http: //www. nytimes. com/2011/08/27/business/as-tradevolumes-soar-exchanges-cash-in. html http: //disruptor. googlecode. com/files/Disruptor-1. 0. pdf http: //www. gigaspaces. com/wiki/display/XAP 9/FIFO+Grouping
