Virtual BNG Broadband Network Gateway for our Partners September 2020 Proprietary and Confidential
About net. Elastic Santa Clara based Software Developer …of virtual (SDN) networking technologies …serving the Broadband industry since 2015 Team of 60+ networking and virtualization experts Intel Network Builders Program – Leaders Board Deep set of Data Plane and User Interface IP Proprietary and Confidential 2

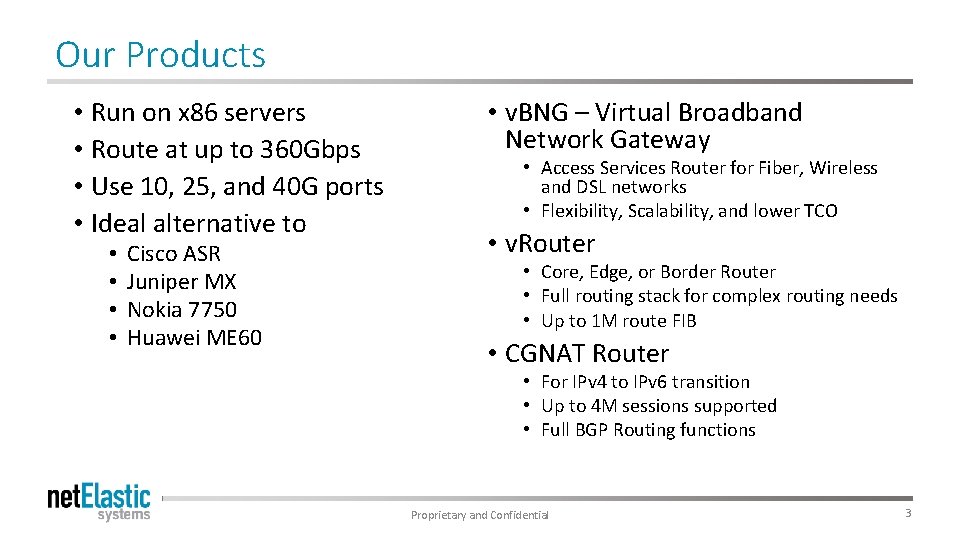

Our Products • Run on x 86 servers • Route at up to 360 Gbps • Use 10, 25, and 40 G ports • Ideal alternative to • • Cisco ASR Juniper MX Nokia 7750 Huawei ME 60 • v. BNG – Virtual Broadband Network Gateway • Access Services Router for Fiber, Wireless and DSL networks • Flexibility, Scalability, and lower TCO • v. Router • Core, Edge, or Border Router • Full routing stack for complex routing needs • Up to 1 M route FIB • CGNAT Router • For IPv 4 to IPv 6 transition • Up to 4 M sessions supported • Full BGP Routing functions Proprietary and Confidential 3
What is a v. BNG? • Virtual Broadband Network Gateway Local Servers: • TACACS+ • Radius • DNS resolver • Content • Access Services Router - plus • Subscriber Management Services • The edge router in a Broadband Service Provider network • Aggregates Layer 2 traffic from Access Network • Routes to the core/peers • Virtualization is key To Internet v. BNG (on a white box server) 4
Benefits of Virtualization is software that makes computing environments independent of physical infrastructure Agile deployment Fewer physical devices Easier Segmentation Easy upgrades Physical Security One-click failover = Lowest TCO Proprietary and Confidential 5
net. Elastic v. BNG Differentiators • Optimized to run on the x 86 architecture • Eliminates high upfront Cap. Ex • Dead simple to scale up or out • Data-Plane optimizations deliver line-rate performance to 360 Gbps per x 86 Server • Fully virtualized • Scalability aligns costs with revenue in very small to very large (<128 k subs) use cases • Full support for Service Provider edge protocols and features • Dual stack IPv 4 and IPv 6 plus built-in CGNAT • Carrier network protocols, such as BGP, OSPF, ISIS, MPLS • Subscriber Management, such as IPo. E, PPPo. E, L 2 TP, Vx. LAN, AAA, Qin. Q, QOS… • Perpetual Licensing Model • Eliminates high ongoing Op. Ex • Simple quoting and procurement Proprietary and Confidential 6
Enables the Distributed Edge Metro Central Office Network Core Fixed Capacity High Cost Platforms L 2 BNG/Agg CDN EPC Video Cache… v. BNG Router L 3 Agg/PE EPC Io. T… HW Agile and Flexible • Automation • Platform optimization • Pay-as-you-go • Precision Investment • Lower TCO Virtual Deliver IP Closer to User • Performance • Low Latency • Local Caching • Smaller Fault Domain Distributed 7
Software or Appliance BNG-202 on Dell Power. Edge R 730 2 RU, 14 Core, Xeon E 5 -2680 v 4 @ 2. 4 GHz 64 GB RAM • 1 TB HDD Intel X 710 Dual Port 10 Gb Direct Attach SFP+ Network Adapter Up to 16, 000 subscribers and 20 Gbps net. Elastic BNG-202 1 RU, 12 Core, Xeon® Gold 6126 Processor @ 2. 6 GHz 48 GB RAM • 512 GB HDD Intel X 710 Dual Port 10 Gb Direct Attach SFP+ Network Adapter Up to 16, 000 subscribers and 20 Gbps net. Elastic BNG-1202 1 RU, 20 Core, Xeon Platinum 8168 @ 2. 7 GHz 96 GB RAM • 512 GB HDD 3 Intel X 710 Quad Port 10 Gb Direct Attach SFP+ Network Adapter Up to 128, 000 subscribers and 120 Gbps net. Elastic BNG-3002 A 1 RU, 28 Core, Xeon Platinum 8276 @ 2. 2 GHz 96 GB RAM • 512 GB HDD 4 Intel XXV 710 -DA 2 25 Gb Direct Attach SFP+ Network Adapter (16 x 25 G interfaces) Up to 128, 000 subscribers and 300 Gbps 8
Thank you To learn more: www. net. Elastic. com sales@net. Elastic. com @net. Elastic Proprietary and Confidential 9
