Virginia Driver Education Module Three Vision Vehicle Balance

Virginia Driver Education Module Three Vision, Vehicle Balance and Laws of Nature

Virginia Department of Education Module Three Vision, Vehicle Balance and Laws of Nature Topic 1 Starting, Securing and Exiting Topic 2 Vision and Driving Topic 3 Steering and Braking Topic 4 Laws of Nature Topic 5 Establishing Vehicle Reference Points

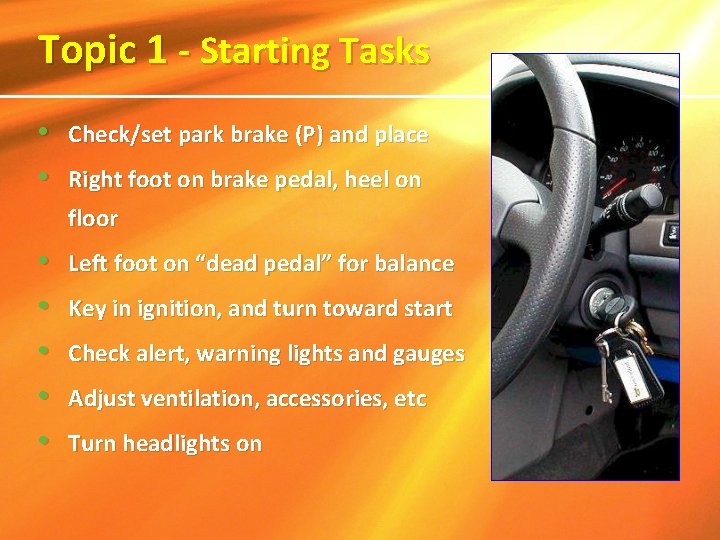

Topic 1 - Starting Tasks • • Check/set park brake (P) and place Right foot on brake pedal, heel on floor • • • Left foot on “dead pedal” for balance Key in ignition, and turn toward start Check alert, warning lights and gauges Adjust ventilation, accessories, etc Turn headlights on

Securing the Vehicle • Find a legal, safe parking place • Stop and set parking brake • Shift gear selector to (P)ark (Shift to Reverse if Manual Transmission) • Close windows • Turn off accessories • Turn ignition switch to “off” • Lock ignition switch and remove key • Unfasten occupant restraints

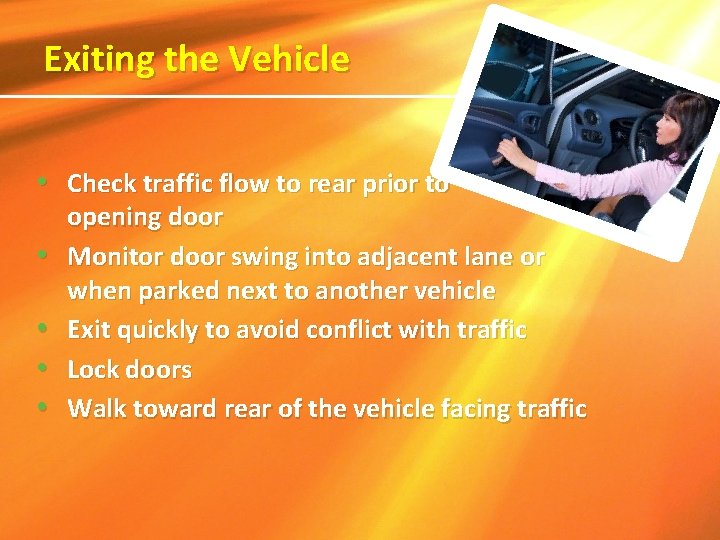

Exiting the Vehicle • Check traffic flow to rear prior to • • opening door Monitor door swing into adjacent lane or when parked next to another vehicle Exit quickly to avoid conflict with traffic Lock doors Walk toward rear of the vehicle facing traffic

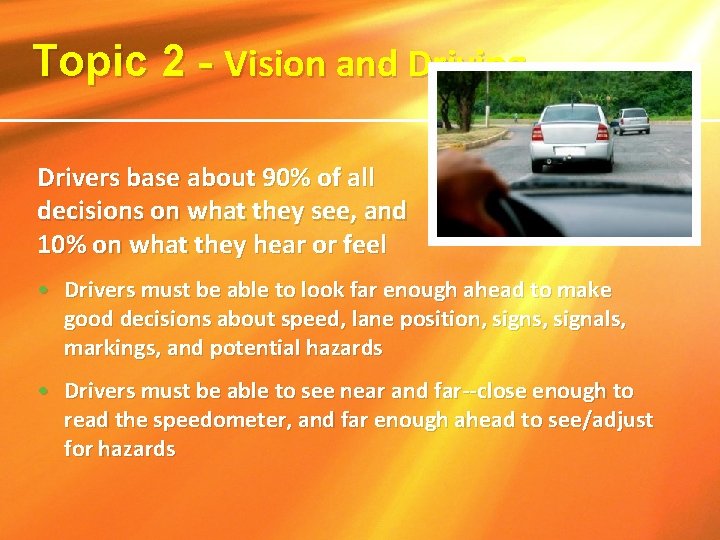

Topic 2 - Vision and Driving Drivers base about 90% of all decisions on what they see, and 10% on what they hear or feel driving • Drivers must be able to look far enough ahead to make good decisions about speed, lane position, signs, signals, markings, and potential hazards • Drivers must be able to see near and far--close enough to read the speedometer, and far enough ahead to see/adjust for hazards

Visual Testing Visual acuity is the measurement of the finest details which can be seen in optimal light conditions

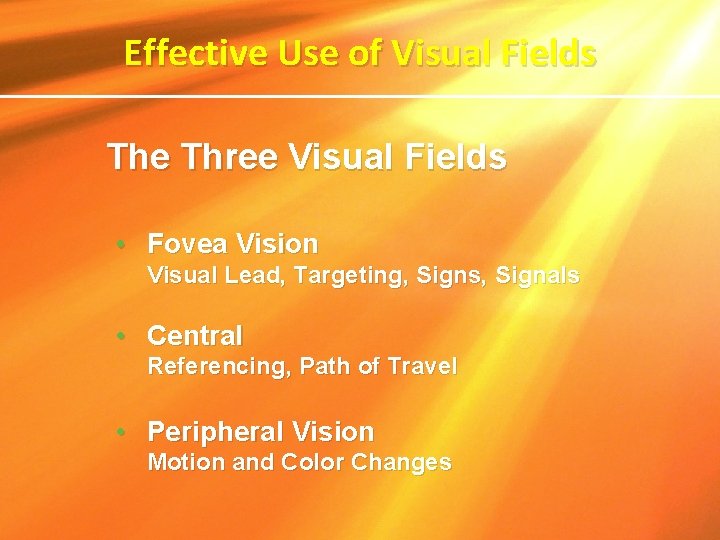

Effective Use of Visual Fields The Three Visual Fields • Fovea Vision Visual Lead, Targeting, Signs, Signals • Central Referencing, Path of Travel • Peripheral Vision Motion and Color Changes

The Fovea Vision Area Located at the center of the central vision area, the fovea is a small part of the retina and is responsible for our highest visual acuity

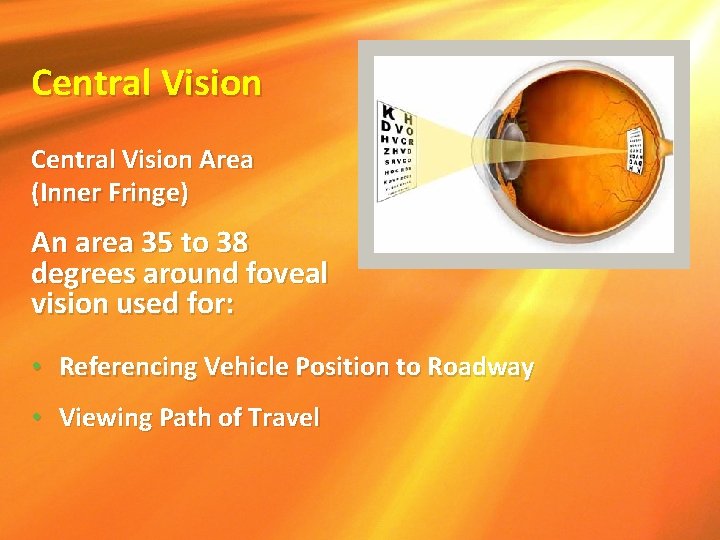

Central Vision Area (Inner Fringe) An area 35 to 38 degrees around foveal vision used for: • Referencing Vehicle Position to Roadway • Viewing Path of Travel

Central Vision at Night • The human eye’s field of vision is much smaller without the help of natural light • Depth perception, visual acuity, and color recognition are all compromised at night • Minimize glare by looking at the bottom right of the road to avoid approaching headlights • Keep it dark in the car • Slow down to give yourself longer to react

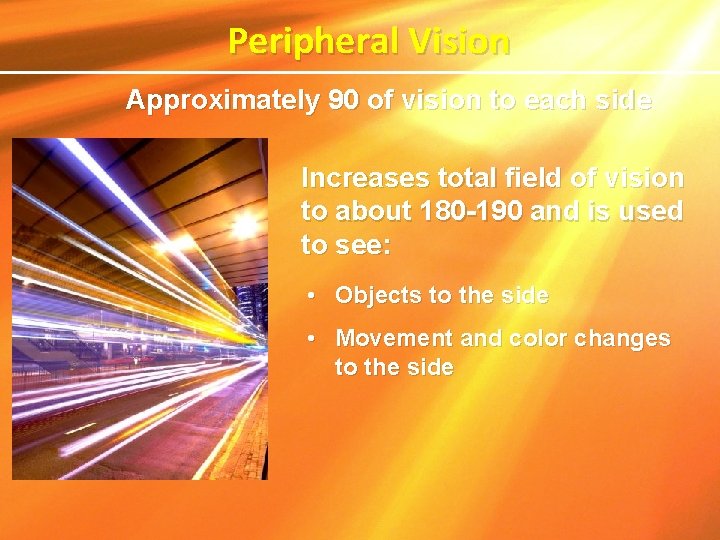

Peripheral Vision Approximately 90 of vision to each side Increases total field of vision to about 180 -190 and is used to see: • Objects to the side • Movement and color changes to the side

Peripheral Vision and the Driving Task Drivers use peripheral vision to: • See color and object movement • See signal changes, road signs, warning lights on the dashboard • Monitor traffic • Stay within the lane

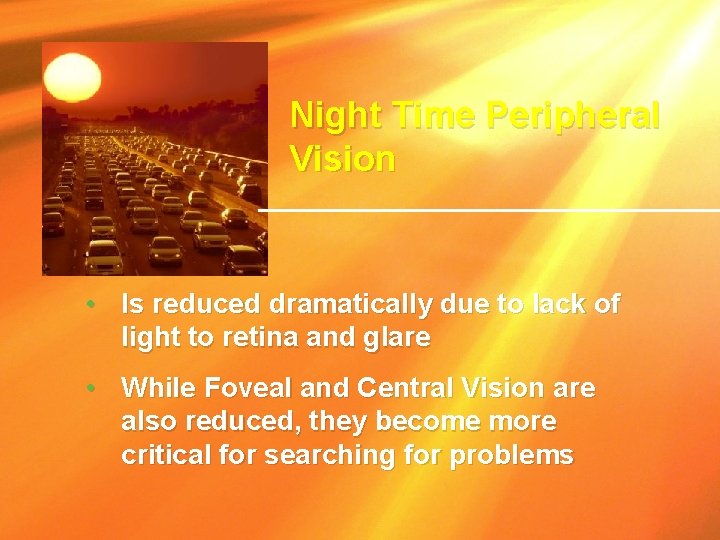

Night Time Peripheral Vision • Is reduced dramatically due to lack of light to retina and glare • While Foveal and Central Vision are also reduced, they become more critical for searching for problems

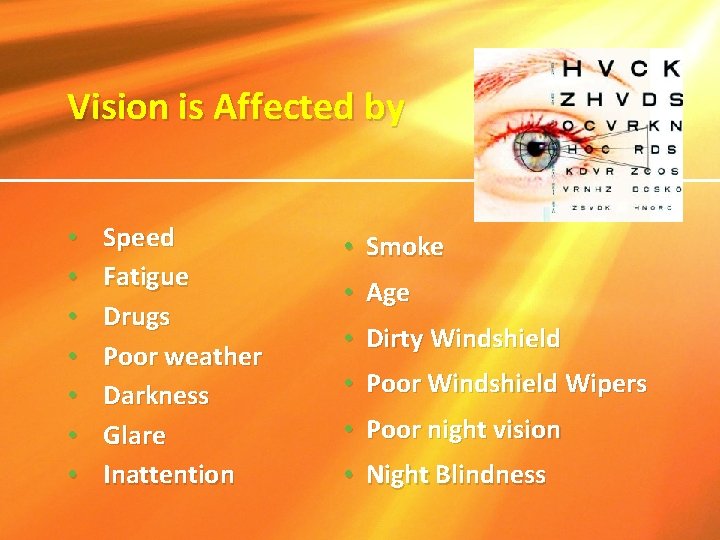

Vision is Affected by • • Speed Fatigue Drugs Poor weather Darkness Glare Inattention • Smoke • Age • Dirty Windshield • Poor Windshield Wipers • Poor night vision • Night Blindness

Depth Perception Need both eyes to judge the distance between two objects Depth perception allows you to: • judge gaps in traffic when turning, merging, or passing • judge distance when approaching a vehicle or obstruction

Poor Depth Perception • Stop too far from the stop line or intersection • Stop too close to vehicles ahead • Move into gaps that are too small • Look for gaps that are larger than needed to perform a maneuver • Follow other vehicles at unsafe following distance • Hit parked cars when parking • Have “close calls” when entering traffic, passing, etc.

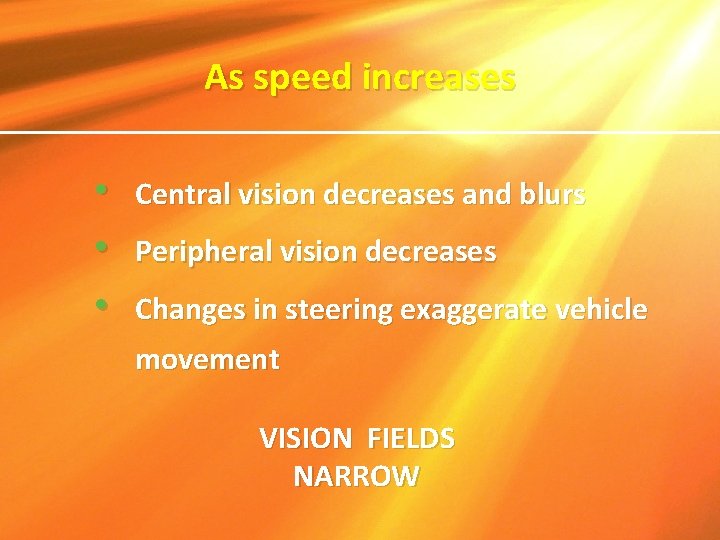

As speed increases • • • Central vision decreases and blurs Peripheral vision decreases Changes in steering exaggerate vehicle movement VISION FIELDS NARROW

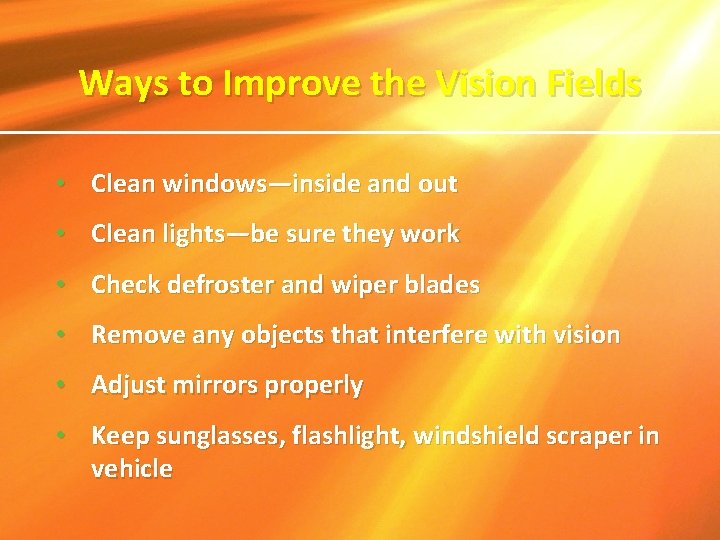

Ways to Improve the Vision Fields • Clean windows—inside and out • Clean lights—be sure they work • Check defroster and wiper blades • Remove any objects that interfere with vision • Adjust mirrors properly • Keep sunglasses, flashlight, windshield scraper in vehicle

Line of Sight Line-of-sight is the distance you can see in your path of travel

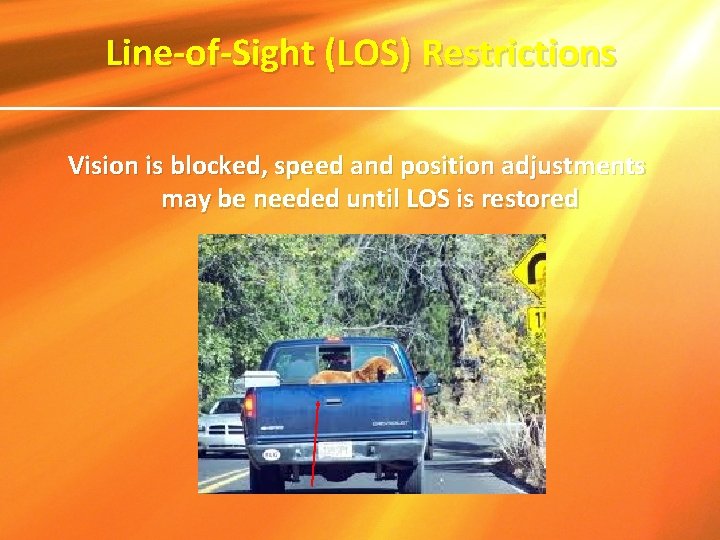

Line-of-Sight (LOS) Restrictions Vision is blocked, speed and position adjustments may be needed until LOS is restored

Path-of-Travel (POT) The space the vehicle will occupy while traveling to the target area

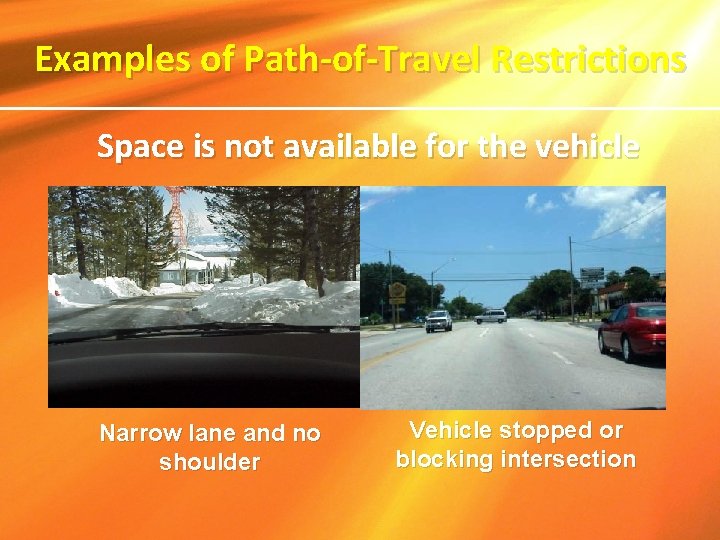

Examples of Path-of-Travel Restrictions Space is not available for the vehicle Narrow lane and no shoulder Vehicle stopped or blocking intersection

“Target” Far Ahead in the Path of Travel Identify the target in this driver’s path of travel A “Target” is an object or place far ahead in the center of your path of travel

Target AREA Provides the BIG Picture The Target area is the area drivers must scan to the left and right of the target Target Area

Advantages of Targeting • Easier to track vehicle in a straight line • Driver looks far ahead of the vehicle, and at the same time gathers information close to the vehicle • Driver can plan ahead to better manage risks • Targeting develops visual skills essential for managing traction loss and steering control

The Pavement Around Your Vehicle You Cannot See From the Driver’s Seat The driver cannot see anything on the ground in the area outlined above—cars are used to show the size of this area

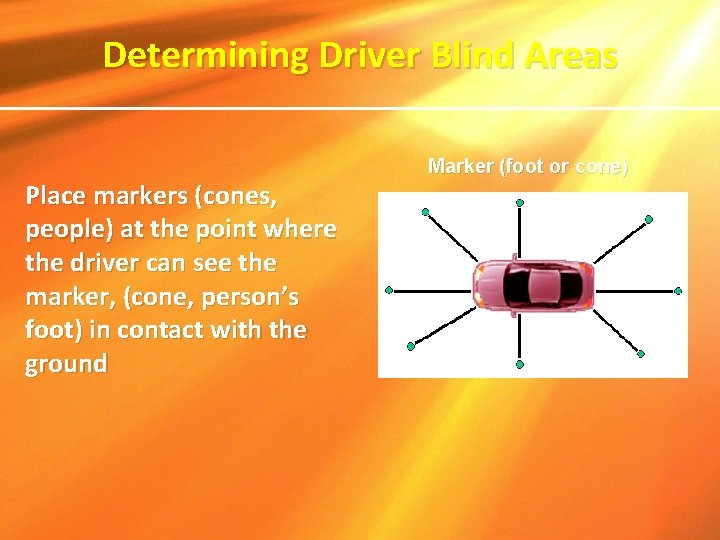

Determining Driver Blind Areas Place markers (cones, people) at the point where the driver can see the marker, (cone, person’s foot) in contact with the ground Marker (foot or cone)

Using Lane Position to Maximize LOS 1 • Select the lane position that gives you the best line of sight and safest path of travel • Lane positions are based upon an average lane size of 12 -feet wide, and a vehicle 6 -feet wide 2 3 4 5

Lane Position 1 2 -3 Feet Positioned in the center of lane with an equal buffer of space on either side

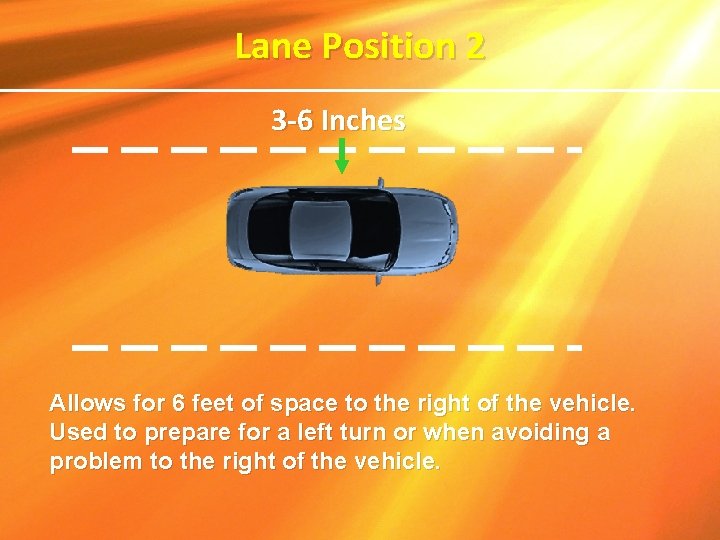

Lane Position 2 3 -6 Inches Allows for 6 feet of space to the right of the vehicle. Used to prepare for a left turn or when avoiding a problem to the right of the vehicle.

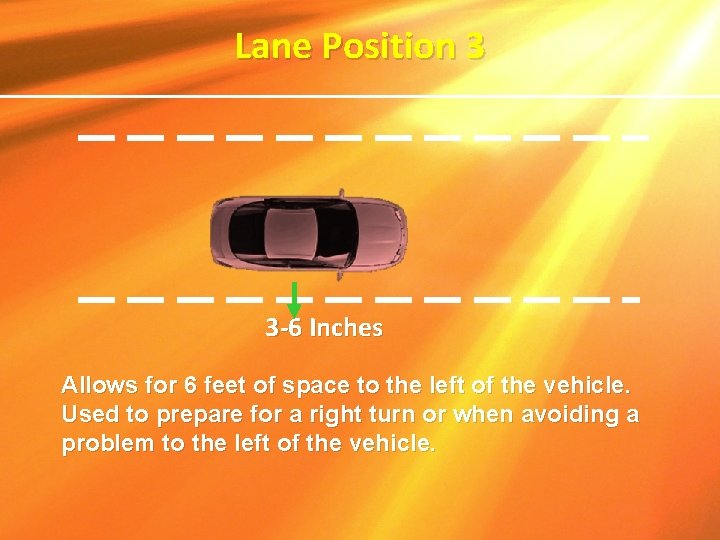

Lane Position 3 3 -6 Inches Allows for 6 feet of space to the left of the vehicle. Used to prepare for a right turn or when avoiding a problem to the left of the vehicle.

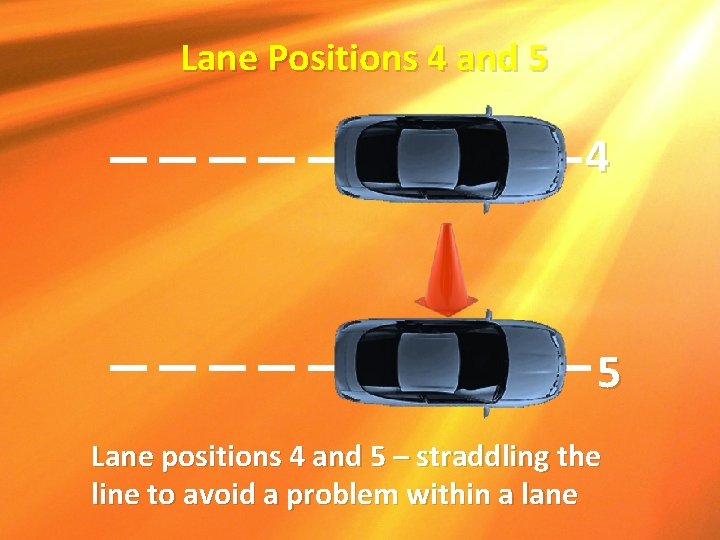

Lane Positions 4 and 5 4 5 Lane positions 4 and 5 – straddling the line to avoid a problem within a lane

Topic 3 - Basic Maneuvers -- Steering Holding the upper half of the wheel can result in excessive steering, air bag injuries, and upper body fatigue Hands located on lower half of the wheel offers: • Relaxed, balanced control • Reduces unwanted steering wheel movement • Improves stability by lowering the body’s center of gravity

Hand-to-Hand/Push-Pull Steering Hand-to-Hand Steering/Push-Pull Right Turn Left Hand Pushes Up from 8 to 11 Right Hand Pulls Down from 1 to 4

Hand-Over-Hand Steering Used at Speeds below 15 mph Used for slow, tight turns - Arms cross on the top 1/3 of the wheel until desired path of travel is reached Left Turn/left hand Left hand pulls down, then reaches up to about theo’clock position and continues to pull 11 -12 down to the left Left Turn/right hand Right Hand pushes up to about the 11 o’clock position

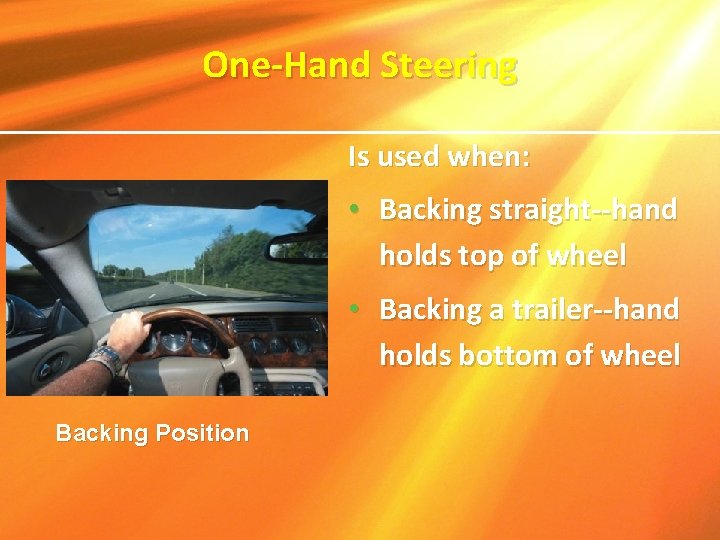

One-Hand Steering Is used when: • Backing straight--hand holds top of wheel • Backing a trailer--hand holds bottom of wheel Backing Position

Covering the Accelerator • Used for a smooth transition from braking to accelerating • Allows the vehicle to coast which may speed up or slow down the vehicle • Permits the driver to be prepared for any needed acceleration

Foot Pedals Right foot pivots between brake and accelerator Dead Pedal Brake Accelerator Left foot “rests” on dead pedal

Acceleration Techniques 1. Progressive, Smooth Acceleration • Heel pivots foot from the brake to the accelerator • Gently apply pressure to the accelerator pedal to gradually increase speed to minimize backward pitch and maintain vehicle balance

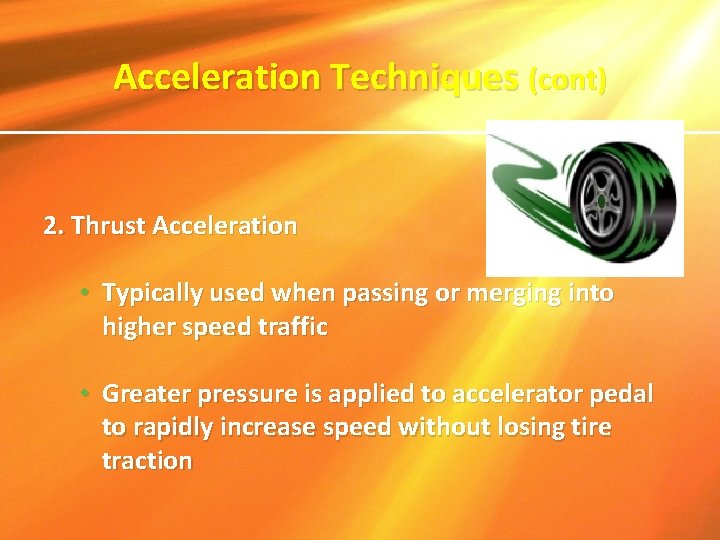

Acceleration Techniques (cont) 2. Thrust Acceleration • Typically used when passing or merging into higher speed traffic • Greater pressure is applied to accelerator pedal to rapidly increase speed without losing tire traction

Braking Techniques Smooth braking technique: • Is a trait of a skilled driver • Saves wear and tear on the brake system and tires

Methods to Reduce Speed Release the Accelerator • Most frequently used method to slow vehicle speed • Gradually reduce pedal pressure to avoid abrupt changes in speed

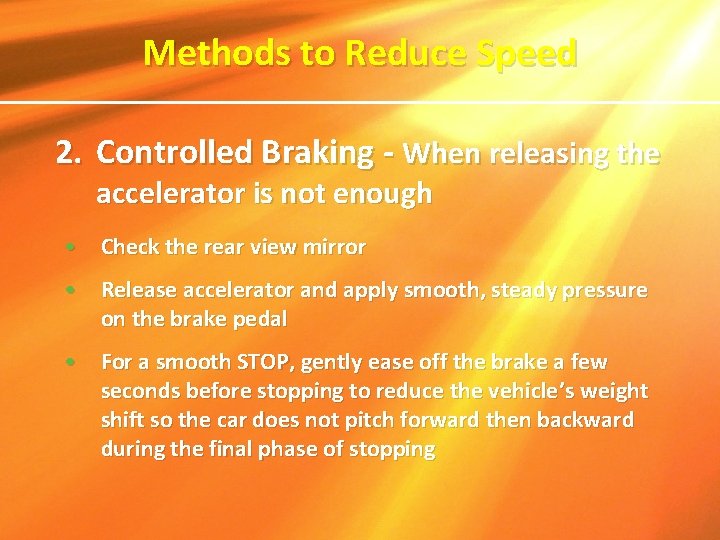

Methods to Reduce Speed 2. Controlled Braking - When releasing the accelerator is not enough • Check the rear view mirror • Release accelerator and apply smooth, steady pressure on the brake pedal • For a smooth STOP, gently ease off the brake a few seconds before stopping to reduce the vehicle’s weight shift so the car does not pitch forward then backward during the final phase of stopping

Methods to Reduce Speed (cont) 3. Threshold Braking in an Emergency Slows the vehicle as quickly as possible without locking brakes or losing traction • Release accelerator while checking traffic behind • Exert forceful pressure on brake pedal and you will feel the vehicle weight shift forward • If you feel the wheels begin to slide, ease the pressure on brake pedal so the tires can begin rotating again

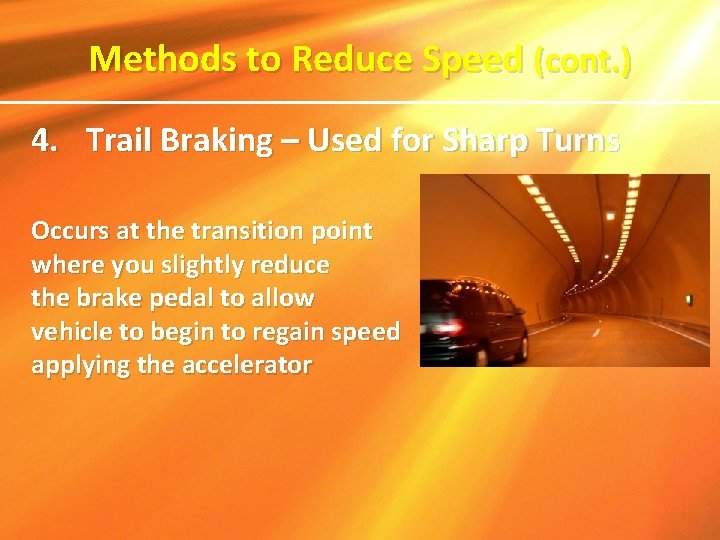

Methods to Reduce Speed (cont. ) 4. Trail Braking – Used for Sharp Turns Occurs at the transition point where you slightly reduce the brake pedal to allow vehicle to begin to regain speed applying the accelerator pressure on the before

Trail Braking 1. Use controlled braking prior to reaching the curve 2. Begin easing off brake, and trail brake with very light pressure until halfway through the turn, 3. Accelerate out of the turn

Anti-Lock Braking System (ABS) ABS allows maximum stopping force without locking up the brakes (skidding) If standard brakes are applied too hard, the wheels "lock" or skid, and you lose steering control.

Anti-Lock Braking System (cont) If steering control is lost, the vehicle skids in a straight line wherever it is going ABS is an anti-lock/anti-skid brake system that allows the driver to steer during hard braking

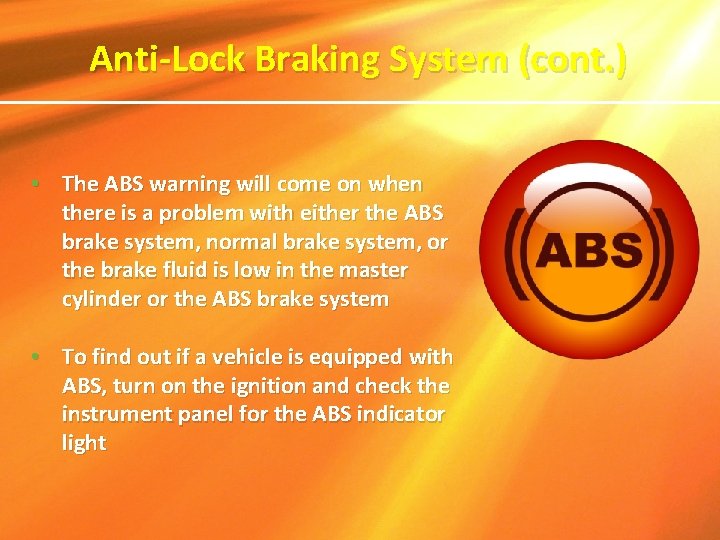

Anti-Lock Braking System (cont. ) • The ABS warning will come on when there is a problem with either the ABS brake system, normal brake system, or the brake fluid is low in the master cylinder or the ABS brake system • To find out if a vehicle is equipped with ABS, turn on the ignition and check the instrument panel for the ABS indicator light

Practice Activating ABS • In a parking lot, go 20 -25 mph and execute an emergency stop to engage ABS • Keep your foot firmly on the brake even when you feel the brake pulsate and/or hear noise • This computerized pumping action can pump the brakes up to 15 times per second

Myths about ABS • There are fewer fatal crashes for cars equipped with ABS False, some drivers panic and/or release the brake when it pulses • Don’t use ABS brakes on a slippery surface False, ABS shortens stopping distance and improves control on a slippery roads

Maintaining Vehicle Balance • Vehicle balance is the distribution of the weight of the vehicle on the tires • Optimum balance is reached when the vehicle is not moving or is moving in a straight direction at a constant speed • As soon as the vehicle accelerates, brakes, or turns, the balance is changed and the weight transfer changes the size of the tire patches

Gravity The natural force that pulls all things to Earth • Throw a ball into the air and what happens? • Gravity gives objects their ______gravity • The center of gravity is where a body’s mass is ______

Energy of Motion = Speed x Mass The white truck and the dump truck are going the same speed Which vehicle has more energy of motion? Why?

Effect Of Speed And Weight • The kinetic energy of a 4, 000 pound vehicle traveling at 100 mph is equal to 1. 36 million foot pounds – enough to lift a 175 pound man 1. 5 miles! • To stop a vehicle going 60 mph would generate approximately enough heat to boil one-half gallon of water!

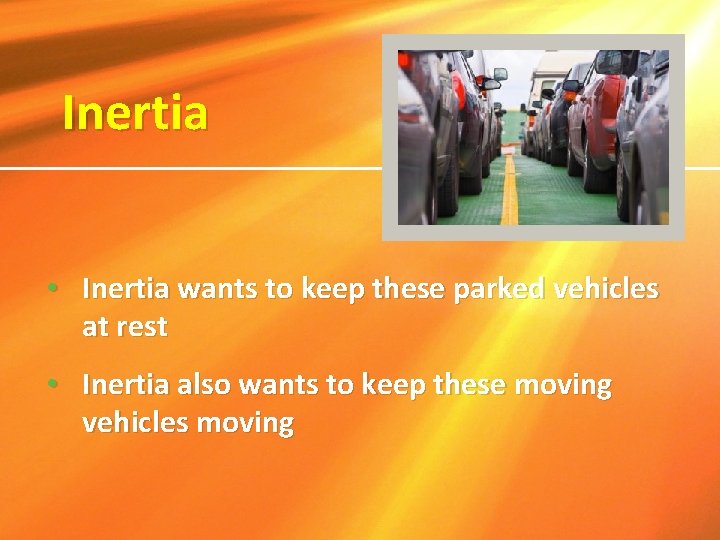

Inertia • Inertia wants to keep these parked vehicles at rest • Inertia also wants to keep these moving vehicles moving

Inertia (cont. ) When driving through this curve, inertia creates the sensation that you are being pulled toward the outside of the curve Why? Because you are traveling in a straight line, and inertia wants to keep you going in a straight line

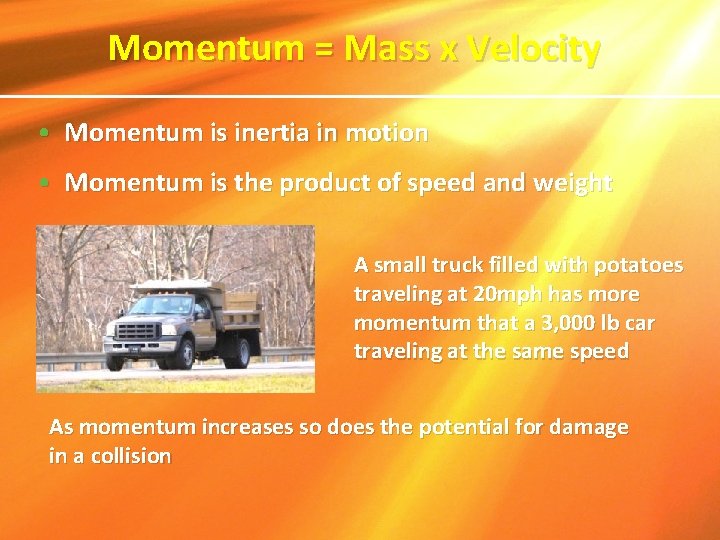

Momentum = Mass x Velocity • Momentum is inertia in motion • Momentum is the product of speed and weight A small truck filled with potatoes traveling at 20 mph has more momentum that a 3, 000 lb car traveling at the same speed As momentum increases so does the potential for damage in a collision

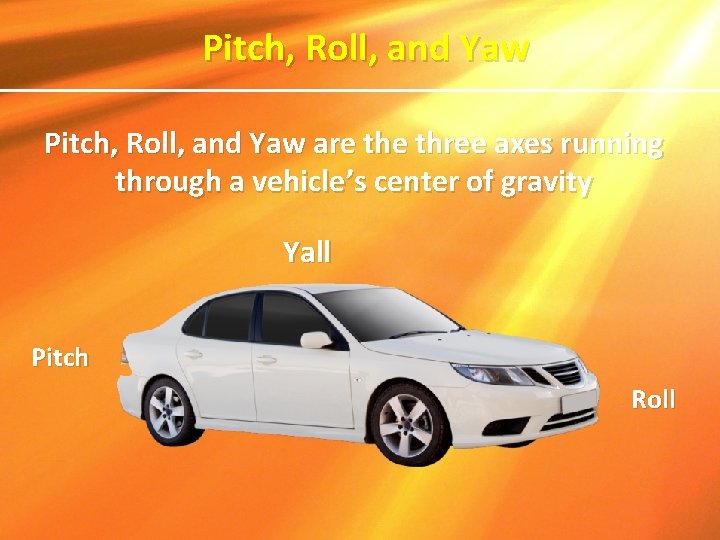

Pitch, Roll, and Yaw are three axes running through a vehicle’s center of gravity Yall Pitch Roll

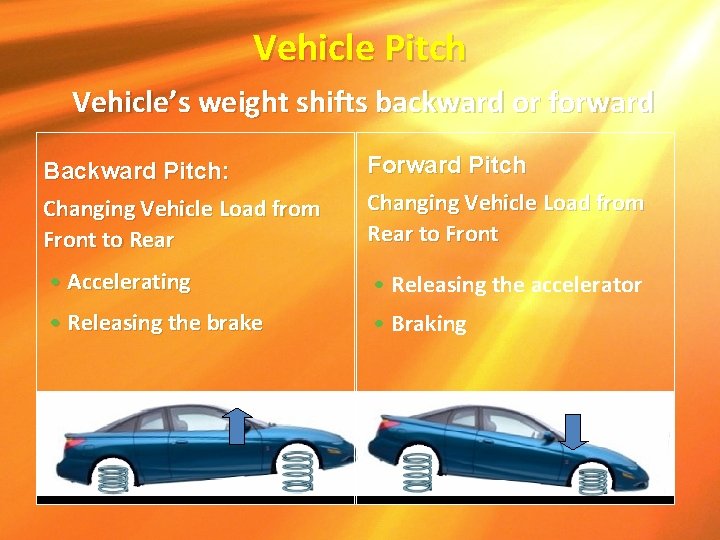

Vehicle Pitch Vehicle’s weight shifts backward or forward Backward Pitch: Changing Vehicle Load from Front to Rear Forward Pitch Changing Vehicle Load from Rear to Front • Accelerating • Releasing the accelerator • Releasing the brake • Braking

Vehicle Roll: Vehicle’s weight shifts to the tires located on one side of the vehicle Which direction is this driver steering to cause this weight shift? What causes a vehicle roll over?

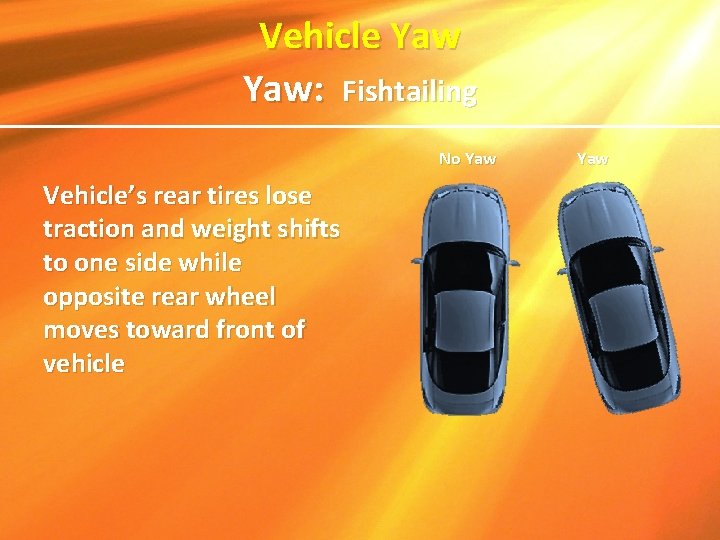

Vehicle Yaw: Fishtailing No Yaw Vehicle’s rear tires lose traction and weight shifts to one side while opposite rear wheel moves toward front of vehicle Yaw

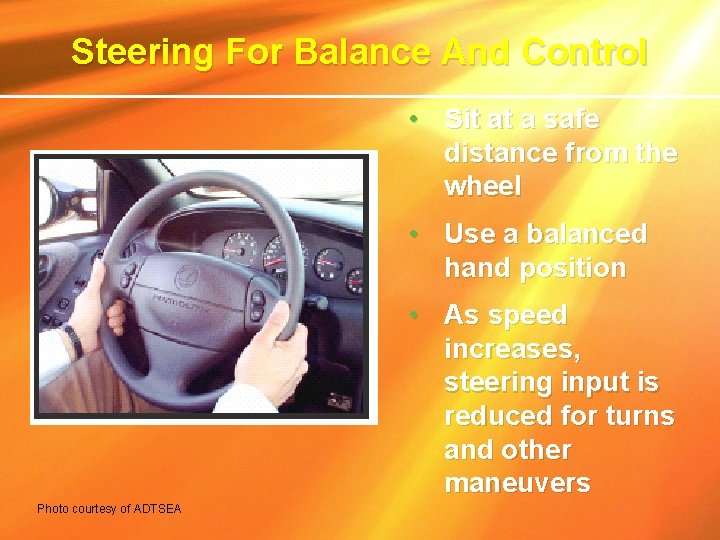

Steering For Balance And Control • Sit at a safe distance from the wheel • Use a balanced hand position • As speed increases, steering input is reduced for turns and other maneuvers Photo courtesy of ADTSEA

Changes in Speed Affects Balance and Control • Pushing or releasing the accelerator pedal is the primary method to adjust the speed of a vehicle • Changes in speed causes weight shifts to front or rear tires • Increases in speed with steering adjustments causes significant shifts in the vehicle’s weight

Braking Affects Balance and Control How does braking affect balance and control in a front or rear-wheel drive vehicle?

Effect of Hard Braking and Steering • Applying hard braking causes weight to shift sharply to the front tires • If the weight shift exceeds available traction, the tires will skid and steering control is lost (under steer)

Vehicle Suspension System • • • Helps to smooth out weight transfers Helps keep all four wheels on the ground Helps keep the vehicle level

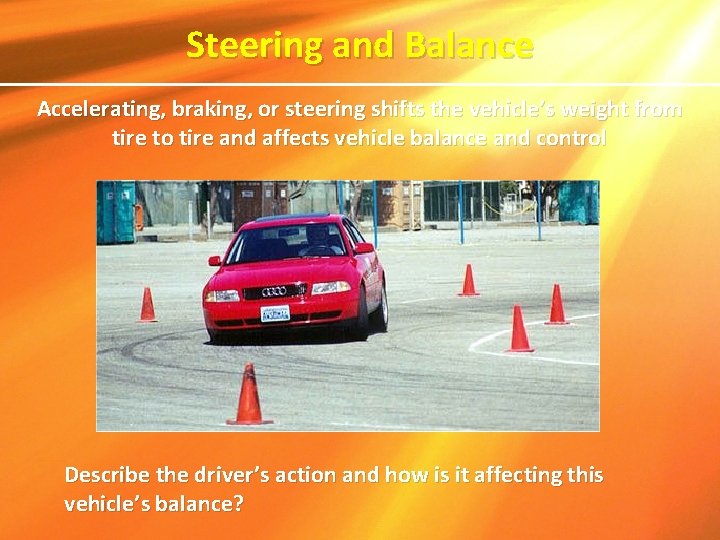

Steering and Balance Accelerating, braking, or steering shifts the vehicle’s weight from tire to tire and affects vehicle balance and control Describe the driver’s action and how is it affecting this vehicle’s balance?

Maintaining Vehicle Balance Describe the driving maneuvers that create these tire footprints

Maintaining Vehicle Balance (cont. ) Describe the driving maneuvers that create these tire footprints

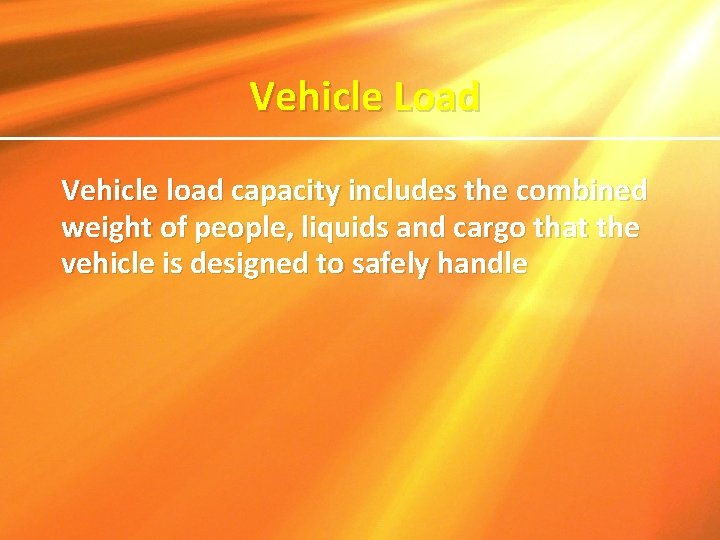

Vehicle Load Vehicle load capacity includes the combined weight of people, liquids and cargo that the vehicle is designed to safely handle

Effect of Load On Vehicle Balance What could occur if the driver of this vehicle made a quick steering maneuver? Photo courtesy of AAA Foundation

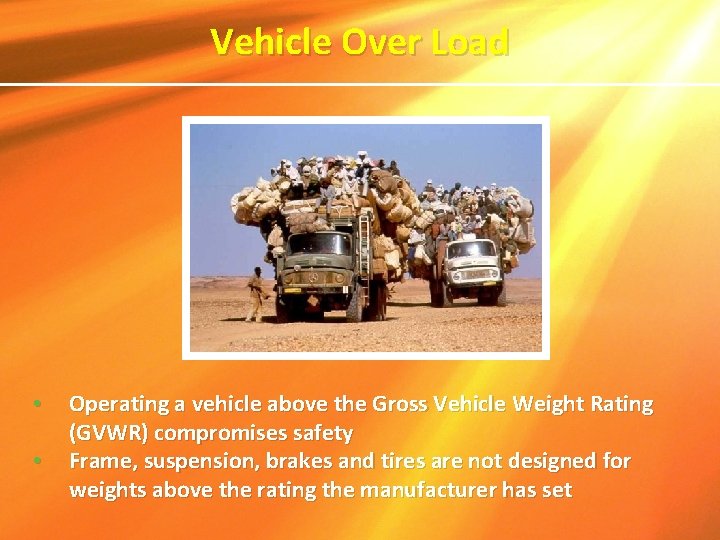

Vehicle Over Load • • Operating a vehicle above the Gross Vehicle Weight Rating (GVWR) compromises safety Frame, suspension, brakes and tires are not designed for weights above the rating the manufacturer has set

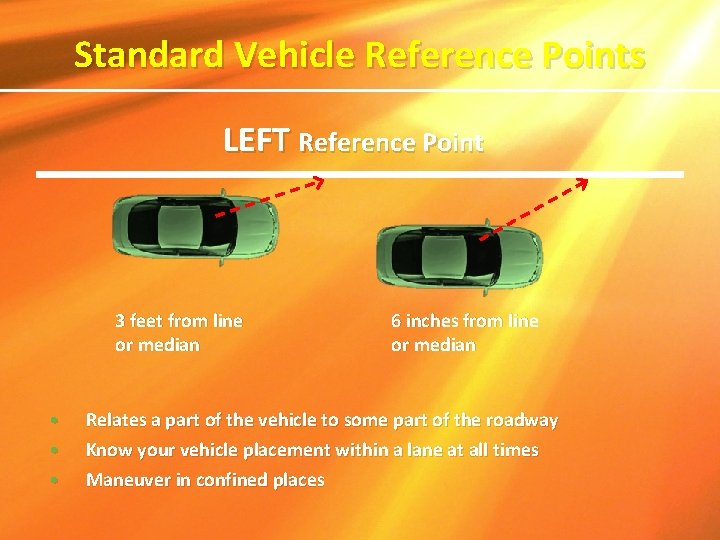

Standard Vehicle Reference Points LEFT Reference Point 3 feet from line or median • • • 6 inches from line or median Relates a part of the vehicle to some part of the roadway Know your vehicle placement within a lane at all times Maneuver in confined places

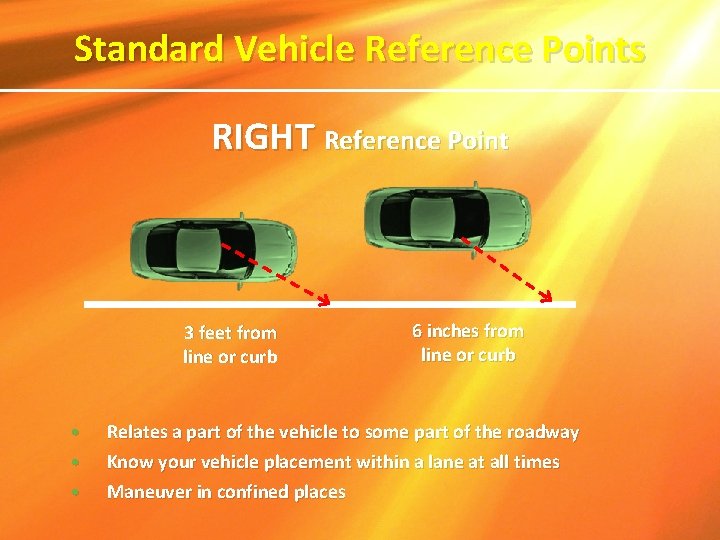

Standard Vehicle Reference Points RIGHT Reference Point 3 feet from line or curb • • • 6 inches from line or curb Relates a part of the vehicle to some part of the roadway Know your vehicle placement within a lane at all times Maneuver in confined places

Standard Vehicle Reference Points Left Side Reference (3 -6 Inches) When you look at the curb, pavement line, or edge of the road, it appears to line up about one foot in from the left edge of the hood

Standard Vehicle Reference Points Left-Side Reference Point Used for: • Lane Position 2 • Preparing for a left turn • Determining position for parking on the left side of a one -way street (3 -6 inches from the curb or line)

Standard Vehicle Reference Points Right Side Reference Point Your vehicle is 3 -6 inches from the curb, pavement line or edge of the road when the line appears near the center of the hood

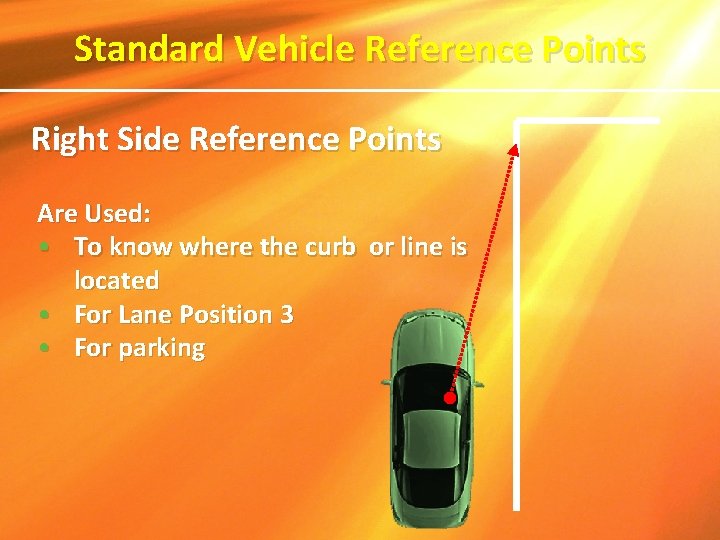

Standard Vehicle Reference Points Right Side Reference Points Are Used: • To know where the curb or line is located • For Lane Position 3 • For parking

Standard Vehicle Reference Points To Position Vehicle Three Feet Away When you look at the curb, pavement, or edge of the road, it appears to line up with the middle of the right- half of the hood

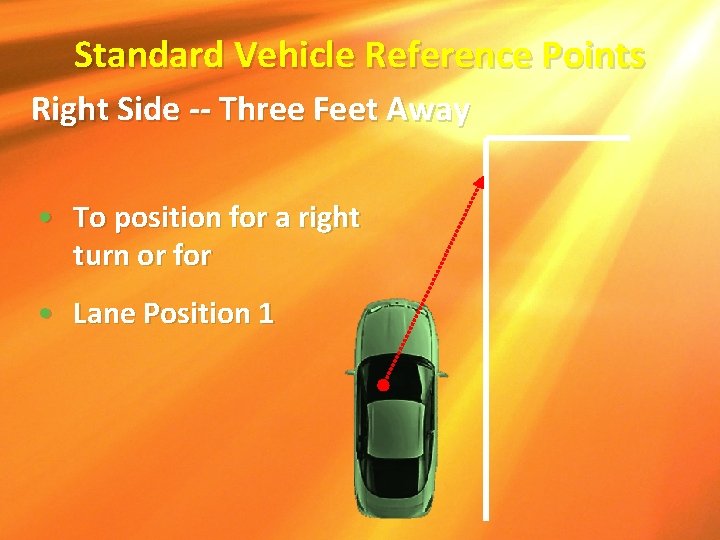

Standard Vehicle Reference Points Right Side -- Three Feet Away • To position for a right turn or for • Lane Position 1

Standard Vehicle Reference Points Front Limitation To position 3 -6 inches from the line in front of your bumper, stop when your line of sight runs under the side view mirror to curb in front Reference point Reference Point Line of sight

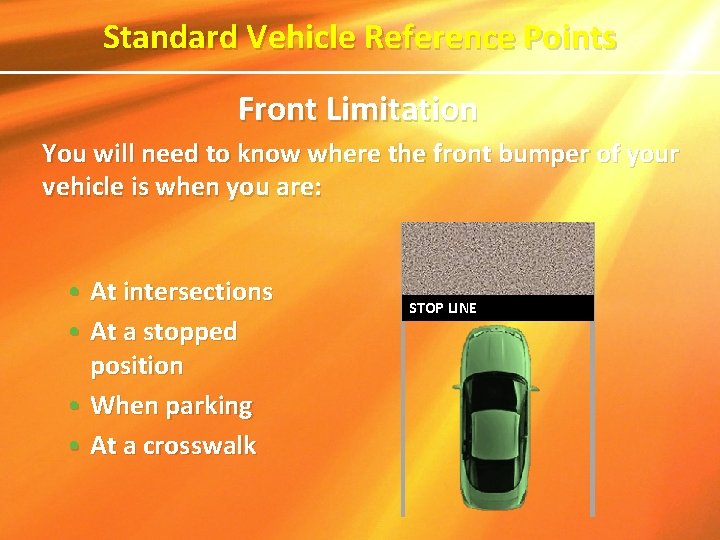

Standard Vehicle Reference Points Front Limitation You will need to know where the front bumper of your vehicle is when you are: • At intersections • At a stopped position • When parking • At a crosswalk STOP LINE

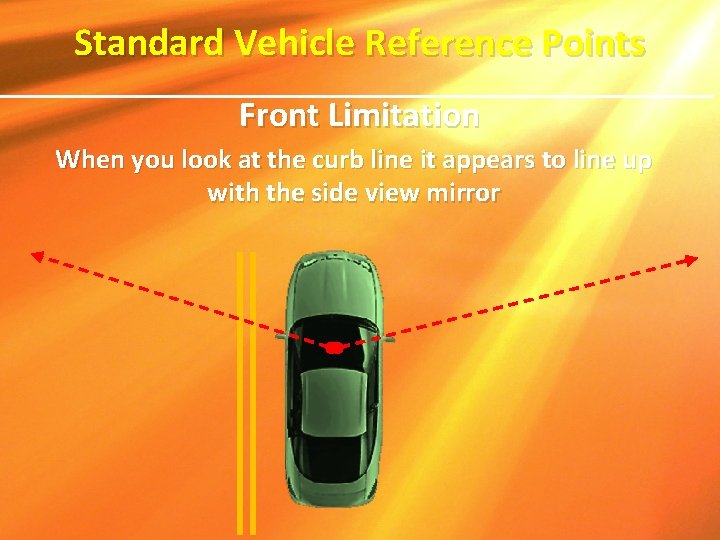

Standard Vehicle Reference Points Front Limitation When you look at the curb line it appears to line up with the side view mirror

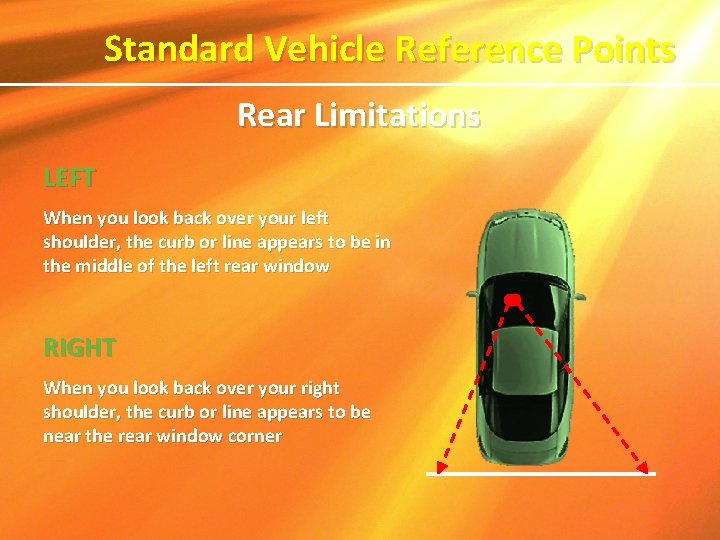

Standard Vehicle Reference Points Rear Limitations LEFT When you look back over your left shoulder, the curb or line appears to be in the middle of the left rear window RIGHT When you look back over your right shoulder, the curb or line appears to be near the rear window corner

Standard Vehicle Reference Points Rear Limitations – How They are Used LEFT When backing to know where your rear bumper is RIGHT When backing around a corner, it’s the pivot point for turning, such as backing into a perpendicular parking space
