Remote. FX Dynamic Memory Richest User Experience for full 3 D apps *Compared to Windows Server 2008 R 2 RTM release. Based on internal testing using Login. VSI Medium workload Highest density

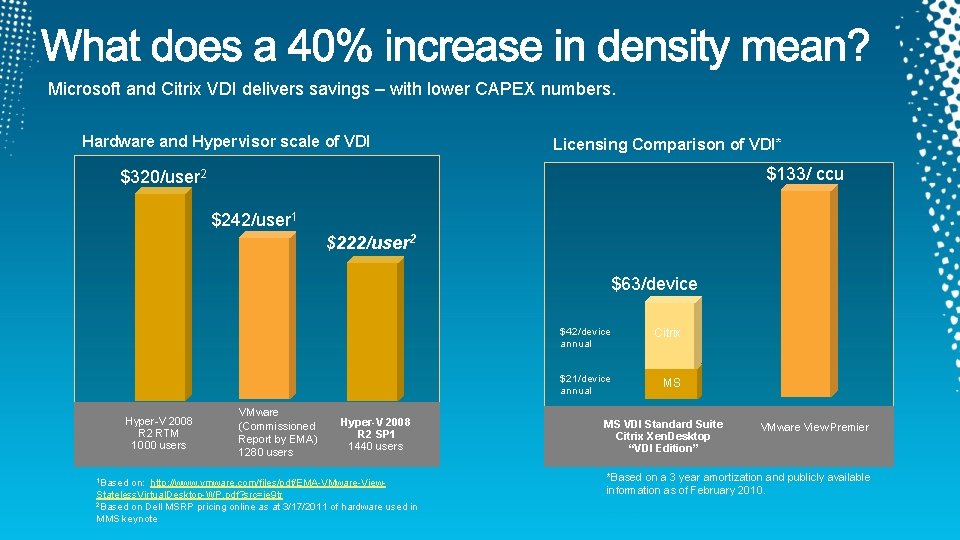

Microsoft and Citrix VDI delivers savings – with lower CAPEX numbers. Hardware and Hypervisor scale of VDI Licensing Comparison of VDI* $133/ ccu $320/user 2 $242/user 1 $222/user 2 $63/device Hyper-V 2008 R 2 RTM 1000 users 1 Based VMware (Commissioned Report by EMA) 1280 users Hyper-V 2008 R 2 SP 1 1440 users on: http: //www. vmware. com/files/pdf/EMA-VMware-View. Stateless. Virtual. Desktop-WP. pdf? src=ie 9 tr 2 Based on Dell MSRP pricing online as at 3/17/2011 of hardware used in MMS keynote $42/device annual Citrix $21/device annual MS MS VDI Standard Suite Citrix Xen. Desktop “VDI Edition” VMware View Premier *Based on a 3 year amortization and publicly available information as of February 2010.

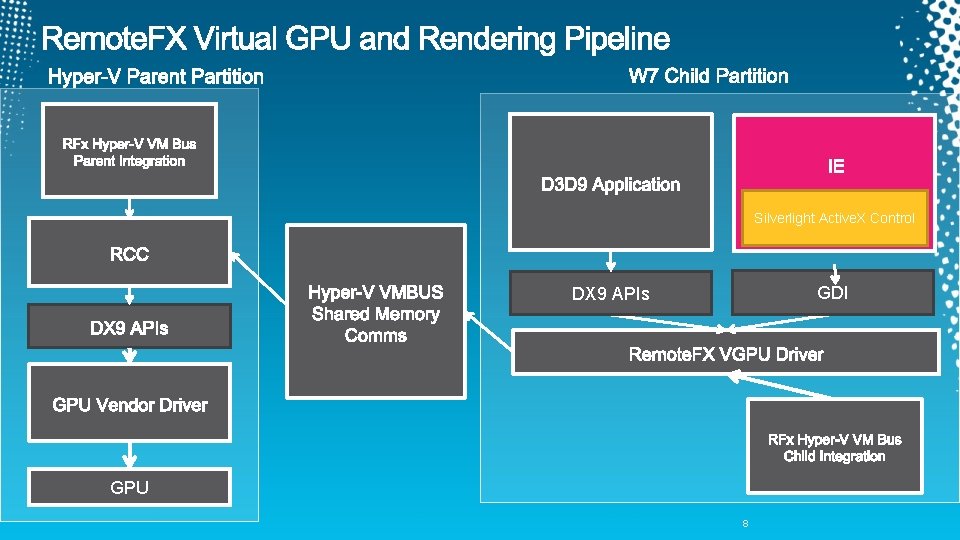

Windows Server 2008 R 2 SP 1 Hyper-V Server Inter-VM Communications Protocol Fundamentals (e. g. Authn, Encryption, & Client device Redirection) UMRDP Hyper-V Parent Partition • VGPU output rendered to physical GPU via Direct. X. • First phase of CODEC runs on GPU. • Screen deltas captured from GPU. Hyper-V Integrated Shared Memory Comms RCC W 7 Guest OS VGPU Driver VMBUS GPU WDDM driver exposes parent GPU to guest OS. Remote. FX Hardware ASIC and Driver Optionally offloads CODEC from CPU/GPU increasing fidelity and scale.

Silverlight Active. X Control GDI DX 9 APIs GPU 8

DEMO

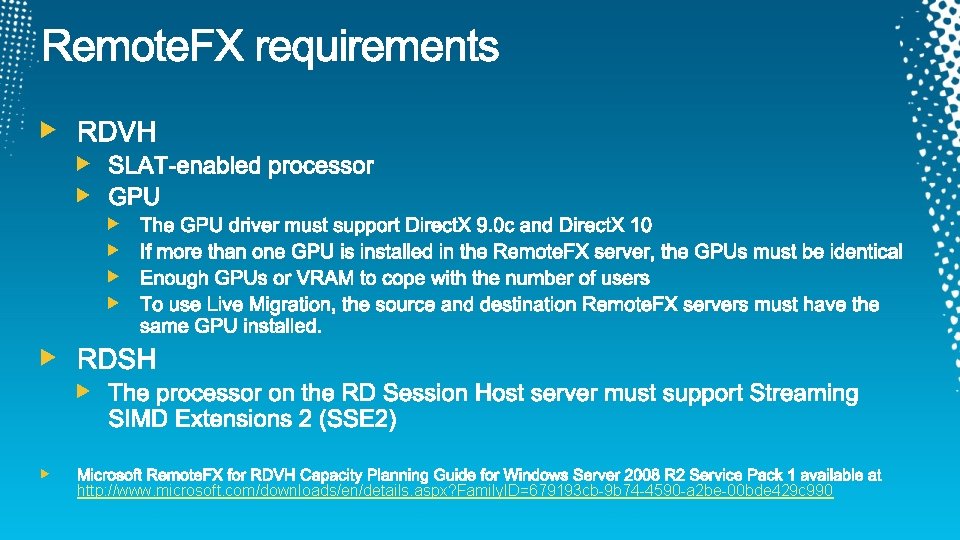

http: //www. microsoft. com/downloads/en/details. aspx? Family. ID=679193 cb-9 b 74 -4590 -a 2 be-00 bde 429 c 990

Maximum resolution Maximum number of monitors in virtual machine setting 1 monitor 2 monitors 3 monitors 4 monitors 1024 x 768 75 MB 105 MB 135 MB 165 MB 1280 x 1024 125 MB 175 MB 225 MB 275 MB 1600 x 1200 184 MB 257 MB 330 MB N/A 1920 x 1200 220 MB 308 MB N/A

RD Session Host with Remote. App RD Web Access System Center and App-V RD Client RD Gateway RD Connection Broker Active Directory® RD Virtualization Host Licensing Server

Data & User Settings Applications Operating System

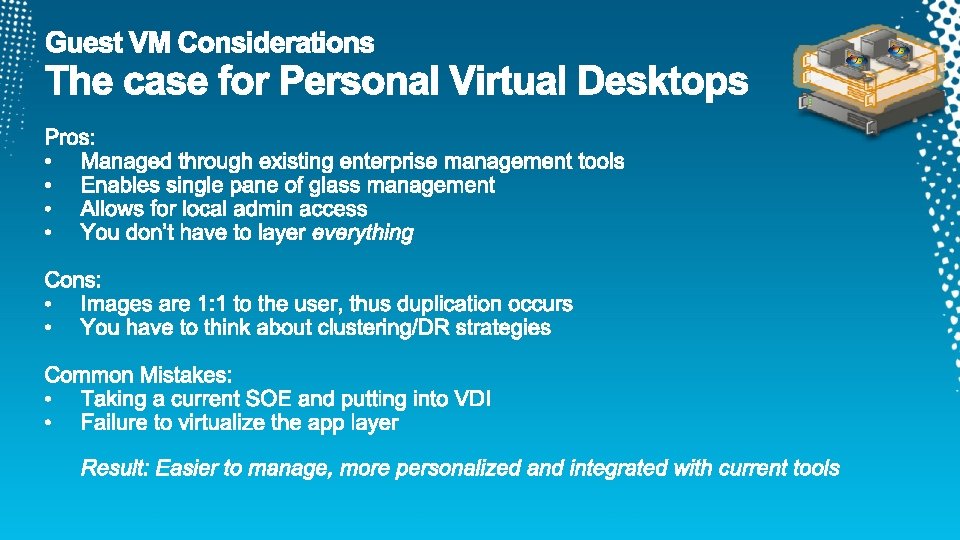

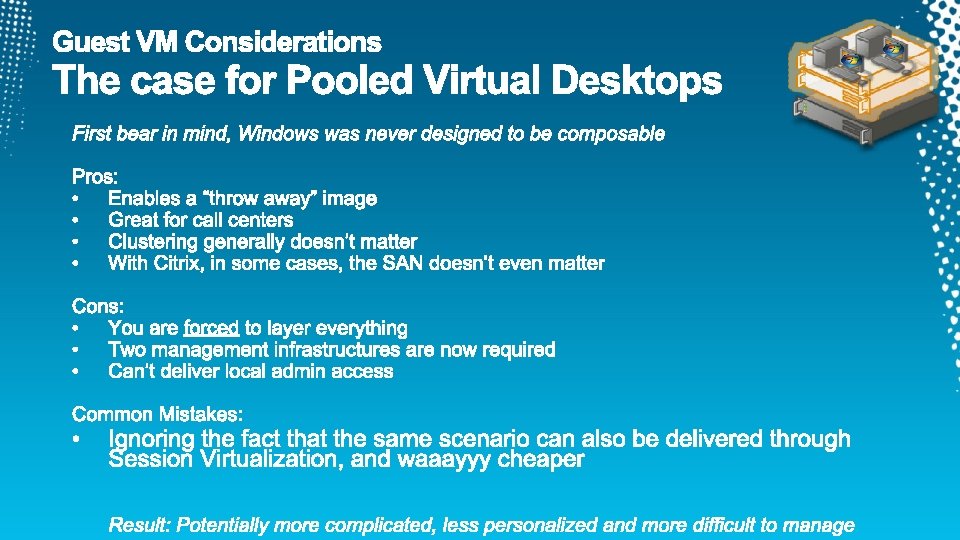

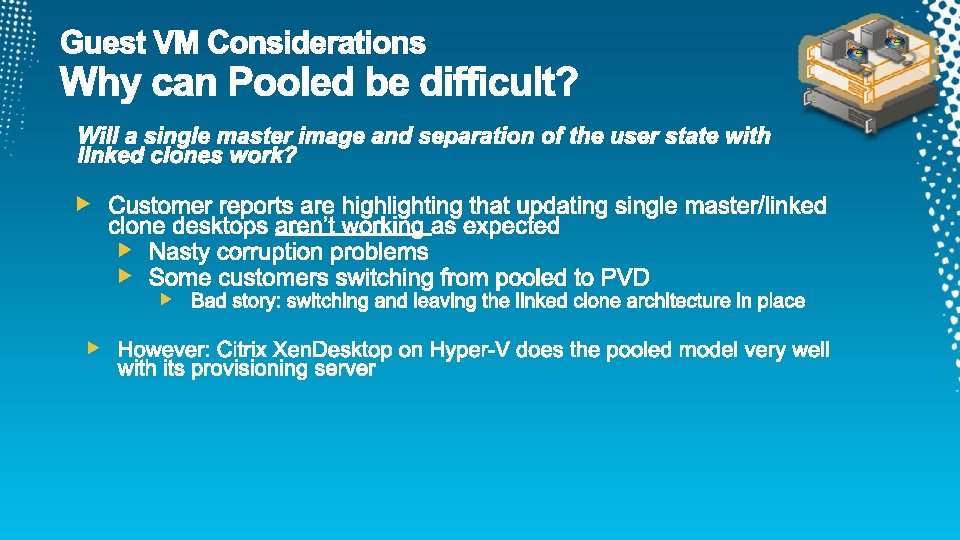

Personal Virtual Desktop Pooled Virtual Desktop • Provides virtual machine-based, centralized desktops for individual users that can be fully customized based on user profiles • Allows users to perform specialized tasks that require administrator access to their desktop • Enables users to access their personalized desktop from any computer while retaining the last saved state • Provides virtual machine-based, centralized desktop based on a pool of virtual machines that are shared by multiple users • Allows users to perform standardized routine tasks and have access to common applications (such as Microsoft Office) • Rolls back the state upon logoff to provide a “clean” desktop for the next user’s session, but the previous user’s state can be saved offline

DEMO

64 VMs Logon Steady State Read Mbytes/sec Avg Peak 10 220. 8 3. 6 Ops/sec Avg Peak 350 2500 40 260 Write Mbytes/sec Avg Peak 8 75 3. 3 10 http: //en. wikipedia. org/wiki/IOPS Ops/sec Avg Peak 350 2500 130 220 Read+Write Mbytes/sec Ops/sec Avg Peak 18 224 700 3500 4 12 170 400

R 2. mspx http: //www. microsoft. com/whdc/system/sysperf/Perf_tun_srv-

Server SERVER 1 SERVER 2 Cores 16 16 8 SLAT VDI VMs/Users ON OFF N/A 175 140 80 RDSH (TS) Users RDSH/VDI Ratio 310 N/A 160 ~1. 75 N/A ~2. Server Hardware: Server SERVER 1 SERVER 2 CPU model Sockets Core speed RAM HBA AMD 8378 4 16 (4 x 4) 2. 4 GHz 128 GB AMD 8216 4 8 (4 x 2) 2. 4 GHz 64 GB EMC LP 1150 4 Gbps

Recommendations

At capacity already

http: //msdn. microsoft. com/en-us/library/cc 146756. aspx
