Vincent Mnager 07 15 Connection devices Range overview

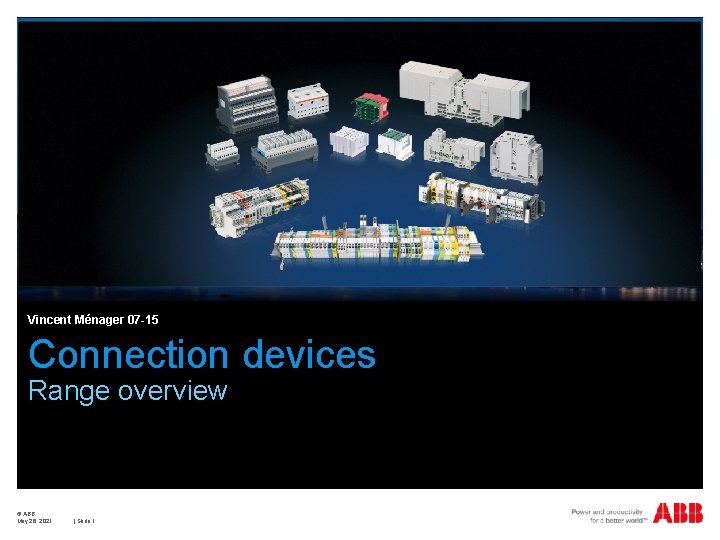

Vincent Ménager 07 -15 Connection devices Range overview © ABB May 26, 2021 | Slide 1

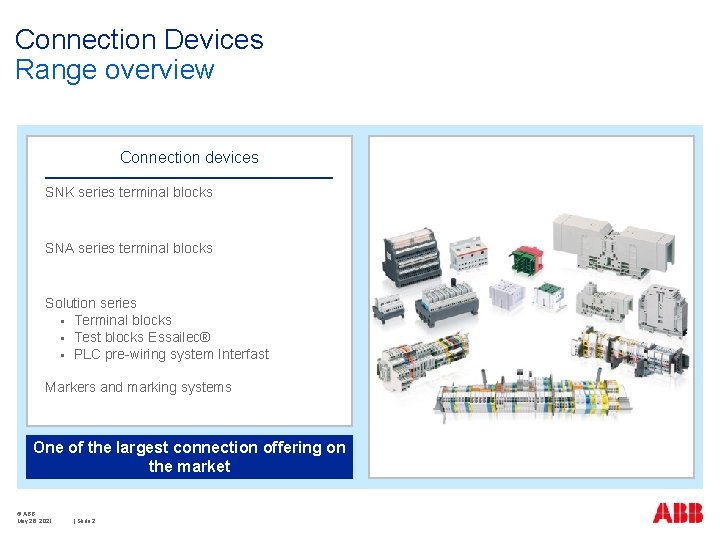

Connection Devices Range overview Connection devices SNK series terminal blocks SNA series terminal blocks Picture / artwork size: Solution series § Terminal blocks § Test blocks Essailec® § PLC pre-wiring system Interfast Markers and marking systems One of the largest connection offering on the market © ABB May 26, 2021 | Slide 2 Height = 12. 09 cm Width = 11. 47 cm

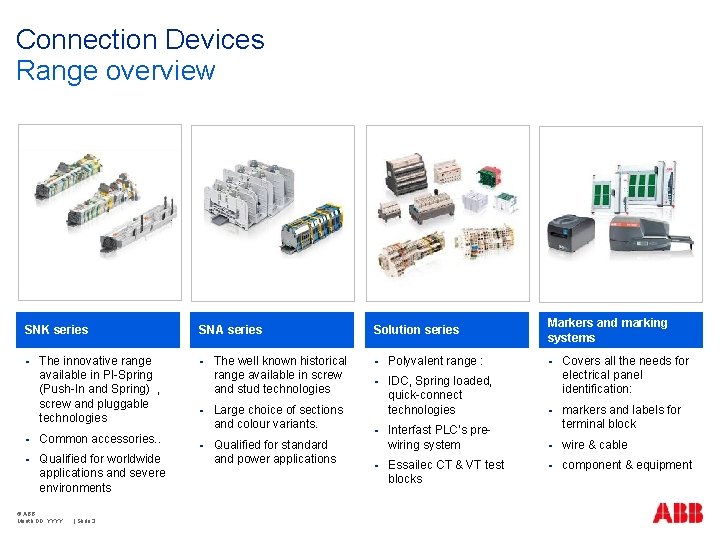

Connection Devices Range overview SNK series § The innovative range available in PI-Spring (Push-In and Spring) , screw and pluggable technologies § Common accessories. . § Qualified for worldwide applications and severe environments © ABB Month DD, YYYY | Slide 3 SNA series § § § The well known historical range available in screw and stud technologies Large choice of sections and colour variants. Qualified for standard and power applications Solution series Markers and marking systems § Polyvalent range : § § IDC, Spring loaded, quick-connect technologies Covers all the needs for electrical panel identification: § Interfast PLC’s prewiring system markers and labels for terminal block § wire & cable § component & equipment § § Essailec CT & VT test blocks

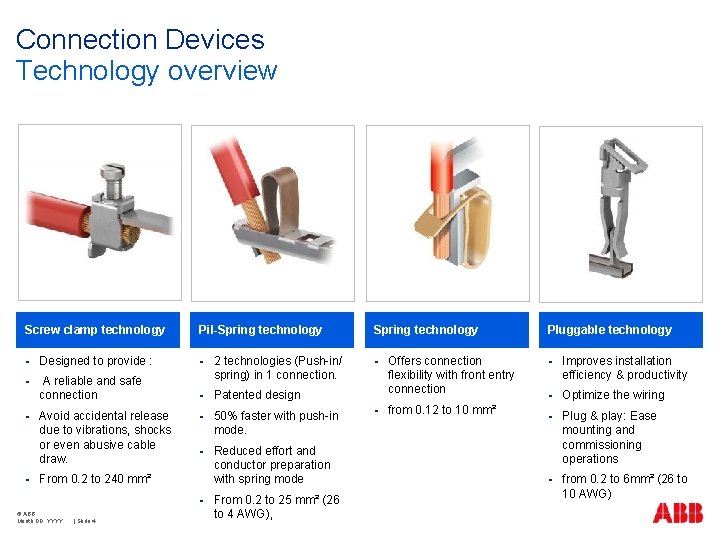

Connection Devices Technology overview Screw clamp technology Pi. I-Spring technology § Designed to provide : § § A reliable and safe connection 2 technologies (Push-in/ spring) in 1 connection. § Patented design § 50% faster with push-in mode. § Reduced effort and conductor preparation with spring mode § § Avoid accidental release due to vibrations, shocks or even abusive cable draw. From 0. 2 to 240 mm² § © ABB Month DD, YYYY | Slide 4 From 0. 2 to 25 mm² (26 to 4 AWG), Spring technology § § Offers connection flexibility with front entry connection from 0. 12 to 10 mm² Pluggable technology § Improves installation efficiency & productivity § Optimize the wiring § Plug & play: Ease mounting and commissioning operations § from 0. 2 to 6 mm² (26 to 10 AWG)

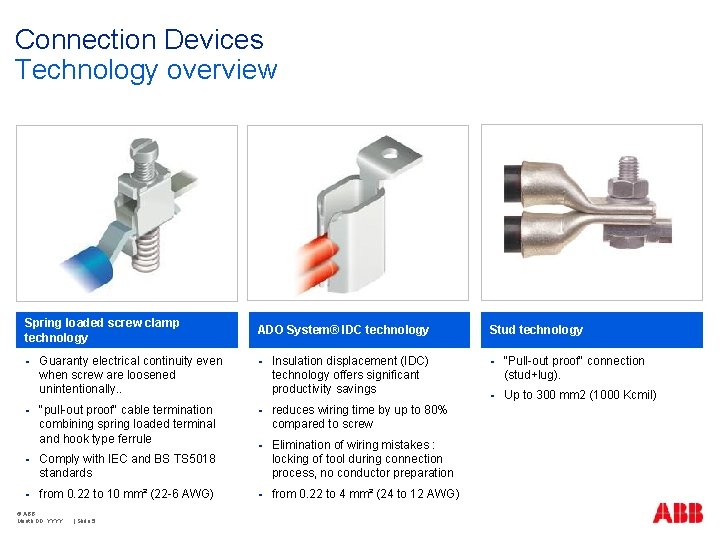

Connection Devices Technology overview Spring loaded screw clamp technology ADO System® IDC technology Guaranty electrical continuity even when screw are loosened unintentionally. . § § "pull-out proof" cable termination combining spring loaded terminal and hook type ferrule § reduces wiring time by up to 80% compared to screw § § Comply with IEC and BS TS 5018 standards Elimination of wiring mistakes : locking of tool during connection process, no conductor preparation § from 0. 22 to 10 mm² (22 -6 AWG) § from 0. 22 to 4 mm² (24 to 12 AWG) § © ABB Month DD, YYYY | Slide 5 Insulation displacement (IDC) technology offers significant productivity savings Stud technology § “Pull-out proof" connection (stud+lug). § Up to 300 mm 2 (1000 Kcmil)

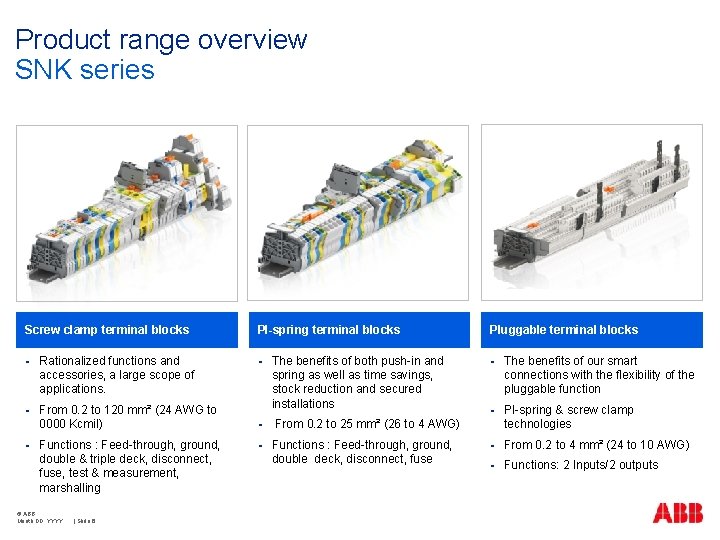

Product range overview SNK series Screw clamp terminal blocks § Rationalized functions and accessories, a large scope of applications. § From 0. 2 to 120 mm² (24 AWG to 0000 Kcmil) § Functions : Feed-through, ground, double & triple deck, disconnect, fuse, test & measurement, marshalling © ABB Month DD, YYYY | Slide 6 PI-spring terminal blocks § § § The benefits of both push-in and spring as well as time savings, stock reduction and secured installations Pluggable terminal blocks § The benefits of our smart connections with the flexibility of the pluggable function § PI-spring & screw clamp technologies § From 0. 2 to 4 mm² (24 to 10 AWG) § Functions: 2 Inputs/2 outputs From 0. 2 to 25 mm² (26 to 4 AWG) Functions : Feed-through, ground, double deck, disconnect, fuse

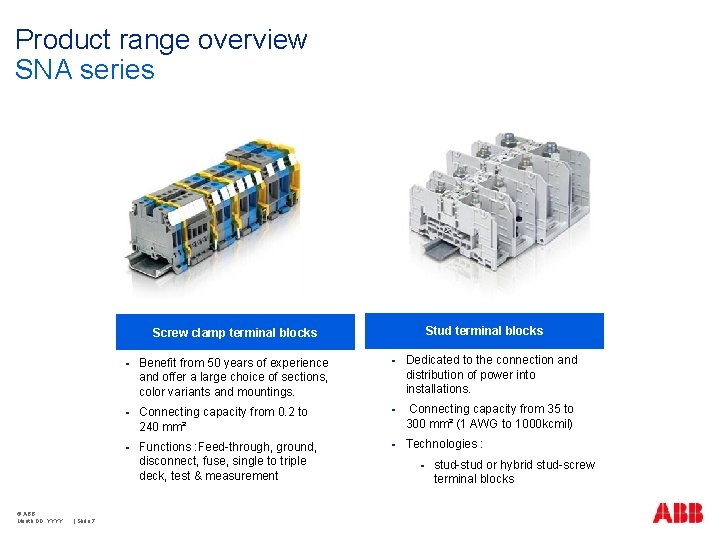

Product range overview SNA series Stud terminal blocks Screw clamp terminal blocks © ABB Month DD, YYYY | Slide 7 § Benefit from 50 years of experience and offer a large choice of sections, color variants and mountings. § Dedicated to the connection and distribution of power into installations. § Connecting capacity from 0. 2 to 240 mm² § Connecting capacity from 35 to 300 mm² (1 AWG to 1000 kcmil) § Functions : Feed-through, ground, disconnect, fuse, single to triple deck, test & measurement § Technologies : § stud-stud or hybrid stud-screw terminal blocks

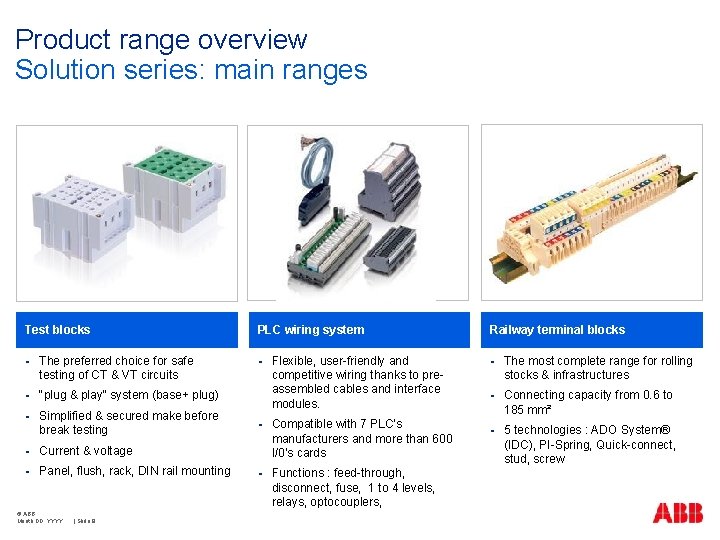

Product range overview Solution series: main ranges Test blocks § The preferred choice for safe testing of CT & VT circuits § "plug & play" system (base+ plug) § Simplified & secured make before break testing § Current & voltage § Panel, flush, rack, DIN rail mounting © ABB Month DD, YYYY | Slide 8 PLC wiring system § Flexible, user-friendly and competitive wiring thanks to preassembled cables and interface modules. § Compatible with 7 PLC's manufacturers and more than 600 I/0's cards § Functions : feed-through, disconnect, fuse, 1 to 4 levels, relays, optocouplers, Railway terminal blocks § The most complete range for rolling stocks & infrastructures § Connecting capacity from 0. 6 to 185 mm² § 5 technologies : ADO System® (IDC), PI-Spring, Quick-connect, stud, screw

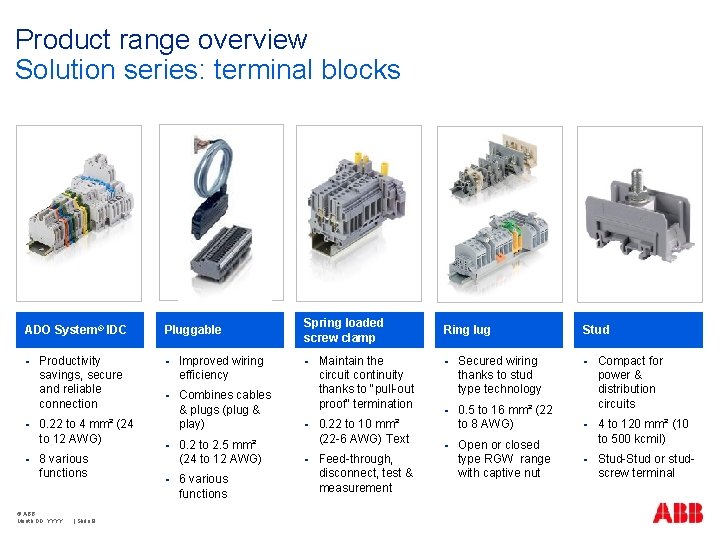

Product range overview Solution series: terminal blocks ADO System® IDC § Productivity savings, secure and reliable connection § 0. 22 to 4 mm² (24 to 12 AWG) § 8 various functions © ABB Month DD, YYYY | Slide 9 Pluggable Spring loaded screw clamp § Improved wiring efficiency § Combines cables & plugs (plug & play) § 0. 2 to 2. 5 mm² (24 to 12 AWG) 0. 22 to 10 mm² (22 -6 AWG) Text § Feed-through, disconnect, test & measurement § § 6 various functions § Maintain the circuit continuity thanks to "pull-out proof" termination Ring lug § Secured wiring thanks to stud type technology § 0. 5 to 16 mm² (22 to 8 AWG) § Open or closed type RGW range with captive nut Stud § Compact for power & distribution circuits § 4 to 120 mm² (10 to 500 kcmil) § Stud-Stud or studscrew terminal

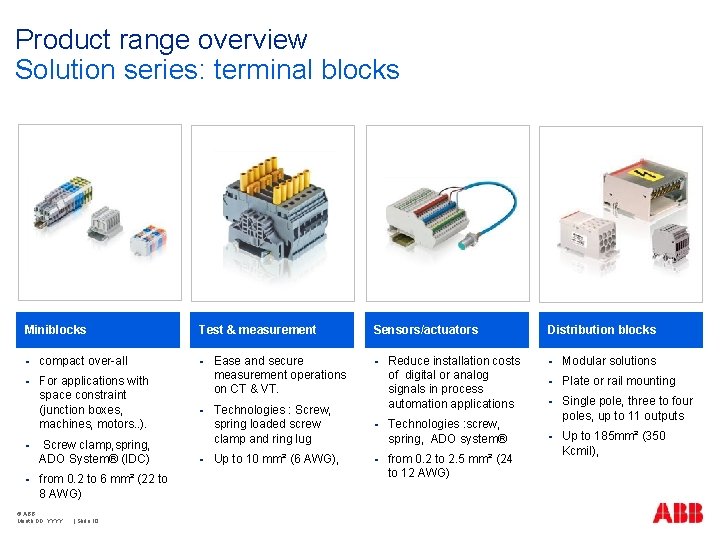

Product range overview Solution series: terminal blocks Miniblocks § compact over-all § For applications with space constraint (junction boxes, machines, motors. . ). § § Screw clamp, spring, ADO System® (IDC) from 0. 2 to 6 mm² (22 to 8 AWG) © ABB Month DD, YYYY | Slide 10 Test & measurement § § § Ease and secure measurement operations on CT & VT. Sensors/actuators § Technologies : Screw, spring loaded screw clamp and ring lug § Up to 10 mm² (6 AWG), § Reduce installation costs of digital or analog signals in process automation applications Technologies : screw, spring, ADO system® from 0. 2 to 2. 5 mm² (24 to 12 AWG) Distribution blocks § Modular solutions § Plate or rail mounting § Single pole, three to four poles, up to 11 outputs § Up to 185 mm² (350 Kcmil),

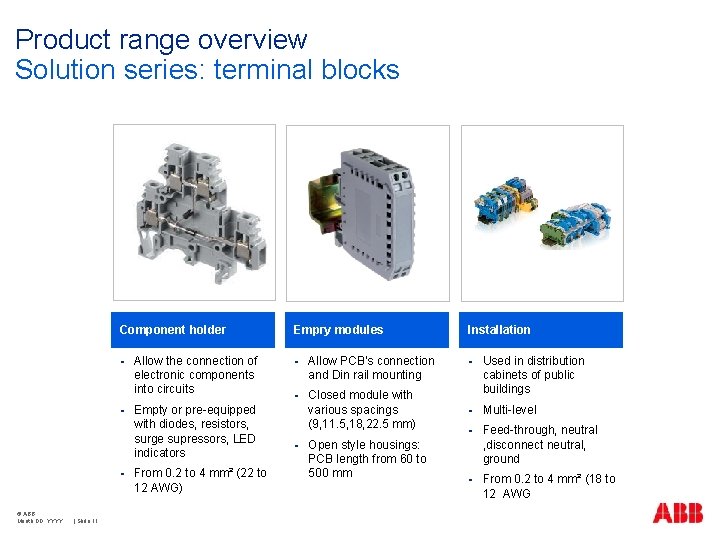

Product range overview Solution series: terminal blocks Component holder § § § © ABB Month DD, YYYY | Slide 11 Allow the connection of electronic components into circuits Empty or pre-equipped with diodes, resistors, surge supressors, LED indicators From 0. 2 to 4 mm² (22 to 12 AWG) Empry modules § Allow PCB's connection and Din rail mounting § Closed module with various spacings (9, 11. 5, 18, 22. 5 mm) § Open style housings: PCB length from 60 to 500 mm Installation § Used in distribution cabinets of public buildings § Multi-level § Feed-through, neutral , disconnect neutral, ground § From 0. 2 to 4 mm² (18 to 12 AWG

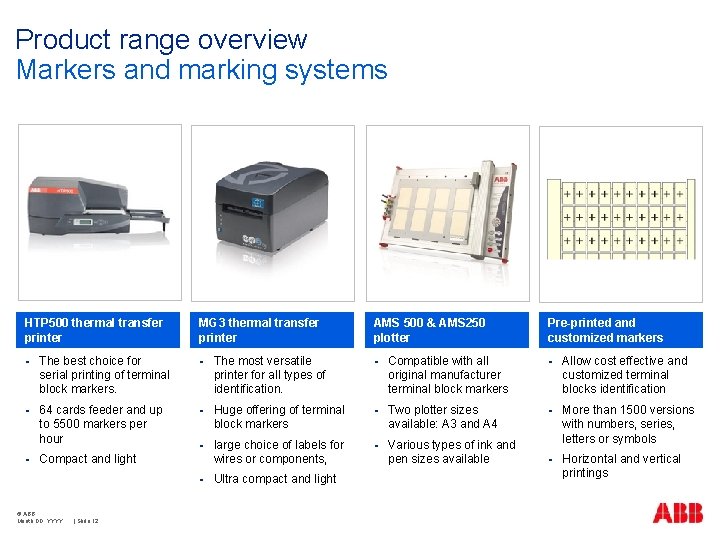

Product range overview Markers and marking systems HTP 500 thermal transfer printer MG 3 thermal transfer printer AMS 500 & AMS 250 plotter Pre-printed and customized markers § The best choice for serial printing of terminal block markers. § The most versatile printer for all types of identification. § Compatible with all original manufacturer terminal block markers § Allow cost effective and customized terminal blocks identification § 64 cards feeder and up to 5500 markers per hour § Huge offering of terminal block markers § Two plotter sizes available: A 3 and A 4 § § Compact and light large choice of labels for wires or components, Various types of ink and pen sizes available More than 1500 versions with numbers, series, letters or symbols § Horizontal and vertical printings § © ABB Month DD, YYYY | Slide 12 Ultra compact and light

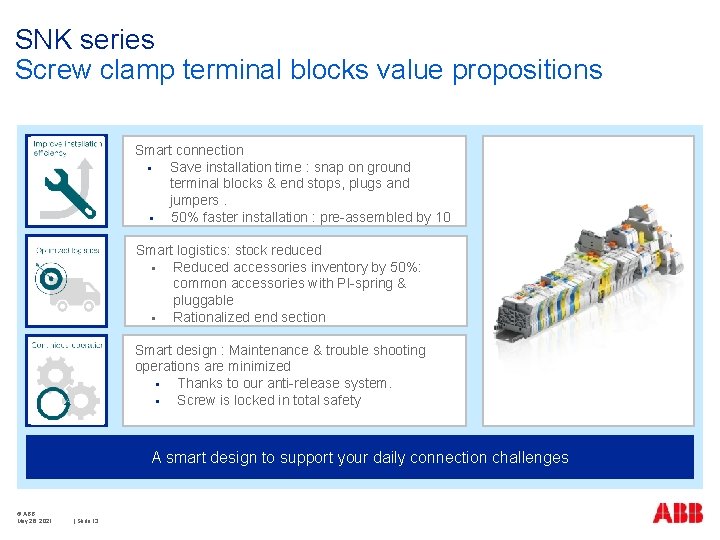

SNK series Screw clamp terminal blocks value propositions Benefit 1 Smart connection § Save installation time : snap on ground terminal blocks & end stops, plugs and jumpers. § 50% faster installation : pre-assembled by 10 Benefit 2 Smart logistics: stock reduced § Reduced accessories inventory by 50%: common accessories with PI-spring & pluggable § Rationalized end section Benefit 3 Smart design : Maintenance & trouble shooting operations are minimized § Thanks to our anti-release system. § Screw is locked in total safety A smart design to support your daily connection challenges © ABB May 26, 2021 | Slide 13

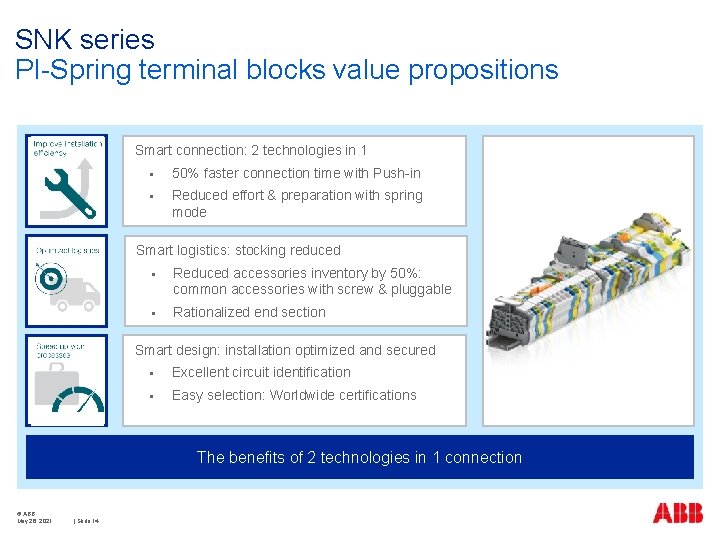

SNK series PI-Spring terminal blocks value propositions Smart connection: 2 technologies in 1 Benefit 1 § 50% faster connection time with Push-in § Reduced effort & preparation with spring mode Smart logistics: stocking reduced Benefit 2 § Reduced accessories inventory by 50%: common accessories with screw & pluggable § Rationalized end section Smart design: installation optimized and secured Benefit 3 § Excellent circuit identification § Easy selection: Worldwide certifications The benefits of 2 technologies in 1 connection © ABB May 26, 2021 | Slide 14

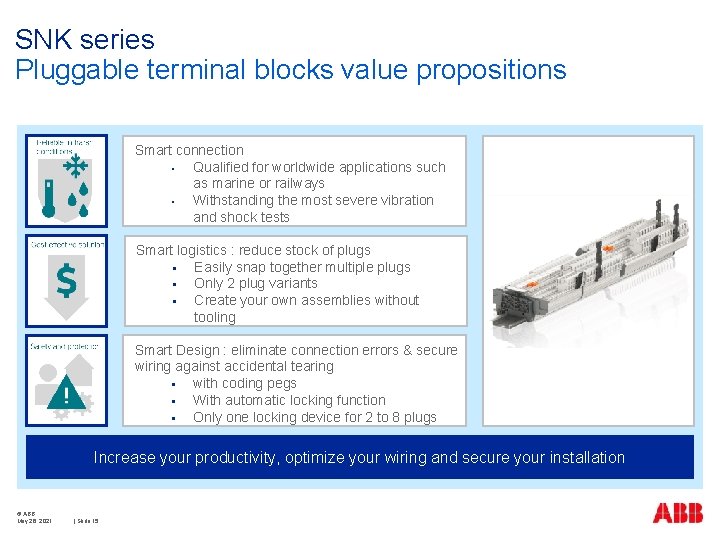

SNK series Pluggable terminal blocks value propositions Benefit 1 Smart connection • Qualified for worldwide applications such as marine or railways • Withstanding the most severe vibration and shock tests Benefit 2 Smart logistics : reduce stock of plugs § Easily snap together multiple plugs § Only 2 plug variants § Create your own assemblies without tooling Benefit 3 Smart Design : eliminate connection errors & secure wiring against accidental tearing § with coding pegs § With automatic locking function § Only one locking device for 2 to 8 plugs Increase your productivity, optimize your wiring and secure your installation © ABB May 26, 2021 | Slide 15

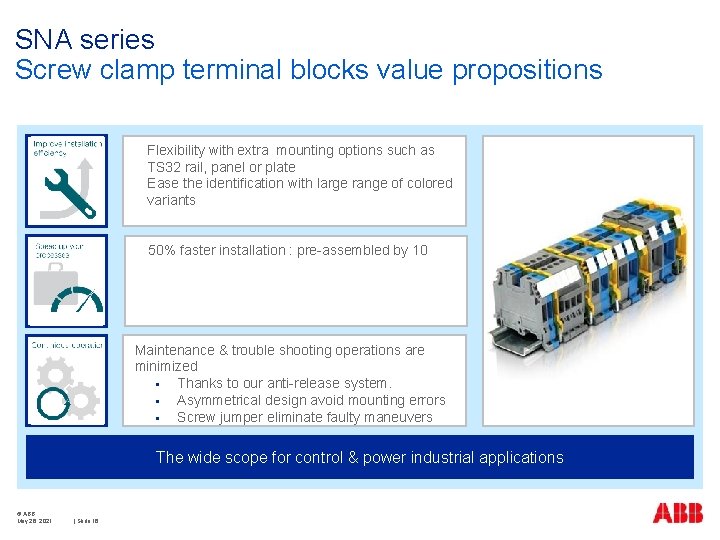

SNA series Screw clamp terminal blocks value propositions Benefit 1 Flexibility with extra mounting options such as TS 32 rail, panel or plate Ease the identification with large range of colored variants 50% faster installation : pre-assembled by 10 Benefit 2 Benefit 3 Maintenance & trouble shooting operations are minimized § Thanks to our anti-release system. § Asymmetrical design avoid mounting errors § Screw jumper eliminate faulty maneuvers The wide scope for control & power industrial applications © ABB May 26, 2021 | Slide 16
