VII Microstrip Antennas feed Microstrip antenna Advantages Printed

VII. Microstrip Antennas feed

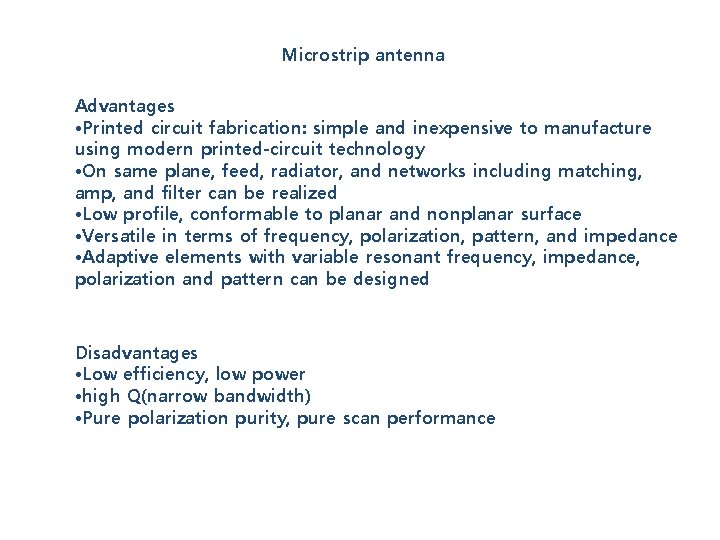

Microstrip antenna Advantages • Printed circuit fabrication: simple and inexpensive to manufacture using modern printed-circuit technology • On same plane, feed, radiator, and networks including matching, amp, and filter can be realized • Low profile, conformable to planar and nonplanar surface • Versatile in terms of frequency, polarization, pattern, and impedance • Adaptive elements with variable resonant frequency, impedance, polarization and pattern can be designed Disadvantages • Low efficiency, low power • high Q(narrow bandwidth) • Pure polarization purity, pure scan performance

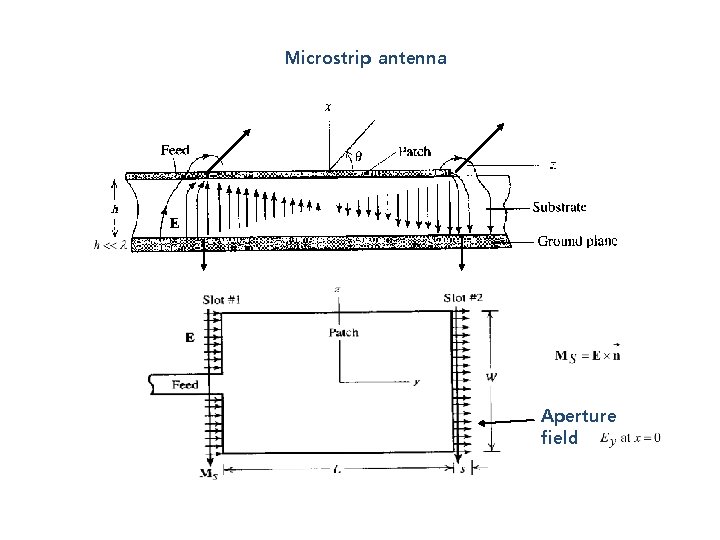

Microstrip antenna Aperture field

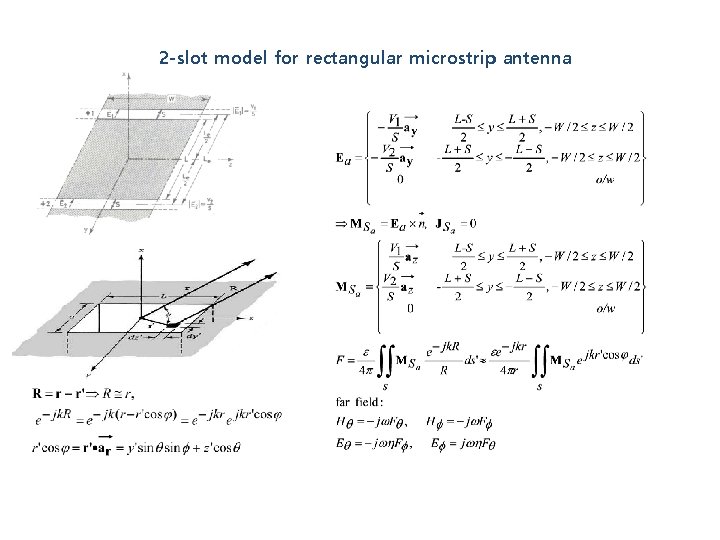

2 -slot model for rectangular microstrip antenna

Various shapes of microstrip antenna square patch circular patch annular ring triangular patch rectangular patch elliptical patch ring sector strip patch: dipole disc sector

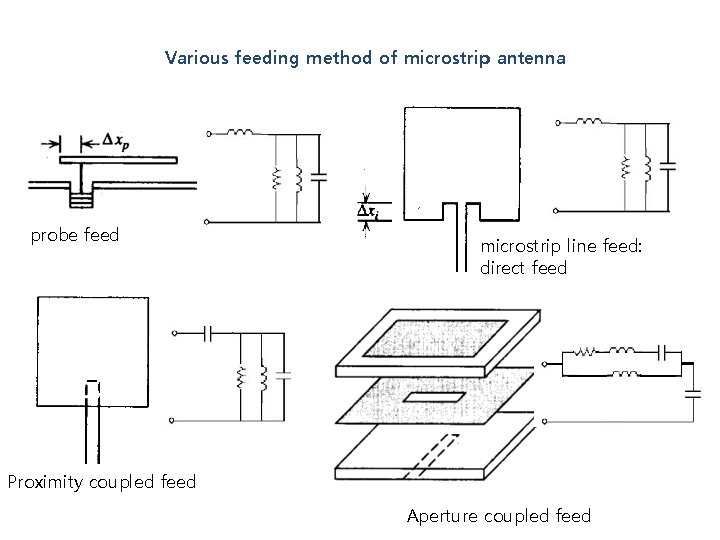

Various feeding method of microstrip antenna probe feed microstrip line feed: direct feed Proximity coupled feed Aperture coupled feed

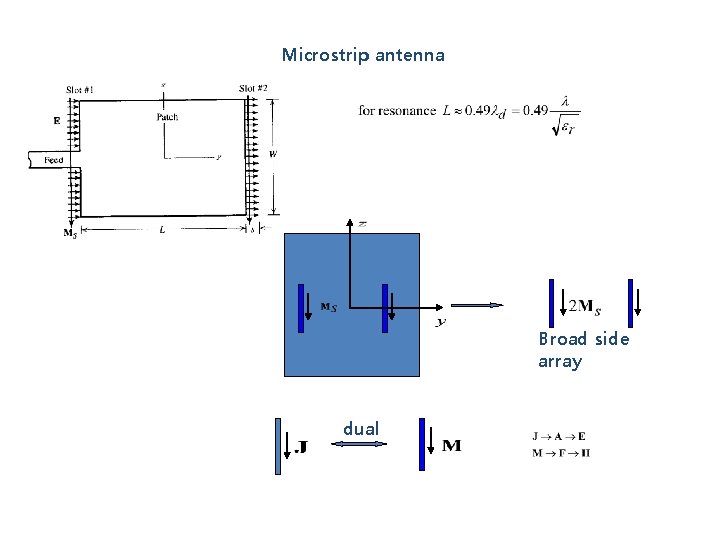

Microstrip antenna Broad side array dual

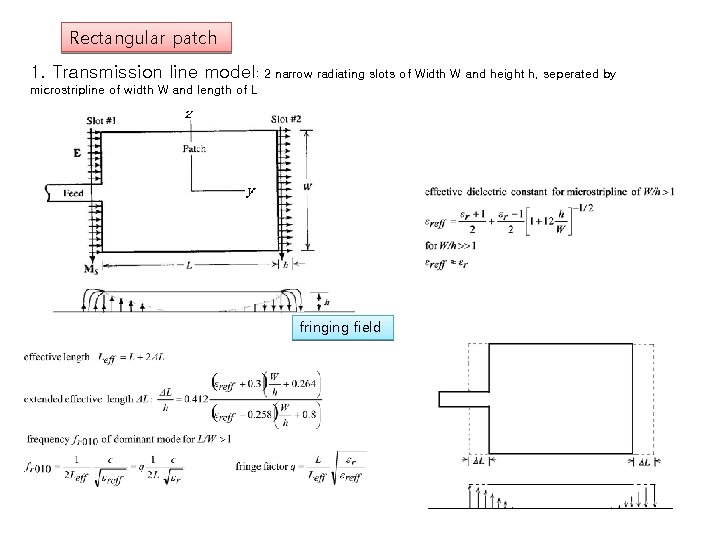

Rectangular patch 1. Transmission line model: 2 narrow radiating slots of Width W and height h, seperated by microstripline of width W and length of L fringing field

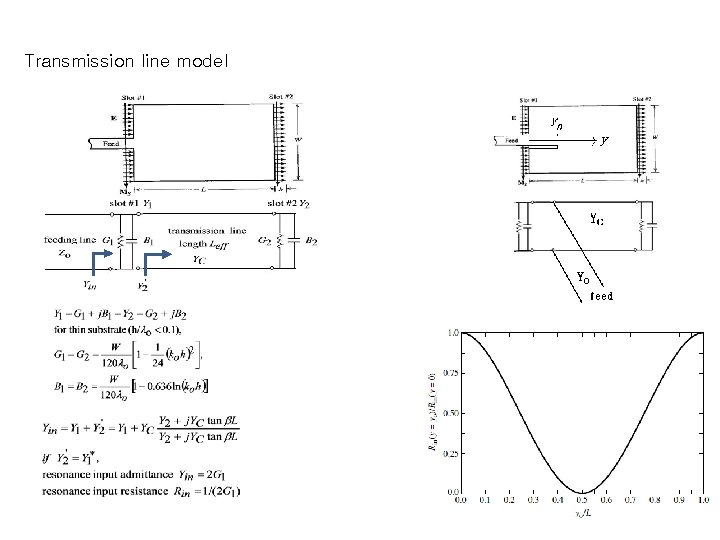

Transmission line model

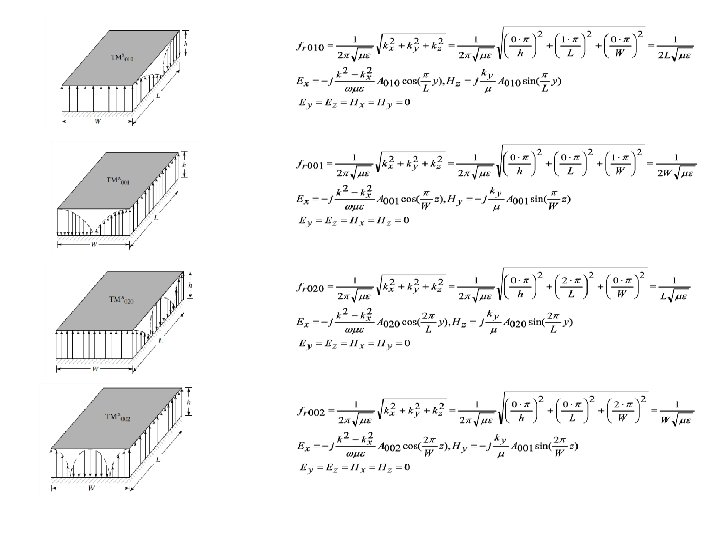

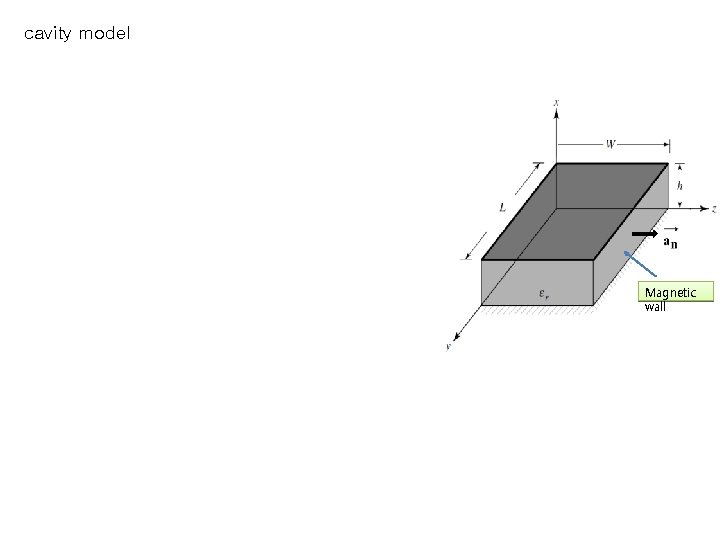

cavity model Magnetic wall

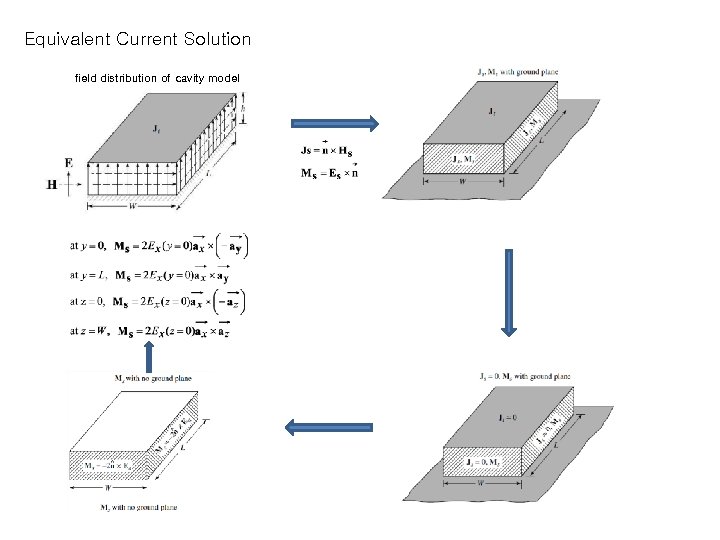

Equivalent Current Solution field distribution of cavity model

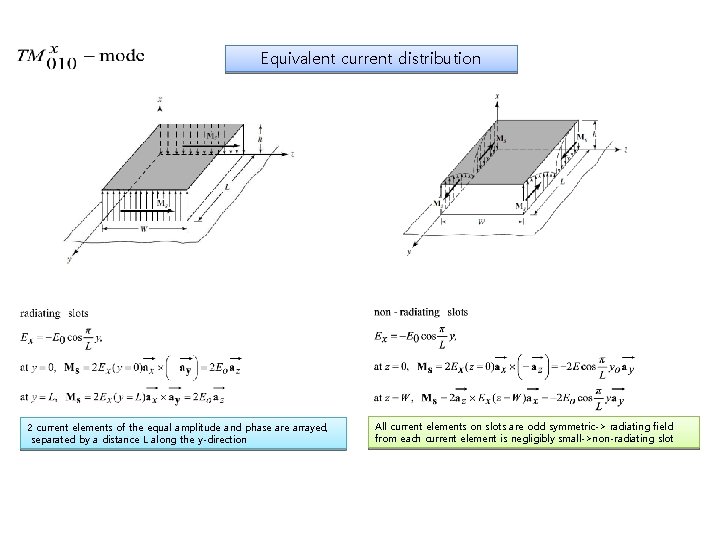

Equivalent current distribution 2 current elements of the equal amplitude and phase arrayed, separated by a distance L along the y-direction All current elements on slots are odd symmetric-> radiating field from each current element is negligibly small->non-radiating slot

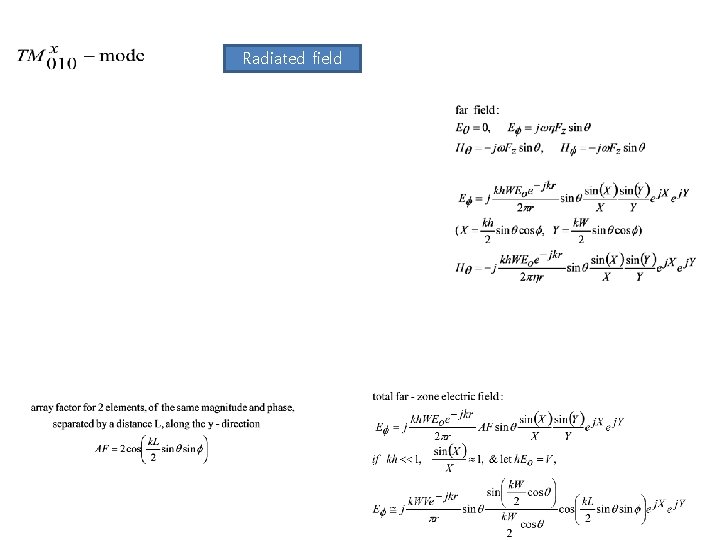

Radiated field

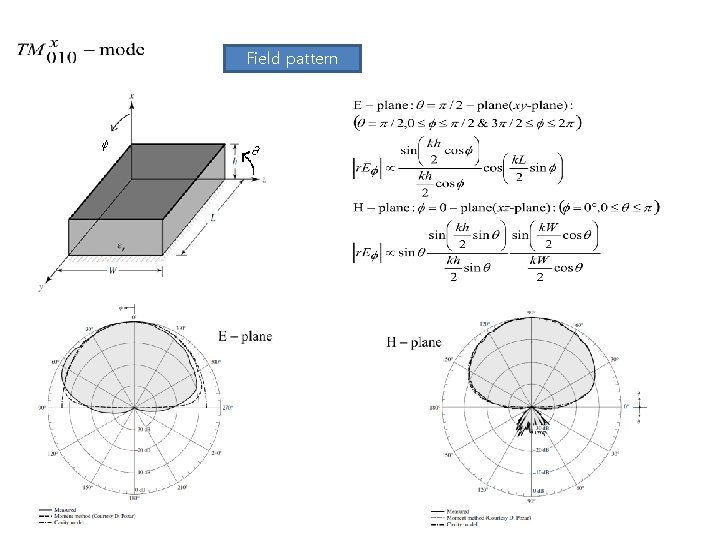

Field pattern

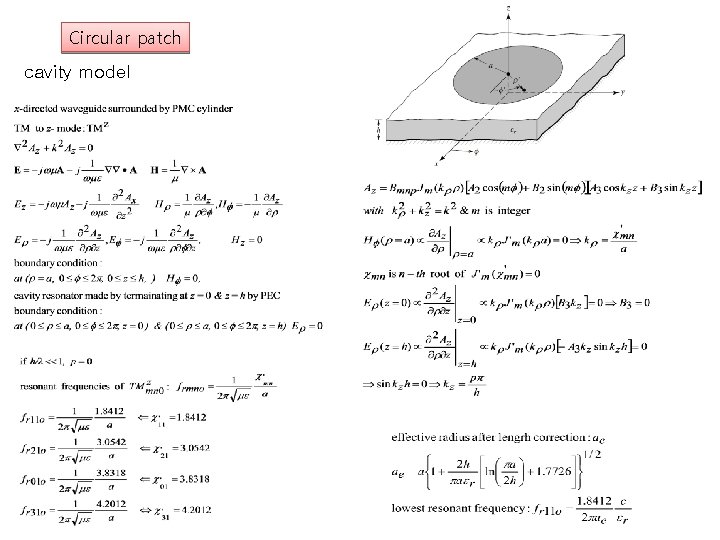

Circular patch cavity model

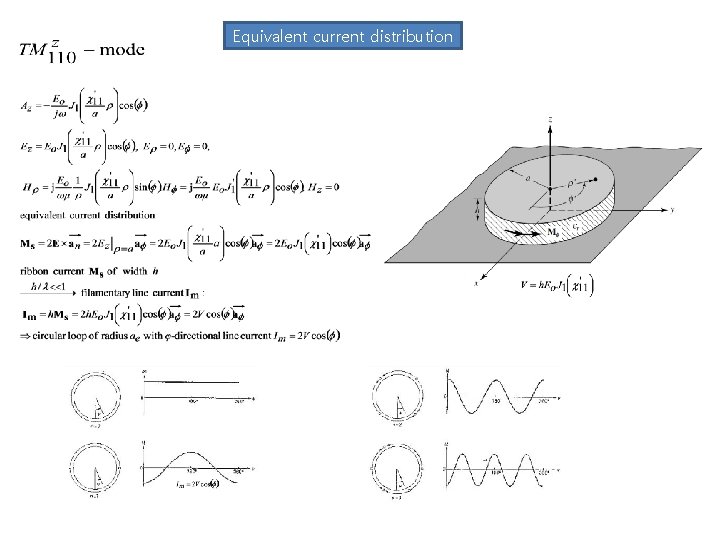

Equivalent current distribution

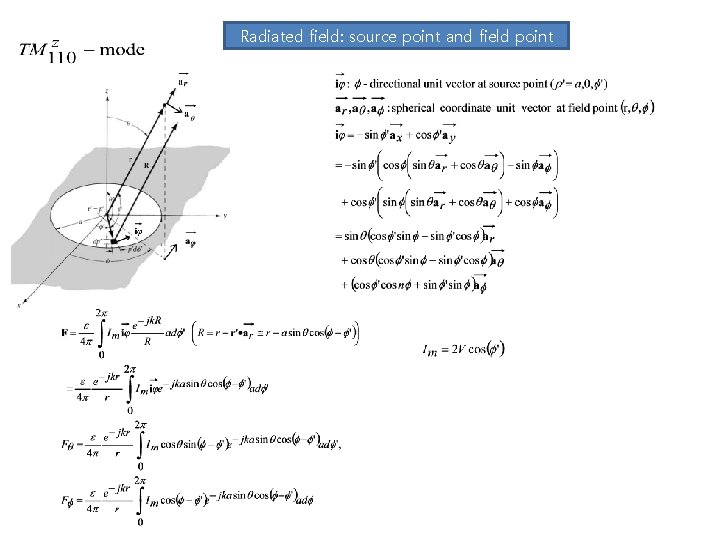

Radiated field: source point and field point

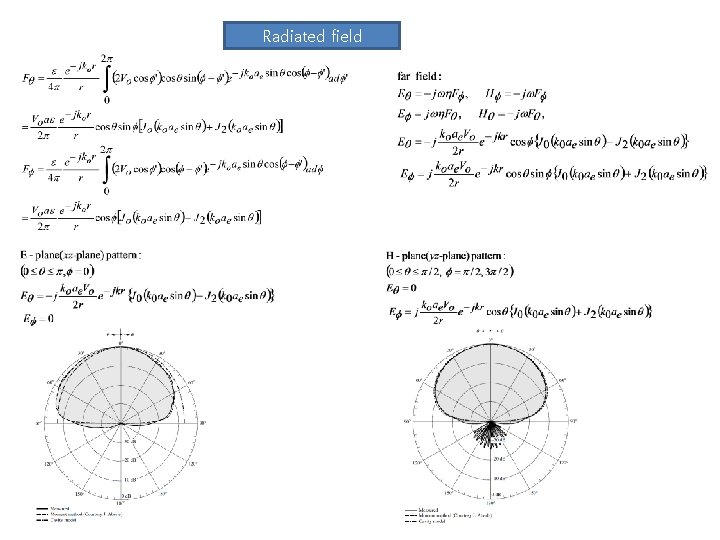

Radiated field

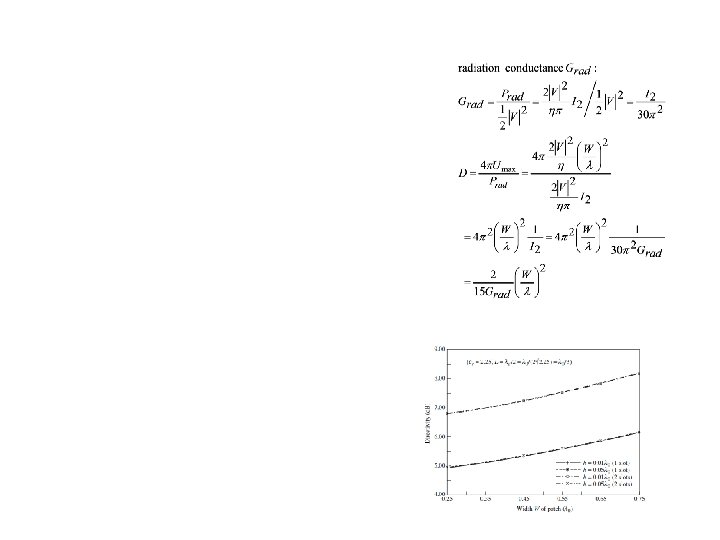

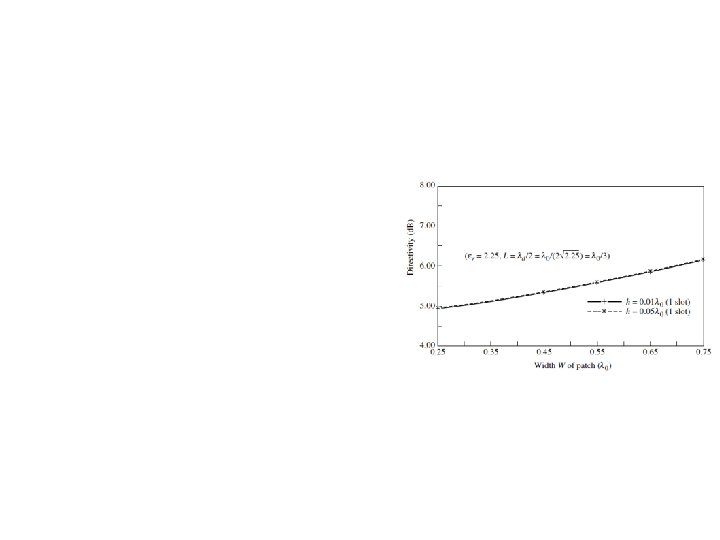

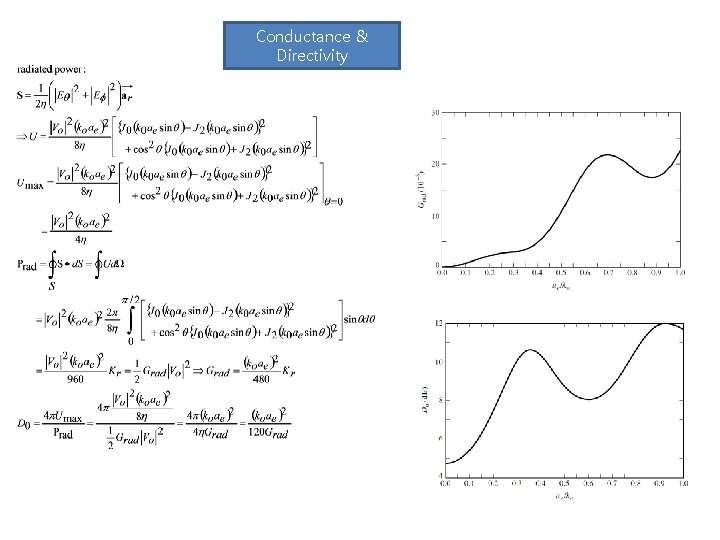

Conductance & Directivity

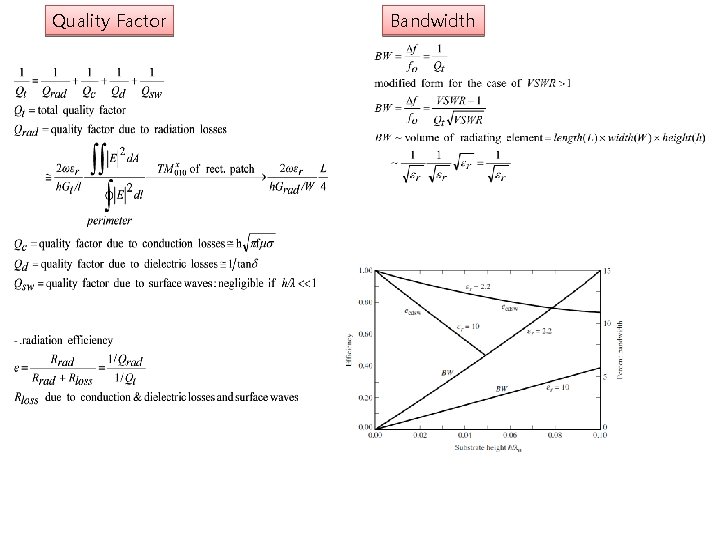

Quality Factor Bandwidth

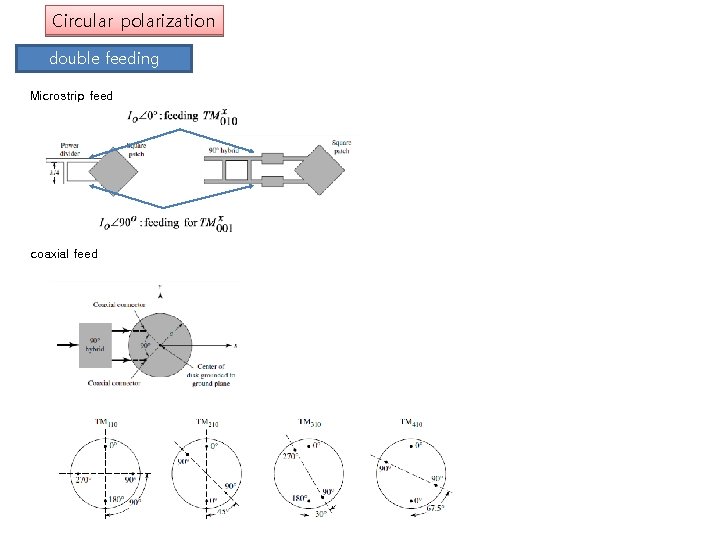

Circular polarization double feeding Microstrip feed coaxial feed

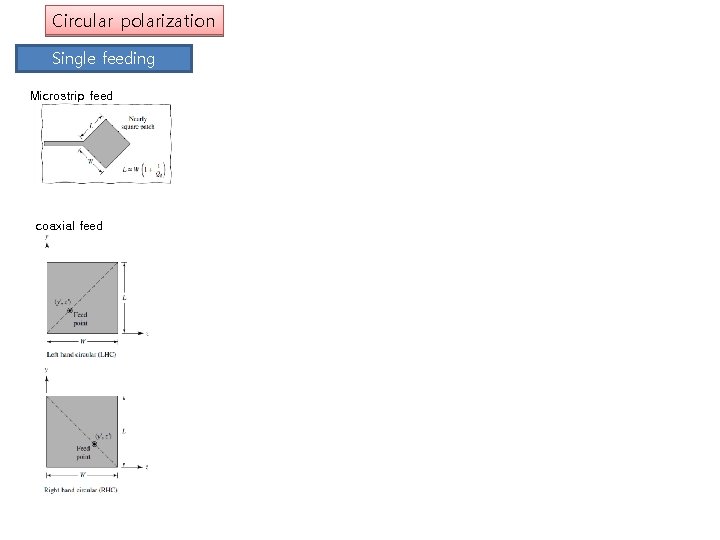

Circular polarization Single feeding Microstrip feed coaxial feed

Circular polarization Single feeding Square patch with thin slot Square patch with trimmed corners elliptical patch with tab

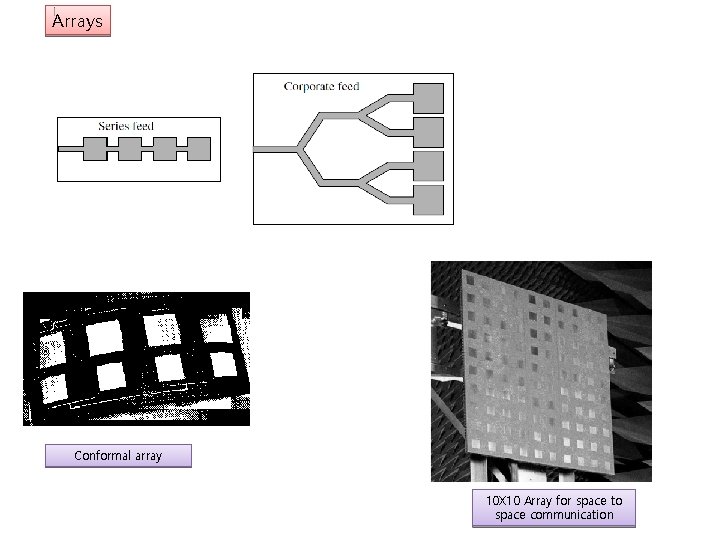

Arrays Conformal array 10 X 10 Array for space to space communication

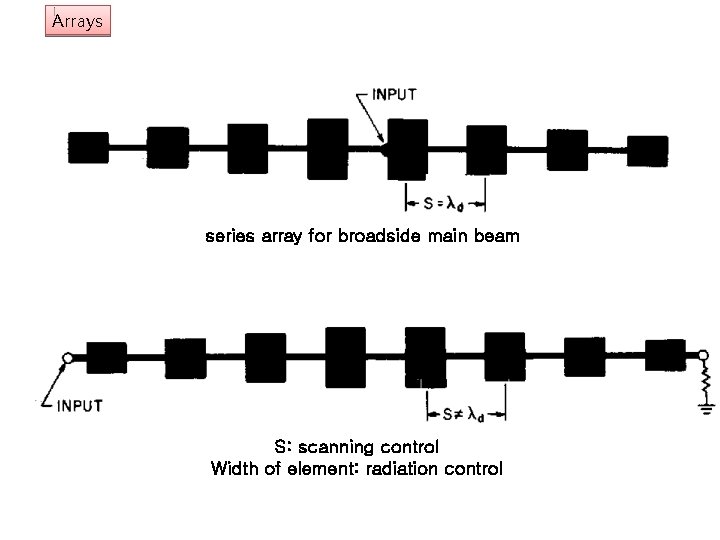

Arrays series array for broadside main beam S: scanning control Width of element: radiation control

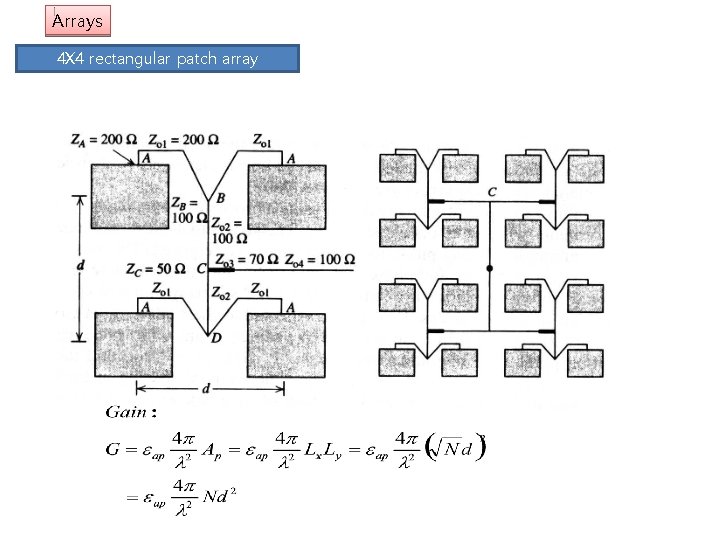

Arrays 4 X 4 rectangular patch array
