Light Years Context Object • Faster Olympic Sprinter • Horse at Full Gallop • Race Car • Fighter Jet • Space Shuttle • New Horizons Probe (Fastest Man-Made Object) Momentum • 28 mph • • • 50 mph 240 mph 1, 000 mph 17, 000 mph 52, 000 mph

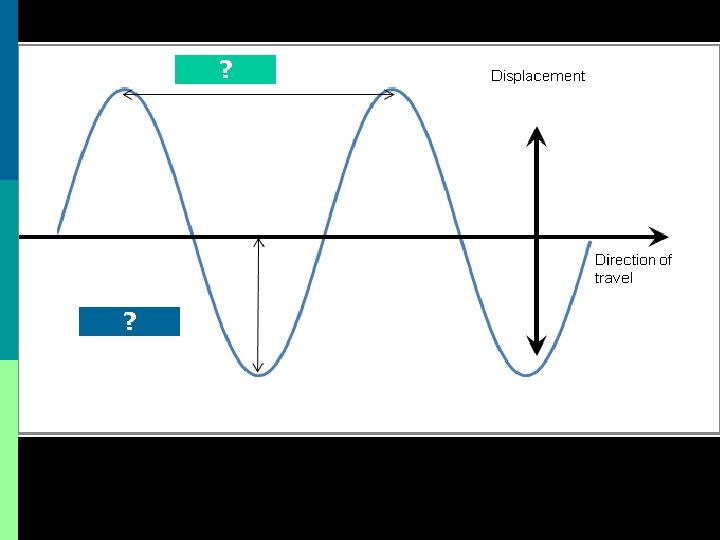

Waves… • • • Most waves are either longitudinal or transverse. Sound waves are longitudinal. But all electromagnetic waves are transverse…

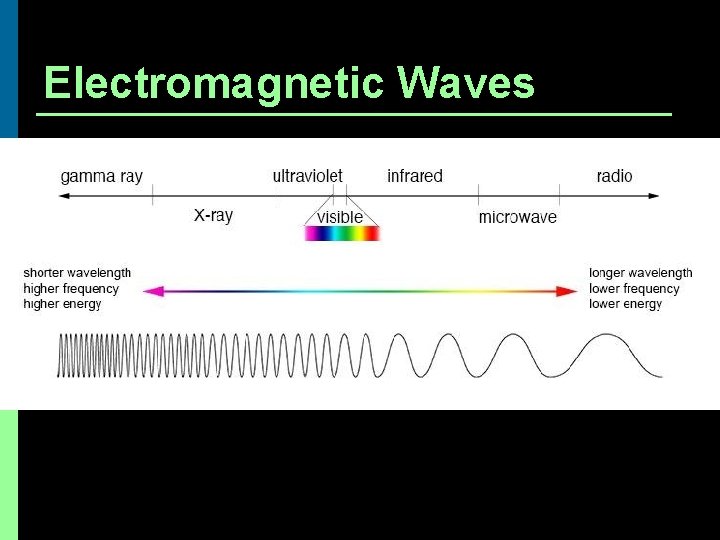

Electromagnetic Waves ▪▪▪▪▪▪

Electromagnetic Waves

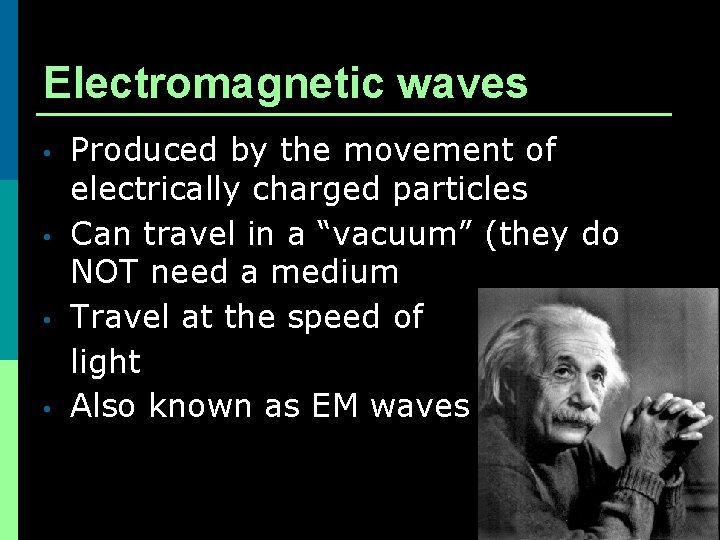

Electromagnetic waves • • Produced by the movement of electrically charged particles Can travel in a “vacuum” (they do NOT need a medium Travel at the speed of light Also known as EM waves

Light Years Lamborghini @ 100 mph Light Years Across United States 30 hrs 75 Times in 1 sec To the Moon 14 Weeks Moon and Back 2 secs Last Planet (Neptune) 3100 Years Sun to Earth 8 min old when reaches

Light Years- Unit of measurement Context • 186, 000 mps • 670, 000 mph • 6, 000, 000/h Math

Radio waves • • Longest wavelength EM waves Uses: ■ ■ ■ TV broadcasting AM and FM broadcast radio Avalanche beacons Heart rate monitors Cell phone communication

Microwaves- second longest wavelength • • Wavelengths from 1 mm- 1 m Uses: ■ ■ ■ Microwave ovens Bluetooth headsets Broadband Wireless Internet Radar GPS

Visible light • • • Only type of EM wave able to be detected by the human eye Violet is the highest frequency light Red light is the lowest frequency light

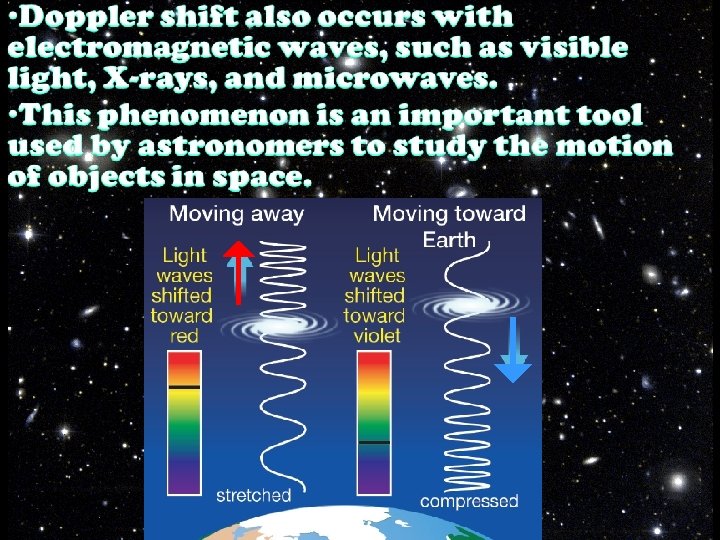

• The Doppler effect can be used to determine how fast stars or galaxies are approaching or moving away from Earth. ➢When a star or galaxy is approaching Earth, the lines in its spectrum are shifted toward the shorter (bluer) wavelengths. ➢When the star or galaxy is moving away, the lines in its spectrum shift toward the longer (redder) wavelengths. • The larger the shift, the greater is the speed.

X-rays • • Tiny wavelength, high energy waves Uses: ■ ■ ■ Medical imaging Airport security Inspecting industrial welds

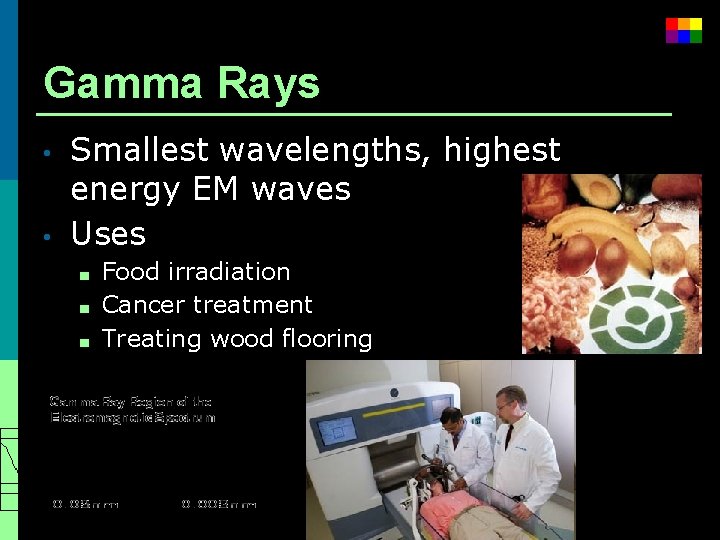

Gamma Rays • • Smallest wavelengths, highest energy EM waves Uses ■ ■ ■ Food irradiation Cancer treatment Treating wood flooring

Spectroscope • A tool forming and examining spectra especially in the visible region of the electromagnetic spectrum

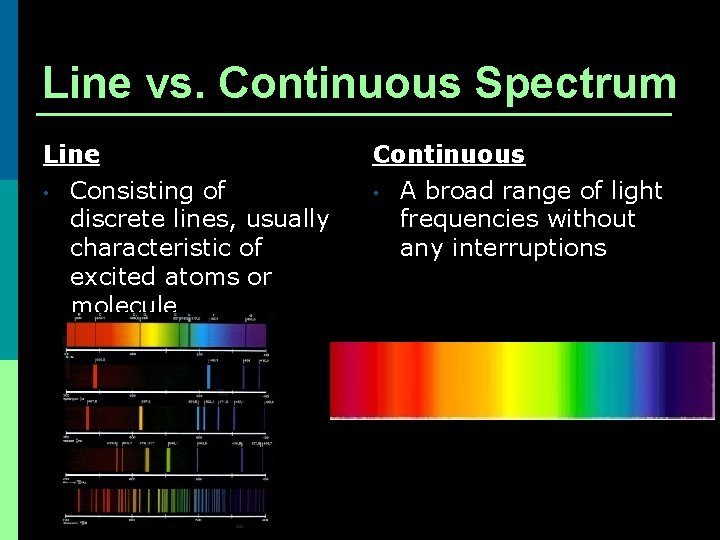

Line vs. Continuous Spectrum Line • Consisting of discrete lines, usually characteristic of excited atoms or molecule Continuous • A broad range of light frequencies without any interruptions
