Video Based Illegal Dumping Detection Alan Chen, Marcus Garcia, Nathan Wong, Hossein Shahdoost, Prem Bharath Soundararajan, Youngsoo Kim Department of Electrical Engineering San Jose State University 1

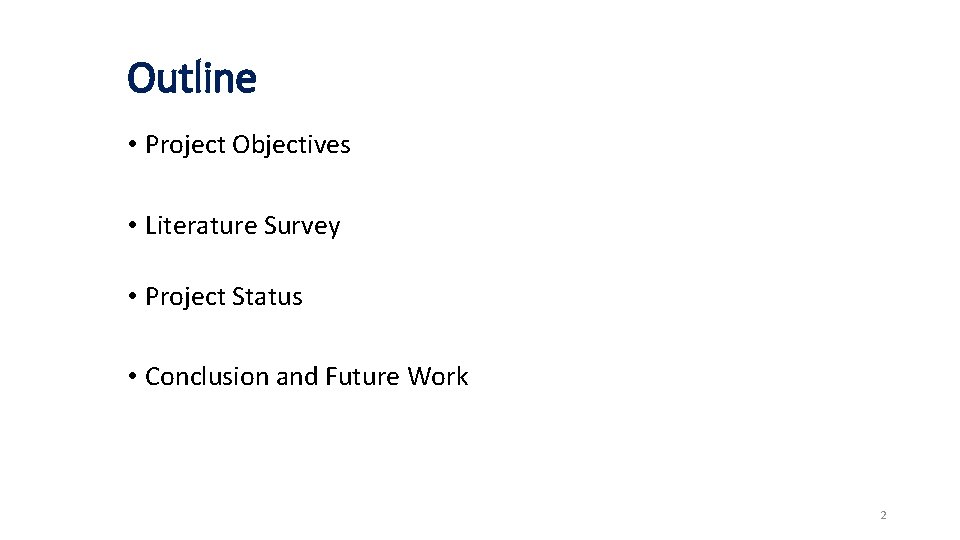

Outline • Project Objectives • Literature Survey • Project Status • Conclusion and Future Work 2

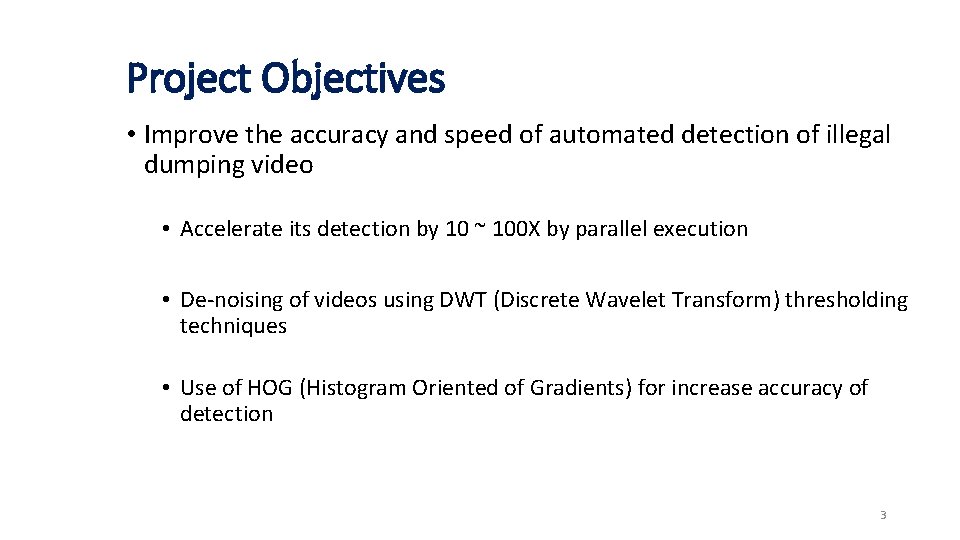

Project Objectives • Improve the accuracy and speed of automated detection of illegal dumping video • Accelerate its detection by 10 ~ 100 X by parallel execution • De-noising of videos using DWT (Discrete Wavelet Transform) thresholding techniques • Use of HOG (Histogram Oriented of Gradients) for increase accuracy of detection 3

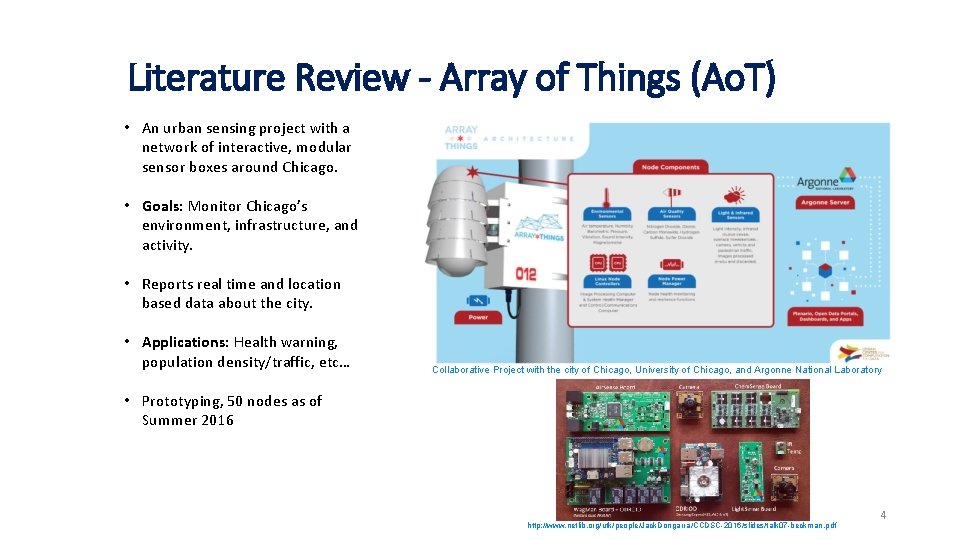

Literature Review - Array of Things (Ao. T) • An urban sensing project with a network of interactive, modular sensor boxes around Chicago. • Goals: Monitor Chicago’s environment, infrastructure, and activity. • Reports real time and location based data about the city. • Applications: Health warning, population density/traffic, etc… Collaborative Project with the city of Chicago, University of Chicago, and Argonne National Laboratory • Prototyping, 50 nodes as of Summer 2016 http: //www. netlib. org/utk/people/Jack. Dongarra/CCDSC-2016/slides/talk 07 -beckman. pdf 4

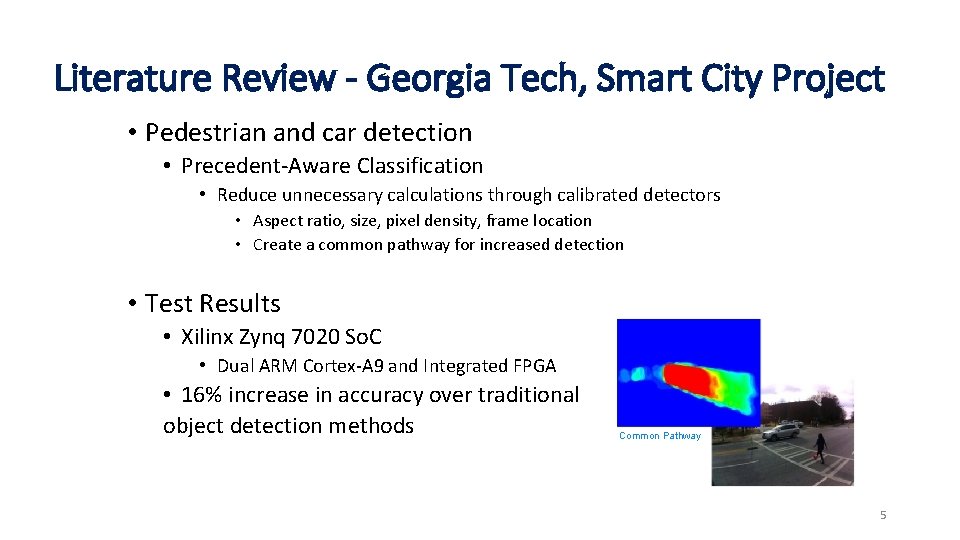

Literature Review - Georgia Tech, Smart City Project • Pedestrian and car detection • Precedent-Aware Classification • Reduce unnecessary calculations through calibrated detectors • Aspect ratio, size, pixel density, frame location • Create a common pathway for increased detection • Test Results • Xilinx Zynq 7020 So. C • Dual ARM Cortex-A 9 and Integrated FPGA • 16% increase in accuracy over traditional object detection methods Common Pathway 5

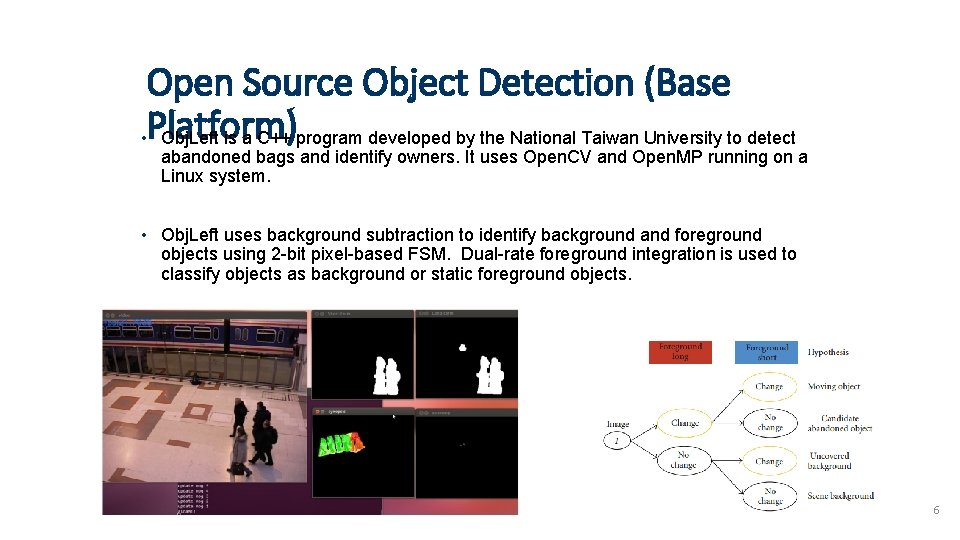

Open Source Object Detection (Base • Platform) Obj. Left is a C++ program developed by the National Taiwan University to detect abandoned bags and identify owners. It uses Open. CV and Open. MP running on a Linux system. • Obj. Left uses background subtraction to identify background and foreground objects using 2 -bit pixel-based FSM. Dual-rate foreground integration is used to classify objects as background or static foreground objects. 6

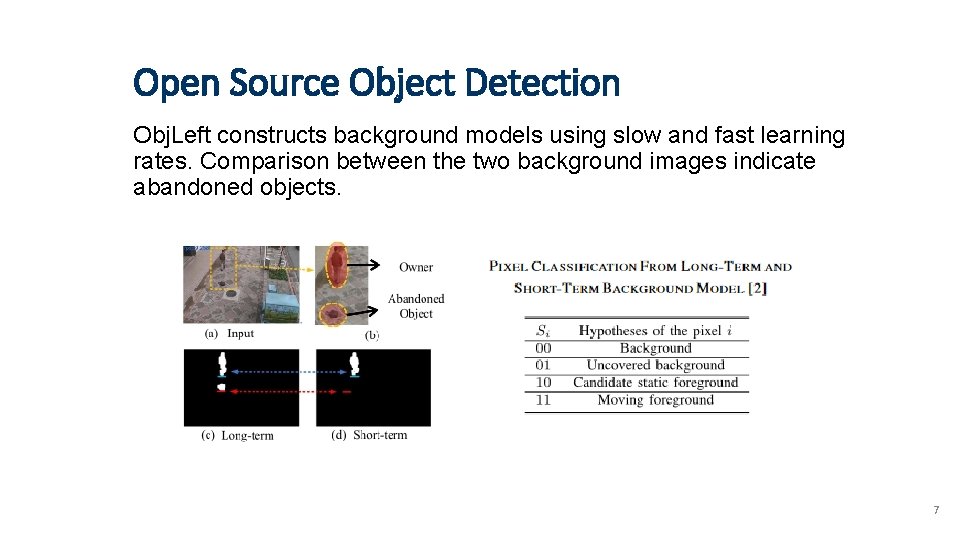

Open Source Object Detection Obj. Left constructs background models using slow and fast learning rates. Comparison between the two background images indicate abandoned objects. 7

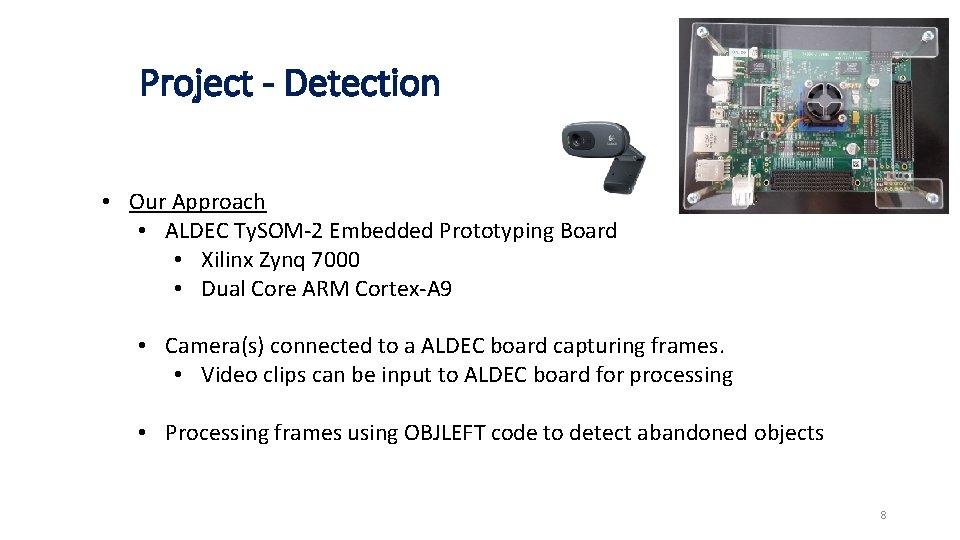

Project - Detection • Our Approach • ALDEC Ty. SOM-2 Embedded Prototyping Board • Xilinx Zynq 7000 • Dual Core ARM Cortex-A 9 • Camera(s) connected to a ALDEC board capturing frames. • Video clips can be input to ALDEC board for processing • Processing frames using OBJLEFT code to detect abandoned objects 8

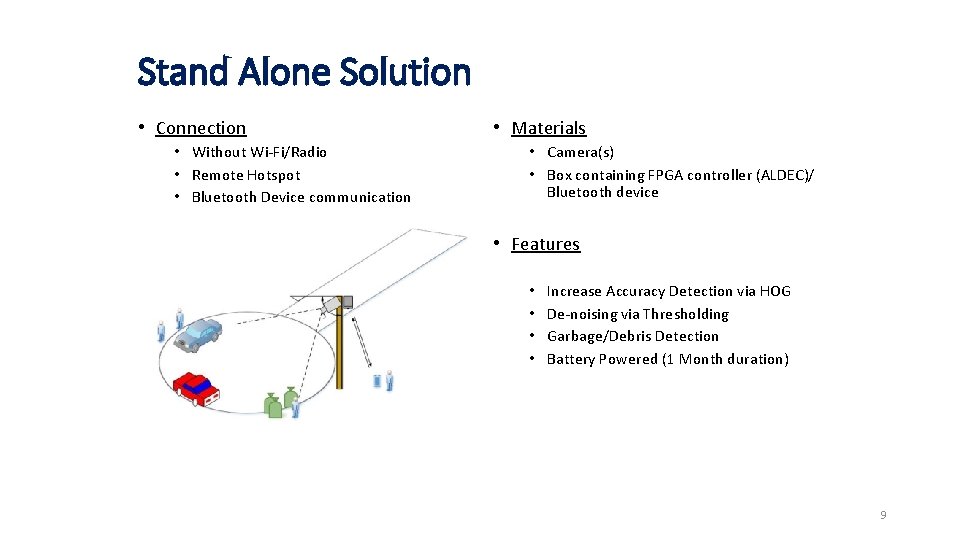

Stand Alone Solution • Connection • Without Wi-Fi/Radio • Remote Hotspot • Bluetooth Device communication • Materials • Camera(s) • Box containing FPGA controller (ALDEC)/ Bluetooth device • Features • • Increase Accuracy Detection via HOG De-noising via Thresholding Garbage/Debris Detection Battery Powered (1 Month duration) 9

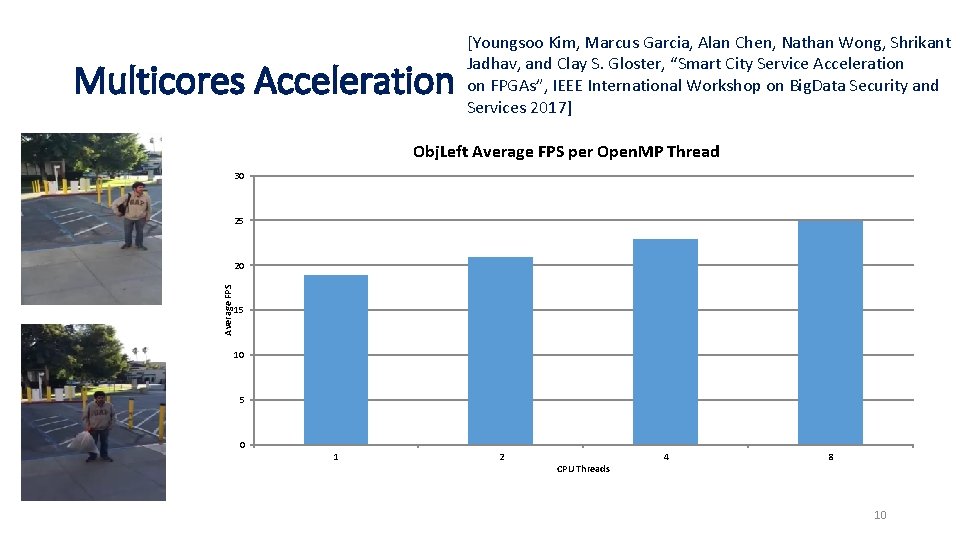

Multicores Acceleration [Youngsoo Kim, Marcus Garcia, Alan Chen, Nathan Wong, Shrikant Jadhav, and Clay S. Gloster, “Smart City Service Acceleration on FPGAs”, IEEE International Workshop on Big. Data Security and Services 2017] Obj. Left Average FPS per Open. MP Thread 30 25 Average FPS 20 15 10 5 0 1 2 CPU Threads 4 8 10

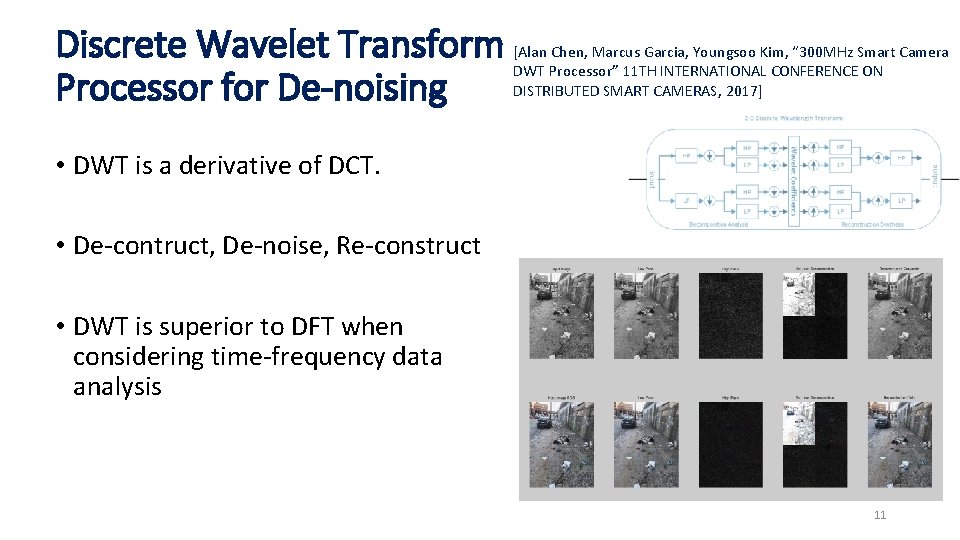

Discrete Wavelet Transform Processor for De-noising [Alan Chen, Marcus Garcia, Youngsoo Kim, “ 300 MHz Smart Camera DWT Processor” 11 TH INTERNATIONAL CONFERENCE ON DISTRIBUTED SMART CAMERAS, 2017] • DWT is a derivative of DCT. • De-contruct, De-noise, Re-construct • DWT is superior to DFT when considering time-frequency data analysis 11

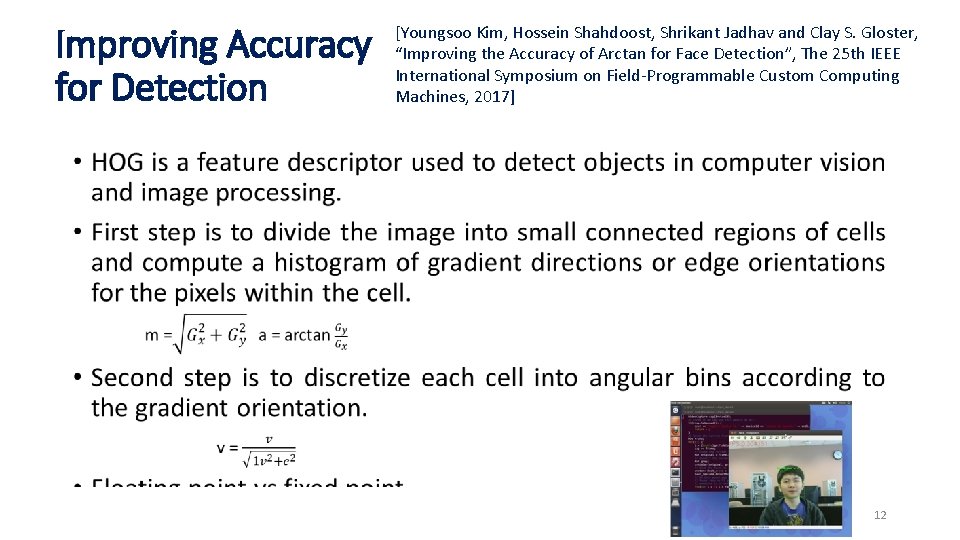

Improving Accuracy for Detection [Youngsoo Kim, Hossein Shahdoost, Shrikant Jadhav and Clay S. Gloster, “Improving the Accuracy of Arctan for Face Detection”, The 25 th IEEE International Symposium on Field-Programmable Custom Computing Machines, 2017] • 12

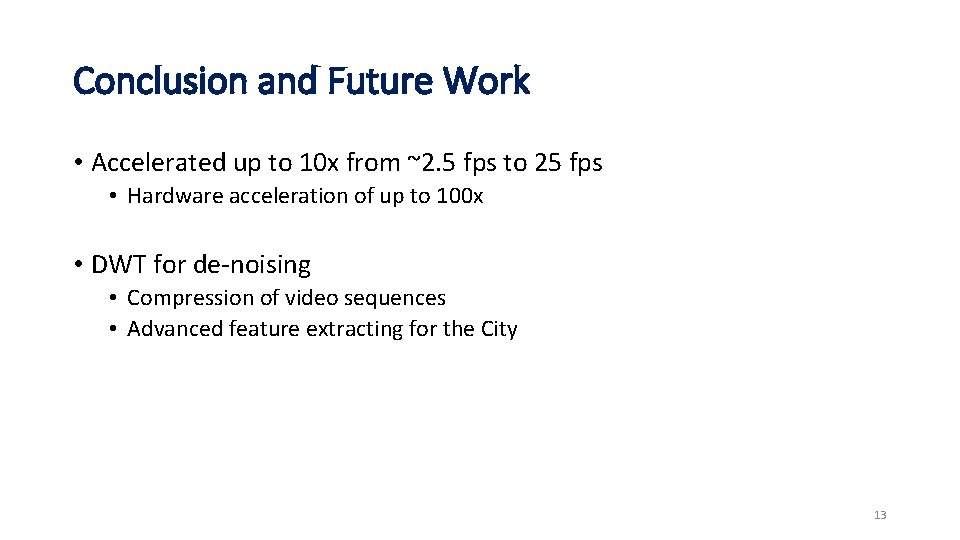

Conclusion and Future Work • Accelerated up to 10 x from ~2. 5 fps to 25 fps • Hardware acceleration of up to 100 x • DWT for de-noising • Compression of video sequences • Advanced feature extracting for the City 13

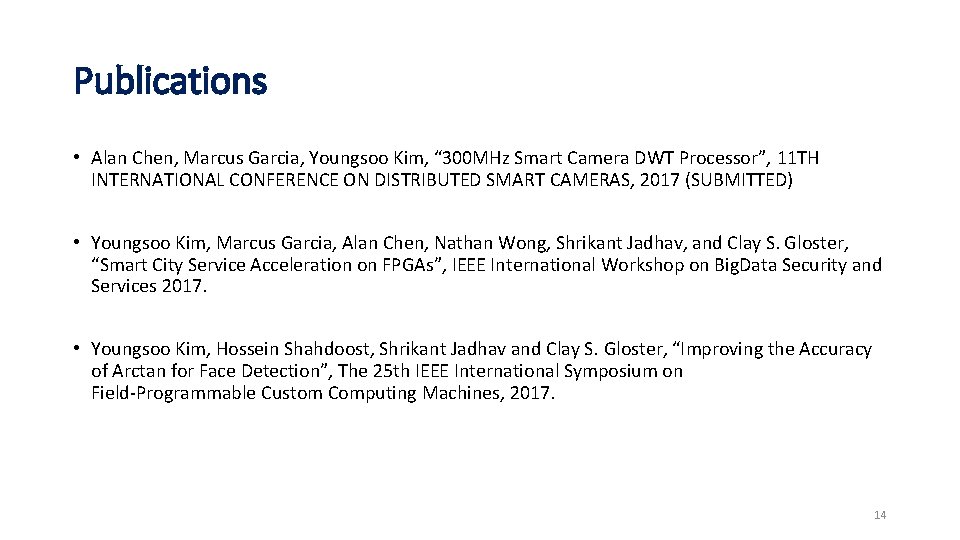

Publications • Alan Chen, Marcus Garcia, Youngsoo Kim, “ 300 MHz Smart Camera DWT Processor”, 11 TH INTERNATIONAL CONFERENCE ON DISTRIBUTED SMART CAMERAS, 2017 (SUBMITTED) • Youngsoo Kim, Marcus Garcia, Alan Chen, Nathan Wong, Shrikant Jadhav, and Clay S. Gloster, “Smart City Service Acceleration on FPGAs”, IEEE International Workshop on Big. Data Security and Services 2017. • Youngsoo Kim, Hossein Shahdoost, Shrikant Jadhav and Clay S. Gloster, “Improving the Accuracy of Arctan for Face Detection”, The 25 th IEEE International Symposium on Field-Programmable Custom Computing Machines, 2017. 14
