VIDAS BLUE PRESENTATION

VIDAS BLUE PRESENTATION

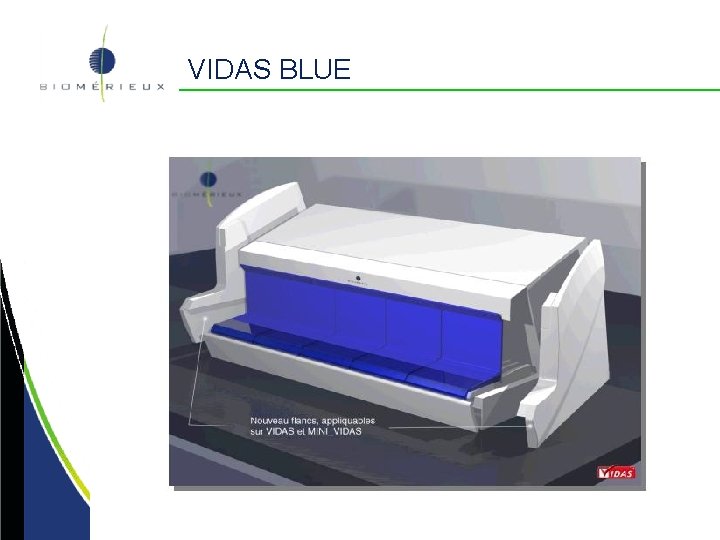

VIDAS BLUE: New Vidas and mini Vidas look

VIDAS BLUE: New Vidas and mini Vidas look

VIDAS BLUE The main changes

VIDAS BLUE The main changes

VIDAS BLUE

VIDAS BLUE

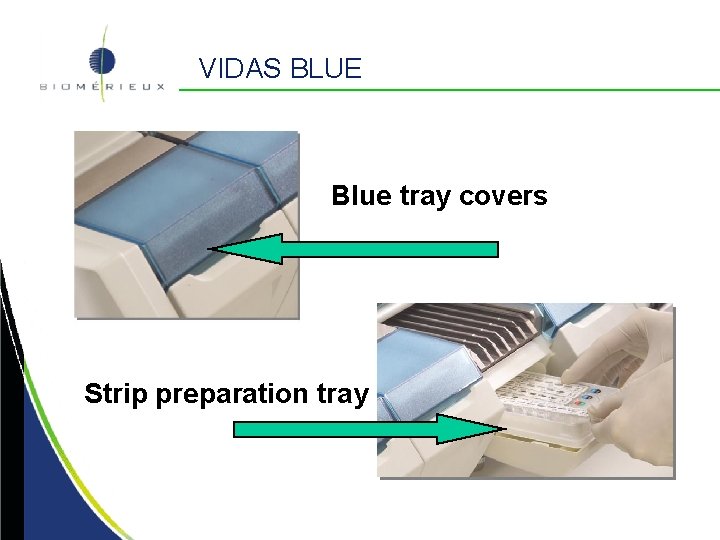

VIDAS BLUE Blue tray covers Strip preparation tray

VIDAS BLUE Blue tray covers Strip preparation tray

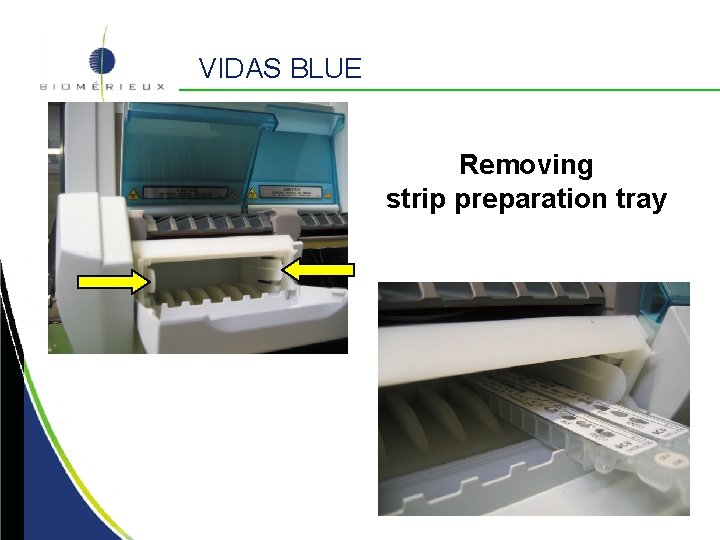

VIDAS BLUE Removing strip preparation tray

VIDAS BLUE Removing strip preparation tray

Mini VIDAS BLUE

Mini VIDAS BLUE

Mini VIDAS BLUE New screen / keyboard Holder New printer paper holder

Mini VIDAS BLUE New screen / keyboard Holder New printer paper holder

VIDAS BLUE Internal changes

VIDAS BLUE Internal changes

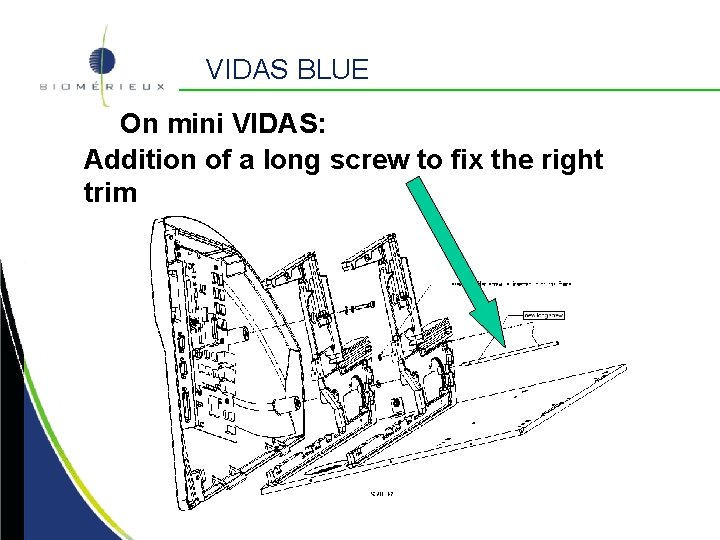

VIDAS BLUE On mini VIDAS: Addition of a long screw to fix the right

VIDAS BLUE On mini VIDAS: Addition of a long screw to fix the right trim

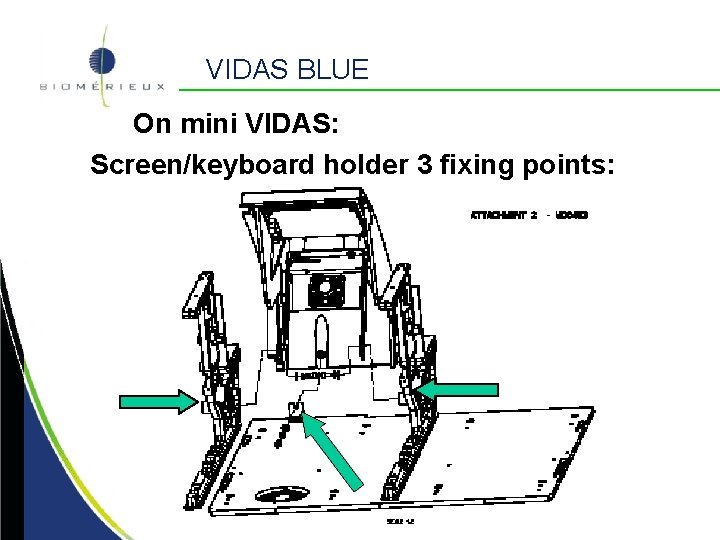

VIDAS BLUE On mini VIDAS: Screen/keyboard holder 3 fixing points:

VIDAS BLUE On mini VIDAS: Screen/keyboard holder 3 fixing points:

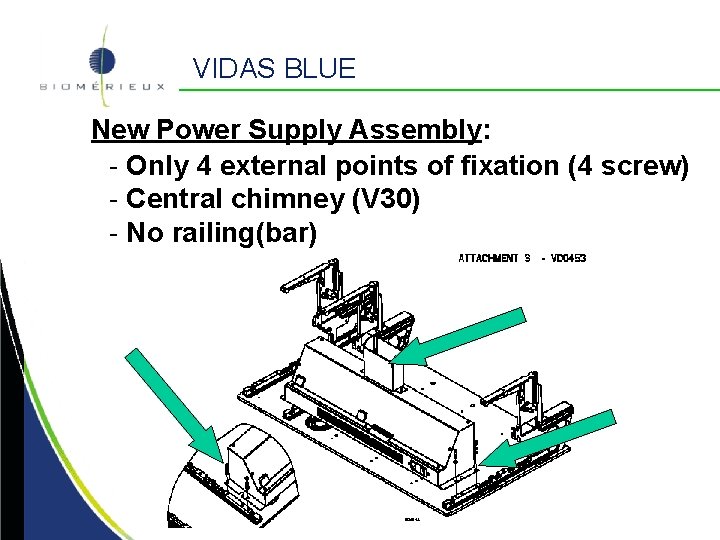

VIDAS BLUE New Power Supply Assembly: - Only 4 external points of fixation (4

VIDAS BLUE New Power Supply Assembly: - Only 4 external points of fixation (4 screw) - Central chimney (V 30) - No railing(bar)

VIDAS BLUE New Power Supply Assembly: - Only 1 Power Supply Board (V 12/V

VIDAS BLUE New Power Supply Assembly: - Only 1 Power Supply Board (V 12/V 30) - 1 air fan - Self switching Power Supply (110/220 V)

VIDAS BLUE New Power Supply Board: -Dedicated mini Vidas and Vidas connectors. VIDAS S

VIDAS BLUE New Power Supply Board: -Dedicated mini Vidas and Vidas connectors. VIDAS S A D I V i n Mi Be carefull Respect the correct connector!

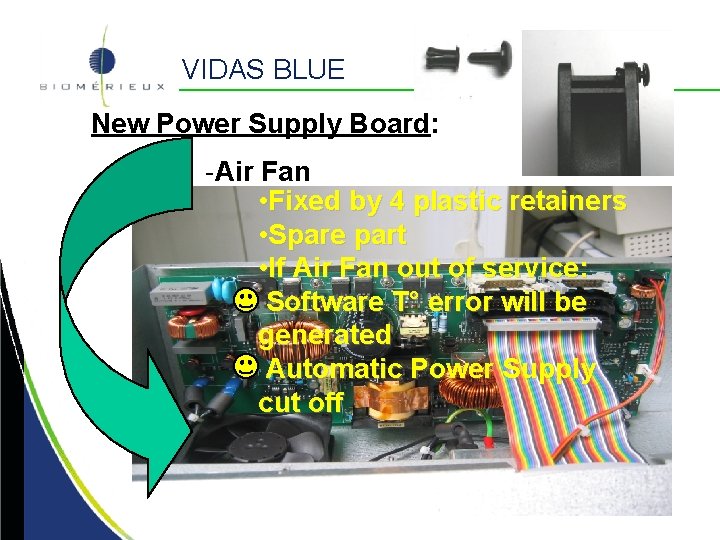

VIDAS BLUE New Power Supply Board: -Air Fan • Fixed by 4 plastic retainers

VIDAS BLUE New Power Supply Board: -Air Fan • Fixed by 4 plastic retainers • Spare part • If Air Fan out of service: Software T° error will be generated Automatic Power Supply cut off

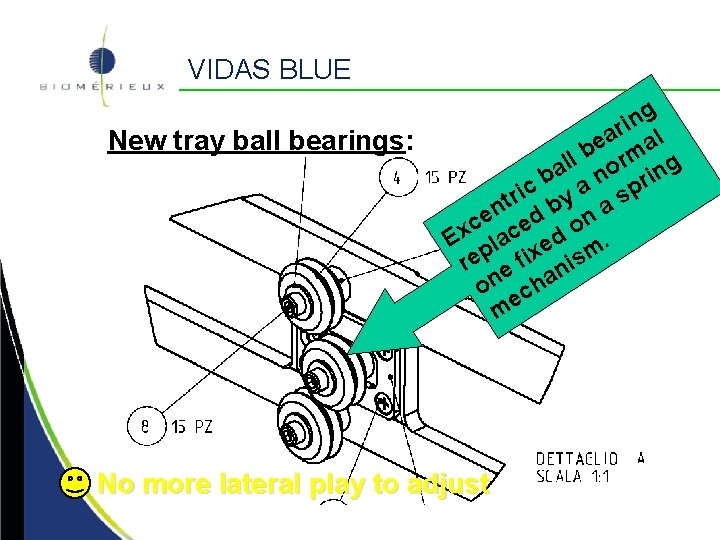

VIDAS BLUE New tray ball bearings: g n i ar al e b rm

VIDAS BLUE New tray ball bearings: g n i ar al e b rm g l l a no rin b c y a sp i r t b a n ce ced on x E pla ed. m x re e fi nis on cha me No more lateral play to adjust

VIDAS BLUE Tray motor assembly: N! O I T U CA sy s A

VIDAS BLUE Tray motor assembly: N! O I T U CA sy s A r o ot m e h t Lock hen it is w ion t i s o p od p o g e h t in t Addition of a pretensionning spring

VIDAS BLUE Tower screw: Addition of a spacer To reduce the tower misalignments

VIDAS BLUE Tower screw: Addition of a spacer To reduce the tower misalignments

VIDAS BLUE Incubator door: - New door plunger ball nut - Addition of a

VIDAS BLUE Incubator door: - New door plunger ball nut - Addition of a safety latch

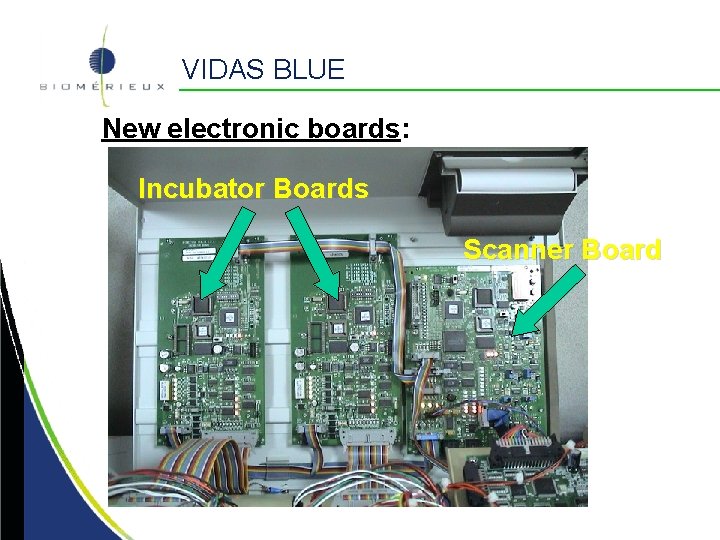

VIDAS BLUE New electronic boards: Incubator Boards Scanner Board

VIDAS BLUE New electronic boards: Incubator Boards Scanner Board

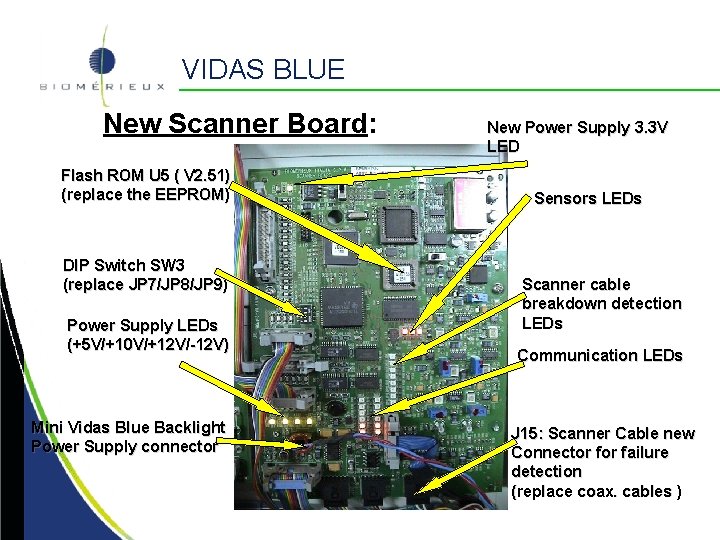

VIDAS BLUE New Scanner Board: Flash ROM U 5 ( V 2. 51) (replace

VIDAS BLUE New Scanner Board: Flash ROM U 5 ( V 2. 51) (replace the EEPROM) DIP Switch SW 3 (replace JP 7/JP 8/JP 9) Power Supply LEDs (+5 V/+10 V/+12 V/-12 V) Mini Vidas Blue Backlight Power Supply connector New Power Supply 3. 3 V LED Sensors LEDs Scanner cable breakdown detection LEDs Communication LEDs J 15: Scanner Cable new Connector failure detection (replace coax. cables )

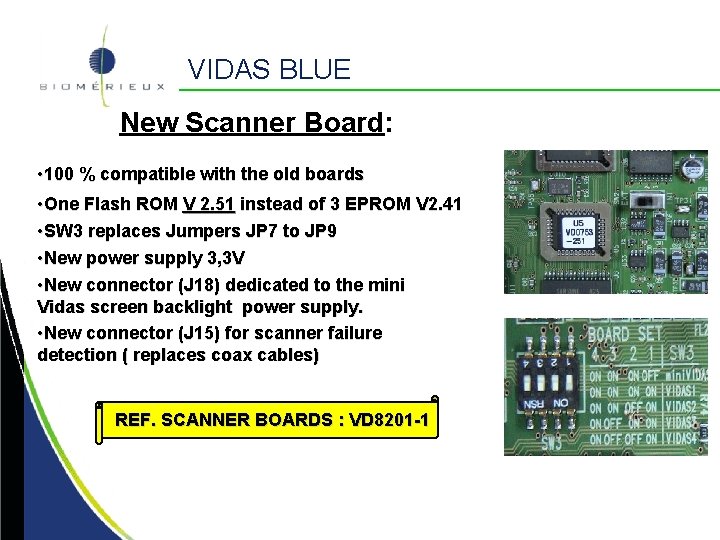

VIDAS BLUE New Scanner Board: • 100 % compatible with the old boards •

VIDAS BLUE New Scanner Board: • 100 % compatible with the old boards • One Flash ROM V 2. 51 instead of 3 EPROM V 2. 41 • SW 3 replaces Jumpers JP 7 to JP 9 • New power supply 3, 3 V • New connector (J 18) dedicated to the mini Vidas screen backlight power supply. • New connector (J 15) for scanner failure detection ( replaces coax cables) REF. SCANNER BOARDS : VD 8201 -1

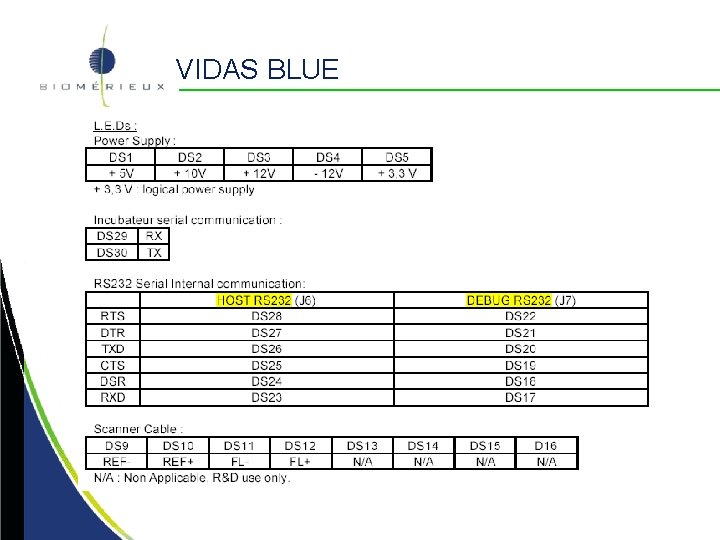

VIDAS BLUE

VIDAS BLUE

VIDAS BLUE

VIDAS BLUE

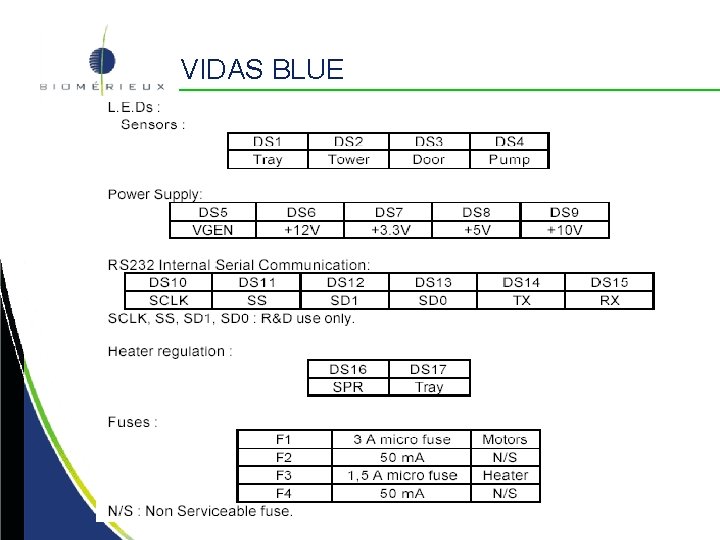

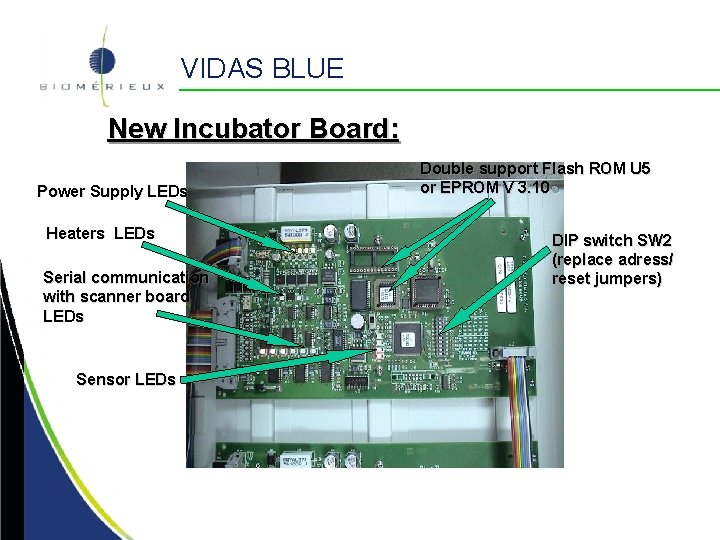

VIDAS BLUE New Incubator Board: Power Supply LEDs Heaters LEDs Serial communication with scanner

VIDAS BLUE New Incubator Board: Power Supply LEDs Heaters LEDs Serial communication with scanner board LEDs Sensor LEDs Double support Flash ROM U 5 or EPROM V 3. 10 DIP switch SW 2 (replace adress/ reset jumpers)

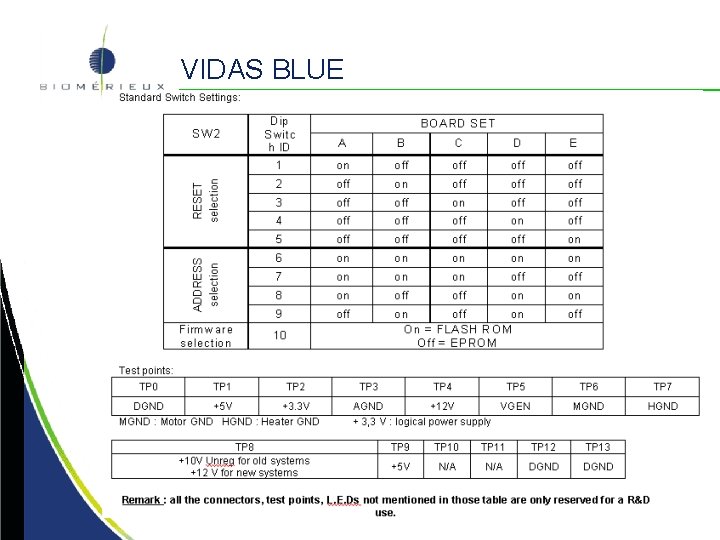

VIDAS BLUE New Incubator Board: • 100% compatible with the old boards • Available

VIDAS BLUE New Incubator Board: • 100% compatible with the old boards • Available with EPROM 3. 10 or Flash ROM (same version) • Dip Switch SW 2 replace all Adress and Reset jumpers ( silkscreen directly on the board). • LEDS for Power Supply, communication, sensors and heaters. • Fuses (SMD) F 1 to F 4 REF. INCUB. Board : VD 8202 -2

VIDAS BLUE

VIDAS BLUE

VIDAS BLUE

VIDAS BLUE

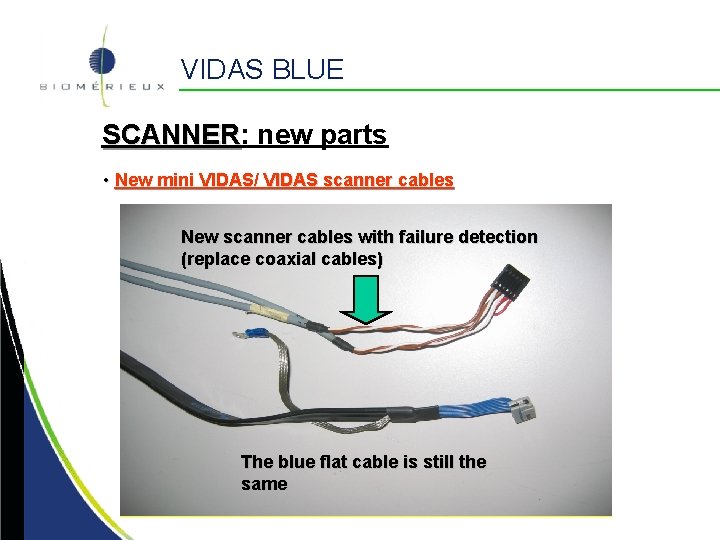

VIDAS BLUE SCANNER: new parts SCANNER • New mini VIDAS/ VIDAS scanner cables New

VIDAS BLUE SCANNER: new parts SCANNER • New mini VIDAS/ VIDAS scanner cables New scanner cables with failure detection (replace coaxial cables) The blue flat cable is still the same

VIDAS BLUE SCANNER: new parts SCANNER • New Scanner PRE-AMP board • J 1

VIDAS BLUE SCANNER: new parts SCANNER • New Scanner PRE-AMP board • J 1 connector unchanged, use with both old scanner câble kits and new Scanner cables. • New J 2 connector, is only used with new scanner cables and new scanner Board. (Allows scanner cable failure detection)

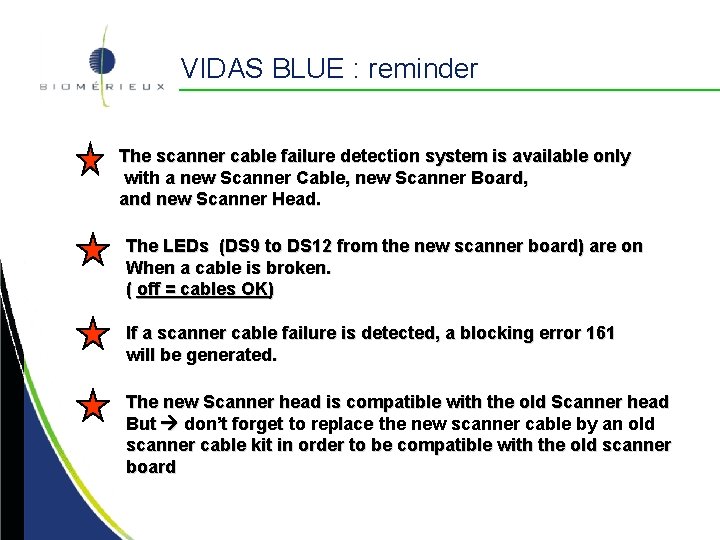

VIDAS BLUE : reminder The scanner cable failure detection system is available only with

VIDAS BLUE : reminder The scanner cable failure detection system is available only with a new Scanner Cable, new Scanner Board, and new Scanner Head. The LEDs (DS 9 to DS 12 from the new scanner board) are on When a cable is broken. ( off = cables OK) If a scanner cable failure is detected, a blocking error 161 will be generated. The new Scanner head is compatible with the old Scanner head But don’t forget to replace the new scanner cable by an old scanner cable kit in order to be compatible with the old scanner board

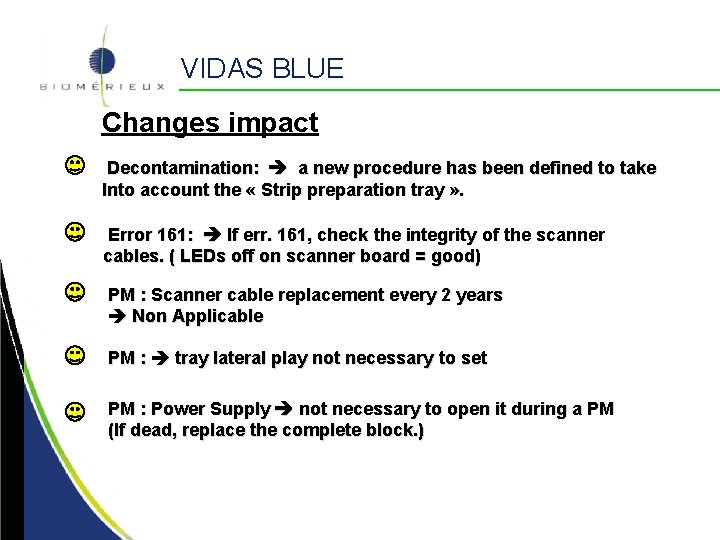

VIDAS BLUE Changes impact Decontamination: a new procedure has been defined to take Into

VIDAS BLUE Changes impact Decontamination: a new procedure has been defined to take Into account the « Strip preparation tray » . Error 161: If err. 161, check the integrity of the scanner cables. ( LEDs off on scanner board = good) PM : Scanner cable replacement every 2 years Non Applicable PM : tray lateral play not necessary to set PM : Power Supply not necessary to open it during a PM (If dead, replace the complete block. )

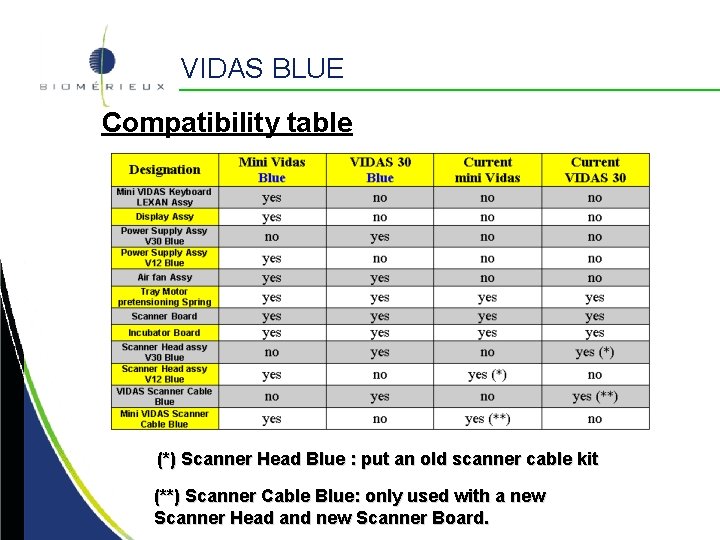

VIDAS BLUE Compatibility table (*) Scanner Head Blue : put an old scanner cable

VIDAS BLUE Compatibility table (*) Scanner Head Blue : put an old scanner cable kit (**) Scanner Cable Blue: only used with a new Scanner Head and new Scanner Board.

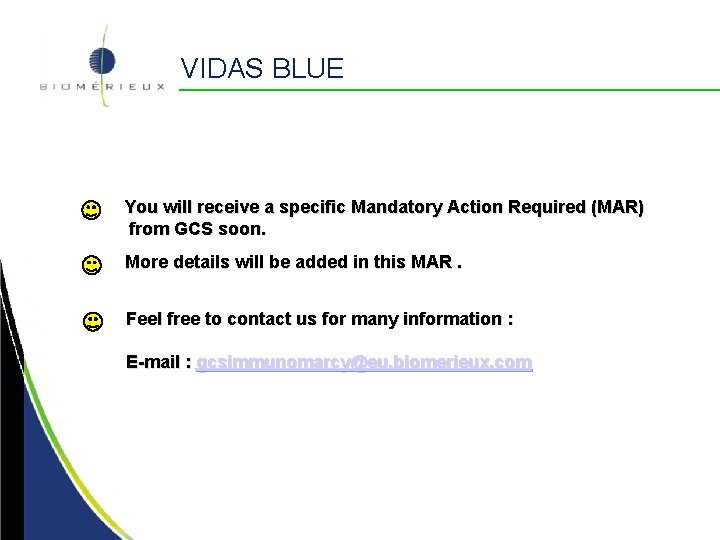

VIDAS BLUE You will receive a specific Mandatory Action Required (MAR) from GCS soon.

VIDAS BLUE You will receive a specific Mandatory Action Required (MAR) from GCS soon. More details will be added in this MAR. Feel free to contact us for many information : E-mail : [email protected] biomerieux. com
