Vibration Control Vibration Control Acceptable levels of vibrations

Vibration Control

Vibration Control • • Acceptable levels of vibrations Balancing of rotating machine Critical speed of rotating shaft Isolator design – Isolation with base motion – Isolation with fixed base • Vibration absorber design – Undamped absorber – Damped absorber 2

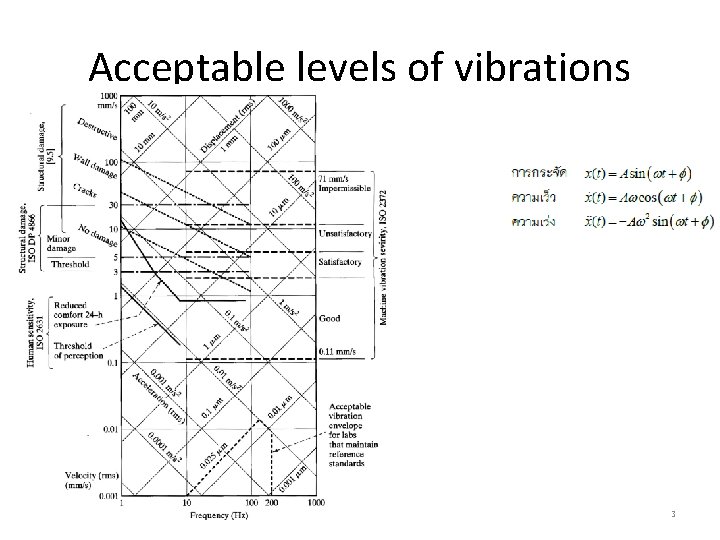

Acceptable levels of vibrations 3

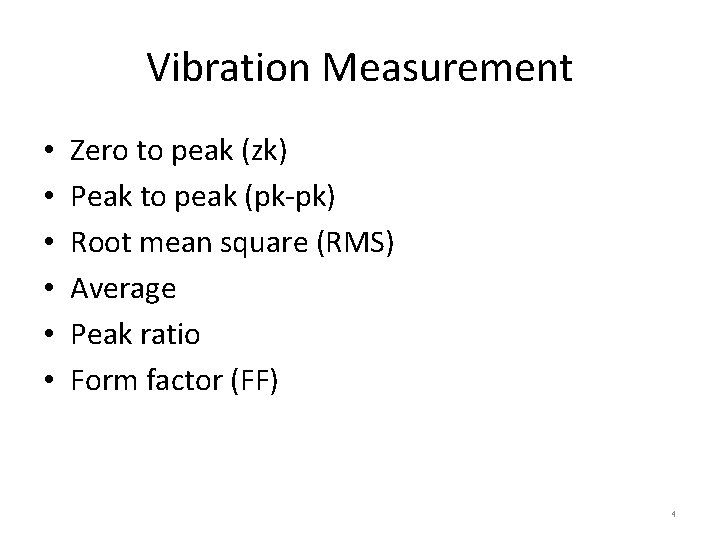

Vibration Measurement • • • Zero to peak (zk) Peak to peak (pk-pk) Root mean square (RMS) Average Peak ratio Form factor (FF) 4

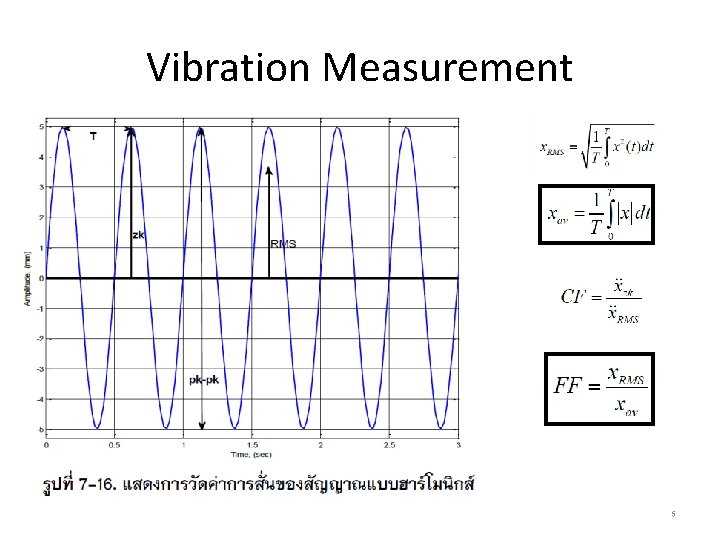

Vibration Measurement 5

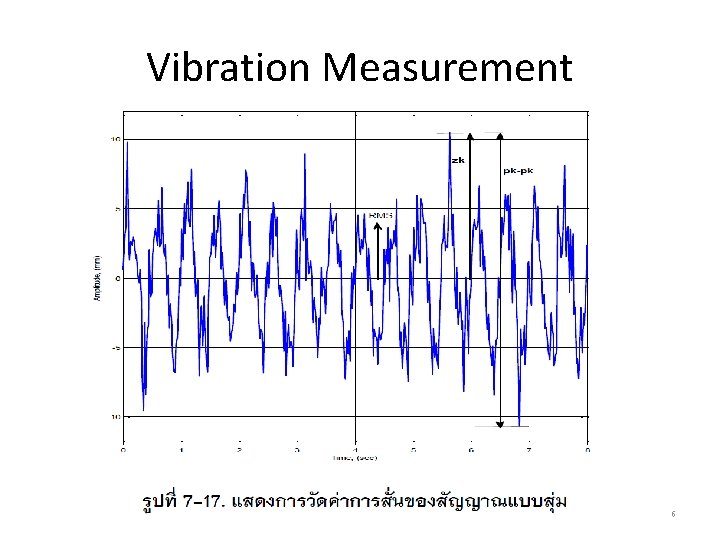

Vibration Measurement 6

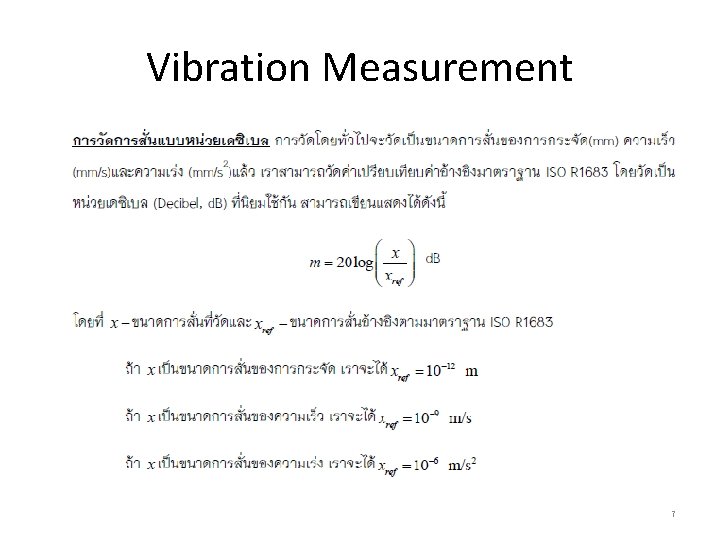

Vibration Measurement 7

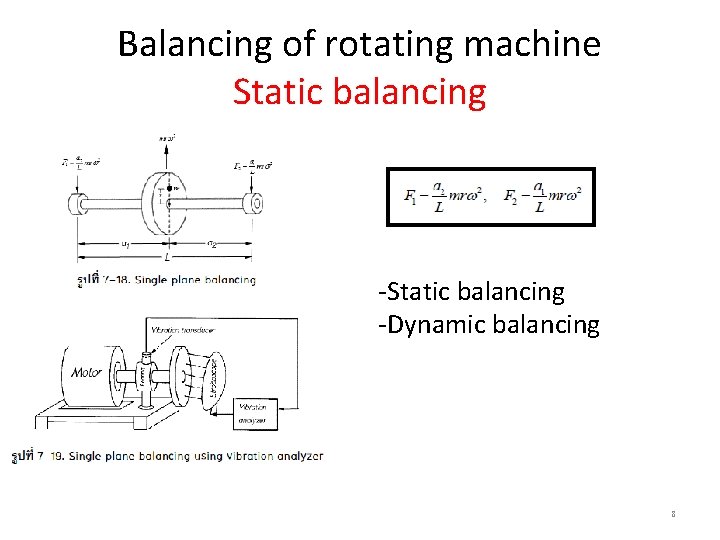

Balancing of rotating machine Static balancing -Dynamic balancing 8

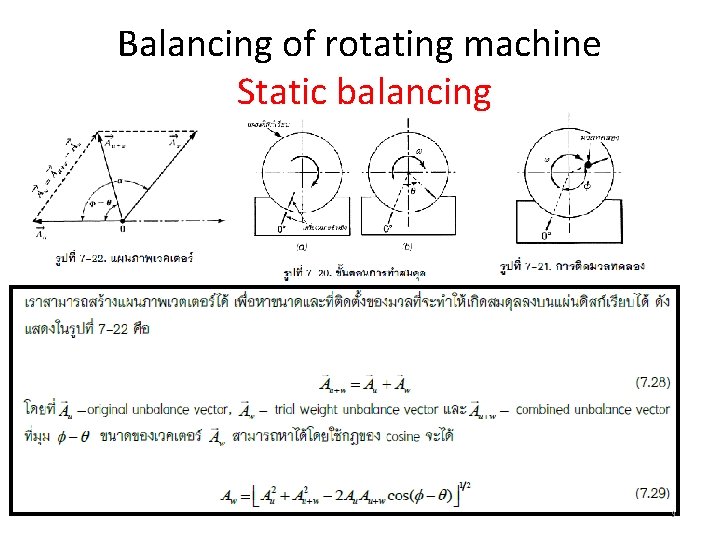

Balancing of rotating machine Static balancing 9

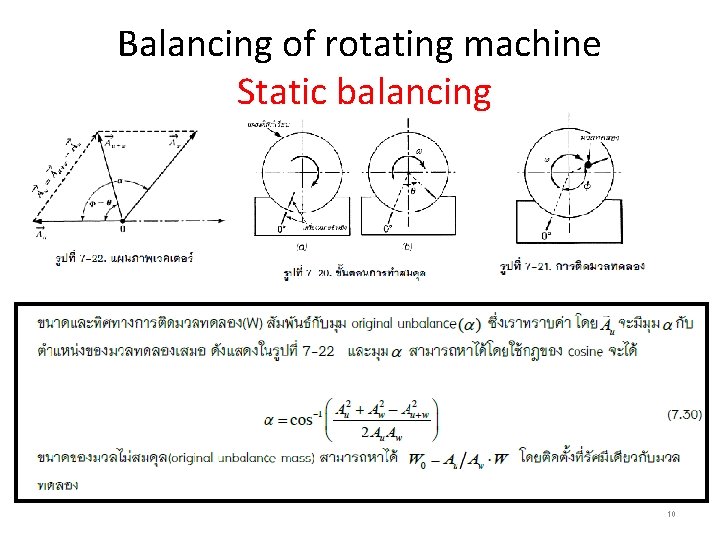

Balancing of rotating machine Static balancing 10

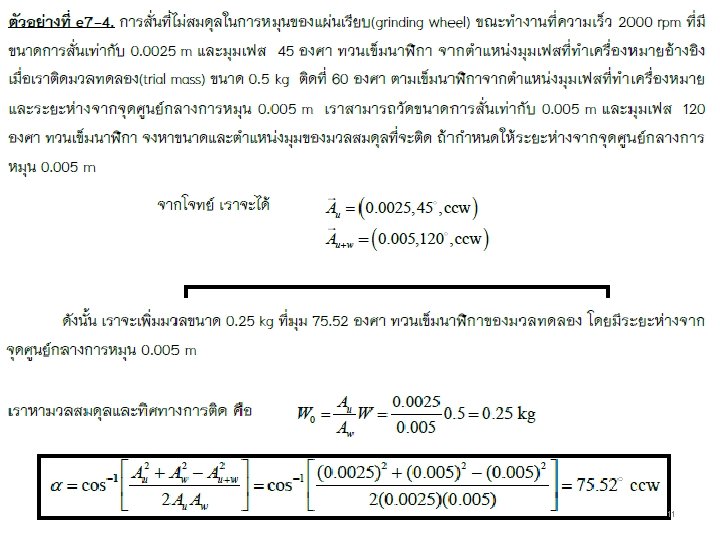

11

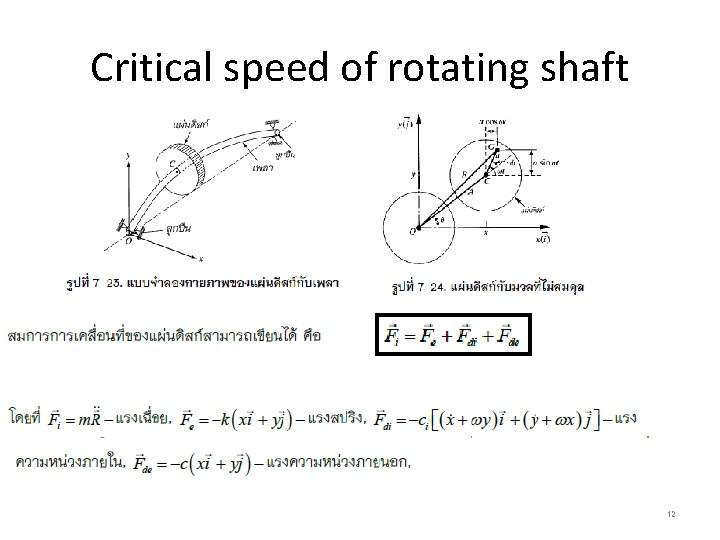

Critical speed of rotating shaft 12

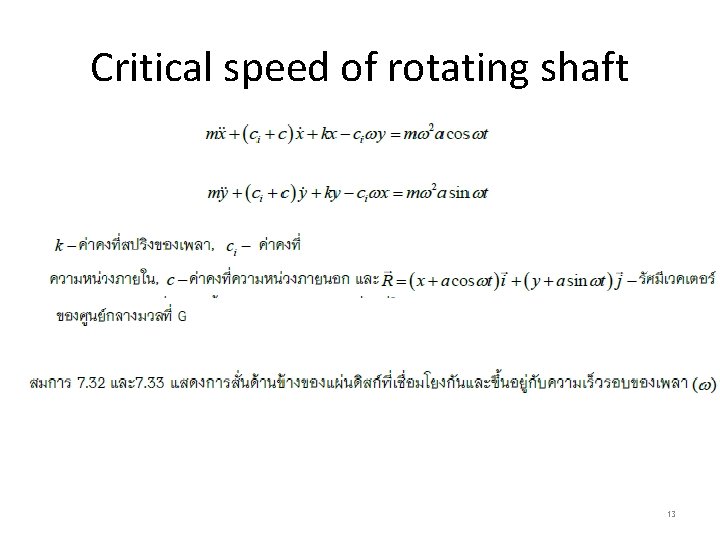

Critical speed of rotating shaft 13

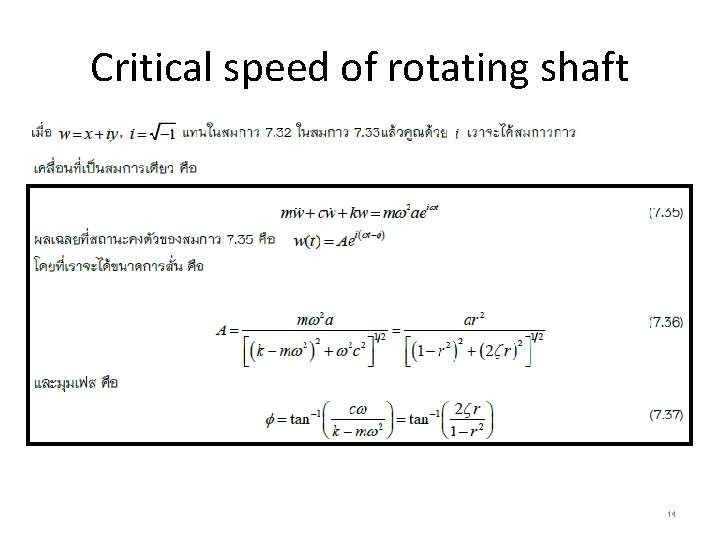

Critical speed of rotating shaft 14

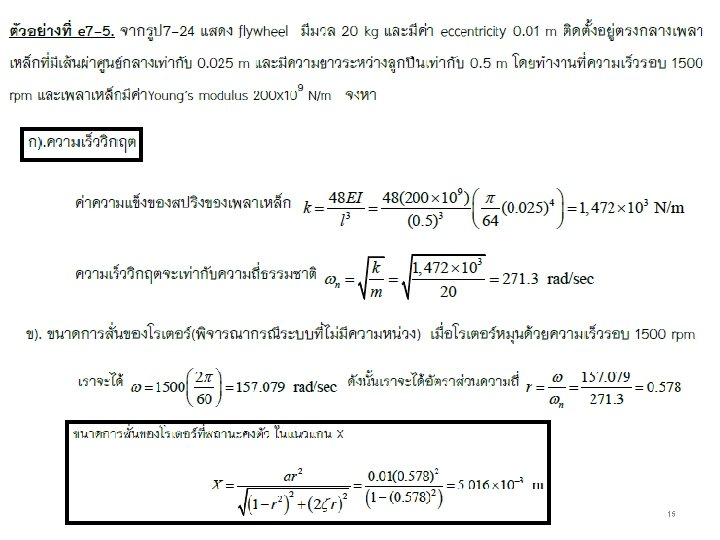

15

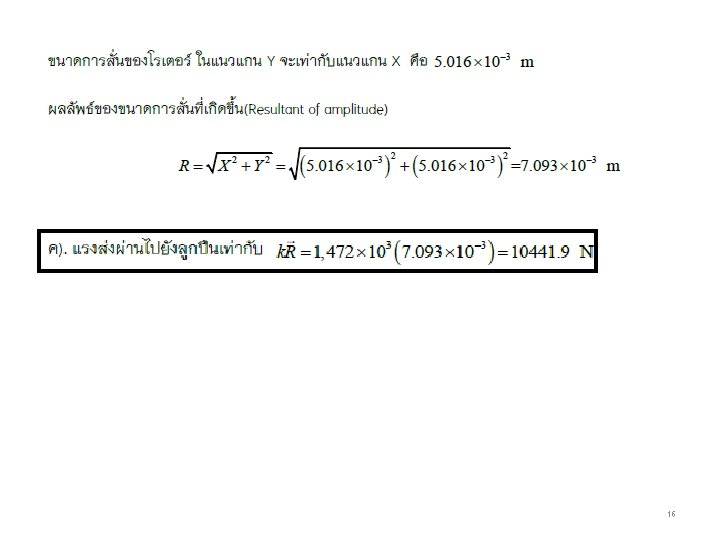

16

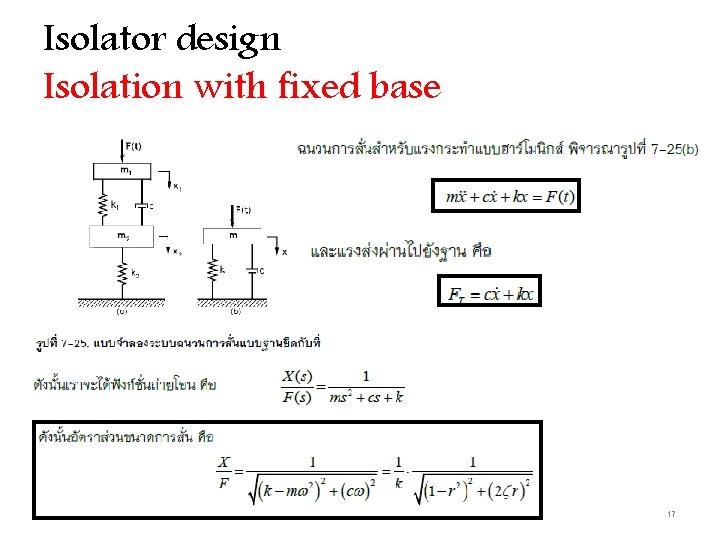

Isolator design Isolation with fixed base 17

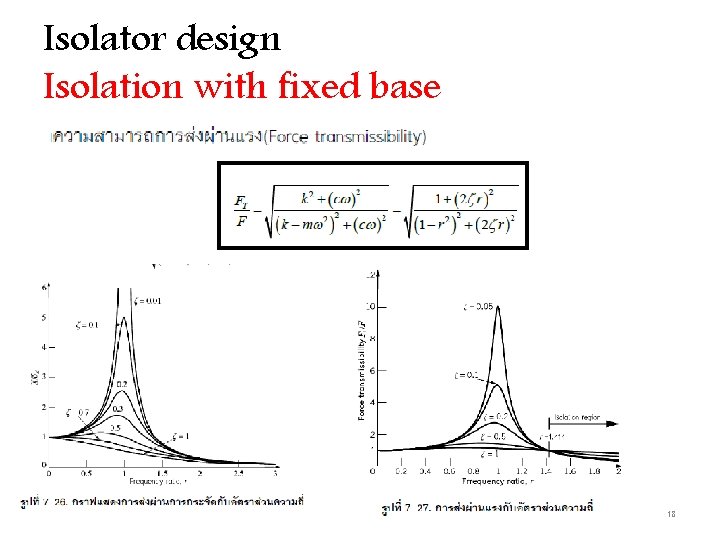

Isolator design Isolation with fixed base 18

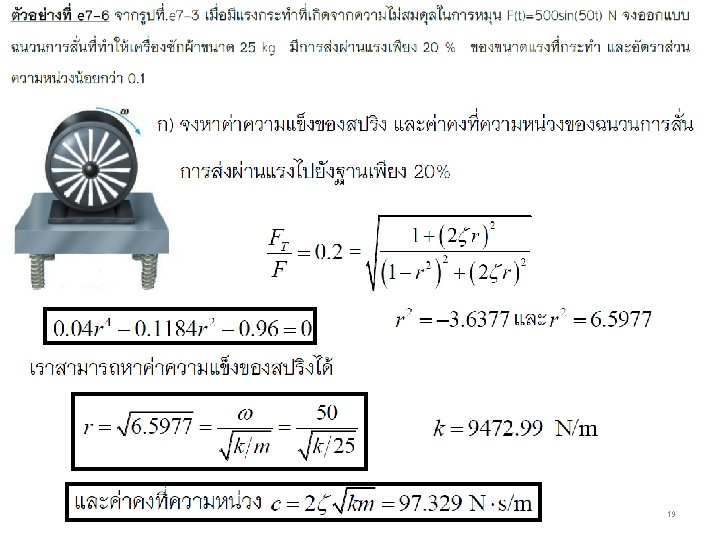

19

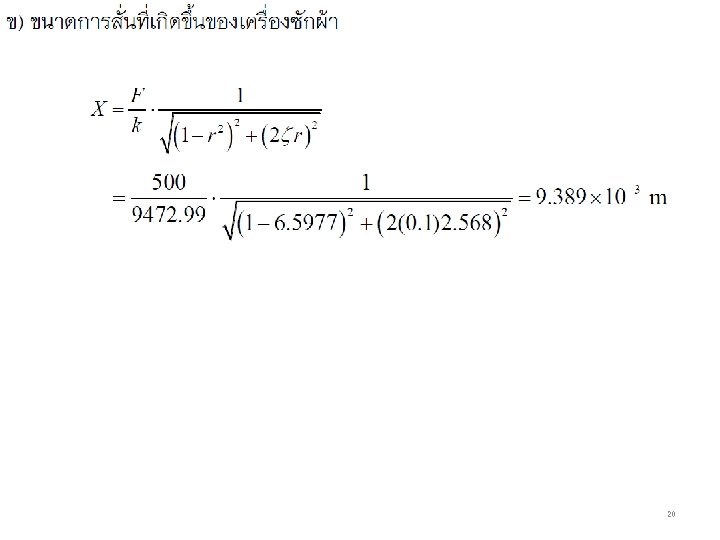

20

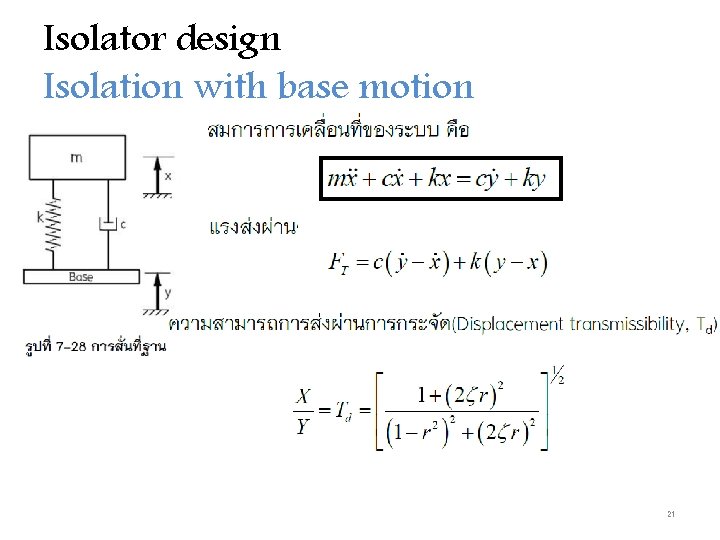

Isolator design Isolation with base motion 21

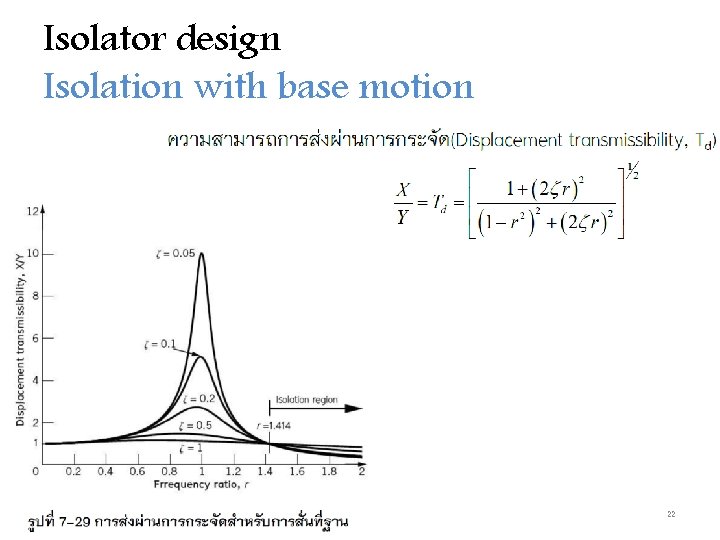

Isolator design Isolation with base motion 22

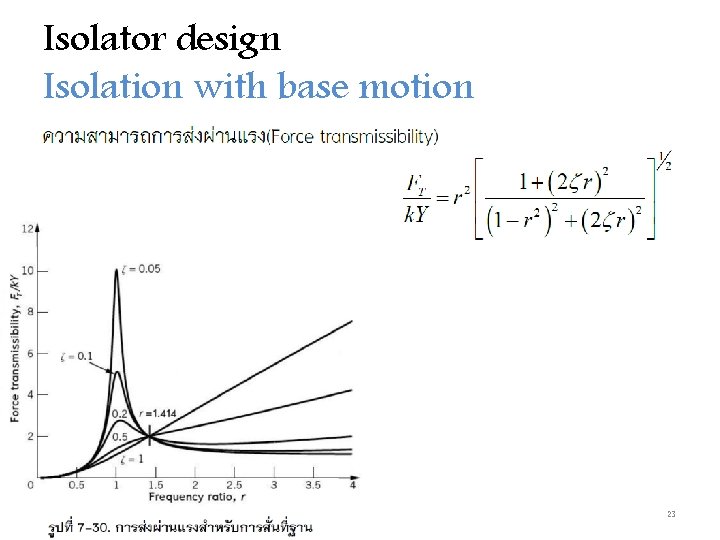

Isolator design Isolation with base motion 23

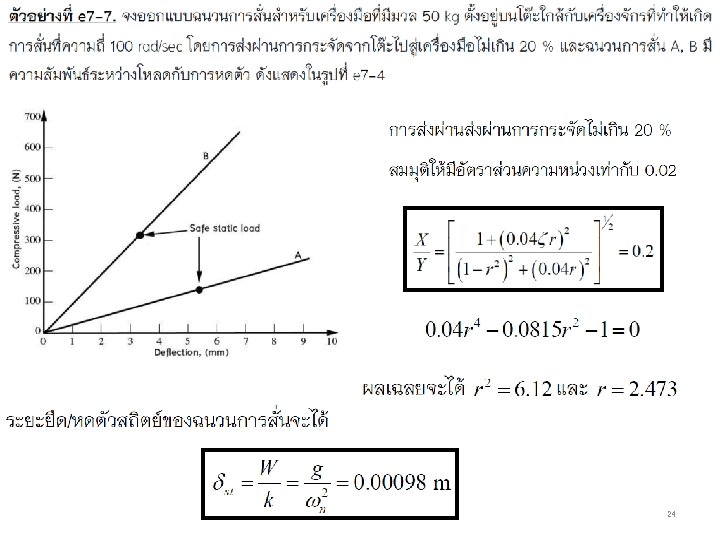

24

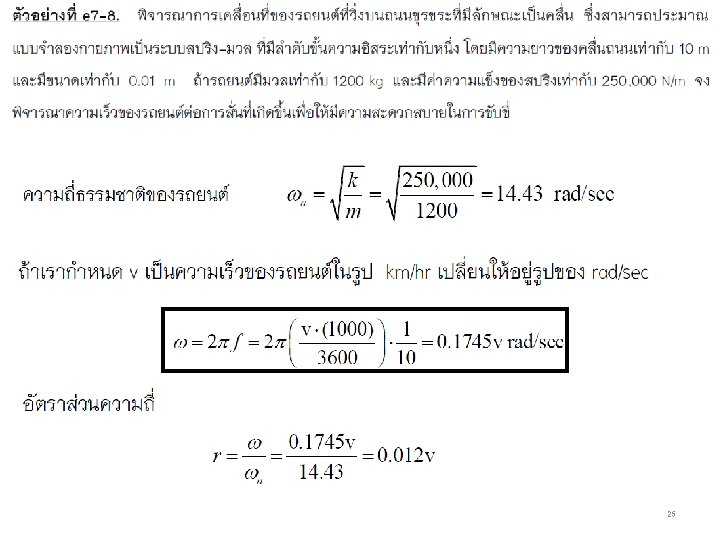

25

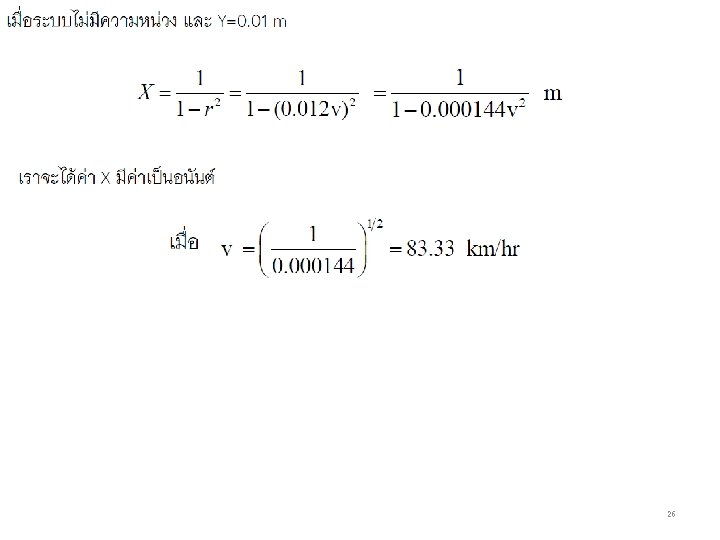

26

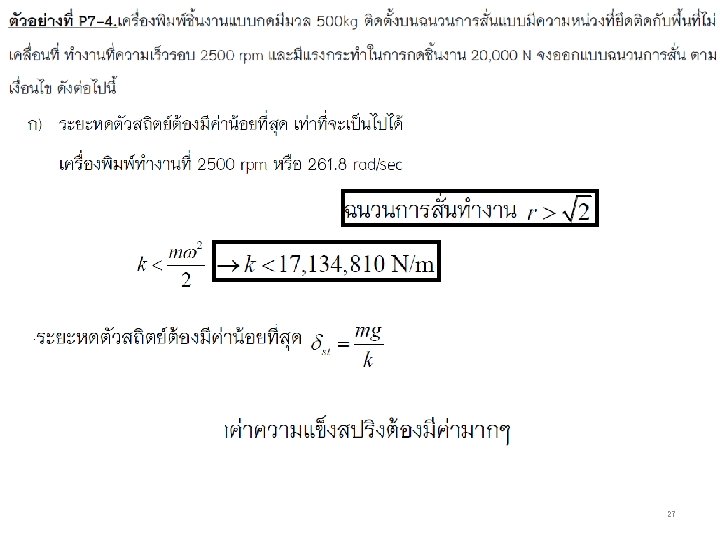

27

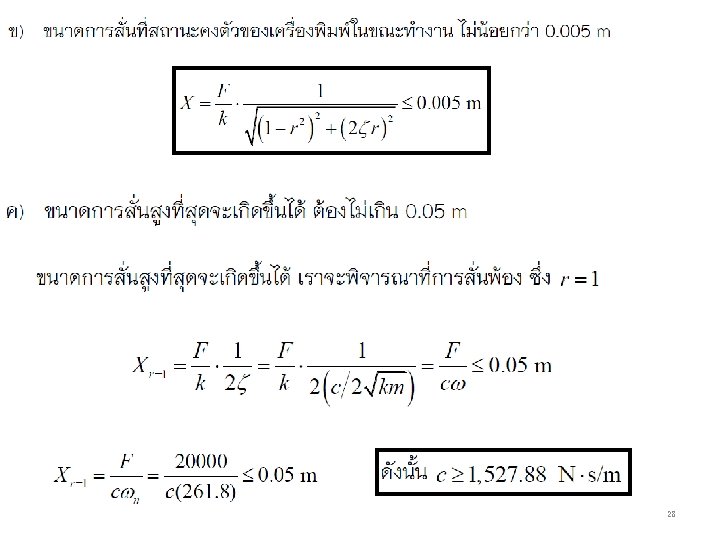

28

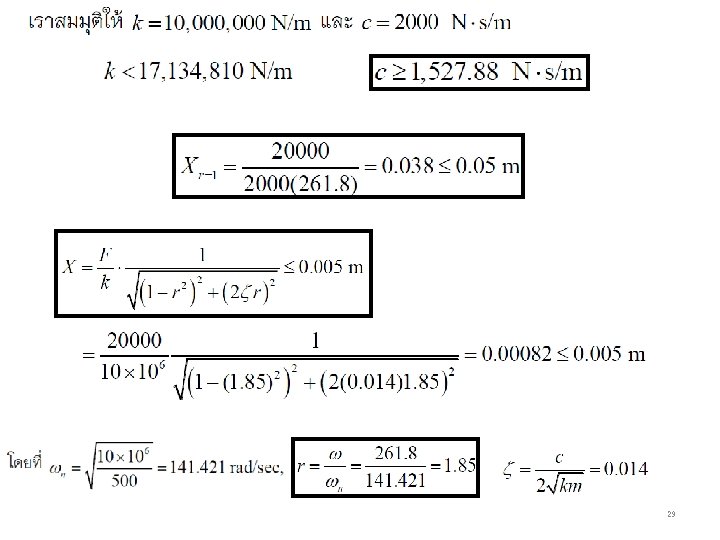

29

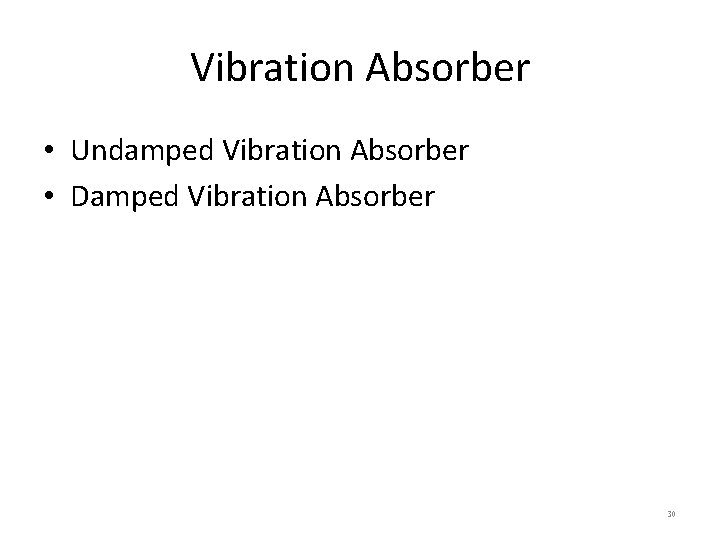

Vibration Absorber • Undamped Vibration Absorber • Damped Vibration Absorber 30

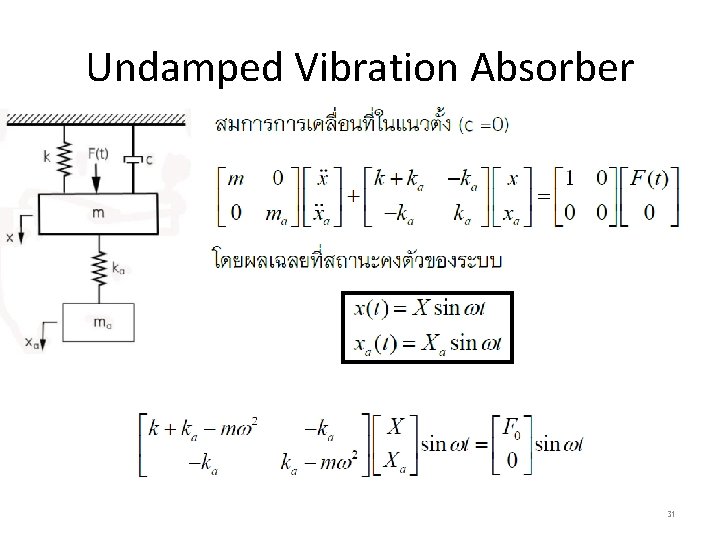

Undamped Vibration Absorber 31

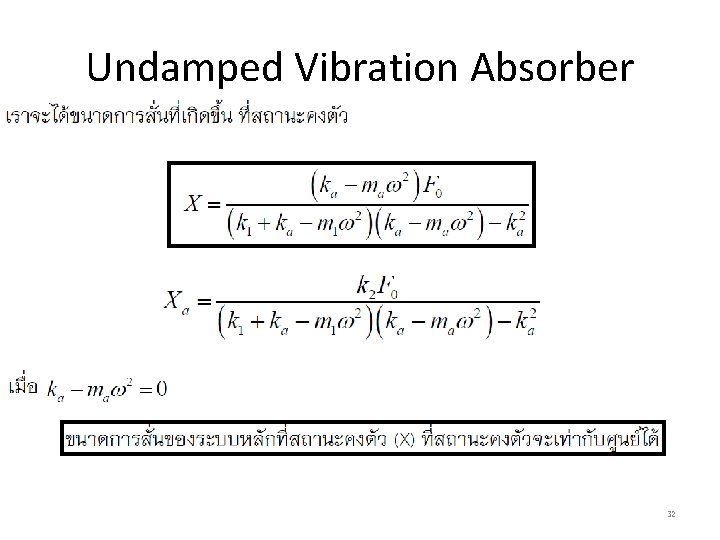

Undamped Vibration Absorber 32

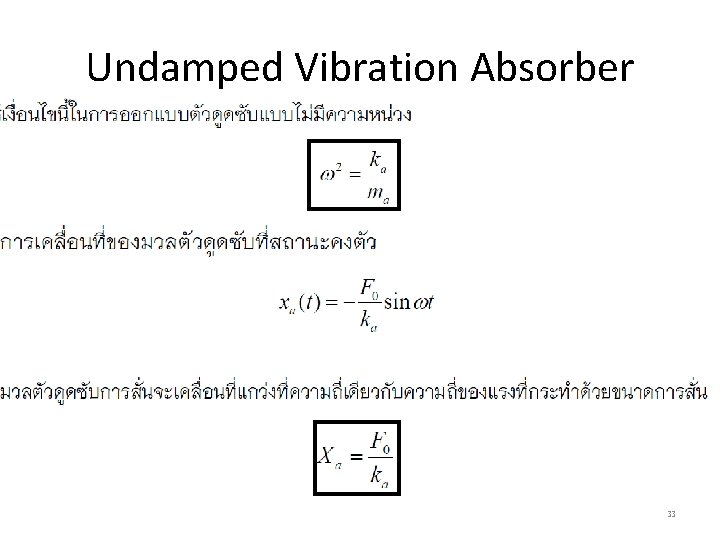

Undamped Vibration Absorber 33

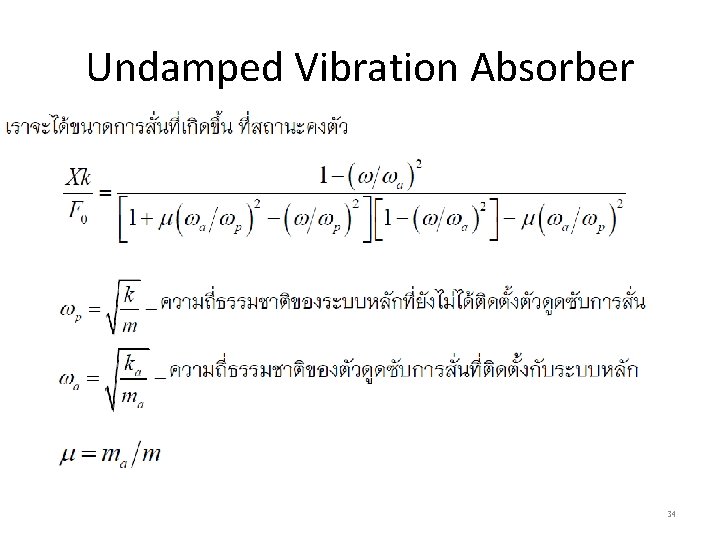

Undamped Vibration Absorber 34

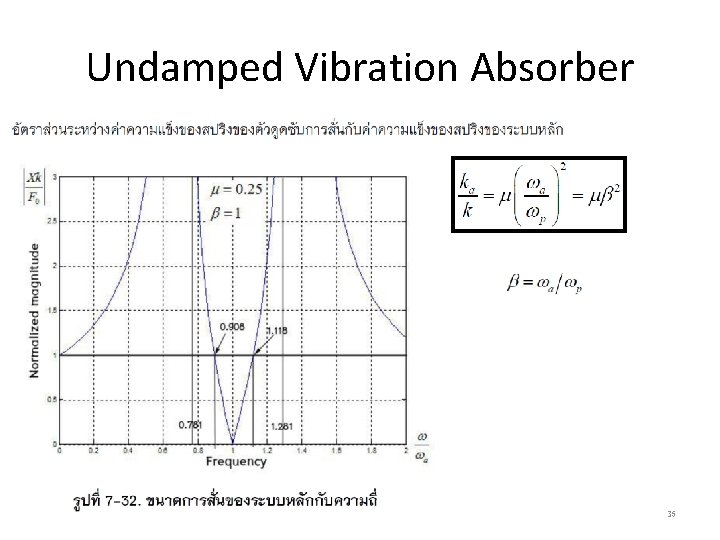

Undamped Vibration Absorber 35

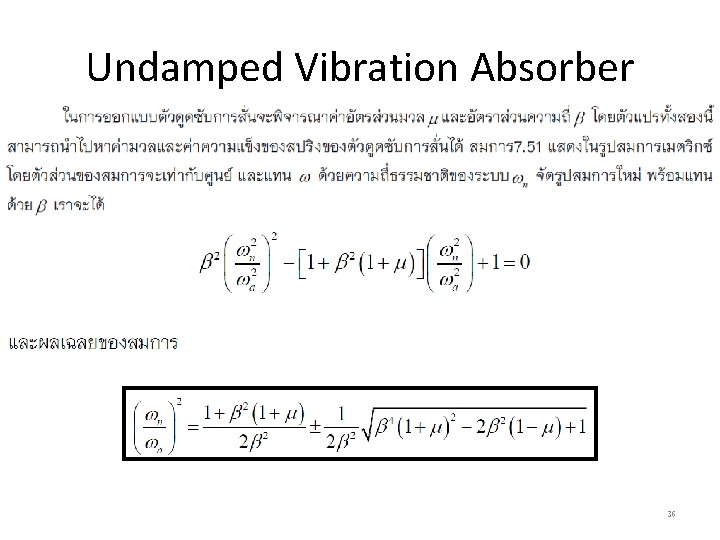

Undamped Vibration Absorber 36

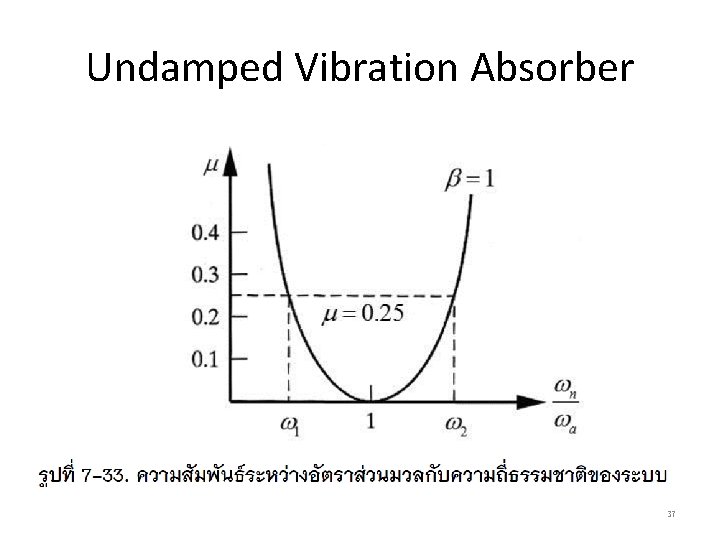

Undamped Vibration Absorber 37

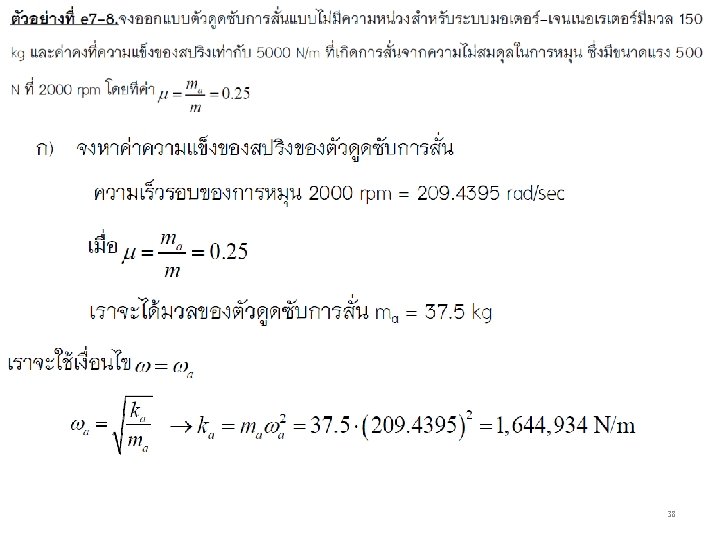

38

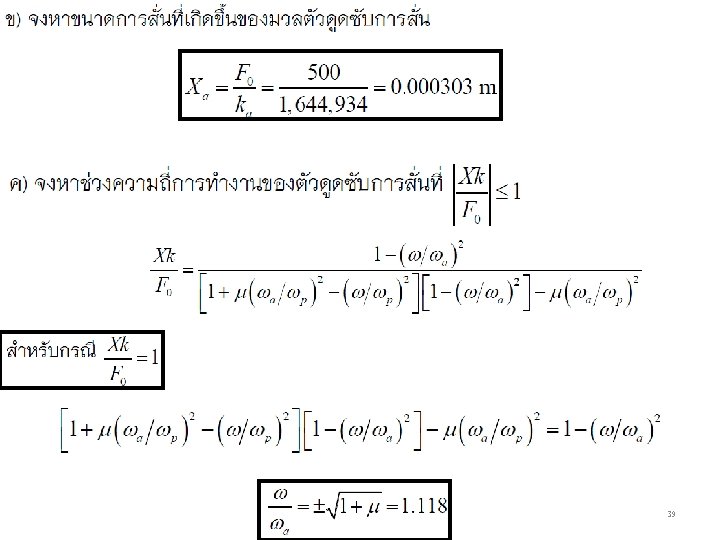

39

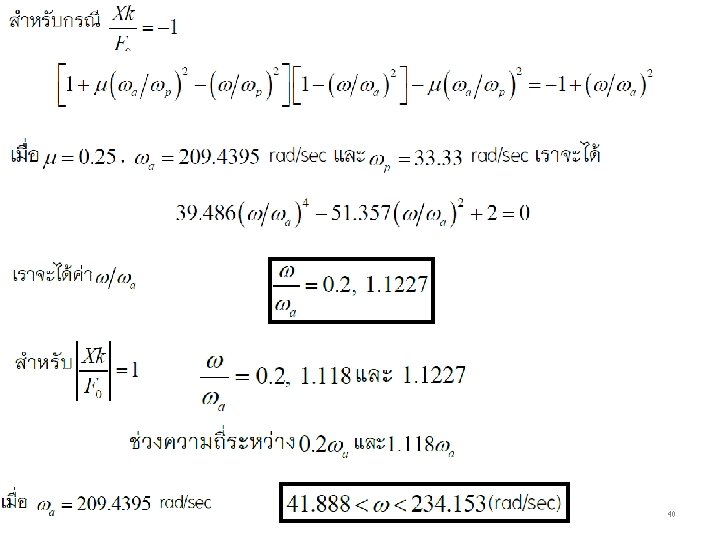

40

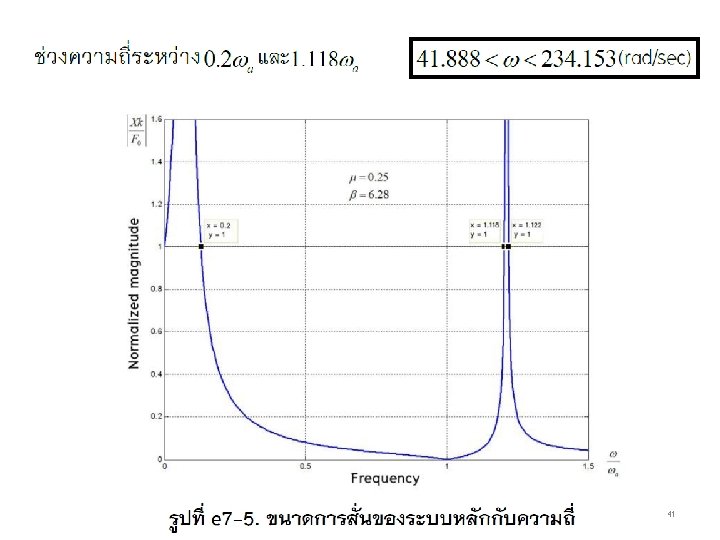

41
