Vibrating Membrane Filtration System Product System Components Series
Vibrating Membrane Filtration System 전단력 강화 진동 막여과 시스템

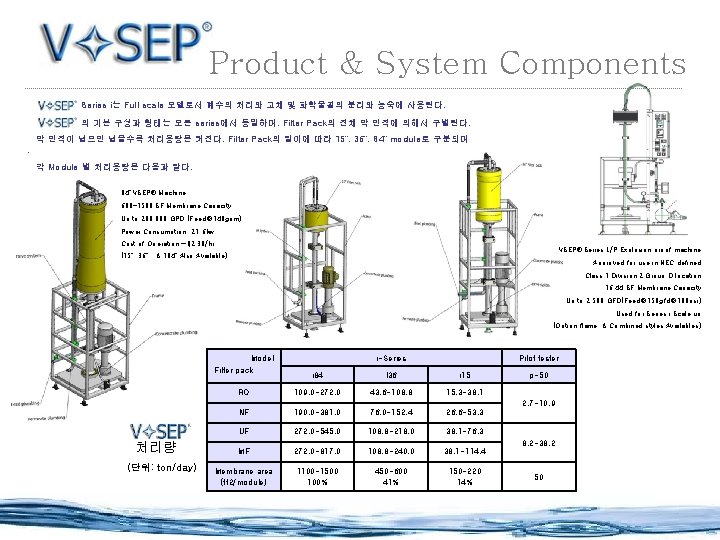

Product & System Components Series i는 Full scale 모델로서 폐수의 처리와 고체 및 화학물질의 분리와 농축에 사용된다. 의 기본 구성과 형태는 모든 series에서 동일하며, Filter Pack의 전체 막 면적에 의해서 구별된다. 막 면적이 넓으면 넓을수록 처리용량은 커진다. Filter Pack의 길이에 따라 15”, 36”, 84” module로 구분되며 , 각 Module 별 처리용량은 다음과 같다. 84” VSEP® Machine 600 -1500 SF Membrane Capacity Up to 200, 000 GPD (Feed@140 gpm) Power Consumption: 21. 6 kw Cost of Operation ~$2. 38/hr VSEP® Series L/P Explosion proof machine (15” , 36” , & 104” Also Available) Approved for use in NEC defined Class 1, Division 2, Group D location 16. 44 SF Membrane Capacity Up to 2, 500 GFD(Feed@150 gfd@100 psi) Used for Series i Scale up (Option flame & Combined styles Availables) Model Filter pack i-Series Pilot tester i 84 I 36 i 15 RO 109. 0 -272. 0 43. 6 -108. 8 15. 3 -38. 1 NF 190. 0 -381. 0 76. 0 -152. 4 26. 6 -53. 3 UF 272. 0 -545. 0 108. 8 -218. 0 38. 1 -76. 3 MF 272. 0 -817. 0 108. 8 -240. 0 38. 1 -114. 4 Membrane area (ft 2/module) 1100 -1500 100% 450 -600 41% 150 -220 14% p-50 2. 7 -10. 9 처리량 (단위: ton/day) 8. 2 -38. 2 50

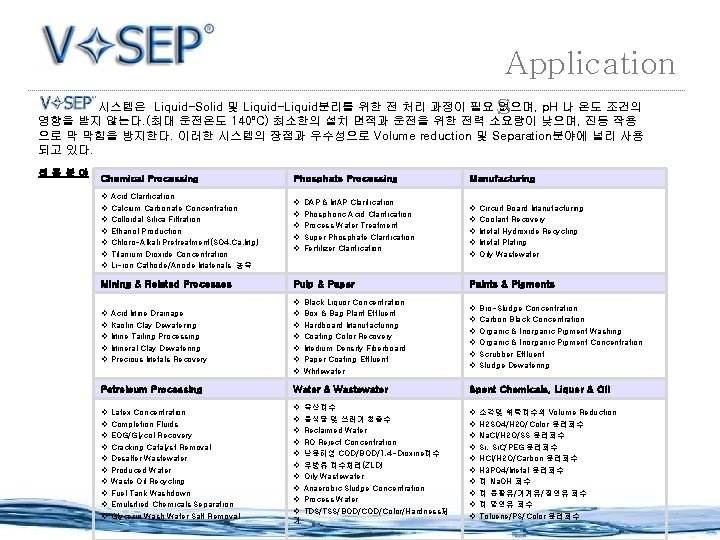

Application s 시스템은 Liquid-Solid 및 Liquid-Liquid분리를 위한 전 처리 과정이 필요 없으며, p. H 나 온도 조건의 영향을 받지 않는다. (최대 운전온도 140°C) 최소한의 설치 면적과 운전을 위한 전력 소요량이 낮으며, 진동 작용 으로 막 막힘을 방지한다. 이러한 시스템의 장점과 우수성으로 Volume reduction 및 Separation분야에 널리 사용 되고 있다. 적용분야 Chemical Processing v v v v Acid Clarification Calcium Carbonate Concentration Colloidal Silica Filtration Ethanol Production Chloro-Alkali Pretreatment(SO 4, Ca, Mg) Titanium Dioxide Concentration Li-ion Cathode/Anode Materials 농축 Phosphate Processing v v v DAP & MAP Clarification Phosphoric Acid Clarification Process Water Treatment Super Phosphate Clarification Fertilizer Clarification Manufacturing v v v Circuit Board Manufacturing Coolant Recovery Metal Hydroxide Recycling Metal Plating Oily Wastewater Mining & Related Processes Pulp & Paper Paints & Pigments v v v v v Acid Mine Drainage Kaolin Clay Dewatering Mine Tailing Processing Mineral Clay Dewatering Precious Metals Recovery Petroleum Processing v v v v v Latex Concentration Completion Fluids EOG/Glycol Recovery Cracking Catalyst Removal Desalter Wastewater Produced Water Waste Oil Recycling Fuel Tank Washdown Emulsified Chemicals Separation Glycerin Wash Water Salt Removal Black Liquor Concentration Box & Bag Plant Effluent Hardboard Manufacturing Coating Color Recovery Medium Density Fiberboard Paper Coating Effluent Whitewater Water & Wastewater v v v v v 거 축산폐수 음식물 및 쓰레기 침출수 Reclaimed Water RO Reject Concentration 난분해성 COD/BOD/1, 4 -Dioxine폐수 무방류 폐수처리(ZLD) Oily Wastewater Anaerobic Sludge Concentration Process Water TDS/TSS/BOD/Color/Hardness제 Bio-Sludge Concentration Carbon Black Concentration Organic & Inorganic Pigment Washing Organic & Inorganic Pigment Concentration Scrubber Effluent Sludge Dewatering Spent Chemicals, Liquor & Oil v v v v v 소각및 위탁폐수의 Volume Reduction H 2 SO 4/H 2 O/Color 분리회수 Na. Cl/H 2 O/SS 분리회수 Si, Si. C/PEG 분리회수 HCl/H 2 O/Carbon 분리회수 H 3 PO 4/Metal 분리회수 폐 Na. OH 회수 폐 윤활유/기계유/절연유 회수 폐 압연유 회수 Toluene/PS/Color 분리회수

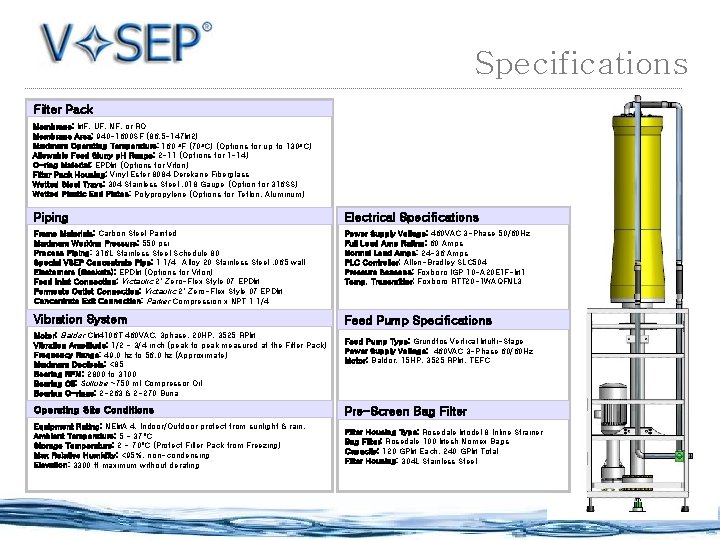

Specifications Filter Pack Membrane: MF, UF, NF, or RO Membrane Area: 940 -1600 SF (86. 5 -147 M 2) Maximum Operating Temperature: 160 ºF (70ºC) (Options for up to 130ºC) Allowable Feed Slurry p. H Range: 2 -11 (Options for 1 -14) O-ring Material: EPDM (Options for Viton) Filter Pack Housing: Vinyl Ester 8084 Derekane Fiberglass Wetted Steel Trays: 304 Stainless Steel. 018 Gauge (Option for 316 SS) Wetted Plastic End Plates: Polypropylene (Options for Teflon, Aluminum) Piping Electrical Specifications Frame Materials: Carbon Steel Painted Maximum Working Pressure: 550 psi Process Piping: 316 L Stainless Steel Schedule 80 Special VSEP Concentrate Pipe: 1 1/4” Alloy 20 Stainless Steel. 065 wall Elastomers (Gaskets): EPDM (Options for Viton) Feed Inlet Connection: Victaulic 2" Zero-Flex Style 07 EPDM Permeate Outlet Connection: Victaulic 2" Zero-Flex Style 07 EPDM Concentrate Exit Connection: Parker Compression x NPT 1 1/4” Power Supply Voltage: 460 VAC 3 -Phase 50/60 Hz Full Load Amp Rating: 60 Amps Normal Load Amps: 24 -36 Amps PLC Controller: Allen-Bradley SLC 504 Pressure Seasons: Foxboro IGP 10 -A 20 E 1 F-M 1 Temp. Transmitter: Foxboro RTT 20 -1 WAQFNL 3 Vibration System Feed Pump Specifications Motor: Baldor CM 4106 T 460 VAC, 3 phase, 20 HP, 3525 RPM Vibration Amplitude: 1/2 - 3/4 inch (peak to peak measured at the Filter Pack) Frequency Range: 49. 0 hz to 56. 0 hz (Approximate) Maximum Decibels: <85 Bearing RPM: 2800 to 3100 Bearing Oil: Sullube ~750 ml Compressor Oil Bearing O-rings: 2 -263 & 2 -270 Buna Feed Pump Type: Grundfos Vertical Multi-Stage Power Supply Voltage: 460 VAC 3 -Phase 60/60 Hz Motor: Baldor, 15 HP, 3525 RPM, TEFC Operating Site Conditions Pre-Screen Bag Filter Equipment Rating: NEMA 4, Indoor/Outdoor protect from sunlight & rain. Ambient Temperature: 5 - 37°C Storage Temperature: 2 - 70°C (Protect Filter Pack from Freezing) Max Relative Humidity: <95%, non-condensing Elevation: 3300 ft maximum without derating Filter Housing Type: Rosedale Model 8 Inline Strainer Bag Filter: Rosedale 100 Mesh Nomex Bags Capacity: 120 GPM Each, 240 GPM Total Filter Housing: 304 L Stainless Steel

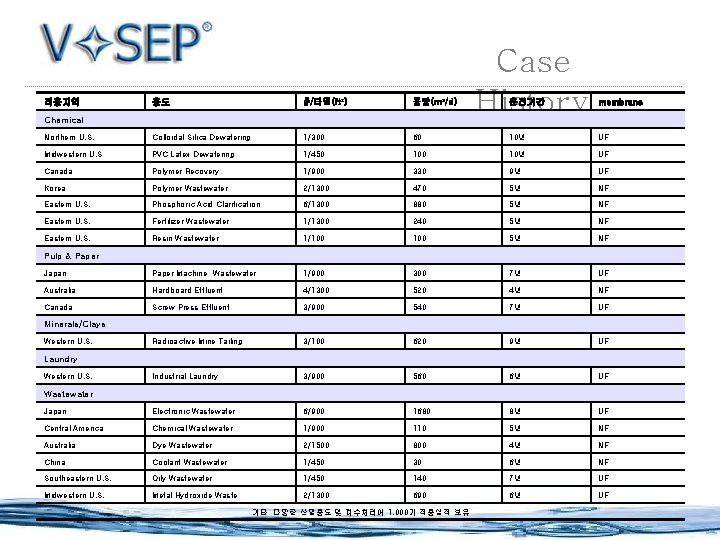

용도 #/타입(ft²) 용량(m³/d) Northern U. S. Colloidal Silica Dewatering 1/300 Midwestern U. S PVC Latex Dewatering Canada 적용지역 Case History 운전기간 membrane 60 10년 UF 1/450 10년 UF Polymer Recovery 1/900 330 9년 UF Korea Polymer Wastewater 2/1300 470 5년 NF Eastern U. S. Phosphoric Acid Clarification 6/1300 880 5년 NF Eastern U. S. Fertilizer Wastewater 1/1300 240 5년 NF Eastern U. S. Resin Wastewater 1/100 5년 NF Japan Paper Machine Wastewater 1/900 300 7년 UF Australia Hardboard Effluent 4/1300 520 4년 NF Canada Screw Press Effluent 3/900 540 7년 UF Radioactive Mine Tailing 3/100 620 9년 UF Industrial Laundry 3/900 560 6년 UF Japan Electronic Wastewater 6/900 1680 8년 UF Central America Chemical Wastewater 1/900 110 5년 NF Australia Dye Wastewater 2/1500 800 4년 NF China Coolant Wastewater 1/450 30 6년 NF Southeastern U. S. Oily Wastewater 1/450 140 7년 UF Midwestern U. S. Metal Hydroxide Waste 2/1300 690 6년 UF Chemical Pulp & Paper Minerals/Clays Western U. S. Laundry Western U. S. Wastewater 기타 다양한 산업용도 및 폐수처리에 1, 000개 적용실적 보유

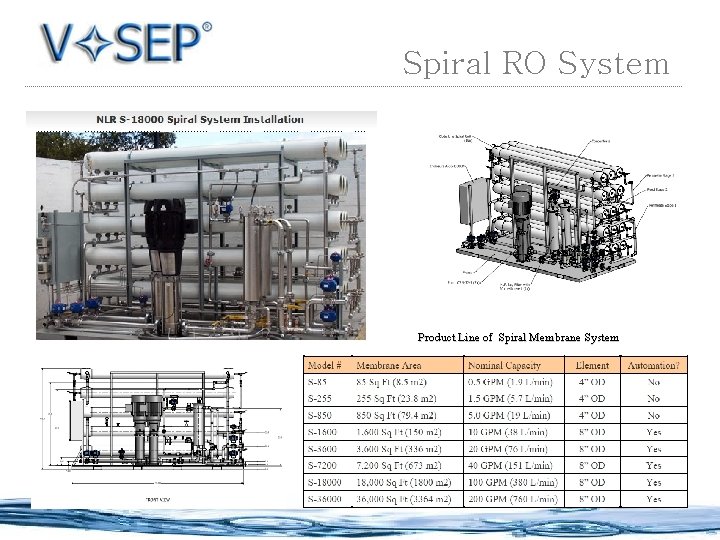

Spiral RO System Product Line of Spiral Membrane System

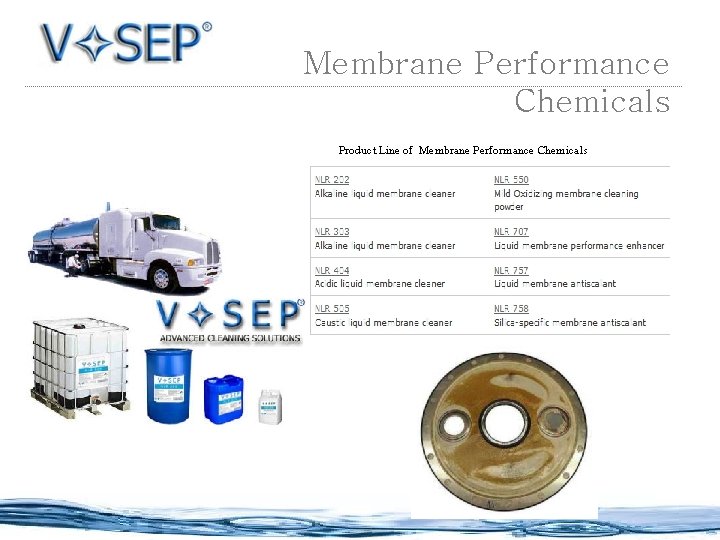

Membrane Performance Chemicals Product Line of Membrane Performance Chemicals

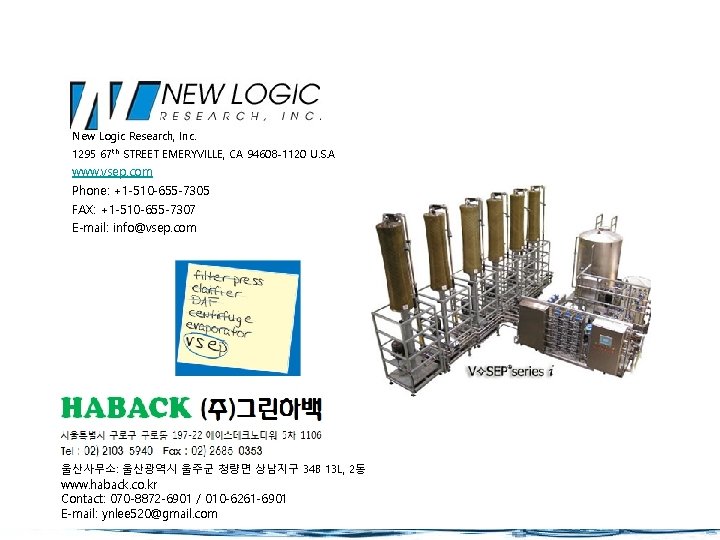

New Logic Research, Inc. 1295 67 th STREET EMERYVILLE, CA 94608 -1120 U. S. A www. vsep. com Phone: +1 -510 -655 -7305 FAX: +1 -510 -655 -7307 E-mail: info@vsep. com 울산사무소: 울산광역시 울주군 청량면 상남지구 34 B 13 L, 2동 www. haback. co. kr Contact: 070 -8872 -6901 / 010 -6261 -6901 E-mail: ynlee 520@gmail. com
