VH IVUS IVUS EEM Area Lumen Area EEM

  • Slides: 46
Download presentation

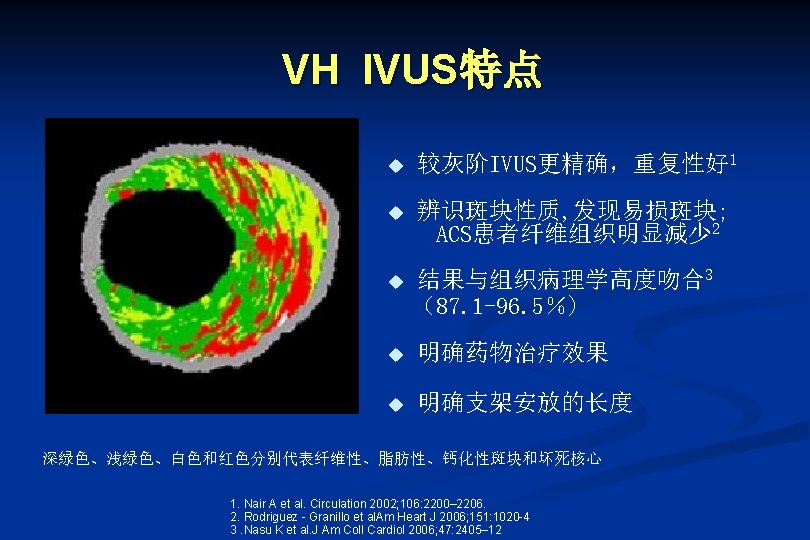

VH IVUS图像

VH IVUS图像

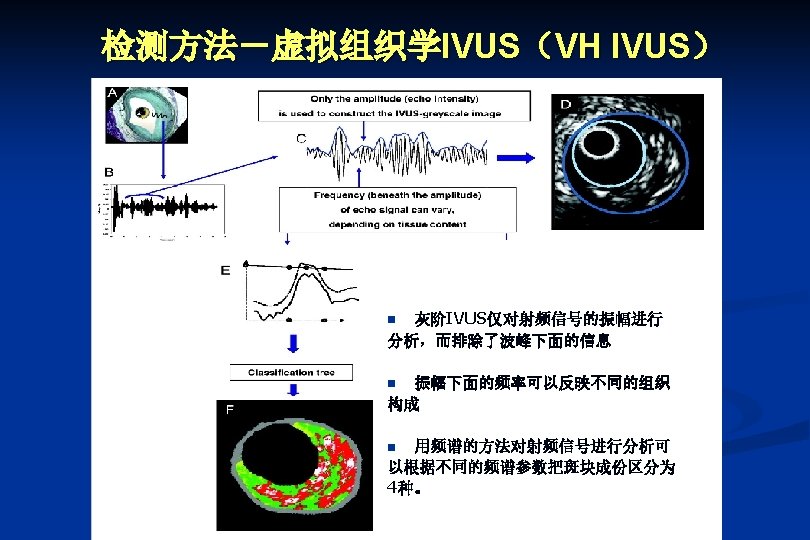

检测方法－灰阶IVUS测定斑块体积 EEM Area Lumen Area (EEM area — Lumen Area) * 斑�＋中膜体� ＝外�力膜体� (EEM)－管腔体�

检测方法－灰阶IVUS测定斑块体积 EEM Area Lumen Area (EEM area — Lumen Area) * 斑�＋中膜体� ＝外�力膜体� (EEM)－管腔体� (Lumen) Nasu et al. J Am Coll Cardiol Intv 2009; 2: 689 -96

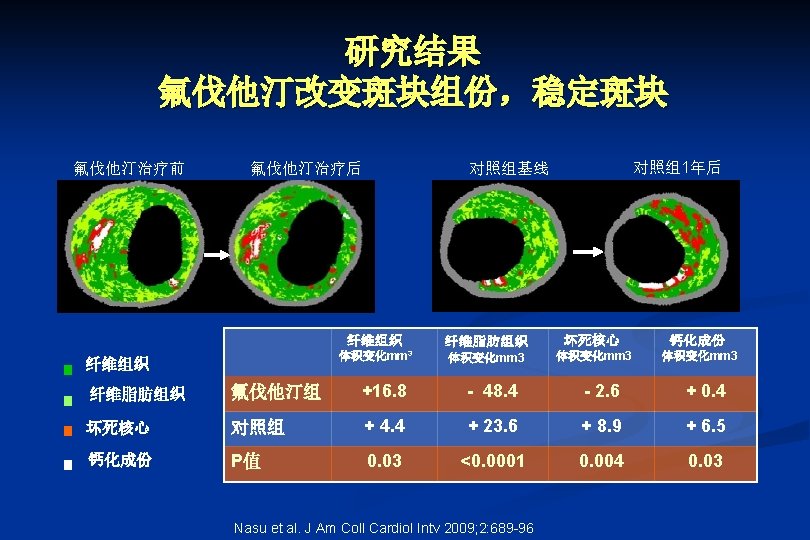

氟伐他汀对斑块的影响 Effect of Fluvastatin on Progression of Coronary Atherosclerotic Plaque Evaluated by Virtual Histology

氟伐他汀对斑块的影响 Effect of Fluvastatin on Progression of Coronary Atherosclerotic Plaque Evaluated by Virtual Histology Intravascular Ultrasound J AM Coll Cardiol Intv 2009 既评价了他汀应用后对斑块体积的影响， 又评价了他汀对斑块组份的影响

JUPITER结果再分析： hs-CRP的下降是心血管获益的原因之一 人数 HR 安慰剂 7832 1. 11 hs. CRP 达到值 > 2 mg/L

JUPITER结果再分析： hs-CRP的下降是心血管获益的原因之一 人数 HR 安慰剂 7832 1. 11 hs. CRP 达到值 > 2 mg/L 4305 0. 77 hs. CRP 达到值 < 2 mg/L 3411 0. 42 安慰剂 7832 1. 11 hs. CRP降低 < 50 % 4143 0. 70 hs. CRP降低 > 50 % 3573 0. 51 P < 0. 001 0. 25 0. 5 有利于瑞舒伐他汀 1. 0 2. 0 有利于安慰剂 JUPITER Trial Study Group. www. thelancet. com Published online March 29, 2009 DOI: 10. 1016/S 0140 -6736(09)60447 -5 4. 0

JUPITER结果再分析： hs-CRP的下降是他汀的独立作用, 与LDL-C下降无关 JUPITER Trial Study Group. www. thelancet. com Published online March 29,

JUPITER结果再分析： hs-CRP的下降是他汀的独立作用, 与LDL-C下降无关 JUPITER Trial Study Group. www. thelancet. com Published online March 29, 2009 DOI: 10. 1016/S 0140 -6736(09)60447 -5

本研究：氟伐他汀降低LDL-C的同时 显著降低CRP和TG LDL-C TG hs-CRP 实验室指标较基线变化％ 0 -10 -20 -30 -40 -50 -31. 8%

本研究：氟伐他汀降低LDL-C的同时 显著降低CRP和TG LDL-C TG hs-CRP 实验室指标较基线变化％ 0 -10 -20 -30 -40 -50 -31. 8% -44. 5% -48. 9% Nasu et al. J Am Coll Cardiol Intv 2009; 2: 689 -96

《NATURE》动脉粥样硬化的可能干预点： 脂质代谢和炎症反应 At present, the two main conceptual approaches to therapy for atherosclerosis are

《NATURE》动脉粥样硬化的可能干预点： 脂质代谢和炎症反应 At present, the two main conceptual approaches to therapy for atherosclerosis are manipulation of plasma lipoprotein metabolism or cellular cholesterol metabolism, and manipulation of inflammatory processes. 迄今为止，干预脂质代谢和干预炎症反应是理论上 干预动脉粥样硬化的两大治疗手段 Darviel J et al 2008; 451: 904 -913
