VEX ROBOTICS Important Components Microcontroller Power Motor Sensors

VEX ROBOTICS

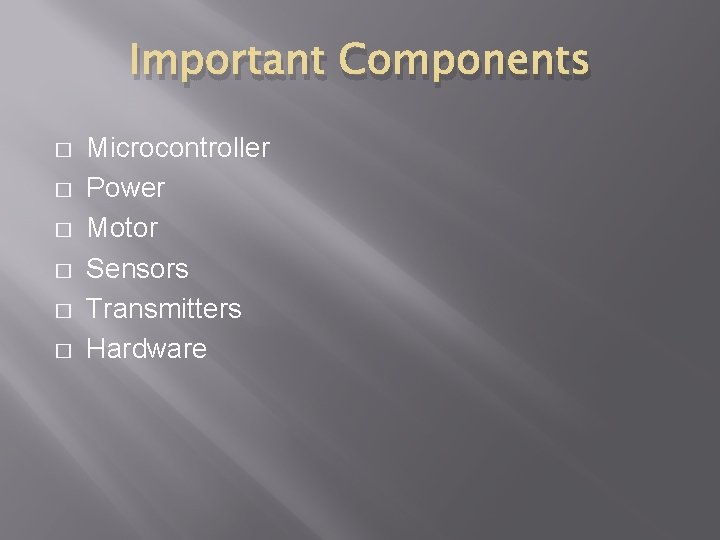

Important Components � � � Microcontroller Power Motor Sensors Transmitters Hardware

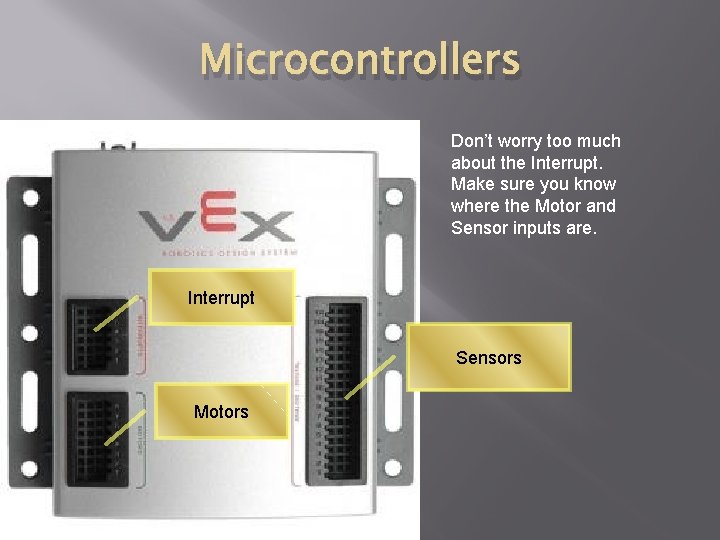

Microcontrollers Don’t worry too much about the Interrupt. Make sure you know where the Motor and Sensor inputs are. Interrupt Sensors Motors

Microcontrollers Status lights Battery Transmitter Serial Cable

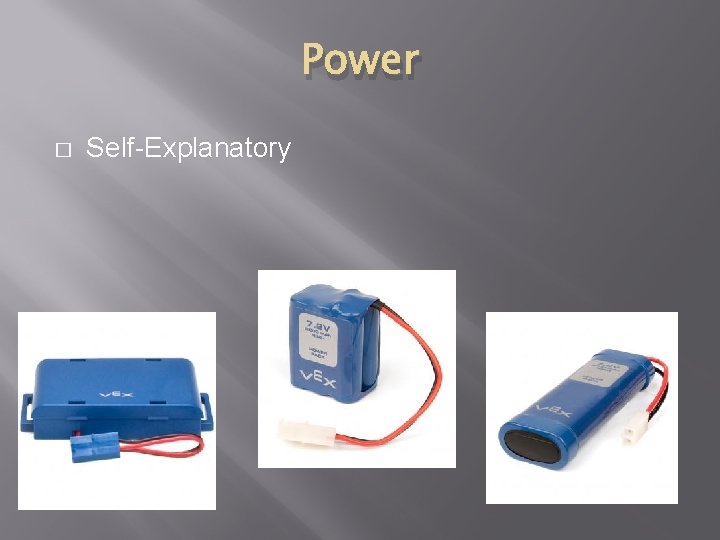

Power � Self-Explanatory

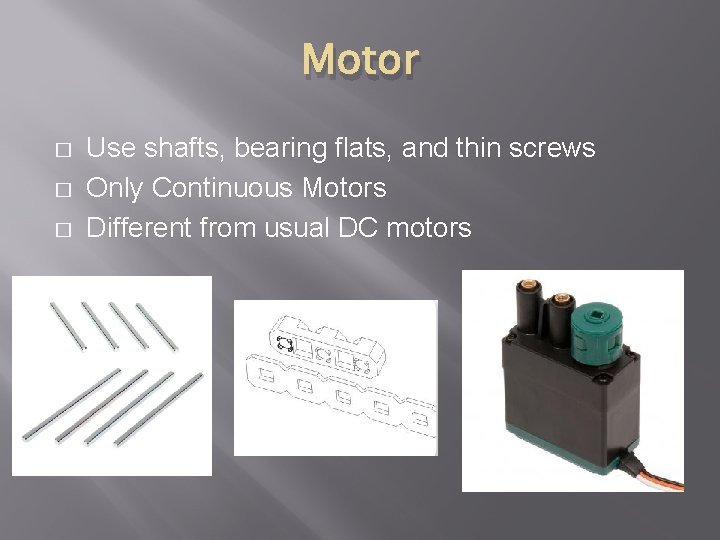

Motor � � � Use shafts, bearing flats, and thin screws Only Continuous Motors Different from usual DC motors

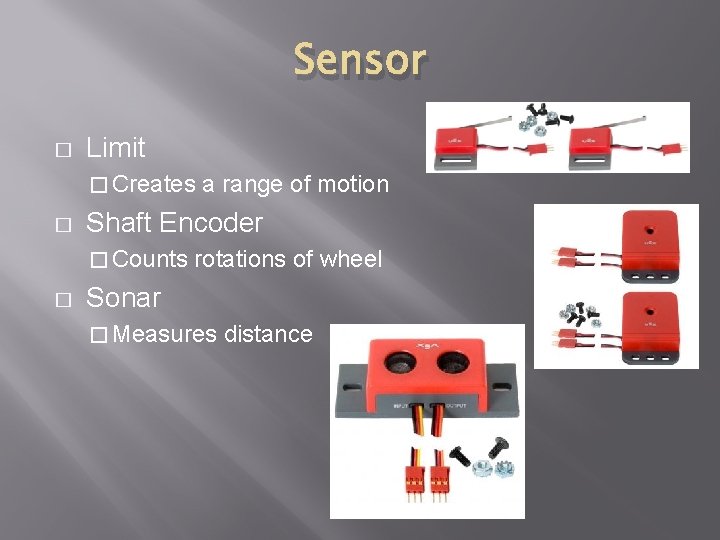

Sensor � Limit � Creates � Shaft Encoder � Counts � a range of motion rotations of wheel Sonar � Measures distance

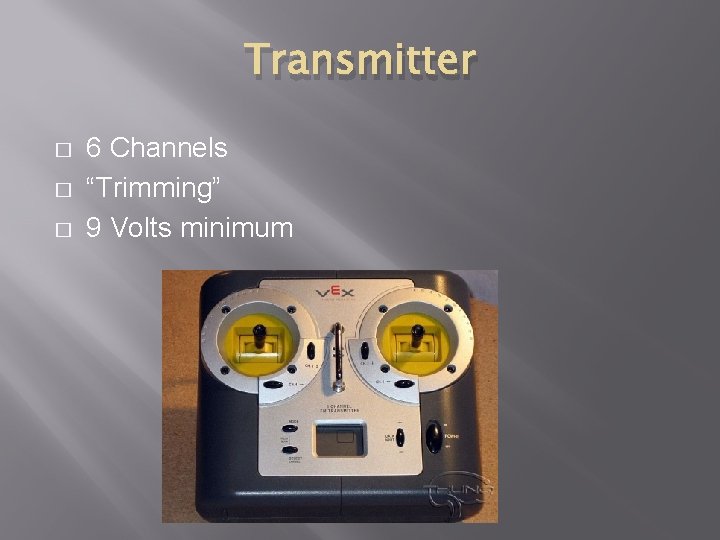

Transmitter � � � 6 Channels “Trimming” 9 Volts minimum

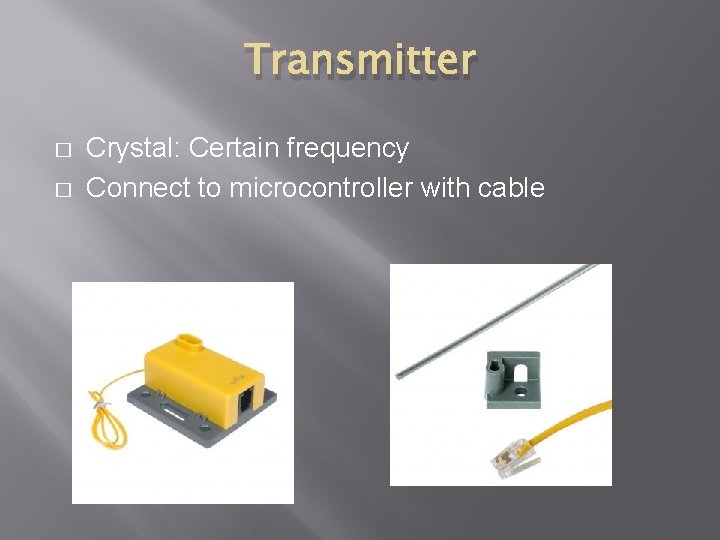

Transmitter � � Crystal: Certain frequency Connect to microcontroller with cable

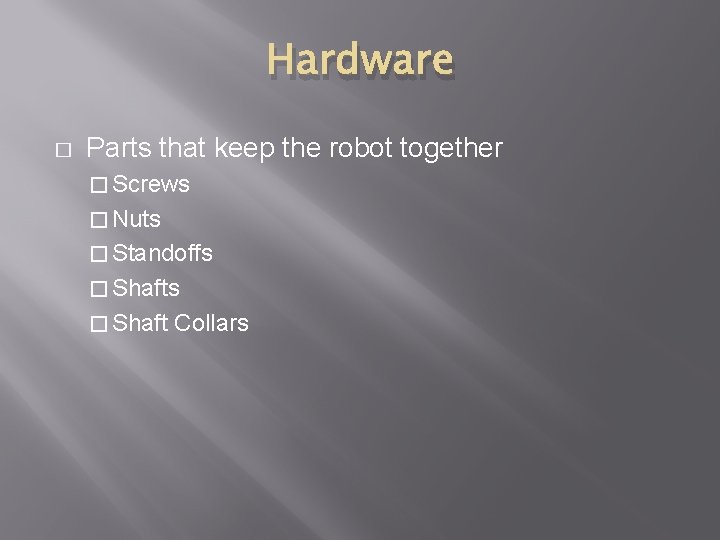

Hardware � Parts that keep the robot together � Screws � Nuts � Standoffs � Shaft Collars

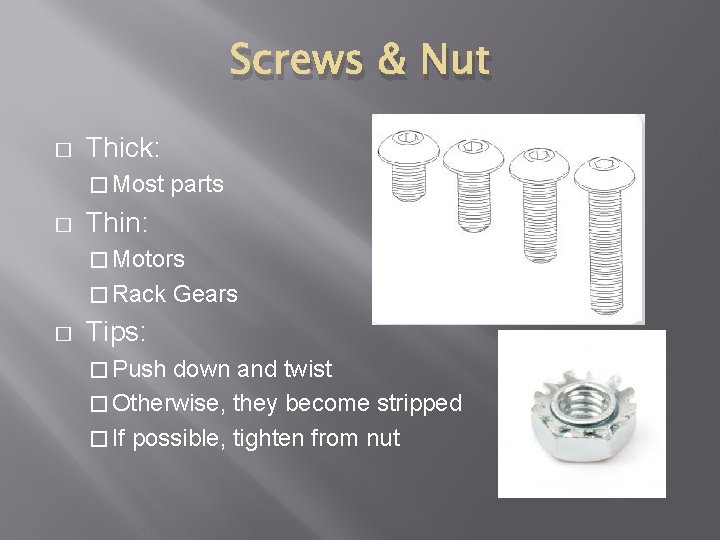

Screws & Nut � Thick: � Most � parts Thin: � Motors � Rack � Gears Tips: � Push down and twist � Otherwise, they become stripped � If possible, tighten from nut

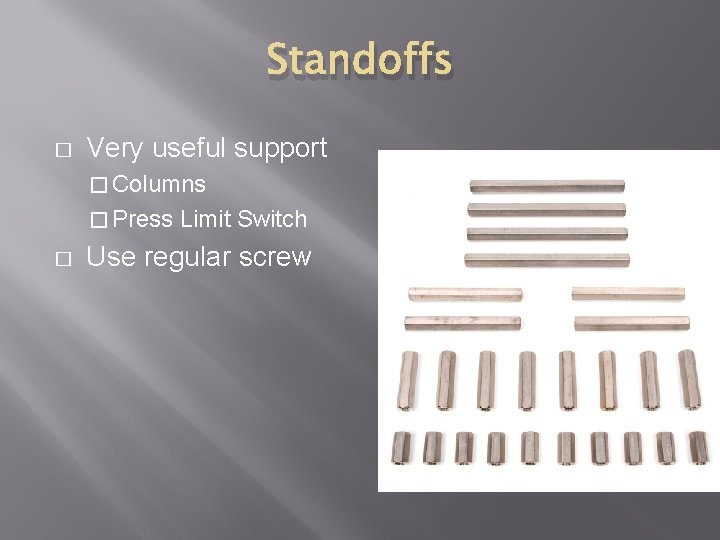

Standoffs � Very useful support � Columns � Press � Limit Switch Use regular screw

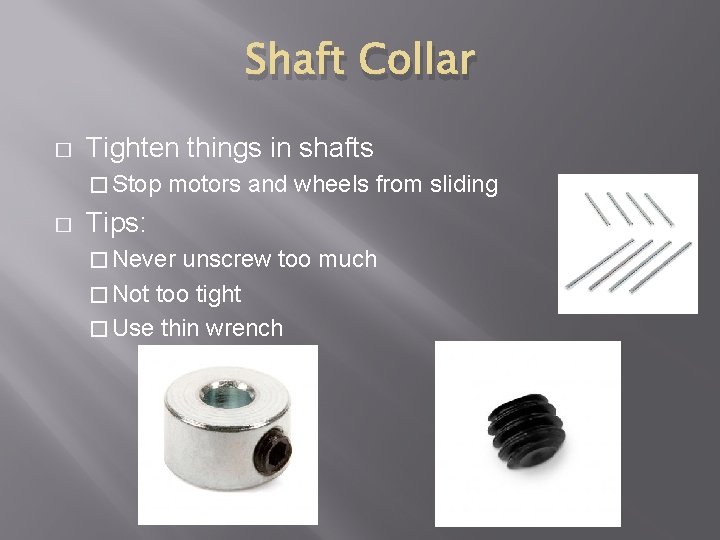

Shaft Collar � Tighten things in shafts � Stop � motors and wheels from sliding Tips: � Never unscrew too much � Not too tight � Use thin wrench

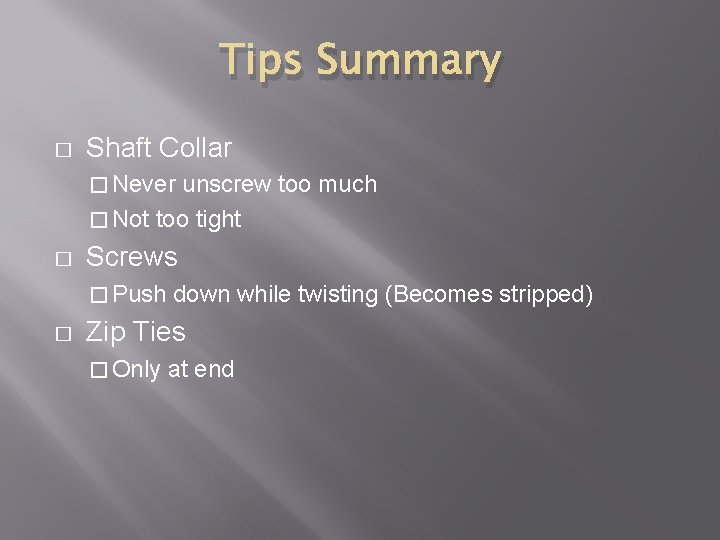

Tips Summary � Shaft Collar � Never unscrew too much � Not too tight � Screws � Push � down while twisting (Becomes stripped) Zip Ties � Only at end

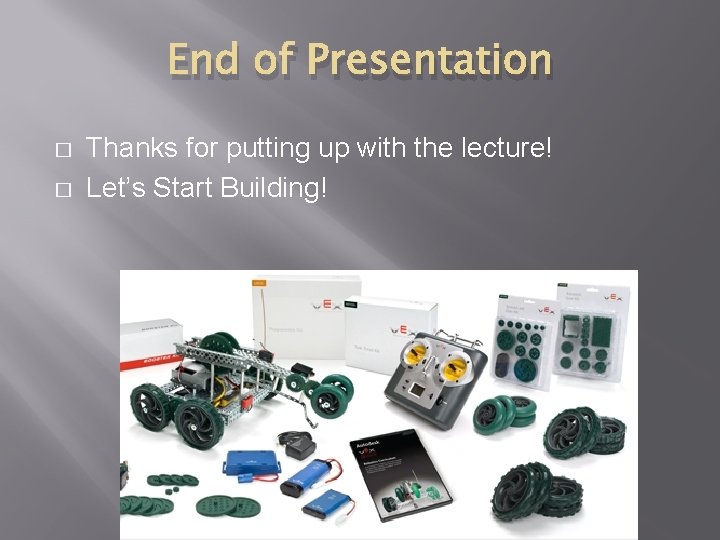

End of Presentation � � Thanks for putting up with the lecture! Let’s Start Building!
