Vex HandsAccumulators Accumulators Claw Conveyor Belts Conveyer belts

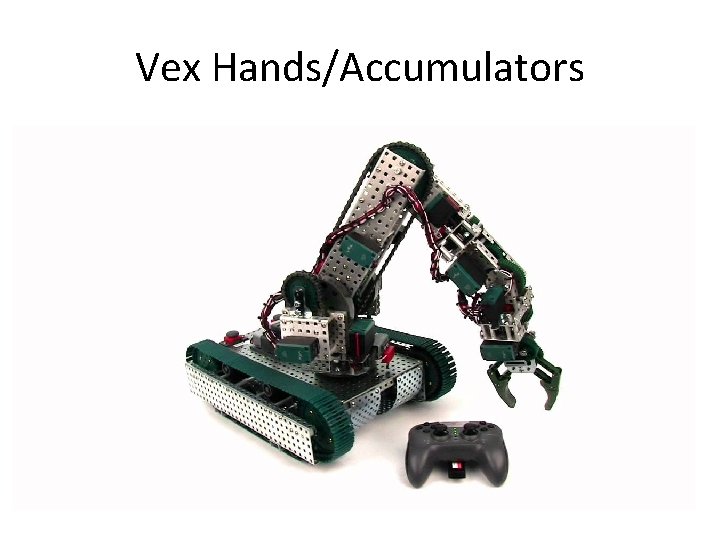

Vex Hands/Accumulators

Accumulators

Claw

Conveyor Belts ● Conveyer belts- These manipulators can be used to lift objects or move them horizontally. ● They consist of the tank tread kit (P/N: 276 -2168) or chain from the high strength (P/N: 276 -2252) or regular sprocket (P/N: 276 -2166) sets. ● They commonly included something to keep the objects from slipping on the belt. This could be physical structures such as the tank tread upgrade kit's (P/N: 276 -2214) conveyer flaps, zip ties, screws through the tack treads, or metal structures like the angle gusset attached to the tread. ● Many times the conveyer belt is integrated into a roller claw. ● All conveyer belts require at least one motor to activate

Conveyor Belt Samples

Conveyor Belts Pros and Cons ●Advantages – ●Can move objects horizontally or lift them vertically. ●Requires a low to medium torque application. ●Can be constructed out of the parts from the classroom lab kit. ●Disadvantages●take up a large volume on the robot, can raise the center of gravity of the robot

Sack Attack Sample

Build, Drive, Demonstrate • Obstacle Course – Show completion/ Times • Soccer – Tournament at 4: 00 pm if robots are ready • Lab open until 5: 00 pm

Power: Batteries and Chargers ●Robot ● 7. 2 V Ni. MH 2000 m. Ah (Charge in Safe Setting Only) ● 7. 2 V Ni. MH 3000 m. Ah ●Power Expander ● Lets you add a second battery to your robot. ●Smart Charger ●Remotes use AAA Batteries

End of conference • Please complete the following end of workshop survey. • https: //www. surveymonkey. com/s/VEXRobot CSurvey

References ●www. simplerobotics. org ●http: //curriculum. vexrobotics. com/curriculu m ●https: //www. youtube. com/watch? v=lgh. CZO 6 9 s 5 M ●(Websites showing Nothing but net prototypes)https: //www. youtube. com/playlist ? list=PLXm. AL 0 i. Zac 6 q. NZ 8 x. Kz. Ngkidnwvr. KXERt m
