Veslask materil z z z lod vesla nad

  • Slides: 81
Download presentation

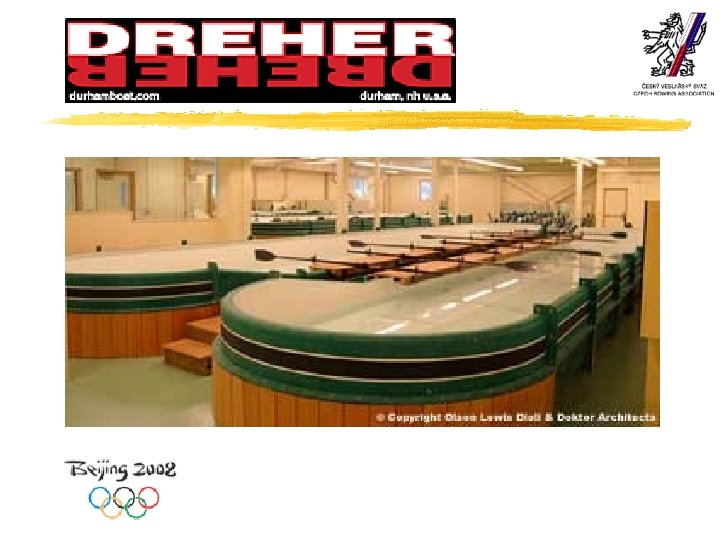

Veslařský materiál z z z lodě vesla nářadí čluny vleky na lodě veslařský bazén

Veslařský materiál z z z lodě vesla nářadí čluny vleky na lodě veslařský bazén

Construction: Olympia X The hull is made in sandwich construction with Carbon Nomex Honeycombs.

Construction: Olympia X The hull is made in sandwich construction with Carbon Nomex Honeycombs. . Our sandwich laminate is pressed together by using vacuum technologies, which is increasing the stiffness. Riggers: Carbon 2 -stay rigger

Karbon: krakorce, kačena, slajd ( několik velikostí. . ) Cena: skif 6 700, -

Karbon: krakorce, kačena, slajd ( několik velikostí. . ) Cena: skif 6 700, - € (bez DPH) dělená osma 20 800, - (alum. krakorce) karbonové krakorce: 880 €/1 pár

Junior: These boat is made in two pieces, totally hand laminated in glass fibre.

Junior: These boat is made in two pieces, totally hand laminated in glass fibre. The cockpit and the hull piece are sticked together. Cena: 1 600 €

Construction: : Touring boats are made out of a glass fiber laminate, which is

Construction: : Touring boats are made out of a glass fiber laminate, which is reinforced by Kevlar. The interior is made in sandwich decks and bulkheads, which increases the boat buoyancy. Carbon reinforced wooden ribs increase the boat stiffness

Cena: Skul 3 800 € (+ 450 sandwich ) Skul s 4950 € (+

Cena: Skul 3 800 € (+ 450 sandwich ) Skul s 4950 € (+ 1200)

performance connection recovery support no slippage Cena: 75 €/1 pár

performance connection recovery support no slippage Cena: 75 €/1 pár

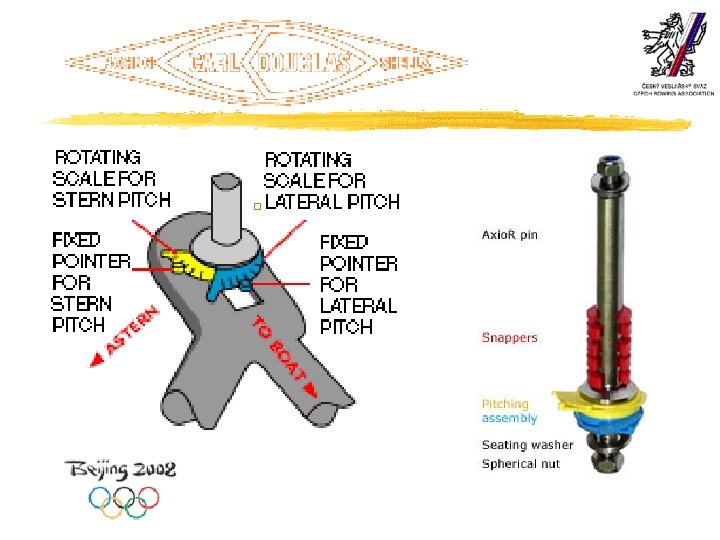

accuracy of 0. 25° Blades. from 0 to 7° footstretcher from 38 to 45°.

accuracy of 0. 25° Blades. from 0 to 7° footstretcher from 38 to 45°.

accuracy of 2 mm or less range of boat from 350 to 700 mm

accuracy of 2 mm or less range of boat from 350 to 700 mm

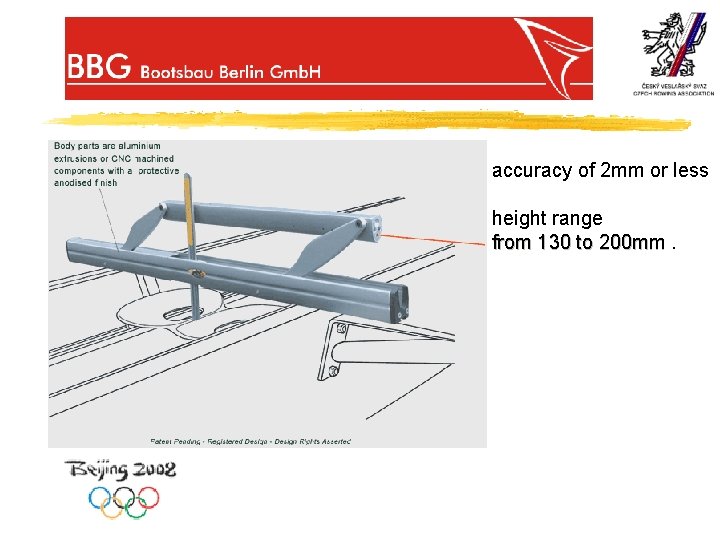

accuracy of 2 mm or less height range from 130 to 200 mm.

accuracy of 2 mm or less height range from 130 to 200 mm.

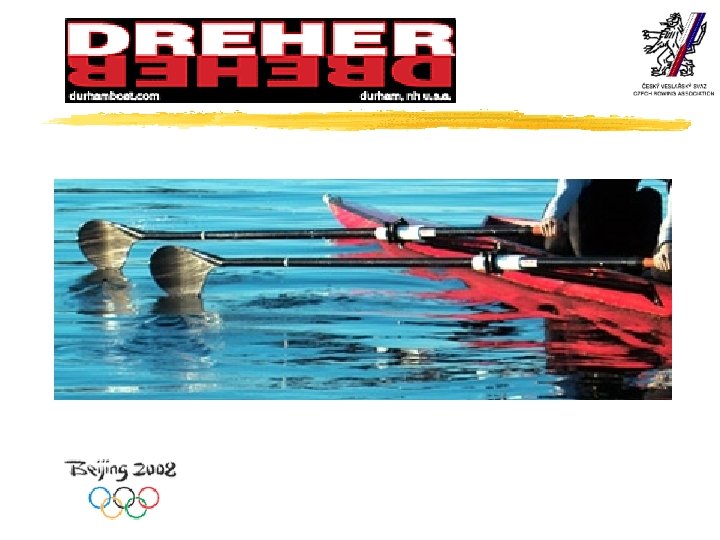

With beginning of 2002 BBG became official distributor for DREHER oars

With beginning of 2002 BBG became official distributor for DREHER oars

BB 2198 796 cm 2

BB 2198 796 cm 2

APEX Blade 816 cm 2 Cena: 460 USD 445 €

APEX Blade 816 cm 2 Cena: 460 USD 445 €

The theory of a smooth faced blade causing less disturbance to the flow of

The theory of a smooth faced blade causing less disturbance to the flow of water over the front face of the blade seemed to us to be in direct contradiction to basic hydrodynamic theory. Potential gains in hydrodynamic lift could be achieved if the back, not the front face of the blade, is free of impediments to the smooth movement of water in the direction of flow. It is not the front, but the back of the blade with its longer curved surface that accelerates the water flow and should provide a lifting force as the blade traverses out to the 90 degree stall position and back again during each stroke. By making the back surface "smooth" with the spine, or shaft attaching ridge parallel to the water flow, the blade would be more efficient and easier to handle.

APEX-RE 757 cm 2

APEX-RE 757 cm 2

Cena: 325 USD 310 €

Cena: 325 USD 310 €

Obaly na vesla: párová 30 € nepárová 35 € Typ Tvrdost Nast. dél. Tlošťka

Obaly na vesla: párová 30 € nepárová 35 € Typ Tvrdost Nast. dél. Tlošťka rukojeti soft yes small (s), medium (m), large (l) medium yes small (s), medium (m), large (l) stiff yes small (s), medium (m), large (l)

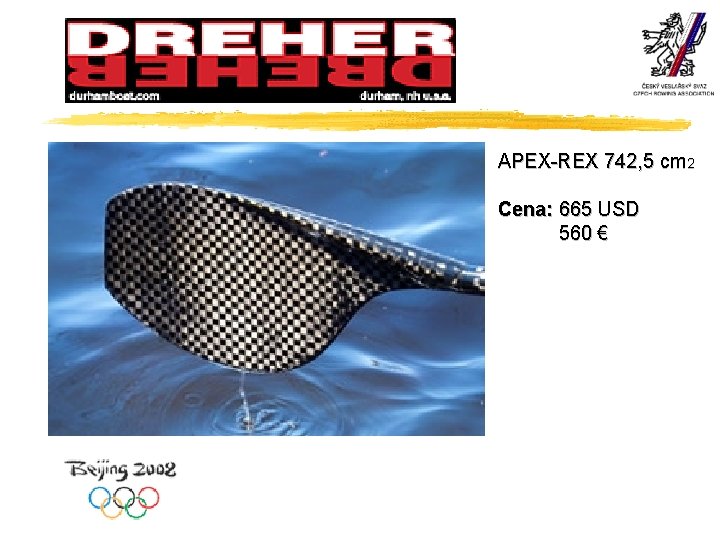

APEX-REX 742, 5 cm 2 Cena: 665 USD 560 €

APEX-REX 742, 5 cm 2 Cena: 665 USD 560 €

„Sekyrky“ pro mládež Cena: 340 €

„Sekyrky“ pro mládež Cena: 340 €

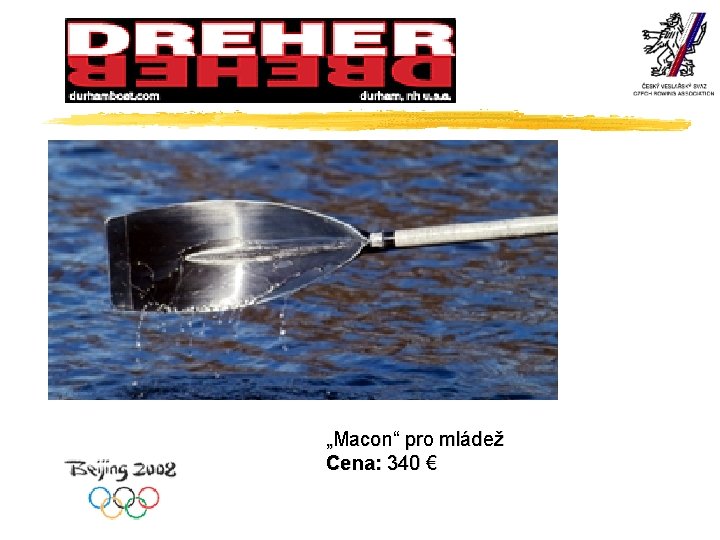

„Macon“ pro mládež Cena: 340 €

„Macon“ pro mládež Cena: 340 €

Cena: 15 USD

Cena: 15 USD

CD-X the all-white Kevlar composite Custom * Special in stained-black wood

CD-X the all-white Kevlar composite Custom * Special in stained-black wood

Available for Empacher, Sims & Vespoli (others to follow). Ae. Row. Fin© is all

Available for Empacher, Sims & Vespoli (others to follow). Ae. Row. Fin© is all about precision coxing, drag reduction and performance enhancement. All in one beautifullyfinished, high-tech Carbon composite.

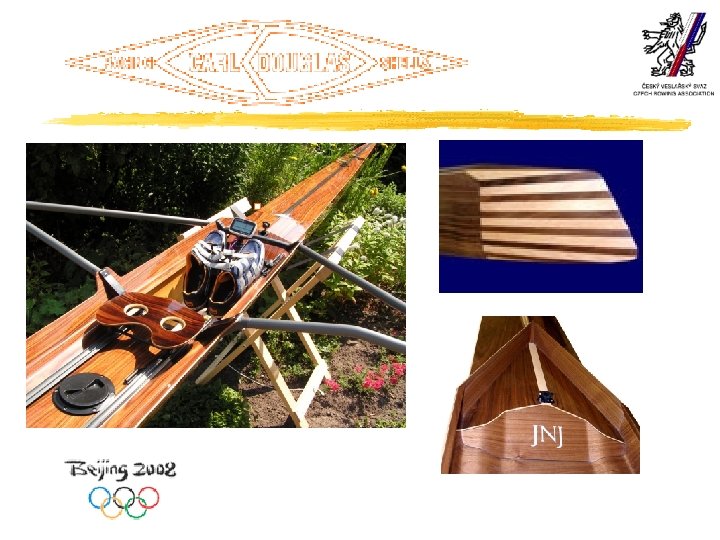

Custom Single (mahogany hull/cedar deck, all fittings) Custom * Special Single (the Custom of

Custom Single (mahogany hull/cedar deck, all fittings) Custom * Special Single (the Custom of your dreams) Ł4500 -00 from Ł4900 -00 CD-X Single (Kevlar composite, white finish, all fittings) Ł3900 -00 CD-XL Single: the only true sized 125 kg 1 x (Kevlar composite, white finish, all fittings) Ł4900 -00 Custom Double or Pair (as single) Ł7040 -00 Custom * Special Double or Pair (as single) from Ł7560 -00

HUDSON BOATS

HUDSON BOATS

HUDSON BOATS 5: 19. 85 World's Fastest 2000 Meter Of All Time, US Men's

HUDSON BOATS 5: 19. 85 World's Fastest 2000 Meter Of All Time, US Men's Eight, Athen's 2004 Construction The elite model is a prepreg carbon fiber and honeycomb core sandwich construction designed specifically for torsion/longitudinal stiffness while adhering to strict weight restrictions.

HUDSON BOATS BOAT ELITE SPORT Single $8, 175 $6, 350 Pair $12, 100 $11,

HUDSON BOATS BOAT ELITE SPORT Single $8, 175 $6, 350 Pair $12, 100 $11, 100 Double $12, 400 $11, 400 Double / Pair $13, 250 $12, 250 Coxed Four $16, 950 $15, 800 Four $16, 850 $15, 600 Quad $17, 500 $16, 250 Quad / Four $18, 500 $17, 250 Eight $29, 250 $26, 250

HUDSON BOATS Construction The sport single model is multiple layers of carbon fiber laminated

HUDSON BOATS Construction The sport single model is multiple layers of carbon fiber laminated together in the infusion process to produce a single skin allowing for increased hull durability. These shells are intended to be used for the more non competitive level because some of the performance characteristics such as torsion/longitudinal stiffness and added weight have been slightly compromised for durability.

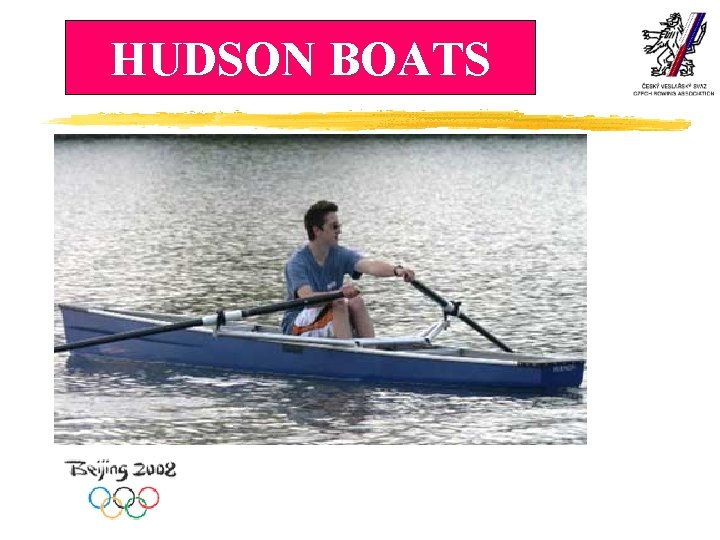

HUDSON BOATS

HUDSON BOATS

HUDSON BOATS Recreational ( CAD ) T - 6 1 x $2, 495 T

HUDSON BOATS Recreational ( CAD ) T - 6 1 x $2, 495 T - 7 2 x $3, 895 T - 11 4 x $13, 795

HUDSON BOATS Complete wing rigger (sweep) - Includes pin, oarlock and backsay $400. 00

HUDSON BOATS Complete wing rigger (sweep) - Includes pin, oarlock and backsay $400. 00

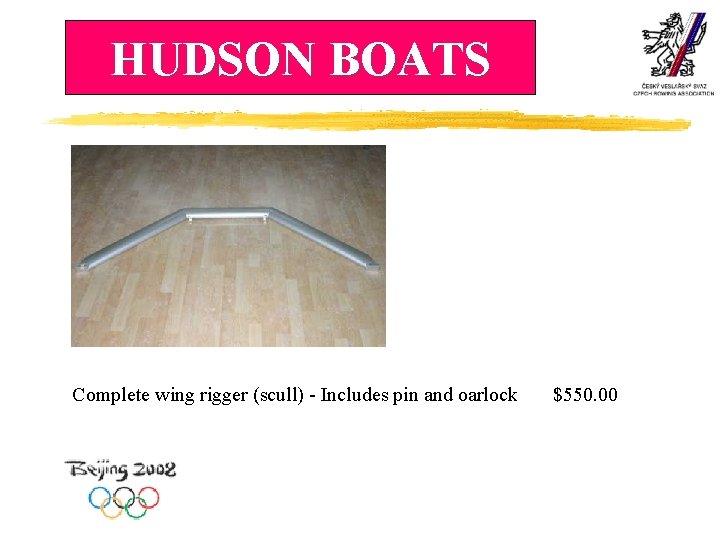

HUDSON BOATS Complete wing rigger (scull) - Includes pin and oarlock $550. 00

HUDSON BOATS Complete wing rigger (scull) - Includes pin and oarlock $550. 00

HUDSON BOATS Chesepeake Boat Slings Price: $160. 00

HUDSON BOATS Chesepeake Boat Slings Price: $160. 00

HUDSON BOATS Four fin (Aluminum) Price: $33. 00

HUDSON BOATS Four fin (Aluminum) Price: $33. 00

HUDSON BOATS Four/Eight Breakaway Fin (Mid 2005) Price: $33. 00

HUDSON BOATS Four/Eight Breakaway Fin (Mid 2005) Price: $33. 00

HUDSON BOATS Eight Rudder (11") Price: $25. 00

HUDSON BOATS Eight Rudder (11") Price: $25. 00

HUDSON BOATS Four rudder (angled for use on model with rudder positioned at stern)

HUDSON BOATS Four rudder (angled for use on model with rudder positioned at stern) Price: $25. 00

About 2000 boats are produced annually. This ranks Flying Eagle as one of the

About 2000 boats are produced annually. This ranks Flying Eagle as one of the largest rowing shell manufacturers in the world, as well as the largest in China. Flying Eagle has 56000 square meters of work shops and hi-tech facilities to produce rowing, kayak, canoeing, sailing and motor boats.

Engineers and Technicians from Win. Tech Racing have been on the ground in China

Engineers and Technicians from Win. Tech Racing have been on the ground in China for over 10 months as a continual presence Bruce Kirby (USA) G-Boards (Australia) Klaus Filter, a man revered in Europe, Asia and Australia as the sport's most prolific and successful hull designer, is almost unknown to American rowers

Shell: sandwich structure with Kevlar, Carbon fiber and Nomex paper Honeycomb.

Shell: sandwich structure with Kevlar, Carbon fiber and Nomex paper Honeycomb.

Adaptive

Adaptive

Ocean Rower

Ocean Rower

Sea Boat

Sea Boat

Water Jogger

Water Jogger

Dragon Boat

Dragon Boat

Coaches small

Coaches small

Coaches large

Coaches large

TV Catamaran

TV Catamaran

Karbonový krakorec

Karbonový krakorec

Křídlo

Křídlo

- colour : white - lenght : cm. 6, 55 - width : cm.

- colour : white - lenght : cm. 6, 55 - width : cm. 2, 44 - weight : kg. 300

The Slick Blade has no ridgeline so there is less splash at the catch.

The Slick Blade has no ridgeline so there is less splash at the catch. The low volume blade enters the water quickly and quietly The gentle asymmetric curvature of the blade assures a clean release from the water with every stroke. Slick Blades are visibly cleaner than other blades.

The Droop Snoot Sculling Blade. The ridgeline is not in line with the shaft.

The Droop Snoot Sculling Blade. The ridgeline is not in line with the shaft. The ridgeline is almost horizontal and hence the blade is more stable through the stroke

The Cleaver Sculling Blade was first introduced in 1992. It is identical in curvature

The Cleaver Sculling Blade was first introduced in 1992. It is identical in curvature to the Droop Snoot but does not have the benefits of the horizontal ridgeline

 Macon Sculling Blades The Macon blades are the original blade design. This blade

Macon Sculling Blades The Macon blades are the original blade design. This blade was first manufactured in timber. Although the Macon blade is not used in the racing world, recreational rowers prefer them and they are a good blade for learners.

42 mm-39 mm Black end cap 42 mm-42 mm Yellow end cap 45 mm-42

42 mm-39 mm Black end cap 42 mm-42 mm Yellow end cap 45 mm-42 mm White end cap

The handles are avaliable in three sizes small medium and large: Small handle fit

The handles are avaliable in three sizes small medium and large: Small handle fit pink grip Medium handle fit yellow grip and blue grip Large handle fit grey grip and green grip

Sweep Scull Fat Smoothie 27 x 54 cm* Smoothie 25 x 54 cm Big

Sweep Scull Fat Smoothie 27 x 54 cm* Smoothie 25 x 54 cm Big Blade 25 x 52 cm Big Blade 25 x 55 cm Macon M Macon L Macon XL Fat Smoothie 23 x 46 cm* Smoothie 21 x 46 cm Big Blade 21 x 43 cm Macon M Macon L *(The Fat Smoothie can only be made with the Vortex edge. )

This picture is one frame of an overhead video taken from a bridge. The

This picture is one frame of an overhead video taken from a bridge. The boat is shown on the bottom and is moving from left to right. The red dots mark the tip of the blade at each frame of the video.
