Two-input NAND gate based on assign keyword module example 1(c, a, b); input a, b; output c; // Functionality assign c = ~(a & b); endmodule The “assign” technique is called a “continuous assignment. ” If there are several continuous assignments, the order does not matter, they are executed concurrently. Example: assign c=~(a&b); assign d=a^b; The code has to be modified accordingly adding the signal “d” as an output. Signals a, b, c are wires by default, but we do not have to declare them in this example. Note: The code must be written to a file, typically with a “. v” extension. Use the same name for the file and the module to avoid confusion.

Two-Input NAND gate based on the always keyword module example 2 (a, b, c); // Port modes input a, b; output c; // Registered identifiers reg c; Sensitivity list // Functionality always @ (a or b) c = ~(a & b); endmodule • • • All inputs used in the procedure must appear in the sensitivity list (event/trigger list). The “always” keyword means that the circuit always (continuously) watches the signals in the input list ( the @ (a or b) part) and responds to changes in those signals by immediately updating the output. This is procedural assignment. Combinational circuit outputs must also be declared as registered identifiers when the “always” method (“procedural assignment”) is used. In Verilog code reg variables can be used to model either combinational or sequential parts of the circuit. The ‘=‘ blocking assignment was used in this example (inside the always block). Verilog compiler evaluates the statements in an always block in the order in which they are written i. e. in sequential order. If a variable is given a value by a blocking assignment, then this new value is used in evaluating all subsequent statements in the block.

Two-input NAND and Exclusive OR using non-blocking assignments module example 3(a, b, c, d); // Port modes input a, b; output c; output d; // Registered identifiers reg c, d; // Functionality always @ (a or b) begin c <= ~(a & b); d <= a ^ b; endmodule • • • Enclose multiple output signal assignments inside a “begin” - “end” block; The “<= “ non-blocking assignment was used in this example. Inside an always block, non-blocking and blocking assignments cannot be mixed. All non-blocking assignments are evaluated using the values that the variables have when the always block is entered. Thus a given variable has the same value for all the statements in the block. The meaning of non-blocking is that the result of each assignment is not seen until the end of an always block. All non-blocking assignments are evaluated in parallel. Example : always @(a or b or c) b<= a if (b) // “b” will be the old “b” When there are multiple assignments to the same variable inside an always block, the result of the last assignment is maintained. Blocking assignments are recommended for combinational circuits.

Two-input MUX module Mux 2 (A, B, Sel, Y); input A, B, Sel; output Y; reg Y; // Functionality always @ (A or B or Sel) if (Sel==0) Y = A; else Y = B; endmodule • • • Use “if-else” to connect output “Y” to one of the two data inputs based on the value of the data selector “Sel”. The expression inside the parentheses after “if” must evaluate to either “ 1” (true) or “ 0” (false).

2 -to-1 MUX: an alternate method module Mux 2(A, B, Sel, Y); // Port modes input A, B, Sel; output Y; // Registered identifiers reg Y; //Functionality always @ (A or B or Sel) Y = (Sel) ? B : A; endmodule Here the conditional (ternary) operator is used. Read the statement like this: “Is the control signal ‘Sel’ equal to 1? If yes, Y is assigned the value B else A. ”

4 -to-1 Multiplexor module Mux 4 (Data, Sel, Y); //Port modes input [3: 0] Data; input [1: 0] Sel; output Y; reg Y; always @ (Data or Sel) if (Sel ==2’b 00) Y = Data[0]; else if (Sel ==2’b 01) Y = Data[1]; else if (Sel == 2’b 10) Y = Data[2]; else if (Sel == 2’b 11) Y = Data[3]; endmodule • • • “if-else-if” is used. A four-bit bus (vector). The square brackets define the bus width. The left-side number is the MSB. A two-bit bus is used for the data selector. 2’b 1 => implies a 2 -bit value specified in binary form. Here, it is the binary value 01. The value is zero-extended.

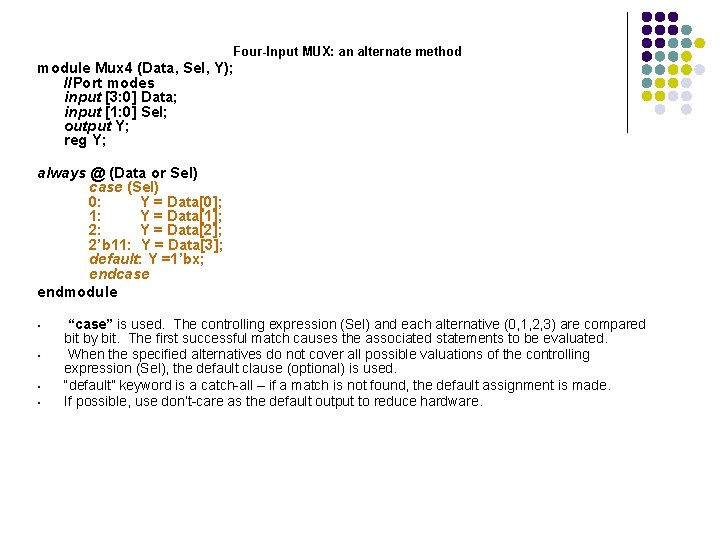

Four-Input MUX: an alternate method module Mux 4 (Data, Sel, Y); //Port modes input [3: 0] Data; input [1: 0] Sel; output Y; reg Y; always @ (Data or Sel) case (Sel) 0: Y = Data[0]; 1: Y = Data[1]; 2: Y = Data[2]; 2’b 11: Y = Data[3]; default: Y =1’bx; endcase endmodule • • “case” is used. The controlling expression (Sel) and each alternative (0, 1, 2, 3) are compared bit by bit. The first successful match causes the associated statements to be evaluated. When the specified alternatives do not cover all possible valuations of the controlling expression (Sel), the default clause (optional) is used. “default” keyword is a catch-all – if a match is not found, the default assignment is made. If possible, use don’t-care as the default output to reduce hardware.

4 -to 1 MUX module Mux 16 (Data, Sel, Y); parameter Data. Width = 16; input [Data. Width-1: 0] Data; input [3: 0] Sel; output Y; reg Y; // Functionality always @ (Data or Sel) casez (Sel) 4’b 0000: Y = Data[0]; 4’b 0001: Y = Data[1]; 4’b 01? ? : Y = Data[2]; default: Y = Data[3]; endcase endmodule • • The question mark is a “don’t care” when it appears inside a numerical constant. In this example, the case selection ignores the two lowest bits and looks for a match on the two highest bits. You need to use the ‘casez’ version of the ‘case’ statement when using “don’t cares”. All other values of the “Sel” control signal cause the fourth data bit to be selected. Data bits 15 through 4 are effectively not used in this example. “parameter” can be used to define any constants.

Bitwise operators ~ NOT & AND | OR ^ EXOR More Operators: >> Shift right << Shift left + Add - Subtract * Multiply / Divide % Modulus Relational Operators: == Equal to != Not equal < Less than > Greater than <= Less than or equal >= Greater than or equal && AND || OR

Exercise 1 l l l You are given the Verilog code for a 4 -bit adder. The inputs are A[3: 0], B[3: 0] The outputs are Sum[4: 0] (includes Cout) Modify the program to include subtraction. The inputs are in twos complement form.

Exercise 2 l l Write a Verilog program to create a 1 -bit ALU The ALU can perform bitwise-AND, bitwise. OR, Addition and Subtraction The inputs are A, B, Cin, Operation The output is Result

Sequential circuits

D flip-flop, positive-edge triggered module D_FF (D, Clock, Q); input D, Clock; output Q; // Registered identifiers reg Q; // Functionality always @ (posedge Clock) Q <= D; endmodule § § The sensitivity list contains only the signal that is responsible for triggering the flip flop, i. e. , the ‘Clock’ signal; It is possible to specify that the response should take place only at a particular edge of the signal, using the keywords “posedge” and “negedge”. The keyword “…. edge” specifies that a change may occur only on the edge of the Clock. At this time the output Q is set to the value of input D. Since Q is reg type it will maintain the value between the edges of the clock. Other inputs such as ‘D’ may be used inside the ‘always’ block, but they must not appear in the sensitivity list. Use non-blocking assignments to describe sequential circuits.

D flip-flop, positive-edge triggered, with Q_bar module D_FF (D, Clock, Q); input D, Clock; output Q; // Registered identifiers reg Q; wire Q_bar; assign Q_bar = ~Q; always @ (posedge Clock) Q <= D; endmodule • • • In this example the ‘assign’ statement is used. The ‘always’ block implements most of the desired behavior, namely, a single-bit storage device with appropriate behavior and clocking. The ‘assign’ statement simply copies the Q signal to an additional output while performing the necessary inversion along the way. • A variable on the left side of the equal sign must not be in the trigger list or the machine may go into an infinite loop. always@(state or A or B or C…. ) begin A<=B+C; //A will immediately retrigger the always procedure

D flip-flop, positive-edge triggered, with inverted and non-inverted outputs, and asynchronous reset (active high) module D_FF (D, Clock, Q, Q_bar, Reset); input D, Clock, Reset; output Q, Q_bar; reg Q; always @ (posedge Clock or posedge Reset) if (Reset == 1) Q <= 0; else Q <= D; assign Q_bar = ~Q; endmodule • • • “Asynchronous Reset” means that asserting the reset will instantly set the Q output to zero, regardless of the activity of D or Clock. Q will remain zero as long as Reset is asserted. The ‘always’ block needs to be “triggered” either by the Clock or the Reset, so the Reset signal is added to the sensitivity list. Note that the sensitivity list specifies the posedge or negedge of reset as an event trigger along with the positive edge of the clock. We cannot omit the keyword “. . edge” because the sensitivity list cannot have both edge triggered and level sensitivity signals

D flip-flop, positive-edge triggered, and asynchronous preset, active low module D_FF (D, Clock, Q, _Preset); // Port modes input D, Clock, _Preset; output Q; // Registered identifiers reg Q; // Functionality always @ (posedge Clock or negedge _Preset) if (_Preset == 0) Q <= 1; else Q <= D; endmodule “Asynchronous preset” behaves similar to “reset”, except that the Q output is set to 1 instead of 0. Avoid the temptation to design arbitrary flip-flop behavior, e. g. , ability to trigger on both edges of the same clock, ability to trigger on multiple clock signals, etc. The hardware synthesis tool does not “magically” create new hardware from thin air! You have to write circuit descriptions that are physically possible, that is, can be mapped onto existing (known) hardware elements such as standard D flipflops.

D flip-flop, positive-edge triggered, with synchronous reset (active low) module D_FF (D, Clock, Q, Reset); /* Port modes */ input D, Clock, Reset; output Q; // Registered identifiers reg Q; // Functionality always @ (posedge Clock) if (Reset==0) Q <=0; else Q<= D; endmodule “Synchronous reset” means that the reset action does not occur until the next clock edge. Reset’ does not appear in the input list now, but it appears inside the ‘always’ block. Another way to write the code: Q <= (!Reset)? 0 : D;

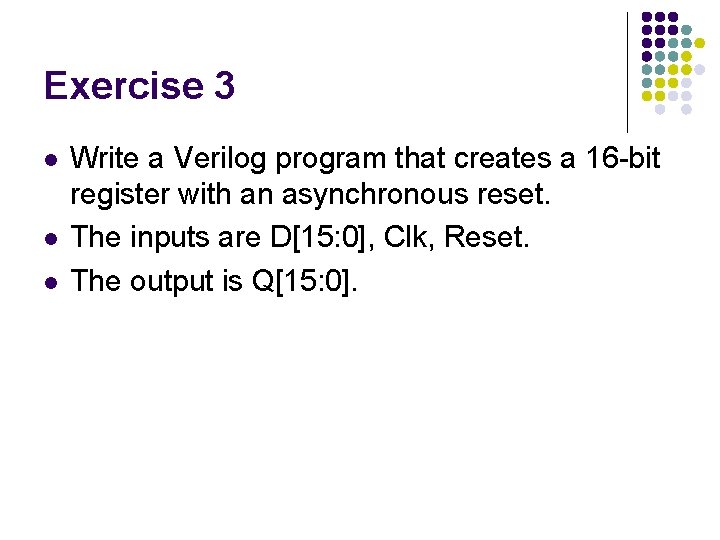

Exercise 3 l l l Write a Verilog program that creates a 16 -bit register with an asynchronous reset. The inputs are D[15: 0], Clk, Reset. The output is Q[15: 0].

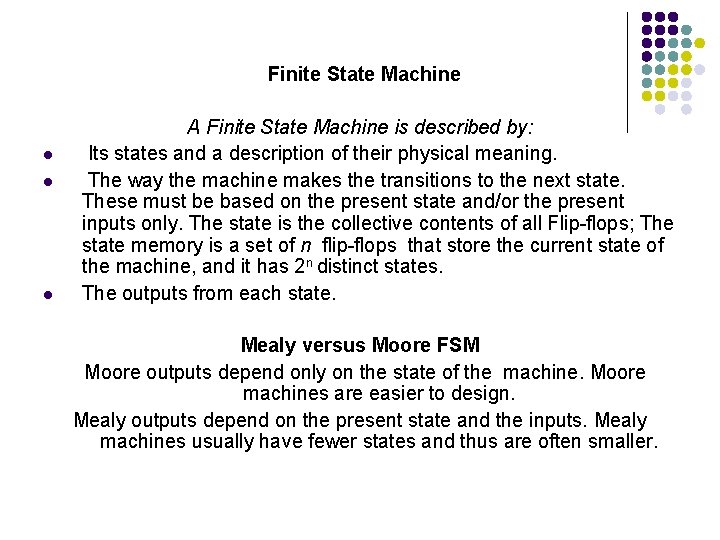

Finite State Machine l l l A Finite State Machine is described by: Its states and a description of their physical meaning. The way the machine makes the transitions to the next state. These must be based on the present state and/or the present inputs only. The state is the collective contents of all Flip-flops; The state memory is a set of n flip-flops that store the current state of the machine, and it has 2 n distinct states. The outputs from each state. Mealy versus Moore FSM Moore outputs depend only on the state of the machine. Moore machines are easier to design. Mealy outputs depend on the present state and the inputs. Mealy machines usually have fewer states and thus are often smaller.

Standard form for FSM in VERILOG Break FSMs into four blocks: State definitions-Next state calculations (decoder)-Registers or flip-flops calculation-Output calculations (logic) //state flip-flops reg [2: 0] state, next_state; //state definitions parameter S 0=2’b 00 S 1=2’b 01, S 2=2’b 10, S 3=2’b 11, … // State machine descriptions //Next state calculations always @(state or…. ) begin case (state) …. . end //register or flip-flop calculation always@(posedge clk) state<=next_state //Output calculations Output=f(state, inputs)

FSM of a Mealy machine Module FSM (clk, x, z); input clk, x; output z; //state flip-flops reg[2: 0] state, next_state; // State definition parameter S 0=0, S 1=1, S 2=2, S 3=3, S 4=4; //State machine description using case always@ (state or x) begin case(state) S 0: if (x) next_state=S 1; else next_state=S 0; S 1: if (x) next_state=S 3; else next_state=S 2; S 2: if (x) next_state=S 0; else next_state=S 4; S 3: if (x) next_state=S 2; else next_state=S 4; S 4: next_state=S 0; default: next_state=S 0; endcase end //flip-flops calculations always @ (posedge clk) begin state<=next_state; end //output calculations assign z=(state==S 4); endmodule Present state Next state X=0 X=1 Output z S 0=000 S 0=0 S 1=1 0 S 1=001 S 2=2 S 3=3 0 S 2=010 S 4=4 S 2=2 0 S 3=011 S 4=4 S 0=0 0 S 4=100 S 0=0 1 Default S 0=0 0

Recommendations for FSM l l l The state must always be of type reg. The states should be given meaningful names rather than numbers. Define state codes using symbolic constants defined using parameter. Assign the parameter a size to avoid errors: parameter [3: 0] INIT=4’d 0000, SETUP=4’d 0001, Do not mix the next state calculations with the flip-flop definitions. For next state calculations, it is very common to use a combination of case and if for this block. Assign a default next state to gracefully handle what happens when the FSM winds up in an unknown state. (Otherwise latches will be generated. ) Output calculations: one simple assign statement can be easily used.
