Verification Plan Levels of Verification The Verification Plan

Verification Plan & Levels of Verification • • • The Verification Plan Yesterdays and today’s design environment Design specification document Verification success Levels of verification EE 694 v-Verification-Lect 7 1

The Verification Plan • Just as a design meets a specification, the verification plan is the specification for the verification effort. • Defines – – – What is success How a design is to be verified Functional correctness Which testbenches to write Schedule for verification effort EE 694 v-Verification-Lect 7 2

In The Past • Verification was left to each designer to do as they wished • Verification was done as time allowed • Emphasis was “does chip work? ” • Have progressed from “does chip work? ” to – Does chip work in the system? – Does chip work in the system as specified? – Does the system work as specified? EE 694 v-Verification-Lect 7 3

Today’s Environment • Wish to have system integration go smoothly • Simulate chip(s) in system environment to identify problems early, preferably during design and prior to fabrication • Tools, if effectively used, can help – Simulation – Linting – Other tools EE 694 v-Verification-Lect 7 4

Specifying the Verification • When will verification of design be completed to the required degree of confidence • Must determine – How much work verification will require – How many people are needed for the verification effort – How long will the verification effort take EE 694 v-Verification-Lect 7 5

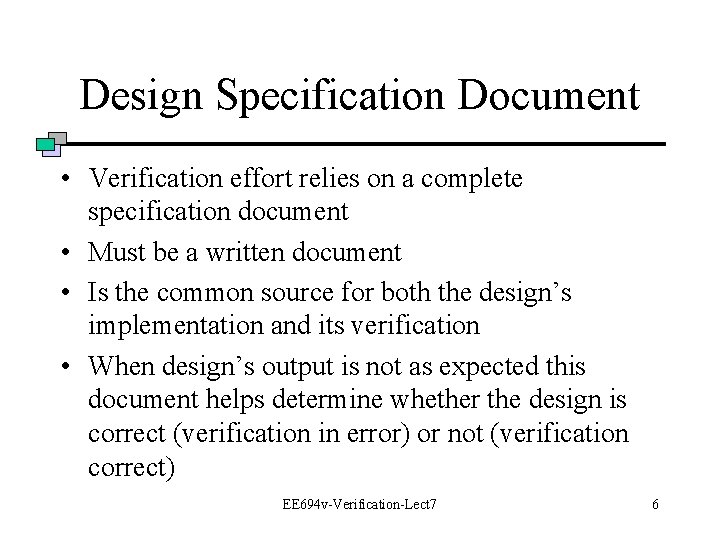

Design Specification Document • Verification effort relies on a complete specification document • Must be a written document • Is the common source for both the design’s implementation and its verification • When design’s output is not as expected this document helps determine whether the design is correct (verification in error) or not (verification correct) EE 694 v-Verification-Lect 7 6

The Plan & 1 st Time Success • The verification plan defines what success is • Insures all essential features of design are appropriately verified • Documents which features are essential and which are optional • Not all features of the final design need be included in defining 1 st time success • Final success requires that all features in the final design are working and verified so. EE 694 v-Verification-Lect 7 7

Levels of Verification • As the level of focus changes, what is being verified changes also • The level of granularity is also included in the plan • Best partitions to verify are those where controlability and observability are best • Partitions being verified must have relatively stable functionality and interfaces EE 694 v-Verification-Lect 7 8

Unit-Level Verification • Design units are logical partitions and vary from small to large, simple to complex – Small/Simple - FIFO, small state machine – Large/Complex - PCI slave interface, DSP datapath • Often have interfaces that are not fixed and firm • Often functionality is not yet fixed and firm • Any reasonable size project will have a large number of design units • Verification of the entire design at this level would probably be too time consuming EE 694 v-Verification-Lect 7 9

Reusable Component Verification • Component is designed to its own specification • Component intended to be used as-is in many different designs • Typically the component implements a common function or allows connection to a standardized interface • Component is used in many designs - focus is on its functionality • Potential users must have confidence that design is indeed correct EE 694 v-Verification-Lect 7 10

ASIC & FPGA Verification • These units form a physical and possibly a logical partition • Often have their own specification • Often contain a collection of independently designed and verified components • Todays ASICs and FPGAs are too complex to verify and debug during integration. Need verification for them prior to synthesis or downloading the programming. EE 694 v-Verification-Lect 7 11

System-Level Verification • There are many definitions for a system!!! • In the book - “a system is a logical partition composed of independently verified components. ” • System could be – composed of a few reusable components – a subset of an So. C ASIC – ASICs (or part of ASICs) on different boards • Focuses on interaction between components • Relies on individual components being functionally correct EE 694 v-Verification-Lect 7 12

Board-Level Verification • Confirm that component connectivity is correct • Some components on boards, such as capacitors, do not translate easily to digital domain • Depending on the complexity level, could be used to verify functionality (as with any other level) • Must make sure what is verified is what is manufactured (as with all levels) EE 694 v-Verification-Lect 7 13
