Ventilation of Confined Spaces Confined Space Ventilation b

Ventilation of Confined Spaces

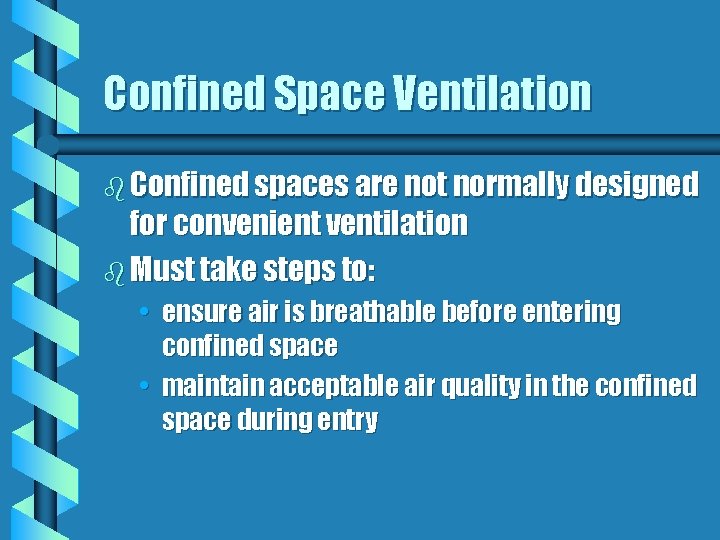

Confined Space Ventilation b Confined spaces are not normally designed for convenient ventilation b Must take steps to: • ensure air is breathable before entering confined space • maintain acceptable air quality in the confined space during entry

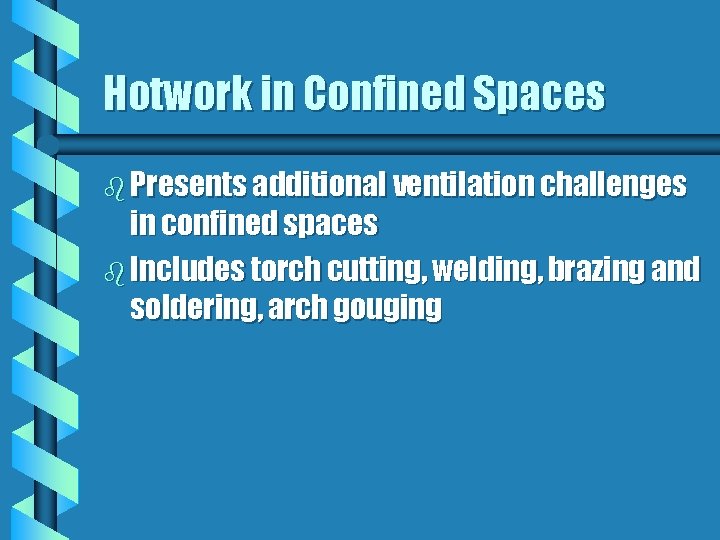

Hotwork in Confined Spaces b Presents additional ventilation challenges in confined spaces b Includes torch cutting, welding, brazing and soldering, arch gouging

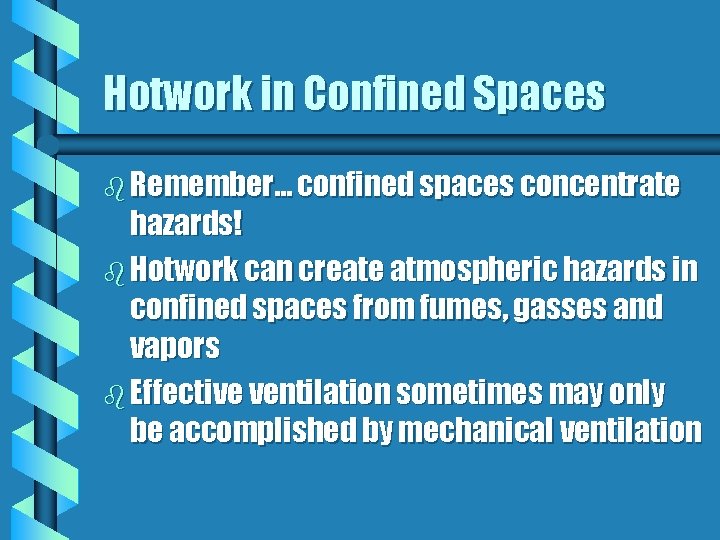

Hotwork in Confined Spaces b Remember… confined spaces concentrate hazards! b Hotwork can create atmospheric hazards in confined spaces from fumes, gasses and vapors b Effective ventilation sometimes may only be accomplished by mechanical ventilation

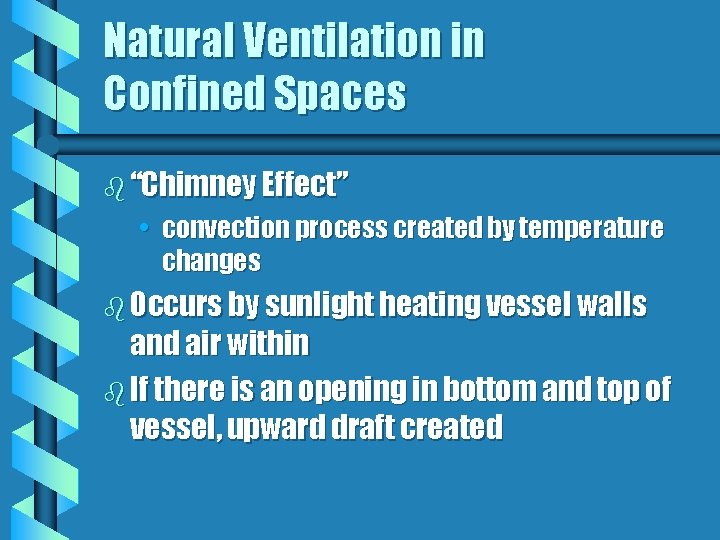

Natural Ventilation in Confined Spaces b “Chimney Effect” • convection process created by temperature changes b Occurs by sunlight heating vessel walls and air within b If there is an opening in bottom and top of vessel, upward draft created

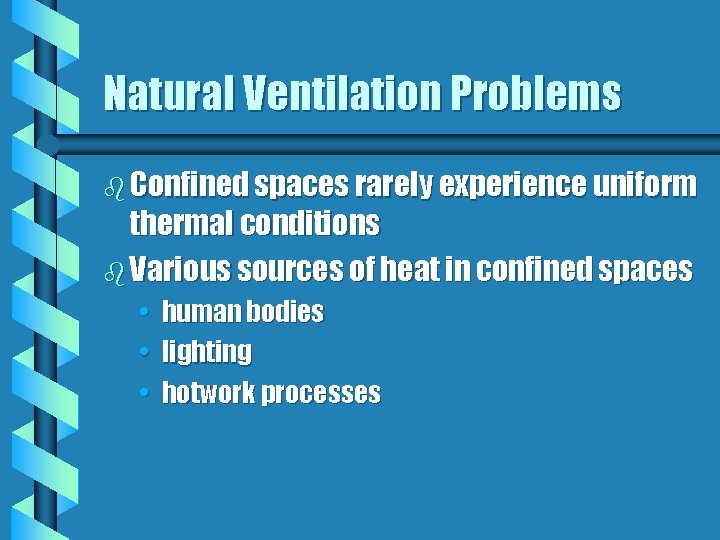

Natural Ventilation Problems b Confined spaces rarely experience uniform thermal conditions b Various sources of heat in confined spaces • human bodies • lighting • hotwork processes

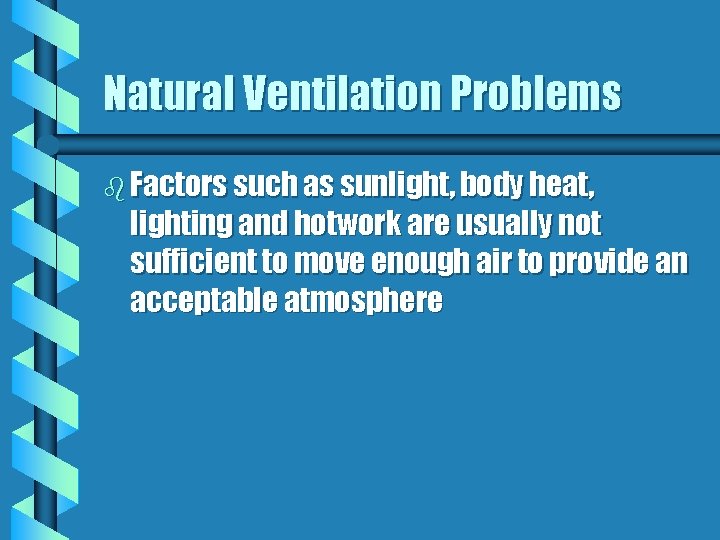

Natural Ventilation Problems b Factors such as sunlight, body heat, lighting and hotwork are usually not sufficient to move enough air to provide an acceptable atmosphere

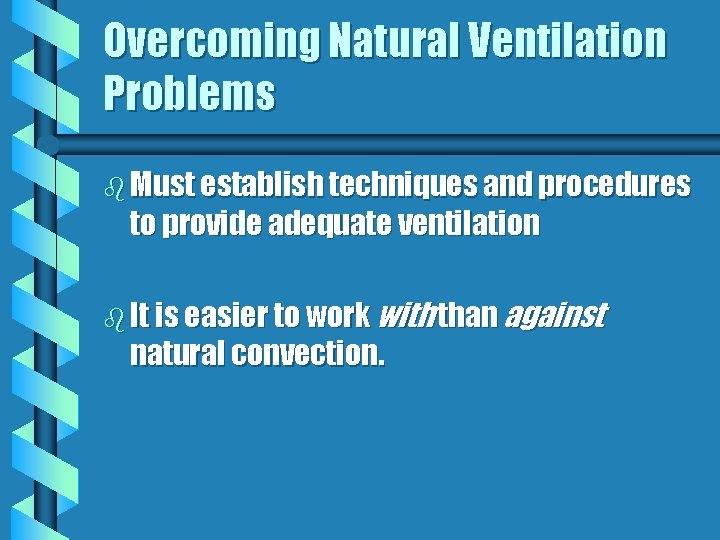

Overcoming Natural Ventilation Problems b Must establish techniques and procedures to provide adequate ventilation b It is easier to work with than against natural convection.

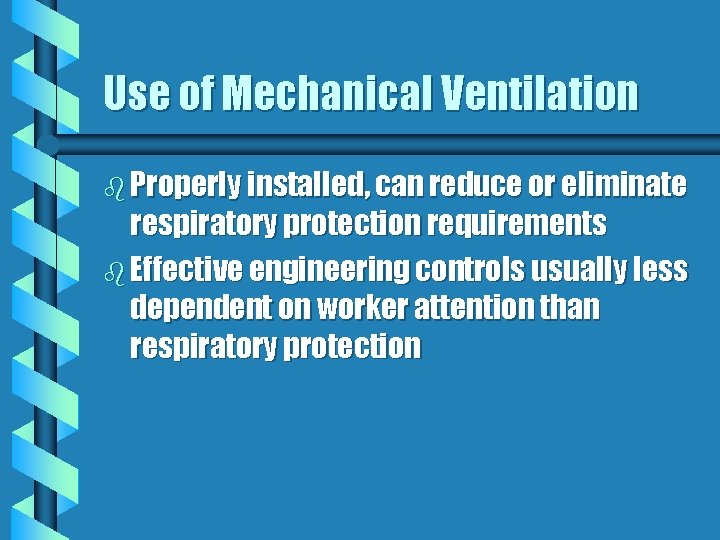

Use of Mechanical Ventilation b Properly installed, can reduce or eliminate respiratory protection requirements b Effective engineering controls usually less dependent on worker attention than respiratory protection

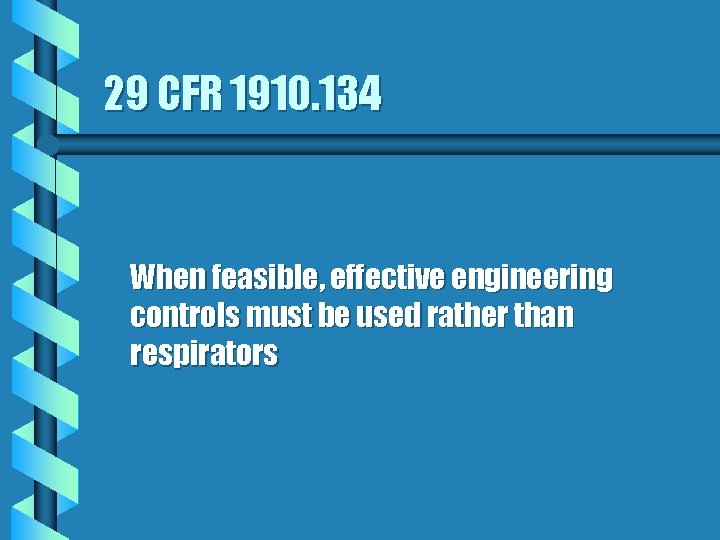

29 CFR 1910. 134 When feasible, effective engineering controls must be used rather than respirators

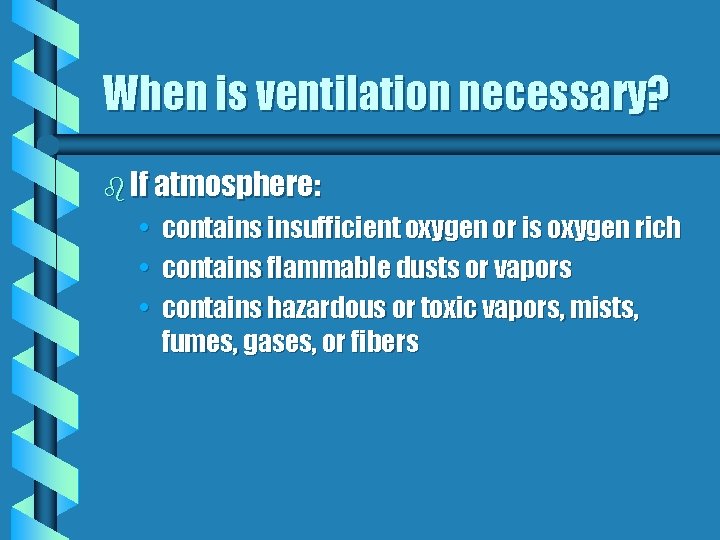

When is ventilation necessary? b If atmosphere: • contains insufficient oxygen or is oxygen rich • contains flammable dusts or vapors • contains hazardous or toxic vapors, mists, fumes, gases, or fibers

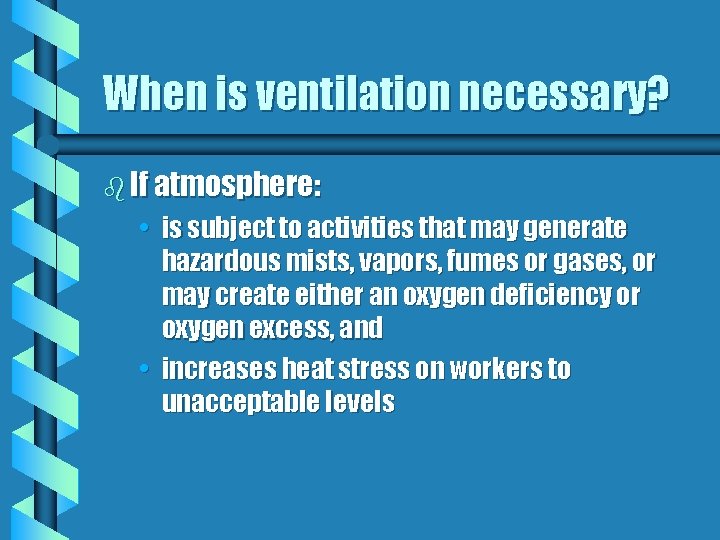

When is ventilation necessary? b If atmosphere: • is subject to activities that may generate hazardous mists, vapors, fumes or gases, or may create either an oxygen deficiency or oxygen excess, and • increases heat stress on workers to unacceptable levels

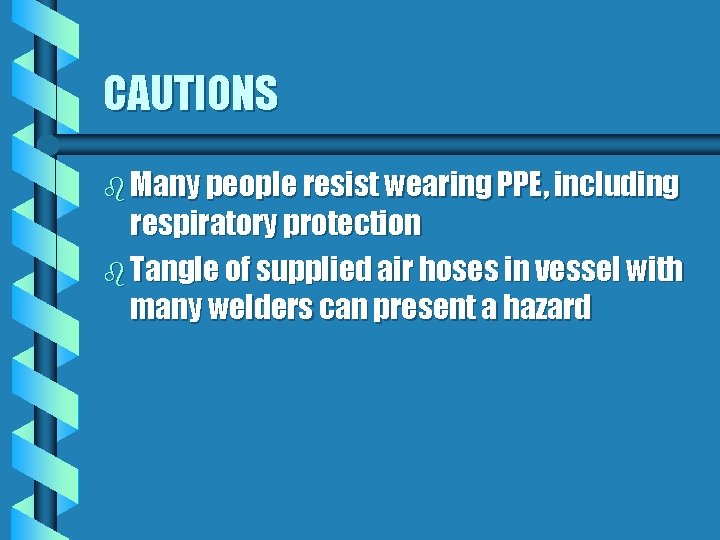

CAUTIONS b Many people resist wearing PPE, including respiratory protection b Tangle of supplied air hoses in vessel with many welders can present a hazard

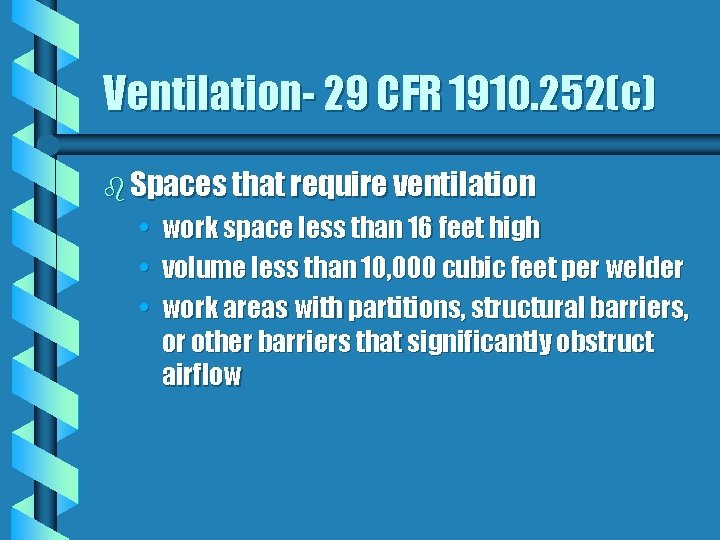

Ventilation- 29 CFR 1910. 252(c) b Spaces that require ventilation • work space less than 16 feet high • volume less than 10, 000 cubic feet per welder • work areas with partitions, structural barriers, or other barriers that significantly obstruct airflow

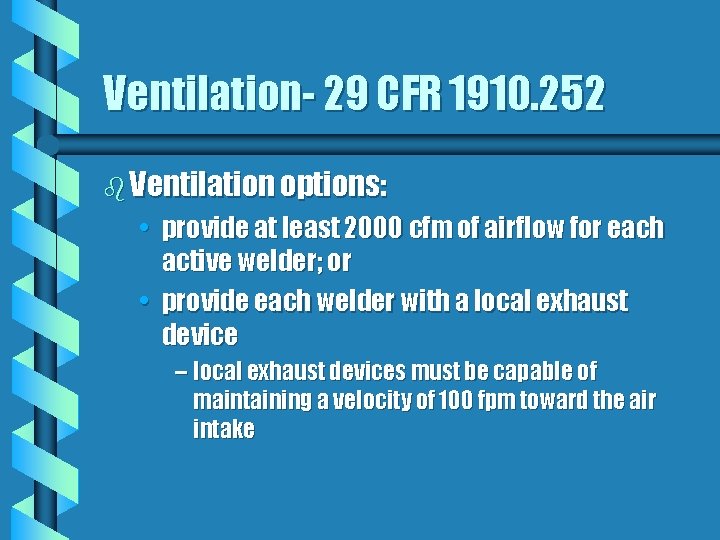

Ventilation- 29 CFR 1910. 252 b Ventilation options: • provide at least 2000 cfm of airflow for each active welder; or • provide each welder with a local exhaust device – local exhaust devices must be capable of maintaining a velocity of 100 fpm toward the air intake

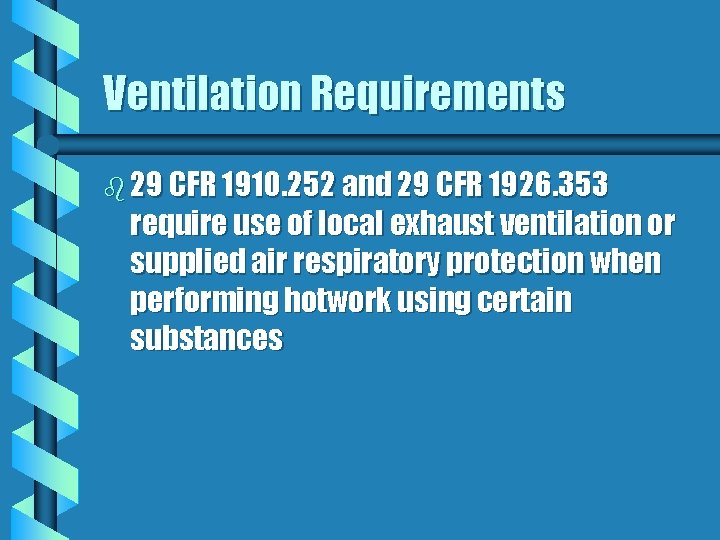

Ventilation Requirements b 29 CFR 1910. 252 and 29 CFR 1926. 353 require use of local exhaust ventilation or supplied air respiratory protection when performing hotwork using certain substances

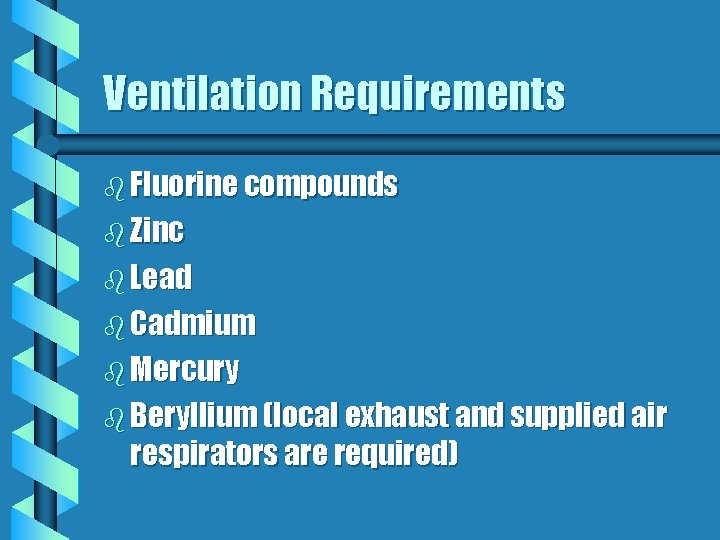

Ventilation Requirements b Fluorine compounds b Zinc b Lead b Cadmium b Mercury b Beryllium (local exhaust and supplied air respirators are required)

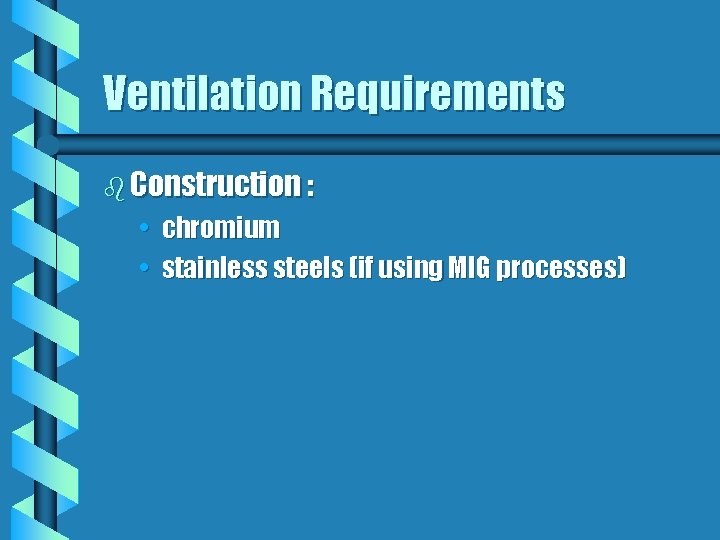

Ventilation Requirements b Construction : • chromium • stainless steels (if using MIG processes)

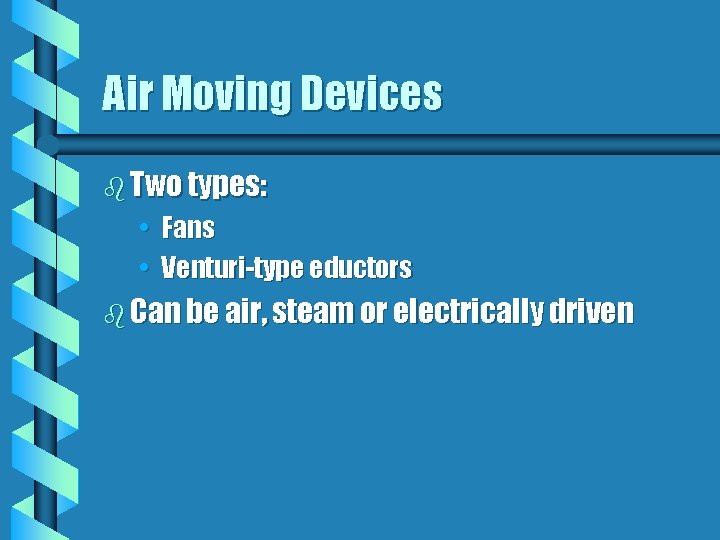

Air Moving Devices b Two types: • Fans • Venturi-type eductors b Can be air, steam or electrically driven

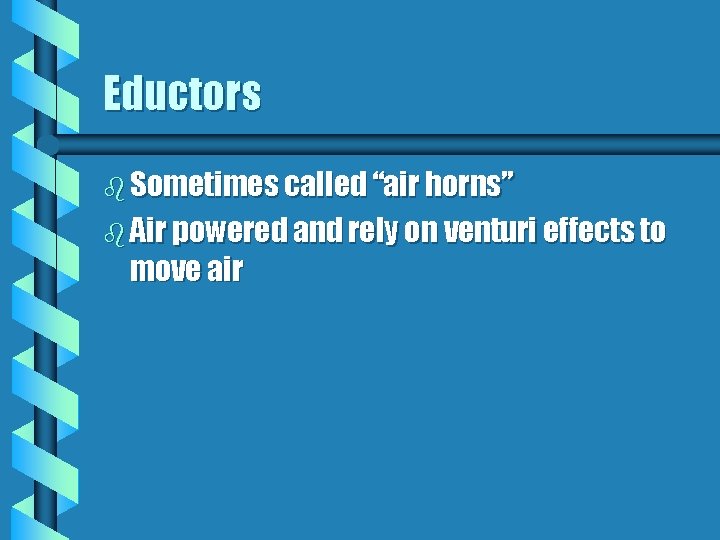

Eductors b Sometimes called “air horns” b Air powered and rely on venturi effects to move air

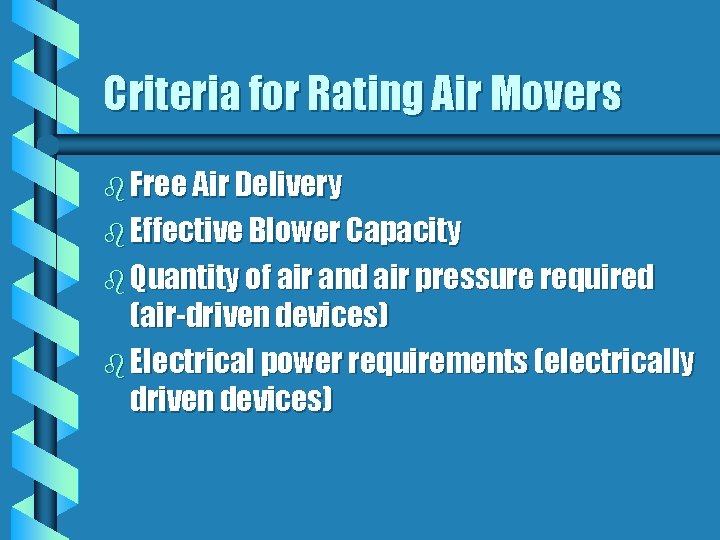

Criteria for Rating Air Movers b Free Air Delivery b Effective Blower Capacity b Quantity of air and air pressure required (air-driven devices) b Electrical power requirements (electrically driven devices)

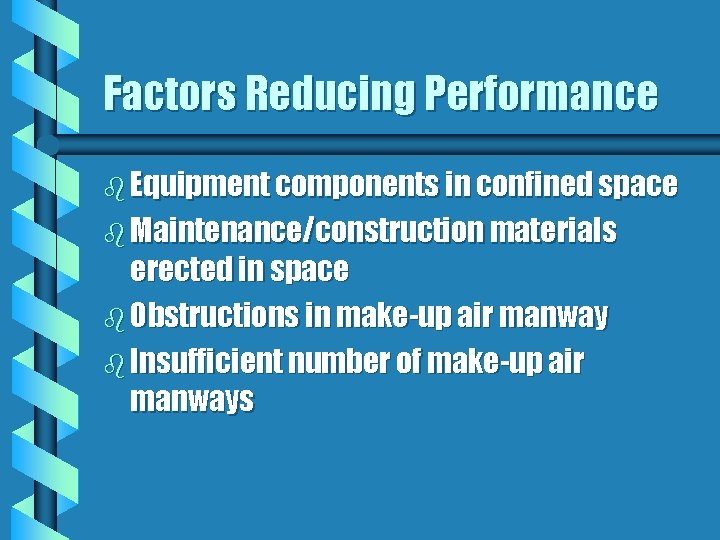

Factors Reducing Performance b Equipment components in confined space b Maintenance/construction materials erected in space b Obstructions in make-up air manway b Insufficient number of make-up air manways

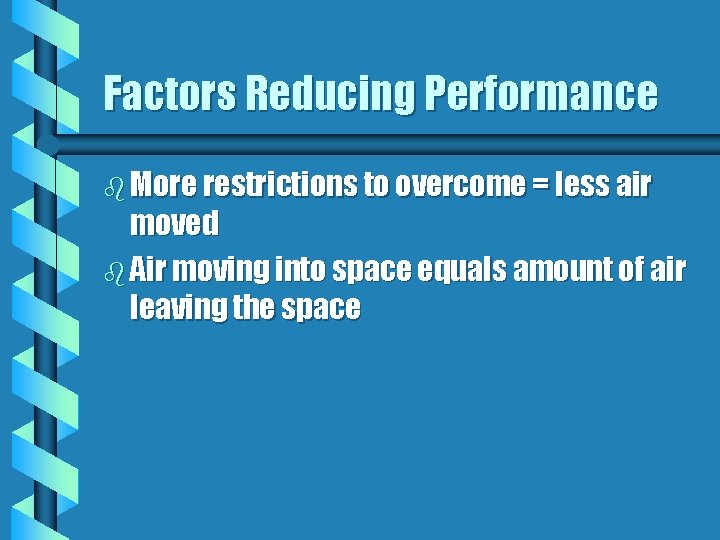

Factors Reducing Performance b More restrictions to overcome = less air moved b Air moving into space equals amount of air leaving the space

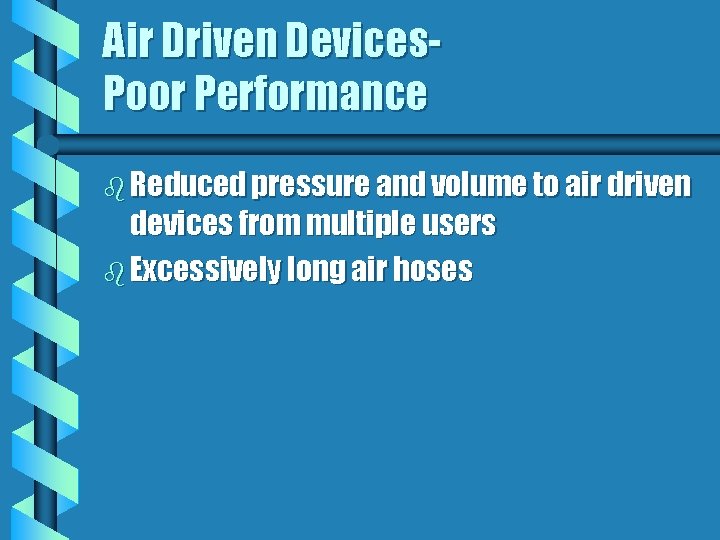

Air Driven Devices. Poor Performance b Reduced pressure and volume to air driven devices from multiple users b Excessively long air hoses

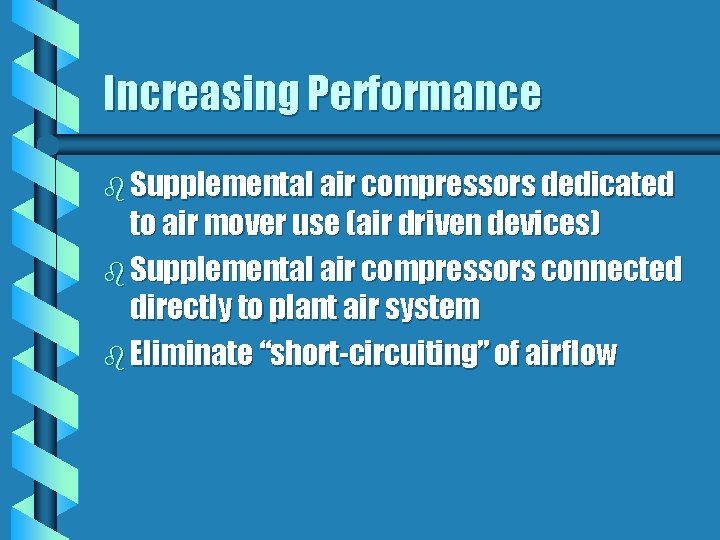

Increasing Performance b Supplemental air compressors dedicated to air mover use (air driven devices) b Supplemental air compressors connected directly to plant air system b Eliminate “short-circuiting” of airflow

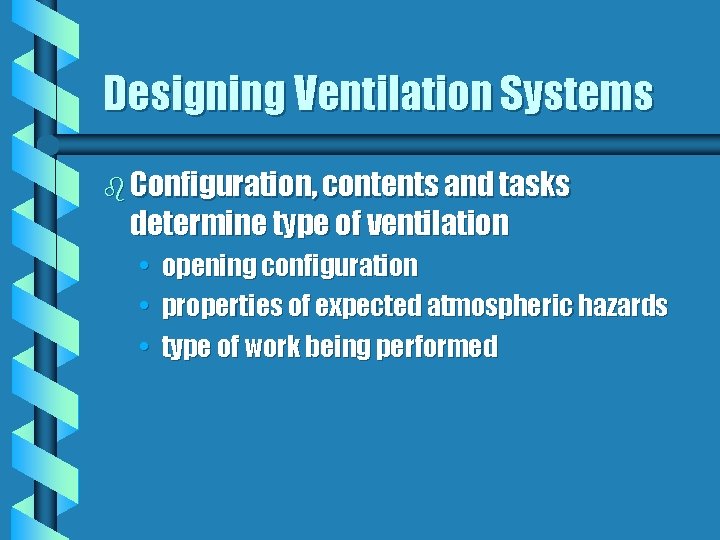

Designing Ventilation Systems b Configuration, contents and tasks determine type of ventilation • • • opening configuration properties of expected atmospheric hazards type of work being performed

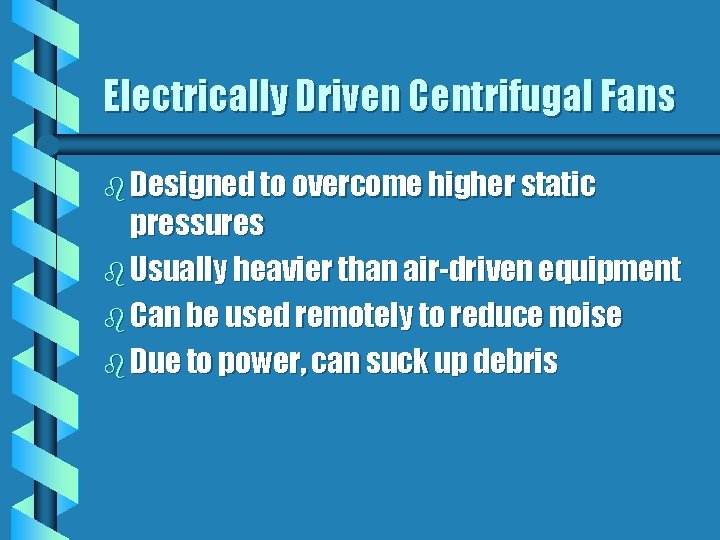

Electrically Driven Centrifugal Fans b Designed to overcome higher static pressures b Usually heavier than air-driven equipment b Can be used remotely to reduce noise b Due to power, can suck up debris

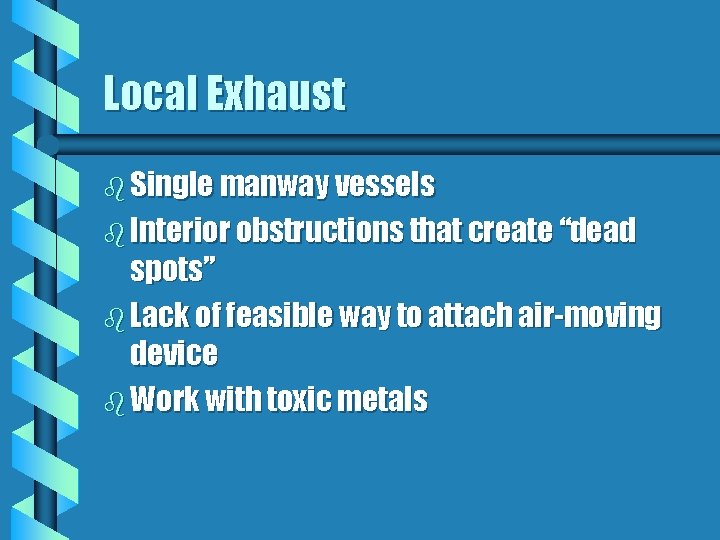

Local Exhaust b Single manway vessels b Interior obstructions that create “dead spots” b Lack of feasible way to attach air-moving device b Work with toxic metals

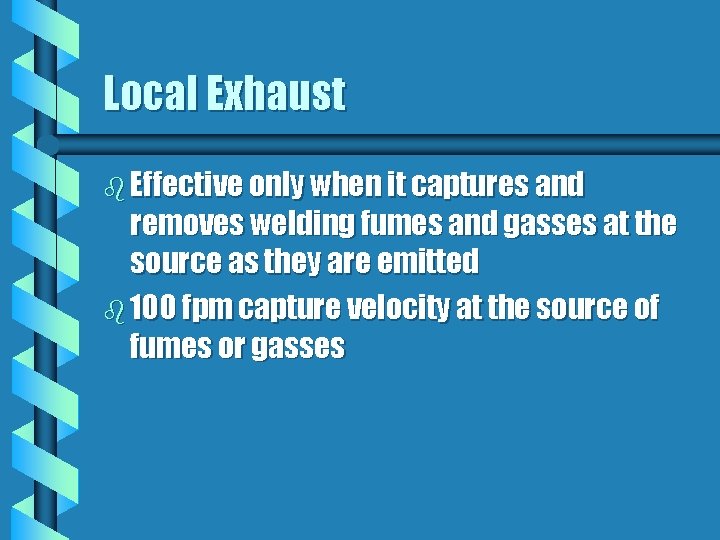

Local Exhaust b Effective only when it captures and removes welding fumes and gasses at the source as they are emitted b 100 fpm capture velocity at the source of fumes or gasses

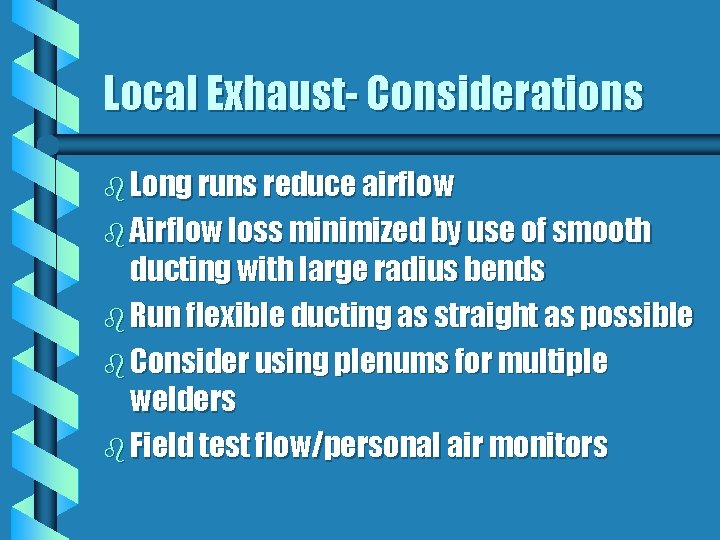

Local Exhaust- Considerations b Long runs reduce airflow b Airflow loss minimized by use of smooth ducting with large radius bends b Run flexible ducting as straight as possible b Consider using plenums for multiple welders b Field test flow/personal air monitors

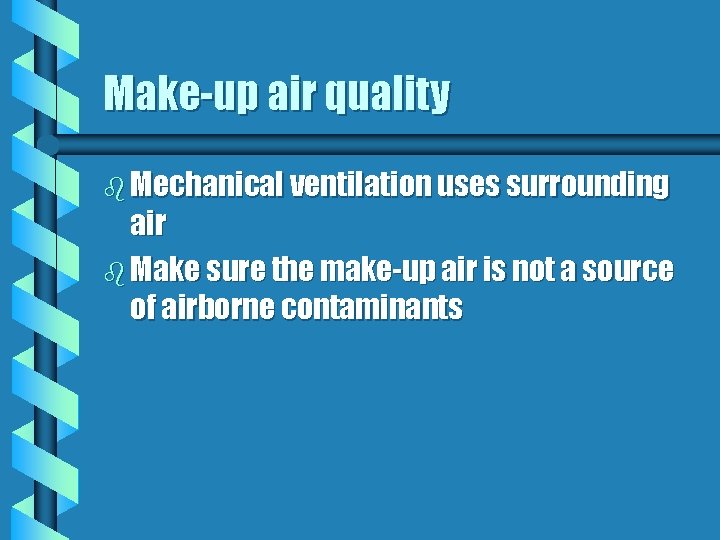

Make-up air quality b Mechanical ventilation uses surrounding air b Make sure the make-up air is not a source of airborne contaminants
