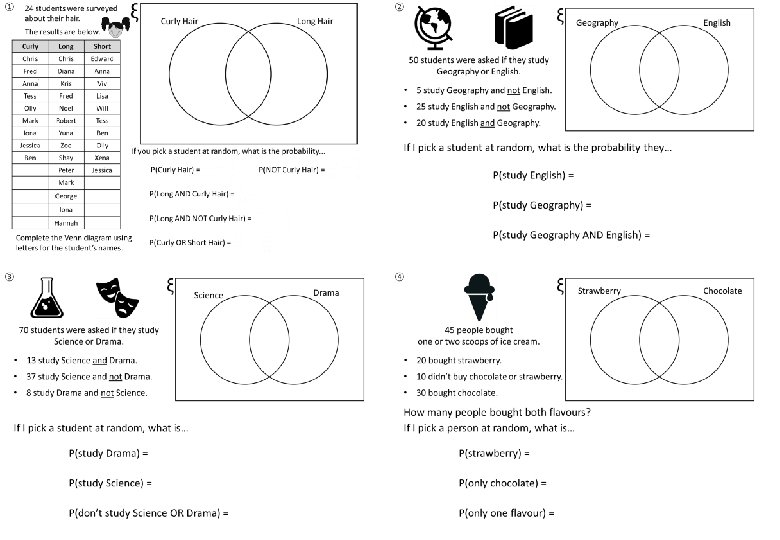

Venn Diagrams Probability Worksheet A The worksheet is
Venn Diagrams – Probability – Worksheet A The worksheet is in a 2 sizes with animated answer slides.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

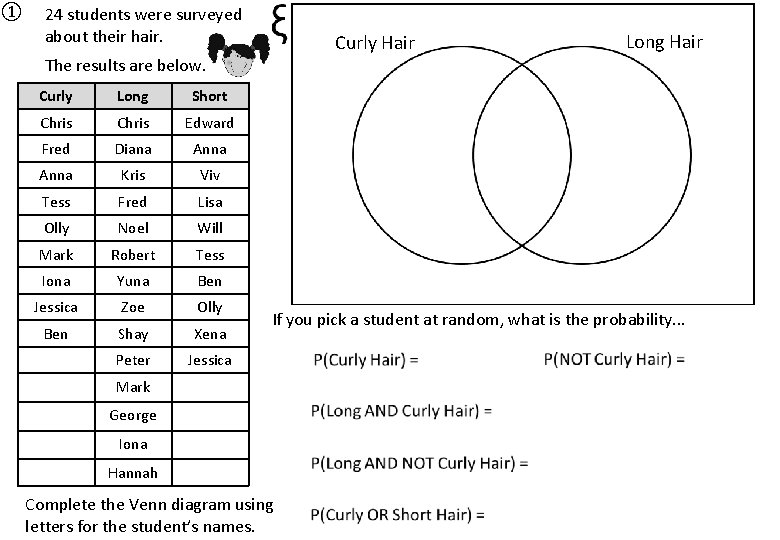

① 24 students were surveyed about their hair. Curly Hair The results are below. Curly Long Short Chris Edward Fred Diana Anna Kris Viv Tess Fred Lisa Olly Noel Will Mark Robert Tess Iona Yuna Ben Jessica Zoe Olly Ben Shay Xena Peter Jessica Long Hair If you pick a student at random, what is the probability. . . Mark George Iona Hannah Complete the Venn diagram using letters for the student’s names.

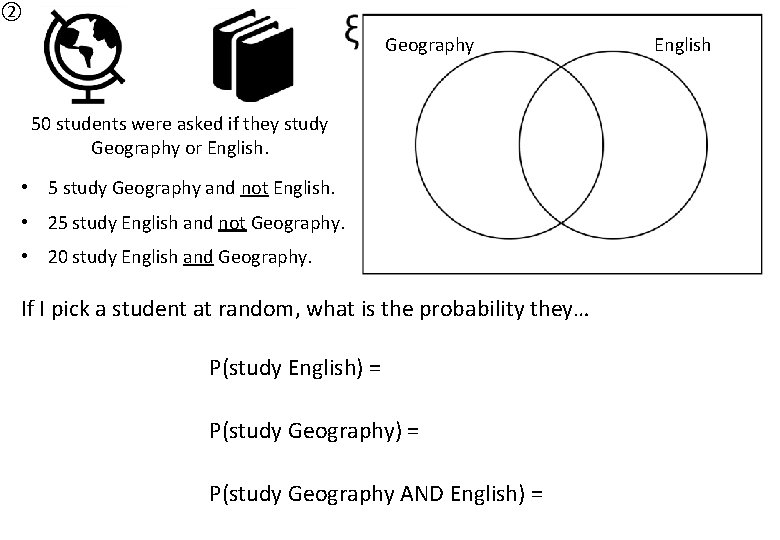

② Geography 50 students were asked if they study Geography or English. • 5 study Geography and not English. • 25 study English and not Geography. • 20 study English and Geography. If I pick a student at random, what is the probability they… P(study English) = P(study Geography AND English) = English

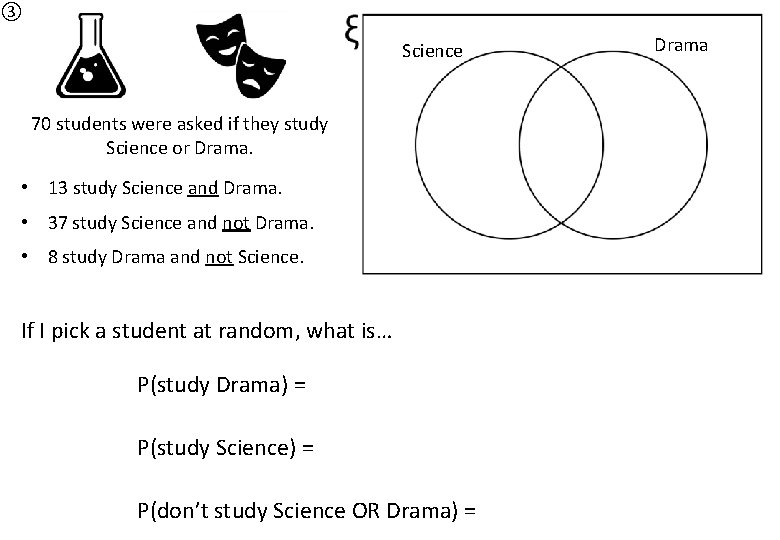

③ Science 70 students were asked if they study Science or Drama. • 13 study Science and Drama. • 37 study Science and not Drama. • 8 study Drama and not Science. If I pick a student at random, what is… P(study Drama) = P(study Science) = P(don’t study Science OR Drama) = Drama
④ Strawberry 45 people bought one or two scoops of ice cream. • 20 bought strawberry. • 10 didn’t buy chocolate or strawberry. • 30 bought chocolate. How many people bought both flavours? If I pick a person at random, what is… P(strawberry) = P(only chocolate) = P(only one flavour) = Chocolate
① 24 students were surveyed about their hair. The results are below. Curly Long Short Chris Edward Fred Diana Anna Kris Viv Tess Fred Lisa Olly Noel Will Mark Robert Tess Iona Yuna Ben Jessica Zoe Olly Ben Shay Xena Peter Jessica Long Hair Curly Hair 5 A O X B T V J W 4 10 D Z N H I C F P R K M Y S G E L 5 If you pick a student at random, what is the probability. . . Mark George Iona Hannah Complete the Venn diagram using letters for the student’s names.

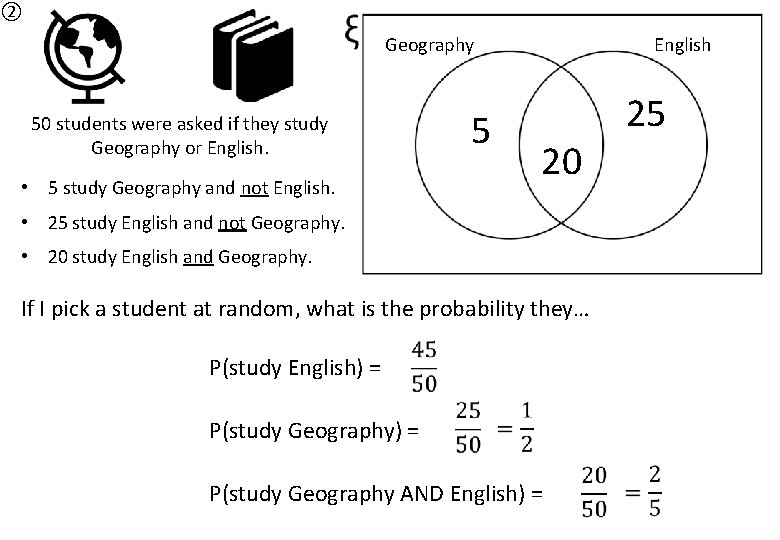

② Geography 50 students were asked if they study Geography or English. • 5 study Geography and not English. 5 English 20 • 25 study English and not Geography. • 20 study English and Geography. If I pick a student at random, what is the probability they… P(study English) = P(study Geography AND English) = 25

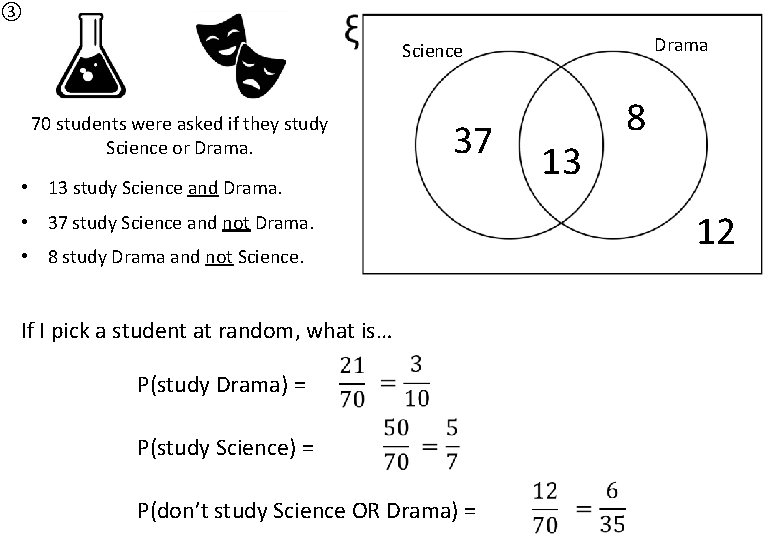

③ Drama Science 70 students were asked if they study Science or Drama. 37 • 13 study Science and Drama. • 37 study Science and not Drama. • 8 study Drama and not Science. If I pick a student at random, what is… P(study Drama) = P(study Science) = P(don’t study Science OR Drama) = 13 8 12

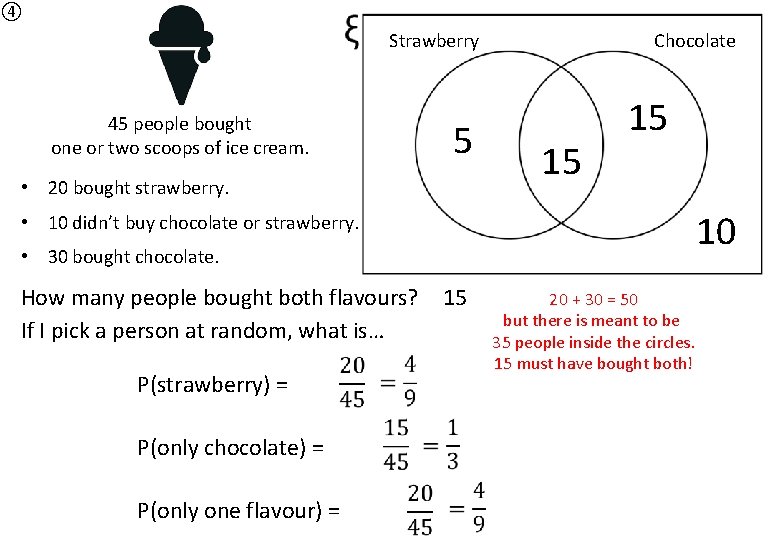

④ Strawberry 45 people bought one or two scoops of ice cream. 5 • 20 bought strawberry. Chocolate 15 15 10 • 10 didn’t buy chocolate or strawberry. • 30 bought chocolate. How many people bought both flavours? If I pick a person at random, what is… P(strawberry) = P(only chocolate) = P(only one flavour) = 15 20 + 30 = 50 but there is meant to be 35 people inside the circles. 15 must have bought both!
Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
