VelocityTime Graphs Mixed Card Match In this activity
- Slides: 19
Velocity-Time Graphs – Mixed – Card Match In this activity students work individually or in groups to match questions and answers. ‘Quick Cut’ – Choose the questions/slides you wish to use and delete others. Sets of questions can then be easily guillotined to save time. One-sheet sets of cards are also included for students to cut out themselves.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

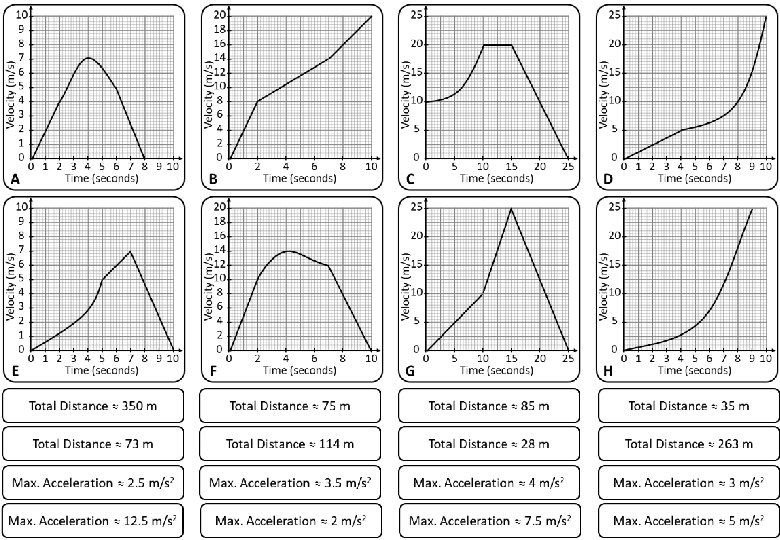

Match each graph with a Total Distance & a Maximum Acceleration

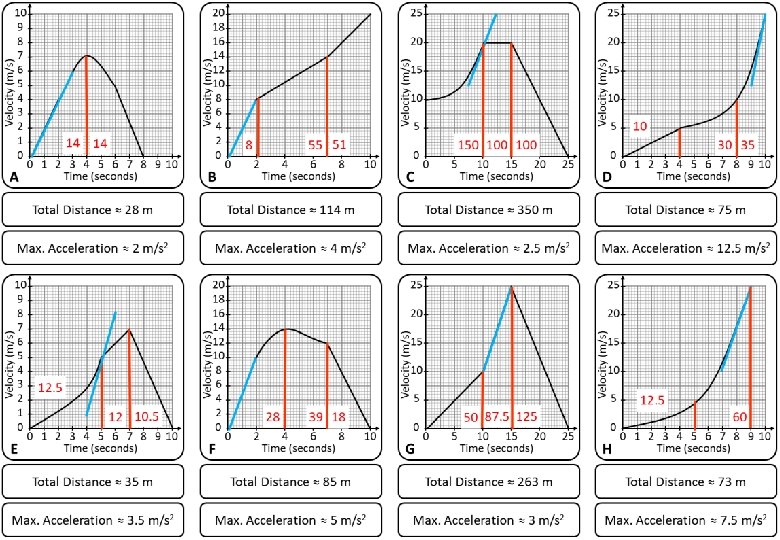

Match each graph with a Total Distance & a Maximum Acceleration Area under the graph Steepest Gradient
Half Answers
Velocity (m/s) 10 9 8 7 6 5 4 3 2 1 0 E 0 1 2 3 4 5 6 7 8 9 10 Time (seconds) Total Distance ≈ 35 m Total Distance ≈ 35 m Max. Acceleration ≈ 3. 5 m/s 2 Max. Acceleration ≈ 3. 5 m/s 2
Velocity (m/s) 10 9 8 7 6 5 4 3 2 1 0 A 0 1 2 3 4 5 6 7 8 9 10 Time (seconds) Total Distance ≈ 28 m Total Distance ≈ 28 m Max. Acceleration ≈ 2 m/s 2 Max. Acceleration ≈ 2 m/s 2

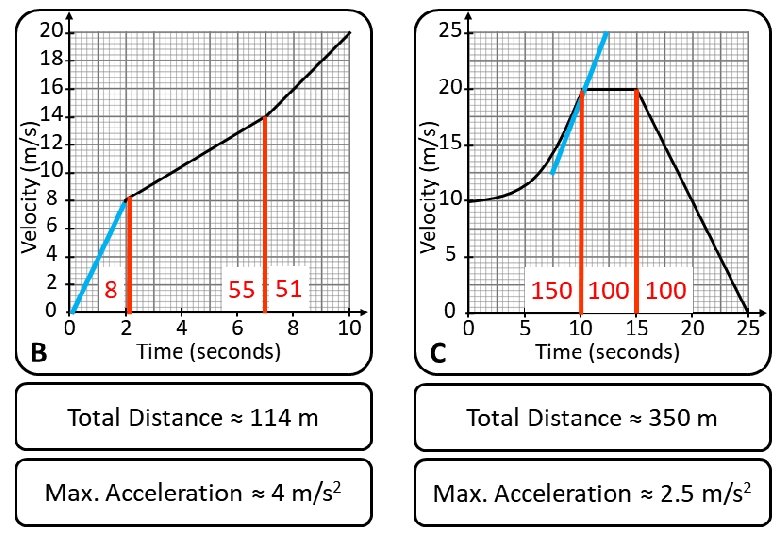

Velocity (m/s) 20 18 16 14 12 10 8 6 4 2 0 B 0 2 4 6 8 Time (seconds) 10 Total Distance ≈ 114 m Total Distance ≈ 114 m Max. Acceleration ≈ 4 m/s 2 Max. Acceleration ≈ 4 m/s 2
Velocity (m/s) 20 18 16 14 12 10 8 6 4 2 0 F 0 2 4 6 8 Time (seconds) 10 Total Distance ≈ 85 m Total Distance ≈ 85 m Max. Acceleration ≈ 5 m/s 2 Max. Acceleration ≈ 5 m/s 2
25 Velocity (m/s) 20 15 10 5 0 G 0 5 10 15 20 Time (seconds) 25 Total Distance ≈ 263 m Total Distance ≈ 263 m Max. Acceleration ≈ 3 m/s 2 Max. Acceleration ≈ 3 m/s 2
25 Velocity (m/s) 20 15 10 5 0 C 0 5 10 15 20 Time (seconds) 25 Total Distance ≈ 350 m Total Distance ≈ 350 m Max. Acceleration ≈ 2. 5 m/s 2 Max. Acceleration ≈ 2. 5 m/s 2
25 Velocity (m/s) 20 15 10 5 0 H 0 1 2 3 4 5 6 7 8 9 10 Time (seconds) Total Distance ≈ 73 m Total Distance ≈ 73 m Max. Acceleration ≈ 7. 5 m/s 2 Max. Acceleration ≈ 7. 5 m/s 2
25 Velocity (m/s) 20 15 10 5 0 D 0 1 2 3 4 5 6 7 8 9 10 Time (seconds) Total Distance ≈ 75 m Total Distance ≈ 75 m Max. Acceleration ≈ 12. 5 m/s 2 Max. Acceleration ≈ 12. 5 m/s 2
Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
