Veggie Vision by IBM Ideas about a practical system to make more efficient the selling and inventory of produce in a grocery store. CSE 803 Fall 2008 Stockman 1

Problem is recognizing produce CSE 803 Fall 2008 Stockman 2

15+ years of R&D now This information was shared by IBM researchers. Since that time, the system has been tested in small markets and has been modified according to that experience. CSE 803 Fall 2008 Stockman 3

Up to 400 produce types CSE 803 Fall 2008 Stockman 4

CSE 803 Fall 2008 Stockman 5

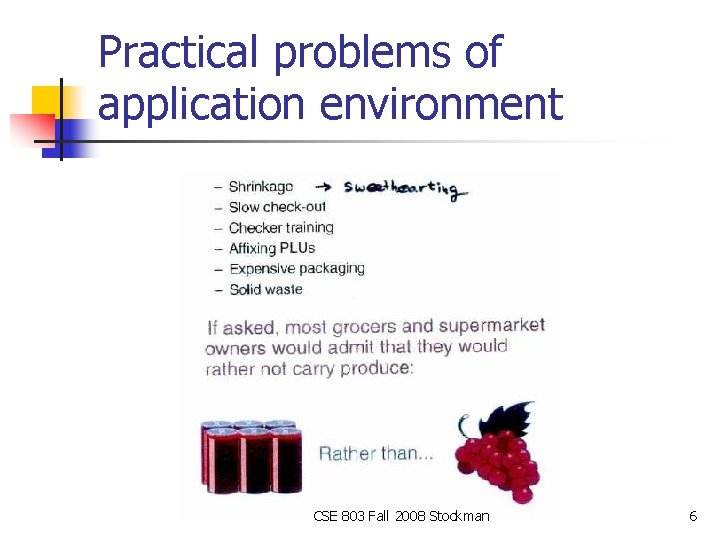

Practical problems of application environment CSE 803 Fall 2008 Stockman 6

Engineering the solution CSE 803 Fall 2008 Stockman 7

System to operate inside the usual checkout station • together with bar code scanner • together with scale • together with accounting • together with inventory • together with employee • within typical store environment * figure shows system asking for help from the cashier in making final decision on touch screen CSE 803 Fall 2008 Stockman 8

Modifying the scale CSE 803 Fall 2008 Stockman 9

Need careful lighting engineering CSE 803 Fall 2008 Stockman 10

Need to segment product from background, even through plastic CSE 803 Fall 2008 Stockman 11

Previously published thresholding decision CSE 803 Fall 2008 Stockman 12

Quality segmented image obtained CSE 803 Fall 2008 Stockman 13

Design of pattern recognition paradigm (from 1997) FEATURES are: color, texture, shape, and size all represented uniformly by HISTOGRAMS Histograms capture statistical properties of regions – any number of regions. CSE 803 Fall 2008 Stockman 14

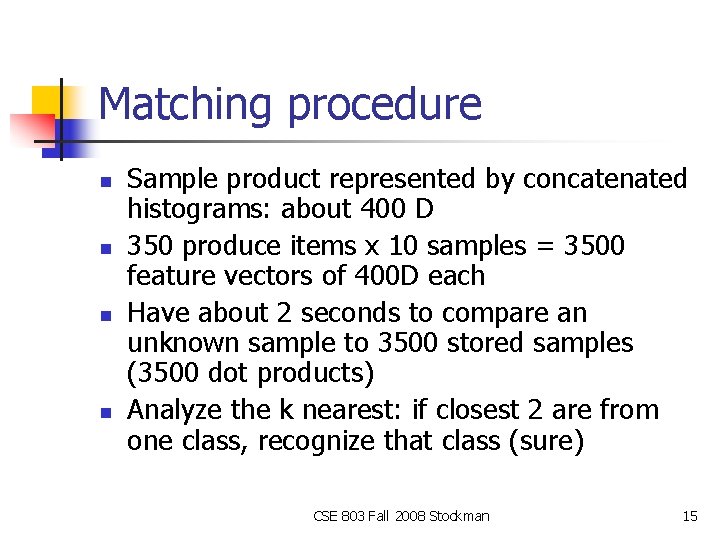

Matching procedure n n Sample product represented by concatenated histograms: about 400 D 350 produce items x 10 samples = 3500 feature vectors of 400 D each Have about 2 seconds to compare an unknown sample to 3500 stored samples (3500 dot products) Analyze the k nearest: if closest 2 are from one class, recognize that class (sure) CSE 803 Fall 2008 Stockman 15

HSI for pixel color: 6 bits for hue, 5 for saturation and intensity For each pixel quantify H HIST[H]++ same for S&I CSE 803 Fall 2008 Stockman 16

Histograms of 2 limes versus 3 lemons Distribution or population concept adds robustness: • to size of objects • to number of objects • to small variations of color (texture, shape, size) CSE 803 Fall 2008 Stockman 17

Texture: histogram results of LOG filter[s] on produce pixels Leafy produce B Leafy produce A CSE 803 Fall 2008 Stockman 18

Shape: histogram of curvature of boundary of produce CSE 803 Fall 2008 Stockman 19

Banana versus lemon or cucumber versus lime Large range of curvatures indicates complex object Small range of curvatures indicates roundish object CSE 803 Fall 2008 Stockman 20

Size is also represented by a histogram CSE 803 Fall 2008 Stockman 21

Each pixel gets a “size” as the minimum distance to boundary Purple grapes Chinese eggplants CSE 803 Fall 2008 Stockman 22

Learning and adaptation n System “easy” to train: show it produce samples and tell it the labels. During service: age out oldest sample; replace last used sample with newly identified one. When multiple labeled samples match the unknown, system asks cashier to select from the possible choices. CSE 803 Fall 2008 Stockman 23
