Vectors Chapter 4
Scalar • A quantity with only magnitude
Vector • A quantity with both magnitude and direction
Vector Tail Head
Resultant Vector • The sum of two or more vectors
Vector Addition • Two addition methods: • Graphical • Algebraic
Graphical Vector Addition • Use the following steps

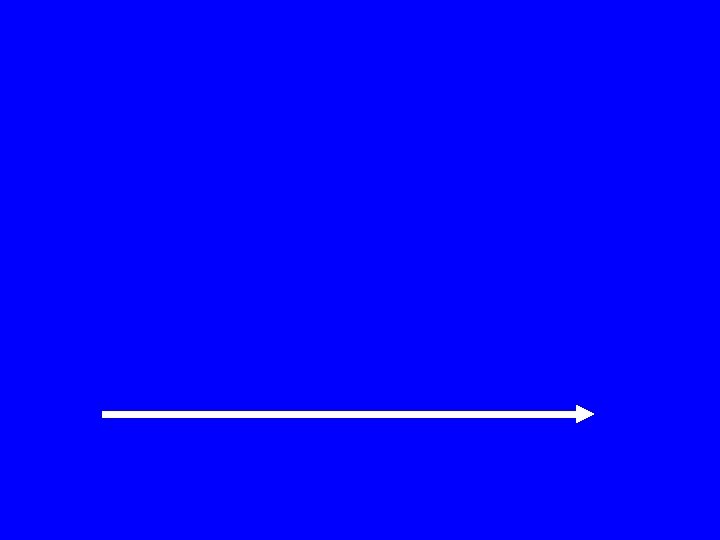

(1) • Draw any one of the vectors with its tail at the starting point or origin

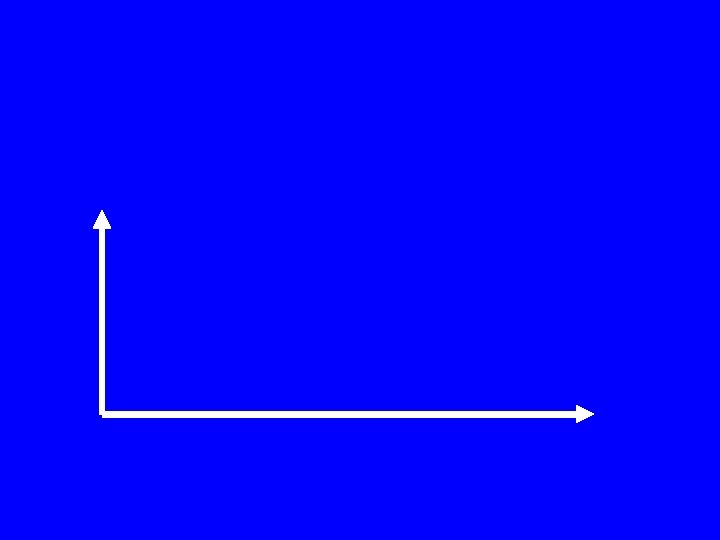

(2) • Draw the vector with its tail at the head of the first vector nd 2

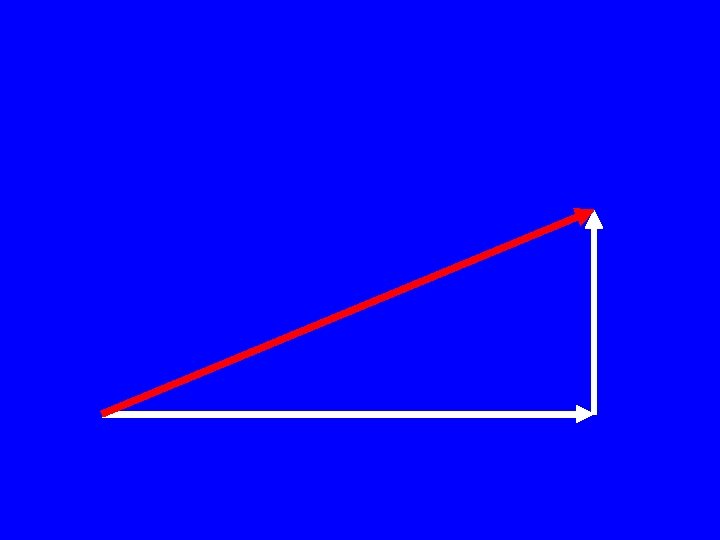

(3) • Draw the resultant vector from the starting st point of the 1 vector to nd the head of the 2
(4) • Measure the length of the resultant to determine the magnitude of the vector

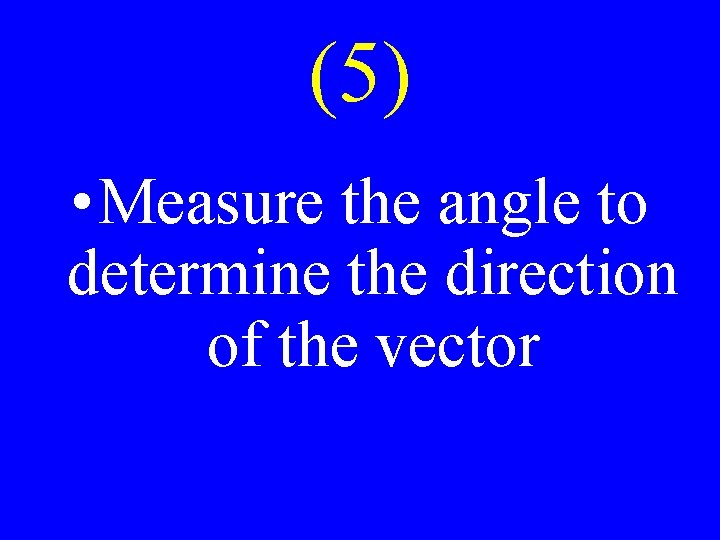

(5) • Measure the angle to determine the direction of the vector
Drill: • An insect crawls 4. 0 cm east, then 3. 0 cm south. Calculate: • a) distance traveled • b) displacement
Practice: • A plane flies 5. 0 km west, then 2500 m south. Calculate: • a) distance traveled • b) displacement
Drill: • A bug crawls 3. 0 cm west, then 40. 0 mm south. Calculate: • a) distance traveled • b) displacement
Drill: • A plane flies 150 m/s east in a 25 m/s wind blowing towards south. Calculate the plane’s velocity relative to the ground.
Review HW • Problems 5 - 10 on page 71
Adding Vectors with Opposite Signs • Vector 1 + (-Vector 2) = Vector 1 – Vector 2
V 2 V 1 V 2 - V 1 VR
Practice: • A bird flies 25 m west, then 57 m east. Calculate: • a) distance traveled • b) displacement
Practice: • A bird flies 14 m west, then 32 m east, then 21 m west. Calculate: • a) distance traveled • b) displacement
A boat travels upstream at 10. 0 m/s in a river flowing at 2. 5 m/s. Calculate the velocity of the boat.

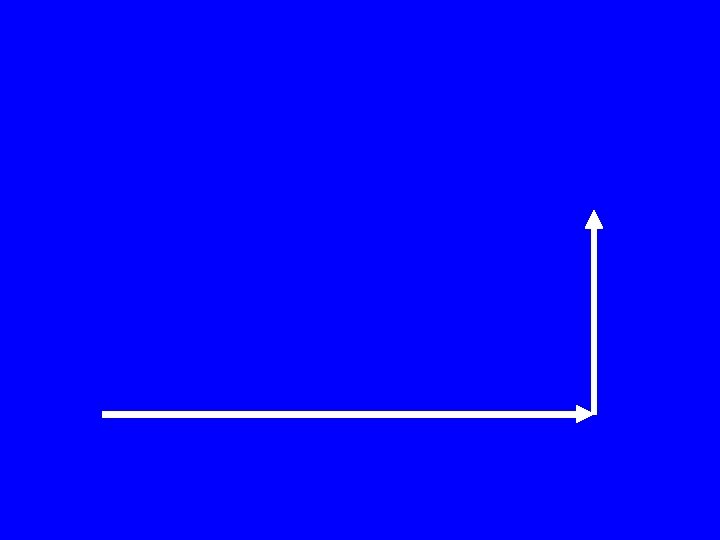

Multiple vectors • When adding multiple vectors, just repeat the process of head of first to tail of second etc.

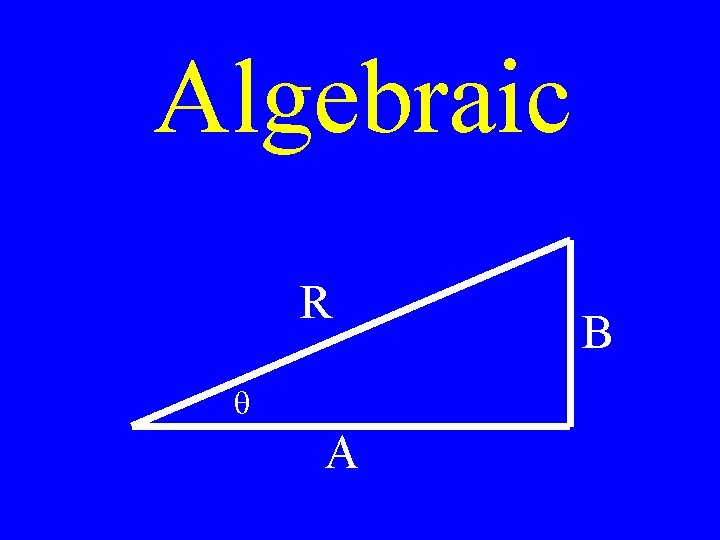

Algebraic R q A B
Practice: • A car goes 3. 0 km west, then 4. 0 km south, then 5. 0 km north. Calculate: • a) distance traveled • b) displacement
Algebraic hyp q adj opp
Solving the problem • Sin q = opp/hyp • Cos q = adj/hyp • Tan q = opp/adj
Algebraic 2 • R 2 A 2 B = + if right angle 2 2 2 • R = A + B – 2 ABcos q otherwise
A ball rolls 45 m north, then is kicked 60. 0 m west. Calculate the distance & displacement of the ball.
A ball thrown at 50. 0 m/s north from a train moving 50. 0 m/s west. Calculate the velocity of the ball.
A boat travels at 4. 0 m/s across in a river flowing at 3. 0 m/s. Calculate the velocity of the boat.
A plane travels at 250 m/s south in a 50. 0 m/s wind blowing east to west. Calculate the velocity of the plane.
A plane travels at 25 m/s south in a 15 m/s wind blowing east to west. Calculate the velocity of the plane.
Drill: A snail travels at 9. 0 cm south then 15. 0 cm west then 6. 0 cm south. Calculate the displacement of the snail.
Check HW • Problems 11 – 14 • Page 74
Vector Resolution • Resolving any vector into its x & y components
y-axis Vector = 100 units at 37 o N o E 37 o x-axis
y-axis Determine the x & y components Hypotenuse Opposite side 37 o Adjacent side
Solving the problem • Sin q = opp/hyp • Cos q = adj/hyp • Tan q = opp/adj
Solving the problem • sin q = opp/hyp • opp = hyp x sin q
Solving the problem • cos q = adj/hyp • adj = hyp x cos q
y-axis Determine the x & y components Hypotenuse = 100 m Opposite side = hyp(sin q) q = 37 o Adjacent side = hyp(cos q)
Trig Functions • x-component = 100(cos = 100(0. 80) = 80 units o 37 ) • y-component = 100(sin = 100(0. 60) = 60 units o 37 )
Resolve the following vector into polar or x & y components: 150 m/s @ o 30 No. E
Resolve the following vector into polar or x & y components: 250 N @ o 37 Eo. S
Resolve the following vector into polar or x & y components: 7500 N @ o 53
Vector Addition Hint: • When adding multiple vectors, just add the vector components. Then solve for the final vector.

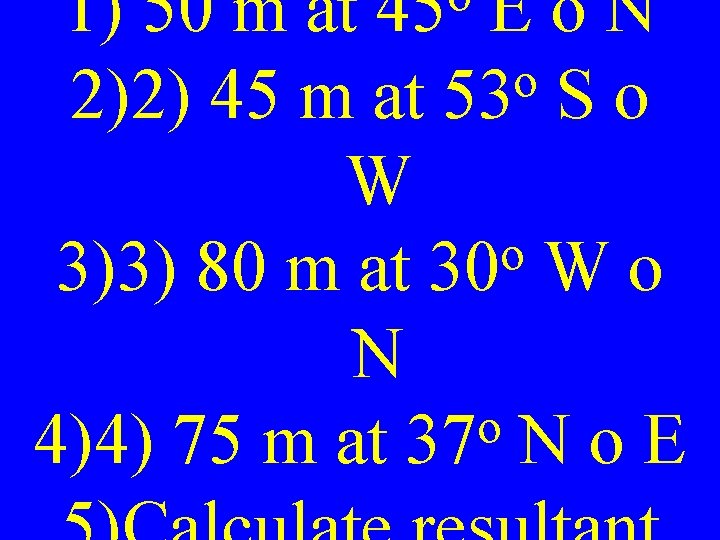

1) 50 m at Eo. N o 2)2) 45 m at 53 S o W o 3)3) 80 m at 30 W o N o 4)4) 75 m at 37 N o E o 45

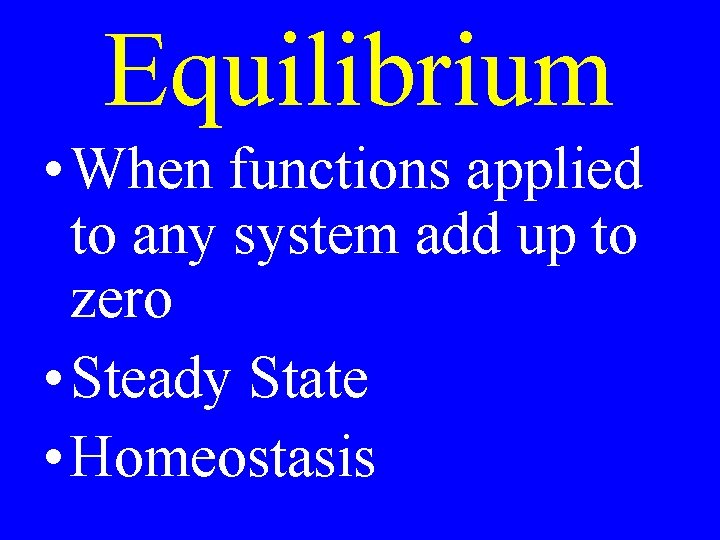

Equilibrium • When functions applied to any system add up to zero • Steady State • Homeostasis
Equilibrant • The vector, when added to a set of vectors, would bring the sum of all the vectors back to the zero point or origin.
An automobile is driven 250 km due west, then 150 km due south. Calculate the resultant vector.
A dog walks 4. 0 miles east, then 6. 0 miles north, then 8. 0 miles west. Calculate the resultant vector.
Drill: A cannon fires a o projectile at 37 from horizontal at 1250 m/s Calculate the x & y components.

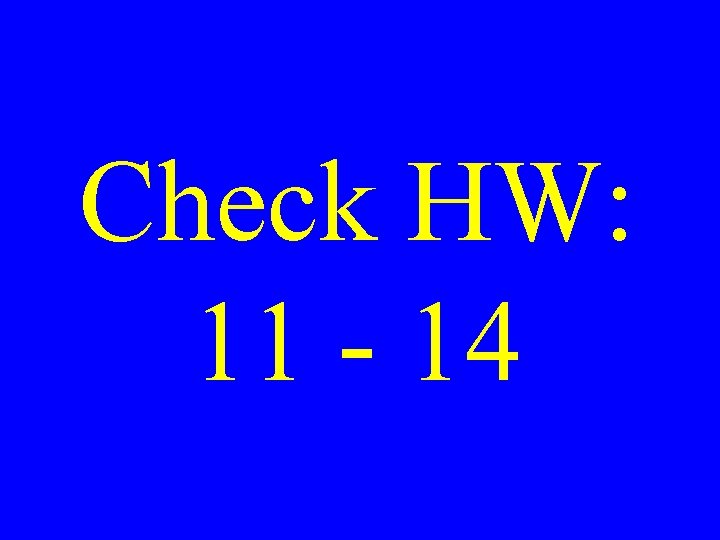

Check HW: 11 - 14
A jet flies 15 km due west then 25 km o at 53. 1 north of west. Calculate the resultant vector.
1) 9. 0 m W 2) 800. 0 cm S 3) 3000. 0 mm E 4) 0. 0035 km N 1)Calculate equilibrant
Resolve a 2. 4 k. N force o vector that is 30. 0 from horizontal into horizontal & vertical components in N:
1) 2. 0 m at o 2) 150. 0 cm at 37 o 3) 3000. 0 mm at 53 o 4) 0. 0040 km at 127 1)Calculate equilibrant o 30
The following forces are acting on a point: o 1) 5. 0 N at 37 o 2) 8. 0 N at 53 Calculate equilibrant
A boat travels at 4. 0 m/s directly across a river flowing at 3. 0 m/s. Calculate the resultant vector.
A boy walks 4. 0 miles east, then 6. 0 miles north, then 4. 0 miles east. Calculate the resultant vector.
A jet flies 15 km due west then 25 km o at 53 north of west. Calculate the resultant vector.
A jet flies 28 km due west then 21 km north. Calculate the resultant vector.
A dog walks 8. 0 m due east then 15 m o at 37 north of east. Calculate the resultant vector.
A jet travels 250 miles o at 37 north of west. Resolve the displacement into north & west components.
1) 50 m at Eo. N o 2)2) 45 m at 53 S o W o 3)3) 80 m at 30 W o N o 4)4) 75 m at 37 N o E o 45
A girl walks 25 m due o east then 15 m at 37 north of east, the 50. 0 m due south. Calculate the resultant vector.
A girl walks 75 m at o 37 north of east, then o 75 m at 53 west of north. Calculate the resultant vector.
1) 50 m at So. W o 2)2) 75 m at 53 E o S o 3)3) 80 m at 37 N o E o 4)4) 75 m at 33 W o N 5)Calculate resultant o 45
Drill: A dog walks: 1) 0. 16 km due north 2) 90. 0 m due east o 3) 25, 000 cm at 37 N o E Calculate: Res. & Eq.
Check HW • Problems 31 & 31 • Page 79
A zombie walks: o 1) 0. 30 km at 30 So. W o 2) 500 m at 45 No. E Calculate resultant:
Drill: A snail crawls: o 1) 25 cm at 37 Wo. S o 2) 400 mm at 30 No. E Calculate resultant:
A telephone pole has a wire pulling with a 3500 o N force attached at 20 from the top of the pole. Calculate the force straight down.
A cat walks: 1) 9. 0 m due south 2) 1500 cm due east o 3) 5, 000 mm at 37 N o E Calculate resultant:
Forces act on a point: o 1) 150 N at 53 Eo. S o 2) 250 N at 37 So. W o 3) 0. 50 k. N at 45 Wo. S Calculate resultant:
o 53 1) 350 N at Wo. S o 2) 150 N at 37 No. W o 3) 0. 25 k. N at 45 Wo. S 4) 250 N due E Calculate resultant:
1) 0. 35 k. N due west 2) 150 N due south o 3) 0. 50 k. N at 45 Eo. N o 4) 250 N at 37 No. E Calculate resultant:
Use graph paper to solve the following: 1) 250 mm due east o 3) 0. 50 mm 53 Eo. N Calculate resultant:
Drill & Collect HW: Solve the following: 1) 360 m due west 3) 0. 27 km due north Calculate resultant:
HW: Solve with trig: o 1) 0. 10 MN 37 So. W o 2) 250 k. N 53 Eo. N 3) 150, 000 N East Calculate resultant:
Use graph paper to solve the following: 1) 3. 0 m due west o 3) 15 m 53 Eo. N Calculate resultant:
1) 0. 35 km due west 2) 250 m due south o 3) 0. 50 km at 45 Eo. N o 4) 150 m at 37 No. E Calculate resultant:
Define the Following: • Scalar • Vector • Magnitude • Direction
Define the Following: • Distance • Displacement • Speed • Velocity
Test Review
Terms to Define: • Equilibrant • Vector Resultant • Scalar • Vector Resolution
Metric Prefixes: • Centi • Giga • Micro • Nano Kilo Mega Milli
Trig Functions: • Sin q Pytha • Cos q Theorem • Tan q • Law of Cosines
Add the 3 Vectors Graphically: • 50. 0 m west • 90. 0 m north • 170 m east
Add the 2 Vectors Mathematically: • 20. 0 m west o • 0. 10 km @ 37 No. E

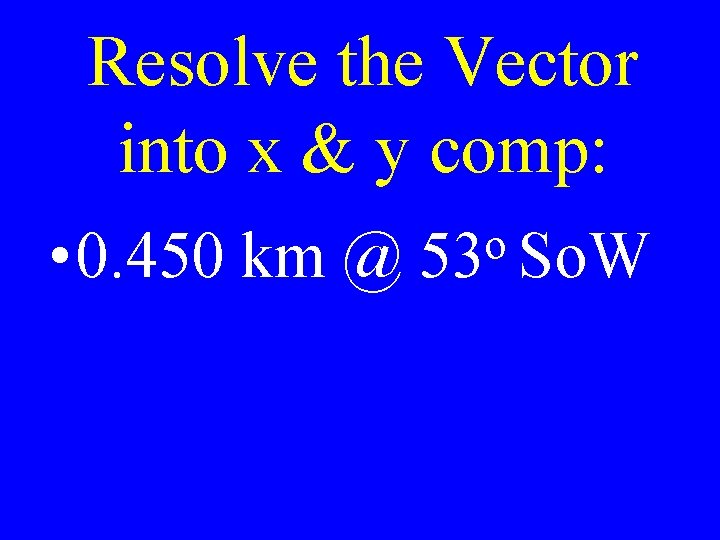

Resolve the Vector into x & y comp: • 0. 450 km @ o 53 So. W
Add the 3 Vectors using vector components: • 75 m @ No. W o • 90. 0 m @ 37 No. E o • 150 m @ 53 So. W o 37
