VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Valiant Communications Limited Telecom Transmission Solutions VCL-MX™ Version 2 E 1, 2 Mbps 30 Channel Drop-Insert Voice & Data Multiplexer Product Presentation Updated: April, 2010 Copyright : Valiant Communications Limited. - 2010 Slide 1

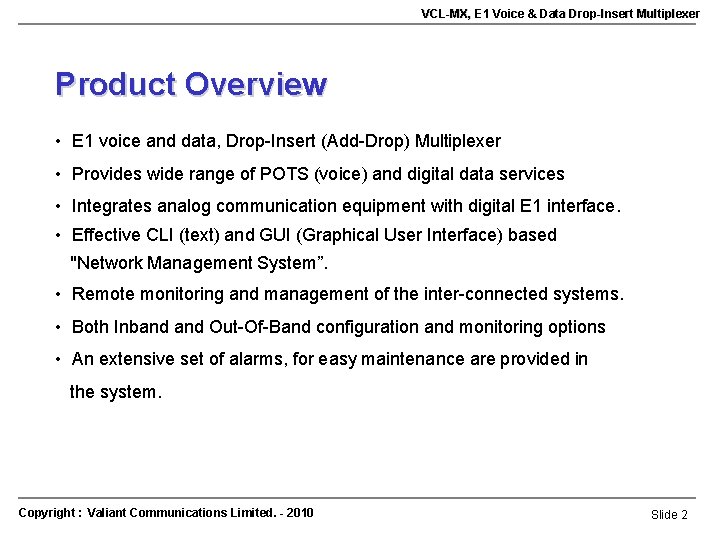

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Product Overview • E 1 voice and data, Drop-Insert (Add-Drop) Multiplexer • Provides wide range of POTS (voice) and digital data services • Integrates analog communication equipment with digital E 1 interface. • Effective CLI (text) and GUI (Graphical User Interface) based "Network Management System”. • Remote monitoring and management of the inter-connected systems. • Both Inband Out-Of-Band configuration and monitoring options • An extensive set of alarms, for easy maintenance are provided in the system. Copyright : Valiant Communications Limited. - 2010 Slide 2

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Voice Interface Options • FXO • FXS • E&M (2 Wire and 4 Wire) • E&M - Ext (User configurable gain/attenuation) • FXS-FXS (Hot-line) Copyright : Valiant Communications Limited. - 2010 Slide 3

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Data Interface Options • RS 232 • RS 485 • G. 703 @ 64 Kbps, co-directional • i. DSL Copyright : Valiant Communications Limited. - 2010 Slide 4

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer VCL-MX-Version # 2 - Voice and Data Drop-Insert Multiplexer with In-band Management Interface Front View Copyright : Valiant Communications Limited. - 2010 Slide 5

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Rear View Core System Composition Description Part No. 19 -Inch Shelf 3 U high 19 - Inch Shelf and Backplane Slot 1 Power Supply Card VCL-MX-010 Slot 2 Ringer Card VCL-MX-040 Slot 3 to 17 15 User Configurable voice & data interface(s) Slot 18 LAN / NMS Card VCL-MX-NMS Slot 19 Control Card 1 with In-Band Management Interface VCL-MX-015 -2 Copyright : Valiant Communications Limited. - 2010 VCL-MX-002/120 As per user requirement Slide 6

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Features • Voice and Digital Data services. • Any combination ("mix-n-match") of Voice and Digital Data services deployed from a single VCL-MX "Smart Shelf". • Drop and Insert applications. • Wireless applications including Cellular Networks. • Digital Microwave Radio. • Frame Relay circuit termination. • Powerful Network Management System for monitoring and network control. • Compliance with all relevant ITU-T (CCITT) recommendations. • 3 U high, compact construction. Copyright : Valiant Communications Limited. - 2010 Slide 7

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Highlights • Field upgradable to provide voice, data or both services. • Flexibility on use of transmission medium - copper, fiber, or wireless. • Choice of Interfaces for voice and Data Applications. • RS-232, PC Interface "Network Control And Management Software". • In-band system configuration and management interface. • Out-of-band system configuration and management interface through 10 Base. T Terminal (Optional) • Channel assignment independent of slot position in the subrack. • Extensive set of alarms. • User Configurable Internal or Loop-Timed synchronization clock options. Copyright : Valiant Communications Limited. - 2010 Slide 8

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Transmission Mediums • Copper • Optical Fiber • Wireless Copyright : Valiant Communications Limited. - 2010 Slide 9

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Applications of VCL-MX Version 2 • POTS (voice) and low speed (64 Kbps) data • Junction Mux - for digital interconnection of analog exchanges. • Drop & Insert applications. • Wireless network applications. • Micro-Cellular infrastructure applications for providing cell-switch connectivity. • Wide area networking. Copyright : Valiant Communications Limited. - 2010 Slide 10

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Applications Application # 01: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Connecting over Digital Microwave Radio Links Copyright : Valiant Communications Limited. - 2010 Slide 11

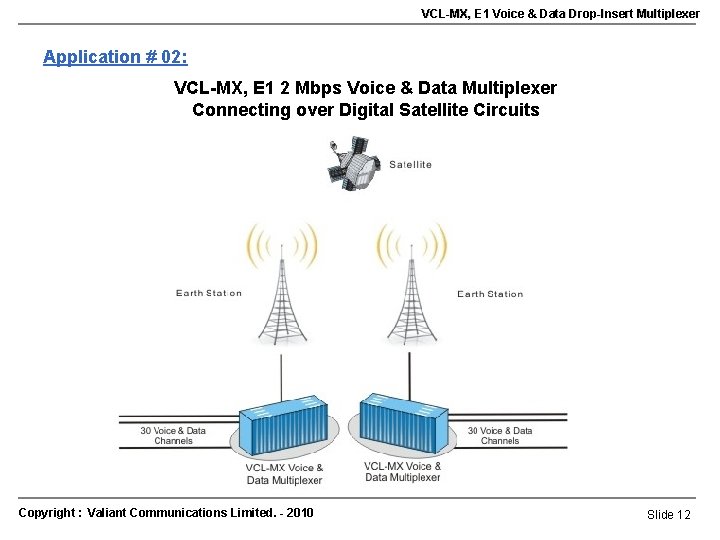

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Application # 02: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Connecting over Digital Satellite Circuits Copyright : Valiant Communications Limited. - 2010 Slide 12

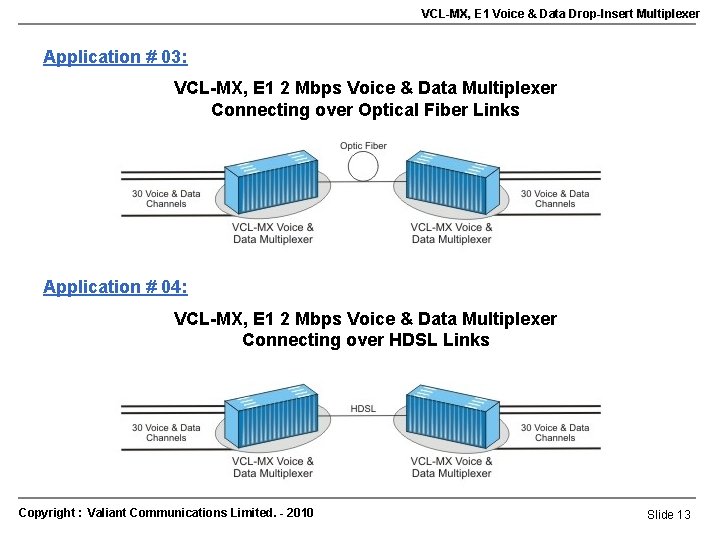

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Application # 03: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Connecting over Optical Fiber Links Application # 04: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Connecting over HDSL Links Copyright : Valiant Communications Limited. - 2010 Slide 13

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Application # 05: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Connecting at the Central Office/Switch - E & M Interfaces Copyright : Valiant Communications Limited. - 2010 Slide 14

VCL-MX, E 1 Voice & Data Drop-Insert Multiplexer Application # 06: VCL-MX, E 1 2 Mbps Voice & Data Multiplexer Using in a Subscriber Loop Point to Point or Drop/Insert Application FXO/JNC 2 wire exchange loop interface card FXS/SLC 2 wire subscriber loop interface card Copyright : Valiant Communications Limited. - 2010 Slide 15
