VCI anticorrosion and Industrial packaging By Jinny Kim
VCI anticorrosion and Industrial packaging By Jinny Kim Business Manager - Industrial 1
VCI Packaging Materials § VCI film contains Volatile Corrosion Inhibitor compounds that emit amine vapour that travel to metal surfaces and protect them from corrosion. § Made by one of the world’s reputable companies specializing in VCI packaging who have 2 R&D centres and 5 manufacturing plants in China. § ISO 9001 and ISO 14001 certified § Customers include Bluescope, GE, Baosteel, Posco, BMW, Arcelor. Mittal. § Features include antistatic, VCI for ferrous metals or multi-metals, high strength, heat seal, heat shrink. 2

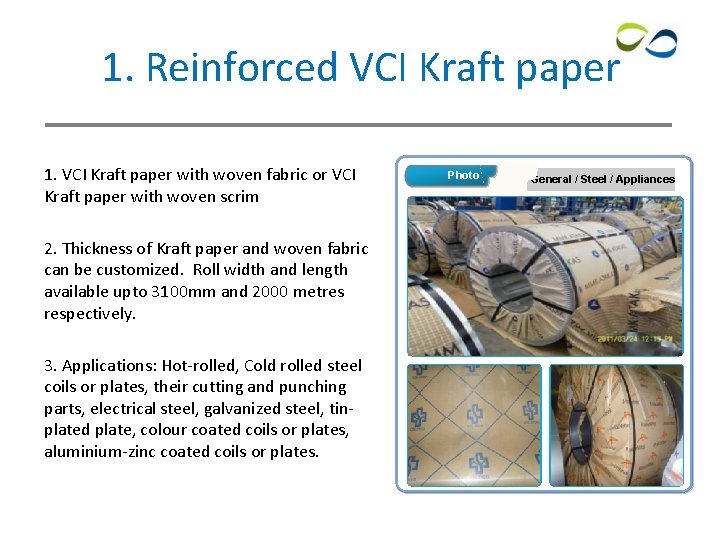

1. Reinforced VCI Kraft paper 1. VCI Kraft paper with woven fabric or VCI Kraft paper with woven scrim 2. Thickness of Kraft paper and woven fabric can be customized. Roll width and length available upto 3100 mm and 2000 metres respectively. 3. Applications: Hot-rolled, Cold rolled steel coils or plates, their cutting and punching parts, electrical steel, galvanized steel, tinplated plate, colour coated coils or plates, aluminium-zinc coated coils or plates. Photo General / Steel / Appliances 사진입력 1 3

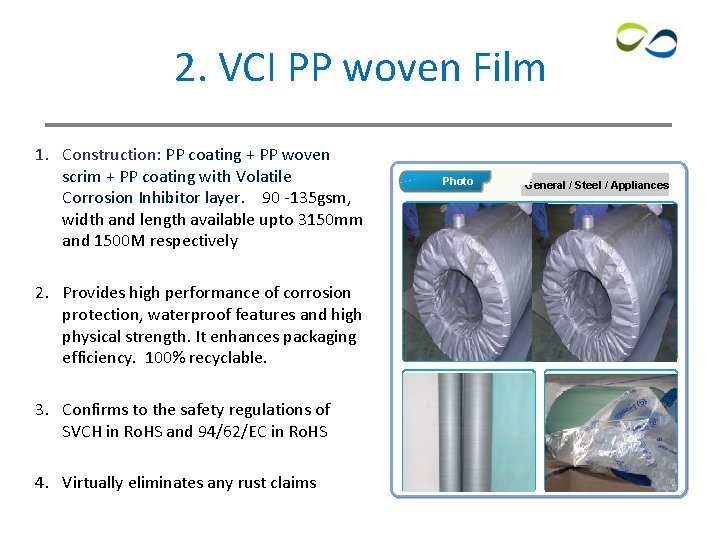

2. VCI PP woven Film 1. Construction: PP coating + PP woven scrim + PP coating with Volatile Corrosion Inhibitor layer. 90 -135 gsm, width and length available upto 3150 mm and 1500 M respectively 2. Provides high performance of corrosion protection, waterproof features and high physical strength. It enhances packaging efficiency. 100% recyclable. Photo General / Steel / Appliances 사진입력 1 3. Confirms to the safety regulations of SVCH in Ro. HS and 94/62/EC in Ro. HS 4. Virtually eliminates any rust claims 4

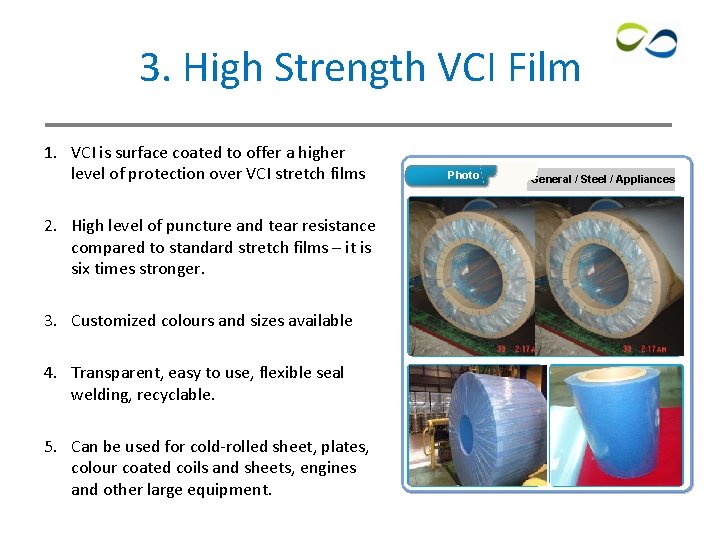

3. High Strength VCI Film 1. VCI is surface coated to offer a higher level of protection over VCI stretch films 2. High level of puncture and tear resistance compared to standard stretch films – it is six times stronger. Photo General / Steel / Appliances 사진입력 1 3. Customized colours and sizes available 4. Transparent, easy to use, flexible seal welding, recyclable. 5. Can be used for cold-rolled sheet, plates, colour coated coils and sheets, engines and other large equipment. 5

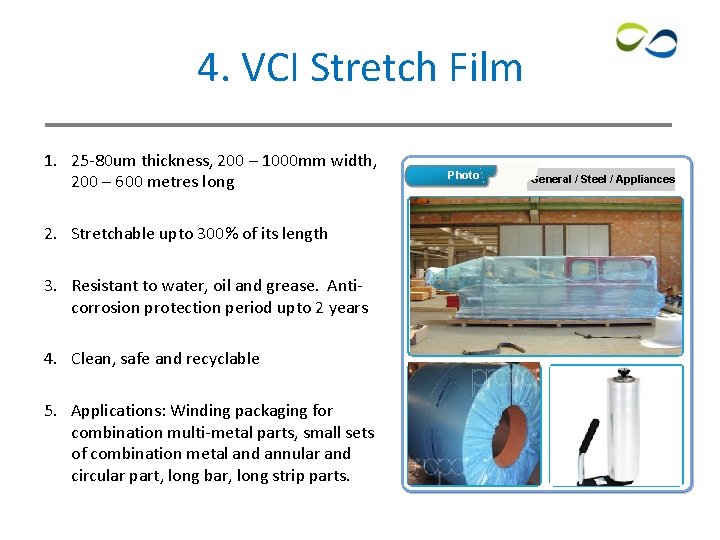

4. VCI Stretch Film 1. 25 -80 um thickness, 200 – 1000 mm width, 200 – 600 metres long Photo General / Steel / Appliances 2. Stretchable upto 300% of its length 3. Resistant to water, oil and grease. Anticorrosion protection period upto 2 years 사진입력 1 4. Clean, safe and recyclable 5. Applications: Winding packaging for combination multi-metal parts, small sets of combination metal and annular and circular part, long bar, long strip parts. 6
5. VCI Reinforced Alu-Poly 1. Reinforced aluminium layer is laminated onto VCI film 2. Offers multifunctional protective packaging i. e. vacuum packing, VCI, high physical strength. It protects metals from corrosion, air, vapour, dust and sunlight. Photo General / Steel / Appliances 사진입력 1 3. It decreases aging speed and barrier electromagnetism 4. Suitable for machinery, electric products, machine tools, military equipment, printing presses, rubber processing equipment, engines and other heavy duty equipment and components 7

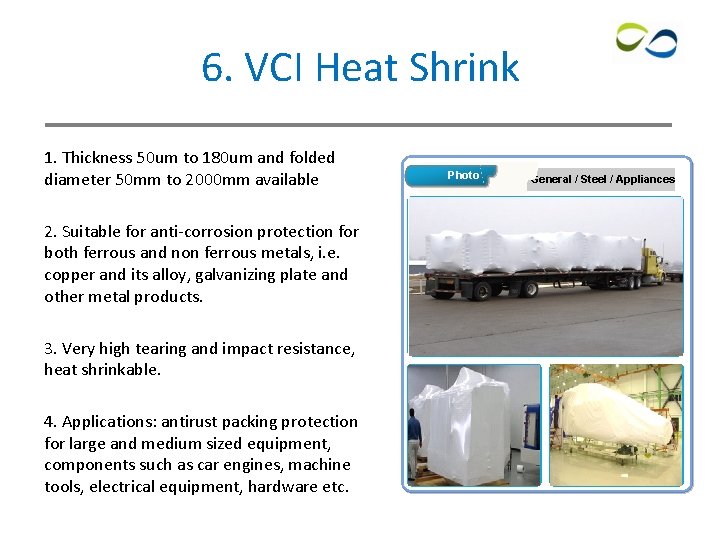

6. VCI Heat Shrink 1. Thickness 50 um to 180 um and folded diameter 50 mm to 2000 mm available 2. Suitable for anti-corrosion protection for both ferrous and non ferrous metals, i. e. copper and its alloy, galvanizing plate and other metal products. Photo General / Steel / Appliances 사진입력 1 3. Very high tearing and impact resistance, heat shrinkable. 4. Applications: antirust packing protection for large and medium sized equipment, components such as car engines, machine tools, electrical equipment, hardware etc. 8

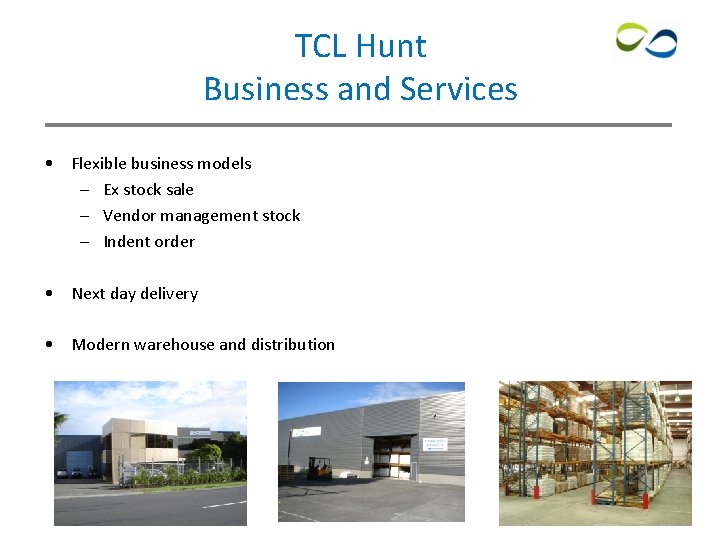

TCL Hunt Business and Services • Flexible business models – Ex stock sale – Vendor management stock – Indent order • Next day delivery • Modern warehouse and distribution 9
The end 10
